◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50943 - NKR55,66,69,71,77LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-84A - FEED PUMP; INJECTION PUMP ▶
0-84A — FEED PUMP; INJECTION PUMP (#50749) — 6 parça

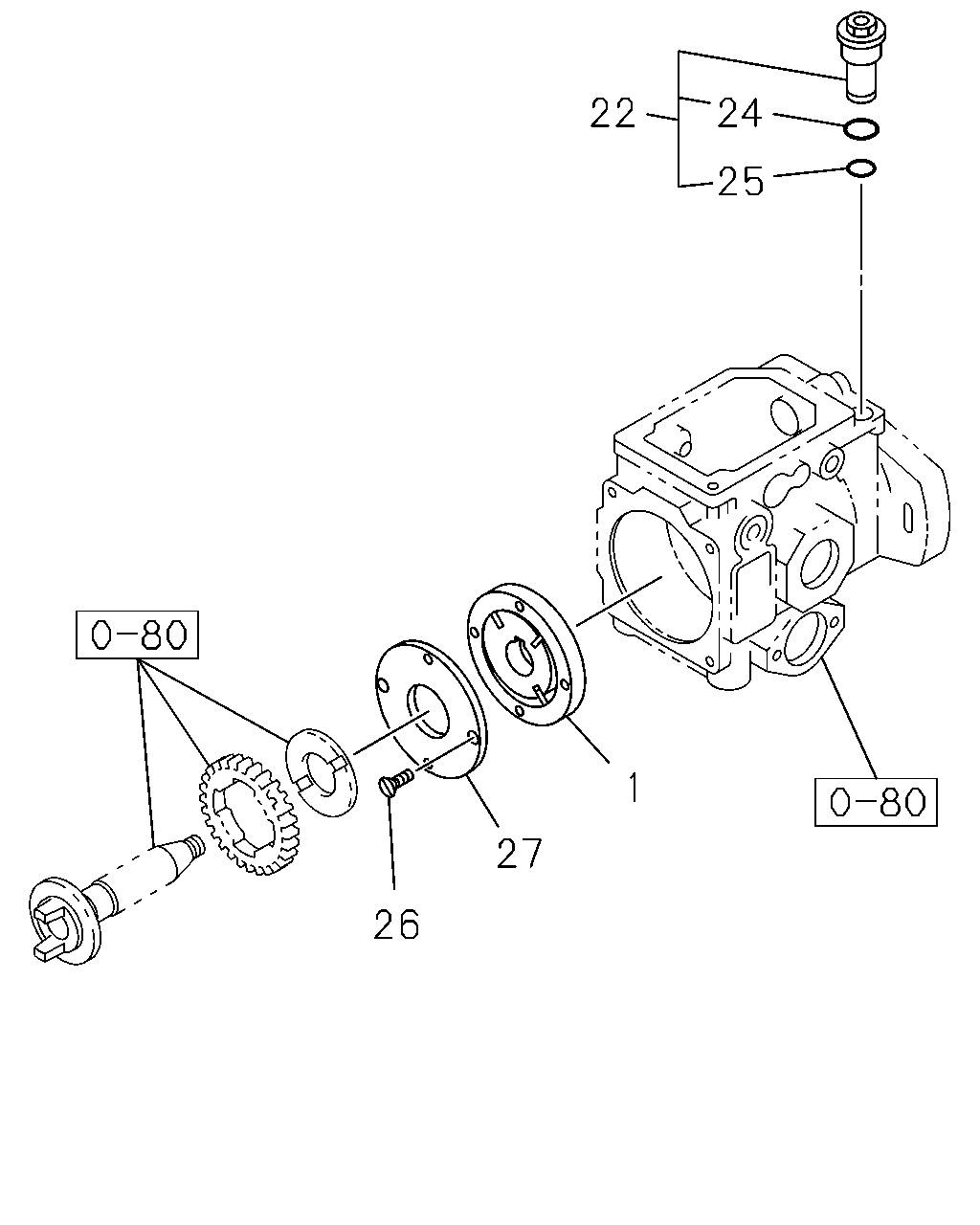

çizim 45039
22 24 25 1 27 26
BalonParca AdiParca NoAdetTipApplied Date
1 03.900 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147 		8-97140-765-0 01 1 -
22 03.901 VALVE; REGULATING,INJ PUMP
ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147 		8-97161-916-0 01 1 -
24 03.904 GASKET; REGULATING VLV,INJ PUMP
ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147 		8-97141-212-0 01 1 -
25 03.904 GASKET; REGULATING VLV,INJ PUMP
ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147 		8-97209-534-0 01 1 -
26 03.901 SCREW; COVER FIX,FUEL FEED PUMP
ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147 		8-97141-184-0 02 1 -
27 03.910 COVER; FUEL FEED PUMP
ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147 		8-97140-932-0 01 1 -
