Sayfa 0-80A - Isuzu EPC

0-80A — INJECTION PUMP (#50733) — 137 parça

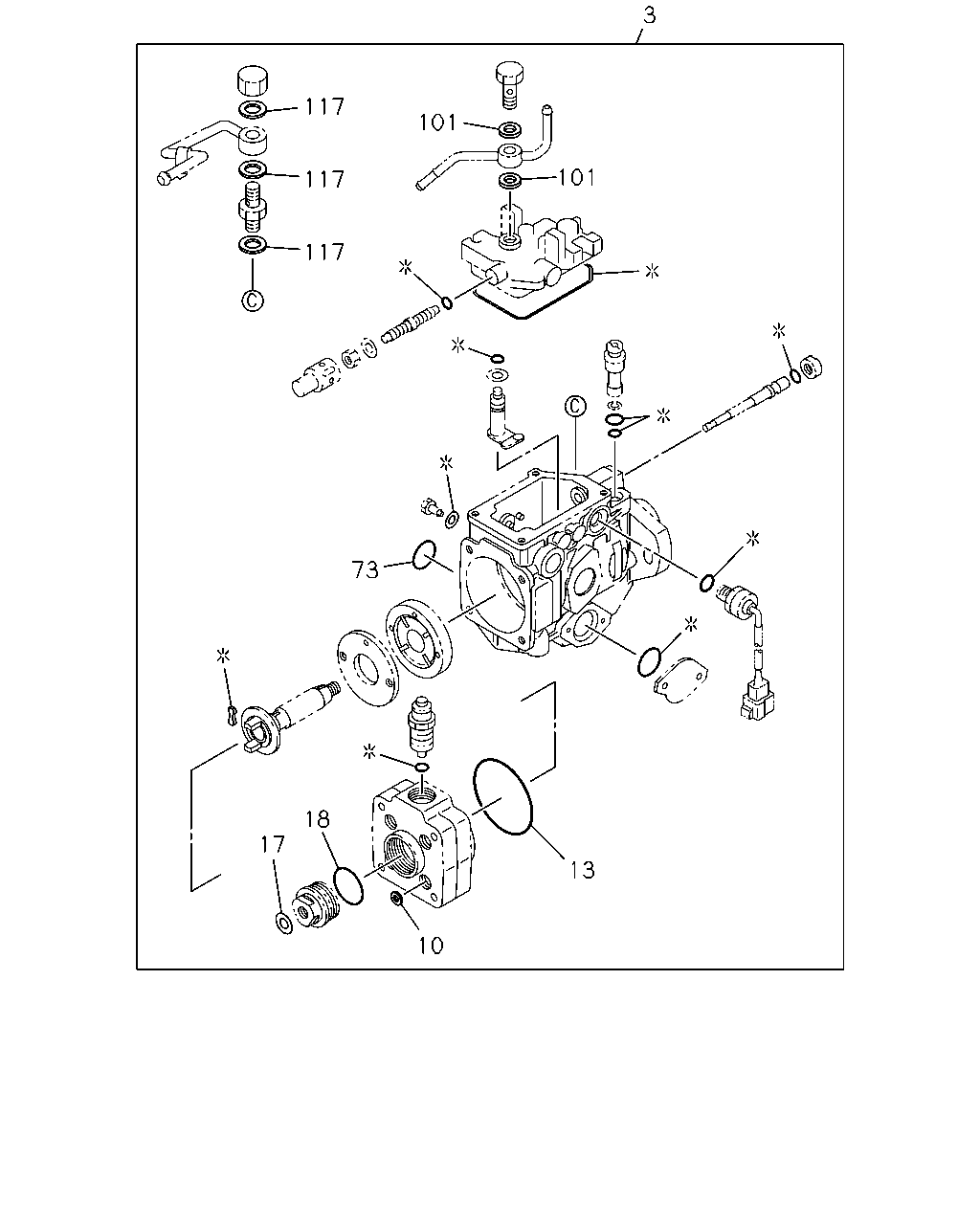

3 117 101 101 117 117 73 18 17 13 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97140-880-0	04	1	-
13	03.330 GASKET; DISTR HD,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-158-0	01	1	-
17	03.306 GASKET; BOLT,DISTR PLUG,INJ PUMP 03.308 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-149-0	01	1	-
18	03.306 GASKET; DISTR PLUG,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97209-532-0	01	1	-
73	03.306 GASKET; COVER TO HSG 03.330, ID=27.5 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97140-980-0	01	1	-
101	03.162 GASKET; OVERFLOW VLV,INJ PUMP ID=12.2 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-182-0	02	1	-
117	03.162 GASKET; EYE BOLT,INJ PUMP ID=12.2 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-182-0	03	1	-

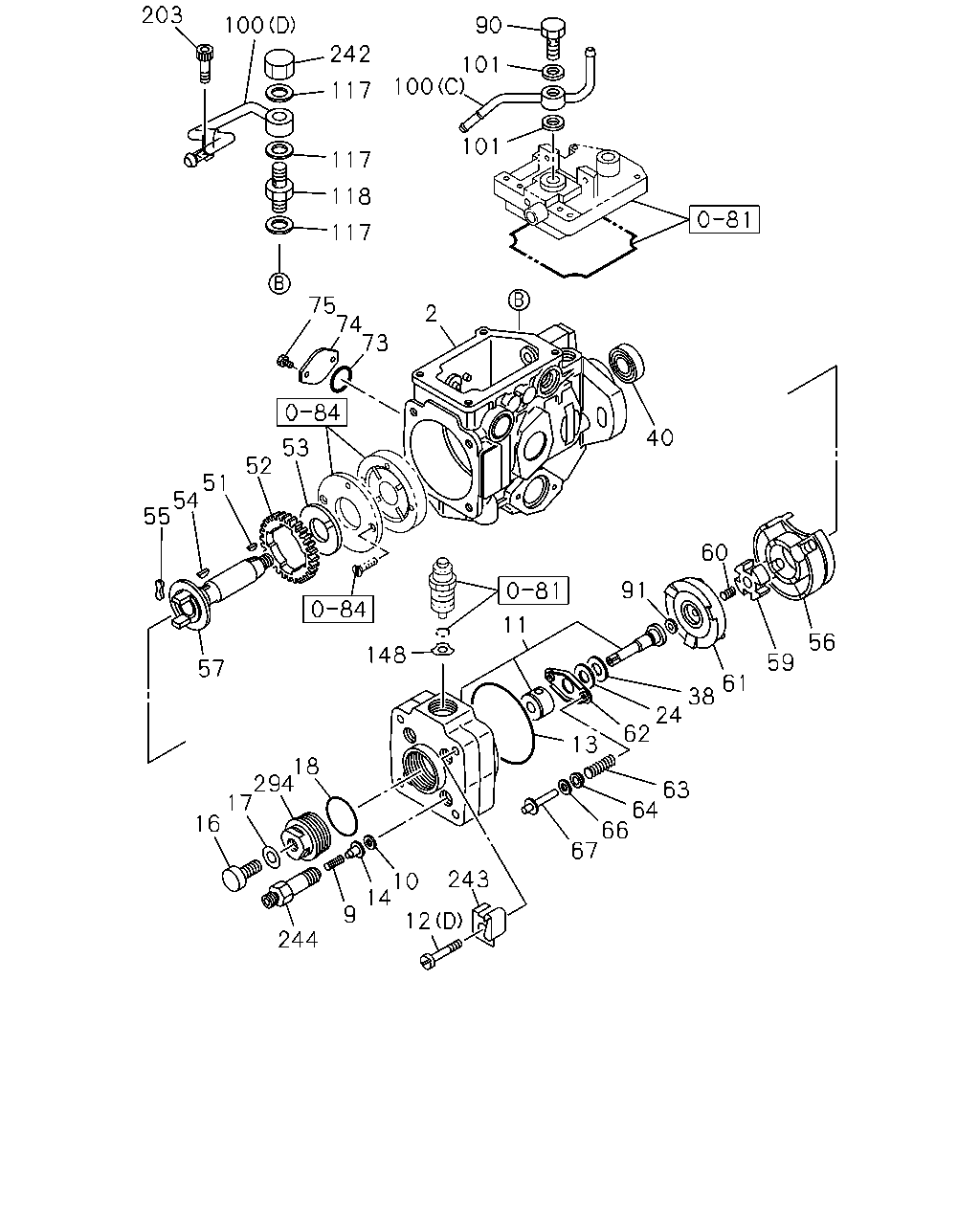

203 100 242 117 101 117 101 118 90 117 100 74 73 75 40 53 2 51 54 55 2 60 91 11 57 56 59 61 38 24 62 12 13 18 294 17 16 63 64 66 67 10 14 9 244 243

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	03.300 HOUSING ASM; PUMP,FUEL INJ ASM PART: A = 8-97138-842-3, 97138842	8-97161-855-0	01	1	-
2	03.300 HOUSING ASM; PUMP,FUEL INJ ASM PART: B = 8-97228-147-1, 97228147	8-97234-560-0	01	1	-
9	03.302 SPRING; DELIVERY VLV ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-868-0	04	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97140-880-0	04	1	-
11	03.330 HEAD ASM; DISTR,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-856-0	01	1	-
12	03.330 SCREW; DISTR HD,INJ PUMP (D), M6X45 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-258-0	04	1	-
13	03.330 GASKET; DISTR HD,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-158-0	01	1	-
14	03.302 VALVE; DELIVERY,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-867-0	04	1	-
16	03.330 BOLT; DISTR PLUG,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-902-0	01	1	-
17	03.306 GASKET; BOLT,DISTR PLUG,INJ PUMP 03.308 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-149-0	01	1	-
18	03.306 GASKET; DISTR PLUG,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97209-532-0	01	1	-
24	03.318 WASHER; PLUNGER,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97140-905-0	01	1	-
38	03.318 SHIM; PLUNGER BARREL,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97140-903-0	01	1	-
40	03.340 SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97140-940-0	01	1	-
51	03.340 KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97140-939-0	01	1	-
53	03.330 WASHER; GOV DRIVE GEAR,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97140-930-0	01	1	-
54	03.340 KEY; FEED PUMP,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97140-936-0	01	1	-
55	03.340 DAMPER; CAM DRIVE,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97140-928-0	02	1	-
56	03.340 ROLLER ASM; TIMER,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-858-0	01	1	-
57	03.340 SHAFT; DRIVE,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-857-0	01	1	-
59	03.340 DISC; DRIVE,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-877-0	01	1	-
60	03.320 SPRING; DRIVE DISC,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-876-0	01	1	-
61	03.300 CAM; DISC,PLUNGER,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-869-0	01	1	-
62	03.320 SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-151-0	01	1	-
63	03.302 SPRING; PLUNGER,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-155-0	02	1	-
64	03.320 SEAT; PLUNGER SPRING LWR,INJ PUM ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-156-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.50 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-265-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.80 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-266-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.00 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-267-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.20 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-268-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.50 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-269-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.80 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-270-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.00 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-271-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.90 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-272-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.10 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-273-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.30 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-274-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.40 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-275-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.20 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-918-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.30 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-919-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.40 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-920-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.60 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-921-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.70 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-922-0	02	1	-
67	03.330 PIN; GUIDE,PLUNGER SPRING ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-152-0	02	1	-
73	03.306 GASKET; COVER TO HSG 03.330, ID=27.5 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97140-980-0	01	1	-
74	03.300 COVER; HSG,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97140-967-0	01	1	-
75	03.330 SCREW; COVER TO HSG M6X16 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97140-853-0	02	1	-
90	03.318 VALVE; OVERFLOW,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-906-0	01	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP T=1.90 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-431-0	01	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP T=2.20 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-955-0	01	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP T=2.40 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-956-0	01	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP T=2.70 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-957-0	01	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP T=2.90 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-958-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (C) ASM PART: A = 8-97138-842-3, 97138842	8-97161-964-1	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (D) ASM PART: A = 8-97138-842-3, 97138842	8-97161-965-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (A) ASM PART: B = 8-97228-147-1, 97228147	8-97234-582-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (B) ASM PART: B = 8-97228-147-1, 97228147	8-97234-583-0	01	1	-
101	03.162 GASKET; OVERFLOW VLV,INJ PUMP ID=12.2 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-182-0	02	1	-
117	03.162 GASKET; EYE BOLT,INJ PUMP ID=12.2 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-182-0	03	1	-
118	03.162 BOLT; EYE,FUEL INL,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-240-0	01	1	-
203	03.330 BOLT; FUEL INL ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-960-0	01	1	-
242	03.308 NUT; CAP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-252-0	01	1	-
243	03.308 CLIP; DISTR HD,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-968-0	01	1	-
244	03.302 VALVE; SNUBBER,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-866-0	04	1	-
294	03.305 PLUG; DISTR,INJ PUMP 03.330 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-143-0	01	1	-

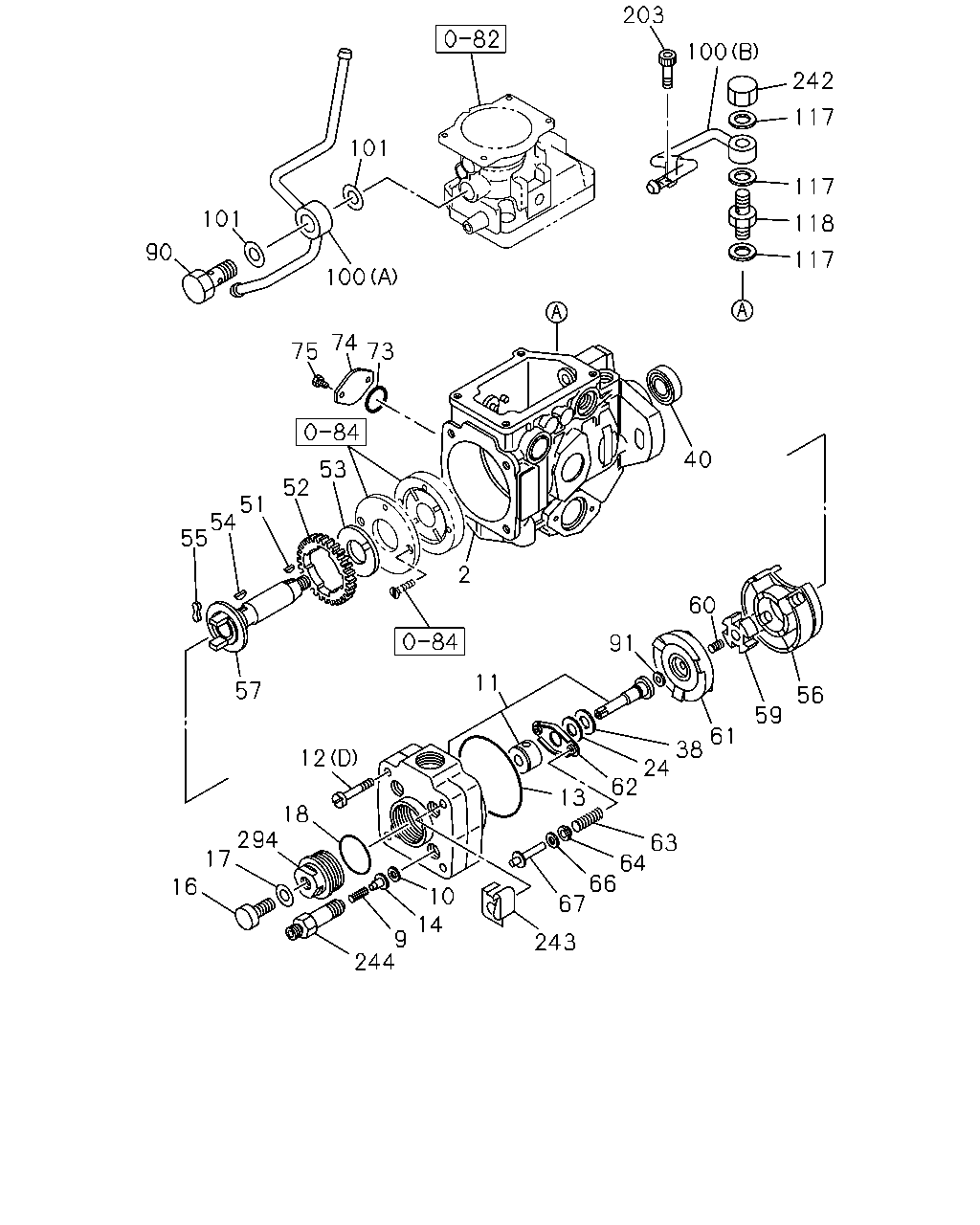

203 100 90 242 101 100 117 101 117 118 117 75 74 73 2 40 53 52 51 54 55 60 91 11 56 148 59 57 61 38 24 62 13 18 294 17 16 63 64 66 67 243 10 14 9 12 244

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	03.300 HOUSING ASM; PUMP,FUEL INJ ASM PART: A = 8-97138-842-3, 97138842	8-97161-855-0	01	1	-
2	03.300 HOUSING ASM; PUMP,FUEL INJ ASM PART: B = 8-97228-147-1, 97228147	8-97234-560-0	01	1	-
9	03.302 SPRING; DELIVERY VLV ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-868-0	04	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97140-880-0	04	1	-
11	03.330 HEAD ASM; DISTR,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-856-0	01	1	-
12	03.330 SCREW; DISTR HD,INJ PUMP (D), M6X45 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-258-0	04	1	-
13	03.330 GASKET; DISTR HD,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-158-0	01	1	-
14	03.302 VALVE; DELIVERY,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-867-0	04	1	-
16	03.330 BOLT; DISTR PLUG,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-902-0	01	1	-
17	03.306 GASKET; BOLT,DISTR PLUG,INJ PUMP 03.308 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-149-0	01	1	-
18	03.306 GASKET; DISTR PLUG,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97209-532-0	01	1	-
24	03.318 WASHER; PLUNGER,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97140-905-0	01	1	-
38	03.318 SHIM; PLUNGER BARREL,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97140-903-0	01	1	-
40	03.340 SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97140-940-0	01	1	-
51	03.340 KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97140-939-0	01	1	-
52	03.340 GEAR; GOV DRIVE,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97140-927-0	01	1	-
53	03.330 WASHER; GOV DRIVE GEAR,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97140-930-0	01	1	-
54	03.340 KEY; FEED PUMP,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97140-936-0	01	1	-
55	03.340 DAMPER; CAM DRIVE,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97140-928-0	02	1	-
56	03.340 ROLLER ASM; TIMER,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-858-0	01	1	-
57	03.340 SHAFT; DRIVE,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-857-0	01	1	-
59	03.340 DISC; DRIVE,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-877-0	01	1	-
60	03.320 SPRING; DRIVE DISC,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-876-0	01	1	-
61	03.300 CAM; DISC,PLUNGER,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-869-0	01	1	-
62	03.320 SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-151-0	01	1	-
63	03.302 SPRING; PLUNGER,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-155-0	02	1	-
64	03.320 SEAT; PLUNGER SPRING LWR,INJ PUM ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-156-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.50 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-265-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.80 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-266-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.00 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-267-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.20 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-268-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.50 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-269-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.80 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-270-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.00 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-271-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.90 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-272-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.10 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-273-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.30 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-274-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.40 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-275-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.20 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-918-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.30 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-919-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.40 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-920-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.60 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-921-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.70 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-922-0	02	1	-
67	03.330 PIN; GUIDE,PLUNGER SPRING ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-152-0	02	1	-
73	03.306 GASKET; COVER TO HSG 03.330, ID=27.5 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97140-980-0	01	1	-
74	03.300 COVER; HSG,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97140-967-0	01	1	-
75	03.330 SCREW; COVER TO HSG M6X16 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97140-853-0	02	1	-
90	03.318 VALVE; OVERFLOW,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-906-0	01	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP T=1.90 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-431-0	01	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP T=2.20 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-955-0	01	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP T=2.40 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-956-0	01	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP T=2.70 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-957-0	01	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP T=2.90 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-958-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (C) ASM PART: A = 8-97138-842-3, 97138842	8-97161-964-1	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (D) ASM PART: A = 8-97138-842-3, 97138842	8-97161-965-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (A) ASM PART: B = 8-97228-147-1, 97228147	8-97234-582-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (B) ASM PART: B = 8-97228-147-1, 97228147	8-97234-583-0	01	1	-
101	03.162 GASKET; OVERFLOW VLV,INJ PUMP ID=12.2 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-182-0	02	1	-
117	03.162 GASKET; EYE BOLT,INJ PUMP ID=12.2 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-182-0	03	1	-
118	03.162 BOLT; EYE,FUEL INL,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-240-0	01	1	-
148	03.306 GASKET; COVER FIX BOLT ASM PART: A = 8-97138-842-3, 97138842	8-97141-573-0	01	1	-
203	03.330 BOLT; FUEL INL ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-960-0	01	1	-
242	03.308 NUT; CAP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-252-0	01	1	-
243	03.308 CLIP; DISTR HD,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-968-0	01	1	-
244	03.302 VALVE; SNUBBER,INJ PUMP ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97161-866-0	04	1	-
294	03.305 PLUG; DISTR,INJ PUMP 03.330 ASM PART: A = 8-97138-842-3, 97138842, B = 8-97228-147-1, 97228147	8-97141-143-0	01	1	-
