Sayfa 0-66 - Isuzu EPC

0-66 — GENERATOR (#50732) — 397 parça

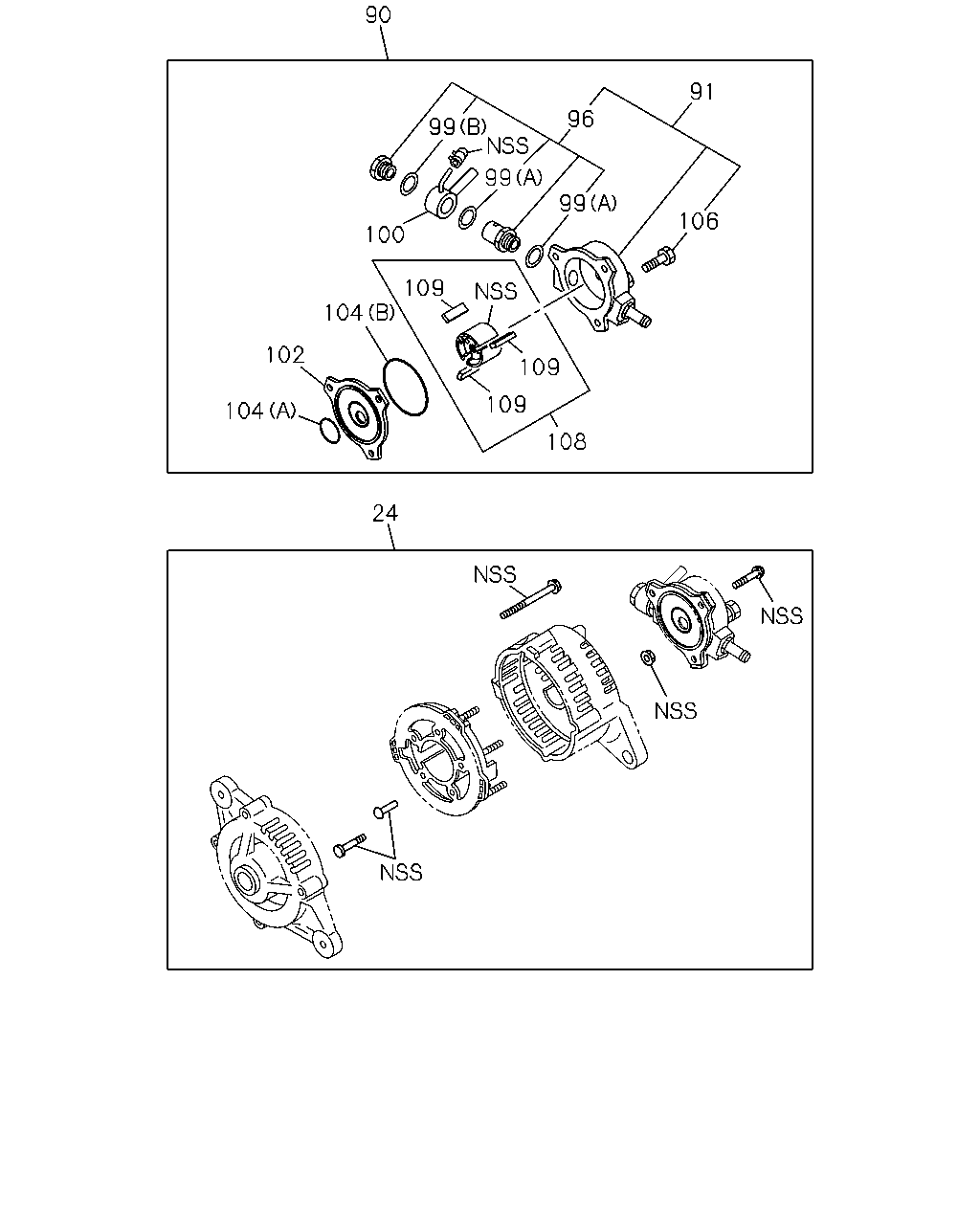

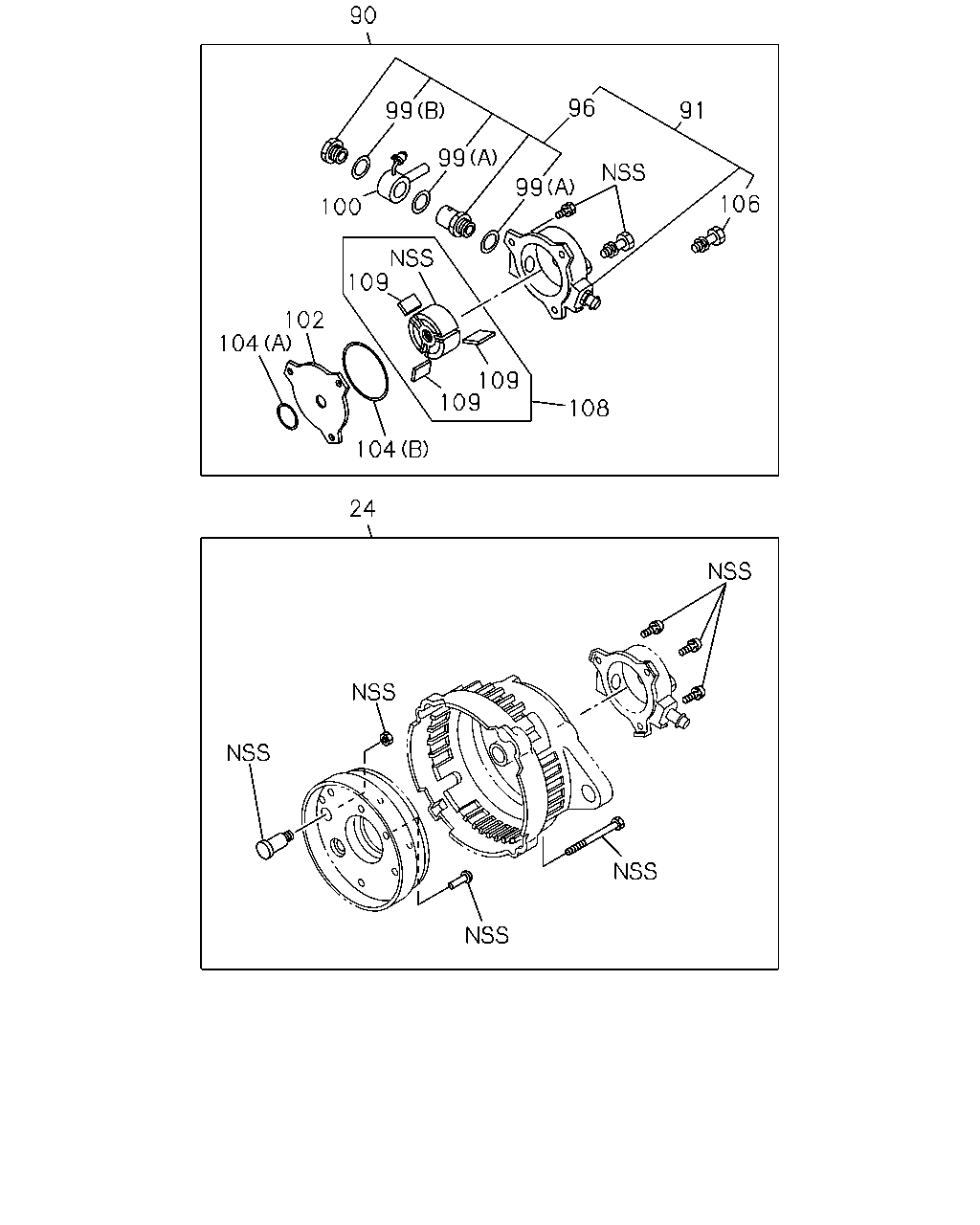

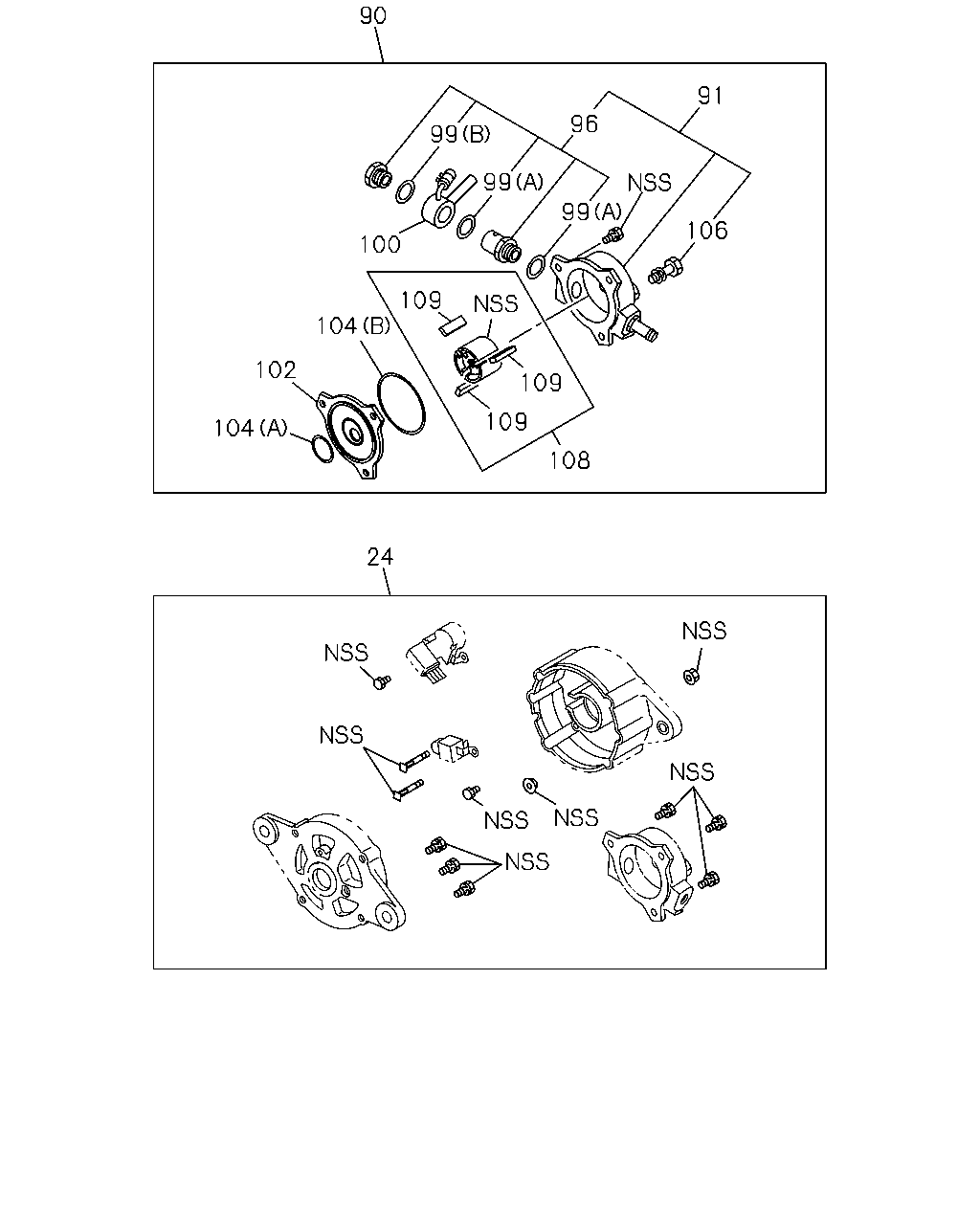

109 104 102 104 24 108 109 109 106 99 96 99 99 91 100 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658	8-94156-603-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	8-97131-532-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-97161-697-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-97186-551-1, 97186551	8-97148-114-1	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: D = 8-97240-270-2, 97240270	8-97313-450-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: E = 8-97249-209-3, 97249209	8-97313-451-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-97351-341-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97351-572-1, 97351572	8-97351-707-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	8-97148-117-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-97236-694-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-94223-991-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP 02.307 ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	8-97148-118-0	01	1	-
99	03.280 GASKET; VAC PUMP (C), ID=18 OD=24 ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (D), ID=12 OD=24 ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-94223-993-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-97186-551-1, 97186551	8-97083-303-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-97209-180-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: D = 8-97240-270-2, 97240270	8-97313-452-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: E = 8-97249-209-3, 97249209	8-97313-453-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-97137-334-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: A = 8-97186-551-1, 97186551, B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, F = 8-97351-572-1, 97351572, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (C) ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	8-97083-304-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-94223-989-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	8-97148-115-1	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-97236-693-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-94223-985-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	8-97083-298-0	03	1	-

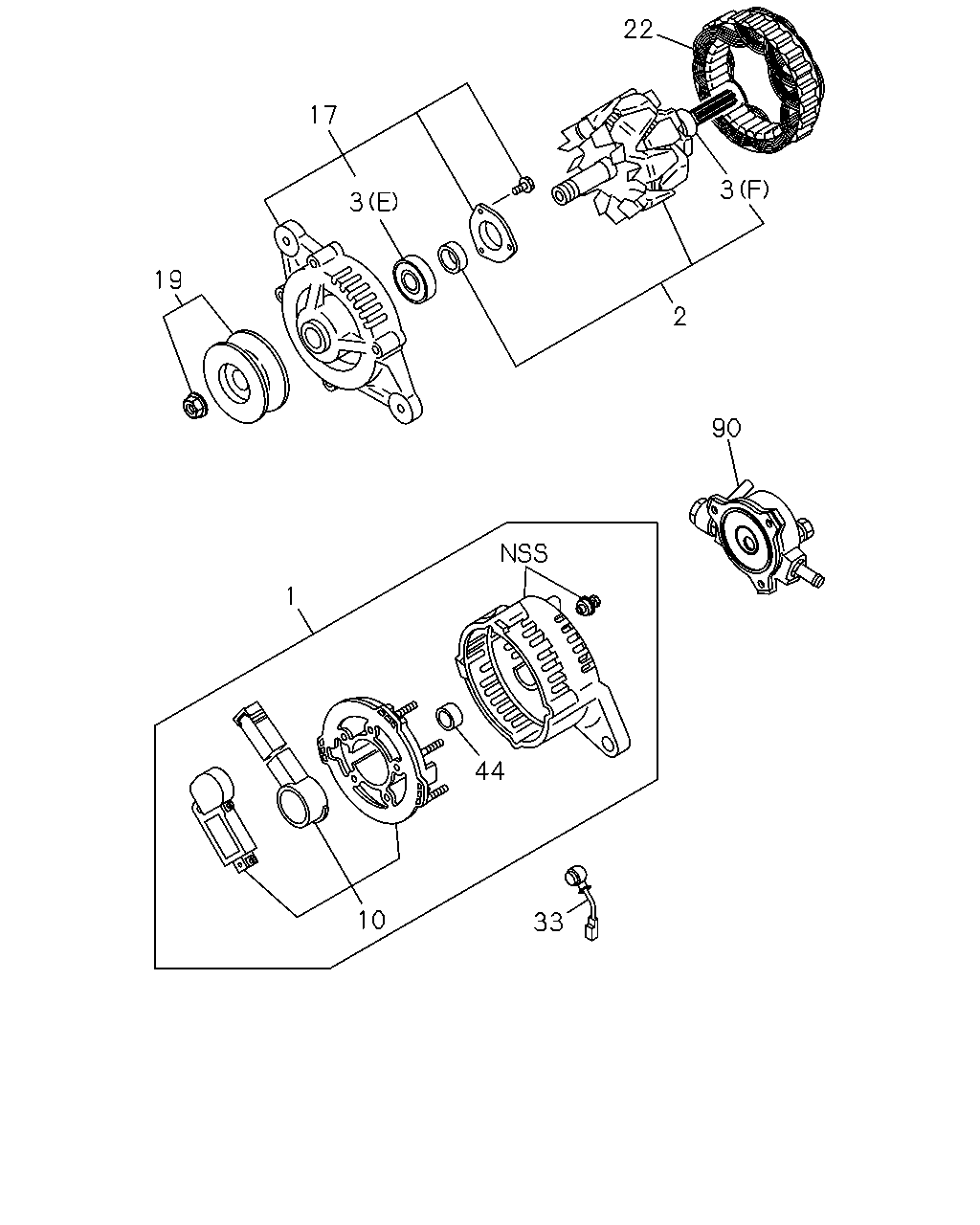

19 17 3 2 3 22 1 44 33 10 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97187-657-2, 97187657	8-97188-852-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97187-658-2, 97187658	8-97188-853-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97351-572-1, 97351572	8-97253-370-0	01	1	-1208
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-97186-551-1, 97186551	8-97253-370-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97240-270-2, 97240270	8-97313-440-0	01	1	-0401
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97240-270-2, 97240270	8-97374-447-0	01	1	0402-1208
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97249-209-3, 97249209	8-97374-472-0	01	1	-1208
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97351-572-1, 97351572	8-98230-320-0	01	1	1209-
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97240-270-2, 97240270	8-98230-323-0	01	1	1209-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97249-209-3, 97249209	8-98230-324-0	01	1	1209-
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-98284-594-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97187-657-2, 97187657	8-97083-006-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-97187-658-2, 97187658	8-97083-010-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-97186-551-1, 97186551	8-97148-104-1	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: D = 8-97240-270-2, 97240270	8-97313-435-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: E = 8-97249-209-3, 97249209	8-97313-436-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: F = 8-97351-572-1, 97351572	8-97351-705-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-98284-593-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658	8-94121-178-0	01	1	-1007
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658	8-97062-654-0	01	1	-1007
3	02.306 BEARING; ROTOR,GEN (F) ASM PART: D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, F = 8-97351-572-1, 97351572	8-97062-744-0	01	1	1209-
3	02.306 BEARING; ROTOR,GEN (F) ASM PART: G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: D = 8-97240-270-2, 97240270	8-97148-112-0	01	1	-1208
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: A = 8-97186-551-1, 97186551	8-97148-112-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: E = 8-97249-209-3, 97249209, F = 8-97351-572-1, 97351572	8-97148-112-0	01	1	-1007
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, F = 8-97351-572-1, 97351572	8-97248-128-0	01	1	-1208
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: A = 8-97186-551-1, 97186551	8-97248-128-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658	8-97248-128-0	01	1	1008-
3	02.306 BEARING; ROTOR,GEN (E) ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, E = 8-97249-209-3, 97249209, F = 8-97351-572-1, 97351572	8-98159-457-0	01	1	1008-
3	02.306 BEARING; ROTOR,GEN (E) ASM PART: G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-98159-457-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (E) ASM PART: D = 8-97240-270-2, 97240270	8-98159-457-0	01	1	1209-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-97187-658-2, 97187658	8-94453-149-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97187-657-2, 97187657	8-97188-870-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-97186-551-1, 97186551	8-97253-577-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: F = 8-97351-572-1, 97351572	8-97253-577-0	01	1	-1208
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97240-270-2, 97240270	8-97313-444-0	01	1	-0401
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97240-270-2, 97240270	8-97374-448-0	01	1	0402-1208
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97249-209-3, 97249209	8-97374-473-0	01	1	-1208
10	02.319 RECTIFIER; GEN ASM PART: F = 8-97351-572-1, 97351572	8-98230-330-0	01	1	1209-
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209	8-98230-332-0	01	1	1209-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-98284-596-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-97186-551-1, 97186551	8-97148-111-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-97240-270-2, 97240270	8-97313-446-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: E = 8-97249-209-3, 97249209	8-97313-447-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: F = 8-97351-572-1, 97351572	8-97351-706-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: G = 8-98284-007-0, 98284007	8-98284-598-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-98300-335-0, 98300335	8-98305-117-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	8-97148-113-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: D = 8-97240-270-2, 97240270	8-97313-448-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: E = 8-97249-209-3, 97249209	8-97313-449-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-98284-599-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-97187-658-2, 97187658	8-94408-494-0	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	8-97192-850-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97187-657-2, 97187657	8-97203-864-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-97240-270-2, 97240270, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-97313-437-0	01	1	-
22	02.310 STATOR; GEN ASM PART: E = 8-97249-209-3, 97249209	8-97313-438-0	01	1	-
33	02.500 WIRE; LEAD,GEN ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658	8-97071-213-0	01	1	-
33	02.500 WIRE; LEAD,GEN ASM PART: G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-98284-597-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: A = 8-97186-551-1, 97186551, B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, F = 8-97351-572-1, 97351572, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-94156-589-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-97186-551-1, 97186551	8-97148-114-1	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: D = 8-97240-270-2, 97240270	8-97313-450-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: E = 8-97249-209-3, 97249209	8-97313-451-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-97351-341-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97351-572-1, 97351572	8-97351-707-0	01	1	-

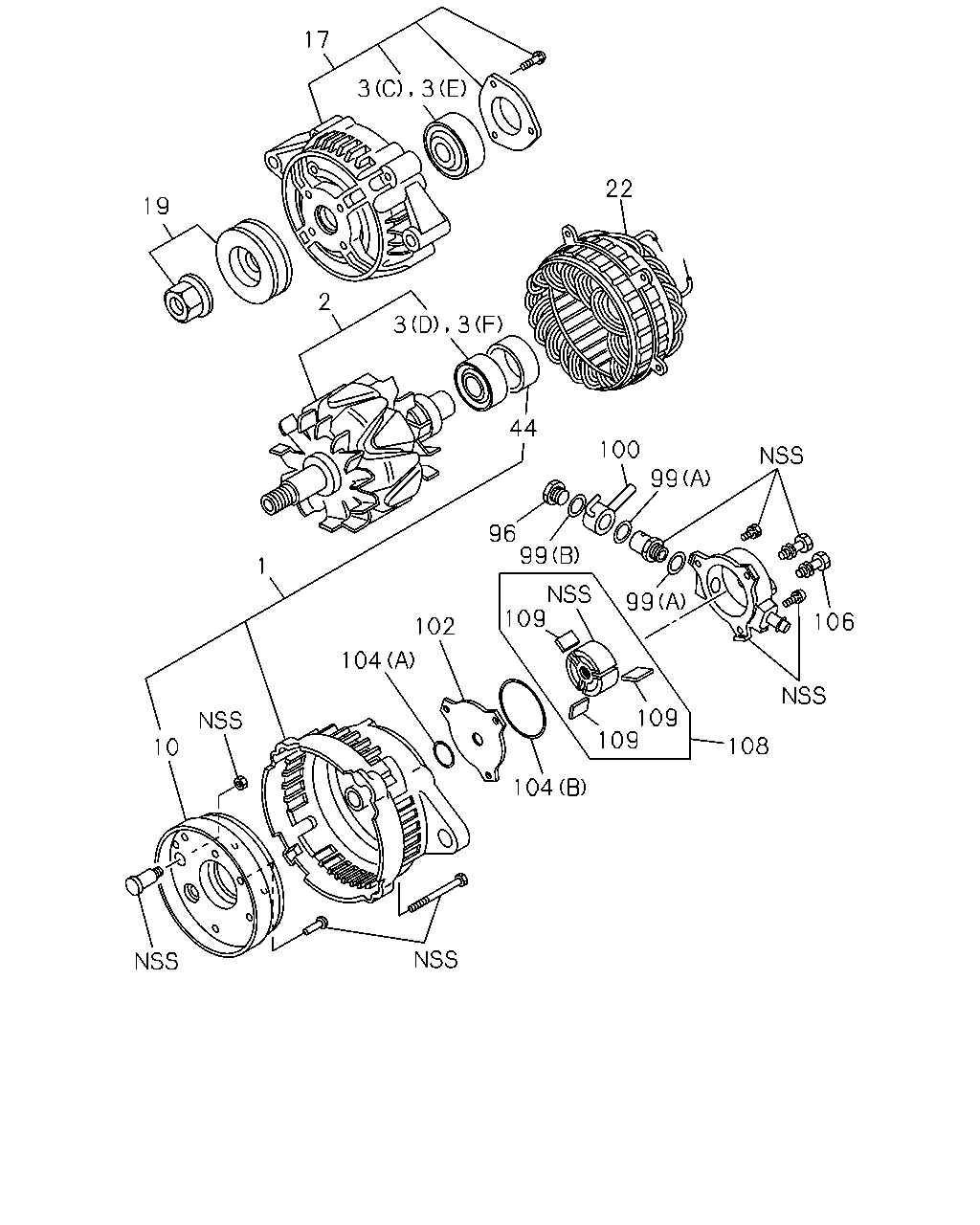

17 3 3 2 19 3 3 22 44 99 100 96 102 104 109 99 99 106 108 109 109 104 10 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97187-657-2, 97187657	8-97188-852-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97187-658-2, 97187658	8-97188-853-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97351-572-1, 97351572	8-97253-370-0	01	1	-1208
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-97186-551-1, 97186551	8-97253-370-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97240-270-2, 97240270	8-97313-440-0	01	1	-0401
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97240-270-2, 97240270	8-97374-447-0	01	1	0402-1208
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97249-209-3, 97249209	8-97374-472-0	01	1	-1208
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97351-572-1, 97351572	8-98230-320-0	01	1	1209-
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97240-270-2, 97240270	8-98230-323-0	01	1	1209-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97249-209-3, 97249209	8-98230-324-0	01	1	1209-
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-98284-594-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97187-657-2, 97187657	8-97083-006-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-97187-658-2, 97187658	8-97083-010-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-97186-551-1, 97186551	8-97148-104-1	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: D = 8-97240-270-2, 97240270	8-97313-435-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: E = 8-97249-209-3, 97249209	8-97313-436-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: F = 8-97351-572-1, 97351572	8-97351-705-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-98284-593-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658	8-94121-178-0	01	1	-1007
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658	8-97062-654-0	01	1	-1007
3	02.306 BEARING; ROTOR,GEN (F) ASM PART: D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, F = 8-97351-572-1, 97351572	8-97062-744-0	01	1	1209-
3	02.306 BEARING; ROTOR,GEN (F) ASM PART: G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: D = 8-97240-270-2, 97240270	8-97148-112-0	01	1	-1208
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: A = 8-97186-551-1, 97186551	8-97148-112-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: E = 8-97249-209-3, 97249209, F = 8-97351-572-1, 97351572	8-97148-112-0	01	1	-1007
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, F = 8-97351-572-1, 97351572	8-97248-128-0	01	1	-1208
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: A = 8-97186-551-1, 97186551	8-97248-128-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658	8-97248-128-0	01	1	1008-
3	02.306 BEARING; ROTOR,GEN (E) ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, E = 8-97249-209-3, 97249209, F = 8-97351-572-1, 97351572	8-98159-457-0	01	1	1008-
3	02.306 BEARING; ROTOR,GEN (E) ASM PART: G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-98159-457-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (E) ASM PART: D = 8-97240-270-2, 97240270	8-98159-457-0	01	1	1209-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-97187-658-2, 97187658	8-94453-149-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97187-657-2, 97187657	8-97188-870-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-97186-551-1, 97186551	8-97253-577-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: F = 8-97351-572-1, 97351572	8-97253-577-0	01	1	-1208
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97240-270-2, 97240270	8-97313-444-0	01	1	-0401
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97240-270-2, 97240270	8-97374-448-0	01	1	0402-1208
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97249-209-3, 97249209	8-97374-473-0	01	1	-1208
10	02.319 RECTIFIER; GEN ASM PART: F = 8-97351-572-1, 97351572	8-98230-330-0	01	1	1209-
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209	8-98230-332-0	01	1	1209-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-98284-596-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-97186-551-1, 97186551	8-97148-111-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-97240-270-2, 97240270	8-97313-446-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: E = 8-97249-209-3, 97249209	8-97313-447-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: F = 8-97351-572-1, 97351572	8-97351-706-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: G = 8-98284-007-0, 98284007	8-98284-598-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-98300-335-0, 98300335	8-98305-117-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	8-97148-113-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: D = 8-97240-270-2, 97240270	8-97313-448-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: E = 8-97249-209-3, 97249209	8-97313-449-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-98284-599-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-97187-658-2, 97187658	8-94408-494-0	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	8-97192-850-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97187-657-2, 97187657	8-97203-864-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-97240-270-2, 97240270, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-97313-437-0	01	1	-
22	02.310 STATOR; GEN ASM PART: E = 8-97249-209-3, 97249209	8-97313-438-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: A = 8-97186-551-1, 97186551, B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, F = 8-97351-572-1, 97351572, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-94156-589-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-94223-991-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP 02.307 ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	8-97148-118-0	01	1	-
99	03.280 GASKET; VAC PUMP (C), ID=18 OD=24 ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (D), ID=12 OD=24 ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-94223-993-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-97186-551-1, 97186551	8-97083-303-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-97209-180-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: D = 8-97240-270-2, 97240270	8-97313-452-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: E = 8-97249-209-3, 97249209	8-97313-453-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-97137-334-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: A = 8-97186-551-1, 97186551, B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, F = 8-97351-572-1, 97351572, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (C) ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	8-97083-304-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-94223-989-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	8-97148-115-1	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-97236-693-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-94223-985-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	8-97083-298-0	03	1	-

90 91 96 99 99 99 106 100 109 104 102 109 109 104 108 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658	8-94156-603-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	8-97131-532-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-97161-697-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-97186-551-1, 97186551	8-97148-114-1	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: D = 8-97240-270-2, 97240270	8-97313-450-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: E = 8-97249-209-3, 97249209	8-97313-451-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-97351-341-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97351-572-1, 97351572	8-97351-707-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	8-97148-117-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-97236-694-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-94223-991-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP 02.307 ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	8-97148-118-0	01	1	-
99	03.280 GASKET; VAC PUMP (C), ID=18 OD=24 ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (D), ID=12 OD=24 ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-94223-993-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-97186-551-1, 97186551	8-97083-303-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-97209-180-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: D = 8-97240-270-2, 97240270	8-97313-452-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: E = 8-97249-209-3, 97249209	8-97313-453-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-97137-334-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: A = 8-97186-551-1, 97186551, B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, F = 8-97351-572-1, 97351572, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (C) ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	8-97083-304-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-94223-989-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	8-97148-115-1	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-97236-693-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-94223-985-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	8-97083-298-0	03	1	-

19 18 3 3 15 17 22 3 3 2 90 1 21 6 5 65 76 16 48 75 44 10 33 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97187-657-2, 97187657	8-97188-852-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97187-658-2, 97187658	8-97188-853-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97351-572-1, 97351572	8-97253-370-0	01	1	-1208
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-97186-551-1, 97186551	8-97253-370-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97240-270-2, 97240270	8-97313-440-0	01	1	-0401
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97240-270-2, 97240270	8-97374-447-0	01	1	0402-1208
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97249-209-3, 97249209	8-97374-472-0	01	1	-1208
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97351-572-1, 97351572	8-98230-320-0	01	1	1209-
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97240-270-2, 97240270	8-98230-323-0	01	1	1209-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97249-209-3, 97249209	8-98230-324-0	01	1	1209-
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-98284-594-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97187-657-2, 97187657	8-97083-006-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-97187-658-2, 97187658	8-97083-010-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-97186-551-1, 97186551	8-97148-104-1	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: D = 8-97240-270-2, 97240270	8-97313-435-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: E = 8-97249-209-3, 97249209	8-97313-436-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: F = 8-97351-572-1, 97351572	8-97351-705-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-98284-593-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658	8-94121-178-0	01	1	-1007
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658	8-97062-654-0	01	1	-1007
3	02.306 BEARING; ROTOR,GEN (F) ASM PART: D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, F = 8-97351-572-1, 97351572	8-97062-744-0	01	1	1209-
3	02.306 BEARING; ROTOR,GEN (F) ASM PART: G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: D = 8-97240-270-2, 97240270	8-97148-112-0	01	1	-1208
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: A = 8-97186-551-1, 97186551	8-97148-112-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: E = 8-97249-209-3, 97249209, F = 8-97351-572-1, 97351572	8-97148-112-0	01	1	-1007
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, F = 8-97351-572-1, 97351572	8-97248-128-0	01	1	-1208
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: A = 8-97186-551-1, 97186551	8-97248-128-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658	8-97248-128-0	01	1	1008-
3	02.306 BEARING; ROTOR,GEN (E) ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, E = 8-97249-209-3, 97249209, F = 8-97351-572-1, 97351572	8-98159-457-0	01	1	1008-
3	02.306 BEARING; ROTOR,GEN (E) ASM PART: G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-98159-457-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (E) ASM PART: D = 8-97240-270-2, 97240270	8-98159-457-0	01	1	1209-
5	02.291 HOLDER; BRUSH,GEN ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658	8-97026-053-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658	8-97026-052-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-97187-658-2, 97187658	8-94453-149-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97187-657-2, 97187657	8-97188-870-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-97186-551-1, 97186551	8-97253-577-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: F = 8-97351-572-1, 97351572	8-97253-577-0	01	1	-1208
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97240-270-2, 97240270	8-97313-444-0	01	1	-0401
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97240-270-2, 97240270	8-97374-448-0	01	1	0402-1208
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97249-209-3, 97249209	8-97374-473-0	01	1	-1208
10	02.319 RECTIFIER; GEN ASM PART: F = 8-97351-572-1, 97351572	8-98230-330-0	01	1	1209-
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209	8-98230-332-0	01	1	1209-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-98284-596-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658	8-94223-974-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658	8-97111-390-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-97186-551-1, 97186551	8-97148-111-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-97240-270-2, 97240270	8-97313-446-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: E = 8-97249-209-3, 97249209	8-97313-447-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: F = 8-97351-572-1, 97351572	8-97351-706-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: G = 8-98284-007-0, 98284007	8-98284-598-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-98300-335-0, 98300335	8-98305-117-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658	8-97203-880-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	8-97148-113-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: D = 8-97240-270-2, 97240270	8-97313-448-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: E = 8-97249-209-3, 97249209	8-97313-449-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-98284-599-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: B = 8-97187-657-2, 97187657	8-94156-602-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: C = 8-97187-658-2, 97187658	8-97083-014-0	04	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-97187-658-2, 97187658	8-94408-494-0	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	8-97192-850-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97187-657-2, 97187657	8-97203-864-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-97240-270-2, 97240270, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-97313-437-0	01	1	-
22	02.310 STATOR; GEN ASM PART: E = 8-97249-209-3, 97249209	8-97313-438-0	01	1	-
29	02.285 BRUSH; GEN ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658	8-94156-593-0	02	1	-
33	02.500 WIRE; LEAD,GEN ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658	8-97071-213-0	01	1	-
33	02.500 WIRE; LEAD,GEN ASM PART: G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-98284-597-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: A = 8-97186-551-1, 97186551, B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, F = 8-97351-572-1, 97351572, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-94156-589-0	01	1	-
48	02.319 DIODE; GEN ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658	8-94237-727-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658	8-94156-594-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN 02.500 ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658	8-94250-964-0	01	1	-
76	02.319 BLOCK; REG,GEN 02.500 ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658	8-94156-591-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-97186-551-1, 97186551	8-97148-114-1	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: D = 8-97240-270-2, 97240270	8-97313-450-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: E = 8-97249-209-3, 97249209	8-97313-451-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-97351-341-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97351-572-1, 97351572	8-97351-707-0	01	1	-

90 99 100 99 96 91 106 108 109 109 104 102 104 109 99 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658	8-94156-603-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	8-97131-532-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-97161-697-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-97186-551-1, 97186551	8-97148-114-1	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: D = 8-97240-270-2, 97240270	8-97313-450-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: E = 8-97249-209-3, 97249209	8-97313-451-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-97351-341-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97351-572-1, 97351572	8-97351-707-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	8-97148-117-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-97236-694-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-94223-991-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP 02.307 ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	8-97148-118-0	01	1	-
99	03.280 GASKET; VAC PUMP (C), ID=18 OD=24 ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (D), ID=12 OD=24 ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-94223-993-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-97186-551-1, 97186551	8-97083-303-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-97209-180-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: D = 8-97240-270-2, 97240270	8-97313-452-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: E = 8-97249-209-3, 97249209	8-97313-453-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-97137-334-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: A = 8-97186-551-1, 97186551, B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, F = 8-97351-572-1, 97351572, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (C) ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	8-97083-304-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-94223-989-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	8-97148-115-1	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-97236-693-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-94223-985-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	8-97083-298-0	03	1	-

17 22 3 3 19 3 3 123 2 1 44 10 108 100 109 121 90 104 109 109 104 99 99 99 96 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97187-657-2, 97187657	8-97188-852-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97187-658-2, 97187658	8-97188-853-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97351-572-1, 97351572	8-97253-370-0	01	1	-1208
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-97186-551-1, 97186551	8-97253-370-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97240-270-2, 97240270	8-97313-440-0	01	1	-0401
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97240-270-2, 97240270	8-97374-447-0	01	1	0402-1208
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97249-209-3, 97249209	8-97374-472-0	01	1	-1208
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97351-572-1, 97351572	8-98230-320-0	01	1	1209-
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97240-270-2, 97240270	8-98230-323-0	01	1	1209-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97249-209-3, 97249209	8-98230-324-0	01	1	1209-
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-98284-594-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97187-657-2, 97187657	8-97083-006-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-97187-658-2, 97187658	8-97083-010-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-97186-551-1, 97186551	8-97148-104-1	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: D = 8-97240-270-2, 97240270	8-97313-435-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: E = 8-97249-209-3, 97249209	8-97313-436-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: F = 8-97351-572-1, 97351572	8-97351-705-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-98284-593-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658	8-94121-178-0	01	1	-1007
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658	8-97062-654-0	01	1	-1007
3	02.306 BEARING; ROTOR,GEN (F) ASM PART: D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, F = 8-97351-572-1, 97351572	8-97062-744-0	01	1	1209-
3	02.306 BEARING; ROTOR,GEN (F) ASM PART: G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: D = 8-97240-270-2, 97240270	8-97148-112-0	01	1	-1208
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: A = 8-97186-551-1, 97186551	8-97148-112-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: E = 8-97249-209-3, 97249209, F = 8-97351-572-1, 97351572	8-97148-112-0	01	1	-1007
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, F = 8-97351-572-1, 97351572	8-97248-128-0	01	1	-1208
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: A = 8-97186-551-1, 97186551	8-97248-128-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658	8-97248-128-0	01	1	1008-
3	02.306 BEARING; ROTOR,GEN (E) ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, E = 8-97249-209-3, 97249209, F = 8-97351-572-1, 97351572	8-98159-457-0	01	1	1008-
3	02.306 BEARING; ROTOR,GEN (E) ASM PART: G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-98159-457-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (E) ASM PART: D = 8-97240-270-2, 97240270	8-98159-457-0	01	1	1209-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-97187-658-2, 97187658	8-94453-149-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97187-657-2, 97187657	8-97188-870-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-97186-551-1, 97186551	8-97253-577-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: F = 8-97351-572-1, 97351572	8-97253-577-0	01	1	-1208
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97240-270-2, 97240270	8-97313-444-0	01	1	-0401
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97240-270-2, 97240270	8-97374-448-0	01	1	0402-1208
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97249-209-3, 97249209	8-97374-473-0	01	1	-1208
10	02.319 RECTIFIER; GEN ASM PART: F = 8-97351-572-1, 97351572	8-98230-330-0	01	1	1209-
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209	8-98230-332-0	01	1	1209-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-98284-596-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-97186-551-1, 97186551	8-97148-111-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-97240-270-2, 97240270	8-97313-446-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: E = 8-97249-209-3, 97249209	8-97313-447-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: F = 8-97351-572-1, 97351572	8-97351-706-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: G = 8-98284-007-0, 98284007	8-98284-598-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-98300-335-0, 98300335	8-98305-117-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	8-97148-113-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: D = 8-97240-270-2, 97240270	8-97313-448-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: E = 8-97249-209-3, 97249209	8-97313-449-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-98284-599-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-97187-658-2, 97187658	8-94408-494-0	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	8-97192-850-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97187-657-2, 97187657	8-97203-864-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-97240-270-2, 97240270, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-97313-437-0	01	1	-
22	02.310 STATOR; GEN ASM PART: E = 8-97249-209-3, 97249209	8-97313-438-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: A = 8-97186-551-1, 97186551, B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, F = 8-97351-572-1, 97351572, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-94156-589-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-97186-551-1, 97186551	8-97148-114-1	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: D = 8-97240-270-2, 97240270	8-97313-450-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: E = 8-97249-209-3, 97249209	8-97313-451-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-97351-341-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97351-572-1, 97351572	8-97351-707-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	8-97148-117-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-97236-694-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-94223-991-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP 02.307 ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	8-97148-118-0	01	1	-
99	03.280 GASKET; VAC PUMP (C), ID=18 OD=24 ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (D), ID=12 OD=24 ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-94223-993-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-97186-551-1, 97186551	8-97083-303-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-97209-180-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: D = 8-97240-270-2, 97240270	8-97313-452-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: E = 8-97249-209-3, 97249209	8-97313-453-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: A = 8-97186-551-1, 97186551, B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, F = 8-97351-572-1, 97351572, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (C) ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	8-97083-304-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	8-97148-115-1	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-97236-693-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658, D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-94223-985-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	8-97083-298-0	03	1	-
121	02.297 COVER; RR,VAC PUMP ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	8-97148-116-0	01	1	-
123	02.291 GUIDE; BRUSH ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	8-97062-644-0	01	1	-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-97187-657-2, 97187657, C = 8-97187-658-2, 97187658	8-94156-603-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: A = 8-97186-551-1, 97186551, F = 8-97351-572-1, 97351572	8-97131-532-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: D = 8-97240-270-2, 97240270, E = 8-97249-209-3, 97249209, G = 8-98284-007-0, 98284007, H = 8-98300-335-0, 98300335	8-97161-697-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
