0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#50730) — 671 parça

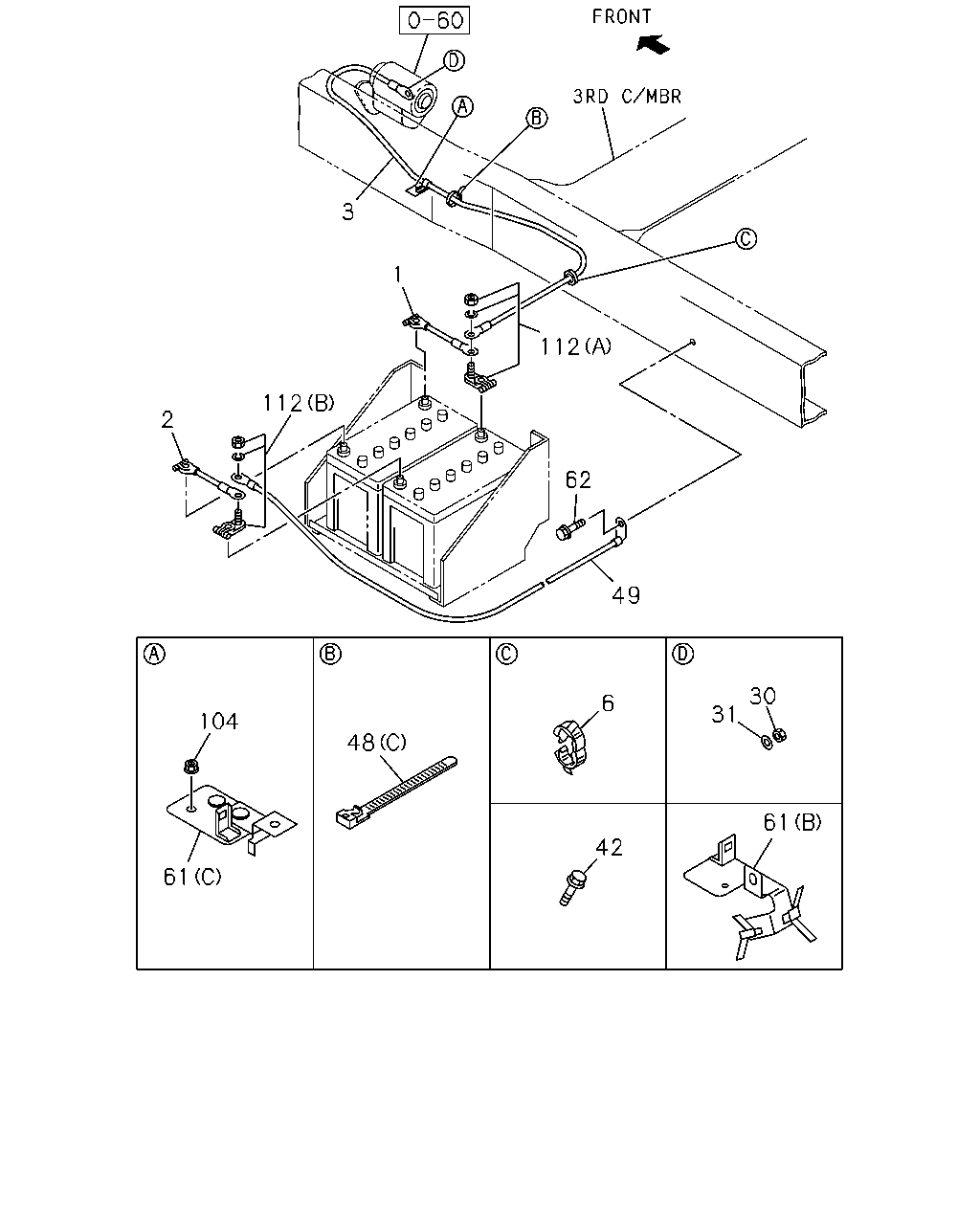

çizim 44951
3 1 112 112 2 62 49 30 6 31 104 48 61 42 61
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.341 CABLE; BATTERY
BATTERY 80D26R<6KC> L=180 		8-97230-530-2 01 1 0211-0501 ● ●
1 02.341 CABLE; BATTERY
L=180 		8-97230-530-2 01 1 0211-0501 ●
1 02.341 CABLE; BATTERY
L=180 		8-97230-530-2 01 1 0502-0504 ●
1 02.341 CABLE; BATTERY
BATTERY 80D26R<6KC> L=180 		8-97230-530-2 01 1 0505-0505 ● ●
1 02.341 CABLE; BATTERY
L=180 		8-97230-530-2 01 1 0505-0505 ●
1 02.341 CABLE; BATTERY
BATTERY 80D26R<6KC> L=180 		8-97230-530-2 01 1 0505- ● ● ●
1 02.341 CABLE; BATTERY
L=180 		8-97230-530-2 01 1 0505- ●
1 02.341 CABLE; BATTERY
L=280 		8-97230-719-1 01 1 0211-0501 ●
1 02.341 CABLE; BATTERY
L=280 		8-97230-719-2 01 1 0502-1004 ●
1 02.341 CABLE; BATTERY
L=280 		8-97230-719-2 01 1 1005- ● ●
2 02.341 CABLE; BATTERY
BATTERY 80D26R<6KC> L=180 		8-97230-538-1 01 1 0211-0501 ● ●
2 02.341 CABLE; BATTERY
L=180 		8-97230-538-1 01 1 0211-0501 ●
2 02.341 CABLE; BATTERY
L=180 		8-97230-538-1 01 1 0502-0504 ●
2 02.341 CABLE; BATTERY
BATTERY 80D26R<6KC> L=180 		8-97230-538-1 01 1 0505-0505 ● ●
2 02.341 CABLE; BATTERY
L=180 		8-97230-538-1 01 1 0505-0505 ●
2 02.341 CABLE; BATTERY
BATTERY 80D26R<6KC> L=180 		8-97230-538-1 01 1 0505- ● ● ●
2 02.341 CABLE; BATTERY
L=180 		8-97230-538-1 01 1 0505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE(NKB***) BATTERY 80D26R<6KC> 		8-98003-119-0 01 1 0505-0505 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE(NKB***) BATTERY 80D26R<6KC> 		8-98003-119-0 01 1 0505- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) BATTERY 80D26R<6KC> 		8-98003-120-0 01 1 0505-0505 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) BATTERY 80D26R<6KC> 		8-98003-120-0 01 1 0505- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) BATTERY 80D26R<6KC> 		8-97289-355-0 01 1 0211-0412 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) BATTERY 80D26R<6KC> 		8-98003-120-0 01 1 0501-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*) BATTERY 80D26R<6KC> 		8-97214-185-0 01 1 0211-0412 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*) BATTERY 80D26R<6KC> 		8-98003-119-0 01 1 0501-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*) 		8-97377-774-0 01 1 0502-1004 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*) 		8-97377-774-0 01 1 1005- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> L=1100 		8-97351-859-0 01 1 0211-0412 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> L=1100 		8-98003-121-0 01 1 0501-0501 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) BATTERY NX200-10<S9C> L=1100 		8-98003-121-0 01 1 0502-0504 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> L=1100 		8-98003-121-0 01 1 0505- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) BATTERY 95D31R<6DN> L=800 		8-97351-861-0 01 1 0211-0412 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) BATTERY 95D31R<6DN> L=800 		8-98003-122-0 01 1 0501-0501 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) BATTERY 95D31R<6DN> L=800 		8-98003-122-0 01 1 0502-0504 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) BATTERY 95D31R<6DN> L=800 		8-98003-122-0 01 1 0505- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*) BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> L=900 		8-97351-863-0 01 1 0211-0412 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*) BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> L=900 		8-98003-123-0 01 1 0501-0501 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*) BATTERY NX200-10<S9C> L=900 		8-98003-123-0 01 1 0502-0504 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE(NKB***) BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> L=900 		8-98003-123-0 01 1 0505- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*) BATTERY 95D31R<6DN> L=900 		8-97351-862-0 01 1 0211-0501 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&DBL CAB&SHORT(NKB6WC) SMALL DUAL RR TIRE&SHORT(NKN6SC) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> L=900 		8-97351-862-0 01 1 0211-0501 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SMALL DUAL RR TIRE(NKN***) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> L=900 		8-97351-862-0 01 1 0502-0504 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*) BATTERY 95D31R<6DN> L=900 		8-97351-862-0 01 1 0502-0504 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NK**W*) L=900 		8-97351-862-0 01 1 0505- ● ● ● ● ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*) BATTERY 95D31R<6DN> L=900 		8-97351-862-0 01 1 0505- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SMALL DUAL RR TIRE(NKN***) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> L=900 		8-97351-862-0 01 1 0505- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DUAL RR TIRE&SHORT(NKC**C) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> 		8-97351-860-0 01 1 0211-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DUAL RR TIRE&SHORT(NKC**C) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> 		8-97351-860-0 01 1 0502- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRAME-KICK UP<7EW> 		8-97352-384-0 01 1 0211-0301 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRAME-KICK UP<7EW> 		8-97363-559-1 01 1 0302-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DUAL RR TIRE&SHORT(NKC**C) FRAME-KICK UP<7EW> 		8-97387-720-0 01 1 0502- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB&MIDDLE(NK**WF) 		8-97351-855-3 01 1 0211-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB&MIDDLE(NK**WF) 		8-97377-773-0 01 1 0502- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*) AIR INTAKE REAR VERTICAL<KJ3> 		8-97351-857-2 01 1 0211-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DUAL RR TIRE&SHORT(NKC**C) EXC. FRAME-KICK UP<7EW> 		8-97357-079-2 01 1 0211-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) 		8-97357-079-2 01 1 0211-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DUAL RR TIRE&SHORT(NKC**C) EXC. FRAME-KICK UP<7EW> 		8-97377-767-2 01 1 0502- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) 		8-97377-767-2 01 1 0502- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97351-956-2 01 1 0211-0301 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97363-573-0 01 1 0302-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) 		8-97363-573-0 01 1 0502-1004 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97363-573-0 01 1 1005- ●
6 02.343 GROMMET; BATTERY CABLE
EXC. FRAME-KICK UP<7EW> ID=17 		8-94128-319-2 01 1 0211-0501 ● ● ● ●
6 02.343 GROMMET; BATTERY CABLE
ID=17 		8-94128-319-2 01 1 0502-0504 ● ● ●
6 02.343 GROMMET; BATTERY CABLE
ID=17 		8-94128-319-2 01 1 0505- ● ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 0211-0501 ● ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 0502-0504 ● ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 0505-0512 ● ● ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0601-1004 ● ● ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1005- ● ● ● ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 0211-0501 ● ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 0502-0504 ● ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 0505-0603 ● ● ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
04.439 ID=8.2 		0-91510-508-0 01 1 0604-1004 ● ● ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
04.439 ID=8.2 		0-91510-508-0 01 1 1005- ● ● ● ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.559 M10X16 FLANGE 		0-28081-016-0 01 1 0211-0501 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.559 M10X16 FLANGE 		0-28081-016-0 01 1 0502-0512 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.483 M10X16 FLANGE 		0-28051-016-0 01 1 0601- ●
48 02.343 CLIP; CABLE
SGL CAB&MIDDLE(NK**SF) BATTERY 80D26R<6KC> 03.162 (B) L=140 		5-09707-031-1 02 1 0505-0505 ● ●
48 02.343 CLIP; CABLE
SGL CAB&MIDDLE(NK**SF) BATTERY 80D26R<6KC> 03.162 (B) L=140 		5-09707-031-1 02 1 0505-0506 ● ● ●
48 02.343 CLIP; CABLE
SGL CAB&MIDDLE(NK**SF) BATTERY 80D26R<6KC> 03.162 (B) L=140 		5-09707-031-1 02 1 0507-1004 ● ●
48 02.343 CLIP; CABLE
03.162 (B) L=140 		5-09707-031-1 02 1 0507-1004 ●
48 02.343 CLIP; CABLE
SGL CAB&MIDDLE(NK**SF) BATTERY 80D26R<6KC> 03.162 (B) L=140 		5-09707-031-1 02 1 1005- ● ● ●
48 02.343 CLIP; CABLE
03.162 (B) L=140 		5-09707-031-1 02 1 1005- ● ●
48 02.343 CLIP; CABLE
SGL CAB&MIDDLE(NK**SF) BATTERY 80D26R<6KC> 03.162 (B) L=140 		5-09707-031-1 02 1 0211-0501 ●
48 02.343 CLIP; CABLE
SGL TIRE&SGL CAB(NKB*S*) AIR INTAKE REAR VERTICAL<KJ3> 03.162 (B) L=140 		5-09707-031-1 02 1 0211-0501 ●
48 02.343 CLIP; CABLE
DUAL RR TIRE&SGL CAB(NKC*S*) EXC. FRAME-KICK UP<7EW> 03.162 (B) L=140 		5-09707-031-1 02 1 0211-0501 ●
48 02.343 CLIP; CABLE
SGL CAB&MIDDLE(NK**SF) BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> 03.162 (B) L=140 		5-09707-031-1 01 1 0211-0501 ● ●
48 02.343 CLIP; CABLE
SGL TIRE&SGL CAB(NKB*S*) BATTERY 80D26R<6KC> 03.162 (B) L=140 		5-09707-031-1 01 1 0211-0501 ●
48 02.343 CLIP; CABLE
DUAL RR TIRE&SHORT(NKC**C) FRAME-KICK UP<7EW> 03.162 (B) L=140 		5-09707-031-1 01 1 0211-0501 ●
48 02.343 CLIP; CABLE
DBL CAB&MIDDLE(NK**WF) 03.162 (B) L=140 		5-09707-031-1 01 1 0211-0501 ●
48 02.343 CLIP; CABLE
MIDDLE(NK***F) 03.162 (B) L=140 		5-09707-031-1 01 1 0502-0504 ● ● ●
48 02.343 CLIP; CABLE
03.162 (B) L=140 		5-09707-031-1 01 1 0502-0504 ●
48 02.343 CLIP; CABLE
SGL TIRE&SGL CAB(NKB*S*) BATTERY 80D26R<6KC> 03.162 (B) L=140 		5-09707-031-1 01 1 0505-0505 ●
48 02.343 CLIP; CABLE
SGL CAB&MIDDLE(NK**SF) BATTERY NX200-10<S9C> 03.162 (B) L=140 		5-09707-031-1 01 1 0505-0505 ●
48 02.343 CLIP; CABLE
03.162 (B) L=140 		5-09707-031-1 01 1 0505-0505 ●
48 02.343 CLIP; CABLE
MIDDLE(NK***F) 03.162 (B) L=140 		5-09707-031-1 01 1 0505-0505 ●
48 02.343 CLIP; CABLE
SGL TIRE&SGL CAB(NKB*S*) BATTERY 80D26R<6KC> 03.162 (B) L=140 		5-09707-031-1 01 1 0505-0506 ● ●
48 02.343 CLIP; CABLE
SGL CAB&MIDDLE(NK**SF) BATTERY NX200-10<S9C> 03.162 (B) L=140 		5-09707-031-1 01 1 0505-0506 ● ●
48 02.343 CLIP; CABLE
03.162 (B) L=140 		5-09707-031-1 01 1 0505-0506 ●
48 02.343 CLIP; CABLE
MIDDLE(NK***F) 03.162 (B) L=140 		5-09707-031-1 01 1 0505-0506 ●
48 02.343 CLIP; CABLE
SGL TIRE&SGL CAB(NKB*S*) BATTERY 80D26R<6KC> 03.162 (B) L=140 		5-09707-031-1 01 1 0507- ● ●
48 02.343 CLIP; CABLE
SGL CAB&MIDDLE(NK**SF) BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> 03.162 (B) L=140 		5-09707-031-1 01 1 0507- ● ●
48 02.343 CLIP; CABLE
SGL CAB&MIDDLE(NK**SF) 03.162 (B) L=140 		5-09707-031-1 01 1 0507- ●
48 02.343 CLIP; CABLE
SGL CAB(NK**S*) 03.430 (A) ID=13 H=15 L=25 		1-09700-888-0 01 1 0211-0501 ●
48 02.343 CLIP; CABLE
DBL CAB&MIDDLE(NK**WF) 02.559 (A) ID=19 H=70 L=25 		1-09700-773-0 01 1 0211-0501 ●
48 02.343 CLIP; CABLE
02.559 (C) L=250 		5-09707-030-1 02 1 0211-0501 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB&MIDDLE(NK**SF) BATTERY 95D31R<6DN> L=400 		8-97230-533-1 01 1 0211-0501 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&SHORT(NKC**C) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> L=400 		8-97230-533-1 01 1 0211-0501 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&SHORT(NKC**C) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> L=400 		8-97230-533-1 01 1 0502-0504 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB&MIDDLE(NK**SF) BATTERY 95D31R<6DN> L=400 		8-97230-533-1 01 1 0502-0504 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB&MIDDLE(NK**SF) BATTERY 95D31R<6DN> L=400 		8-97230-533-1 01 1 0505- ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&SHORT(NKC**C) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> L=400 		8-97230-533-1 01 1 0505- ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB(NKB*S*) BATTERY 95D31R<6DN> L=300 		8-94166-037-0 01 1 0211-0501 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&DBL CAB&SHORT(NKB6WC) SMALL DUAL RR TIRE&SHORT(NKN6SC) BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> L=300 		8-94166-037-0 01 1 0211-0501 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB(NKB*S*) BATTERY 95D31R<6DN> L=300 		8-94166-037-0 01 1 0502-0504 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
DBL CAB&MIDDLE(NK**WF) BATTERY NX200-10<S9C> L=300 		8-94166-037-0 01 1 0502-0504 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SMALL DUAL RR TIRE(NKN***) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> L=300 		8-94166-037-0 01 1 0502-0504 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB(NKB*S*) BATTERY 95D31R<6DN> L=300 		8-94166-037-0 01 1 0505-0712 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SMALL DUAL RR TIRE(NKN***) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> L=300 		8-94166-037-0 01 1 0505-0712 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> L=300 		8-97231-242-1 01 1 0211-0501 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) BATTERY NX200-10<S9C> L=300 		8-97231-242-1 01 1 0502-0504 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> L=300 		8-97231-242-1 01 1 0505-0712 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB(NKB*S*) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN>,BATTERY 115E41R<6XD> L=300 		8-97231-242-1 01 1 0801-0910 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB&MIDDLE(NK**SF) BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> L=300 		8-97231-242-1 01 1 0801-0910 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SMALL DUAL RR TIRE(NKN***) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> L=300 		8-97231-242-1 01 1 0801-0910 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SMALL DUAL RR TIRE(NKN***) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> L=300 		8-97231-242-1 01 1 0911- ● ● ● ● ● ● ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB(NKB*S*) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN>,BATTERY 115E41R<6XD> L=300 		8-97231-242-1 01 1 0911- ● ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB&MIDDLE(NK**SF) BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> L=300 		8-97231-242-1 01 1 0911- ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=500 		8-97035-845-3 01 1 0211-0501 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB&MIDDLE(NK**SF) L=500 		8-97035-845-3 01 1 0502-0504 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB&MIDDLE(NK**SF) L=500 		8-97035-845-3 01 1 0505-0910 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
BATTERY 80D26R<6KC> L=500 		8-97035-845-3 01 1 0911- ● ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=500 		8-97035-845-3 01 1 0911- ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB(NKB*S*) AIR INTAKE REAR VERTICAL<KJ3> L=300 		8-97230-536-1 01 1 0211-0501 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
FRAME-KICK UP<7EW> L=300 		8-97230-536-1 01 1 0211-0501 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
DBL CAB&MIDDLE(NK**WF) L=300 		8-97230-536-1 01 1 0211-0501 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB&SHORT(NKB6SC) SGL TIRE&DBL CAB&SHORT(NKB6WC) DUAL RR TIRE&DBL CAB&MIDDLE(NKC6WF) L=300 		8-97230-536-1 01 1 0502-1004 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&SHORT(NKC**C) FRAME-KICK UP<7EW> L=300 		8-97230-536-1 01 1 0502-1004 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
DBL CAB&SHORT(NK**WC) L=300 		8-97230-536-1 01 1 0502-1004 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB&SHORT(NKB6SC) SGL TIRE&DBL CAB&SHORT(NKB6WC) DUAL RR TIRE&DBL CAB&MIDDLE(NKC6WF) L=300 		8-97230-536-1 01 1 1005- ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&SHORT(NKC**C) FRAME-KICK UP<7EW> L=300 		8-97230-536-1 01 1 1005- ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
DBL CAB&SHORT(NK**WC) L=300 		8-97230-536-1 01 1 1005- ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB(NKB*S*) AIR INTAKE SYSTEM FRONT<6PC> L=200 		8-97231-243-1 01 1 0211-0501 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&SHORT(NKC**C) EXC. FRAME-KICK UP<7EW> L=200 		8-97231-243-1 01 1 0211-0501 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB&MIDDLE(NK**SF) L=200 		8-97231-243-1 01 1 0211-0501 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&SHORT(NKC**C) EXC. FRAME-KICK UP<7EW> L=200 		8-97231-243-1 01 1 0502- ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB&MIDDLE(NK**SF) L=200 		8-97231-243-1 01 1 0502- ●
61 02.333 BRACKET; BATTERY CABLE
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97062-179-3 01 1 0211-0501 ● ●
61 02.333 BRACKET; BATTERY CABLE
SGL TIRE&SGL CAB&SHORT(NKB6SC) SGL TIRE&DBL CAB&SHORT(NKB6WC) DUAL RR TIRE&DBL CAB&MIDDLE(NKC6WF) (D) 		8-97369-198-1 01 1 0502-1004 ●
61 02.333 BRACKET; BATTERY CABLE
DUAL RR TIRE&SHORT(NKC**C) FRAME-KICK UP<7EW> (D) 		8-97369-198-1 01 1 0502-1004 ●
61 02.333 BRACKET; BATTERY CABLE
DBL CAB&SHORT(NK**WC) (D) 		8-97369-198-1 01 1 0502-1004 ●
61 02.333 BRACKET; BATTERY CABLE
DBL CAB&MIDDLE(NK**WF) (D) 		8-97369-198-1 01 1 1005- ● ● ● ● ● ●
61 02.333 BRACKET; BATTERY CABLE
SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&DBL CAB&MIDDLE(NKC6WF) (D) 		8-97369-198-1 01 1 1005- ● ●
61 02.333 BRACKET; BATTERY CABLE
DUAL RR TIRE&SHORT(NKC**C) FRAME-KICK UP<7EW> (D) 		8-97369-198-1 01 1 1005- ●
61 02.333 BRACKET; BATTERY CABLE
(B) 		8-97322-370-0 01 1 0211-0211 ●
61 02.333 BRACKET; BATTERY CABLE
(B) 		8-97362-323-0 01 1 0212-0501 ●
61 02.333 BRACKET; BATTERY CABLE
(B) 		8-97362-323-0 01 1 0502- ●
61 02.333 BRACKET; BATTERY CABLE
(C) 		8-97353-709-0 01 1 0211-0501 ●
61 02.333 BRACKET; BATTERY CABLE
(C) 		8-97353-709-0 01 1 0502- ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0211-0501 ● ● ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0502-1004 ● ● ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1005- ● ● ● ●
104 02.343 NUT; BATTERY CABLE
FRT INDEPENDENT SUSPENSION(6PP) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0412 ●
104 02.343 NUT; BATTERY CABLE
04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0412 ●
104 02.343 NUT; BATTERY CABLE
SGL CAB&MIDDLE(NK**SF) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0501-0501 ● ● ●
104 02.343 NUT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*) FRT INDEPENDENT SUSPENSION(6PP) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0501-0501 ● ●
104 02.343 NUT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*) BATTERY NX200-10<S9C>,BATTERY 80D26R<6KC>,BATTERY 115E41R<6XD> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0501-0501 ● ●
104 02.343 NUT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*) BATTERY NX200-10<S9C> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0502-0504 ●
104 02.343 NUT; BATTERY CABLE
SGL CAB&MIDDLE(NK**SF) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0502-0504 ●
104 02.343 NUT; BATTERY CABLE
04.594 M6 FLANGE 		0-91150-106-0 01 1 0502-0504 ●
104 02.343 NUT; BATTERY CABLE
SGL CAB&MIDDLE(NK**SF) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0505-0505 ● ●
104 02.343 NUT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*) BATTERY NX200-10<S9C>,BATTERY 80D26R<6KC> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0505-0505 ●
104 02.343 NUT; BATTERY CABLE
SGL CAB&MIDDLE(NK**SF) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0505-0602 ● ● ●
104 02.343 NUT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*) BATTERY NX200-10<S9C>,BATTERY 80D26R<6KC>,BATTERY 115E41R<6XD> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0505-0602 ● ●
104 02.343 NUT; BATTERY CABLE
SGL CAB&MIDDLE(NK**SF) 01.062 M6 FLANGE 		0-91180-106-0 01 1 0603-0910 ● ● ●
104 02.343 NUT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*) BATTERY NX200-10<S9C>,BATTERY 80D26R<6KC>,BATTERY 115E41R<6XD> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0603-0910 ● ●
104 02.343 NUT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*) BATTERY NX200-10<S9C>,BATTERY 80D26R<6KC>,BATTERY 115E41R<6XD> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0911- ● ● ●
104 02.343 NUT; BATTERY CABLE
SGL CAB&MIDDLE(NK**SF) 01.062 M6 FLANGE 		0-91180-106-0 01 1 0911- ● ● ●
104 02.343 NUT; BATTERY CABLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ●
104 02.343 NUT; BATTERY CABLE
07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ●
104 02.343 NUT; BATTERY CABLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0504 ● ●
104 02.343 NUT; BATTERY CABLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0505-0602 ● ● ●
104 02.343 NUT; BATTERY CABLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ●
112 02.343 TERMINAL; BATTERY
JAPAN PRODUCTION<C1H> (A) 		8-97365-770-0 01 1 1408- ●
112 02.343 TERMINAL; BATTERY
BATTERY 80D26R<6KC> (A) <+> 		8-97356-925-1 01 1 0211-0501 ● ●
112 02.343 TERMINAL; BATTERY
DUAL RR TIRE&SGL CAB(NKC*S*) (A) <+> 		8-97356-925-1 01 1 0211-0501 ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-97356-925-1 01 1 0211-0501 ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-97356-925-1 01 1 0502-0910 ● ●
112 02.343 TERMINAL; BATTERY
SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) BATTERY 80D26R<6KC> (A) <+> 		8-97356-925-1 01 1 0911-1407 ●
112 02.343 TERMINAL; BATTERY
SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) BATTERY 80D26R<6KC> (A) <+> 		8-97356-925-1 01 1 0911-1407 ●
112 02.343 TERMINAL; BATTERY
SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) BATTERY 80D26R<6KC> (A) <+> 		8-97356-925-1 01 1 0911-1407 ●
112 02.343 TERMINAL; BATTERY
DUAL RR TIRE&SGL CAB(NKC*S*) (A) <+> 		8-97356-925-1 01 1 0911-1407 ●
112 02.343 TERMINAL; BATTERY
SGL CAB&MIDDLE(NK**SF) (A) <+> 		8-97356-925-1 01 1 0911-1407 ●
112 02.343 TERMINAL; BATTERY
BATTERY 80D26R<6KC> (A) <+> 		8-97356-925-1 01 1 1408- ● ● ●
112 02.343 TERMINAL; BATTERY
EXC. JAPAN PRODUCTION<C1H> (A) <+> 		8-97356-925-1 01 1 1408- ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-97356-925-1 01 1 1408- ● ●
112 02.343 TERMINAL; BATTERY
BATTERY 80D26R<6KC> (B) <-> 		8-97356-926-1 01 1 0211-0501 ● ●
112 02.343 TERMINAL; BATTERY
(B) <-> 		8-97356-926-1 01 1 0211-0501 ●
112 02.343 TERMINAL; BATTERY
(B) <-> 		8-97356-926-1 01 1 0502-0504 ●
112 02.343 TERMINAL; BATTERY
BATTERY 80D26R<6KC> (B) <-> 		8-97356-926-1 01 1 0505-0505 ● ●
112 02.343 TERMINAL; BATTERY
(B) <-> 		8-97356-926-1 01 1 0505-0505 ●
112 02.343 TERMINAL; BATTERY
BATTERY 80D26R<6KC> (B) <-> 		8-97356-926-1 01 1 0505- ● ● ●
112 02.343 TERMINAL; BATTERY
(B) <-> 		8-97356-926-1 01 1 0505- ●

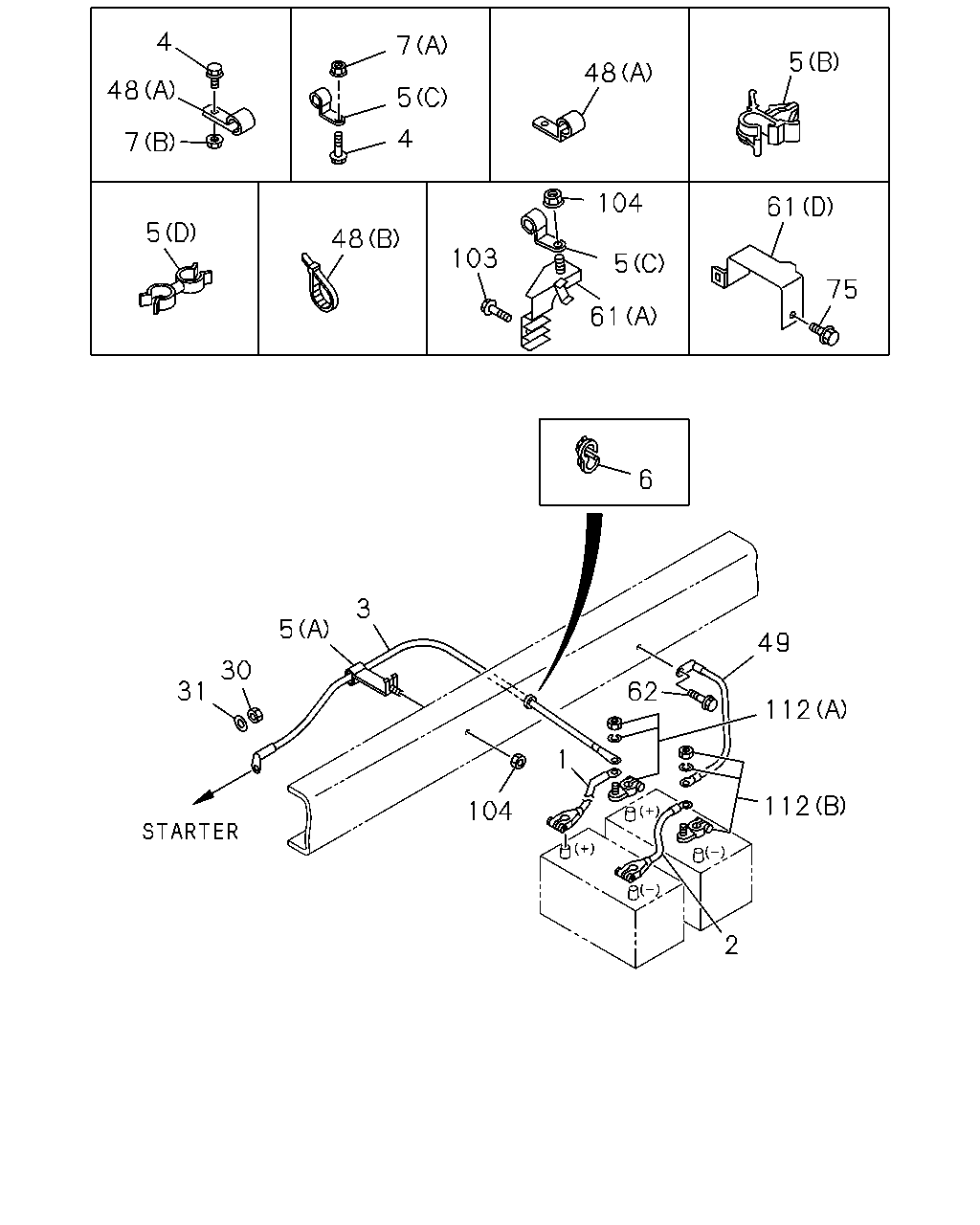

çizim 45005
4 7 5 48 48 5 4 7 104 61 5 48 103 5 75 61 6 3 5 49 30 31 62 112 1 112 104 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.341 CABLE; BATTERY
BATTERY 80D26R<6KC> L=180 		8-97230-530-2 01 1 0211-0501 ● ●
1 02.341 CABLE; BATTERY
L=180 		8-97230-530-2 01 1 0211-0501 ●
1 02.341 CABLE; BATTERY
L=180 		8-97230-530-2 01 1 0502-0504 ●
1 02.341 CABLE; BATTERY
BATTERY 80D26R<6KC> L=180 		8-97230-530-2 01 1 0505-0505 ● ●
1 02.341 CABLE; BATTERY
L=180 		8-97230-530-2 01 1 0505-0505 ●
1 02.341 CABLE; BATTERY
BATTERY 80D26R<6KC> L=180 		8-97230-530-2 01 1 0505- ● ● ●
1 02.341 CABLE; BATTERY
L=180 		8-97230-530-2 01 1 0505- ●
1 02.341 CABLE; BATTERY
L=280 		8-97230-719-1 01 1 0211-0501 ●
1 02.341 CABLE; BATTERY
L=280 		8-97230-719-2 01 1 0502-1004 ●
1 02.341 CABLE; BATTERY
L=280 		8-97230-719-2 01 1 1005- ● ●
2 02.341 CABLE; BATTERY
BATTERY 80D26R<6KC> L=180 		8-97230-538-1 01 1 0211-0501 ● ●
2 02.341 CABLE; BATTERY
L=180 		8-97230-538-1 01 1 0211-0501 ●
2 02.341 CABLE; BATTERY
L=180 		8-97230-538-1 01 1 0502-0504 ●
2 02.341 CABLE; BATTERY
BATTERY 80D26R<6KC> L=180 		8-97230-538-1 01 1 0505-0505 ● ●
2 02.341 CABLE; BATTERY
L=180 		8-97230-538-1 01 1 0505-0505 ●
2 02.341 CABLE; BATTERY
BATTERY 80D26R<6KC> L=180 		8-97230-538-1 01 1 0505- ● ● ●
2 02.341 CABLE; BATTERY
L=180 		8-97230-538-1 01 1 0505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE(NKB***) BATTERY 80D26R<6KC> 		8-98003-119-0 01 1 0505-0505 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE(NKB***) BATTERY 80D26R<6KC> 		8-98003-119-0 01 1 0505- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) BATTERY 80D26R<6KC> 		8-98003-120-0 01 1 0505-0505 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) BATTERY 80D26R<6KC> 		8-98003-120-0 01 1 0505- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) BATTERY 80D26R<6KC> 		8-97289-355-0 01 1 0211-0412 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) BATTERY 80D26R<6KC> 		8-98003-120-0 01 1 0501-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*) BATTERY 80D26R<6KC> 		8-97214-185-0 01 1 0211-0412 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*) BATTERY 80D26R<6KC> 		8-98003-119-0 01 1 0501-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*) 		8-97377-774-0 01 1 0502-1004 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*) 		8-97377-774-0 01 1 1005- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> L=1100 		8-97351-859-0 01 1 0211-0412 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> L=1100 		8-98003-121-0 01 1 0501-0501 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) BATTERY NX200-10<S9C> L=1100 		8-98003-121-0 01 1 0502-0504 ●

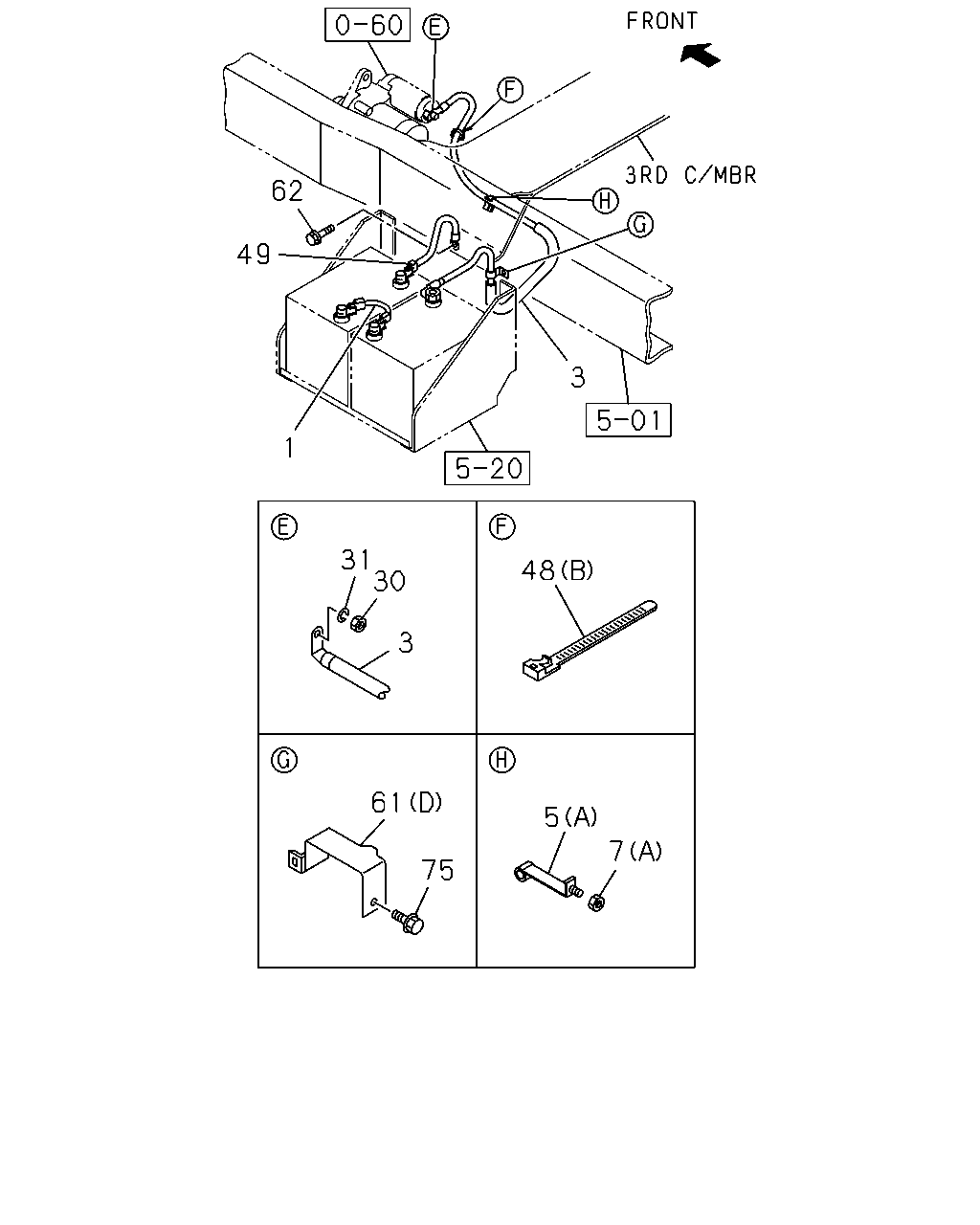

3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> L=1100 		8-98003-121-0 01 1 0505- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) BATTERY 95D31R<6DN> L=800 		8-97351-861-0 01 1 0211-0412 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) BATTERY 95D31R<6DN> L=800 		8-98003-122-0 01 1 0501-0501 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) BATTERY 95D31R<6DN> L=800 		8-98003-122-0 01 1 0502-0504 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) BATTERY 95D31R<6DN> L=800 		8-98003-122-0 01 1 0505- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*) BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> L=900 		8-97351-863-0 01 1 0211-0412 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*) BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> L=900 		8-98003-123-0 01 1 0501-0501 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*) BATTERY NX200-10<S9C> L=900 		8-98003-123-0 01 1 0502-0504 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE(NKB***) BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> L=900 		8-98003-123-0 01 1 0505- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*) BATTERY 95D31R<6DN> L=900 		8-97351-862-0 01 1 0211-0501 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&DBL CAB&SHORT(NKB6WC) SMALL DUAL RR TIRE&SHORT(NKN6SC) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> L=900 		8-97351-862-0 01 1 0211-0501 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SMALL DUAL RR TIRE(NKN***) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> L=900 		8-97351-862-0 01 1 0502-0504 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*) BATTERY 95D31R<6DN> L=900 		8-97351-862-0 01 1 0502-0504 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NK**W*) L=900 		8-97351-862-0 01 1 0505- ● ● ● ● ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*) BATTERY 95D31R<6DN> L=900 		8-97351-862-0 01 1 0505- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SMALL DUAL RR TIRE(NKN***) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> L=900 		8-97351-862-0 01 1 0505- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DUAL RR TIRE&SHORT(NKC**C) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> 		8-97351-860-0 01 1 0211-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DUAL RR TIRE&SHORT(NKC**C) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> 		8-97351-860-0 01 1 0502- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRAME-KICK UP<7EW> 		8-97352-384-0 01 1 0211-0301 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRAME-KICK UP<7EW> 		8-97363-559-1 01 1 0302-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DUAL RR TIRE&SHORT(NKC**C) FRAME-KICK UP<7EW> 		8-97387-720-0 01 1 0502- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB&MIDDLE(NK**WF) 		8-97351-855-3 01 1 0211-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB&MIDDLE(NK**WF) 		8-97377-773-0 01 1 0502- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*) AIR INTAKE REAR VERTICAL<KJ3> 		8-97351-857-2 01 1 0211-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DUAL RR TIRE&SHORT(NKC**C) EXC. FRAME-KICK UP<7EW> 		8-97357-079-2 01 1 0211-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) 		8-97357-079-2 01 1 0211-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DUAL RR TIRE&SHORT(NKC**C) EXC. FRAME-KICK UP<7EW> 		8-97377-767-2 01 1 0502- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) 		8-97377-767-2 01 1 0502- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97351-956-2 01 1 0211-0301 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97363-573-0 01 1 0302-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) 		8-97363-573-0 01 1 0502-1004 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97363-573-0 01 1 1005- ●
4 02.559 BOLT; BATTERY CABLE
FRAME-KICK UP<7EW> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0211-0306 ●
4 02.559 BOLT; BATTERY CABLE
02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0307-0501 ●
4 02.559 BOLT; BATTERY CABLE
DUAL RR TIRE&SHORT(NKC**C) EXC. FRAME-KICK UP<7EW> M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ●
4 02.559 BOLT; BATTERY CABLE
SGL CAB&MIDDLE(NK**SF) M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ●
4 02.559 BOLT; BATTERY CABLE
DUAL RR TIRE&SHORT(NKC**C) EXC. FRAME-KICK UP<7EW> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
4 02.559 BOLT; BATTERY CABLE
SGL CAB&MIDDLE(NK**SF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=13 L=90 		8-97015-782-1 01 1 0211-0501 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(A) ID=13 L=90 		8-97015-782-1 01 1 0211-0501 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=13 L=90 		8-97015-782-1 01 1 0502-0504 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE(NKB***) (A) ID=13 L=90 		8-97015-782-1 01 1 0502-0504 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=13 L=90 		8-97015-782-1 01 1 0505-1004 ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE(NKB***) (A) ID=13 L=90 		8-97015-782-1 01 1 0505-1004 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=13 L=90 		8-97015-782-1 01 1 1005- ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE(NKB***) (A) ID=13 L=90 		8-97015-782-1 01 1 1005- ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) 03.430 (C) ID=13 H=15 L=25 		1-09700-888-0 01 1 0211-0412 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB(NKB*S*) FRT INDEPENDENT SUSPENSION(6PP) 03.430 (C) ID=13 H=15 L=25 		1-09700-888-0 01 1 0501-0501 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL CAB&MIDDLE(NK**SF) 03.430 (C) ID=13 H=15 L=25 		1-09700-888-0 01 1 0501-0501 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB(NKB*S*) BATTERY NX200-10<S9C>,BATTERY 80D26R<6KC>,BATTERY 115E41R<6XD> 03.430 (C) ID=13 H=15 L=25 		1-09700-888-0 01 1 0501-0501 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB(NKB*S*) BATTERY NX200-10<S9C> 03.430 (C) ID=13 H=15 L=25 		1-09700-888-0 01 1 0502-0504 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL CAB&MIDDLE(NK**SF) 03.430 (C) ID=13 H=15 L=25 		1-09700-888-0 01 1 0502-0504 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
DUAL RR TIRE&SHORT(NKC**C) FRAME-KICK UP<7EW> 03.430 (C) ID=13 H=15 L=25 		1-09700-888-0 01 1 0502-0504 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
DUAL RR TIRE&SHORT(NKC**C) BATTERY NX200-10<S9C>,BATTERY 80D26R<6KC>,BATTERY 115E41R<6XD> 03.430 (C) ID=13 H=15 L=25 		1-09700-888-0 01 1 0505-0505 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL CAB&MIDDLE(NK**SF) 03.430 (C) ID=13 H=15 L=25 		1-09700-888-0 01 1 0505-0505 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB(NKB*S*) FRAME-KICK UP<7EW> 03.430 (C) ID=13 H=15 L=25 		1-09700-888-0 01 1 0505-0505 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
DUAL RR TIRE&SHORT(NKC**C) BATTERY NX200-10<S9C>,BATTERY 80D26R<6KC>,BATTERY 115E41R<6XD> 03.430 (C) ID=13 H=15 L=25 		1-09700-888-0 01 1 0505- ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL CAB&MIDDLE(NK**SF) 03.430 (C) ID=13 H=15 L=25 		1-09700-888-0 01 1 0505- ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB(NKB*S*) FRAME-KICK UP<7EW> 03.430 (C) ID=13 H=15 L=25 		1-09700-888-0 01 1 0505- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB(NKB*S*) BATTERY NX200-10<S9C>,BATTERY 80D26R<6KC>,BATTERY 115E41R<6XD> 04.342 (B) ID=14-12 		8-94379-592-0 01 1 0211-0412 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL CAB&MIDDLE(NK**SF) 04.342 (B) ID=14-12 		8-94379-592-0 01 1 0211-0412 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
DBL CAB&MIDDLE(NK**WF) 04.342 (B) ID=14-12 		8-94379-592-0 01 1 0211-0412 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB(NKB*S*) BATTERY 95D31R<6DN> FRT INDEPENDENT SUSPENSION(6PP) 03.483 (D) ID=6 & 10 		8-94154-844-0 01 1 0211-0501 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
FRAME-KICK UP<7EW> 03.430 (C) ID=13 H=15 L=25 		1-09700-888-0 02 1 0211-0501 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
DUAL RR TIRE&SHORT(NKC**C) EXC. FRAME-KICK UP<7EW> 03.483 (C) ID=13 H=18 L=20 		1-09700-813-0 01 1 0502- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL CAB&MIDDLE(NK**SF) 03.483 (C) ID=13 H=18 L=20 		1-09700-813-0 01 1 0502- ●
6 02.343 GROMMET; BATTERY CABLE
EXC. FRAME-KICK UP<7EW> ID=17 		8-94128-319-2 01 1 0211-0501 ● ● ● ●
6 02.343 GROMMET; BATTERY CABLE
ID=17 		8-94128-319-2 01 1 0502-0504 ● ● ●
6 02.343 GROMMET; BATTERY CABLE
ID=17 		8-94128-319-2 01 1 0505- ● ● ● ●
7 02.343 NUT; (+) CABLE
00.002 (B) M8 		9-09110-508-0 01 1 0211-0501 ●
7 02.343 NUT; (+) CABLE
FRAME-KICK UP<7EW> 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0211-0306 ●
7 02.343 NUT; (+) CABLE
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0307-0501 ●
7 02.343 NUT; (+) CABLE
SGL TIRE(NKB***) 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ●
7 02.343 NUT; (+) CABLE
DUAL RR TIRE&SGL CAB(NKC*S*) EXC. FRAME-KICK UP<7EW> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ●
7 02.343 NUT; (+) CABLE
SGL TIRE(NKB***) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0603-1004 ●
7 02.343 NUT; (+) CABLE
DUAL RR TIRE&SGL CAB(NKC*S*) EXC. FRAME-KICK UP<7EW> 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0603-1004 ●
7 02.343 NUT; (+) CABLE
SGL TIRE(NKB***) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1005- ● ●
7 02.343 NUT; (+) CABLE
DUAL RR TIRE&SGL CAB(NKC*S*) EXC. FRAME-KICK UP<7EW> 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1005- ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 0211-0501 ● ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 0502-0504 ● ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 0505-0512 ● ● ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0601-1004 ● ● ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1005- ● ● ● ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 0211-0501 ● ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 0502-0504 ● ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 0505-0603 ● ● ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
04.439 ID=8.2 		0-91510-508-0 01 1 0604-1004 ● ● ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
04.439 ID=8.2 		0-91510-508-0 01 1 1005- ● ● ● ● ● ●
48 02.343 CLIP; CABLE
SGL CAB&MIDDLE(NK**SF) BATTERY 80D26R<6KC> 03.162 (B) L=140 		5-09707-031-1 02 1 0505-0505 ● ●
48 02.343 CLIP; CABLE
SGL CAB&MIDDLE(NK**SF) BATTERY 80D26R<6KC> 03.162 (B) L=140 		5-09707-031-1 02 1 0505-0506 ● ● ●
48 02.343 CLIP; CABLE
SGL CAB&MIDDLE(NK**SF) BATTERY 80D26R<6KC> 03.162 (B) L=140 		5-09707-031-1 02 1 0507-1004 ● ●
48 02.343 CLIP; CABLE
03.162 (B) L=140 		5-09707-031-1 02 1 0507-1004 ●
48 02.343 CLIP; CABLE
SGL CAB&MIDDLE(NK**SF) BATTERY 80D26R<6KC> 03.162 (B) L=140 		5-09707-031-1 02 1 1005- ● ● ●
48 02.343 CLIP; CABLE
03.162 (B) L=140 		5-09707-031-1 02 1 1005- ● ●
48 02.343 CLIP; CABLE
SGL CAB&MIDDLE(NK**SF) BATTERY 80D26R<6KC> 03.162 (B) L=140 		5-09707-031-1 02 1 0211-0501 ●
48 02.343 CLIP; CABLE
SGL TIRE&SGL CAB(NKB*S*) AIR INTAKE REAR VERTICAL<KJ3> 03.162 (B) L=140 		5-09707-031-1 02 1 0211-0501 ●
48 02.343 CLIP; CABLE
DUAL RR TIRE&SGL CAB(NKC*S*) EXC. FRAME-KICK UP<7EW> 03.162 (B) L=140 		5-09707-031-1 02 1 0211-0501 ●
48 02.343 CLIP; CABLE
SGL CAB&MIDDLE(NK**SF) BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> 03.162 (B) L=140 		5-09707-031-1 01 1 0211-0501 ● ●
48 02.343 CLIP; CABLE
SGL TIRE&SGL CAB(NKB*S*) BATTERY 80D26R<6KC> 03.162 (B) L=140 		5-09707-031-1 01 1 0211-0501 ●
48 02.343 CLIP; CABLE
DUAL RR TIRE&SHORT(NKC**C) FRAME-KICK UP<7EW> 03.162 (B) L=140 		5-09707-031-1 01 1 0211-0501 ●
48 02.343 CLIP; CABLE
DBL CAB&MIDDLE(NK**WF) 03.162 (B) L=140 		5-09707-031-1 01 1 0211-0501 ●
48 02.343 CLIP; CABLE
MIDDLE(NK***F) 03.162 (B) L=140 		5-09707-031-1 01 1 0502-0504 ● ● ●
48 02.343 CLIP; CABLE
03.162 (B) L=140 		5-09707-031-1 01 1 0502-0504 ●
48 02.343 CLIP; CABLE
SGL TIRE&SGL CAB(NKB*S*) BATTERY 80D26R<6KC> 03.162 (B) L=140 		5-09707-031-1 01 1 0505-0505 ●
48 02.343 CLIP; CABLE
SGL CAB&MIDDLE(NK**SF) BATTERY NX200-10<S9C> 03.162 (B) L=140 		5-09707-031-1 01 1 0505-0505 ●
48 02.343 CLIP; CABLE
03.162 (B) L=140 		5-09707-031-1 01 1 0505-0505 ●
48 02.343 CLIP; CABLE
MIDDLE(NK***F) 03.162 (B) L=140 		5-09707-031-1 01 1 0505-0505 ●
48 02.343 CLIP; CABLE
SGL TIRE&SGL CAB(NKB*S*) BATTERY 80D26R<6KC> 03.162 (B) L=140 		5-09707-031-1 01 1 0505-0506 ● ●
48 02.343 CLIP; CABLE
SGL CAB&MIDDLE(NK**SF) BATTERY NX200-10<S9C> 03.162 (B) L=140 		5-09707-031-1 01 1 0505-0506 ● ●
48 02.343 CLIP; CABLE
03.162 (B) L=140 		5-09707-031-1 01 1 0505-0506 ●
48 02.343 CLIP; CABLE
MIDDLE(NK***F) 03.162 (B) L=140 		5-09707-031-1 01 1 0505-0506 ●
48 02.343 CLIP; CABLE
SGL TIRE&SGL CAB(NKB*S*) BATTERY 80D26R<6KC> 03.162 (B) L=140 		5-09707-031-1 01 1 0507- ● ●
48 02.343 CLIP; CABLE
SGL CAB&MIDDLE(NK**SF) BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> 03.162 (B) L=140 		5-09707-031-1 01 1 0507- ● ●
48 02.343 CLIP; CABLE
SGL CAB&MIDDLE(NK**SF) 03.162 (B) L=140 		5-09707-031-1 01 1 0507- ●
48 02.343 CLIP; CABLE
SGL CAB(NK**S*) 03.430 (A) ID=13 H=15 L=25 		1-09700-888-0 01 1 0211-0501 ●
48 02.343 CLIP; CABLE
DBL CAB&MIDDLE(NK**WF) 02.559 (A) ID=19 H=70 L=25 		1-09700-773-0 01 1 0211-0501 ●
48 02.343 CLIP; CABLE
02.559 (C) L=250 		5-09707-030-1 02 1 0211-0501 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB&MIDDLE(NK**SF) BATTERY 95D31R<6DN> L=400 		8-97230-533-1 01 1 0211-0501 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&SHORT(NKC**C) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> L=400 		8-97230-533-1 01 1 0211-0501 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&SHORT(NKC**C) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> L=400 		8-97230-533-1 01 1 0502-0504 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB&MIDDLE(NK**SF) BATTERY 95D31R<6DN> L=400 		8-97230-533-1 01 1 0502-0504 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB&MIDDLE(NK**SF) BATTERY 95D31R<6DN> L=400 		8-97230-533-1 01 1 0505- ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&SHORT(NKC**C) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> L=400 		8-97230-533-1 01 1 0505- ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB(NKB*S*) BATTERY 95D31R<6DN> L=300 		8-94166-037-0 01 1 0211-0501 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&DBL CAB&SHORT(NKB6WC) SMALL DUAL RR TIRE&SHORT(NKN6SC) BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> L=300 		8-94166-037-0 01 1 0211-0501 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB(NKB*S*) BATTERY 95D31R<6DN> L=300 		8-94166-037-0 01 1 0502-0504 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
DBL CAB&MIDDLE(NK**WF) BATTERY NX200-10<S9C> L=300 		8-94166-037-0 01 1 0502-0504 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SMALL DUAL RR TIRE(NKN***) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> L=300 		8-94166-037-0 01 1 0502-0504 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB(NKB*S*) BATTERY 95D31R<6DN> L=300 		8-94166-037-0 01 1 0505-0712 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SMALL DUAL RR TIRE(NKN***) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> L=300 		8-94166-037-0 01 1 0505-0712 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> L=300 		8-97231-242-1 01 1 0211-0501 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) BATTERY NX200-10<S9C> L=300 		8-97231-242-1 01 1 0502-0504 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> L=300 		8-97231-242-1 01 1 0505-0712 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB(NKB*S*) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN>,BATTERY 115E41R<6XD> L=300 		8-97231-242-1 01 1 0801-0910 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB&MIDDLE(NK**SF) BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> L=300 		8-97231-242-1 01 1 0801-0910 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SMALL DUAL RR TIRE(NKN***) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> L=300 		8-97231-242-1 01 1 0801-0910 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SMALL DUAL RR TIRE(NKN***) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> L=300 		8-97231-242-1 01 1 0911- ● ● ● ● ● ● ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB(NKB*S*) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN>,BATTERY 115E41R<6XD> L=300 		8-97231-242-1 01 1 0911- ● ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB&MIDDLE(NK**SF) BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> L=300 		8-97231-242-1 01 1 0911- ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=500 		8-97035-845-3 01 1 0211-0501 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB&MIDDLE(NK**SF) L=500 		8-97035-845-3 01 1 0502-0504 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB&MIDDLE(NK**SF) L=500 		8-97035-845-3 01 1 0505-0910 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
BATTERY 80D26R<6KC> L=500 		8-97035-845-3 01 1 0911- ● ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=500 		8-97035-845-3 01 1 0911- ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB(NKB*S*) AIR INTAKE REAR VERTICAL<KJ3> L=300 		8-97230-536-1 01 1 0211-0501 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
FRAME-KICK UP<7EW> L=300 		8-97230-536-1 01 1 0211-0501 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
DBL CAB&MIDDLE(NK**WF) L=300 		8-97230-536-1 01 1 0211-0501 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB&SHORT(NKB6SC) SGL TIRE&DBL CAB&SHORT(NKB6WC) DUAL RR TIRE&DBL CAB&MIDDLE(NKC6WF) L=300 		8-97230-536-1 01 1 0502-1004 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&SHORT(NKC**C) FRAME-KICK UP<7EW> L=300 		8-97230-536-1 01 1 0502-1004 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
DBL CAB&SHORT(NK**WC) L=300 		8-97230-536-1 01 1 0502-1004 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB&SHORT(NKB6SC) SGL TIRE&DBL CAB&SHORT(NKB6WC) DUAL RR TIRE&DBL CAB&MIDDLE(NKC6WF) L=300 		8-97230-536-1 01 1 1005- ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&SHORT(NKC**C) FRAME-KICK UP<7EW> L=300 		8-97230-536-1 01 1 1005- ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
DBL CAB&SHORT(NK**WC) L=300 		8-97230-536-1 01 1 1005- ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB(NKB*S*) AIR INTAKE SYSTEM FRONT<6PC> L=200 		8-97231-243-1 01 1 0211-0501 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&SHORT(NKC**C) EXC. FRAME-KICK UP<7EW> L=200 		8-97231-243-1 01 1 0211-0501 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB&MIDDLE(NK**SF) L=200 		8-97231-243-1 01 1 0211-0501 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&SHORT(NKC**C) EXC. FRAME-KICK UP<7EW> L=200 		8-97231-243-1 01 1 0502- ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB&MIDDLE(NK**SF) L=200 		8-97231-243-1 01 1 0502- ●
61 02.333 BRACKET; BATTERY CABLE
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97062-179-3 01 1 0211-0501 ● ●
61 02.333 BRACKET; BATTERY CABLE
SGL TIRE&SGL CAB&SHORT(NKB6SC) SGL TIRE&DBL CAB&SHORT(NKB6WC) DUAL RR TIRE&DBL CAB&MIDDLE(NKC6WF) (D) 		8-97369-198-1 01 1 0502-1004 ●
61 02.333 BRACKET; BATTERY CABLE
DUAL RR TIRE&SHORT(NKC**C) FRAME-KICK UP<7EW> (D) 		8-97369-198-1 01 1 0502-1004 ●
61 02.333 BRACKET; BATTERY CABLE
DBL CAB&SHORT(NK**WC) (D) 		8-97369-198-1 01 1 0502-1004 ●
61 02.333 BRACKET; BATTERY CABLE
DBL CAB&MIDDLE(NK**WF) (D) 		8-97369-198-1 01 1 1005- ● ● ● ● ● ●
61 02.333 BRACKET; BATTERY CABLE
SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&DBL CAB&MIDDLE(NKC6WF) (D) 		8-97369-198-1 01 1 1005- ● ●
61 02.333 BRACKET; BATTERY CABLE
DUAL RR TIRE&SHORT(NKC**C) FRAME-KICK UP<7EW> (D) 		8-97369-198-1 01 1 1005- ●
61 02.333 BRACKET; BATTERY CABLE
(B) 		8-97322-370-0 01 1 0211-0211 ●
61 02.333 BRACKET; BATTERY CABLE
(B) 		8-97362-323-0 01 1 0212-0501 ●
61 02.333 BRACKET; BATTERY CABLE
(B) 		8-97362-323-0 01 1 0502- ●
61 02.333 BRACKET; BATTERY CABLE
(C) 		8-97353-709-0 01 1 0211-0501 ●
61 02.333 BRACKET; BATTERY CABLE
(C) 		8-97353-709-0 01 1 0502- ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0211-0501 ● ● ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0502-1004 ● ● ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1005- ● ● ● ●
75 02.333 BOLT; BRKT
SGL TIRE&SGL CAB&SHORT(NKB6SC) SGL TIRE&DBL CAB&SHORT(NKB6WC) DUAL RR TIRE&DBL CAB&MIDDLE(NKC6WF) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0502-0512 ●
75 02.333 BOLT; BRKT
DUAL RR TIRE&SHORT(NKC**C) FRAME-KICK UP<7EW> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0502-0512 ●
75 02.333 BOLT; BRKT
DBL CAB&SHORT(NK**WC) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0502-0512 ●
75 02.333 BOLT; BRKT
SGL TIRE&SGL CAB&SHORT(NKB6SC) SGL TIRE&DBL CAB&SHORT(NKB6WC) DUAL RR TIRE&DBL CAB&MIDDLE(NKC6WF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601-1004 ●
75 02.333 BOLT; BRKT
DUAL RR TIRE&SHORT(NKC**C) FRAME-KICK UP<7EW> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601-1004 ●
75 02.333 BOLT; BRKT
DBL CAB&SHORT(NK**WC) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601-1004 ●
75 02.333 BOLT; BRKT
DBL CAB&MIDDLE(NK**WF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 1005- ● ● ● ● ● ●
75 02.333 BOLT; BRKT
SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&DBL CAB&MIDDLE(NKC6WF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 1005- ● ●
75 02.333 BOLT; BRKT
DUAL RR TIRE&SHORT(NKC**C) FRAME-KICK UP<7EW> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 1005- ●
103 02.343 BOLT; BATTERY CABLE
FRT INDEPENDENT SUSPENSION(6PP) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0211-0412 ●
103 02.343 BOLT; BATTERY CABLE
FRAME-KICK UP<7EW> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0211-0412 ●
103 02.343 BOLT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*) FRT INDEPENDENT SUSPENSION(6PP) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0501-0501 ● ●
103 02.343 BOLT; BATTERY CABLE
SGL CAB&MIDDLE(NK**SF) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0501-0501 ● ●
103 02.343 BOLT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*) BATTERY NX200-10<S9C>,BATTERY 80D26R<6KC>,BATTERY 115E41R<6XD> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0501-0501 ● ●
103 02.343 BOLT; BATTERY CABLE
DUAL RR TIRE&SHORT(NKC**C) FRAME-KICK UP<7EW> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0501-0501 ●
103 02.343 BOLT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*) BATTERY NX200-10<S9C> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0502-0504 ●
103 02.343 BOLT; BATTERY CABLE
SGL CAB&MIDDLE(NK**SF) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0502-0504 ●
103 02.343 BOLT; BATTERY CABLE
DUAL RR TIRE&SHORT(NKC**C) FRAME-KICK UP<7EW> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0502-0504 ●
103 02.343 BOLT; BATTERY CABLE
DUAL RR TIRE&SHORT(NKC**C) BATTERY NX200-10<S9C>,BATTERY 80D26R<6KC>,BATTERY 115E41R<6XD> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0505-0505 ● ●
103 02.343 BOLT; BATTERY CABLE
SGL CAB&MIDDLE(NK**SF) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0505-0505 ● ●
103 02.343 BOLT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*) FRAME-KICK UP<7EW> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0505-0505 ●
103 02.343 BOLT; BATTERY CABLE
DUAL RR TIRE&SHORT(NKC**C) BATTERY NX200-10<S9C>,BATTERY 80D26R<6KC>,BATTERY 115E41R<6XD> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0505-0512 ● ● ●
103 02.343 BOLT; BATTERY CABLE
SGL CAB&MIDDLE(NK**SF) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0505-0512 ● ● ●
103 02.343 BOLT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*) FRAME-KICK UP<7EW> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0505-0512 ●
103 02.343 BOLT; BATTERY CABLE
DUAL RR TIRE&SHORT(NKC**C) BATTERY NX200-10<S9C>,BATTERY 80D26R<6KC>,BATTERY 115E41R<6XD> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601- ● ● ●
103 02.343 BOLT; BATTERY CABLE
SGL CAB&MIDDLE(NK**SF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601- ● ● ●
103 02.343 BOLT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*) FRAME-KICK UP<7EW> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601- ●
104 02.343 NUT; BATTERY CABLE
FRT INDEPENDENT SUSPENSION(6PP) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0412 ●
104 02.343 NUT; BATTERY CABLE
04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0412 ●
104 02.343 NUT; BATTERY CABLE
SGL CAB&MIDDLE(NK**SF) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0501-0501 ● ● ●
104 02.343 NUT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*) FRT INDEPENDENT SUSPENSION(6PP) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0501-0501 ● ●
104 02.343 NUT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*) BATTERY NX200-10<S9C>,BATTERY 80D26R<6KC>,BATTERY 115E41R<6XD> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0501-0501 ● ●
104 02.343 NUT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*) BATTERY NX200-10<S9C> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0502-0504 ●
104 02.343 NUT; BATTERY CABLE
SGL CAB&MIDDLE(NK**SF) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0502-0504 ●
104 02.343 NUT; BATTERY CABLE
04.594 M6 FLANGE 		0-91150-106-0 01 1 0502-0504 ●
104 02.343 NUT; BATTERY CABLE
SGL CAB&MIDDLE(NK**SF) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0505-0505 ● ●
104 02.343 NUT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*) BATTERY NX200-10<S9C>,BATTERY 80D26R<6KC> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0505-0505 ●
104 02.343 NUT; BATTERY CABLE
SGL CAB&MIDDLE(NK**SF) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0505-0602 ● ● ●
104 02.343 NUT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*) BATTERY NX200-10<S9C>,BATTERY 80D26R<6KC>,BATTERY 115E41R<6XD> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0505-0602 ● ●
104 02.343 NUT; BATTERY CABLE
SGL CAB&MIDDLE(NK**SF) 01.062 M6 FLANGE 		0-91180-106-0 01 1 0603-0910 ● ● ●
104 02.343 NUT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*) BATTERY NX200-10<S9C>,BATTERY 80D26R<6KC>,BATTERY 115E41R<6XD> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0603-0910 ● ●
104 02.343 NUT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*) BATTERY NX200-10<S9C>,BATTERY 80D26R<6KC>,BATTERY 115E41R<6XD> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0911- ● ● ●
104 02.343 NUT; BATTERY CABLE
SGL CAB&MIDDLE(NK**SF) 01.062 M6 FLANGE 		0-91180-106-0 01 1 0911- ● ● ●
104 02.343 NUT; BATTERY CABLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ●
104 02.343 NUT; BATTERY CABLE
07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ●
104 02.343 NUT; BATTERY CABLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0504 ● ●
104 02.343 NUT; BATTERY CABLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0505-0602 ● ● ●
104 02.343 NUT; BATTERY CABLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ●
112 02.343 TERMINAL; BATTERY
JAPAN PRODUCTION<C1H> (A) 		8-97365-770-0 01 1 1408- ●
112 02.343 TERMINAL; BATTERY
BATTERY 80D26R<6KC> (A) <+> 		8-97356-925-1 01 1 0211-0501 ● ●
112 02.343 TERMINAL; BATTERY
DUAL RR TIRE&SGL CAB(NKC*S*) (A) <+> 		8-97356-925-1 01 1 0211-0501 ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-97356-925-1 01 1 0211-0501 ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-97356-925-1 01 1 0502-0910 ● ●
112 02.343 TERMINAL; BATTERY
SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) BATTERY 80D26R<6KC> (A) <+> 		8-97356-925-1 01 1 0911-1407 ●
112 02.343 TERMINAL; BATTERY
SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) BATTERY 80D26R<6KC> (A) <+> 		8-97356-925-1 01 1 0911-1407 ●
112 02.343 TERMINAL; BATTERY
SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) BATTERY 80D26R<6KC> (A) <+> 		8-97356-925-1 01 1 0911-1407 ●
112 02.343 TERMINAL; BATTERY
DUAL RR TIRE&SGL CAB(NKC*S*) (A) <+> 		8-97356-925-1 01 1 0911-1407 ●
112 02.343 TERMINAL; BATTERY
SGL CAB&MIDDLE(NK**SF) (A) <+> 		8-97356-925-1 01 1 0911-1407 ●
112 02.343 TERMINAL; BATTERY
BATTERY 80D26R<6KC> (A) <+> 		8-97356-925-1 01 1 1408- ● ● ●
112 02.343 TERMINAL; BATTERY
EXC. JAPAN PRODUCTION<C1H> (A) <+> 		8-97356-925-1 01 1 1408- ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-97356-925-1 01 1 1408- ● ●
112 02.343 TERMINAL; BATTERY
BATTERY 80D26R<6KC> (B) <-> 		8-97356-926-1 01 1 0211-0501 ● ●
112 02.343 TERMINAL; BATTERY
(B) <-> 		8-97356-926-1 01 1 0211-0501 ●
112 02.343 TERMINAL; BATTERY
(B) <-> 		8-97356-926-1 01 1 0502-0504 ●
112 02.343 TERMINAL; BATTERY
BATTERY 80D26R<6KC> (B) <-> 		8-97356-926-1 01 1 0505-0505 ● ●
112 02.343 TERMINAL; BATTERY
(B) <-> 		8-97356-926-1 01 1 0505-0505 ●
112 02.343 TERMINAL; BATTERY
BATTERY 80D26R<6KC> (B) <-> 		8-97356-926-1 01 1 0505- ● ● ●
112 02.343 TERMINAL; BATTERY
(B) <-> 		8-97356-926-1 01 1 0505- ●
çizim 46809
62 49 3 1 31 30 48 3 61 5 7 75
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.341 CABLE; BATTERY
BATTERY 80D26R<6KC> L=180 		8-97230-530-2 01 1 0211-0501 ● ●
1 02.341 CABLE; BATTERY
L=180 		8-97230-530-2 01 1 0211-0501 ●
1 02.341 CABLE; BATTERY
L=180 		8-97230-530-2 01 1 0502-0504 ●
1 02.341 CABLE; BATTERY
BATTERY 80D26R<6KC> L=180 		8-97230-530-2 01 1 0505-0505 ● ●
1 02.341 CABLE; BATTERY
L=180 		8-97230-530-2 01 1 0505-0505 ●
1 02.341 CABLE; BATTERY
BATTERY 80D26R<6KC> L=180 		8-97230-530-2 01 1 0505- ● ● ●
1 02.341 CABLE; BATTERY
L=180 		8-97230-530-2 01 1 0505- ●
1 02.341 CABLE; BATTERY
L=280 		8-97230-719-1 01 1 0211-0501 ●
1 02.341 CABLE; BATTERY
L=280 		8-97230-719-2 01 1 0502-1004 ●
1 02.341 CABLE; BATTERY
L=280 		8-97230-719-2 01 1 1005- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE(NKB***) BATTERY 80D26R<6KC> 		8-98003-119-0 01 1 0505-0505 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE(NKB***) BATTERY 80D26R<6KC> 		8-98003-119-0 01 1 0505- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) BATTERY 80D26R<6KC> 		8-98003-120-0 01 1 0505-0505 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) BATTERY 80D26R<6KC> 		8-98003-120-0 01 1 0505- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) BATTERY 80D26R<6KC> 		8-97289-355-0 01 1 0211-0412 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) BATTERY 80D26R<6KC> 		8-98003-120-0 01 1 0501-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*) BATTERY 80D26R<6KC> 		8-97214-185-0 01 1 0211-0412 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*) BATTERY 80D26R<6KC> 		8-98003-119-0 01 1 0501-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*) 		8-97377-774-0 01 1 0502-1004 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*) 		8-97377-774-0 01 1 1005- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> L=1100 		8-97351-859-0 01 1 0211-0412 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> L=1100 		8-98003-121-0 01 1 0501-0501 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) BATTERY NX200-10<S9C> L=1100 		8-98003-121-0 01 1 0502-0504 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> L=1100 		8-98003-121-0 01 1 0505- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) BATTERY 95D31R<6DN> L=800 		8-97351-861-0 01 1 0211-0412 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) BATTERY 95D31R<6DN> L=800 		8-98003-122-0 01 1 0501-0501 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) BATTERY 95D31R<6DN> L=800 		8-98003-122-0 01 1 0502-0504 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) BATTERY 95D31R<6DN> L=800 		8-98003-122-0 01 1 0505- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*) BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> L=900 		8-97351-863-0 01 1 0211-0412 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*) BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> L=900 		8-98003-123-0 01 1 0501-0501 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*) BATTERY NX200-10<S9C> L=900 		8-98003-123-0 01 1 0502-0504 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE(NKB***) BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> L=900 		8-98003-123-0 01 1 0505- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*) BATTERY 95D31R<6DN> L=900 		8-97351-862-0 01 1 0211-0501 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&DBL CAB&SHORT(NKB6WC) SMALL DUAL RR TIRE&SHORT(NKN6SC) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> L=900 		8-97351-862-0 01 1 0211-0501 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SMALL DUAL RR TIRE(NKN***) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> L=900 		8-97351-862-0 01 1 0502-0504 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*) BATTERY 95D31R<6DN> L=900 		8-97351-862-0 01 1 0502-0504 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NK**W*) L=900 		8-97351-862-0 01 1 0505- ● ● ● ● ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*) BATTERY 95D31R<6DN> L=900 		8-97351-862-0 01 1 0505- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SMALL DUAL RR TIRE(NKN***) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> L=900 		8-97351-862-0 01 1 0505- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DUAL RR TIRE&SHORT(NKC**C) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> 		8-97351-860-0 01 1 0211-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DUAL RR TIRE&SHORT(NKC**C) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> 		8-97351-860-0 01 1 0502- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRAME-KICK UP<7EW> 		8-97352-384-0 01 1 0211-0301 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRAME-KICK UP<7EW> 		8-97363-559-1 01 1 0302-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DUAL RR TIRE&SHORT(NKC**C) FRAME-KICK UP<7EW> 		8-97387-720-0 01 1 0502- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB&MIDDLE(NK**WF) 		8-97351-855-3 01 1 0211-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB&MIDDLE(NK**WF) 		8-97377-773-0 01 1 0502- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*) AIR INTAKE REAR VERTICAL<KJ3> 		8-97351-857-2 01 1 0211-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DUAL RR TIRE&SHORT(NKC**C) EXC. FRAME-KICK UP<7EW> 		8-97357-079-2 01 1 0211-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) 		8-97357-079-2 01 1 0211-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DUAL RR TIRE&SHORT(NKC**C) EXC. FRAME-KICK UP<7EW> 		8-97377-767-2 01 1 0502- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) 		8-97377-767-2 01 1 0502- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97351-956-2 01 1 0211-0301 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97363-573-0 01 1 0302-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF) 		8-97363-573-0 01 1 0502-1004 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97363-573-0 01 1 1005- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=13 L=90 		8-97015-782-1 01 1 0211-0501 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(A) ID=13 L=90 		8-97015-782-1 01 1 0211-0501 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=13 L=90 		8-97015-782-1 01 1 0502-0504 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE(NKB***) (A) ID=13 L=90 		8-97015-782-1 01 1 0502-0504 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=13 L=90 		8-97015-782-1 01 1 0505-1004 ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE(NKB***) (A) ID=13 L=90 		8-97015-782-1 01 1 0505-1004 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=13 L=90 		8-97015-782-1 01 1 1005- ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE(NKB***) (A) ID=13 L=90 		8-97015-782-1 01 1 1005- ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) 03.430 (C) ID=13 H=15 L=25 		1-09700-888-0 01 1 0211-0412 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB(NKB*S*) FRT INDEPENDENT SUSPENSION(6PP) 03.430 (C) ID=13 H=15 L=25 		1-09700-888-0 01 1 0501-0501 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL CAB&MIDDLE(NK**SF) 03.430 (C) ID=13 H=15 L=25 		1-09700-888-0 01 1 0501-0501 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB(NKB*S*) BATTERY NX200-10<S9C>,BATTERY 80D26R<6KC>,BATTERY 115E41R<6XD> 03.430 (C) ID=13 H=15 L=25 		1-09700-888-0 01 1 0501-0501 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB(NKB*S*) BATTERY NX200-10<S9C> 03.430 (C) ID=13 H=15 L=25 		1-09700-888-0 01 1 0502-0504 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL CAB&MIDDLE(NK**SF) 03.430 (C) ID=13 H=15 L=25 		1-09700-888-0 01 1 0502-0504 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
DUAL RR TIRE&SHORT(NKC**C) FRAME-KICK UP<7EW> 03.430 (C) ID=13 H=15 L=25 		1-09700-888-0 01 1 0502-0504 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
DUAL RR TIRE&SHORT(NKC**C) BATTERY NX200-10<S9C>,BATTERY 80D26R<6KC>,BATTERY 115E41R<6XD> 03.430 (C) ID=13 H=15 L=25 		1-09700-888-0 01 1 0505-0505 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL CAB&MIDDLE(NK**SF) 03.430 (C) ID=13 H=15 L=25 		1-09700-888-0 01 1 0505-0505 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB(NKB*S*) FRAME-KICK UP<7EW> 03.430 (C) ID=13 H=15 L=25 		1-09700-888-0 01 1 0505-0505 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
DUAL RR TIRE&SHORT(NKC**C) BATTERY NX200-10<S9C>,BATTERY 80D26R<6KC>,BATTERY 115E41R<6XD> 03.430 (C) ID=13 H=15 L=25 		1-09700-888-0 01 1 0505- ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL CAB&MIDDLE(NK**SF) 03.430 (C) ID=13 H=15 L=25 		1-09700-888-0 01 1 0505- ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB(NKB*S*) FRAME-KICK UP<7EW> 03.430 (C) ID=13 H=15 L=25 		1-09700-888-0 01 1 0505- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB(NKB*S*) BATTERY NX200-10<S9C>,BATTERY 80D26R<6KC>,BATTERY 115E41R<6XD> 04.342 (B) ID=14-12 		8-94379-592-0 01 1 0211-0412 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL CAB&MIDDLE(NK**SF) 04.342 (B) ID=14-12 		8-94379-592-0 01 1 0211-0412 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
DBL CAB&MIDDLE(NK**WF) 04.342 (B) ID=14-12 		8-94379-592-0 01 1 0211-0412 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB(NKB*S*) BATTERY 95D31R<6DN> FRT INDEPENDENT SUSPENSION(6PP) 03.483 (D) ID=6 & 10 		8-94154-844-0 01 1 0211-0501 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
FRAME-KICK UP<7EW> 03.430 (C) ID=13 H=15 L=25 		1-09700-888-0 02 1 0211-0501 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
DUAL RR TIRE&SHORT(NKC**C) EXC. FRAME-KICK UP<7EW> 03.483 (C) ID=13 H=18 L=20 		1-09700-813-0 01 1 0502- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL CAB&MIDDLE(NK**SF) 03.483 (C) ID=13 H=18 L=20 		1-09700-813-0 01 1 0502- ●
7 02.343 NUT; (+) CABLE
00.002 (B) M8 		9-09110-508-0 01 1 0211-0501 ●
7 02.343 NUT; (+) CABLE
FRAME-KICK UP<7EW> 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0211-0306 ●
7 02.343 NUT; (+) CABLE
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0307-0501 ●
7 02.343 NUT; (+) CABLE
SGL TIRE(NKB***) 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ●
7 02.343 NUT; (+) CABLE
DUAL RR TIRE&SGL CAB(NKC*S*) EXC. FRAME-KICK UP<7EW> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ●
7 02.343 NUT; (+) CABLE
SGL TIRE(NKB***) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0603-1004 ●
7 02.343 NUT; (+) CABLE
DUAL RR TIRE&SGL CAB(NKC*S*) EXC. FRAME-KICK UP<7EW> 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0603-1004 ●
7 02.343 NUT; (+) CABLE
SGL TIRE(NKB***) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1005- ● ●
7 02.343 NUT; (+) CABLE
DUAL RR TIRE&SGL CAB(NKC*S*) EXC. FRAME-KICK UP<7EW> 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1005- ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 0211-0501 ● ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 0502-0504 ● ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 0505-0512 ● ● ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0601-1004 ● ● ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1005- ● ● ● ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 0211-0501 ● ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 0502-0504 ● ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 0505-0603 ● ● ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
04.439 ID=8.2 		0-91510-508-0 01 1 0604-1004 ● ● ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
04.439 ID=8.2 		0-91510-508-0 01 1 1005- ● ● ● ● ● ●
48 02.343 CLIP; CABLE
SGL CAB&MIDDLE(NK**SF) BATTERY 80D26R<6KC> 03.162 (B) L=140 		5-09707-031-1 02 1 0505-0505 ● ●
48 02.343 CLIP; CABLE
SGL CAB&MIDDLE(NK**SF) BATTERY 80D26R<6KC> 03.162 (B) L=140 		5-09707-031-1 02 1 0505-0506 ● ● ●
48 02.343 CLIP; CABLE
SGL CAB&MIDDLE(NK**SF) BATTERY 80D26R<6KC> 03.162 (B) L=140 		5-09707-031-1 02 1 0507-1004 ● ●
48 02.343 CLIP; CABLE
03.162 (B) L=140 		5-09707-031-1 02 1 0507-1004 ●
48 02.343 CLIP; CABLE
SGL CAB&MIDDLE(NK**SF) BATTERY 80D26R<6KC> 03.162 (B) L=140 		5-09707-031-1 02 1 1005- ● ● ●
48 02.343 CLIP; CABLE
03.162 (B) L=140 		5-09707-031-1 02 1 1005- ● ●
48 02.343 CLIP; CABLE
SGL CAB&MIDDLE(NK**SF) BATTERY 80D26R<6KC> 03.162 (B) L=140 		5-09707-031-1 02 1 0211-0501 ●
48 02.343 CLIP; CABLE
SGL TIRE&SGL CAB(NKB*S*) AIR INTAKE REAR VERTICAL<KJ3> 03.162 (B) L=140 		5-09707-031-1 02 1 0211-0501 ●
48 02.343 CLIP; CABLE
DUAL RR TIRE&SGL CAB(NKC*S*) EXC. FRAME-KICK UP<7EW> 03.162 (B) L=140 		5-09707-031-1 02 1 0211-0501 ●
48 02.343 CLIP; CABLE
SGL CAB&MIDDLE(NK**SF) BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> 03.162 (B) L=140 		5-09707-031-1 01 1 0211-0501 ● ●
48 02.343 CLIP; CABLE
SGL TIRE&SGL CAB(NKB*S*) BATTERY 80D26R<6KC> 03.162 (B) L=140 		5-09707-031-1 01 1 0211-0501 ●
48 02.343 CLIP; CABLE
DUAL RR TIRE&SHORT(NKC**C) FRAME-KICK UP<7EW> 03.162 (B) L=140 		5-09707-031-1 01 1 0211-0501 ●
48 02.343 CLIP; CABLE
DBL CAB&MIDDLE(NK**WF) 03.162 (B) L=140 		5-09707-031-1 01 1 0211-0501 ●
48 02.343 CLIP; CABLE
MIDDLE(NK***F) 03.162 (B) L=140 		5-09707-031-1 01 1 0502-0504 ● ● ●
48 02.343 CLIP; CABLE
03.162 (B) L=140 		5-09707-031-1 01 1 0502-0504 ●
48 02.343 CLIP; CABLE
SGL TIRE&SGL CAB(NKB*S*) BATTERY 80D26R<6KC> 03.162 (B) L=140 		5-09707-031-1 01 1 0505-0505 ●
48 02.343 CLIP; CABLE
SGL CAB&MIDDLE(NK**SF) BATTERY NX200-10<S9C> 03.162 (B) L=140 		5-09707-031-1 01 1 0505-0505 ●
48 02.343 CLIP; CABLE
03.162 (B) L=140 		5-09707-031-1 01 1 0505-0505 ●
48 02.343 CLIP; CABLE
MIDDLE(NK***F) 03.162 (B) L=140 		5-09707-031-1 01 1 0505-0505 ●
48 02.343 CLIP; CABLE
SGL TIRE&SGL CAB(NKB*S*) BATTERY 80D26R<6KC> 03.162 (B) L=140 		5-09707-031-1 01 1 0505-0506 ● ●
48 02.343 CLIP; CABLE
SGL CAB&MIDDLE(NK**SF) BATTERY NX200-10<S9C> 03.162 (B) L=140 		5-09707-031-1 01 1 0505-0506 ● ●
48 02.343 CLIP; CABLE
03.162 (B) L=140 		5-09707-031-1 01 1 0505-0506 ●
48 02.343 CLIP; CABLE
MIDDLE(NK***F) 03.162 (B) L=140 		5-09707-031-1 01 1 0505-0506 ●
48 02.343 CLIP; CABLE
SGL TIRE&SGL CAB(NKB*S*) BATTERY 80D26R<6KC> 03.162 (B) L=140 		5-09707-031-1 01 1 0507- ● ●
48 02.343 CLIP; CABLE
SGL CAB&MIDDLE(NK**SF) BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> 03.162 (B) L=140 		5-09707-031-1 01 1 0507- ● ●
48 02.343 CLIP; CABLE
SGL CAB&MIDDLE(NK**SF) 03.162 (B) L=140 		5-09707-031-1 01 1 0507- ●
48 02.343 CLIP; CABLE
SGL CAB(NK**S*) 03.430 (A) ID=13 H=15 L=25 		1-09700-888-0 01 1 0211-0501 ●
48 02.343 CLIP; CABLE
DBL CAB&MIDDLE(NK**WF) 02.559 (A) ID=19 H=70 L=25 		1-09700-773-0 01 1 0211-0501 ●
48 02.343 CLIP; CABLE
02.559 (C) L=250 		5-09707-030-1 02 1 0211-0501 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB&MIDDLE(NK**SF) BATTERY 95D31R<6DN> L=400 		8-97230-533-1 01 1 0211-0501 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&SHORT(NKC**C) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> L=400 		8-97230-533-1 01 1 0211-0501 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&SHORT(NKC**C) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> L=400 		8-97230-533-1 01 1 0502-0504 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB&MIDDLE(NK**SF) BATTERY 95D31R<6DN> L=400 		8-97230-533-1 01 1 0502-0504 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB&MIDDLE(NK**SF) BATTERY 95D31R<6DN> L=400 		8-97230-533-1 01 1 0505- ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&SHORT(NKC**C) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> L=400 		8-97230-533-1 01 1 0505- ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB(NKB*S*) BATTERY 95D31R<6DN> L=300 		8-94166-037-0 01 1 0211-0501 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&DBL CAB&SHORT(NKB6WC) SMALL DUAL RR TIRE&SHORT(NKN6SC) BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> L=300 		8-94166-037-0 01 1 0211-0501 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB(NKB*S*) BATTERY 95D31R<6DN> L=300 		8-94166-037-0 01 1 0502-0504 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
DBL CAB&MIDDLE(NK**WF) BATTERY NX200-10<S9C> L=300 		8-94166-037-0 01 1 0502-0504 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SMALL DUAL RR TIRE(NKN***) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> L=300 		8-94166-037-0 01 1 0502-0504 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB(NKB*S*) BATTERY 95D31R<6DN> L=300 		8-94166-037-0 01 1 0505-0712 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SMALL DUAL RR TIRE(NKN***) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> L=300 		8-94166-037-0 01 1 0505-0712 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> L=300 		8-97231-242-1 01 1 0211-0501 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) BATTERY NX200-10<S9C> L=300 		8-97231-242-1 01 1 0502-0504 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> L=300 		8-97231-242-1 01 1 0505-0712 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB(NKB*S*) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN>,BATTERY 115E41R<6XD> L=300 		8-97231-242-1 01 1 0801-0910 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB&MIDDLE(NK**SF) BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> L=300 		8-97231-242-1 01 1 0801-0910 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SMALL DUAL RR TIRE(NKN***) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> L=300 		8-97231-242-1 01 1 0801-0910 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SMALL DUAL RR TIRE(NKN***) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> L=300 		8-97231-242-1 01 1 0911- ● ● ● ● ● ● ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB(NKB*S*) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN>,BATTERY 115E41R<6XD> L=300 		8-97231-242-1 01 1 0911- ● ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB&MIDDLE(NK**SF) BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> L=300 		8-97231-242-1 01 1 0911- ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=500 		8-97035-845-3 01 1 0211-0501 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB&MIDDLE(NK**SF) L=500 		8-97035-845-3 01 1 0502-0504 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB&MIDDLE(NK**SF) L=500 		8-97035-845-3 01 1 0505-0910 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
BATTERY 80D26R<6KC> L=500 		8-97035-845-3 01 1 0911- ● ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=500 		8-97035-845-3 01 1 0911- ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB(NKB*S*) AIR INTAKE REAR VERTICAL<KJ3> L=300 		8-97230-536-1 01 1 0211-0501 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
FRAME-KICK UP<7EW> L=300 		8-97230-536-1 01 1 0211-0501 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
DBL CAB&MIDDLE(NK**WF) L=300 		8-97230-536-1 01 1 0211-0501 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB&SHORT(NKB6SC) SGL TIRE&DBL CAB&SHORT(NKB6WC) DUAL RR TIRE&DBL CAB&MIDDLE(NKC6WF) L=300 		8-97230-536-1 01 1 0502-1004 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&SHORT(NKC**C) FRAME-KICK UP<7EW> L=300 		8-97230-536-1 01 1 0502-1004 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
DBL CAB&SHORT(NK**WC) L=300 		8-97230-536-1 01 1 0502-1004 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB&SHORT(NKB6SC) SGL TIRE&DBL CAB&SHORT(NKB6WC) DUAL RR TIRE&DBL CAB&MIDDLE(NKC6WF) L=300 		8-97230-536-1 01 1 1005- ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&SHORT(NKC**C) FRAME-KICK UP<7EW> L=300 		8-97230-536-1 01 1 1005- ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
DBL CAB&SHORT(NK**WC) L=300 		8-97230-536-1 01 1 1005- ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB(NKB*S*) AIR INTAKE SYSTEM FRONT<6PC> L=200 		8-97231-243-1 01 1 0211-0501 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&SHORT(NKC**C) EXC. FRAME-KICK UP<7EW> L=200 		8-97231-243-1 01 1 0211-0501 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB&MIDDLE(NK**SF) L=200 		8-97231-243-1 01 1 0211-0501 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&SHORT(NKC**C) EXC. FRAME-KICK UP<7EW> L=200 		8-97231-243-1 01 1 0502- ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB&MIDDLE(NK**SF) L=200 		8-97231-243-1 01 1 0502- ●
61 02.333 BRACKET; BATTERY CABLE
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97062-179-3 01 1 0211-0501 ● ●
61 02.333 BRACKET; BATTERY CABLE
SGL TIRE&SGL CAB&SHORT(NKB6SC) SGL TIRE&DBL CAB&SHORT(NKB6WC) DUAL RR TIRE&DBL CAB&MIDDLE(NKC6WF) (D) 		8-97369-198-1 01 1 0502-1004 ●
61 02.333 BRACKET; BATTERY CABLE
DUAL RR TIRE&SHORT(NKC**C) FRAME-KICK UP<7EW> (D) 		8-97369-198-1 01 1 0502-1004 ●
61 02.333 BRACKET; BATTERY CABLE
DBL CAB&SHORT(NK**WC) (D) 		8-97369-198-1 01 1 0502-1004 ●
61 02.333 BRACKET; BATTERY CABLE
DBL CAB&MIDDLE(NK**WF) (D) 		8-97369-198-1 01 1 1005- ● ● ● ● ● ●
61 02.333 BRACKET; BATTERY CABLE
SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&DBL CAB&MIDDLE(NKC6WF) (D) 		8-97369-198-1 01 1 1005- ● ●
61 02.333 BRACKET; BATTERY CABLE
DUAL RR TIRE&SHORT(NKC**C) FRAME-KICK UP<7EW> (D) 		8-97369-198-1 01 1 1005- ●
61 02.333 BRACKET; BATTERY CABLE
(B) 		8-97322-370-0 01 1 0211-0211 ●
61 02.333 BRACKET; BATTERY CABLE
(B) 		8-97362-323-0 01 1 0212-0501 ●
61 02.333 BRACKET; BATTERY CABLE
(B) 		8-97362-323-0 01 1 0502- ●
61 02.333 BRACKET; BATTERY CABLE
(C) 		8-97353-709-0 01 1 0211-0501 ●
61 02.333 BRACKET; BATTERY CABLE
(C) 		8-97353-709-0 01 1 0502- ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0211-0501 ● ● ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0502-1004 ● ● ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1005- ● ● ● ●
75 02.333 BOLT; BRKT
SGL TIRE&SGL CAB&SHORT(NKB6SC) SGL TIRE&DBL CAB&SHORT(NKB6WC) DUAL RR TIRE&DBL CAB&MIDDLE(NKC6WF) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0502-0512 ●
75 02.333 BOLT; BRKT
DUAL RR TIRE&SHORT(NKC**C) FRAME-KICK UP<7EW> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0502-0512 ●
75 02.333 BOLT; BRKT
DBL CAB&SHORT(NK**WC) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0502-0512 ●
75 02.333 BOLT; BRKT
SGL TIRE&SGL CAB&SHORT(NKB6SC) SGL TIRE&DBL CAB&SHORT(NKB6WC) DUAL RR TIRE&DBL CAB&MIDDLE(NKC6WF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601-1004 ●
75 02.333 BOLT; BRKT
DUAL RR TIRE&SHORT(NKC**C) FRAME-KICK UP<7EW> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601-1004 ●
75 02.333 BOLT; BRKT
DBL CAB&SHORT(NK**WC) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601-1004 ●
75 02.333 BOLT; BRKT
DBL CAB&MIDDLE(NK**WF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 1005- ● ● ● ● ● ●
75 02.333 BOLT; BRKT
SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&DBL CAB&MIDDLE(NKC6WF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 1005- ● ●
75 02.333 BOLT; BRKT
DUAL RR TIRE&SHORT(NKC**C) FRAME-KICK UP<7EW> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 1005- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
