◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50943 - NKR55,66,69,71,77LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#50729) — 555 parça

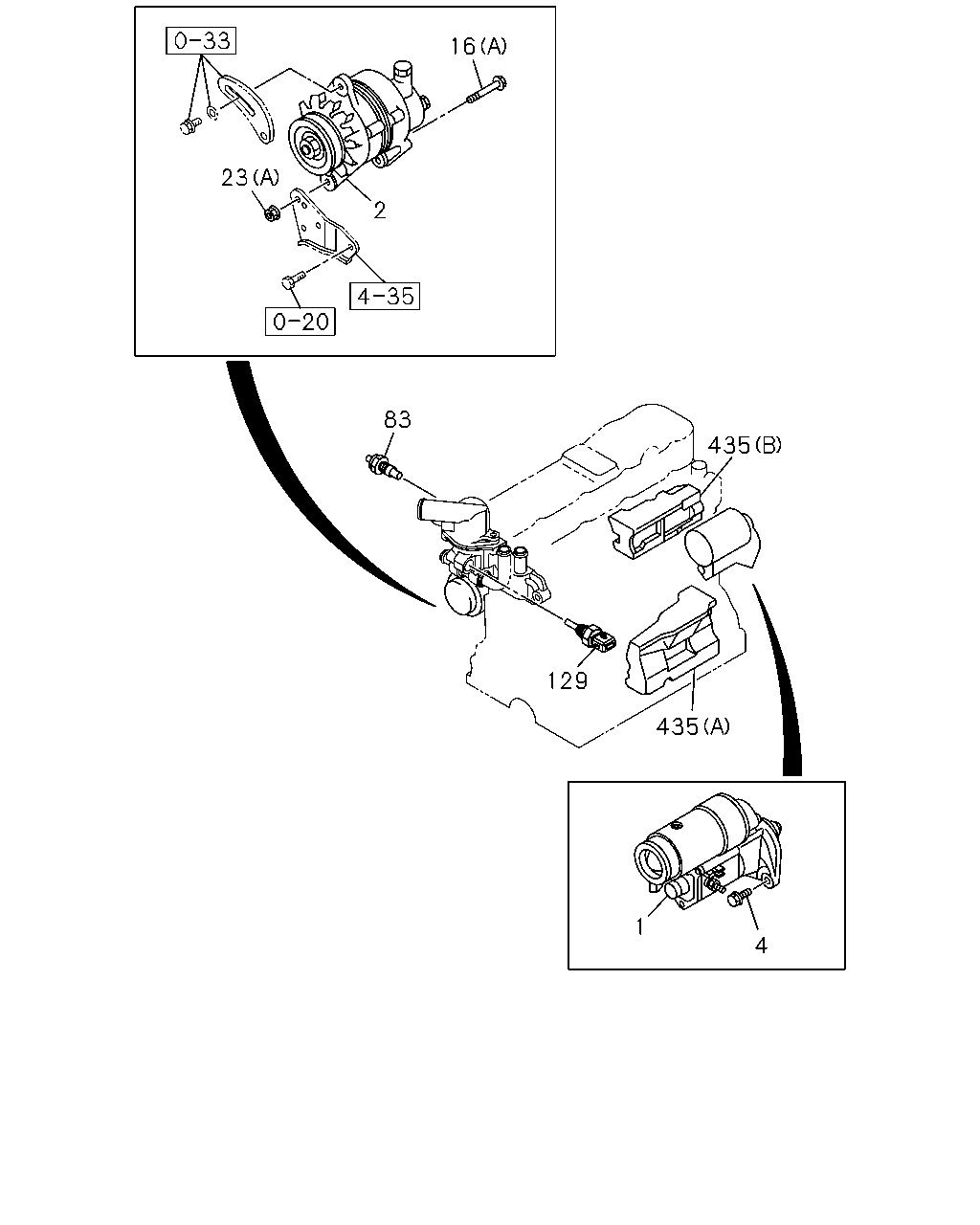

çizim 44847
1 4 129 435 83 23 2 16 435
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 0211-0501 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 0502-0504 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 0505- ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-2 01 1 0211-0501 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0502-1004 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-4 01 1 1005-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98222-019-0 01 1 1208-1311 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98245-259-1 01 1 1312- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97172-211-2 01 1 0211-0501 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97172-211-2 01 1 0502-1004 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97172-211-2 01 1 1005-1006 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1007-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO 		8-97042-997-2 01 1 0211-0501 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO 		8-97042-997-2 01 1 0502- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 		8-97187-657-1 01 1 0211-0501 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. TURBOCHARGER<K51> 12V 50A 		8-97187-657-1 01 1 0211-0501 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 12V 50A 		8-97187-657-1 01 1 0211-0501 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-1 01 1 0502-0504 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-2 01 1 0505-1408 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 12V 60A 		8-97187-658-1 01 1 0211-0501 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-97187-658-2 01 1 0502-1408 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-98284-007-0 01 1 1409-1505 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-98300-335-0 01 1 1506- ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97186-551-1 01 1 0211-0304 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A HITACHI 		8-97351-572-0 01 1 0305-0305 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) EXC. IDENTIFICATION LABEL FOR KD<6UT> 24V 50A HITACHI 		8-97351-572-0 01 1 0306-0308 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A HITACHI 		8-97351-572-0 01 1 0309-0501 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A HITACHI 		8-97351-572-0 01 1 0502-1005 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A HITACHI 		8-97351-572-1 01 1 1006- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) IDENTIFICATION LABEL FOR KD<6UT> 24V 50A 		8-97186-551-1 01 1 0306-0308 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97249-209-2 01 1 0211-0501 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. HEATER & DEFROSTER(C41) GENERATOR 12V80A(K97) POWER STEERING<N40> 12V 80A 		8-97249-209-3 01 1 0502- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97240-270-2 01 1 0211-0501 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. HEATER & DEFROSTER(C41) POWER STEERING<N40> EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97240-270-2 01 1 0502- ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 0211-0501 ● ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 0502-0504 ● ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 0505-0512 ● ● ●
4 02.042 BOLT; STARTER
00.685 M12X80 FLANGE 		0-28051-280-0 02 1 0601- ● ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0211-0501 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0502-1004 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 1005- ● ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28781-235-0 02 1 0211-0501 ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28781-235-0 02 1 0502-0512 ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28751-235-0 02 1 0601- ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28086-013-0 01 1 0211-0501 ● ● ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28086-013-0 01 1 0502-0504 ● ● ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28086-013-0 01 1 0505-0512 ● ● ● ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28056-013-0 01 1 0601- ● ● ● ●
16 02.277 BOLT; GEN
(C) M10X133 		8-97146-998-0 01 1 0211-0501 ●
16 02.277 BOLT; GEN
(C) M10X133 		8-97146-998-0 01 1 0502-1004 ●
16 02.277 BOLT; GEN
(C) M10X133 		8-97146-998-0 01 1 1005- ● ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (B) M8X40 W/WASHER 		8-97011-792-4 01 1 0211-0501 ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (B) M8X40 W/WASHER 		8-97011-792-4 01 1 0502-1004 ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (B) M8X40 W/WASHER 		8-97011-792-4 01 1 1005- ● ●
23 02.277 NUT; GEN
08.917 (A) M10 FLANGE 		0-91150-210-0 01 1 0211-0501 ● ● ● ●
23 02.277 NUT; GEN
08.917 (A) M10 FLANGE 		0-91150-210-0 01 1 0502-0504 ● ● ● ●
23 02.277 NUT; GEN
08.917 (A) M10 FLANGE 		0-91150-210-0 01 1 0505-0602 ● ● ● ● ●
23 02.277 NUT; GEN
04.085 (A) M10 FLANGE 		0-91180-210-0 01 1 0603-1004 ● ● ● ● ●
23 02.277 NUT; GEN
04.085 (A) M10 FLANGE 		0-91180-210-0 01 1 1005- ● ● ● ● ● ●
23 02.277 NUT; GEN
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ●
23 02.277 NUT; GEN
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ●
23 02.277 NUT; GEN
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0603-1004 ●
23 02.277 NUT; GEN
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 1005- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0211-0501 ● ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0502-0504 ● ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0505- ● ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0211-0501 ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0502-0504 ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0505- ● ● ● ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
HITACHI 		8-97167-008-0 01 1 1005- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
TRANSTRON 		8-97170-327-0 01 1 1005-1007 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 1008- ●
129 01.150 SENSOR; GLOW PLUG,THERMO 8-97069-786-1 01 1 0211-0501 ●
129 01.150 SENSOR; GLOW PLUG,THERMO 8-97069-786-1 01 1 0502- ●
435 02.363 RUBBER; CUSHION
(A) 		8-97259-609-3 01 1 0211-0501 ●
435 02.363 RUBBER; CUSHION
(A) 		8-97259-609-3 01 1 0502- ●
435 02.363 RUBBER; CUSHION
(B) 		8-97308-356-0 01 1 0211-0501 ●
435 02.363 RUBBER; CUSHION
(B) 		8-97308-356-0 01 1 0502- ●

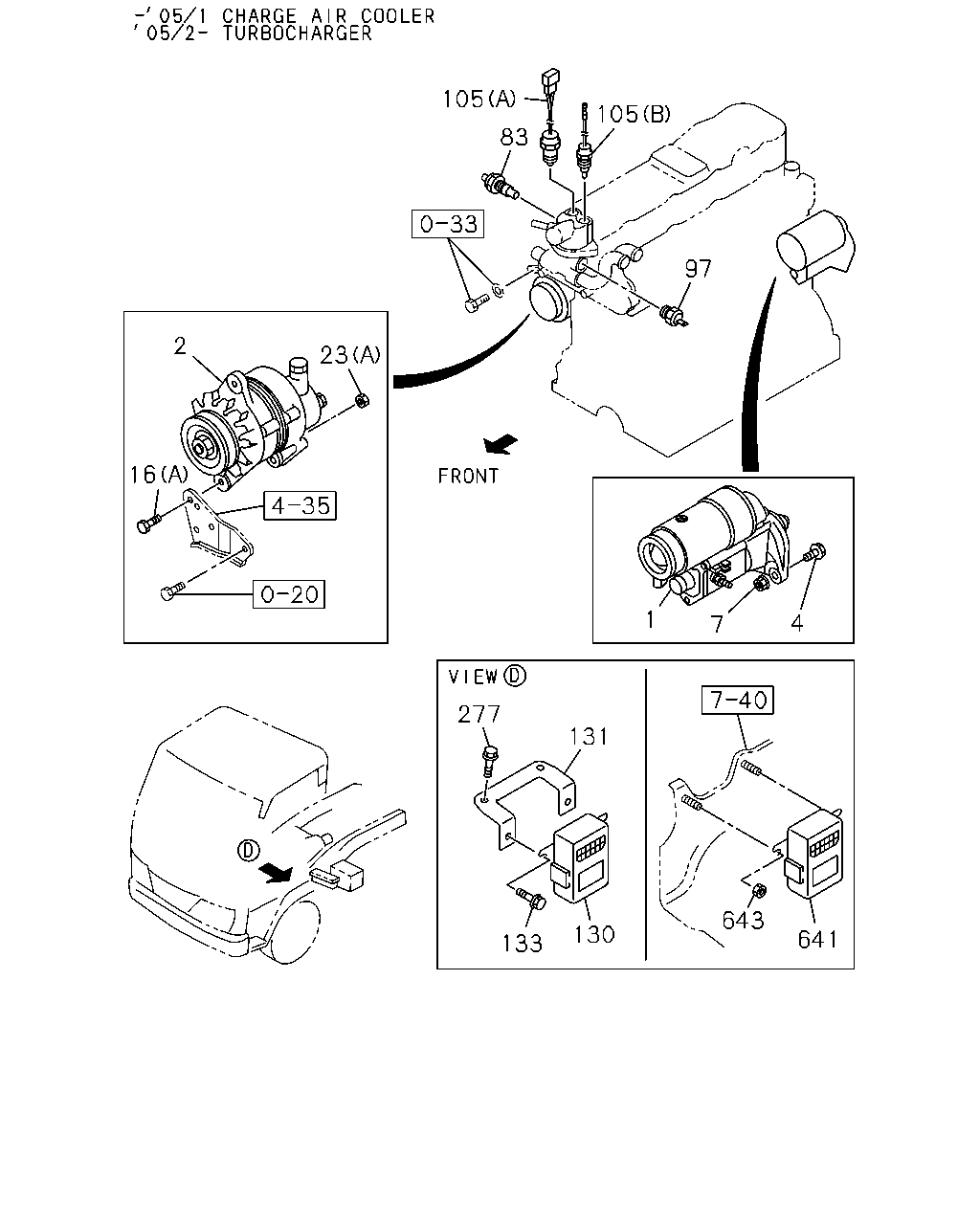

çizim 44977
105 105 83 97 2 23 16 1 4 7 277 131 643 130 641 133
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 0211-0501 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 0502-0504 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 0505- ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-2 01 1 0211-0501 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0502-1004 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-4 01 1 1005-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98222-019-0 01 1 1208-1311 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98245-259-1 01 1 1312- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97172-211-2 01 1 0211-0501 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97172-211-2 01 1 0502-1004 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97172-211-2 01 1 1005-1006 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1007-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO 		8-97042-997-2 01 1 0211-0501 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO 		8-97042-997-2 01 1 0502- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 		8-97187-657-1 01 1 0211-0501 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. TURBOCHARGER<K51> 12V 50A 		8-97187-657-1 01 1 0211-0501 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 12V 50A 		8-97187-657-1 01 1 0211-0501 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-1 01 1 0502-0504 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-2 01 1 0505-1408 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 12V 60A 		8-97187-658-1 01 1 0211-0501 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-97187-658-2 01 1 0502-1408 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-98284-007-0 01 1 1409-1505 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-98300-335-0 01 1 1506- ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97186-551-1 01 1 0211-0304 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A HITACHI 		8-97351-572-0 01 1 0305-0305 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) EXC. IDENTIFICATION LABEL FOR KD<6UT> 24V 50A HITACHI 		8-97351-572-0 01 1 0306-0308 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A HITACHI 		8-97351-572-0 01 1 0309-0501 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A HITACHI 		8-97351-572-0 01 1 0502-1005 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A HITACHI 		8-97351-572-1 01 1 1006- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) IDENTIFICATION LABEL FOR KD<6UT> 24V 50A 		8-97186-551-1 01 1 0306-0308 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97249-209-2 01 1 0211-0501 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. HEATER & DEFROSTER(C41) GENERATOR 12V80A(K97) POWER STEERING<N40> 12V 80A 		8-97249-209-3 01 1 0502- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97240-270-2 01 1 0211-0501 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. HEATER & DEFROSTER(C41) POWER STEERING<N40> EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97240-270-2 01 1 0502- ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 0211-0501 ● ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 0502-0504 ● ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 0505-0512 ● ● ●
4 02.042 BOLT; STARTER
00.685 M12X80 FLANGE 		0-28051-280-0 02 1 0601- ● ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0211-0501 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0502-1004 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 1005- ● ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28781-235-0 02 1 0211-0501 ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28781-235-0 02 1 0502-0512 ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28751-235-0 02 1 0601- ●
7 02.042 NUT; STARTER
05.586 M12 FLANGE 		0-91150-112-0 02 1 0211-0501 ● ●
7 02.042 NUT; STARTER
05.586 M12 FLANGE 		0-91150-112-0 02 1 0502-0504 ● ●
7 02.042 NUT; STARTER
05.586 M12 FLANGE 		0-91150-112-0 02 1 0505-0602 ● ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 0603- ● ● ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28086-013-0 01 1 0211-0501 ● ● ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28086-013-0 01 1 0502-0504 ● ● ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28086-013-0 01 1 0505-0512 ● ● ● ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28056-013-0 01 1 0601- ● ● ● ●
16 02.277 BOLT; GEN
(C) M10X133 		8-97146-998-0 01 1 0211-0501 ●
16 02.277 BOLT; GEN
(C) M10X133 		8-97146-998-0 01 1 0502-1004 ●
16 02.277 BOLT; GEN
(C) M10X133 		8-97146-998-0 01 1 1005- ● ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (B) M8X40 W/WASHER 		8-97011-792-4 01 1 0211-0501 ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (B) M8X40 W/WASHER 		8-97011-792-4 01 1 0502-1004 ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (B) M8X40 W/WASHER 		8-97011-792-4 01 1 1005- ● ●
23 02.277 NUT; GEN
08.917 (A) M10 FLANGE 		0-91150-210-0 01 1 0211-0501 ● ● ● ●
23 02.277 NUT; GEN
08.917 (A) M10 FLANGE 		0-91150-210-0 01 1 0502-0504 ● ● ● ●
23 02.277 NUT; GEN
08.917 (A) M10 FLANGE 		0-91150-210-0 01 1 0505-0602 ● ● ● ● ●
23 02.277 NUT; GEN
04.085 (A) M10 FLANGE 		0-91180-210-0 01 1 0603-1004 ● ● ● ● ●
23 02.277 NUT; GEN
04.085 (A) M10 FLANGE 		0-91180-210-0 01 1 1005- ● ● ● ● ● ●
23 02.277 NUT; GEN
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ●
23 02.277 NUT; GEN
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ●
23 02.277 NUT; GEN
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0603-1004 ●
23 02.277 NUT; GEN
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 1005- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0211-0501 ● ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0502-0504 ● ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0505- ● ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0211-0501 ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0502-0504 ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0505- ● ● ● ● ●
97 01.150 SWITCH; THERMO,EGR CONT
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-94368-591-0 01 1 0211-0501 ●
97 01.150 SWITCH; THERMO,EGR CONT 8-94368-591-0 01 1 0502- ●
105 01.150 SWITCH; THERMO,QOS
(B) 		8-94457-511-0 01 1 0211-0501 ●
105 01.150 SWITCH; THERMO,QOS
(B) 		8-94457-511-0 01 1 0502- ● ●
105 01.150 SWITCH; THERMO,QOS
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A) 		8-94336-668-0 01 1 0211-0501 ●
105 01.150 SWITCH; THERMO,QOS
(A) 		8-94336-668-0 01 1 0502- ●
105 01.150 SWITCH; THERMO,QOS
(C) 		8-94121-152-1 01 1 0211-0501 ●
105 01.150 SWITCH; THERMO,QOS
(C) 		8-94121-152-1 01 1 0502- ●
130 02.510 CONTROLLER; EGR
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97201-734-3 01 1 0211-0501 ●
130 02.510 CONTROLLER; EGR 8-97201-734-3 01 1 0502- ●
131 03.670 BRACKET; EGR
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97217-813-1 01 1 0211-0501 ●
131 03.670 BRACKET; EGR 8-97217-813-1 01 1 0502- ●
133 02.500 BOLT; EGR CONTROLLER
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0211-0501 ●
133 02.500 BOLT; EGR CONTROLLER
04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0502-0512 ●
133 02.500 BOLT; EGR CONTROLLER
03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0601- ●
277 02.510 BOLT; BRKT
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0211-0501 ●
277 02.510 BOLT; BRKT
04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0502-0512 ●
277 02.510 BOLT; BRKT
03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0601- ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97215-646-0 01 1 0211-0301 ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97361-317-0 01 1 0302-0501 ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97361-317-0 01 1 0502-0504 ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97361-317-0 01 1 0505-0507 ● ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97361-317-3 01 1 0508- ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97215-648-0 01 1 0211-0301 ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97361-318-0 01 1 0302-0501 ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97361-318-3 01 1 0502- ●
643 02.510 NUT; TIMER,QOS 8-97047-029-0 01 1 0505-0507 ●
643 02.510 NUT; TIMER,QOS
EXC. FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 0211-0501 ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 0211-0501 ● ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 0502-0504 ● ● ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 0505-0602 ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 0505-0602 ● ● ●
643 02.510 NUT; TIMER,QOS
01.062 M6 FLANGE 		0-91180-106-0 02 1 0603- ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 01.062 M6 FLANGE 		0-91180-106-0 02 1 0603- ● ● ●

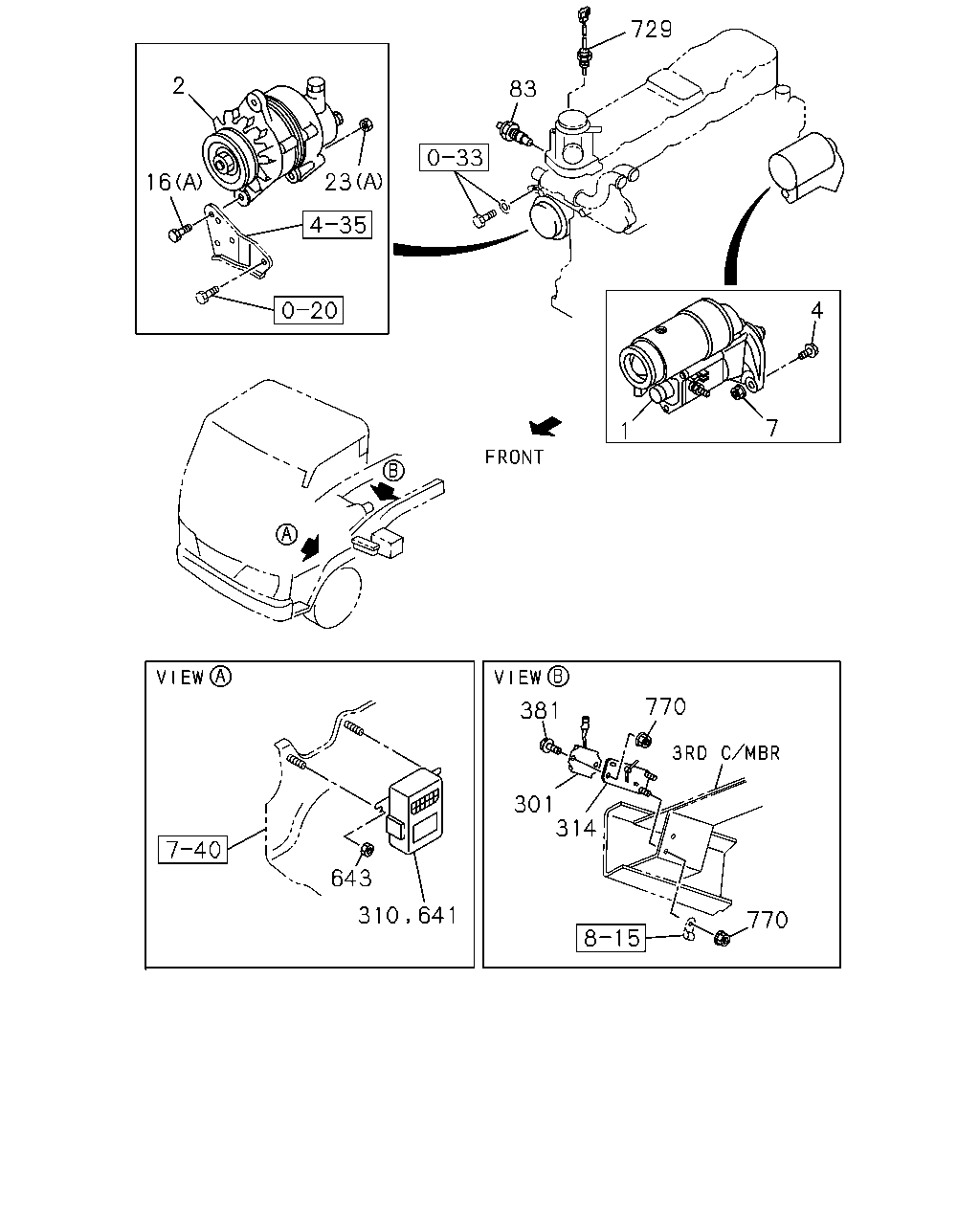

çizim 44978
729 2 83 23 16 4 7 1 770 381 301 314 643 770 310 641
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 0211-0501 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 0502-0504 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 0505- ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-2 01 1 0211-0501 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0502-1004 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-4 01 1 1005-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98222-019-0 01 1 1208-1311 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98245-259-1 01 1 1312- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97172-211-2 01 1 0211-0501 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97172-211-2 01 1 0502-1004 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97172-211-2 01 1 1005-1006 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1007-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO 		8-97042-997-2 01 1 0211-0501 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO 		8-97042-997-2 01 1 0502- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 		8-97187-657-1 01 1 0211-0501 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. TURBOCHARGER<K51> 12V 50A 		8-97187-657-1 01 1 0211-0501 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 12V 50A 		8-97187-657-1 01 1 0211-0501 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-1 01 1 0502-0504 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-2 01 1 0505-1408 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 12V 60A 		8-97187-658-1 01 1 0211-0501 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-97187-658-2 01 1 0502-1408 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-98284-007-0 01 1 1409-1505 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-98300-335-0 01 1 1506- ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97186-551-1 01 1 0211-0304 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A HITACHI 		8-97351-572-0 01 1 0305-0305 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) EXC. IDENTIFICATION LABEL FOR KD<6UT> 24V 50A HITACHI 		8-97351-572-0 01 1 0306-0308 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A HITACHI 		8-97351-572-0 01 1 0309-0501 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A HITACHI 		8-97351-572-0 01 1 0502-1005 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A HITACHI 		8-97351-572-1 01 1 1006- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) IDENTIFICATION LABEL FOR KD<6UT> 24V 50A 		8-97186-551-1 01 1 0306-0308 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97249-209-2 01 1 0211-0501 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. HEATER & DEFROSTER(C41) GENERATOR 12V80A(K97) POWER STEERING<N40> 12V 80A 		8-97249-209-3 01 1 0502- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97240-270-2 01 1 0211-0501 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. HEATER & DEFROSTER(C41) POWER STEERING<N40> EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97240-270-2 01 1 0502- ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 0211-0501 ● ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 0502-0504 ● ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 0505-0512 ● ● ●
4 02.042 BOLT; STARTER
00.685 M12X80 FLANGE 		0-28051-280-0 02 1 0601- ● ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0211-0501 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0502-1004 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 1005- ● ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28781-235-0 02 1 0211-0501 ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28781-235-0 02 1 0502-0512 ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28751-235-0 02 1 0601- ●
7 02.042 NUT; STARTER
05.586 M12 FLANGE 		0-91150-112-0 02 1 0211-0501 ● ●
7 02.042 NUT; STARTER
05.586 M12 FLANGE 		0-91150-112-0 02 1 0502-0504 ● ●
7 02.042 NUT; STARTER
05.586 M12 FLANGE 		0-91150-112-0 02 1 0505-0602 ● ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 0603- ● ● ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28086-013-0 01 1 0211-0501 ● ● ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28086-013-0 01 1 0502-0504 ● ● ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28086-013-0 01 1 0505-0512 ● ● ● ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28056-013-0 01 1 0601- ● ● ● ●
16 02.277 BOLT; GEN
(C) M10X133 		8-97146-998-0 01 1 0211-0501 ●
16 02.277 BOLT; GEN
(C) M10X133 		8-97146-998-0 01 1 0502-1004 ●
16 02.277 BOLT; GEN
(C) M10X133 		8-97146-998-0 01 1 1005- ● ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (B) M8X40 W/WASHER 		8-97011-792-4 01 1 0211-0501 ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (B) M8X40 W/WASHER 		8-97011-792-4 01 1 0502-1004 ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (B) M8X40 W/WASHER 		8-97011-792-4 01 1 1005- ● ●
23 02.277 NUT; GEN
08.917 (A) M10 FLANGE 		0-91150-210-0 01 1 0211-0501 ● ● ● ●
23 02.277 NUT; GEN
08.917 (A) M10 FLANGE 		0-91150-210-0 01 1 0502-0504 ● ● ● ●
23 02.277 NUT; GEN
08.917 (A) M10 FLANGE 		0-91150-210-0 01 1 0505-0602 ● ● ● ● ●
23 02.277 NUT; GEN
04.085 (A) M10 FLANGE 		0-91180-210-0 01 1 0603-1004 ● ● ● ● ●
23 02.277 NUT; GEN
04.085 (A) M10 FLANGE 		0-91180-210-0 01 1 1005- ● ● ● ● ● ●
23 02.277 NUT; GEN
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ●
23 02.277 NUT; GEN
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ●
23 02.277 NUT; GEN
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0603-1004 ●
23 02.277 NUT; GEN
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 1005- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0211-0501 ● ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0502-0504 ● ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0505- ● ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0211-0501 ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0502-0504 ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0505- ● ● ● ● ●
301 02.510 RESISTOR; DROPPING
FAST GLOW SYSTEM<KM6> 		8-94389-802-1 01 1 0510- ●
301 02.510 RESISTOR; DROPPING
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 		8-94389-802-1 01 1 0211-0501 ●
310 02.510 CONTROLLER; QOS 8-97047-029-0 01 1 0508- ●
310 02.510 CONTROLLER; QOS 8-97047-029-0 01 1 0211-0501 ●
314 02.500 BRACKET; DROPPING RESISTOR
FAST GLOW SYSTEM<KM6> 		8-97061-910-2 01 1 0505- ●
314 02.500 BRACKET; DROPPING RESISTOR 8-97061-910-2 01 1 0211-0501 ●
381 02.183 BOLT; DROPPING RESISTOR
FAST GLOW SYSTEM<KM6> 02.334 M6X25 FLANGE 		0-28680-625-0 02 1 0505-0512 ●
381 02.183 BOLT; DROPPING RESISTOR
FAST GLOW SYSTEM<KM6> 00.685 M6X25 FLANGE 		0-28650-625-0 02 1 0601- ●
381 02.183 BOLT; DROPPING RESISTOR
02.334 M6X25 FLANGE 		0-28680-625-0 02 1 0211-0501 ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97215-646-0 01 1 0211-0301 ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97361-317-0 01 1 0302-0501 ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97361-317-0 01 1 0502-0504 ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97361-317-0 01 1 0505-0507 ● ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97361-317-3 01 1 0508- ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97215-648-0 01 1 0211-0301 ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97361-318-0 01 1 0302-0501 ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97361-318-3 01 1 0502- ●
643 02.510 NUT; TIMER,QOS 8-97047-029-0 01 1 0505-0507 ●
643 02.510 NUT; TIMER,QOS
EXC. FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 0211-0501 ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 0211-0501 ● ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 0502-0504 ● ● ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 0505-0602 ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 0505-0602 ● ● ●
643 02.510 NUT; TIMER,QOS
01.062 M6 FLANGE 		0-91180-106-0 02 1 0603- ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 01.062 M6 FLANGE 		0-91180-106-0 02 1 0603- ● ● ●
729 01.150 SENSOR; QOS THERMO 8-97018-064-0 01 1 0505- ●
729 01.150 SENSOR; QOS THERMO 8-97018-064-0 01 1 0211-0501 ●
770 02.183 NUT; DROPPING REGISTER
FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 04 1 0505-0602 ●
770 02.183 NUT; DROPPING REGISTER
FAST GLOW SYSTEM<KM6> 01.062 M6 FLANGE 		0-91180-106-0 04 1 0603- ●
770 02.183 NUT; DROPPING REGISTER
04.594 M6 FLANGE 		0-91150-106-0 04 1 0211-0501 ●

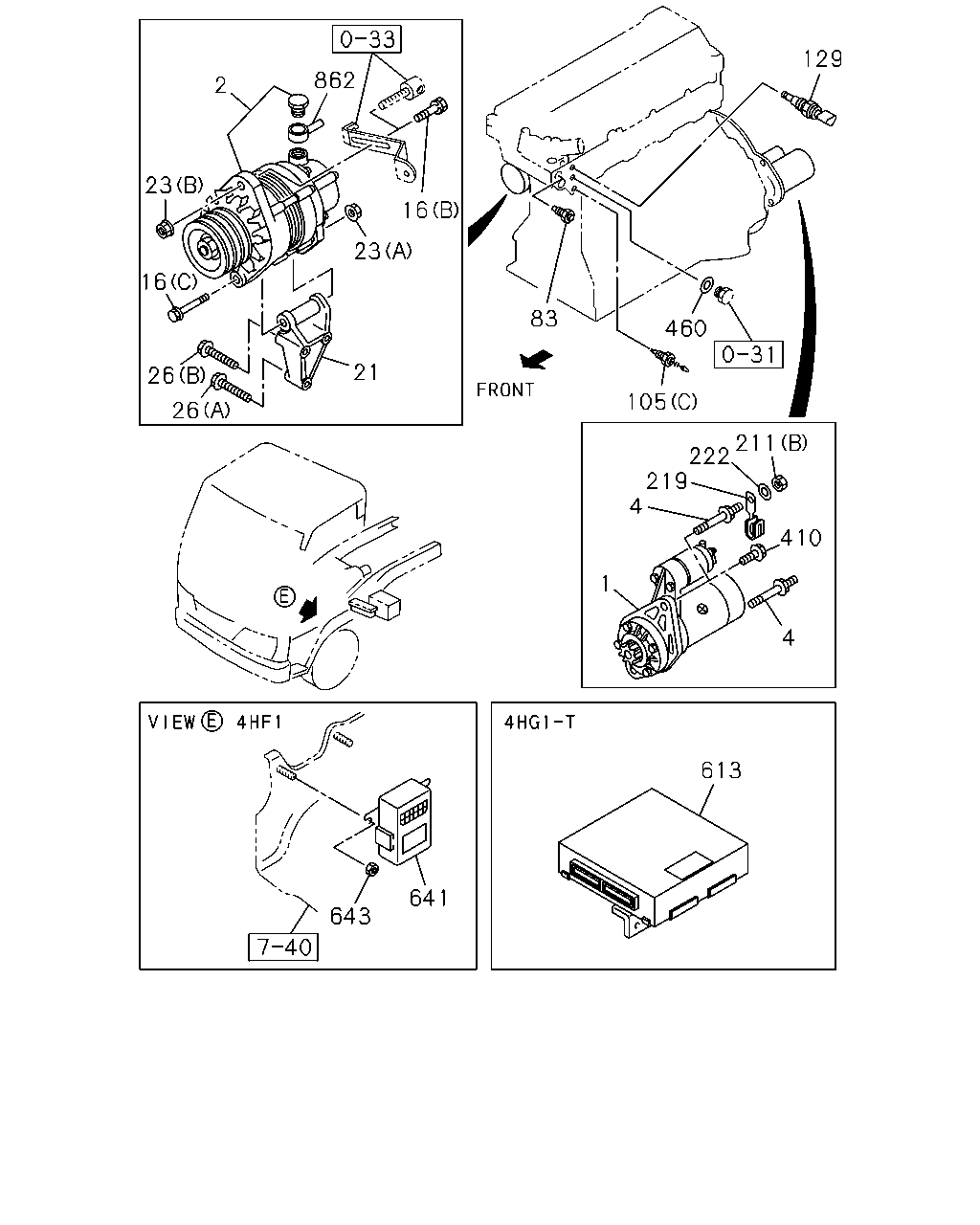

çizim 44979
129 862 2 23 16 23 16 83 460 21 26 105 26 211 222 219 4 410 1 4 613 641 643
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 0211-0501 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 0502-0504 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 0505- ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-2 01 1 0211-0501 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0502-1004 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-4 01 1 1005-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98222-019-0 01 1 1208-1311 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98245-259-1 01 1 1312- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97172-211-2 01 1 0211-0501 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97172-211-2 01 1 0502-1004 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97172-211-2 01 1 1005-1006 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1007-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO 		8-97042-997-2 01 1 0211-0501 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO 		8-97042-997-2 01 1 0502- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 		8-97187-657-1 01 1 0211-0501 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. TURBOCHARGER<K51> 12V 50A 		8-97187-657-1 01 1 0211-0501 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 12V 50A 		8-97187-657-1 01 1 0211-0501 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-1 01 1 0502-0504 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-2 01 1 0505-1408 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 12V 60A 		8-97187-658-1 01 1 0211-0501 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-97187-658-2 01 1 0502-1408 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-98284-007-0 01 1 1409-1505 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-98300-335-0 01 1 1506- ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97186-551-1 01 1 0211-0304 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A HITACHI 		8-97351-572-0 01 1 0305-0305 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) EXC. IDENTIFICATION LABEL FOR KD<6UT> 24V 50A HITACHI 		8-97351-572-0 01 1 0306-0308 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A HITACHI 		8-97351-572-0 01 1 0309-0501 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A HITACHI 		8-97351-572-0 01 1 0502-1005 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A HITACHI 		8-97351-572-1 01 1 1006- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) IDENTIFICATION LABEL FOR KD<6UT> 24V 50A 		8-97186-551-1 01 1 0306-0308 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97249-209-2 01 1 0211-0501 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. HEATER & DEFROSTER(C41) GENERATOR 12V80A(K97) POWER STEERING<N40> 12V 80A 		8-97249-209-3 01 1 0502- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97240-270-2 01 1 0211-0501 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. HEATER & DEFROSTER(C41) POWER STEERING<N40> EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97240-270-2 01 1 0502- ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 0211-0501 ● ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 0502-0504 ● ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 0505-0512 ● ● ●
4 02.042 BOLT; STARTER
00.685 M12X80 FLANGE 		0-28051-280-0 02 1 0601- ● ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0211-0501 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0502-1004 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 1005- ● ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28781-235-0 02 1 0211-0501 ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28781-235-0 02 1 0502-0512 ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28751-235-0 02 1 0601- ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28086-013-0 01 1 0211-0501 ● ● ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28086-013-0 01 1 0502-0504 ● ● ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28086-013-0 01 1 0505-0512 ● ● ● ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28056-013-0 01 1 0601- ● ● ● ●
16 02.277 BOLT; GEN
(C) M10X133 		8-97146-998-0 01 1 0211-0501 ●
16 02.277 BOLT; GEN
(C) M10X133 		8-97146-998-0 01 1 0502-1004 ●
16 02.277 BOLT; GEN
(C) M10X133 		8-97146-998-0 01 1 1005- ● ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (B) M8X40 W/WASHER 		8-97011-792-4 01 1 0211-0501 ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (B) M8X40 W/WASHER 		8-97011-792-4 01 1 0502-1004 ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (B) M8X40 W/WASHER 		8-97011-792-4 01 1 1005- ● ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 0211-0501 ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 0502-1004 ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 1005- ● ●
23 02.277 NUT; GEN
08.917 (A) M10 FLANGE 		0-91150-210-0 01 1 0211-0501 ● ● ● ●
23 02.277 NUT; GEN
08.917 (A) M10 FLANGE 		0-91150-210-0 01 1 0502-0504 ● ● ● ●
23 02.277 NUT; GEN
08.917 (A) M10 FLANGE 		0-91150-210-0 01 1 0505-0602 ● ● ● ● ●
23 02.277 NUT; GEN
04.085 (A) M10 FLANGE 		0-91180-210-0 01 1 0603-1004 ● ● ● ● ●
23 02.277 NUT; GEN
04.085 (A) M10 FLANGE 		0-91180-210-0 01 1 1005- ● ● ● ● ● ●
23 02.277 NUT; GEN
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ●
23 02.277 NUT; GEN
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ●
23 02.277 NUT; GEN
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0603-1004 ●
23 02.277 NUT; GEN
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 1005- ● ●
26 02.277 BOLT; GEN BRKT
08.900 (A) M10X50 FLANGE 		0-28181-050-0 01 1 0211-0501 ●
26 02.277 BOLT; GEN BRKT
08.900 (A) M10X50 FLANGE 		0-28181-050-0 01 1 0502-0512 ●
26 02.277 BOLT; GEN BRKT
02.042 (A) M10X50 FLANGE 		0-28151-050-0 01 1 0601-1004 ●
26 02.277 BOLT; GEN BRKT
02.042 (A) M10X50 FLANGE 		0-28151-050-0 01 1 1005- ● ●
26 02.277 BOLT; GEN BRKT
03.890 (B) M10X70 FLANGE 		0-28181-070-0 02 1 0211-0501 ●
26 02.277 BOLT; GEN BRKT
03.890 (B) M10X70 FLANGE 		0-28181-070-0 02 1 0502-0512 ●
26 02.277 BOLT; GEN BRKT
(B) M10X70 FLANGE 		0-28151-070-0 02 1 0601-1004 ●
26 02.277 BOLT; GEN BRKT
(B) M10X70 FLANGE 		0-28151-070-0 02 1 1005- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0211-0501 ● ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0502-0504 ● ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0505- ● ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0211-0501 ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0502-0504 ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0505- ● ● ● ● ●
105 01.150 SWITCH; THERMO,QOS
(B) 		8-94457-511-0 01 1 0211-0501 ●
105 01.150 SWITCH; THERMO,QOS
(B) 		8-94457-511-0 01 1 0502- ● ●
105 01.150 SWITCH; THERMO,QOS
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A) 		8-94336-668-0 01 1 0211-0501 ●
105 01.150 SWITCH; THERMO,QOS
(A) 		8-94336-668-0 01 1 0502- ●
105 01.150 SWITCH; THERMO,QOS
(C) 		8-94121-152-1 01 1 0211-0501 ●
105 01.150 SWITCH; THERMO,QOS
(C) 		8-94121-152-1 01 1 0502- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
HITACHI 		8-97167-008-0 01 1 1005- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
TRANSTRON 		8-97170-327-0 01 1 1005-1007 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 1008- ●
129 01.150 SENSOR; GLOW PLUG,THERMO 8-97069-786-1 01 1 0211-0501 ●
129 01.150 SENSOR; GLOW PLUG,THERMO 8-97069-786-1 01 1 0502- ●
211 02.343 NUT; CABLE FIX
04.085 (B) M10 FLANGE 		0-91180-210-0 01 1 1005- ●
211 02.343 NUT; CABLE FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1005- ●
211 02.343 NUT; CABLE FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1005- ●
211 02.343 NUT; CABLE FIX
EXC. ENGINE POWER N-SPEC(7QV) 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
211 02.343 NUT; CABLE FIX
EXC. ENGINE POWER N-SPEC(7QV) 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
211 02.343 NUT; CABLE FIX
EXC. ENGINE POWER N-SPEC(7QV) 08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 0211-0501 ●
219 03.483 CLIP; ENG STOP CABLE 8-97101-436-0 01 1 1005- ●
219 03.483 CLIP; ENG STOP CABLE
EXC. ENGINE POWER N-SPEC(7QV) 		8-97101-436-0 01 1 0211-0501 ●
222 03.485 WASHER; PL,CONT CABLE
04.085 ID=10.5 OD=26 		0-91614-710-0 01 1 1005- ●
222 03.485 WASHER; PL,CONT CABLE
EXC. ENGINE POWER N-SPEC(7QV) 04.085 ID=10.5 OD=26 		9-09164-710-0 01 1 0211-0501 ●
410 02.343 BOLT; BRKT,GRAND
12.187 M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 0211-0501 ●
460 02.363 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . 04.868 ID=16.2 		1-09630-086-0 01 1 1005- ●
613 03.670 CONTROL UNIT; ENG 8-97205-636-5 01 1 1005-1506 ●
613 03.670 CONTROL UNIT; ENG
EXC. VIN MODEL YEAR 2015(VZF) 		8-97205-636-5 01 1 1507- ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97215-646-0 01 1 0211-0301 ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97361-317-0 01 1 0302-0501 ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97361-317-0 01 1 0502-0504 ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97361-317-0 01 1 0505-0507 ● ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97361-317-3 01 1 0508- ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97215-648-0 01 1 0211-0301 ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97361-318-0 01 1 0302-0501 ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97361-318-3 01 1 0502- ●
643 02.510 NUT; TIMER,QOS 8-97047-029-0 01 1 0505-0507 ●
643 02.510 NUT; TIMER,QOS
EXC. FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 0211-0501 ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 0211-0501 ● ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 0502-0504 ● ● ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 0505-0602 ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 0505-0602 ● ● ●
643 02.510 NUT; TIMER,QOS
01.062 M6 FLANGE 		0-91180-106-0 02 1 0603- ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 01.062 M6 FLANGE 		0-91180-106-0 02 1 0603- ● ● ●
862 02.313 CONNECTOR; GEN
GENERATOR 24V50A(6QN) 		8-97351-626-0 01 1 0305-0305 ●
862 02.313 CONNECTOR; GEN
GENERATOR 24V50A(6QN) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97351-626-0 01 1 0306-0308 ●
862 02.313 CONNECTOR; GEN
GENERATOR 24V50A(6QN) 		8-97351-626-0 01 1 0309-0501 ●
862 02.313 CONNECTOR; GEN
GENERATOR 24V50A(6QN) 		8-97351-626-0 01 1 0502-1005 ●
862 02.313 CONNECTOR; GEN
GENERATOR 24V50A(6QN) 		8-97351-626-0 01 1 1006- ● ●

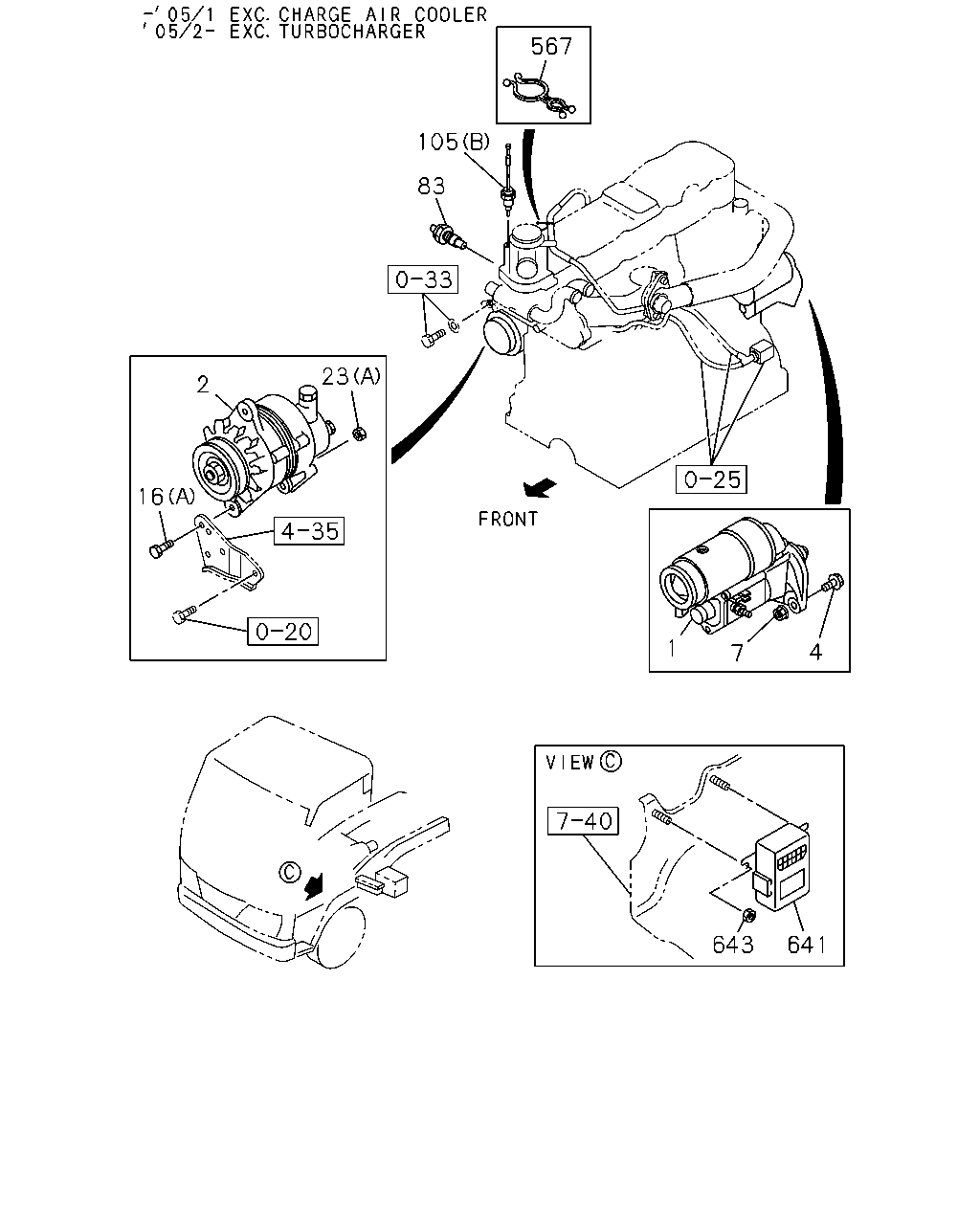

çizim 45416
567 105 83 23 2 16 1 4 7 643 641
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 0211-0501 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 0502-0504 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 0505- ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-2 01 1 0211-0501 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0502-1004 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-4 01 1 1005-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98222-019-0 01 1 1208-1311 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98245-259-1 01 1 1312- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97172-211-2 01 1 0211-0501 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97172-211-2 01 1 0502-1004 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97172-211-2 01 1 1005-1006 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1007-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO 		8-97042-997-2 01 1 0211-0501 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO 		8-97042-997-2 01 1 0502- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 		8-97187-657-1 01 1 0211-0501 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. TURBOCHARGER<K51> 12V 50A 		8-97187-657-1 01 1 0211-0501 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 12V 50A 		8-97187-657-1 01 1 0211-0501 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-1 01 1 0502-0504 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-2 01 1 0505-1408 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 12V 60A 		8-97187-658-1 01 1 0211-0501 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-97187-658-2 01 1 0502-1408 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-98284-007-0 01 1 1409-1505 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-98300-335-0 01 1 1506- ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97186-551-1 01 1 0211-0304 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A HITACHI 		8-97351-572-0 01 1 0305-0305 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) EXC. IDENTIFICATION LABEL FOR KD<6UT> 24V 50A HITACHI 		8-97351-572-0 01 1 0306-0308 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A HITACHI 		8-97351-572-0 01 1 0309-0501 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A HITACHI 		8-97351-572-0 01 1 0502-1005 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A HITACHI 		8-97351-572-1 01 1 1006- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) IDENTIFICATION LABEL FOR KD<6UT> 24V 50A 		8-97186-551-1 01 1 0306-0308 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97249-209-2 01 1 0211-0501 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. HEATER & DEFROSTER(C41) GENERATOR 12V80A(K97) POWER STEERING<N40> 12V 80A 		8-97249-209-3 01 1 0502- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97240-270-2 01 1 0211-0501 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. HEATER & DEFROSTER(C41) POWER STEERING<N40> EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97240-270-2 01 1 0502- ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 0211-0501 ● ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 0502-0504 ● ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 0505-0512 ● ● ●
4 02.042 BOLT; STARTER
00.685 M12X80 FLANGE 		0-28051-280-0 02 1 0601- ● ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0211-0501 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0502-1004 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 1005- ● ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28781-235-0 02 1 0211-0501 ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28781-235-0 02 1 0502-0512 ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28751-235-0 02 1 0601- ●
7 02.042 NUT; STARTER
05.586 M12 FLANGE 		0-91150-112-0 02 1 0211-0501 ● ●
7 02.042 NUT; STARTER
05.586 M12 FLANGE 		0-91150-112-0 02 1 0502-0504 ● ●
7 02.042 NUT; STARTER
05.586 M12 FLANGE 		0-91150-112-0 02 1 0505-0602 ● ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 0603- ● ● ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28086-013-0 01 1 0211-0501 ● ● ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28086-013-0 01 1 0502-0504 ● ● ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28086-013-0 01 1 0505-0512 ● ● ● ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28056-013-0 01 1 0601- ● ● ● ●
16 02.277 BOLT; GEN
(C) M10X133 		8-97146-998-0 01 1 0211-0501 ●
16 02.277 BOLT; GEN
(C) M10X133 		8-97146-998-0 01 1 0502-1004 ●
16 02.277 BOLT; GEN
(C) M10X133 		8-97146-998-0 01 1 1005- ● ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (B) M8X40 W/WASHER 		8-97011-792-4 01 1 0211-0501 ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (B) M8X40 W/WASHER 		8-97011-792-4 01 1 0502-1004 ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (B) M8X40 W/WASHER 		8-97011-792-4 01 1 1005- ● ●
23 02.277 NUT; GEN
08.917 (A) M10 FLANGE 		0-91150-210-0 01 1 0211-0501 ● ● ● ●
23 02.277 NUT; GEN
08.917 (A) M10 FLANGE 		0-91150-210-0 01 1 0502-0504 ● ● ● ●
23 02.277 NUT; GEN
08.917 (A) M10 FLANGE 		0-91150-210-0 01 1 0505-0602 ● ● ● ● ●
23 02.277 NUT; GEN
04.085 (A) M10 FLANGE 		0-91180-210-0 01 1 0603-1004 ● ● ● ● ●
23 02.277 NUT; GEN
04.085 (A) M10 FLANGE 		0-91180-210-0 01 1 1005- ● ● ● ● ● ●
23 02.277 NUT; GEN
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ●
23 02.277 NUT; GEN
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ●
23 02.277 NUT; GEN
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0603-1004 ●
23 02.277 NUT; GEN
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 1005- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0211-0501 ● ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0502-0504 ● ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0505- ● ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0211-0501 ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0502-0504 ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0505- ● ● ● ● ●
105 01.150 SWITCH; THERMO,QOS
(B) 		8-94457-511-0 01 1 0211-0501 ●
105 01.150 SWITCH; THERMO,QOS
(B) 		8-94457-511-0 01 1 0502- ● ●
105 01.150 SWITCH; THERMO,QOS
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A) 		8-94336-668-0 01 1 0211-0501 ●
105 01.150 SWITCH; THERMO,QOS
(A) 		8-94336-668-0 01 1 0502- ●
105 01.150 SWITCH; THERMO,QOS
(C) 		8-94121-152-1 01 1 0211-0501 ●
105 01.150 SWITCH; THERMO,QOS
(C) 		8-94121-152-1 01 1 0502- ●
567 03.726 CLIP; VAC HOSE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 08.852 ID=8 & 16 		5-09707-032-0 01 1 0211-0501 ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97215-646-0 01 1 0211-0301 ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97361-317-0 01 1 0302-0501 ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97361-317-0 01 1 0502-0504 ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97361-317-0 01 1 0505-0507 ● ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97361-317-3 01 1 0508- ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97215-648-0 01 1 0211-0301 ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97361-318-0 01 1 0302-0501 ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97361-318-3 01 1 0502- ●
643 02.510 NUT; TIMER,QOS 8-97047-029-0 01 1 0505-0507 ●
643 02.510 NUT; TIMER,QOS
EXC. FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 0211-0501 ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 0211-0501 ● ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 0502-0504 ● ● ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 0505-0602 ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 0505-0602 ● ● ●
643 02.510 NUT; TIMER,QOS
01.062 M6 FLANGE 		0-91180-106-0 02 1 0603- ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 01.062 M6 FLANGE 		0-91180-106-0 02 1 0603- ● ● ●

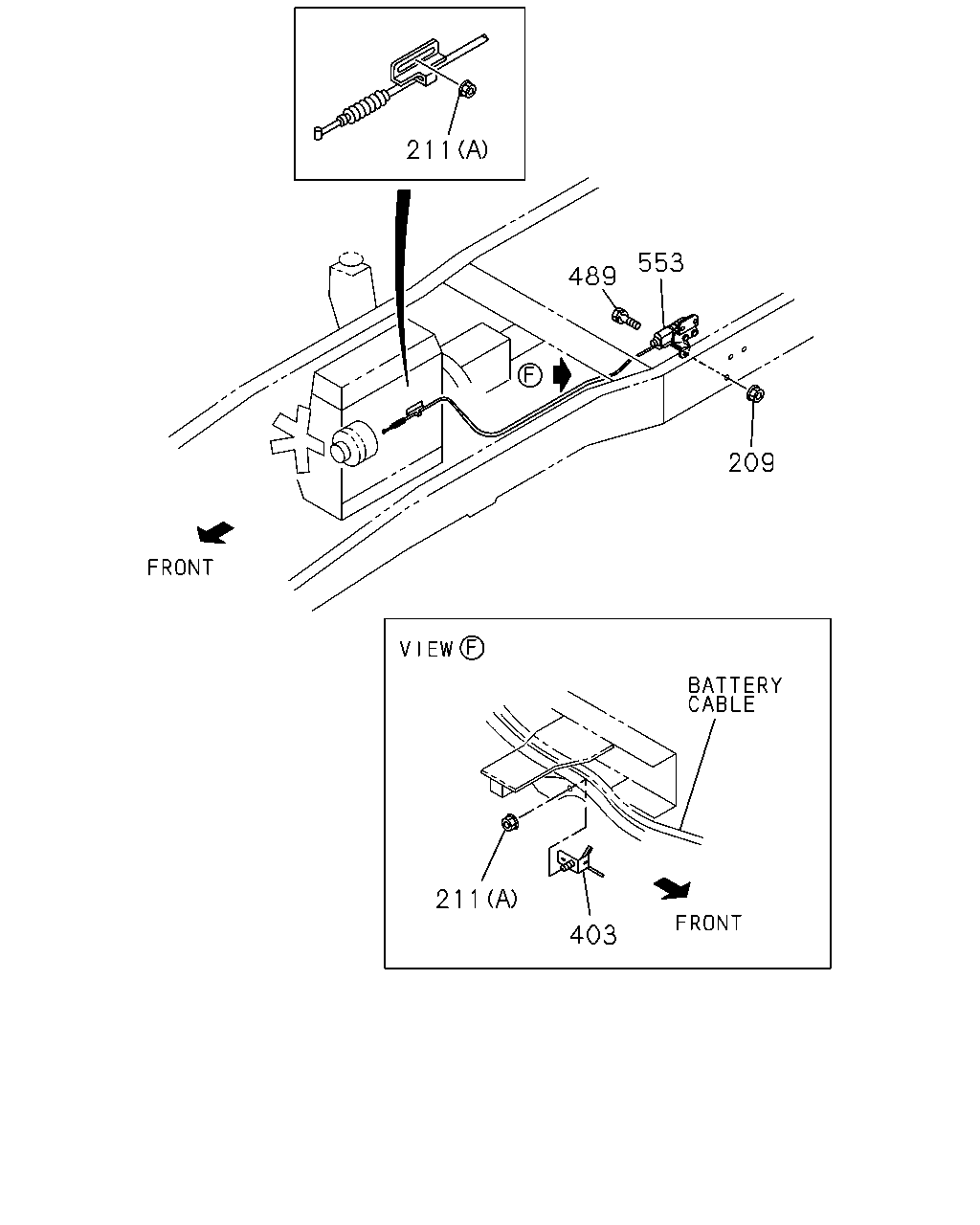

çizim 100103
211 553 489 209 211 403
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
209 02.483 NUT; BRKT TO BODY
03.162 M10 FLANGE 		0-91180-110-0 02 1 1005- ●
209 02.483 NUT; BRKT TO BODY
EXC. ENGINE POWER N-SPEC(7QV) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0211-0501 ●
211 02.343 NUT; CABLE FIX
04.085 (B) M10 FLANGE 		0-91180-210-0 01 1 1005- ●
211 02.343 NUT; CABLE FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1005- ●
211 02.343 NUT; CABLE FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1005- ●
211 02.343 NUT; CABLE FIX
EXC. ENGINE POWER N-SPEC(7QV) 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
211 02.343 NUT; CABLE FIX
EXC. ENGINE POWER N-SPEC(7QV) 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
211 02.343 NUT; CABLE FIX
EXC. ENGINE POWER N-SPEC(7QV) 08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 0211-0501 ●
403 02.343 CLIP; CABLE 8-97125-981-0 01 1 1005- ●
403 02.343 CLIP; CABLE
EXC. ENGINE POWER N-SPEC(7QV) 		8-97125-981-0 01 1 0211-0501 ●
489 03.483 BOLT; ENG STOPPER
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1005- ●
489 03.483 BOLT; ENG STOPPER
EXC. ENGINE POWER N-SPEC(7QV) 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0211-0501 ●
553 03.485 MOTOR ASM; ENG STOP 8-97255-043-0 01 1 1005- ●
553 03.485 MOTOR ASM; ENG STOP
SGL CAB&MIDDLE(NK**SF) EXC. ENGINE POWER N-SPEC(7QV) 		8-97255-066-0 01 1 0211-0501 ●
553 03.485 MOTOR ASM; ENG STOP
SGL TIRE&SGL CAB(NKB*S*) EXC. ENGINE POWER N-SPEC(7QV) 		8-97255-043-0 01 1 0211-0501 ●
553 03.485 MOTOR ASM; ENG STOP
DUAL RR TIRE&SHORT(NKC**C) EXC. ENGINE POWER N-SPEC(7QV) 		8-97255-070-0 01 1 0211-0501 ●
çizim 100156
667
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
667 03.280 HOSE; VAC,PUMP TO VSV
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97228-358-1 01 1 0211-0501 ●
667 03.280 HOSE; VAC,PUMP TO VSV 8-97228-358-1 01 1 0502- ●
çizim 100158
782 810 821
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
782 02.510 BOLT; SENSOR
04.439 M6X16 FLANGE 		0-28680-616-0 01 1 0211-0501 ●
782 02.510 BOLT; SENSOR
04.439 M6X16 FLANGE 		0-28680-616-0 01 1 0502-0512 ●
782 02.510 BOLT; SENSOR
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 0601- ●
810 01.150 SENSOR; CRANK ANGLE 8-97306-601-0 01 1 0211-0501 ●
810 01.150 SENSOR; CRANK ANGLE 8-97306-601-2 01 1 0502- ●
821 02.510 GASKET; CRANKSHAFT SENSOR
02.363 		8-98158-639-0 01 1 0502- ●
çizim 100960
644 46 10 10 46 644 578 578 578
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
10 02.100 RELAY; STARTER
EXC. VOLTAGE 24V<7AE> 02.510 12V 80A 		8-97173-951-0 01 1 0211-0501 ● ● ●
10 02.100 RELAY; STARTER
02.510 12V 80A 		8-97173-951-0 01 1 0502- ● ● ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 24V 50A 		8-97264-947-0 01 1 0211-0501 ●
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 0502- ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 02 1 0505- ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 02 1 0211-0501 ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 0502- ● ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 0211-0501 ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> VOLTAGE 24V<7AE> 24V 50A 		8-97173-947-0 01 1 0211-0501 ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> VOLTAGE 24V<7AE> 24V 50A 		8-97173-947-0 01 1 0502- ●
578 02.510 RELAY; CHARGE WARNING
EXC. VOLTAGE 24V<7AE> 12V 		8-97063-441-2 01 1 0211-0501 ● ● ●
578 02.510 RELAY; CHARGE WARNING
12V 		8-97063-441-2 01 1 0502- ● ● ●
578 02.510 RELAY; CHARGE WARNING
VOLTAGE 24V<7AE> 		8-97063-440-2 01 1 0211-0501 ●
578 02.510 RELAY; CHARGE WARNING
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ●
644 02.510 RELAY; COLD START DEVICE
FAST GLOW SYSTEM<KM6> EXC. CHARGE AIR COOLER<6PL> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ●
644 02.510 RELAY; COLD START DEVICE
FAST GLOW SYSTEM<KM6> 12V 20A 		8-97173-037-1 01 1 0502- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
