0-42 — FUEL PUMP AND PIPE (#50723) — 62 parça

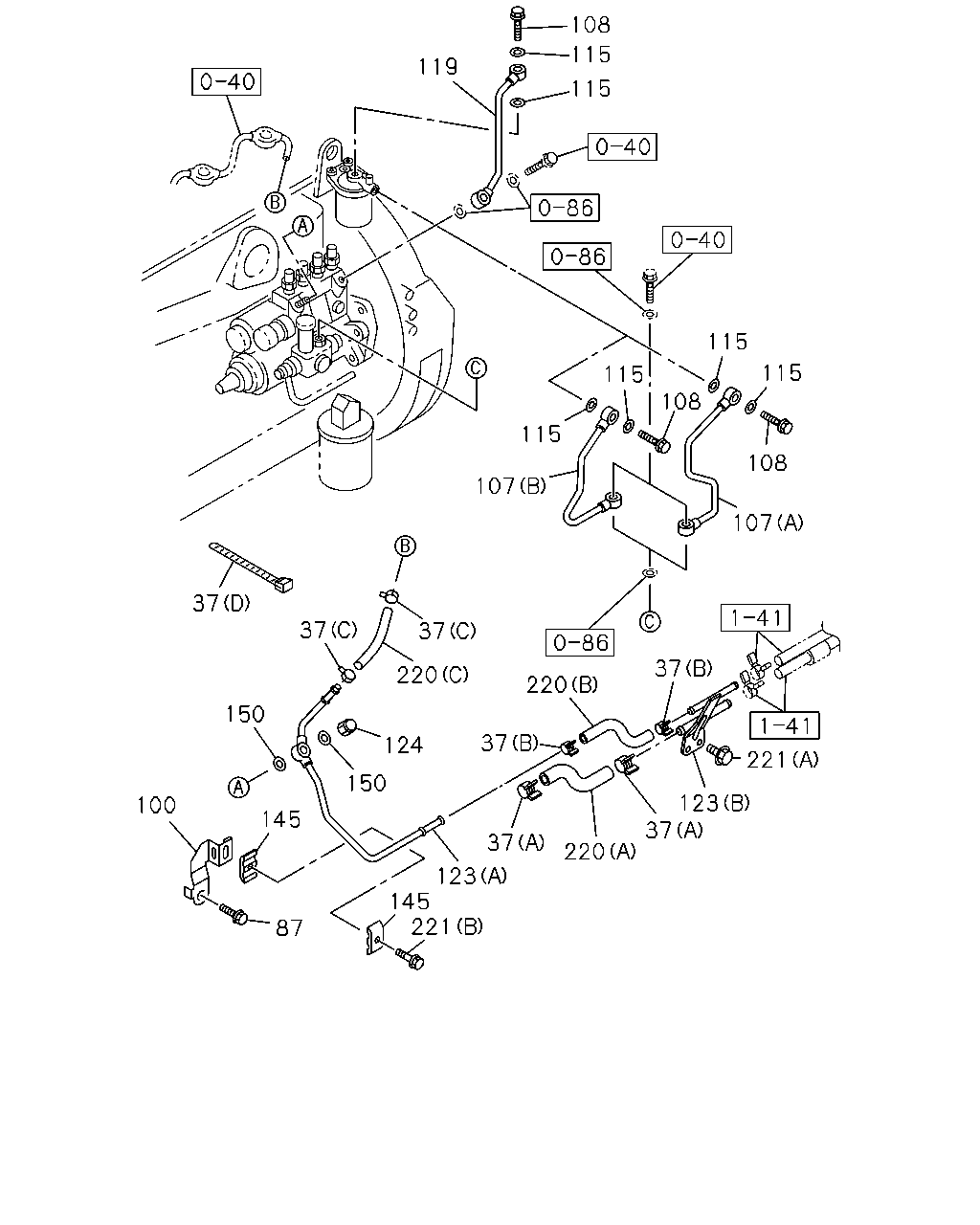

108 115 119 115 115 115 115 108 115 108 107 107 37 37 37 37 220 220 150 37 124 221 150 123 37 100 145 37 220 123 145 221 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
37	03.162 CLIP; FUEL HOSE (D) L=140	5-09707-031-1	01	1	1005-	●
37	03.162 CLIP; FUEL HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	1005-	●
37	03.162 CLIP; FUEL HOSE 01.219 (B) ID=13	8-94238-571-0	02	1	1005-	●
37	03.162 CLIP; FUEL HOSE 01.219 (C) ID=12	8-94238-610-0	02	1	0211-0501		●
37	03.162 CLIP; FUEL HOSE 01.219 (C) ID=12	8-94238-610-0	02	1	0502-1004			●
37	03.162 CLIP; FUEL HOSE 01.219 (C) ID=12	8-94238-610-0	02	1	1005-	●		●
37	03.162 CLIP; FUEL HOSE EXC. ENGINE POWER N-SPEC(7QV) 04.930 (A) ID=16	8-94238-568-0	02	1	0211-0501		●
37	03.162 CLIP; FUEL HOSE EXC. ENGINE POWER N-SPEC(7QV) 01.219 (B) ID=13	8-94238-571-0	02	1	0211-0501		●
87	03.162 BOLT; STAY,FUEL PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1005-	●
87	03.162 BOLT; STAY,FUEL PIPE EXC. ENGINE POWER N-SPEC(7QV) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0211-0501		●
100	03.162 CLIP; "B",FUEL PIPE	8-97108-315-0	01	1	1005-	●
100	03.162 CLIP; "B",FUEL PIPE EXC. ENGINE POWER N-SPEC(7QV)	8-97108-315-0	01	1	0211-0501		●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL (B)	8-97210-721-1	01	1	1005-	●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97088-046-3	01	1	0211-0501		●
108	03.162 BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	1005-	●
108	03.162 BOLT; JOINT,FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV) M14X27 FLANGE	1-09675-086-0	02	1	0211-0501		●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	1005-	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ENGINE POWER N-SPEC(7QV) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	0211-0501		●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-97211-323-1	01	1	1005-	●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU EXC. ENGINE POWER N-SPEC(7QV)	8-97088-047-0	01	1	0211-0501		●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF (B)	8-97087-196-0	01	1	1005-	●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-97223-179-0	01	1	1005-	●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF EXC. ENGINE POWER N-SPEC(7QV) (B)	8-97087-196-0	01	1	0211-0501		●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97118-894-1	01	1	0211-0501		●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	1005-	●
124	03.162 NUT; CAP,FUEL PIPE EXC. ENGINE POWER N-SPEC(7QV) M14	1-09468-002-1	01	1	0211-0501		●
145	03.162 CLIP; FUEL PIPE 03.330 ID=6.1 & 9.6	8-97016-323-1	02	1	1005-	●
145	03.162 CLIP; FUEL PIPE EXC. ENGINE POWER N-SPEC(7QV) 03.330 ID=6.1 & 9.6	8-97016-323-0	02	1	0211-0501		●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	1005-	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ENGINE POWER N-SPEC(7QV) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	0211-0501		●
220	03.163 HOSE; FUEL (A)	8-97087-227-2	01	1	1005-	●
220	03.163 HOSE; FUEL (B)	8-97087-228-2	01	1	1005-	●
220	03.163 HOSE; FUEL (C)	8-97208-874-0	01	1	1005-	●
220	03.163 HOSE; FUEL ENGINE POWER N-SPEC(7QV) HIGH ALTITUDE COMPENSATOR(EE2) (D)	8-97118-903-0	01	1	0211-0501		●
220	03.163 HOSE; FUEL HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60) (D)	8-97118-903-0	01	1	0502-			●
220	03.163 HOSE; FUEL ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) (D)	8-97145-019-2	01	1	0211-0501		●
220	03.163 HOSE; FUEL EXC. HIGH ALTITUDE COMPENSATOR(EE2) (D)	8-97145-019-2	01	1	0502-			●
220	03.163 HOSE; FUEL EXC. ENGINE POWER N-SPEC(7QV) (C) L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0501		●
220	03.163 HOSE; FUEL EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97087-227-1	01	1	0211-0501		●
220	03.163 HOSE; FUEL EXC. ENGINE POWER N-SPEC(7QV) (B)	8-97087-228-1	01	1	0211-0501		●
221	03.163 BOLT; FUEL PIPE 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1005-	●
221	03.163 BOLT; FUEL PIPE 00.685 (B) M6X40 FLANGE	0-28650-640-0	01	1	1005-	●
221	03.163 BOLT; FUEL PIPE EXC. ENGINE POWER N-SPEC(7QV) 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0211-0501		●
221	03.163 BOLT; FUEL PIPE EXC. ENGINE POWER N-SPEC(7QV) (B) M6X40 FLANGE	0-28680-640-0	01	1	0211-0501		●

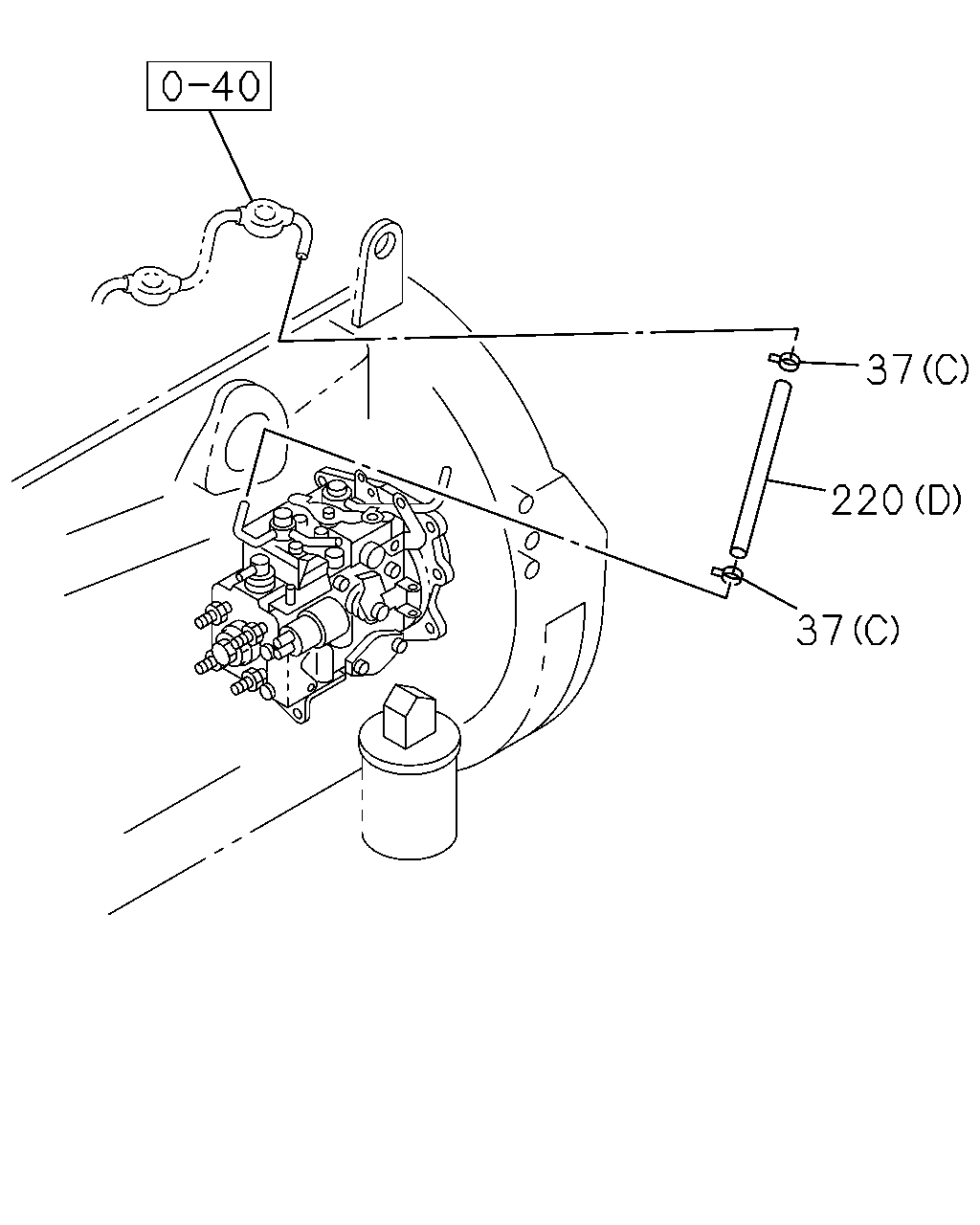

37 220 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
37	03.162 CLIP; FUEL HOSE (D) L=140	5-09707-031-1	01	1	1005-	●
37	03.162 CLIP; FUEL HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	1005-	●
37	03.162 CLIP; FUEL HOSE 01.219 (B) ID=13	8-94238-571-0	02	1	1005-	●
37	03.162 CLIP; FUEL HOSE 01.219 (C) ID=12	8-94238-610-0	02	1	0211-0501		●
37	03.162 CLIP; FUEL HOSE 01.219 (C) ID=12	8-94238-610-0	02	1	0502-1004			●
37	03.162 CLIP; FUEL HOSE 01.219 (C) ID=12	8-94238-610-0	02	1	1005-	●		●
37	03.162 CLIP; FUEL HOSE EXC. ENGINE POWER N-SPEC(7QV) 04.930 (A) ID=16	8-94238-568-0	02	1	0211-0501		●
37	03.162 CLIP; FUEL HOSE EXC. ENGINE POWER N-SPEC(7QV) 01.219 (B) ID=13	8-94238-571-0	02	1	0211-0501		●
220	03.163 HOSE; FUEL (A)	8-97087-227-2	01	1	1005-	●
220	03.163 HOSE; FUEL (B)	8-97087-228-2	01	1	1005-	●
220	03.163 HOSE; FUEL (C)	8-97208-874-0	01	1	1005-	●
220	03.163 HOSE; FUEL ENGINE POWER N-SPEC(7QV) HIGH ALTITUDE COMPENSATOR(EE2) (D)	8-97118-903-0	01	1	0211-0501		●
220	03.163 HOSE; FUEL HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60) (D)	8-97118-903-0	01	1	0502-			●
220	03.163 HOSE; FUEL ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) (D)	8-97145-019-2	01	1	0211-0501		●
220	03.163 HOSE; FUEL EXC. HIGH ALTITUDE COMPENSATOR(EE2) (D)	8-97145-019-2	01	1	0502-			●
220	03.163 HOSE; FUEL EXC. ENGINE POWER N-SPEC(7QV) (C) L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0501		●
220	03.163 HOSE; FUEL EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97087-227-1	01	1	0211-0501		●
220	03.163 HOSE; FUEL EXC. ENGINE POWER N-SPEC(7QV) (B)	8-97087-228-1	01	1	0211-0501		●
