◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50943 - NKR55,66,69,71,77LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶
0-41 — FUEL FILTER AND BRACKET (#50722) — 301 parça

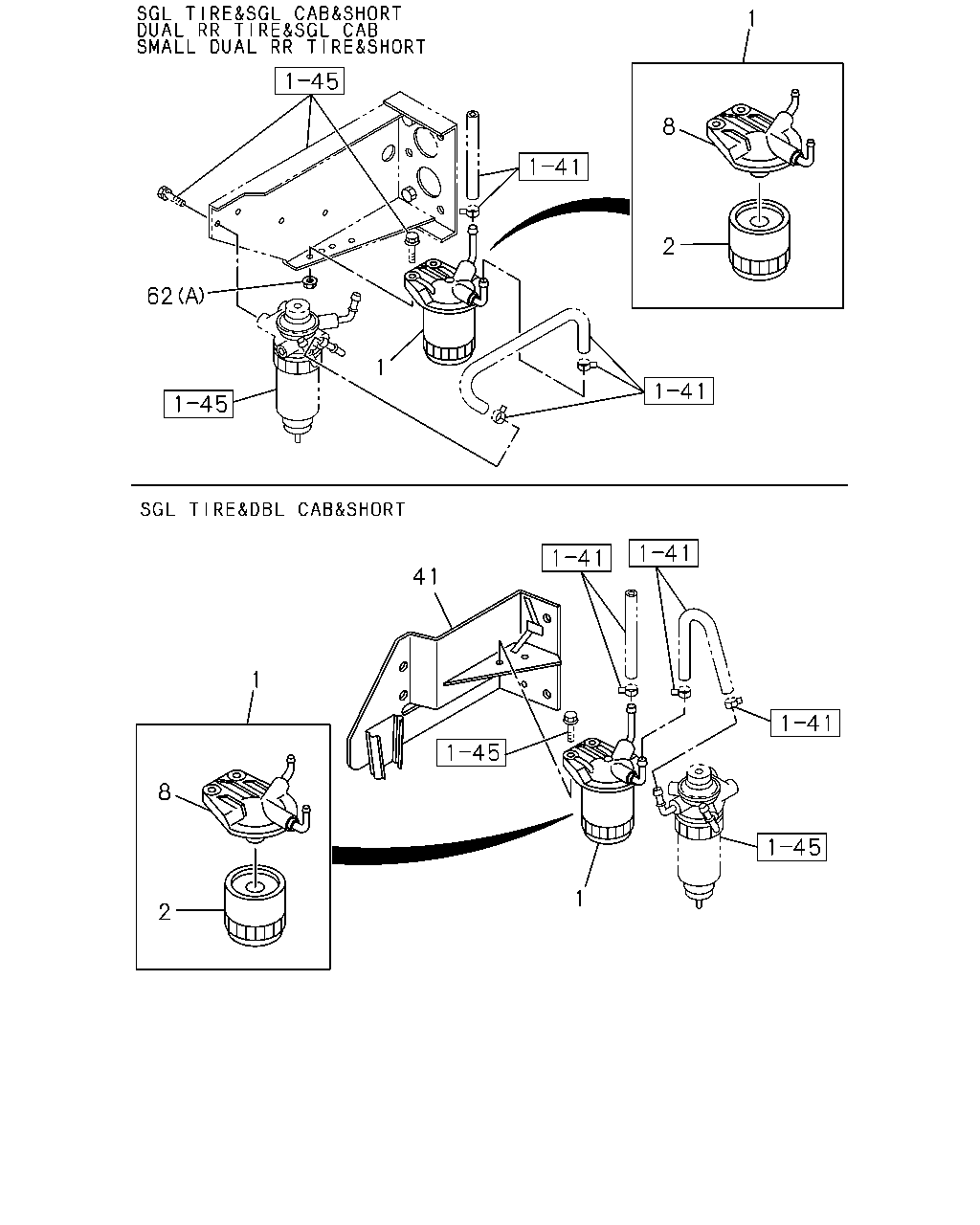

çizim 44469
1 8 2 62 1 41 1 8 1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 03.890 FILTER ASM; FUEL 8-97171-451-2 01 1 1005- ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B) 		8-97070-864-0 01 1 0211-0501 ● ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B) 		8-97070-864-0 01 1 0502-0504 ● ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B) 		8-97070-864-0 01 1 0505-1506 ● ● ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2015(VZF) 		8-97070-864-0 01 1 1507- ● ● ●
1 03.890 FILTER ASM; FUEL
EXC. FUEL FILTER DUAL(S6B) 		8-97070-865-0 01 1 0211-0501 ● ●
1 03.890 FILTER ASM; FUEL
EXC. FUEL FILTER DUAL(S6B) 		8-97070-865-0 01 1 0502-0505 ● ●
1 03.890 FILTER ASM; FUEL
EXC. FUEL FILTER DUAL(S6B) 		8-98006-454-0 01 1 0506- ● ● ●
1 03.890 FILTER ASM; FUEL
EXC. ENGINE POWER N-SPEC(7QV) 		8-97171-451-2 01 1 0211-0501 ●
1 03.890 FILTER ASM; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97240-124-1 01 1 0211-0501 ●
1 03.890 FILTER ASM; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97240-124-2 01 1 0502- ●
2 03.890 ELEMENT KIT; FUEL FILTER
VIN MODEL YEAR 2015(VZF) 		8-98270-184-0 01 1 1507- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) 01.836 		8-94144-613-0 02 1 0211-0501 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) 01.836 		8-94144-613-0 02 1 0502-0504 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) 01.836 		8-94144-613-0 02 1 0505-1506 ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2015(VZF) 01.836 		8-94144-613-0 02 1 1507- ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B) 		8-94246-908-0 01 1 0211-0501 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B) 		8-94246-908-0 01 1 0502-0505 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B) 		8-97916-993-2 01 1 0506- ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV) 		8-97172-549-1 01 1 0211-0501 ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-97172-549-1 01 1 1005- ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94369-299-3 01 1 0211-0501 ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94369-299-3 01 1 0502-0611 ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-98037-480-0 01 1 0612- ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> BEST VALUE PARTS 		5-87610-094-0 01 1 0612- ●
2 03.890 ELEMENT KIT; FUEL FILTER
BEST VALUE PARTS 		5-87610-041-0 01 1 1005- ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV) BEST VALUE PARTS 		5-87610-041-0 01 1 0211-0501 ●
8 03.890 COVER; FUEL FILTER 8-97172-543-1 01 1 1005- ●
8 03.890 COVER; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B) 		8-97363-518-0 01 1 0211-0501 ● ●
8 03.890 COVER; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B) 		8-97363-518-0 01 1 0502-0505 ● ●
8 03.890 COVER; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B) 		8-97917-558-0 01 1 0506- ● ● ●
8 03.890 COVER; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV) 		8-97172-543-1 01 1 0211-0501 ●
41 03.890 BRACKET; FUEL FILTER
DBL CAB&SHORT(NK**WC) 		8-97103-345-1 01 1 0211-0501 ●
62 03.895 NUT; FUEL FILTER
JAPAN PRODUCTION<C1H> FUEL FILTER DUAL(S6B) 03.162 (C) M10 FLANGE 		0-91180-110-0 02 1 1405-1405 ●
62 03.895 NUT; FUEL FILTER
JAPAN PRODUCTION<C1H> FUEL FILTER DUAL(S6B) 03.162 (C) M10 FLANGE 		0-91180-110-0 02 1 1406- ●
62 03.895 NUT; FUEL FILTER
03.162 (C) M10 FLANGE 		0-91180-110-0 02 1 1406- ●
62 03.895 NUT; FUEL FILTER
08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0211-0501 ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0211-0501 ●
62 03.895 NUT; FUEL FILTER
08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0502-0504 ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0502-0504 ●
62 03.895 NUT; FUEL FILTER
08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0505-0602 ● ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0505-0602 ●
62 03.895 NUT; FUEL FILTER
04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 0603-1004 ● ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 0603-1004 ●
62 03.895 NUT; FUEL FILTER
04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1005-1404 ● ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1005-1404 ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1005-1404 ●
62 03.895 NUT; FUEL FILTER
04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1405-1506 ● ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) EXC. JAPAN PRODUCTION<C1H> 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1405-1506 ● ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1405-1506 ●
62 03.895 NUT; FUEL FILTER
EXC. VIN MODEL YEAR 2015(VZF) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1507- ● ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) EXC. JAPAN PRODUCTION<C1H>,VIN MODEL YEAR 2015(VZF) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1507- ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1507- ●
62 03.895 NUT; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV) 04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 0211-0501 ●

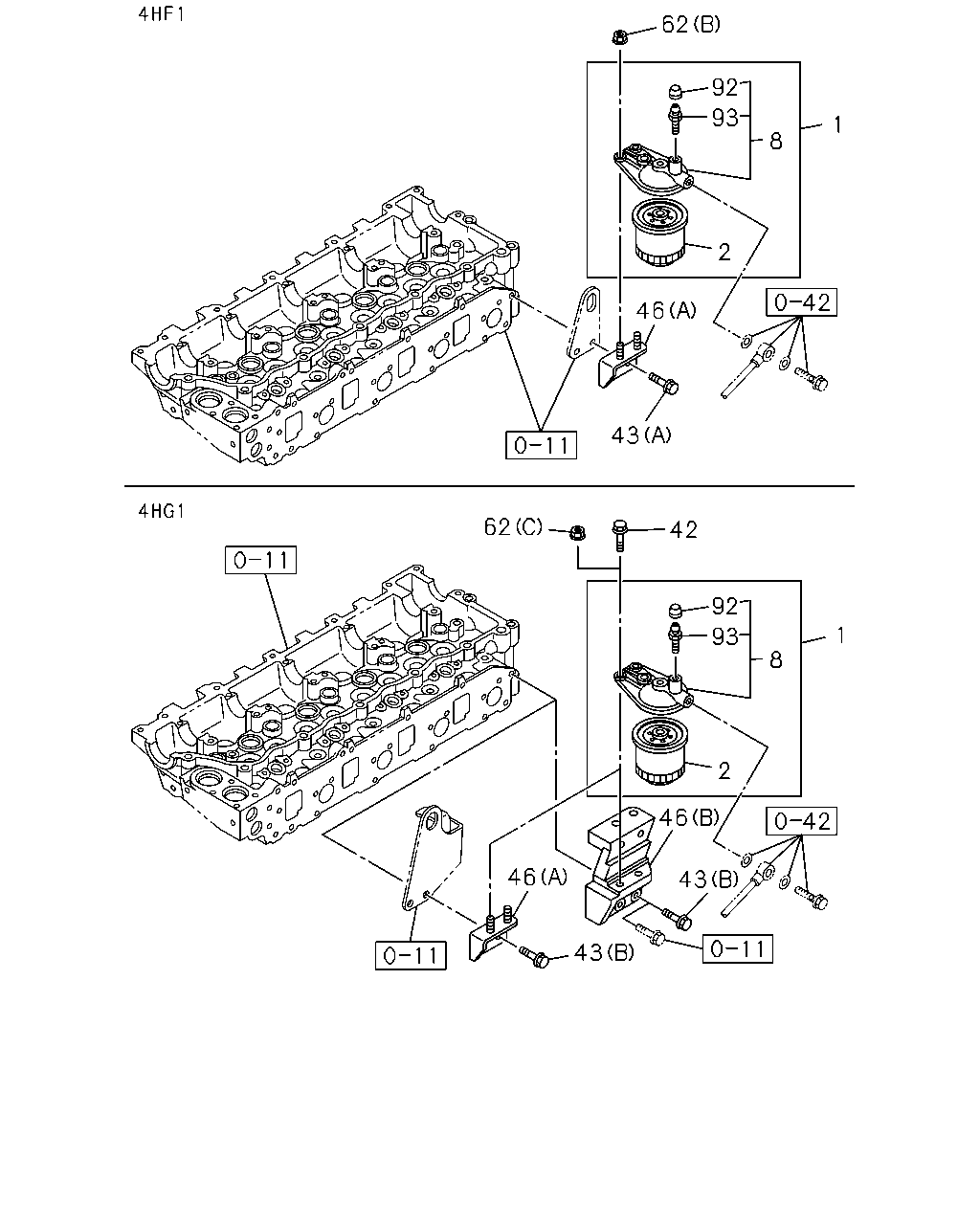

çizim 45022
62 92 93 8 1 2 46 43 42 62 92 93 8 1 2 46 43 43 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 03.890 FILTER ASM; FUEL 8-97171-451-2 01 1 1005- ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B) 		8-97070-864-0 01 1 0211-0501 ● ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B) 		8-97070-864-0 01 1 0502-0504 ● ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B) 		8-97070-864-0 01 1 0505-1506 ● ● ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2015(VZF) 		8-97070-864-0 01 1 1507- ● ● ●
1 03.890 FILTER ASM; FUEL
EXC. FUEL FILTER DUAL(S6B) 		8-97070-865-0 01 1 0211-0501 ● ●
1 03.890 FILTER ASM; FUEL
EXC. FUEL FILTER DUAL(S6B) 		8-97070-865-0 01 1 0502-0505 ● ●
1 03.890 FILTER ASM; FUEL
EXC. FUEL FILTER DUAL(S6B) 		8-98006-454-0 01 1 0506- ● ● ●
1 03.890 FILTER ASM; FUEL
EXC. ENGINE POWER N-SPEC(7QV) 		8-97171-451-2 01 1 0211-0501 ●
1 03.890 FILTER ASM; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97240-124-1 01 1 0211-0501 ●
1 03.890 FILTER ASM; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97240-124-2 01 1 0502- ●
2 03.890 ELEMENT KIT; FUEL FILTER
VIN MODEL YEAR 2015(VZF) 		8-98270-184-0 01 1 1507- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) 01.836 		8-94144-613-0 02 1 0211-0501 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) 01.836 		8-94144-613-0 02 1 0502-0504 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) 01.836 		8-94144-613-0 02 1 0505-1506 ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2015(VZF) 01.836 		8-94144-613-0 02 1 1507- ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B) 		8-94246-908-0 01 1 0211-0501 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B) 		8-94246-908-0 01 1 0502-0505 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B) 		8-97916-993-2 01 1 0506- ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV) 		8-97172-549-1 01 1 0211-0501 ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-97172-549-1 01 1 1005- ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94369-299-3 01 1 0211-0501 ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94369-299-3 01 1 0502-0611 ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-98037-480-0 01 1 0612- ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> BEST VALUE PARTS 		5-87610-094-0 01 1 0612- ●
2 03.890 ELEMENT KIT; FUEL FILTER
BEST VALUE PARTS 		5-87610-041-0 01 1 1005- ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV) BEST VALUE PARTS 		5-87610-041-0 01 1 0211-0501 ●
8 03.890 COVER; FUEL FILTER 8-97172-543-1 01 1 1005- ●
8 03.890 COVER; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B) 		8-97363-518-0 01 1 0211-0501 ● ●
8 03.890 COVER; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B) 		8-97363-518-0 01 1 0502-0505 ● ●
8 03.890 COVER; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B) 		8-97917-558-0 01 1 0506- ● ● ●
8 03.890 COVER; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV) 		8-97172-543-1 01 1 0211-0501 ●
42 03.890 BOLT; FUEL FILTER
00.780 M10X30 FLANGE 		0-28751-030-0 02 1 1005-1405 ●
43 03.890 BOLT; BRKT
00.029 (A) M12X28 FLANGE 		0-28181-228-0 02 1 1005-1405 ●
43 03.890 BOLT; BRKT
00.029 (B) M12X25 FLANGE 		0-28151-225-0 02 1 1406- ●
43 03.890 BOLT; BRKT
EXC. ENGINE POWER N-SPEC(7QV) 00.029 (A) M12X28 FLANGE 		0-28181-228-0 02 1 0211-0501 ●
46 03.890 BRACKET
(B) 		8-97061-452-0 01 1 1005-1405 ●
46 03.890 BRACKET
(A) 		8-94313-323-2 01 1 1406- ●
46 03.890 BRACKET
EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-94313-323-1 01 1 0211-0501 ●
62 03.895 NUT; FUEL FILTER
JAPAN PRODUCTION<C1H> FUEL FILTER DUAL(S6B) 03.162 (C) M10 FLANGE 		0-91180-110-0 02 1 1405-1405 ●
62 03.895 NUT; FUEL FILTER
JAPAN PRODUCTION<C1H> FUEL FILTER DUAL(S6B) 03.162 (C) M10 FLANGE 		0-91180-110-0 02 1 1406- ●
62 03.895 NUT; FUEL FILTER
03.162 (C) M10 FLANGE 		0-91180-110-0 02 1 1406- ●
62 03.895 NUT; FUEL FILTER
08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0211-0501 ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0211-0501 ●
62 03.895 NUT; FUEL FILTER
08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0502-0504 ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0502-0504 ●
62 03.895 NUT; FUEL FILTER
08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0505-0602 ● ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0505-0602 ●
62 03.895 NUT; FUEL FILTER
04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 0603-1004 ● ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 0603-1004 ●
62 03.895 NUT; FUEL FILTER
04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1005-1404 ● ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1005-1404 ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1005-1404 ●
62 03.895 NUT; FUEL FILTER
04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1405-1506 ● ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) EXC. JAPAN PRODUCTION<C1H> 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1405-1506 ● ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1405-1506 ●
62 03.895 NUT; FUEL FILTER
EXC. VIN MODEL YEAR 2015(VZF) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1507- ● ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) EXC. JAPAN PRODUCTION<C1H>,VIN MODEL YEAR 2015(VZF) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1507- ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1507- ●
62 03.895 NUT; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV) 04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 0211-0501 ●
92 03.417 CAP; FUEL FILTER 8-97172-548-0 01 1 1005- ●
92 03.417 CAP; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV) 		8-97172-548-0 01 1 0211-0501 ●
93 03.890 CONNECTOR; FUEL FILTER 8-97172-546-1 01 1 1005- ●
93 03.890 CONNECTOR; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV) 		8-97172-546-1 01 1 0211-0501 ●

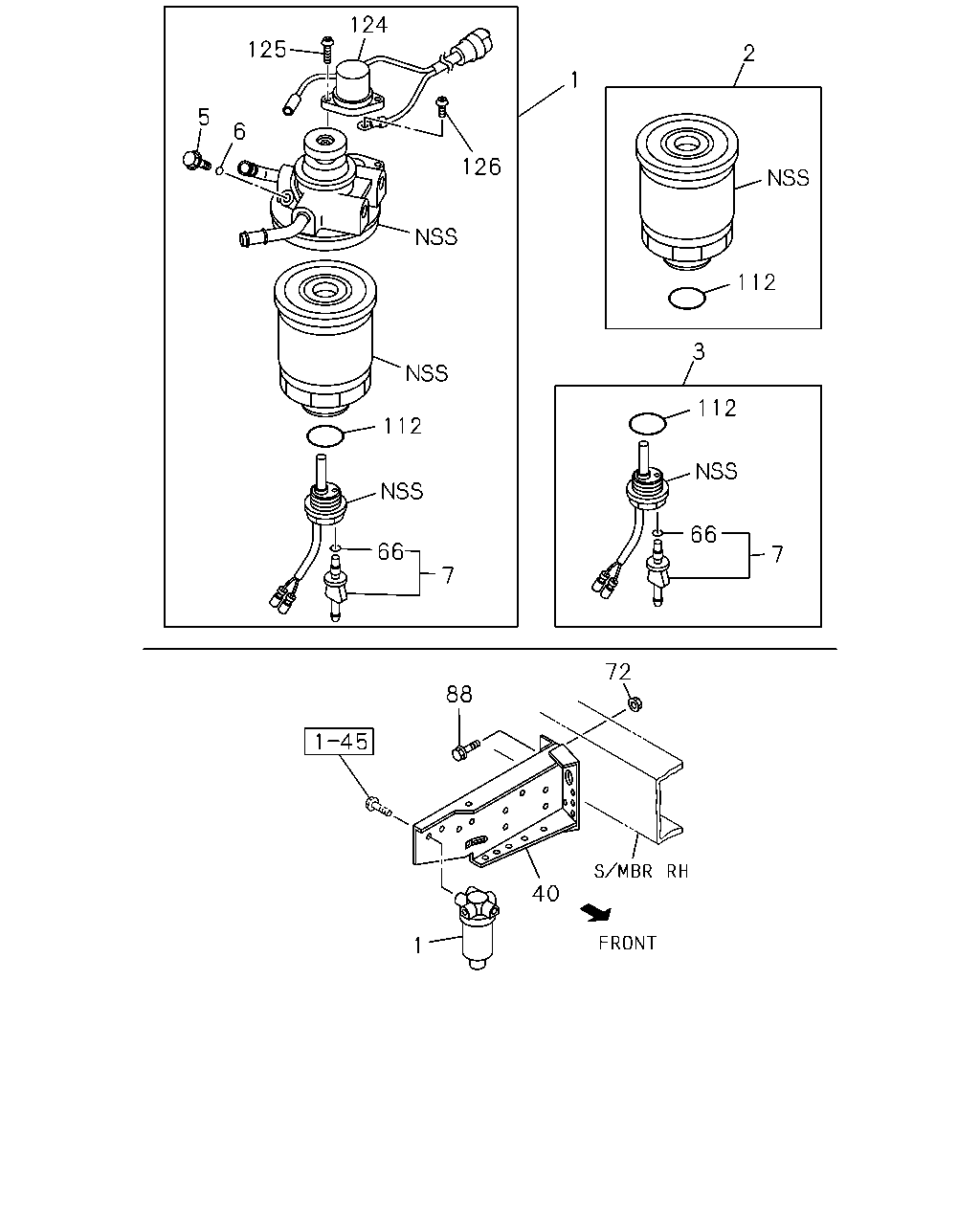

çizim 46076
124 125 2 1 5 6 126 112 3 112 112 66 66 7 7 72 88 40 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 03.890 FILTER ASM; FUEL 8-97171-451-2 01 1 1005- ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B) 		8-97070-864-0 01 1 0211-0501 ● ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B) 		8-97070-864-0 01 1 0502-0504 ● ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B) 		8-97070-864-0 01 1 0505-1506 ● ● ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2015(VZF) 		8-97070-864-0 01 1 1507- ● ● ●
1 03.890 FILTER ASM; FUEL
EXC. FUEL FILTER DUAL(S6B) 		8-97070-865-0 01 1 0211-0501 ● ●
1 03.890 FILTER ASM; FUEL
EXC. FUEL FILTER DUAL(S6B) 		8-97070-865-0 01 1 0502-0505 ● ●
1 03.890 FILTER ASM; FUEL
EXC. FUEL FILTER DUAL(S6B) 		8-98006-454-0 01 1 0506- ● ● ●
1 03.890 FILTER ASM; FUEL
EXC. ENGINE POWER N-SPEC(7QV) 		8-97171-451-2 01 1 0211-0501 ●
1 03.890 FILTER ASM; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97240-124-1 01 1 0211-0501 ●
1 03.890 FILTER ASM; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97240-124-2 01 1 0502- ●
2 03.890 ELEMENT KIT; FUEL FILTER
VIN MODEL YEAR 2015(VZF) 		8-98270-184-0 01 1 1507- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) 01.836 		8-94144-613-0 02 1 0211-0501 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) 01.836 		8-94144-613-0 02 1 0502-0504 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) 01.836 		8-94144-613-0 02 1 0505-1506 ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2015(VZF) 01.836 		8-94144-613-0 02 1 1507- ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B) 		8-94246-908-0 01 1 0211-0501 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B) 		8-94246-908-0 01 1 0502-0505 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B) 		8-97916-993-2 01 1 0506- ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV) 		8-97172-549-1 01 1 0211-0501 ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-97172-549-1 01 1 1005- ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94369-299-3 01 1 0211-0501 ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94369-299-3 01 1 0502-0611 ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-98037-480-0 01 1 0612- ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> BEST VALUE PARTS 		5-87610-094-0 01 1 0612- ●
2 03.890 ELEMENT KIT; FUEL FILTER
BEST VALUE PARTS 		5-87610-041-0 01 1 1005- ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV) BEST VALUE PARTS 		5-87610-041-0 01 1 0211-0501 ●
3 03.890 SENSOR ASM; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97079-821-0 01 1 0211-0501 ●
3 03.890 SENSOR ASM; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97079-821-0 01 1 0502- ●
5 03.890 BOLT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-674-0 01 1 0211-0501 ●
5 03.890 BOLT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-674-0 01 1 0502- ●
6 03.890 GASKET; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 0211-0501 ●
6 03.890 GASKET; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 0502- ●
7 03.890 PLUG; SENSOR,FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97123-549-0 01 1 0211-0501 ●
7 03.890 PLUG; SENSOR,FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97123-549-0 01 1 0502- ●
40 03.890 BRACKET; FUEL FILTER 8-97306-600-1 01 1 0211-0306 ●
40 03.890 BRACKET; FUEL FILTER 8-97370-090-0 01 1 0307-0501 ●
40 03.890 BRACKET; FUEL FILTER
SGL CAB&MIDDLE(NK**SF) 		8-97370-090-0 01 1 0502- ●
66 03.890 GASKET; PLUG,FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94447-156-0 01 1 0211-0501 ●
66 03.890 GASKET; PLUG,FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94447-156-0 01 1 0502- ●
72 03.890 NUT; BRKT,FUEL FILTER
04.785 M10 FLANGE 		0-91150-110-0 03 1 0211-0302 ●
88 03.895 BOLT; BRKT,FUEL FILTER
00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0211-0501 ●
88 03.895 BOLT; BRKT,FUEL FILTER
00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0502-0512 ●
88 03.895 BOLT; BRKT,FUEL FILTER
03.890 M10X30 FLANGE 		0-28051-030-0 02 1 0601- ●
112 06.605 GASKET; SENSOR TO CASE
FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 0211-0501 ●
112 06.605 GASKET; SENSOR TO CASE
FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 0502-0611 ●
112 06.605 GASKET; SENSOR TO CASE
FUEL SEDIMENTER WITH HEATER<6HU> 03.417 		1-09623-649-0 01 1 0612- ●
124 03.890 SWITCH; PRESSURE,FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97378-844-0 01 1 0211-0501 ●
124 03.890 SWITCH; PRESSURE,FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97378-844-0 01 1 0502- ●
125 03.890 BOLT; SWITCH,FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97352-938-0 02 1 0211-0501 ●
125 03.890 BOLT; SWITCH,FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97352-938-0 02 1 0502- ●
126 03.890 BOLT; HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> 01.540 		1-13219-156-0 01 1 0211-0501 ●
126 03.890 BOLT; HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> 01.540 		1-13219-156-0 01 1 0502- ●

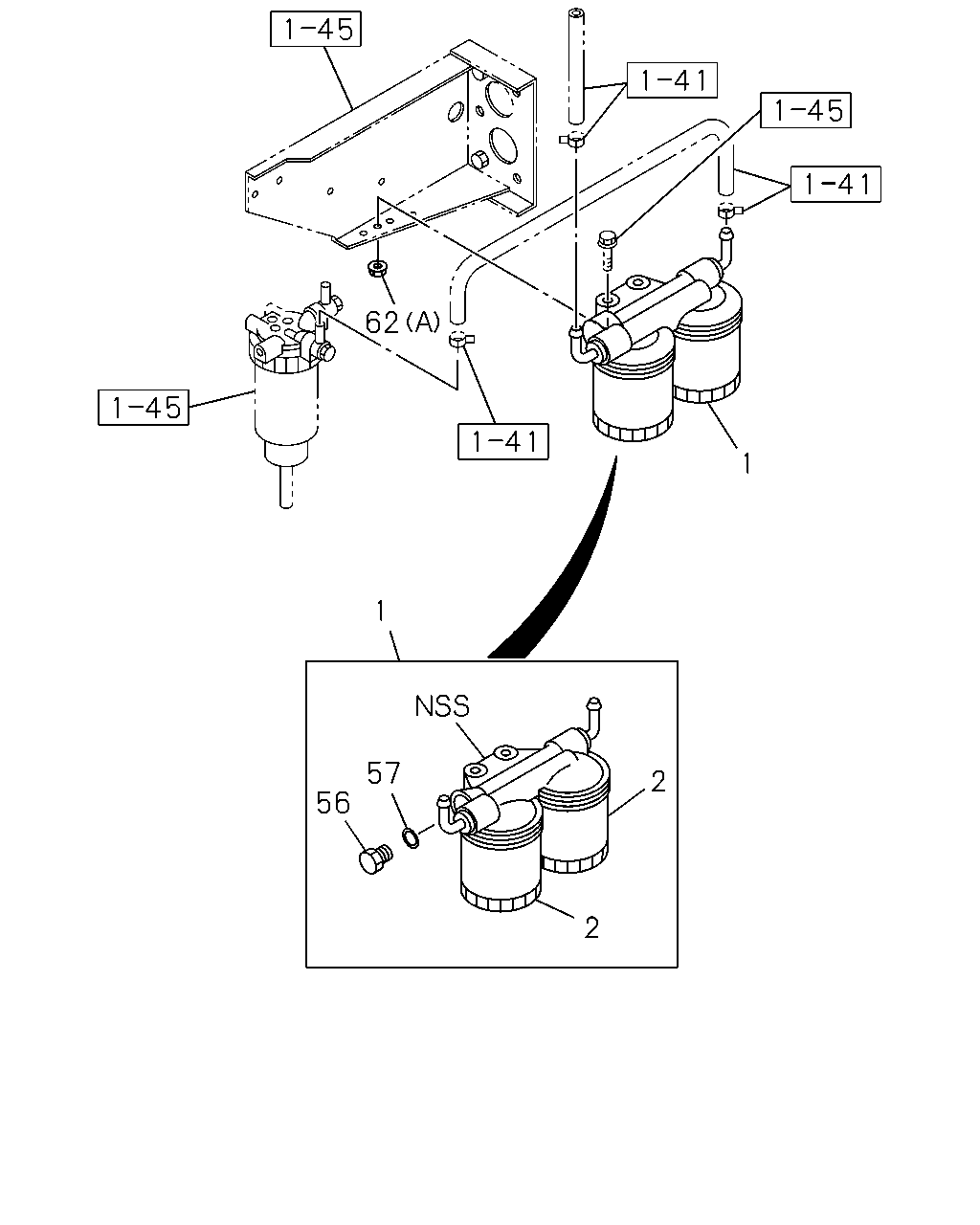

çizim 46078
62 1 1 57 2 56 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 03.890 FILTER ASM; FUEL 8-97171-451-2 01 1 1005- ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B) 		8-97070-864-0 01 1 0211-0501 ● ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B) 		8-97070-864-0 01 1 0502-0504 ● ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B) 		8-97070-864-0 01 1 0505-1506 ● ● ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2015(VZF) 		8-97070-864-0 01 1 1507- ● ● ●
1 03.890 FILTER ASM; FUEL
EXC. FUEL FILTER DUAL(S6B) 		8-97070-865-0 01 1 0211-0501 ● ●
1 03.890 FILTER ASM; FUEL
EXC. FUEL FILTER DUAL(S6B) 		8-97070-865-0 01 1 0502-0505 ● ●
1 03.890 FILTER ASM; FUEL
EXC. FUEL FILTER DUAL(S6B) 		8-98006-454-0 01 1 0506- ● ● ●
1 03.890 FILTER ASM; FUEL
EXC. ENGINE POWER N-SPEC(7QV) 		8-97171-451-2 01 1 0211-0501 ●
1 03.890 FILTER ASM; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97240-124-1 01 1 0211-0501 ●
1 03.890 FILTER ASM; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97240-124-2 01 1 0502- ●
2 03.890 ELEMENT KIT; FUEL FILTER
VIN MODEL YEAR 2015(VZF) 		8-98270-184-0 01 1 1507- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) 01.836 		8-94144-613-0 02 1 0211-0501 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) 01.836 		8-94144-613-0 02 1 0502-0504 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) 01.836 		8-94144-613-0 02 1 0505-1506 ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2015(VZF) 01.836 		8-94144-613-0 02 1 1507- ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B) 		8-94246-908-0 01 1 0211-0501 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B) 		8-94246-908-0 01 1 0502-0505 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B) 		8-97916-993-2 01 1 0506- ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV) 		8-97172-549-1 01 1 0211-0501 ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-97172-549-1 01 1 1005- ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94369-299-3 01 1 0211-0501 ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94369-299-3 01 1 0502-0611 ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-98037-480-0 01 1 0612- ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> BEST VALUE PARTS 		5-87610-094-0 01 1 0612- ●
2 03.890 ELEMENT KIT; FUEL FILTER
BEST VALUE PARTS 		5-87610-041-0 01 1 1005- ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV) BEST VALUE PARTS 		5-87610-041-0 01 1 0211-0501 ●
56 03.890 PLUG; FUEL FILTER
FUEL FILTER DUAL(S6B) 		5-13226-001-0 01 1 0211-0501 ● ●
56 03.890 PLUG; FUEL FILTER
FUEL FILTER DUAL(S6B) 		5-13226-001-0 01 1 0502-0504 ● ●
56 03.890 PLUG; FUEL FILTER
FUEL FILTER DUAL(S6B) 		5-13226-001-0 01 1 0505-1506 ● ● ●
56 03.890 PLUG; FUEL FILTER
FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2015(VZF) 		5-13226-001-0 01 1 1507- ● ● ●
57 03.890 GASKET; PLUG
FUEL FILTER DUAL(S6B) 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 0211-0501 ● ●
57 03.890 GASKET; PLUG
FUEL FILTER DUAL(S6B) 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 0502-0504 ● ●
57 03.890 GASKET; PLUG
FUEL FILTER DUAL(S6B) 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 0505-1506 ● ● ●
57 03.890 GASKET; PLUG
FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2015(VZF) 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 1507- ● ● ●
62 03.895 NUT; FUEL FILTER
JAPAN PRODUCTION<C1H> FUEL FILTER DUAL(S6B) 03.162 (C) M10 FLANGE 		0-91180-110-0 02 1 1405-1405 ●
62 03.895 NUT; FUEL FILTER
JAPAN PRODUCTION<C1H> FUEL FILTER DUAL(S6B) 03.162 (C) M10 FLANGE 		0-91180-110-0 02 1 1406- ●
62 03.895 NUT; FUEL FILTER
03.162 (C) M10 FLANGE 		0-91180-110-0 02 1 1406- ●
62 03.895 NUT; FUEL FILTER
08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0211-0501 ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0211-0501 ●
62 03.895 NUT; FUEL FILTER
08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0502-0504 ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0502-0504 ●
62 03.895 NUT; FUEL FILTER
08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0505-0602 ● ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0505-0602 ●
62 03.895 NUT; FUEL FILTER
04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 0603-1004 ● ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 0603-1004 ●
62 03.895 NUT; FUEL FILTER
04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1005-1404 ● ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1005-1404 ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1005-1404 ●
62 03.895 NUT; FUEL FILTER
04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1405-1506 ● ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) EXC. JAPAN PRODUCTION<C1H> 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1405-1506 ● ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1405-1506 ●
62 03.895 NUT; FUEL FILTER
EXC. VIN MODEL YEAR 2015(VZF) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1507- ● ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) EXC. JAPAN PRODUCTION<C1H>,VIN MODEL YEAR 2015(VZF) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1507- ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1507- ●
62 03.895 NUT; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV) 04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 0211-0501 ●

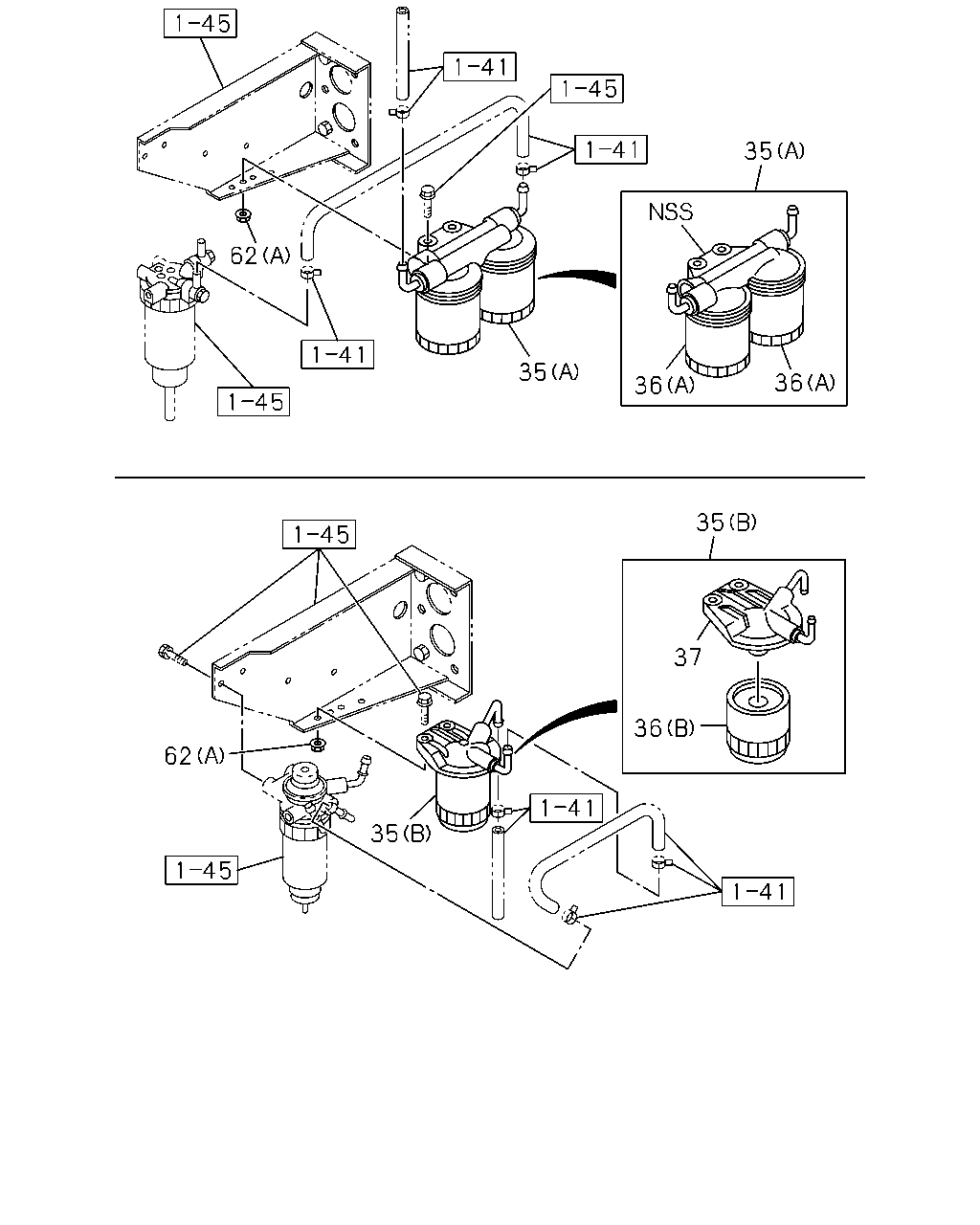

çizim 46730
35 62 35 36 36 35 37 36 62 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
35 03.890 FILTER ASM; SUB FUEL
VIN MODEL YEAR 2015(VZF) (C) 		8-98269-584-0 01 1 1507- ● ●
35 03.890 FILTER ASM; SUB FUEL
FUEL FILTER DUAL(S6B) (A) 		8-97070-864-0 01 1 0211-0212 ●
35 03.890 FILTER ASM; SUB FUEL
FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER "NON BOX TYPE"<N02>,FUEL TANK 75 LITTER "NONBOX TYPE"<7GX> (A) 		8-97070-864-0 01 1 0301-0501 ●
35 03.890 FILTER ASM; SUB FUEL
FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER "NON BOX TYPE"<N02>,FUEL TANK 75 LITTER "NONBOX TYPE"<7GX> (A) 		8-97070-864-0 01 1 0502-1004 ●
35 03.890 FILTER ASM; SUB FUEL
FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER "NON BOX TYPE"<N02>,FUEL TANK 75 LITTER "NONBOX TYPE"<7GX> (A) 		8-97070-864-0 01 1 1005-1506 ● ●
35 03.890 FILTER ASM; SUB FUEL
FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2015(VZF),FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (A) 		8-97070-864-0 01 1 1507- ● ●
35 03.890 FILTER ASM; SUB FUEL
FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER "NON BOX TYPE"<N02>,FUEL TANK 75 LITTER "NONBOX TYPE"<7GX> (B) 		8-97070-865-0 01 1 0301-0501 ●
35 03.890 FILTER ASM; SUB FUEL
FUEL TANK 100 LITTER "NON BOX TYPE" <N02>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> FUEL FILTER DUAL(S6B) (B) 		8-97070-865-0 01 1 0502-0505 ●
35 03.890 FILTER ASM; SUB FUEL
FUEL TANK 100 LITTER "NON BOX TYPE" <N02>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> FUEL FILTER DUAL(S6B) (B) 		8-98006-454-0 01 1 0506-1004 ●
35 03.890 FILTER ASM; SUB FUEL
FUEL TANK 100 LITTER "NON BOX TYPE" <N02>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> FUEL FILTER DUAL(S6B) (B) 		8-98006-454-0 01 1 1005-1506 ● ●
35 03.890 FILTER ASM; SUB FUEL
FUEL FILTER DUAL(S6B) FUEL TANK 100 LITTER "NON BOX TYPE" <N02>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> EXC. VIN MODEL YEAR 2015(VZF) (B) 		8-98006-454-0 01 1 1507- ● ●
36 03.890 ELEMENT; FUEL FILTER
FUEL FILTER DUAL(S6B) 01.836 (A) 		8-94144-613-0 02 1 0211-0212 ●
36 03.890 ELEMENT; FUEL FILTER
FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER "NON BOX TYPE"<N02>,FUEL TANK 75 LITTER "NONBOX TYPE"<7GX> 01.836 (A) 		8-94144-613-0 02 1 0301-0501 ●
36 03.890 ELEMENT; FUEL FILTER
FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER "NON BOX TYPE"<N02>,FUEL TANK 75 LITTER "NONBOX TYPE"<7GX> 01.836 (A) 		8-94144-613-0 02 1 0502-1004 ●
36 03.890 ELEMENT; FUEL FILTER
FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER "NON BOX TYPE"<N02>,FUEL TANK 75 LITTER "NONBOX TYPE"<7GX> 01.836 (A) 		8-94144-613-0 02 1 1005-1506 ● ●
36 03.890 ELEMENT; FUEL FILTER
FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2015(VZF),FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 01.836 (A) 		8-94144-613-0 02 1 1507- ● ●
36 03.890 ELEMENT; FUEL FILTER
FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER "NON BOX TYPE"<N02>,FUEL TANK 75 LITTER "NONBOX TYPE"<7GX> (B) 		8-94246-908-0 01 1 0301-0501 ●
36 03.890 ELEMENT; FUEL FILTER
FUEL TANK 100 LITTER "NON BOX TYPE" <N02>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> FUEL FILTER DUAL(S6B) (B) 		8-94246-908-0 01 1 0502-0505 ●
36 03.890 ELEMENT; FUEL FILTER
FUEL TANK 100 LITTER "NON BOX TYPE" <N02>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> FUEL FILTER DUAL(S6B) (B) 		8-97916-993-2 01 1 0506-1004 ●
36 03.890 ELEMENT; FUEL FILTER
FUEL TANK 100 LITTER "NON BOX TYPE" <N02>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> FUEL FILTER DUAL(S6B) (B) 		8-97916-993-2 01 1 1005-1506 ● ●
36 03.890 ELEMENT; FUEL FILTER
FUEL FILTER DUAL(S6B) FUEL TANK 100 LITTER "NON BOX TYPE" <N02>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> EXC. VIN MODEL YEAR 2015(VZF) (B) 		8-97916-993-2 01 1 1507- ● ●
37 03.890 COVER; FUEL FILTER
FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER "NON BOX TYPE"<N02>,FUEL TANK 75 LITTER "NONBOX TYPE"<7GX> 		8-97363-518-0 01 1 0301-0501 ●
37 03.890 COVER; FUEL FILTER
FUEL TANK 100 LITTER "NON BOX TYPE" <N02>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> FUEL FILTER DUAL(S6B) 		8-97363-518-0 01 1 0502-0505 ●
37 03.890 COVER; FUEL FILTER
FUEL TANK 100 LITTER "NON BOX TYPE" <N02>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> FUEL FILTER DUAL(S6B) 		8-97917-558-0 01 1 0506-1004 ●
37 03.890 COVER; FUEL FILTER
FUEL TANK 100 LITTER "NON BOX TYPE" <N02>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> FUEL FILTER DUAL(S6B) 		8-97917-558-0 01 1 1005-1506 ● ●
37 03.890 COVER; FUEL FILTER
FUEL FILTER DUAL(S6B) FUEL TANK 100 LITTER "NON BOX TYPE" <N02>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> EXC. VIN MODEL YEAR 2015(VZF) 		8-97917-558-0 01 1 1507- ● ●
62 03.895 NUT; FUEL FILTER
JAPAN PRODUCTION<C1H> FUEL FILTER DUAL(S6B) 03.162 (C) M10 FLANGE 		0-91180-110-0 02 1 1405-1405 ●
62 03.895 NUT; FUEL FILTER
JAPAN PRODUCTION<C1H> FUEL FILTER DUAL(S6B) 03.162 (C) M10 FLANGE 		0-91180-110-0 02 1 1406- ●
62 03.895 NUT; FUEL FILTER
03.162 (C) M10 FLANGE 		0-91180-110-0 02 1 1406- ●
62 03.895 NUT; FUEL FILTER
08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0211-0501 ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0211-0501 ●
62 03.895 NUT; FUEL FILTER
08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0502-0504 ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0502-0504 ●
62 03.895 NUT; FUEL FILTER
08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0505-0602 ● ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0505-0602 ●
62 03.895 NUT; FUEL FILTER
04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 0603-1004 ● ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 0603-1004 ●
62 03.895 NUT; FUEL FILTER
04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1005-1404 ● ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1005-1404 ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1005-1404 ●
62 03.895 NUT; FUEL FILTER
04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1405-1506 ● ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) EXC. JAPAN PRODUCTION<C1H> 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1405-1506 ● ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1405-1506 ●
62 03.895 NUT; FUEL FILTER
EXC. VIN MODEL YEAR 2015(VZF) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1507- ● ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) EXC. JAPAN PRODUCTION<C1H>,VIN MODEL YEAR 2015(VZF) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1507- ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1507- ●
62 03.895 NUT; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV) 04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 0211-0501 ●

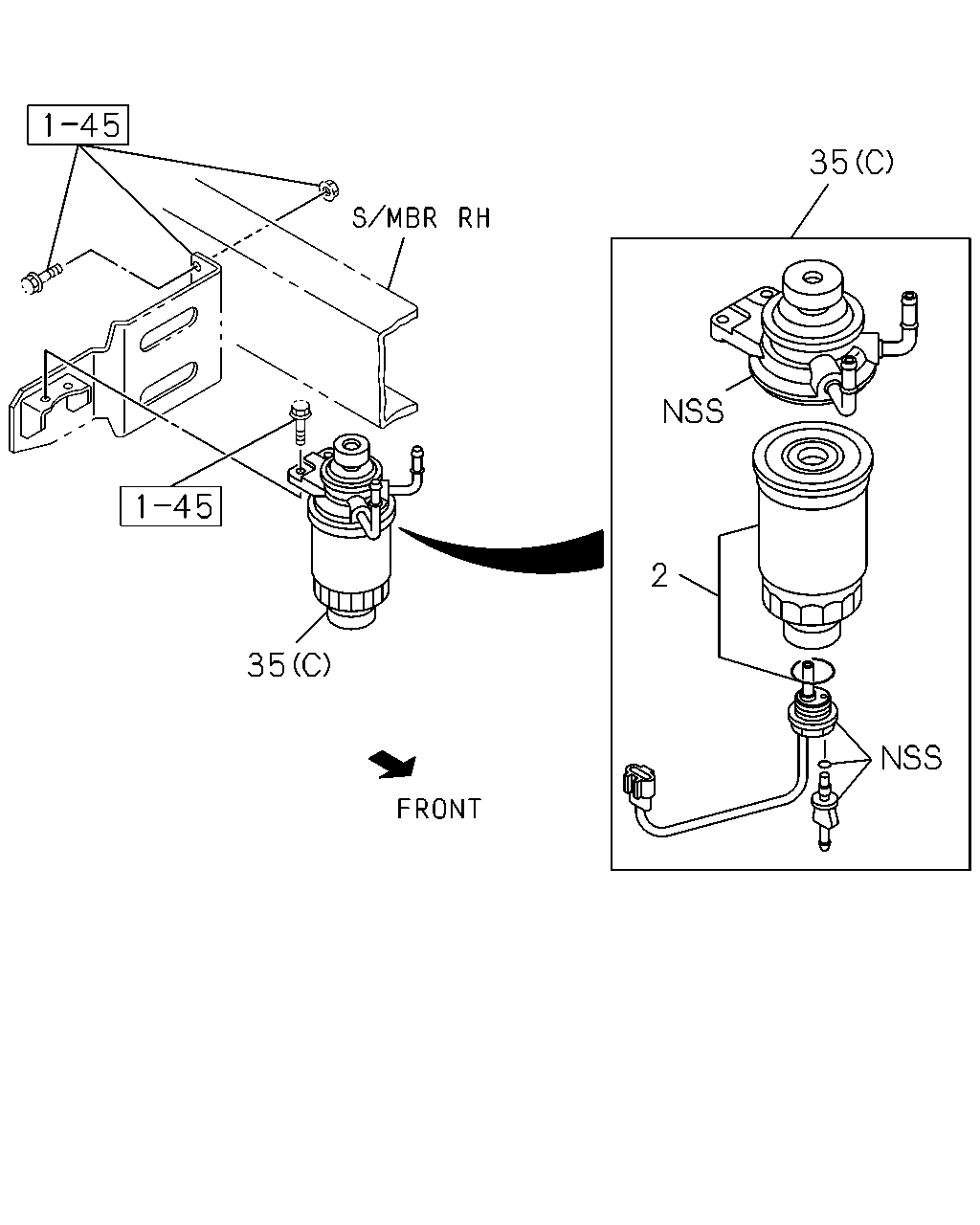

çizim 485056
35 2 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 03.890 ELEMENT KIT; FUEL FILTER
VIN MODEL YEAR 2015(VZF) 		8-98270-184-0 01 1 1507- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) 01.836 		8-94144-613-0 02 1 0211-0501 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) 01.836 		8-94144-613-0 02 1 0502-0504 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) 01.836 		8-94144-613-0 02 1 0505-1506 ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2015(VZF) 01.836 		8-94144-613-0 02 1 1507- ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B) 		8-94246-908-0 01 1 0211-0501 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B) 		8-94246-908-0 01 1 0502-0505 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B) 		8-97916-993-2 01 1 0506- ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV) 		8-97172-549-1 01 1 0211-0501 ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-97172-549-1 01 1 1005- ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94369-299-3 01 1 0211-0501 ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94369-299-3 01 1 0502-0611 ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-98037-480-0 01 1 0612- ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> BEST VALUE PARTS 		5-87610-094-0 01 1 0612- ●
2 03.890 ELEMENT KIT; FUEL FILTER
BEST VALUE PARTS 		5-87610-041-0 01 1 1005- ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV) BEST VALUE PARTS 		5-87610-041-0 01 1 0211-0501 ●
35 03.890 FILTER ASM; SUB FUEL
VIN MODEL YEAR 2015(VZF) (C) 		8-98269-584-0 01 1 1507- ● ●
35 03.890 FILTER ASM; SUB FUEL
FUEL FILTER DUAL(S6B) (A) 		8-97070-864-0 01 1 0211-0212 ●
35 03.890 FILTER ASM; SUB FUEL
FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER "NON BOX TYPE"<N02>,FUEL TANK 75 LITTER "NONBOX TYPE"<7GX> (A) 		8-97070-864-0 01 1 0301-0501 ●
35 03.890 FILTER ASM; SUB FUEL
FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER "NON BOX TYPE"<N02>,FUEL TANK 75 LITTER "NONBOX TYPE"<7GX> (A) 		8-97070-864-0 01 1 0502-1004 ●
35 03.890 FILTER ASM; SUB FUEL
FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER "NON BOX TYPE"<N02>,FUEL TANK 75 LITTER "NONBOX TYPE"<7GX> (A) 		8-97070-864-0 01 1 1005-1506 ● ●
35 03.890 FILTER ASM; SUB FUEL
FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2015(VZF),FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (A) 		8-97070-864-0 01 1 1507- ● ●
35 03.890 FILTER ASM; SUB FUEL
FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER "NON BOX TYPE"<N02>,FUEL TANK 75 LITTER "NONBOX TYPE"<7GX> (B) 		8-97070-865-0 01 1 0301-0501 ●
35 03.890 FILTER ASM; SUB FUEL
FUEL TANK 100 LITTER "NON BOX TYPE" <N02>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> FUEL FILTER DUAL(S6B) (B) 		8-97070-865-0 01 1 0502-0505 ●
35 03.890 FILTER ASM; SUB FUEL
FUEL TANK 100 LITTER "NON BOX TYPE" <N02>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> FUEL FILTER DUAL(S6B) (B) 		8-98006-454-0 01 1 0506-1004 ●
35 03.890 FILTER ASM; SUB FUEL
FUEL TANK 100 LITTER "NON BOX TYPE" <N02>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> FUEL FILTER DUAL(S6B) (B) 		8-98006-454-0 01 1 1005-1506 ● ●
35 03.890 FILTER ASM; SUB FUEL
FUEL FILTER DUAL(S6B) FUEL TANK 100 LITTER "NON BOX TYPE" <N02>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> EXC. VIN MODEL YEAR 2015(VZF) (B) 		8-98006-454-0 01 1 1507- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
