Isuzu WW
▶
TRUCKS
▶
CXH
▶
10722 - CXH RHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-35B - MANUAL TRANSMISSION SHIFT CONTROL LEVER
▶

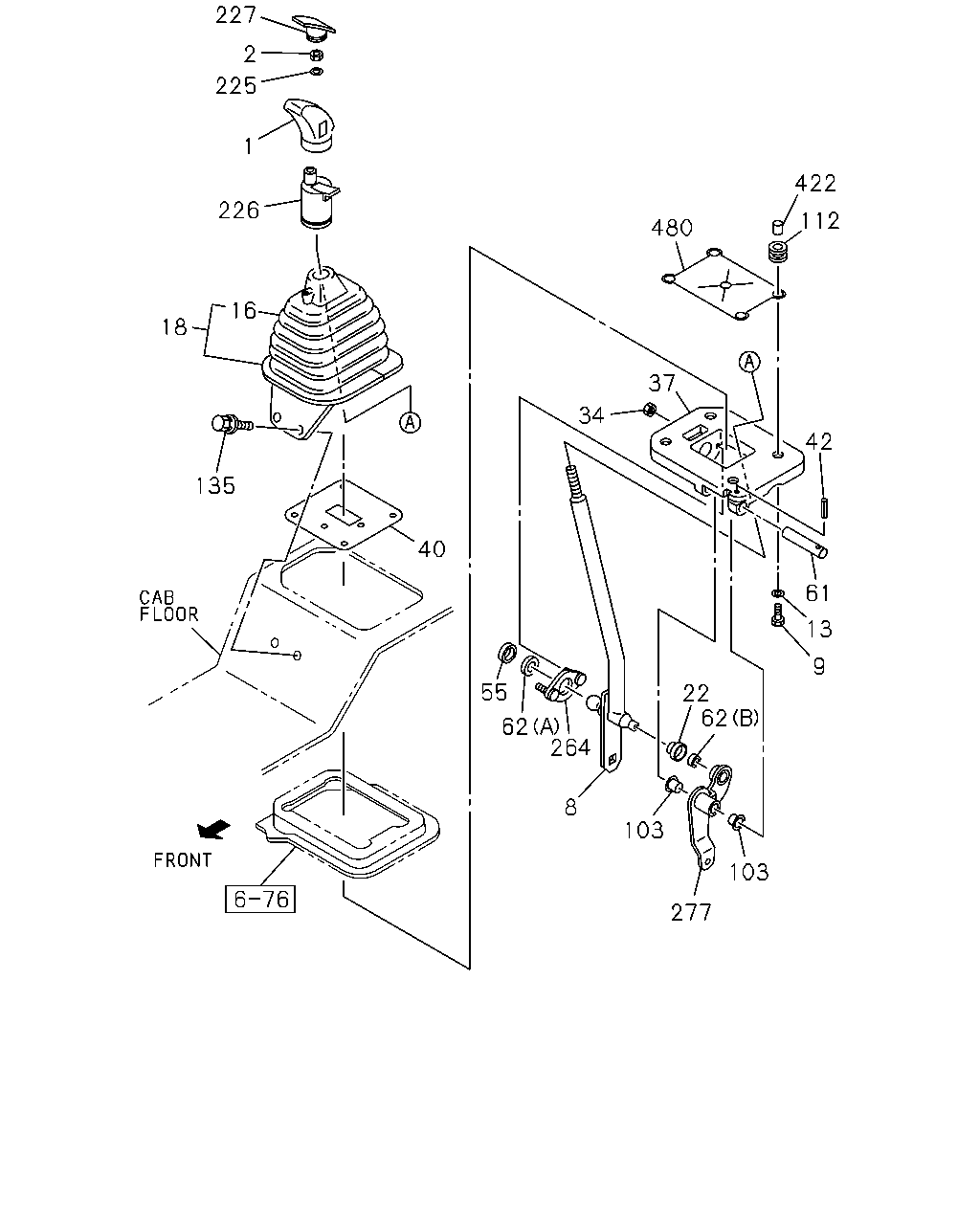

2-35B — MANUAL TRANSMISSION SHIFT CONTROL LEVER
(#5072) — 50 parça
227
2
225
1
422
226
112
480
16
18
37
34
42
135
40
61
13
9
55
22
62
62
264
8
103
103
277
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
KNOB; CHANGE LEVER
1-33611-038-0
01
1
9606-9905
1
KNOB; CHANGE LEVER
1-33611-038-0
01
1
9906-
2
NUT; KNOB
M10 FLANGE
0-91150-110-0
01
1
9606-9608
2
NUT; KNOB
M10 FLANGE
0-91150-210-0
01
1
9609-
8
LEVER; CHANGE
1-33613-345-0
01
1
9606-
9
BOLT; CHANGE LEVER
M8X25 W/LK WASHER
0-50040-825-0
04
1
9606-9807
9
BOLT; CHANGE LEVER
M8X25 FLANGE
0-28680-825-0
04
1
9808-9905
9
BOLT; CHANGE LEVER
M8X25 FLANGE
0-28680-825-0
04
1
9906-
13
WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22
9-09160-708-0
04
1
9606-9905
13
WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22
9-09160-708-0
04
1
9906-
16
BOOT; CHANGE LEVER
1-79996-369-0
01
1
9703-9905
16
BOOT; CHANGE LEVER
1-79996-369-0
01
1
9906-
18
BOOT; CHANGE LEVER
1-79996-300-2
01
1
9606-9702
18
BOOT; CHANGE LEVER
1-79996-366-2
01
1
9703-9905
18
BOOT; CHANGE LEVER
1-79996-401-0
01
1
9906-
22
COVER; DUST,CHANGE LEVER
1-33619-573-0
01
1
9610-9905
22
COVER; DUST,CHANGE LEVER
1-33619-573-0
01
1
9906-
34
NUT
M6 FLANGE
0-91150-106-0
02
1
9606-9905
34
NUT
M6 FLANGE
0-91150-106-0
02
1
9906-
37
BRACKET; CHANGE LEVER SUPPORT
1-33619-467-0
01
1
9606-9905
37
BRACKET; CHANGE LEVER SUPPORT
1-33619-467-0
01
1
9906-
40
SEAL; BOOT HOLDER CHANGE LEVER
1-79996-345-0
01
1
9906-
42
PIN; SPRING,SELECT LEVER PIN
D=5 L=28
8-94252-581-0
01
1
9606-9905
42
PIN; SPRING,SELECT LEVER PIN
D=5 L=28
8-94252-581-0
01
1
9906-
55
SEAT; RUBBER,SELECT SPRING
1-33619-429-0
01
1
9606-9905
55
SEAT; RUBBER,SELECT SPRING
1-33619-429-0
01
1
9906-
61
PIN; SELECT LEVER
1-33619-470-0
01
1
9606-9905
61
PIN; SELECT LEVER
1-33619-470-0
01
1
9906-
62
SEAT; BALL,CHANGE LEVER
(A)
1-33619-427-0
01
1
9606-9905
62
SEAT; BALL,CHANGE LEVER
(A)
1-33619-427-0
01
1
9906-
62
SEAT; BALL,CHANGE LEVER
(B)
8-97011-900-0
01
1
9606-9905
62
SEAT; BALL,CHANGE LEVER
(B)
8-97011-900-0
01
1
9906-
103
BUSHING; RELAY LEVER
ID=14 OD=16
8-94252-671-0
02
1
9606-9905
103
BUSHING; RELAY LEVER
ID=14 OD=16
8-94252-671-0
02
1
9906-
112
RUBBER; CUSHION
8-97091-426-0
04
1
9606-9905
112
RUBBER; CUSHION
8-97091-426-0
04
1
9906-
135
BOLT
M8X24.5 W/LK&PL WASHER
8-94279-208-0
04
1
9606-9905
135
BOLT
M8X24.5 W/LK&PL WASHER
8-94279-208-0
04
1
9906-
225
WASHER; PL,KNOB
ID=10.5 OD=22
9-09160-610-0
01
1
9606-
226
VALVE; SELECTOR
1-33710-006-0
01
1
9606-9905
226
VALVE; SELECTOR
1-33710-006-0
01
1
9906-0004
226
VALVE; SELECTOR
1-33710-008-0
01
1
0005-
227
COVER; KNOB
1-33619-219-0
01
1
9606-
264
PLATE; COVER
1-33619-469-0
01
1
9606-9905
264
PLATE; COVER
1-33619-469-0
01
1
9906-
277
LEVER; RELAY
1-33651-636-0
01
1
9606-9905
277
LEVER; RELAY
1-33651-636-0
01
1
9906-
422
BUSHING; CHANGE LEVER
8-97091-427-0
04
1
9606-9905
422
BUSHING; CHANGE LEVER
8-97091-427-0
04
1
9906-
480
RUBBER; COVER
1-33619-554-0
01
1
9906-
