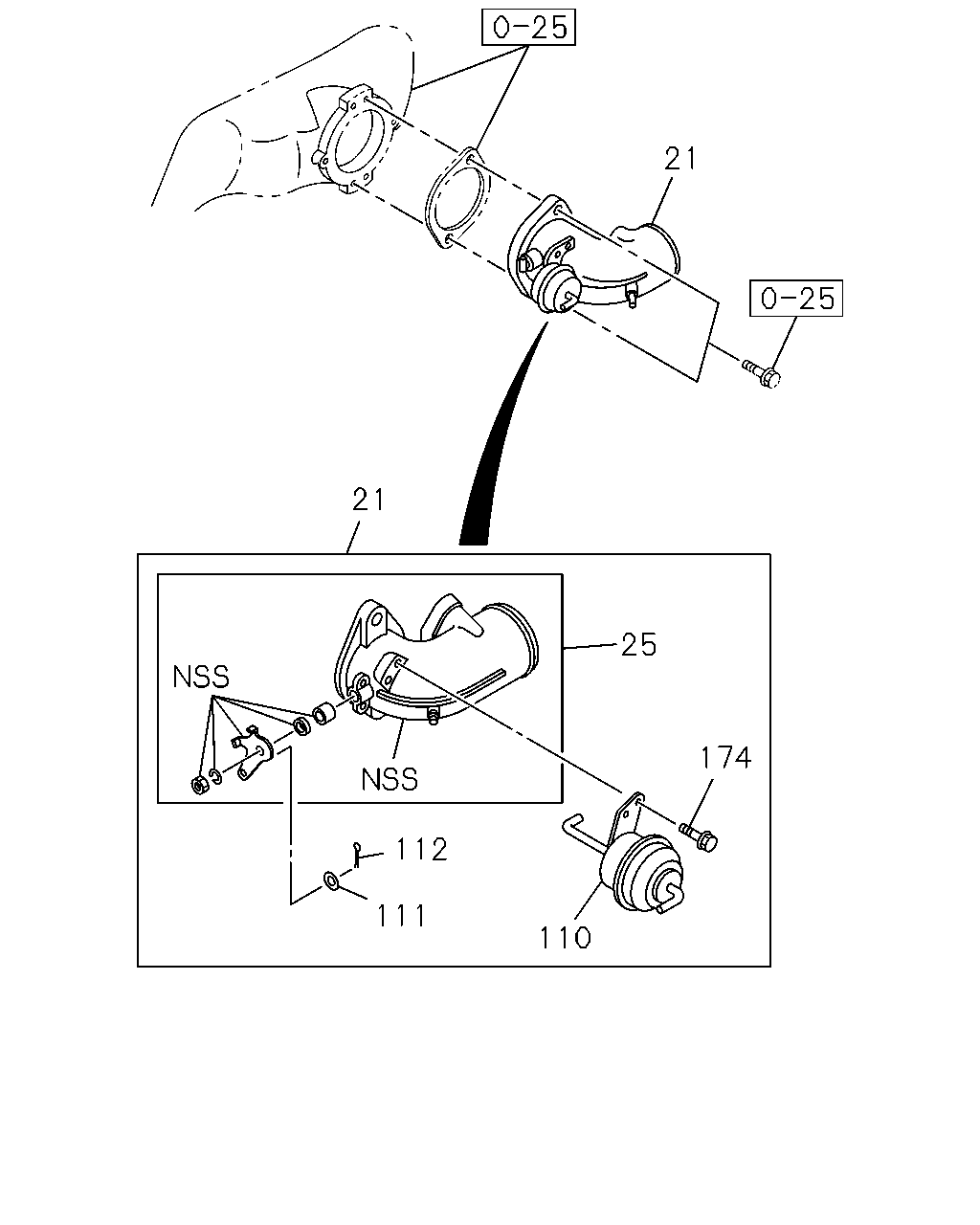

0-35 — ENGINE CONTROL VALVE AND LEVER (#50718) — 104 parça

21 21 25 174 112 111 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
21	03.440 VALVE ASM; THROTTLE AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> 03.265	8-94143-586-1	01	1	0211-0501	●
21	03.440 VALVE ASM; THROTTLE AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 03.265	8-94143-586-1	01	1	0211-0501		●
21	03.440 VALVE ASM; THROTTLE AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> 03.265	8-94143-586-1	01	1	0502-0504		●
21	03.440 VALVE ASM; THROTTLE AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> 03.265	8-94143-586-1	01	1	0505-	●	●
21	03.440 VALVE ASM; THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97042-996-1	01	1	0211-0501	●	●
21	03.440 VALVE ASM; THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97042-996-1	01	1	0502-		●
21	03.440 VALVE ASM; THROTTLE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97309-924-2	01	1	0211-0501		●
21	03.440 VALVE ASM; THROTTLE	8-97309-924-3	01	1	0502-			●
21	03.440 VALVE ASM; THROTTLE TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97309-923-1	01	1	0211-0501		●
21	03.440 VALVE ASM; THROTTLE	8-97309-925-2	01	1	0211-0501				●
21	03.440 VALVE ASM; THROTTLE	8-97309-925-3	01	1	0502-					●
25	03.440 BODY ASM; THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97094-116-0	01	1	0211-0501	●	●
25	03.440 BODY ASM; THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97094-116-0	01	1	0502-		●
25	03.440 BODY ASM; THROTTLE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97317-383-1	01	1	0211-0501		●
25	03.440 BODY ASM; THROTTLE	8-97317-383-2	01	1	0502-			●
25	03.440 BODY ASM; THROTTLE TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97315-046-0	01	1	0211-0501		●
25	03.440 BODY ASM; THROTTLE	8-97317-384-1	01	1	0211-0501				●
25	03.440 BODY ASM; THROTTLE	8-97317-384-2	01	1	0502-					●
110	03.440 CHAMBER ASM; DIAPH AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8>	8-97104-169-0	01	1	0211-0501	●
110	03.440 CHAMBER ASM; DIAPH AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>	8-97104-169-0	01	1	0211-0501		●
110	03.440 CHAMBER ASM; DIAPH AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8>	8-97104-169-0	01	1	0502-0504		●
110	03.440 CHAMBER ASM; DIAPH AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8>	8-97104-169-0	01	1	0505-	●	●
110	03.440 CHAMBER ASM; DIAPH EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97019-267-0	01	1	0211-0501	●	●
110	03.440 CHAMBER ASM; DIAPH EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97019-267-0	01	1	0502-		●
110	03.440 CHAMBER ASM; DIAPH TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97317-385-0	01	1	0211-0501		●
110	03.440 CHAMBER ASM; DIAPH	8-97317-385-0	01	1	0211-0501				●
110	03.440 CHAMBER ASM; DIAPH	8-97317-385-0	01	1	0502-			●		●
110	03.440 CHAMBER ASM; DIAPH TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97315-051-0	01	1	0211-0501		●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8>	8-94467-828-0	01	1	0211-0501	●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>	8-94467-828-0	01	1	0211-0501		●
111	03.440 WASHER; SPLIT PIN TURBOCHARGER<K51>	8-94467-828-0	01	1	0211-0501		●
111	03.440 WASHER; SPLIT PIN	8-94467-828-0	01	1	0211-0501				●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8>	8-94467-828-0	01	1	0502-0504		●
111	03.440 WASHER; SPLIT PIN	8-94467-828-0	01	1	0502-0504			●		●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8>	8-94467-828-0	01	1	0505-	●	●
111	03.440 WASHER; SPLIT PIN	8-94467-828-0	01	1	0505-			●		●
112	03.440 PIN; SPLIT,LEVER EXHAUST BRAKE<NF8>	9-08112-010-0	01	1	0211-0501	●
112	03.440 PIN; SPLIT,LEVER EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>	9-08112-010-0	01	1	0211-0501		●
112	03.440 PIN; SPLIT,LEVER TURBOCHARGER<K51>	9-08112-010-0	01	1	0211-0501		●
112	03.440 PIN; SPLIT,LEVER	9-08112-010-0	01	1	0211-0501				●
112	03.440 PIN; SPLIT,LEVER EXHAUST BRAKE<NF8>	9-08112-010-0	01	1	0502-0504		●
112	03.440 PIN; SPLIT,LEVER	9-08112-010-0	01	1	0502-0504			●		●
112	03.440 PIN; SPLIT,LEVER EXHAUST BRAKE<NF8>	9-08112-010-0	01	1	0505-	●	●
112	03.440 PIN; SPLIT,LEVER	9-08112-010-0	01	1	0505-			●		●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0211-0501	●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0211-0501		●
174	03.440 BOLT; CHAMBER TURBOCHARGER<K51> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0211-0501		●
174	03.440 BOLT; CHAMBER 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0211-0501				●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0502-0504		●
174	03.440 BOLT; CHAMBER 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0502-0504			●		●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0505-	●	●
174	03.440 BOLT; CHAMBER 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0505-			●		●

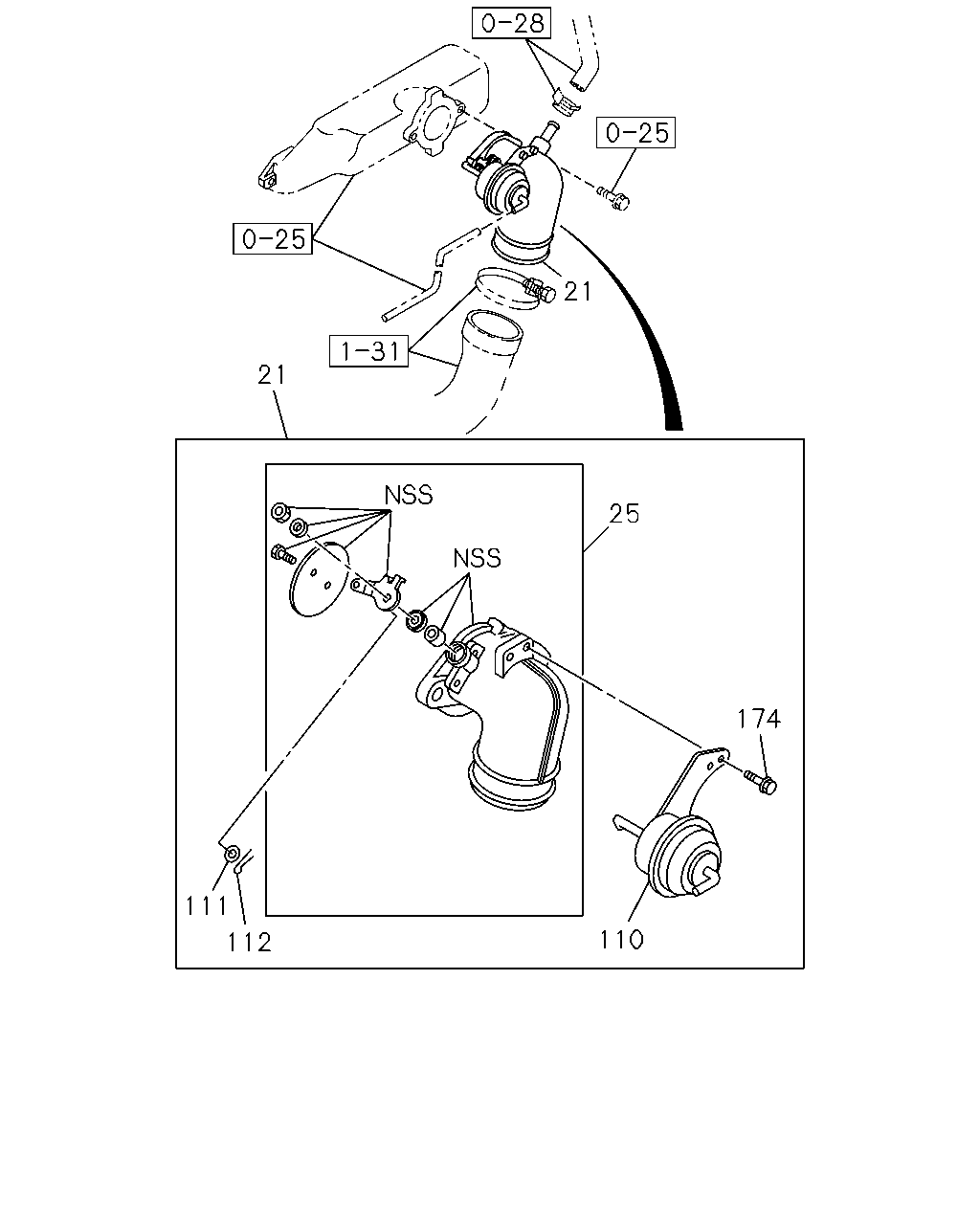

21 21 25 174 111 110 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
21	03.440 VALVE ASM; THROTTLE AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> 03.265	8-94143-586-1	01	1	0211-0501	●
21	03.440 VALVE ASM; THROTTLE AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 03.265	8-94143-586-1	01	1	0211-0501		●
21	03.440 VALVE ASM; THROTTLE AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> 03.265	8-94143-586-1	01	1	0502-0504		●
21	03.440 VALVE ASM; THROTTLE AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> 03.265	8-94143-586-1	01	1	0505-	●	●
21	03.440 VALVE ASM; THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97042-996-1	01	1	0211-0501	●	●
21	03.440 VALVE ASM; THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97042-996-1	01	1	0502-		●
21	03.440 VALVE ASM; THROTTLE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97309-924-2	01	1	0211-0501		●
21	03.440 VALVE ASM; THROTTLE	8-97309-924-3	01	1	0502-			●
21	03.440 VALVE ASM; THROTTLE TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97309-923-1	01	1	0211-0501		●
21	03.440 VALVE ASM; THROTTLE	8-97309-925-2	01	1	0211-0501				●
21	03.440 VALVE ASM; THROTTLE	8-97309-925-3	01	1	0502-					●
25	03.440 BODY ASM; THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97094-116-0	01	1	0211-0501	●	●
25	03.440 BODY ASM; THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97094-116-0	01	1	0502-		●
25	03.440 BODY ASM; THROTTLE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97317-383-1	01	1	0211-0501		●
25	03.440 BODY ASM; THROTTLE	8-97317-383-2	01	1	0502-			●
25	03.440 BODY ASM; THROTTLE TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97315-046-0	01	1	0211-0501		●
25	03.440 BODY ASM; THROTTLE	8-97317-384-1	01	1	0211-0501				●
25	03.440 BODY ASM; THROTTLE	8-97317-384-2	01	1	0502-					●
110	03.440 CHAMBER ASM; DIAPH AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8>	8-97104-169-0	01	1	0211-0501	●
110	03.440 CHAMBER ASM; DIAPH AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>	8-97104-169-0	01	1	0211-0501		●
110	03.440 CHAMBER ASM; DIAPH AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8>	8-97104-169-0	01	1	0502-0504		●
110	03.440 CHAMBER ASM; DIAPH AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8>	8-97104-169-0	01	1	0505-	●	●
110	03.440 CHAMBER ASM; DIAPH EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97019-267-0	01	1	0211-0501	●	●
110	03.440 CHAMBER ASM; DIAPH EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97019-267-0	01	1	0502-		●
110	03.440 CHAMBER ASM; DIAPH TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97317-385-0	01	1	0211-0501		●
110	03.440 CHAMBER ASM; DIAPH	8-97317-385-0	01	1	0211-0501				●
110	03.440 CHAMBER ASM; DIAPH	8-97317-385-0	01	1	0502-			●		●
110	03.440 CHAMBER ASM; DIAPH TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97315-051-0	01	1	0211-0501		●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8>	8-94467-828-0	01	1	0211-0501	●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>	8-94467-828-0	01	1	0211-0501		●
111	03.440 WASHER; SPLIT PIN TURBOCHARGER<K51>	8-94467-828-0	01	1	0211-0501		●
111	03.440 WASHER; SPLIT PIN	8-94467-828-0	01	1	0211-0501				●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8>	8-94467-828-0	01	1	0502-0504		●
111	03.440 WASHER; SPLIT PIN	8-94467-828-0	01	1	0502-0504			●		●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8>	8-94467-828-0	01	1	0505-	●	●
111	03.440 WASHER; SPLIT PIN	8-94467-828-0	01	1	0505-			●		●
112	03.440 PIN; SPLIT,LEVER EXHAUST BRAKE<NF8>	9-08112-010-0	01	1	0211-0501	●
112	03.440 PIN; SPLIT,LEVER EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>	9-08112-010-0	01	1	0211-0501		●
112	03.440 PIN; SPLIT,LEVER TURBOCHARGER<K51>	9-08112-010-0	01	1	0211-0501		●
112	03.440 PIN; SPLIT,LEVER	9-08112-010-0	01	1	0211-0501				●
112	03.440 PIN; SPLIT,LEVER EXHAUST BRAKE<NF8>	9-08112-010-0	01	1	0502-0504		●
112	03.440 PIN; SPLIT,LEVER	9-08112-010-0	01	1	0502-0504			●		●
112	03.440 PIN; SPLIT,LEVER EXHAUST BRAKE<NF8>	9-08112-010-0	01	1	0505-	●	●
112	03.440 PIN; SPLIT,LEVER	9-08112-010-0	01	1	0505-			●		●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0211-0501	●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0211-0501		●
174	03.440 BOLT; CHAMBER TURBOCHARGER<K51> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0211-0501		●
174	03.440 BOLT; CHAMBER 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0211-0501				●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0502-0504		●
174	03.440 BOLT; CHAMBER 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0502-0504			●		●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0505-	●	●
174	03.440 BOLT; CHAMBER 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0505-			●		●
