Sayfa 0-32 - Isuzu EPC

0-32 — WATER PIPING; ENGINE (#50716) — 254 parça

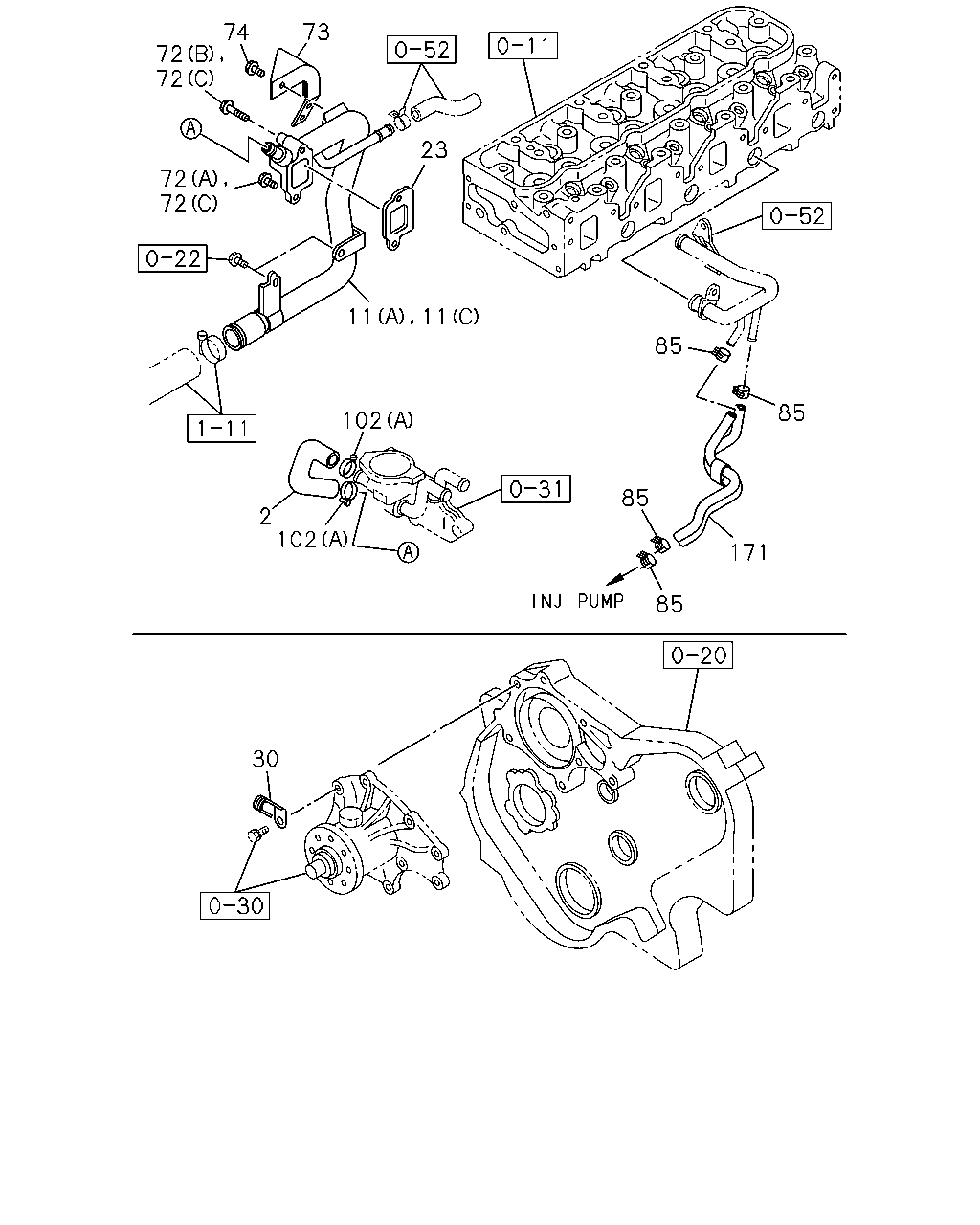

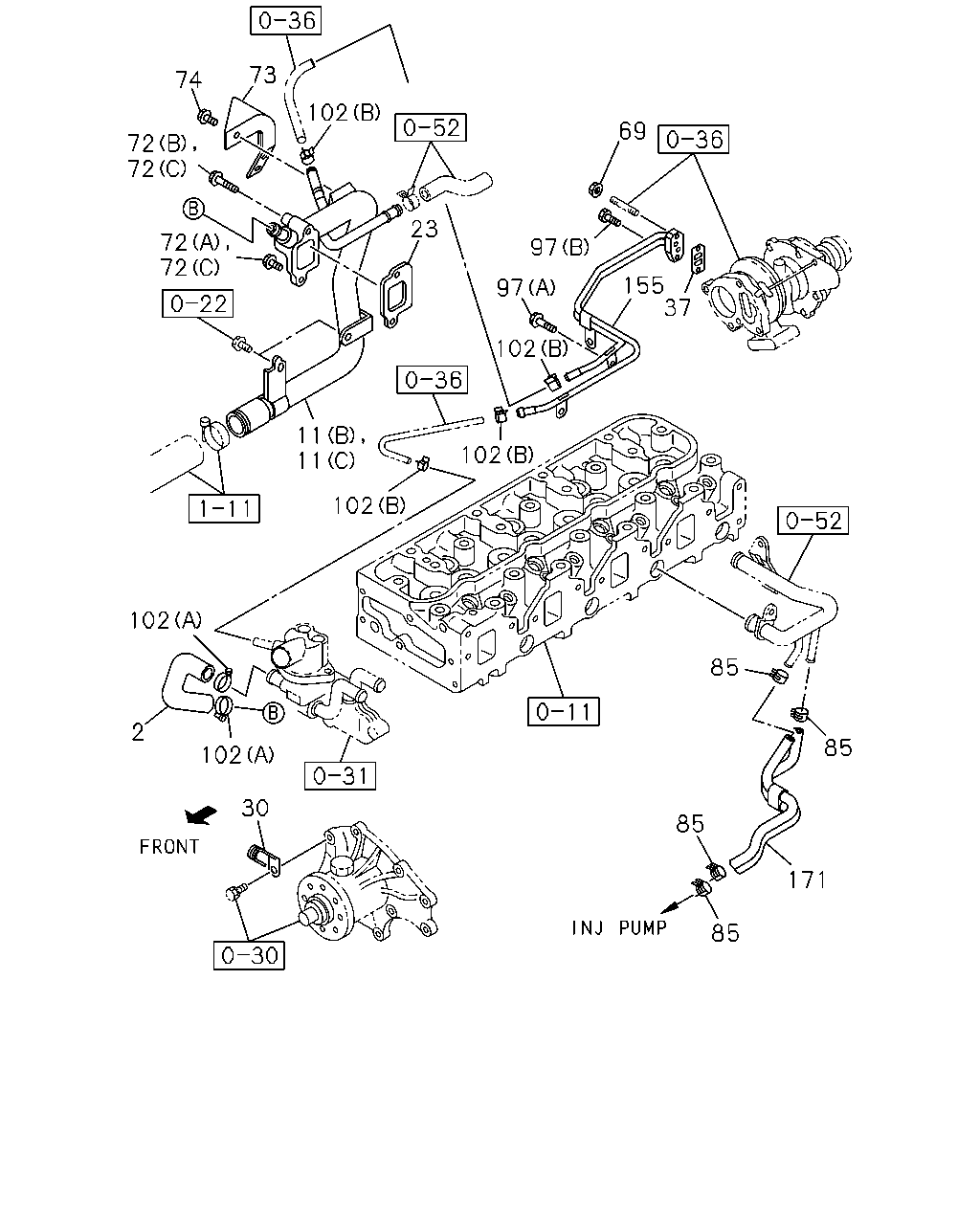

73 74 102 69 72 72 23 72 72 97 155 37 97 102 11 11 102 102 102 85 2 85 102 30 85 171 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
2	01.097 HOSE; WATER,BY-PASS	8-97037-464-0	01	1	0211-0501	●	●	●
2	01.097 HOSE; WATER,BY-PASS	8-97037-464-0	01	1	0502-0504			●	●	●
2	01.097 HOSE; WATER,BY-PASS	8-97037-464-0	01	1	0505-	●		●	●	●
2	01.097 HOSE; WATER,BY-PASS	8-97209-948-0	01	1	0211-0501						●
2	01.097 HOSE; WATER,BY-PASS	8-97209-948-0	01	1	0502-1004							●
2	01.097 HOSE; WATER,BY-PASS	8-97209-948-0	01	1	1005-							●	●
11	01.097 PIPE; INL,WATER PUMP OIL COOLER<KC4> (C)	8-97264-243-0	01	1	1012-			●
11	01.097 PIPE; INL,WATER PUMP (A)	8-97063-639-3	01	1	0211-0501	●
11	01.097 PIPE; INL,WATER PUMP TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> (A)	8-97063-639-3	01	1	0211-0501			●
11	01.097 PIPE; INL,WATER PUMP OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (A)	8-97063-639-3	01	1	0211-0501			●
11	01.097 PIPE; INL,WATER PUMP OIL COOLER<KC4> (A)	8-97063-639-3	01	1	0502-0504			●
11	01.097 PIPE; INL,WATER PUMP (A)	8-97063-639-3	01	1	0505-1011	●
11	01.097 PIPE; INL,WATER PUMP OIL COOLER<KC4> (A)	8-97063-639-3	01	1	0505-1011			●
11	01.097 PIPE; INL,WATER PUMP (A)	8-97063-639-4	01	1	1012-	●
11	01.097 PIPE; INL,WATER PUMP EXC. OIL COOLER<KC4>, TURBOCHARGER<K51> (A)	8-97070-871-2	01	1	0211-0501			●
11	01.097 PIPE; INL,WATER PUMP EXC. OIL COOLER<KC4> (A)	8-97070-871-3	01	1	0502-			●
11	01.097 PIPE; INL,WATER PUMP TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B)	8-97213-400-1	01	1	0211-0501			●
11	01.097 PIPE; INL,WATER PUMP (B)	8-97213-400-2	01	1	0502-					●
11	01.097 PIPE; INL,WATER PUMP (C)	8-97239-994-3	01	1	0211-0501		●
11	01.097 PIPE; INL,WATER PUMP (C)	8-97239-994-4	01	1	0502-				●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94365-676-3	01	1	0211-0501	●	●	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94365-676-3	01	1	0502-0504			●	●	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94365-676-3	01	1	0505-	●		●	●	●
30	01.150 CLIP; HARNESS 02.559 ID=12	5-09700-331-0	01	1	0211-0302	●		●
30	01.150 CLIP; HARNESS ID=12	8-97367-983-0	01	1	0303-0501	●		●
30	01.150 CLIP; HARNESS ID=12	8-97367-983-0	01	1	0502-0504			●		●
30	01.150 CLIP; HARNESS ID=12	8-97367-983-1	01	1	0505-	●		●		●
37	01.242 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.374	8-94321-135-1	01	1	0211-0501			●
37	01.242 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . 03.374	8-94321-135-1	01	1	0502-					●
37	01.242 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 ID=12.2	9-09571-412-0	04	1	0211-0501		●
37	01.242 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 ID=12.2	9-09571-412-0	04	1	0502-				●
69	01.153 NUT; WATER PIPE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0501			●
69	01.153 NUT; WATER PIPE 04.594 M6 FLANGE	0-91150-106-0	01	1	0502-0602					●
69	01.153 NUT; WATER PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-					●
72	00.206 BOLT; WATER PIPE OIL COOLER<KC4> (C) M8X50 W/LK WASHER	0-50540-850-0	02	1	1012-			●
72	00.206 BOLT; WATER PIPE 00.727 (A) M8X22 W/LK WASHER	0-50040-822-0	01	1	0211-0212	●
72	00.206 BOLT; WATER PIPE TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 00.727 (A) M8X22 W/LK WASHER	0-50040-822-0	01	1	0211-0212			●
72	00.206 BOLT; WATER PIPE EXC. TURBOCHARGER<K51> 00.727 (A) M8X22 W/LK WASHER	0-50040-822-0	01	1	0211-0212			●
72	00.206 BOLT; WATER PIPE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0211-0501	●	●	●
72	00.206 BOLT; WATER PIPE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0502-0504			●	●	●
72	00.206 BOLT; WATER PIPE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0505-0909	●		●	●	●
72	00.206 BOLT; WATER PIPE 03.704 (B) M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-1011	●		●	●	●
72	00.206 BOLT; WATER PIPE 03.704 (B) M8X45 W/LK WASHER	0-50540-845-0	01	1	1012-	●			●	●
72	00.206 BOLT; WATER PIPE EXC. OIL COOLER<KC4> 03.704 (B) M8X45 W/LK WASHER	0-50540-845-0	01	1	1012-			●
72	00.206 BOLT; WATER PIPE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 07.010 (A) M8X20 FLANGE	0-28080-820-0	01	1	0211-0212			●
72	00.206 BOLT; WATER PIPE 07.010 (A) M8X20 FLANGE	0-28080-820-0	01	1	0211-0212		●
72	00.206 BOLT; WATER PIPE 07.010 (A) M8X20 FLANGE	0-28080-820-0	01	1	0301-0501	●	●	●
72	00.206 BOLT; WATER PIPE 07.010 (A) M8X20 FLANGE	0-28080-820-0	01	1	0502-0504			●	●	●
72	00.206 BOLT; WATER PIPE 07.010 (A) M8X20 FLANGE	0-28080-820-0	01	1	0505-0512	●		●	●	●
72	00.206 BOLT; WATER PIPE 04.338 (A) M8X20 FLANGE	0-28050-820-0	01	1	0601-1011	●		●	●	●
72	00.206 BOLT; WATER PIPE 04.338 (A) M8X20 FLANGE	0-28050-820-0	01	1	1012-	●			●	●
72	00.206 BOLT; WATER PIPE EXC. OIL COOLER<KC4> 04.338 (A) M8X20 FLANGE	0-28050-820-0	01	1	1012-			●
73	01.097 PROTECTOR; HEAT,WATER PIPE	8-97043-743-1	01	1	0211-0501	●	●	●
73	01.097 PROTECTOR; HEAT,WATER PIPE	8-97043-743-1	01	1	0502-0504			●	●	●
73	01.097 PROTECTOR; HEAT,WATER PIPE	8-97043-743-1	01	1	0505-1403	●		●	●	●
73	01.097 PROTECTOR; HEAT,WATER PIPE	8-97520-577-0	01	1	1404-	●		●	●	●
74	01.097 BOLT; HEAT PROTECTOR FIX 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	03	1	0211-0501	●	●	●
74	01.097 BOLT; HEAT PROTECTOR FIX 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	03	1	0502-0504			●	●	●
74	01.097 BOLT; HEAT PROTECTOR FIX 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	03	1	0505-0512	●		●	●	●
74	01.097 BOLT; HEAT PROTECTOR FIX M8X16 W/LK&PL WASHER	0-50640-816-0	03	1	0601-	●		●	●	●
85	01.240 CLIP; RUBBER,WAX CSD 01.153 ID=12.8	8-94367-943-0	04	1	0211-0501	●
85	01.240 CLIP; RUBBER,WAX CSD TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.153 ID=12.8	8-94367-943-0	04	1	0211-0501			●
85	01.240 CLIP; RUBBER,WAX CSD 01.153 ID=12.8	8-94367-943-0	04	1	0502-0504					●
85	01.240 CLIP; RUBBER,WAX CSD 01.153 ID=12.8	8-94367-943-0	04	1	0505-	●				●
97	04.866 BOLT; WATER PIPE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	0211-0501			●
97	04.866 BOLT; WATER PIPE 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	0502-0512					●
97	04.866 BOLT; WATER PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0601-					●
97	04.866 BOLT; WATER PIPE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.930 (B) M6X20 FLANGE	0-28680-620-0	01	1	0211-0501			●
97	04.866 BOLT; WATER PIPE 04.930 (B) M6X20 FLANGE	0-28680-620-0	01	1	0502-0512					●
97	04.866 BOLT; WATER PIPE 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0601-1010					●
97	04.866 BOLT; WATER PIPE 09.242 (B) M6X16 FLANGE	0-28050-616-0	01	1	1011-					●
97	04.866 BOLT; WATER PIPE 08.900 (C) M8X12 FLANGE	0-28080-812-0	01	1	0211-0501		●
97	04.866 BOLT; WATER PIPE 08.900 (C) M8X12 FLANGE	0-28080-812-0	01	1	0502-0512				●
97	04.866 BOLT; WATER PIPE 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	0601-				●
102	01.252 CLIP; WATER HOSE 01.166 (A) ID=20.8	8-94125-862-1	02	1	0211-0501	●	●	●
102	01.252 CLIP; WATER HOSE 01.166 (A) ID=20.8	8-94125-862-1	02	1	0502-0504			●	●	●
102	01.252 CLIP; WATER HOSE 01.166 (A) ID=20.8	8-94125-862-1	02	1	0505-	●		●	●	●
102	01.252 CLIP; WATER HOSE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.153 (B) ID=12.8	8-94367-943-0	04	1	0211-0501			●
102	01.252 CLIP; WATER HOSE 01.153 (B) ID=12.8	8-94367-943-0	04	1	0211-0501		●
102	01.252 CLIP; WATER HOSE 01.153 (B) ID=12.8	8-94367-943-0	04	1	0502-				●	●
155	01.153 PIPE ASM; WATER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97207-954-0	01	1	0211-0501			●
155	01.153 PIPE ASM; WATER	8-97207-954-0	01	1	0502-1010					●
155	01.153 PIPE ASM; WATER	8-98169-766-0	01	1	1011-					●
155	01.153 PIPE ASM; WATER	8-97239-995-0	01	1	0211-0501		●
155	01.153 PIPE ASM; WATER	8-97239-995-0	01	1	0502-				●
171	01.240 HOSE; RUBBER,WAX CSD	8-97189-478-1	01	1	0505-	●
171	01.240 HOSE; RUBBER,WAX CSD	8-97189-478-1	01	1	0211-0501	●
171	01.240 HOSE; RUBBER,WAX CSD TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97225-605-0	01	1	0211-0501			●
171	01.240 HOSE; RUBBER,WAX CSD	8-97225-605-0	01	1	0502-					●

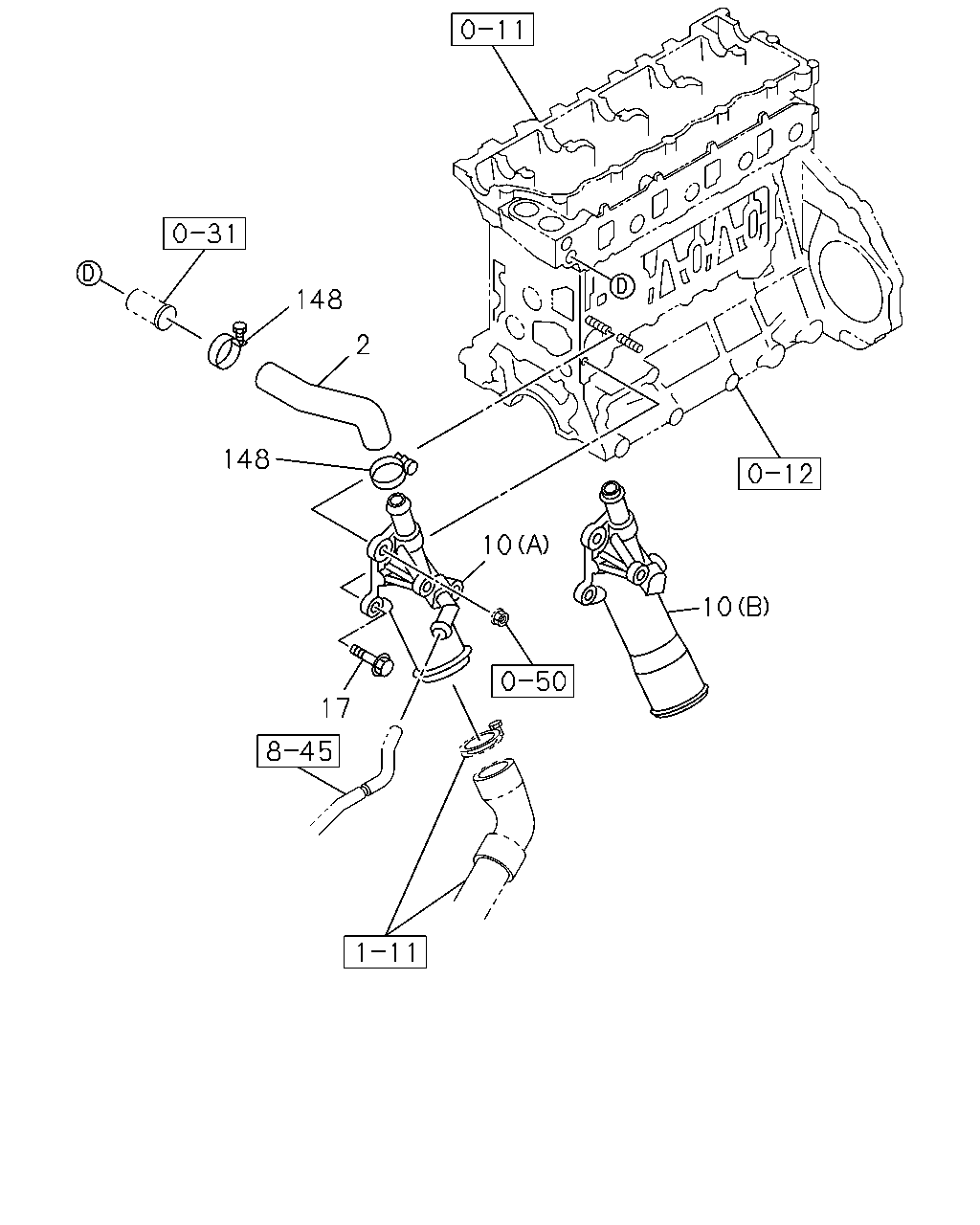

148 2 148 10 10 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
2	01.097 HOSE; WATER,BY-PASS	8-97037-464-0	01	1	0211-0501	●	●	●
2	01.097 HOSE; WATER,BY-PASS	8-97037-464-0	01	1	0502-0504			●	●	●
2	01.097 HOSE; WATER,BY-PASS	8-97037-464-0	01	1	0505-	●		●	●	●
2	01.097 HOSE; WATER,BY-PASS	8-97209-948-0	01	1	0211-0501						●
2	01.097 HOSE; WATER,BY-PASS	8-97209-948-0	01	1	0502-1004							●
2	01.097 HOSE; WATER,BY-PASS	8-97209-948-0	01	1	1005-							●	●
10	01.153 PIPE; SUCTION EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98212-009-0	01	1	1203-							●	●
10	01.153 PIPE; SUCTION (A)	8-97216-157-1	01	1	0211-0501						●
10	01.153 PIPE; SUCTION (A)	8-97216-157-1	01	1	0502-1004							●
10	01.153 PIPE; SUCTION (A)	8-97216-157-1	01	1	1005-1010							●	●
10	01.153 PIPE; SUCTION (A)	8-98166-992-0	01	1	1011-1202							●	●
10	01.153 PIPE; SUCTION HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98166-992-0	01	1	1203-							●	●
17	01.153 BOLT; SUCTION PIPE 03.415 M8X48 FLANGE	8-94458-473-1	01	1	0211-0501						●
17	01.153 BOLT; SUCTION PIPE 03.415 M8X48 FLANGE	8-94458-473-1	01	1	0502-1004							●
17	01.153 BOLT; SUCTION PIPE 03.415 M8X48 FLANGE	8-94458-473-1	01	1	1005-							●	●
148	01.097 CLIP; BYPASS HOSE 03.417 ID=30	9-09915-315-1	02	1	0211-0501						●
148	01.097 CLIP; BYPASS HOSE 03.417 ID=30	9-09915-315-1	02	1	0502-1004							●
148	01.097 CLIP; BYPASS HOSE 03.417 ID=30	9-09915-315-1	02	1	1005-							●	●

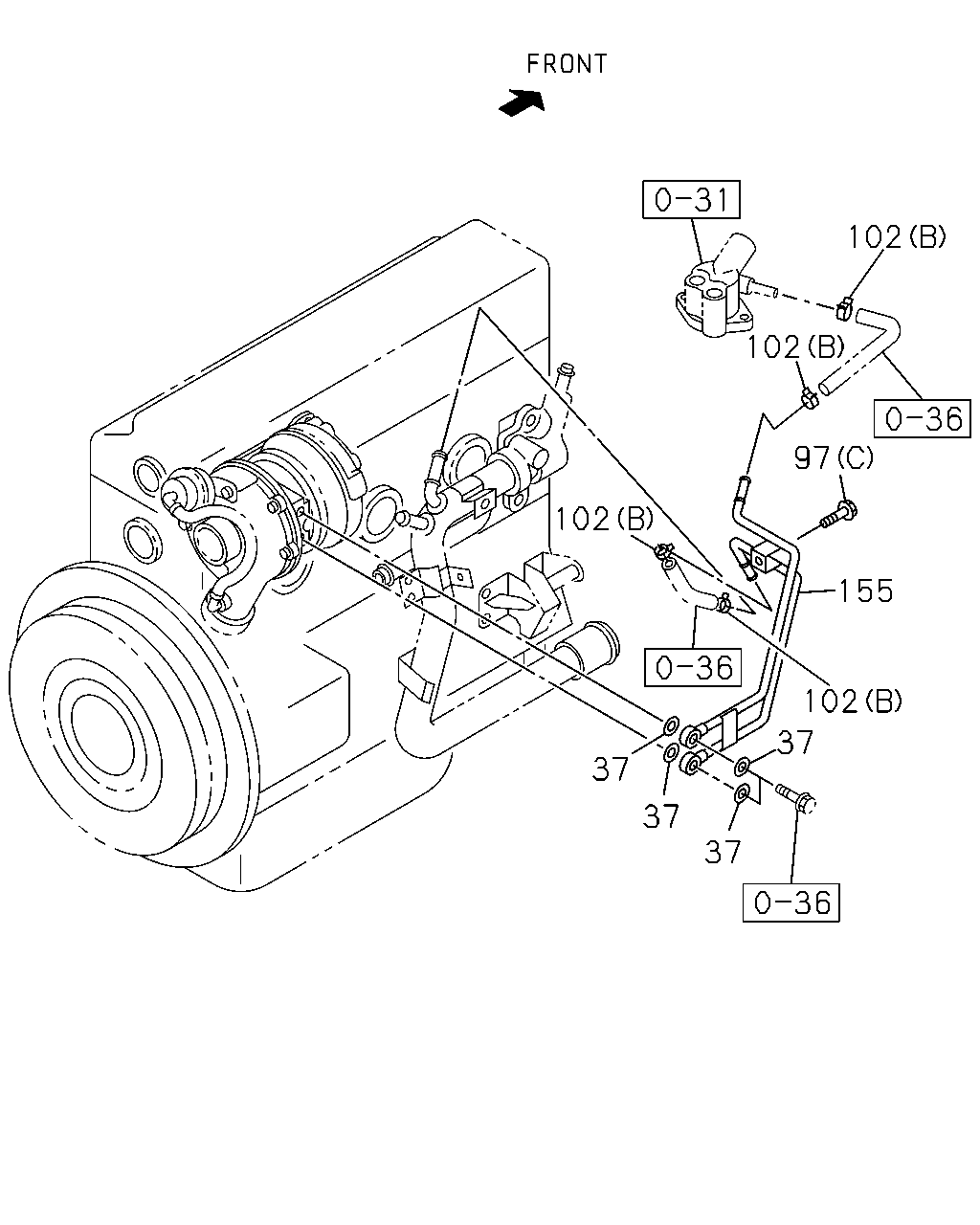

102 102 97 102 155 102 37 37 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
37	01.242 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.374	8-94321-135-1	01	1	0211-0501			●
37	01.242 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . 03.374	8-94321-135-1	01	1	0502-					●
37	01.242 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 ID=12.2	9-09571-412-0	04	1	0211-0501		●
37	01.242 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 ID=12.2	9-09571-412-0	04	1	0502-				●
97	04.866 BOLT; WATER PIPE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	0211-0501			●
97	04.866 BOLT; WATER PIPE 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	0502-0512					●
97	04.866 BOLT; WATER PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0601-					●
97	04.866 BOLT; WATER PIPE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.930 (B) M6X20 FLANGE	0-28680-620-0	01	1	0211-0501			●
97	04.866 BOLT; WATER PIPE 04.930 (B) M6X20 FLANGE	0-28680-620-0	01	1	0502-0512					●
97	04.866 BOLT; WATER PIPE 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0601-1010					●
97	04.866 BOLT; WATER PIPE 09.242 (B) M6X16 FLANGE	0-28050-616-0	01	1	1011-					●
97	04.866 BOLT; WATER PIPE 08.900 (C) M8X12 FLANGE	0-28080-812-0	01	1	0211-0501		●
97	04.866 BOLT; WATER PIPE 08.900 (C) M8X12 FLANGE	0-28080-812-0	01	1	0502-0512				●
97	04.866 BOLT; WATER PIPE 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	0601-				●
102	01.252 CLIP; WATER HOSE 01.166 (A) ID=20.8	8-94125-862-1	02	1	0211-0501	●	●	●
102	01.252 CLIP; WATER HOSE 01.166 (A) ID=20.8	8-94125-862-1	02	1	0502-0504			●	●	●
102	01.252 CLIP; WATER HOSE 01.166 (A) ID=20.8	8-94125-862-1	02	1	0505-	●		●	●	●
102	01.252 CLIP; WATER HOSE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.153 (B) ID=12.8	8-94367-943-0	04	1	0211-0501			●
102	01.252 CLIP; WATER HOSE 01.153 (B) ID=12.8	8-94367-943-0	04	1	0211-0501		●
102	01.252 CLIP; WATER HOSE 01.153 (B) ID=12.8	8-94367-943-0	04	1	0502-				●	●
155	01.153 PIPE ASM; WATER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97207-954-0	01	1	0211-0501			●
155	01.153 PIPE ASM; WATER	8-97207-954-0	01	1	0502-1010					●
155	01.153 PIPE ASM; WATER	8-98169-766-0	01	1	1011-					●
155	01.153 PIPE ASM; WATER	8-97239-995-0	01	1	0211-0501		●
155	01.153 PIPE ASM; WATER	8-97239-995-0	01	1	0502-				●

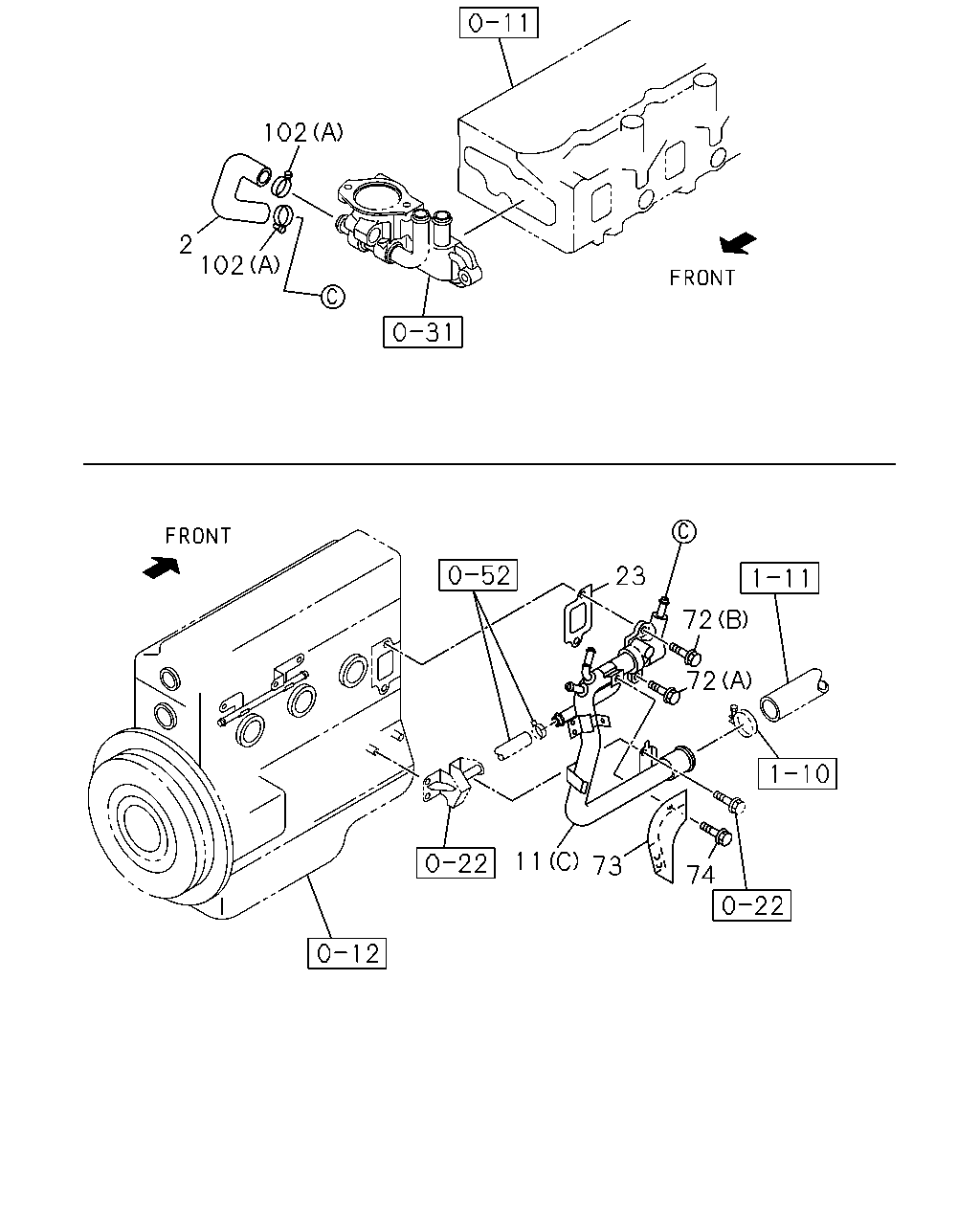

102 2 102 23 72 72 11 73 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
2	01.097 HOSE; WATER,BY-PASS	8-97037-464-0	01	1	0211-0501	●	●	●
2	01.097 HOSE; WATER,BY-PASS	8-97037-464-0	01	1	0502-0504			●	●	●
2	01.097 HOSE; WATER,BY-PASS	8-97037-464-0	01	1	0505-	●		●	●	●
2	01.097 HOSE; WATER,BY-PASS	8-97209-948-0	01	1	0211-0501						●
2	01.097 HOSE; WATER,BY-PASS	8-97209-948-0	01	1	0502-1004							●
2	01.097 HOSE; WATER,BY-PASS	8-97209-948-0	01	1	1005-							●	●
11	01.097 PIPE; INL,WATER PUMP OIL COOLER<KC4> (C)	8-97264-243-0	01	1	1012-			●
11	01.097 PIPE; INL,WATER PUMP (A)	8-97063-639-3	01	1	0211-0501	●
11	01.097 PIPE; INL,WATER PUMP TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> (A)	8-97063-639-3	01	1	0211-0501			●
11	01.097 PIPE; INL,WATER PUMP OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (A)	8-97063-639-3	01	1	0211-0501			●
11	01.097 PIPE; INL,WATER PUMP OIL COOLER<KC4> (A)	8-97063-639-3	01	1	0502-0504			●
11	01.097 PIPE; INL,WATER PUMP (A)	8-97063-639-3	01	1	0505-1011	●
11	01.097 PIPE; INL,WATER PUMP OIL COOLER<KC4> (A)	8-97063-639-3	01	1	0505-1011			●
11	01.097 PIPE; INL,WATER PUMP (A)	8-97063-639-4	01	1	1012-	●
11	01.097 PIPE; INL,WATER PUMP EXC. OIL COOLER<KC4>, TURBOCHARGER<K51> (A)	8-97070-871-2	01	1	0211-0501			●
11	01.097 PIPE; INL,WATER PUMP EXC. OIL COOLER<KC4> (A)	8-97070-871-3	01	1	0502-			●
11	01.097 PIPE; INL,WATER PUMP TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B)	8-97213-400-1	01	1	0211-0501			●
11	01.097 PIPE; INL,WATER PUMP (B)	8-97213-400-2	01	1	0502-					●
11	01.097 PIPE; INL,WATER PUMP (C)	8-97239-994-3	01	1	0211-0501		●
11	01.097 PIPE; INL,WATER PUMP (C)	8-97239-994-4	01	1	0502-				●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94365-676-3	01	1	0211-0501	●	●	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94365-676-3	01	1	0502-0504			●	●	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94365-676-3	01	1	0505-	●		●	●	●
72	00.206 BOLT; WATER PIPE OIL COOLER<KC4> (C) M8X50 W/LK WASHER	0-50540-850-0	02	1	1012-			●
72	00.206 BOLT; WATER PIPE 00.727 (A) M8X22 W/LK WASHER	0-50040-822-0	01	1	0211-0212	●
72	00.206 BOLT; WATER PIPE TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 00.727 (A) M8X22 W/LK WASHER	0-50040-822-0	01	1	0211-0212			●
72	00.206 BOLT; WATER PIPE EXC. TURBOCHARGER<K51> 00.727 (A) M8X22 W/LK WASHER	0-50040-822-0	01	1	0211-0212			●
72	00.206 BOLT; WATER PIPE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0211-0501	●	●	●
72	00.206 BOLT; WATER PIPE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0502-0504			●	●	●
72	00.206 BOLT; WATER PIPE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0505-0909	●		●	●	●
72	00.206 BOLT; WATER PIPE 03.704 (B) M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-1011	●		●	●	●
72	00.206 BOLT; WATER PIPE 03.704 (B) M8X45 W/LK WASHER	0-50540-845-0	01	1	1012-	●			●	●
72	00.206 BOLT; WATER PIPE EXC. OIL COOLER<KC4> 03.704 (B) M8X45 W/LK WASHER	0-50540-845-0	01	1	1012-			●
72	00.206 BOLT; WATER PIPE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 07.010 (A) M8X20 FLANGE	0-28080-820-0	01	1	0211-0212			●
72	00.206 BOLT; WATER PIPE 07.010 (A) M8X20 FLANGE	0-28080-820-0	01	1	0211-0212		●
72	00.206 BOLT; WATER PIPE 07.010 (A) M8X20 FLANGE	0-28080-820-0	01	1	0301-0501	●	●	●
72	00.206 BOLT; WATER PIPE 07.010 (A) M8X20 FLANGE	0-28080-820-0	01	1	0502-0504			●	●	●
72	00.206 BOLT; WATER PIPE 07.010 (A) M8X20 FLANGE	0-28080-820-0	01	1	0505-0512	●		●	●	●
72	00.206 BOLT; WATER PIPE 04.338 (A) M8X20 FLANGE	0-28050-820-0	01	1	0601-1011	●		●	●	●
72	00.206 BOLT; WATER PIPE 04.338 (A) M8X20 FLANGE	0-28050-820-0	01	1	1012-	●			●	●
72	00.206 BOLT; WATER PIPE EXC. OIL COOLER<KC4> 04.338 (A) M8X20 FLANGE	0-28050-820-0	01	1	1012-			●
73	01.097 PROTECTOR; HEAT,WATER PIPE	8-97043-743-1	01	1	0211-0501	●	●	●
73	01.097 PROTECTOR; HEAT,WATER PIPE	8-97043-743-1	01	1	0502-0504			●	●	●
73	01.097 PROTECTOR; HEAT,WATER PIPE	8-97043-743-1	01	1	0505-1403	●		●	●	●
73	01.097 PROTECTOR; HEAT,WATER PIPE	8-97520-577-0	01	1	1404-	●		●	●	●
74	01.097 BOLT; HEAT PROTECTOR FIX 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	03	1	0211-0501	●	●	●
74	01.097 BOLT; HEAT PROTECTOR FIX 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	03	1	0502-0504			●	●	●
74	01.097 BOLT; HEAT PROTECTOR FIX 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	03	1	0505-0512	●		●	●	●
74	01.097 BOLT; HEAT PROTECTOR FIX M8X16 W/LK&PL WASHER	0-50640-816-0	03	1	0601-	●		●	●	●
102	01.252 CLIP; WATER HOSE 01.166 (A) ID=20.8	8-94125-862-1	02	1	0211-0501	●	●	●
102	01.252 CLIP; WATER HOSE 01.166 (A) ID=20.8	8-94125-862-1	02	1	0502-0504			●	●	●
102	01.252 CLIP; WATER HOSE 01.166 (A) ID=20.8	8-94125-862-1	02	1	0505-	●		●	●	●
102	01.252 CLIP; WATER HOSE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.153 (B) ID=12.8	8-94367-943-0	04	1	0211-0501			●
102	01.252 CLIP; WATER HOSE 01.153 (B) ID=12.8	8-94367-943-0	04	1	0211-0501		●
102	01.252 CLIP; WATER HOSE 01.153 (B) ID=12.8	8-94367-943-0	04	1	0502-				●	●

73 74 72 72 23 72 72 11 11 85 85 102 85 2 102 171 85 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
2	01.097 HOSE; WATER,BY-PASS	8-97037-464-0	01	1	0211-0501	●	●	●
2	01.097 HOSE; WATER,BY-PASS	8-97037-464-0	01	1	0502-0504			●	●	●
2	01.097 HOSE; WATER,BY-PASS	8-97037-464-0	01	1	0505-	●		●	●	●
2	01.097 HOSE; WATER,BY-PASS	8-97209-948-0	01	1	0211-0501						●
2	01.097 HOSE; WATER,BY-PASS	8-97209-948-0	01	1	0502-1004							●
2	01.097 HOSE; WATER,BY-PASS	8-97209-948-0	01	1	1005-							●	●
11	01.097 PIPE; INL,WATER PUMP OIL COOLER<KC4> (C)	8-97264-243-0	01	1	1012-			●
11	01.097 PIPE; INL,WATER PUMP (A)	8-97063-639-3	01	1	0211-0501	●
11	01.097 PIPE; INL,WATER PUMP TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> (A)	8-97063-639-3	01	1	0211-0501			●
11	01.097 PIPE; INL,WATER PUMP OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (A)	8-97063-639-3	01	1	0211-0501			●
11	01.097 PIPE; INL,WATER PUMP OIL COOLER<KC4> (A)	8-97063-639-3	01	1	0502-0504			●
11	01.097 PIPE; INL,WATER PUMP (A)	8-97063-639-3	01	1	0505-1011	●
11	01.097 PIPE; INL,WATER PUMP OIL COOLER<KC4> (A)	8-97063-639-3	01	1	0505-1011			●
11	01.097 PIPE; INL,WATER PUMP (A)	8-97063-639-4	01	1	1012-	●
11	01.097 PIPE; INL,WATER PUMP EXC. OIL COOLER<KC4>, TURBOCHARGER<K51> (A)	8-97070-871-2	01	1	0211-0501			●
11	01.097 PIPE; INL,WATER PUMP EXC. OIL COOLER<KC4> (A)	8-97070-871-3	01	1	0502-			●
11	01.097 PIPE; INL,WATER PUMP TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B)	8-97213-400-1	01	1	0211-0501			●
11	01.097 PIPE; INL,WATER PUMP (B)	8-97213-400-2	01	1	0502-					●
11	01.097 PIPE; INL,WATER PUMP (C)	8-97239-994-3	01	1	0211-0501		●
11	01.097 PIPE; INL,WATER PUMP (C)	8-97239-994-4	01	1	0502-				●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94365-676-3	01	1	0211-0501	●	●	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94365-676-3	01	1	0502-0504			●	●	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94365-676-3	01	1	0505-	●		●	●	●
30	01.150 CLIP; HARNESS 02.559 ID=12	5-09700-331-0	01	1	0211-0302	●		●
30	01.150 CLIP; HARNESS ID=12	8-97367-983-0	01	1	0303-0501	●		●
30	01.150 CLIP; HARNESS ID=12	8-97367-983-0	01	1	0502-0504			●		●
30	01.150 CLIP; HARNESS ID=12	8-97367-983-1	01	1	0505-	●		●		●
72	00.206 BOLT; WATER PIPE OIL COOLER<KC4> (C) M8X50 W/LK WASHER	0-50540-850-0	02	1	1012-			●
72	00.206 BOLT; WATER PIPE 00.727 (A) M8X22 W/LK WASHER	0-50040-822-0	01	1	0211-0212	●
72	00.206 BOLT; WATER PIPE TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 00.727 (A) M8X22 W/LK WASHER	0-50040-822-0	01	1	0211-0212			●
72	00.206 BOLT; WATER PIPE EXC. TURBOCHARGER<K51> 00.727 (A) M8X22 W/LK WASHER	0-50040-822-0	01	1	0211-0212			●
72	00.206 BOLT; WATER PIPE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0211-0501	●	●	●
72	00.206 BOLT; WATER PIPE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0502-0504			●	●	●
72	00.206 BOLT; WATER PIPE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0505-0909	●		●	●	●
72	00.206 BOLT; WATER PIPE 03.704 (B) M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-1011	●		●	●	●
72	00.206 BOLT; WATER PIPE 03.704 (B) M8X45 W/LK WASHER	0-50540-845-0	01	1	1012-	●			●	●
72	00.206 BOLT; WATER PIPE EXC. OIL COOLER<KC4> 03.704 (B) M8X45 W/LK WASHER	0-50540-845-0	01	1	1012-			●
72	00.206 BOLT; WATER PIPE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 07.010 (A) M8X20 FLANGE	0-28080-820-0	01	1	0211-0212			●
72	00.206 BOLT; WATER PIPE 07.010 (A) M8X20 FLANGE	0-28080-820-0	01	1	0211-0212		●
72	00.206 BOLT; WATER PIPE 07.010 (A) M8X20 FLANGE	0-28080-820-0	01	1	0301-0501	●	●	●
72	00.206 BOLT; WATER PIPE 07.010 (A) M8X20 FLANGE	0-28080-820-0	01	1	0502-0504			●	●	●
72	00.206 BOLT; WATER PIPE 07.010 (A) M8X20 FLANGE	0-28080-820-0	01	1	0505-0512	●		●	●	●
72	00.206 BOLT; WATER PIPE 04.338 (A) M8X20 FLANGE	0-28050-820-0	01	1	0601-1011	●		●	●	●
72	00.206 BOLT; WATER PIPE 04.338 (A) M8X20 FLANGE	0-28050-820-0	01	1	1012-	●			●	●
72	00.206 BOLT; WATER PIPE EXC. OIL COOLER<KC4> 04.338 (A) M8X20 FLANGE	0-28050-820-0	01	1	1012-			●
73	01.097 PROTECTOR; HEAT,WATER PIPE	8-97043-743-1	01	1	0211-0501	●	●	●
73	01.097 PROTECTOR; HEAT,WATER PIPE	8-97043-743-1	01	1	0502-0504			●	●	●
73	01.097 PROTECTOR; HEAT,WATER PIPE	8-97043-743-1	01	1	0505-1403	●		●	●	●
73	01.097 PROTECTOR; HEAT,WATER PIPE	8-97520-577-0	01	1	1404-	●		●	●	●
74	01.097 BOLT; HEAT PROTECTOR FIX 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	03	1	0211-0501	●	●	●
74	01.097 BOLT; HEAT PROTECTOR FIX 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	03	1	0502-0504			●	●	●
74	01.097 BOLT; HEAT PROTECTOR FIX 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	03	1	0505-0512	●		●	●	●
74	01.097 BOLT; HEAT PROTECTOR FIX M8X16 W/LK&PL WASHER	0-50640-816-0	03	1	0601-	●		●	●	●
85	01.240 CLIP; RUBBER,WAX CSD 01.153 ID=12.8	8-94367-943-0	04	1	0211-0501	●
85	01.240 CLIP; RUBBER,WAX CSD TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.153 ID=12.8	8-94367-943-0	04	1	0211-0501			●
85	01.240 CLIP; RUBBER,WAX CSD 01.153 ID=12.8	8-94367-943-0	04	1	0502-0504					●
85	01.240 CLIP; RUBBER,WAX CSD 01.153 ID=12.8	8-94367-943-0	04	1	0505-	●				●
102	01.252 CLIP; WATER HOSE 01.166 (A) ID=20.8	8-94125-862-1	02	1	0211-0501	●	●	●
102	01.252 CLIP; WATER HOSE 01.166 (A) ID=20.8	8-94125-862-1	02	1	0502-0504			●	●	●
102	01.252 CLIP; WATER HOSE 01.166 (A) ID=20.8	8-94125-862-1	02	1	0505-	●		●	●	●
102	01.252 CLIP; WATER HOSE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.153 (B) ID=12.8	8-94367-943-0	04	1	0211-0501			●
102	01.252 CLIP; WATER HOSE 01.153 (B) ID=12.8	8-94367-943-0	04	1	0211-0501		●
102	01.252 CLIP; WATER HOSE 01.153 (B) ID=12.8	8-94367-943-0	04	1	0502-				●	●
171	01.240 HOSE; RUBBER,WAX CSD	8-97189-478-1	01	1	0505-	●
171	01.240 HOSE; RUBBER,WAX CSD	8-97189-478-1	01	1	0211-0501	●
171	01.240 HOSE; RUBBER,WAX CSD TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97225-605-0	01	1	0211-0501			●
171	01.240 HOSE; RUBBER,WAX CSD	8-97225-605-0	01	1	0502-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
