◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50943 - NKR55,66,69,71,77LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-31 - THERMOSTAT AND HOUSING ▶
0-31 — THERMOSTAT AND HOUSING (#50715) — 275 parça

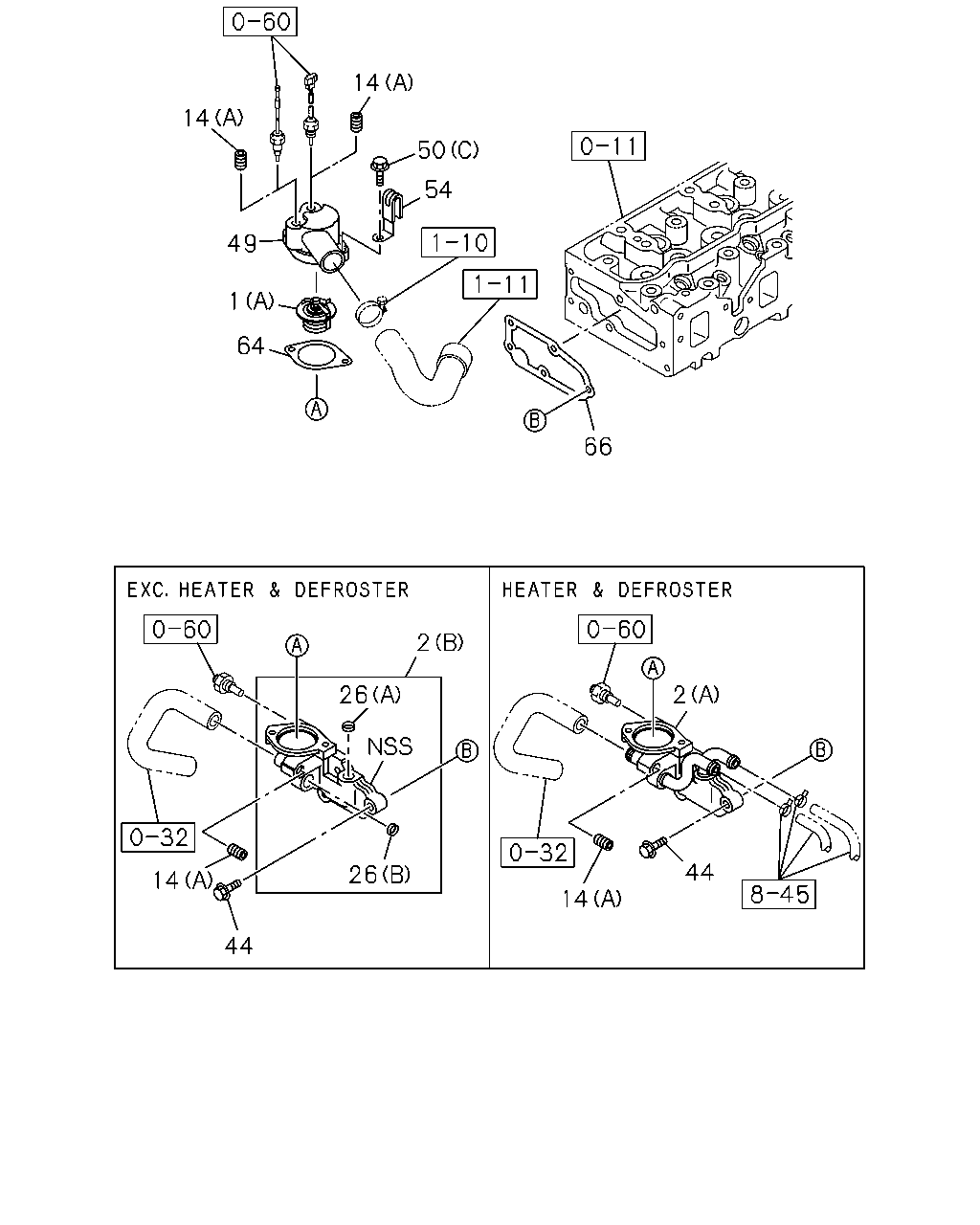

çizim 47085
14 14 50 54 49 1 64 66 2 2 26 44 26 14 14 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (A) 82 CELSIUS 		8-97089-891-0 01 1 0211-0301 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) EXC. TURBOCHARGER<K51> (A) 82 CELSIUS 		8-97089-891-0 01 1 0211-0301 ●
1 01.246 THERMOSTAT
TURBOCHARGER<K51> HEATER & DEFROSTER(C41) EXC. CHARGE AIR COOLER<6PL> (A) 82 CELSIUS 		8-97089-891-0 01 1 0211-0301 ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97089-891-0 01 1 0211-0301 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (A) 82 CELSIUS 		8-97361-770-0 01 1 0302-0501 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) EXC. TURBOCHARGER<K51> (A) 82 CELSIUS 		8-97361-770-0 01 1 0302-0501 ●
1 01.246 THERMOSTAT
TURBOCHARGER<K51> HEATER & DEFROSTER(C41) EXC. CHARGE AIR COOLER<6PL> (A) 82 CELSIUS 		8-97361-770-0 01 1 0302-0501 ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97361-770-0 01 1 0302-0501 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (A) 82 CELSIUS 		8-97361-770-0 01 1 0502-0504 ● ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (A) 82 CELSIUS 		8-97361-770-0 01 1 0505- ● ● ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (A) 82 CELSIUS 		8-94482-277-2 01 1 0211-0501 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41), TURBOCHARGER<K51> (A) 82 CELSIUS 		8-94482-277-2 01 1 0211-0501 ●
1 01.246 THERMOSTAT
TURBOCHARGER<K51> EXC. HEATER & DEFROSTER(C41), CHARGEAIR COOLER<6PL> (A) 82 CELSIUS 		8-94482-277-2 01 1 0211-0501 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (A) 82 CELSIUS 		8-94482-277-2 01 1 0502-0504 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (A) 82 CELSIUS 		8-94482-277-2 01 1 0505- ● ●
1 01.246 THERMOSTAT
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A) 82 CELSIUS 		8-97254-816-1 01 1 0211-0501 ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97254-816-1 01 1 0502- ●
1 01.246 THERMOSTAT
(C) 82 CELSIUS 		8-97300-789-2 01 1 0211-0501 ●
1 01.246 THERMOSTAT
(C) 82 CELSIUS 		8-97300-789-2 01 1 0502-1004 ●
1 01.246 THERMOSTAT
(C) 82 CELSIUS 		8-97300-789-3 01 1 1005- ● ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS 		8-97300-787-2 01 1 0211-0501 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS 		8-97300-787-2 01 1 0502-1004 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS 		8-97300-787-3 01 1 1005- ● ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS 		8-97300-792-1 01 1 0211-0501 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS 		8-97300-792-1 01 1 0502-1004 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS 		8-97300-792-2 01 1 1005- ● ●
2 01.251 HOUSING; THERMOSTAT
HEATER & DEFROSTER(C41) (A) 		8-97139-602-0 01 1 0211-0501 ●
2 01.251 HOUSING; THERMOSTAT
HEATER & DEFROSTER(C41) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97139-602-0 01 1 0211-0501 ●
2 01.251 HOUSING; THERMOSTAT
HEATER & DEFROSTER(C41) EXC. TURBOCHARGER<K51> (A) 		8-97139-602-0 01 1 0211-0501 ●
2 01.251 HOUSING; THERMOSTAT
HEATER & DEFROSTER(C41) (A) 		8-97139-602-0 01 1 0502-0504 ●
2 01.251 HOUSING; THERMOSTAT
HEATER & DEFROSTER(C41) (A) 		8-97139-602-1 01 1 0505- ● ●
2 01.251 HOUSING; THERMOSTAT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97139-604-2 01 1 0211-0504 ● ●
2 01.251 HOUSING; THERMOSTAT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97139-604-3 01 1 0505- ● ● ●
2 01.251 HOUSING; THERMOSTAT
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97139-603-0 01 1 0211-0501 ●
2 01.251 HOUSING; THERMOSTAT
HEATER & DEFROSTER(C41) (A) 		8-97139-603-1 01 1 0502- ●
2 01.251 HOUSING; THERMOSTAT
(C) 		8-97252-416-2 01 1 0211-0312 ●
2 01.251 HOUSING; THERMOSTAT
(C) 		8-97372-989-1 01 1 0401-0501 ●
2 01.251 HOUSING; THERMOSTAT
(C) 		8-97372-989-1 01 1 0502- ●
14 01.252 PLUG; SW
01.073 (A) PT3/8 		5-09605-005-0 01 1 1005- ●
14 01.252 PLUG; SW
04.520 (B) M16X8 PLUG 		9-09661-005-0 01 1 1005- ●
14 01.252 PLUG; SW
01.073 (A) PT3/8 		5-09605-005-0 02 1 0211-0501 ●
14 01.252 PLUG; SW
HEATER & DEFROSTER(C41) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 01.073 (A) PT3/8 		5-09605-005-0 02 1 0211-0501 ●
14 01.252 PLUG; SW
HEATER & DEFROSTER(C41) EXC. TURBOCHARGER<K51> 01.073 (A) PT3/8 		5-09605-005-0 02 1 0211-0501 ●
14 01.252 PLUG; SW
HEATER & DEFROSTER(C41) 01.073 (A) PT3/8 		5-09605-005-0 02 1 0502-0504 ●
14 01.252 PLUG; SW
01.073 (A) PT3/8 		5-09605-005-0 02 1 0505-0907 ●
14 01.252 PLUG; SW
HEATER & DEFROSTER(C41) 01.073 (A) PT3/8 		5-09605-005-0 02 1 0505-0907 ●
14 01.252 PLUG; SW
01.073 (A) PT3/8 		5-09605-005-0 02 1 0908- ● ●
14 01.252 PLUG; SW
TURBOCHARGER<K51> EXC. HEATER & DEFROSTER(C41), CHARGEAIR COOLER<6PL> 01.073 (A) PT3/8 		5-09605-005-0 01 1 0211-0501 ●
14 01.252 PLUG; SW
EXC. HEATER & DEFROSTER(C41), TURBOCHARGER<K51> 01.073 (A) PT3/8 		5-09605-005-0 01 1 0211-0501 ●
14 01.252 PLUG; SW
EXC. HEATER & DEFROSTER(C41) 01.073 (A) PT3/8 		5-09605-005-0 01 1 0502-0907 ●
26 01.251 CUP; SEALING,VLV,VENTILATION
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 00.253 (B) OD=18 		5-11219-008-0 01 1 0211-0504 ● ●
26 01.251 CUP; SEALING,VLV,VENTILATION
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 00.253 (B) OD=18 		5-11219-008-0 01 1 0505- ● ● ●
26 01.251 CUP; SEALING,VLV,VENTILATION
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) OD=18 		9-11129-082-0 02 1 0211-0504 ● ●
26 01.251 CUP; SEALING,VLV,VENTILATION
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) OD=18 		9-11129-082-0 02 1 0505-0802 ● ● ●
44 01.252 BOLT; HSG TO HD
00.780 M8X30 W/LK WASHER 		0-50040-830-0 05 1 0211-0501 ● ● ●
44 01.252 BOLT; HSG TO HD
00.780 M8X30 W/LK WASHER 		0-50040-830-0 05 1 0502-0504 ● ● ●
44 01.252 BOLT; HSG TO HD
00.780 M8X30 W/LK WASHER 		0-50040-830-0 05 1 0505-0512 ● ● ● ●
44 01.252 BOLT; HSG TO HD
09.171 M8X30 W/LK WASHER 		0-50540-830-0 05 1 0601- ● ● ● ●
49 01.153 PIPE; WATER OUTLET 8-94254-601-1 01 1 0211-0501 ●
49 01.153 PIPE; WATER OUTLET
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-94254-601-1 01 1 0211-0501 ●
49 01.153 PIPE; WATER OUTLET
EXC. TURBOCHARGER<K51> 		8-94254-601-1 01 1 0211-0501 ●
49 01.153 PIPE; WATER OUTLET 8-94254-601-1 01 1 0502-0504 ●
49 01.153 PIPE; WATER OUTLET 8-94254-601-1 01 1 0505- ● ●
49 01.153 PIPE; WATER OUTLET
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97204-199-0 01 1 0211-0501 ●
49 01.153 PIPE; WATER OUTLET 8-97204-199-0 01 1 0502- ●
49 01.153 PIPE; WATER OUTLET 8-97200-620-0 01 1 0211-0407 ●
49 01.153 PIPE; WATER OUTLET 8-97372-769-0 01 1 0408-0501 ●
49 01.153 PIPE; WATER OUTLET 8-97372-769-0 01 1 0502-1004 ●
49 01.153 PIPE; WATER OUTLET 8-97372-769-1 01 1 1005- ● ●
49 01.153 PIPE; WATER OUTLET 8-97289-011-0 01 1 0211-0501 ●
49 01.153 PIPE; WATER OUTLET 8-97289-011-0 01 1 0502- ●
50 01.252 BOLT; OUTLET PIPE
(C) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0211-0501 ● ● ●
50 01.252 BOLT; OUTLET PIPE
(C) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0502-0504 ● ● ●
50 01.252 BOLT; OUTLET PIPE
(C) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0505-0512 ● ● ● ●
50 01.252 BOLT; OUTLET PIPE
(C) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601- ● ● ● ●
50 01.252 BOLT; OUTLET PIPE
02.559 (B) M8X25 FLANGE 		0-28680-825-0 02 1 0211-0501 ●
50 01.252 BOLT; OUTLET PIPE
02.559 (B) M8X25 FLANGE 		0-28680-825-0 02 1 0502-0512 ●
50 01.252 BOLT; OUTLET PIPE
06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 0601-1004 ●
50 01.252 BOLT; OUTLET PIPE
06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 1005- ● ●
50 01.252 BOLT; OUTLET PIPE
01.097 (A) M8X65 FLANGE 		1-09044-072-1 02 1 0211-0501 ●
50 01.252 BOLT; OUTLET PIPE
01.097 (A) M8X65 FLANGE 		1-09044-072-1 02 1 0502-1004 ●
50 01.252 BOLT; OUTLET PIPE
01.097 (A) M8X65 FLANGE 		1-09044-072-1 02 1 1005- ● ●
54 01.152 CLIP; THERMO SWITCH,OUTLET PIPE
02.559 ID=13 H=50 L=27 		8-94130-076-0 01 1 0211-0501 ● ● ●
54 01.152 CLIP; THERMO SWITCH,OUTLET PIPE
02.559 ID=13 H=50 L=27 		8-94130-076-0 01 1 0502-0504 ● ● ●
54 01.152 CLIP; THERMO SWITCH,OUTLET PIPE
02.559 ID=13 H=50 L=27 		8-94130-076-0 01 1 0505- ● ● ● ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.252 		8-94365-674-2 01 1 0211-0501 ● ● ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.252 		8-94365-674-2 01 1 0502-0504 ● ● ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.252 		8-94365-674-2 01 1 0505- ● ● ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97212-537-1 01 1 0906- ● ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97216-156-0 01 1 0211-0501 ● ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97216-156-0 01 1 0502-0504 ● ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97216-156-0 01 1 0505-0905 ● ● ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97216-156-0 01 1 0906- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 01 1 0211-0501 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 01 1 0211-0501 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 01 1 0502-1004 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 01 1 0502-1004 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 01 1 1005-1501 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 01 1 1005-1501 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 01 1 1502- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 01 1 1502- ● ●

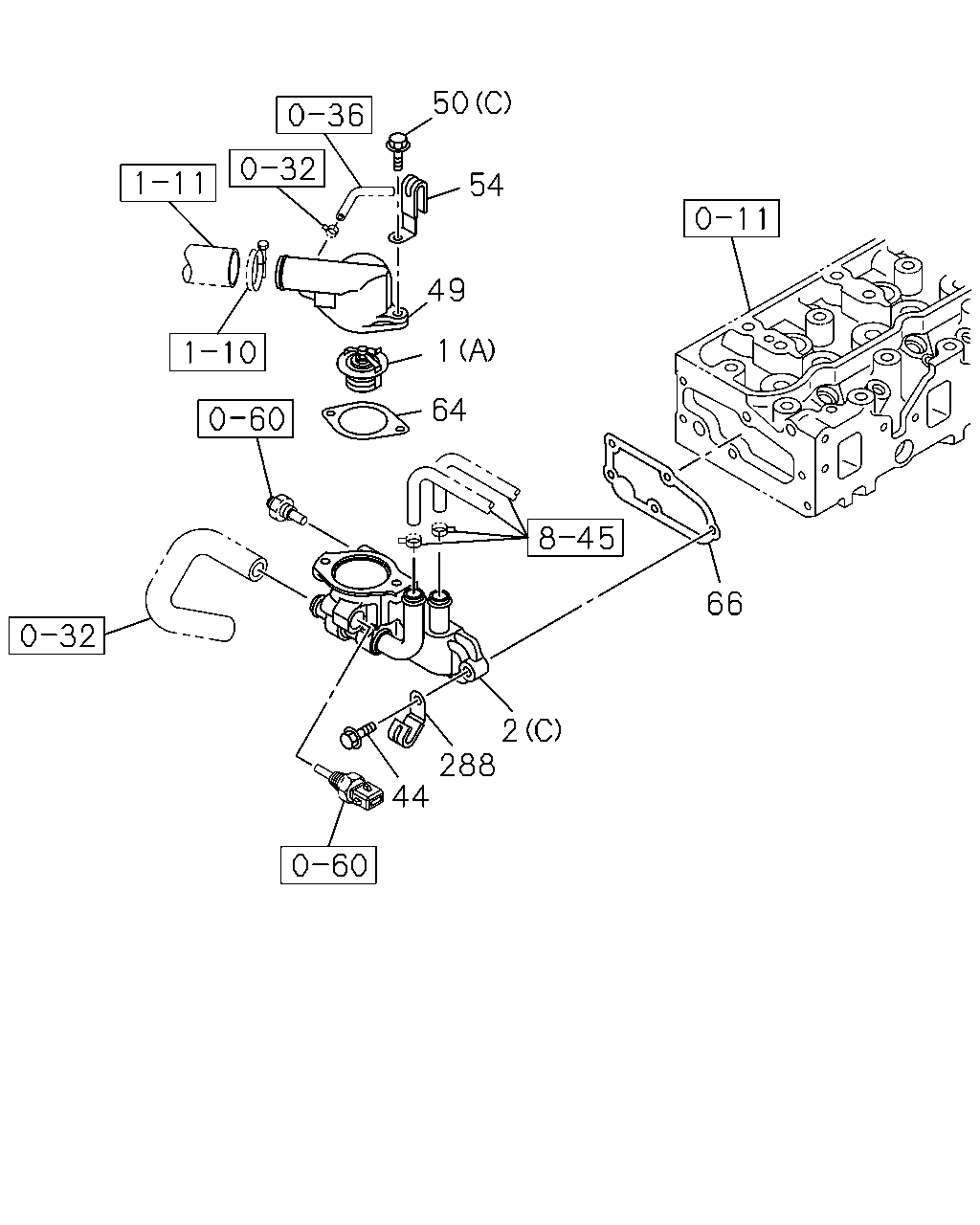

çizim 47086
66 2 288 44 64 1 49 54 50
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (A) 82 CELSIUS 		8-97089-891-0 01 1 0211-0301 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) EXC. TURBOCHARGER<K51> (A) 82 CELSIUS 		8-97089-891-0 01 1 0211-0301 ●
1 01.246 THERMOSTAT
TURBOCHARGER<K51> HEATER & DEFROSTER(C41) EXC. CHARGE AIR COOLER<6PL> (A) 82 CELSIUS 		8-97089-891-0 01 1 0211-0301 ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97089-891-0 01 1 0211-0301 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (A) 82 CELSIUS 		8-97361-770-0 01 1 0302-0501 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) EXC. TURBOCHARGER<K51> (A) 82 CELSIUS 		8-97361-770-0 01 1 0302-0501 ●
1 01.246 THERMOSTAT
TURBOCHARGER<K51> HEATER & DEFROSTER(C41) EXC. CHARGE AIR COOLER<6PL> (A) 82 CELSIUS 		8-97361-770-0 01 1 0302-0501 ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97361-770-0 01 1 0302-0501 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (A) 82 CELSIUS 		8-97361-770-0 01 1 0502-0504 ● ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (A) 82 CELSIUS 		8-97361-770-0 01 1 0505- ● ● ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (A) 82 CELSIUS 		8-94482-277-2 01 1 0211-0501 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41), TURBOCHARGER<K51> (A) 82 CELSIUS 		8-94482-277-2 01 1 0211-0501 ●
1 01.246 THERMOSTAT
TURBOCHARGER<K51> EXC. HEATER & DEFROSTER(C41), CHARGEAIR COOLER<6PL> (A) 82 CELSIUS 		8-94482-277-2 01 1 0211-0501 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (A) 82 CELSIUS 		8-94482-277-2 01 1 0502-0504 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (A) 82 CELSIUS 		8-94482-277-2 01 1 0505- ● ●
1 01.246 THERMOSTAT
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A) 82 CELSIUS 		8-97254-816-1 01 1 0211-0501 ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97254-816-1 01 1 0502- ●
1 01.246 THERMOSTAT
(C) 82 CELSIUS 		8-97300-789-2 01 1 0211-0501 ●
1 01.246 THERMOSTAT
(C) 82 CELSIUS 		8-97300-789-2 01 1 0502-1004 ●
1 01.246 THERMOSTAT
(C) 82 CELSIUS 		8-97300-789-3 01 1 1005- ● ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS 		8-97300-787-2 01 1 0211-0501 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS 		8-97300-787-2 01 1 0502-1004 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS 		8-97300-787-3 01 1 1005- ● ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS 		8-97300-792-1 01 1 0211-0501 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS 		8-97300-792-1 01 1 0502-1004 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS 		8-97300-792-2 01 1 1005- ● ●
2 01.251 HOUSING; THERMOSTAT
HEATER & DEFROSTER(C41) (A) 		8-97139-602-0 01 1 0211-0501 ●
2 01.251 HOUSING; THERMOSTAT
HEATER & DEFROSTER(C41) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97139-602-0 01 1 0211-0501 ●
2 01.251 HOUSING; THERMOSTAT
HEATER & DEFROSTER(C41) EXC. TURBOCHARGER<K51> (A) 		8-97139-602-0 01 1 0211-0501 ●
2 01.251 HOUSING; THERMOSTAT
HEATER & DEFROSTER(C41) (A) 		8-97139-602-0 01 1 0502-0504 ●
2 01.251 HOUSING; THERMOSTAT
HEATER & DEFROSTER(C41) (A) 		8-97139-602-1 01 1 0505- ● ●
2 01.251 HOUSING; THERMOSTAT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97139-604-2 01 1 0211-0504 ● ●
2 01.251 HOUSING; THERMOSTAT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97139-604-3 01 1 0505- ● ● ●
2 01.251 HOUSING; THERMOSTAT
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97139-603-0 01 1 0211-0501 ●
2 01.251 HOUSING; THERMOSTAT
HEATER & DEFROSTER(C41) (A) 		8-97139-603-1 01 1 0502- ●
2 01.251 HOUSING; THERMOSTAT
(C) 		8-97252-416-2 01 1 0211-0312 ●
2 01.251 HOUSING; THERMOSTAT
(C) 		8-97372-989-1 01 1 0401-0501 ●
2 01.251 HOUSING; THERMOSTAT
(C) 		8-97372-989-1 01 1 0502- ●
44 01.252 BOLT; HSG TO HD
00.780 M8X30 W/LK WASHER 		0-50040-830-0 05 1 0211-0501 ● ● ●
44 01.252 BOLT; HSG TO HD
00.780 M8X30 W/LK WASHER 		0-50040-830-0 05 1 0502-0504 ● ● ●
44 01.252 BOLT; HSG TO HD
00.780 M8X30 W/LK WASHER 		0-50040-830-0 05 1 0505-0512 ● ● ● ●
44 01.252 BOLT; HSG TO HD
09.171 M8X30 W/LK WASHER 		0-50540-830-0 05 1 0601- ● ● ● ●
49 01.153 PIPE; WATER OUTLET 8-94254-601-1 01 1 0211-0501 ●
49 01.153 PIPE; WATER OUTLET
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-94254-601-1 01 1 0211-0501 ●
49 01.153 PIPE; WATER OUTLET
EXC. TURBOCHARGER<K51> 		8-94254-601-1 01 1 0211-0501 ●
49 01.153 PIPE; WATER OUTLET 8-94254-601-1 01 1 0502-0504 ●
49 01.153 PIPE; WATER OUTLET 8-94254-601-1 01 1 0505- ● ●
49 01.153 PIPE; WATER OUTLET
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97204-199-0 01 1 0211-0501 ●
49 01.153 PIPE; WATER OUTLET 8-97204-199-0 01 1 0502- ●
49 01.153 PIPE; WATER OUTLET 8-97200-620-0 01 1 0211-0407 ●
49 01.153 PIPE; WATER OUTLET 8-97372-769-0 01 1 0408-0501 ●
49 01.153 PIPE; WATER OUTLET 8-97372-769-0 01 1 0502-1004 ●
49 01.153 PIPE; WATER OUTLET 8-97372-769-1 01 1 1005- ● ●
49 01.153 PIPE; WATER OUTLET 8-97289-011-0 01 1 0211-0501 ●
49 01.153 PIPE; WATER OUTLET 8-97289-011-0 01 1 0502- ●
50 01.252 BOLT; OUTLET PIPE
(C) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0211-0501 ● ● ●
50 01.252 BOLT; OUTLET PIPE
(C) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0502-0504 ● ● ●
50 01.252 BOLT; OUTLET PIPE
(C) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0505-0512 ● ● ● ●
50 01.252 BOLT; OUTLET PIPE
(C) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601- ● ● ● ●
50 01.252 BOLT; OUTLET PIPE
02.559 (B) M8X25 FLANGE 		0-28680-825-0 02 1 0211-0501 ●
50 01.252 BOLT; OUTLET PIPE
02.559 (B) M8X25 FLANGE 		0-28680-825-0 02 1 0502-0512 ●
50 01.252 BOLT; OUTLET PIPE
06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 0601-1004 ●
50 01.252 BOLT; OUTLET PIPE
06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 1005- ● ●
50 01.252 BOLT; OUTLET PIPE
01.097 (A) M8X65 FLANGE 		1-09044-072-1 02 1 0211-0501 ●
50 01.252 BOLT; OUTLET PIPE
01.097 (A) M8X65 FLANGE 		1-09044-072-1 02 1 0502-1004 ●
50 01.252 BOLT; OUTLET PIPE
01.097 (A) M8X65 FLANGE 		1-09044-072-1 02 1 1005- ● ●
54 01.152 CLIP; THERMO SWITCH,OUTLET PIPE
02.559 ID=13 H=50 L=27 		8-94130-076-0 01 1 0211-0501 ● ● ●
54 01.152 CLIP; THERMO SWITCH,OUTLET PIPE
02.559 ID=13 H=50 L=27 		8-94130-076-0 01 1 0502-0504 ● ● ●
54 01.152 CLIP; THERMO SWITCH,OUTLET PIPE
02.559 ID=13 H=50 L=27 		8-94130-076-0 01 1 0505- ● ● ● ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.252 		8-94365-674-2 01 1 0211-0501 ● ● ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.252 		8-94365-674-2 01 1 0502-0504 ● ● ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.252 		8-94365-674-2 01 1 0505- ● ● ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97212-537-1 01 1 0906- ● ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97216-156-0 01 1 0211-0501 ● ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97216-156-0 01 1 0502-0504 ● ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97216-156-0 01 1 0505-0905 ● ● ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97216-156-0 01 1 0906- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 01 1 0211-0501 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 01 1 0211-0501 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 01 1 0502-1004 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 01 1 0502-1004 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 01 1 1005-1501 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 01 1 1005-1501 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 01 1 1502- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 01 1 1502- ● ●
288 04.930 CLIP
02.559 ID=12 		5-09700-331-0 01 1 0211-0302 ●
288 04.930 CLIP
01.150 ID=12 		8-97367-983-0 01 1 0303-0501 ●
288 04.930 CLIP
01.150 ID=12 		8-97367-983-1 01 1 0502- ●

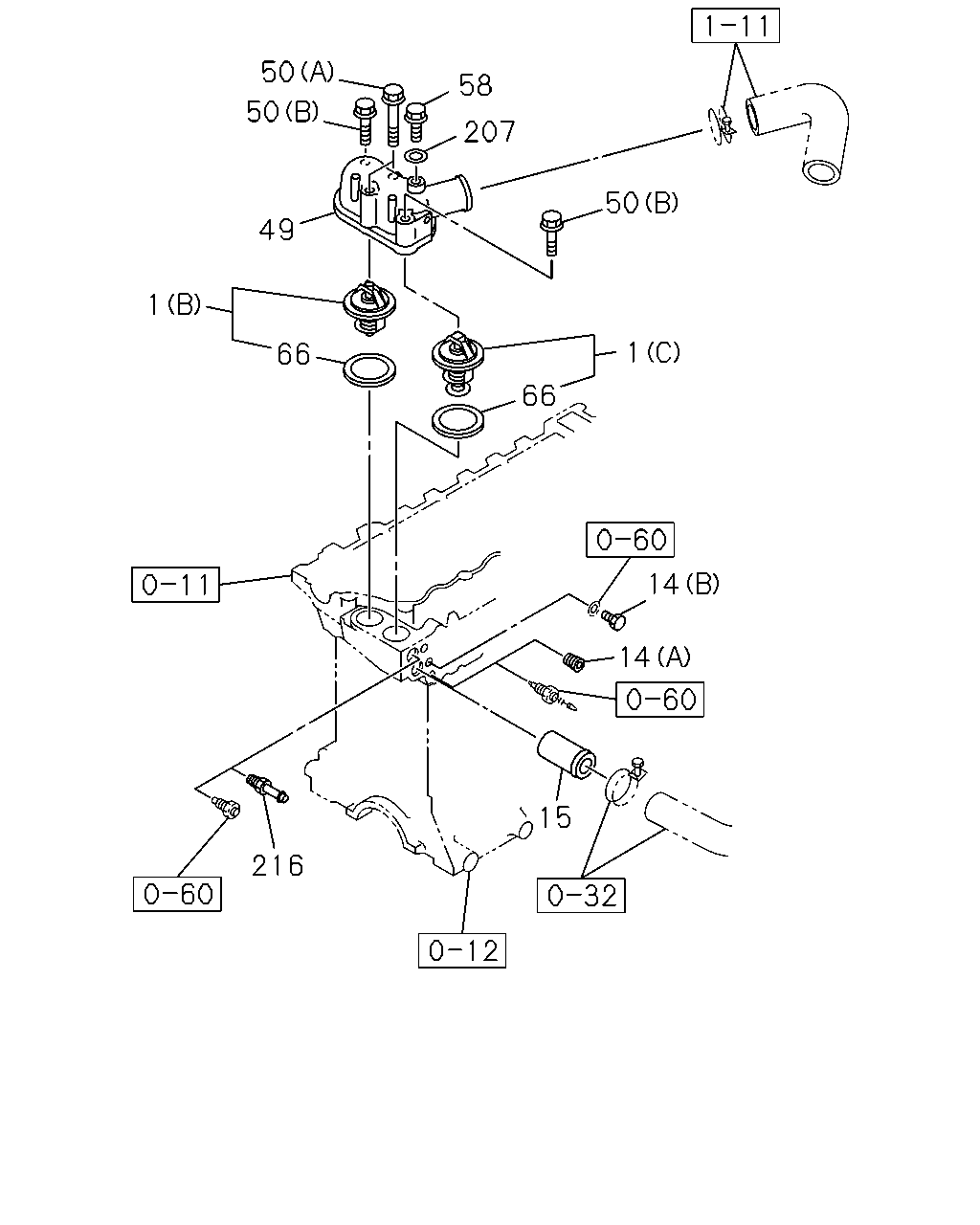

çizim 47087
58 50 50 207 50 49 1 66 66 1 14 14 15 216
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (A) 82 CELSIUS 		8-97089-891-0 01 1 0211-0301 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) EXC. TURBOCHARGER<K51> (A) 82 CELSIUS 		8-97089-891-0 01 1 0211-0301 ●
1 01.246 THERMOSTAT
TURBOCHARGER<K51> HEATER & DEFROSTER(C41) EXC. CHARGE AIR COOLER<6PL> (A) 82 CELSIUS 		8-97089-891-0 01 1 0211-0301 ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97089-891-0 01 1 0211-0301 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (A) 82 CELSIUS 		8-97361-770-0 01 1 0302-0501 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) EXC. TURBOCHARGER<K51> (A) 82 CELSIUS 		8-97361-770-0 01 1 0302-0501 ●
1 01.246 THERMOSTAT
TURBOCHARGER<K51> HEATER & DEFROSTER(C41) EXC. CHARGE AIR COOLER<6PL> (A) 82 CELSIUS 		8-97361-770-0 01 1 0302-0501 ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97361-770-0 01 1 0302-0501 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (A) 82 CELSIUS 		8-97361-770-0 01 1 0502-0504 ● ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (A) 82 CELSIUS 		8-97361-770-0 01 1 0505- ● ● ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (A) 82 CELSIUS 		8-94482-277-2 01 1 0211-0501 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41), TURBOCHARGER<K51> (A) 82 CELSIUS 		8-94482-277-2 01 1 0211-0501 ●
1 01.246 THERMOSTAT
TURBOCHARGER<K51> EXC. HEATER & DEFROSTER(C41), CHARGEAIR COOLER<6PL> (A) 82 CELSIUS 		8-94482-277-2 01 1 0211-0501 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (A) 82 CELSIUS 		8-94482-277-2 01 1 0502-0504 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (A) 82 CELSIUS 		8-94482-277-2 01 1 0505- ● ●
1 01.246 THERMOSTAT
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A) 82 CELSIUS 		8-97254-816-1 01 1 0211-0501 ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97254-816-1 01 1 0502- ●
1 01.246 THERMOSTAT
(C) 82 CELSIUS 		8-97300-789-2 01 1 0211-0501 ●
1 01.246 THERMOSTAT
(C) 82 CELSIUS 		8-97300-789-2 01 1 0502-1004 ●
1 01.246 THERMOSTAT
(C) 82 CELSIUS 		8-97300-789-3 01 1 1005- ● ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS 		8-97300-787-2 01 1 0211-0501 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS 		8-97300-787-2 01 1 0502-1004 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS 		8-97300-787-3 01 1 1005- ● ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS 		8-97300-792-1 01 1 0211-0501 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS 		8-97300-792-1 01 1 0502-1004 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS 		8-97300-792-2 01 1 1005- ● ●
14 01.252 PLUG; SW
01.073 (A) PT3/8 		5-09605-005-0 01 1 1005- ●
14 01.252 PLUG; SW
04.520 (B) M16X8 PLUG 		9-09661-005-0 01 1 1005- ●
14 01.252 PLUG; SW
01.073 (A) PT3/8 		5-09605-005-0 02 1 0211-0501 ●
14 01.252 PLUG; SW
HEATER & DEFROSTER(C41) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 01.073 (A) PT3/8 		5-09605-005-0 02 1 0211-0501 ●
14 01.252 PLUG; SW
HEATER & DEFROSTER(C41) EXC. TURBOCHARGER<K51> 01.073 (A) PT3/8 		5-09605-005-0 02 1 0211-0501 ●
14 01.252 PLUG; SW
HEATER & DEFROSTER(C41) 01.073 (A) PT3/8 		5-09605-005-0 02 1 0502-0504 ●
14 01.252 PLUG; SW
01.073 (A) PT3/8 		5-09605-005-0 02 1 0505-0907 ●
14 01.252 PLUG; SW
HEATER & DEFROSTER(C41) 01.073 (A) PT3/8 		5-09605-005-0 02 1 0505-0907 ●
14 01.252 PLUG; SW
01.073 (A) PT3/8 		5-09605-005-0 02 1 0908- ● ●
14 01.252 PLUG; SW
TURBOCHARGER<K51> EXC. HEATER & DEFROSTER(C41), CHARGEAIR COOLER<6PL> 01.073 (A) PT3/8 		5-09605-005-0 01 1 0211-0501 ●
14 01.252 PLUG; SW
EXC. HEATER & DEFROSTER(C41), TURBOCHARGER<K51> 01.073 (A) PT3/8 		5-09605-005-0 01 1 0211-0501 ●
14 01.252 PLUG; SW
EXC. HEATER & DEFROSTER(C41) 01.073 (A) PT3/8 		5-09605-005-0 01 1 0502-0907 ●
15 01.251 PIPE; BYPASS
01.153 		8-94342-574-0 01 1 0211-0501 ●
15 01.251 PIPE; BYPASS
01.153 		8-94342-574-0 01 1 0502-1004 ●
15 01.251 PIPE; BYPASS
01.153 		8-94342-574-0 01 1 1005- ● ●
15 01.251 PIPE; BYPASS 8-94343-211-1 01 1 1005- ●
49 01.153 PIPE; WATER OUTLET 8-94254-601-1 01 1 0211-0501 ●
49 01.153 PIPE; WATER OUTLET
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-94254-601-1 01 1 0211-0501 ●
49 01.153 PIPE; WATER OUTLET
EXC. TURBOCHARGER<K51> 		8-94254-601-1 01 1 0211-0501 ●
49 01.153 PIPE; WATER OUTLET 8-94254-601-1 01 1 0502-0504 ●
49 01.153 PIPE; WATER OUTLET 8-94254-601-1 01 1 0505- ● ●
49 01.153 PIPE; WATER OUTLET
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97204-199-0 01 1 0211-0501 ●
49 01.153 PIPE; WATER OUTLET 8-97204-199-0 01 1 0502- ●
49 01.153 PIPE; WATER OUTLET 8-97200-620-0 01 1 0211-0407 ●
49 01.153 PIPE; WATER OUTLET 8-97372-769-0 01 1 0408-0501 ●
49 01.153 PIPE; WATER OUTLET 8-97372-769-0 01 1 0502-1004 ●
49 01.153 PIPE; WATER OUTLET 8-97372-769-1 01 1 1005- ● ●
49 01.153 PIPE; WATER OUTLET 8-97289-011-0 01 1 0211-0501 ●
49 01.153 PIPE; WATER OUTLET 8-97289-011-0 01 1 0502- ●
50 01.252 BOLT; OUTLET PIPE
(C) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0211-0501 ● ● ●
50 01.252 BOLT; OUTLET PIPE
(C) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0502-0504 ● ● ●
50 01.252 BOLT; OUTLET PIPE
(C) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0505-0512 ● ● ● ●
50 01.252 BOLT; OUTLET PIPE
(C) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601- ● ● ● ●
50 01.252 BOLT; OUTLET PIPE
02.559 (B) M8X25 FLANGE 		0-28680-825-0 02 1 0211-0501 ●
50 01.252 BOLT; OUTLET PIPE
02.559 (B) M8X25 FLANGE 		0-28680-825-0 02 1 0502-0512 ●
50 01.252 BOLT; OUTLET PIPE
06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 0601-1004 ●
50 01.252 BOLT; OUTLET PIPE
06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 1005- ● ●
50 01.252 BOLT; OUTLET PIPE
01.097 (A) M8X65 FLANGE 		1-09044-072-1 02 1 0211-0501 ●
50 01.252 BOLT; OUTLET PIPE
01.097 (A) M8X65 FLANGE 		1-09044-072-1 02 1 0502-1004 ●
50 01.252 BOLT; OUTLET PIPE
01.097 (A) M8X65 FLANGE 		1-09044-072-1 02 1 1005- ● ●
58 00.073 PLUG; WATER OUTLET PIPE
M8X16 		8-97021-211-1 01 1 0211-0501 ●
58 00.073 PLUG; WATER OUTLET PIPE
M8X16 		8-97021-211-1 01 1 0502-1004 ●
58 00.073 PLUG; WATER OUTLET PIPE
M8X16 		8-97021-211-1 01 1 1005- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97212-537-1 01 1 0906- ● ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97216-156-0 01 1 0211-0501 ● ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97216-156-0 01 1 0502-0504 ● ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97216-156-0 01 1 0505-0905 ● ● ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97216-156-0 01 1 0906- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 01 1 0211-0501 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 01 1 0211-0501 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 01 1 0502-1004 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 01 1 0502-1004 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 01 1 1005-1501 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 01 1 1005-1501 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 01 1 1502- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 01 1 1502- ● ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE) . 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 0211-0501 ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE) . 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 0502-1004 ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE) . 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 1005- ● ●
216 01.153 PIPE ASM; WATER,TURBOCHARGER RET 8-97358-699-0 01 1 1005- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
