Sayfa 0-20 - Isuzu EPC

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#50709) — 445 parça

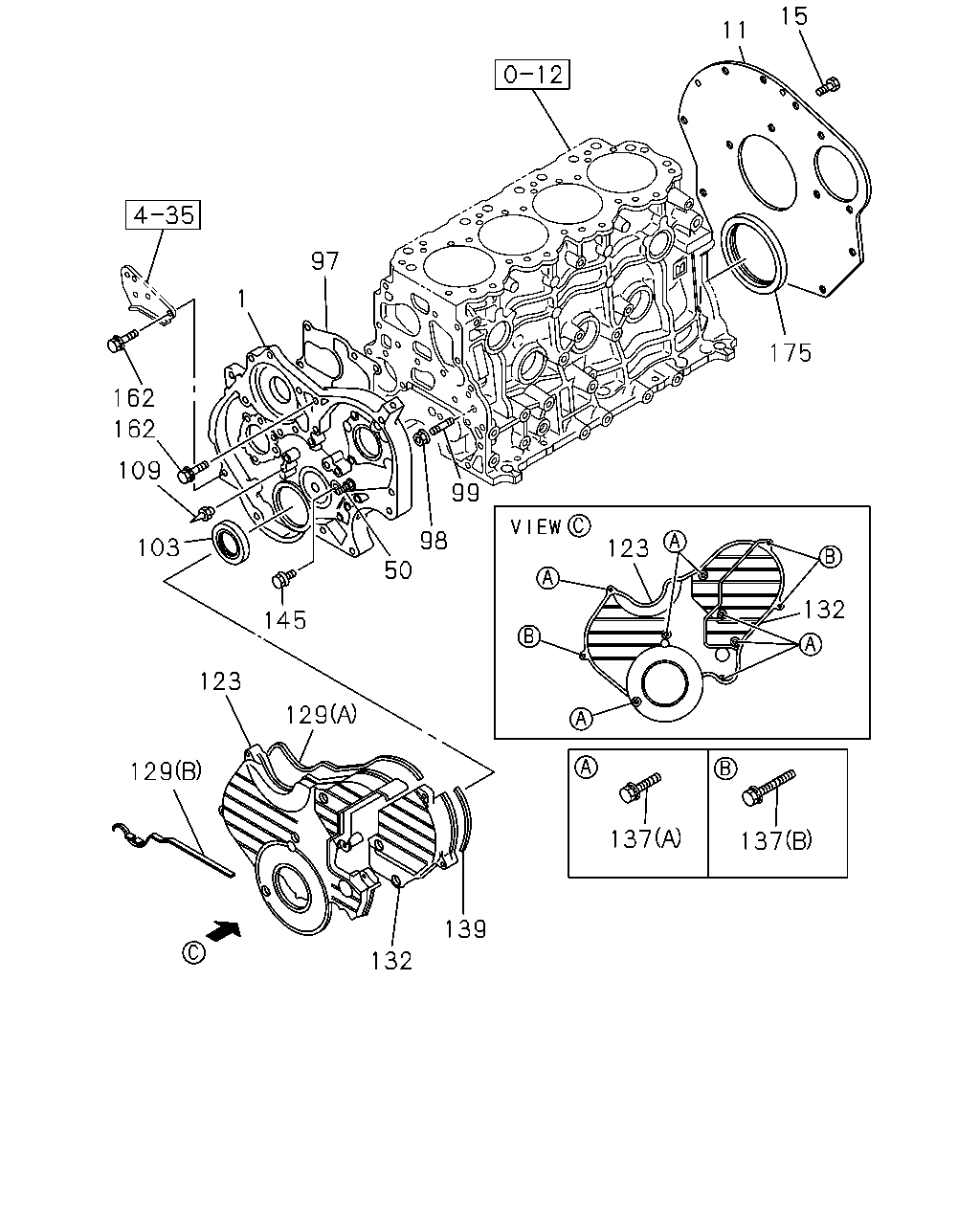

15 11 97 1 175 99 162 162 109 98 50 103 123 132 145 123 129 129 137 137 139 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	00.206 CASE; TIMING GEAR	8-97141-532-2	01	1	0505-	●
1	00.206 CASE; TIMING GEAR	8-97141-532-2	01	1	0211-0501	●
1	00.206 CASE; TIMING GEAR TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97219-001-4	01	1	0211-0501		●
1	00.206 CASE; TIMING GEAR	8-97219-001-4	01	1	0502-			●
1	00.206 CASE; TIMING GEAR TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97129-982-3	01	1	0211-0501		●
1	00.206 CASE; TIMING GEAR EXC. TURBOCHARGER<K51>	8-97129-982-3	01	1	0211-0501		●
1	00.206 CASE; TIMING GEAR	8-97129-982-3	01	1	0502-		●
1	00.206 CASE; TIMING GEAR	8-97239-983-2	01	1	0211-0501				●
1	00.206 CASE; TIMING GEAR	8-97239-983-2	01	1	0502-					●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	0211-0501	●	●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	0502-0504		●	●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	0505-	●	●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	0211-0501	●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	0502-0504		●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	0505-	●	●	●
50	00.206 STUD M8X42.5 L=69	8-97148-539-0	01	1	0505-	●
50	00.206 STUD M8X42.5 L=69	8-97148-539-0	01	1	0211-0501	●
97	00.206 GASKET; BLOCK TO HSG ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97129-429-1	01	1	0505-	●
97	00.206 GASKET; BLOCK TO HSG ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97129-429-0	01	1	0211-0501	●
98	00.206 NUT; STUD,INJ PUMP 03.340 M8	8-94224-829-0	02	1	0505-0805	●
98	00.206 NUT; STUD,INJ PUMP 03.330 M8	8-98039-986-0	02	1	0806-	●
98	00.206 NUT; STUD,INJ PUMP 03.340 M8	8-94224-829-0	02	1	0211-0501	●
99	00.206 STUD; INJ PUMP 00.004 M8X28 L=44	9-04020-828-0	02	1	0505-0604	●
99	00.206 STUD; INJ PUMP 03.275 M8X28 L=44	0-40210-828-0	02	1	0605-	●
99	00.206 STUD; INJ PUMP 00.004 M8X28 L=44	9-04020-828-0	02	1	0211-0501	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97071-560-1	01	1	0505-	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97071-560-1	01	1	0211-0501	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97351-704-0	01	1	0211-0501		●		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97351-704-0	01	1	0502-		●	●		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) . ID=109 OD=137	8-97329-780-0	01	1	0211-0501						●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) . ID=109 OD=137	8-97329-780-0	01	1	0502-1004							●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) . ID=109 OD=137	8-97329-780-0	01	1	1005-							●	●
109	00.219 POINTER; TIMING M5X7.5	8-94133-500-0	01	1	0505-	●
109	00.219 POINTER; TIMING M5X7.5	8-94133-500-0	01	1	0211-0501	●
123	00.206 COVER; TIMING,LWR	8-97038-105-1	01	1	0505-	●
123	00.206 COVER; TIMING,LWR	8-97038-105-1	01	1	0211-0501	●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE) . (B) L=366	8-94464-696-0	01	1	0505-	●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE) . (A) L=560	8-97318-925-0	01	1	0505-	●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE) . (B) L=366	8-94464-696-0	01	1	0211-0501	●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE) . (A) L=560	8-97318-925-0	01	1	0211-0501	●
132	00.206 COVER; TIMING,UPR	8-97038-103-1	01	1	0505-	●
132	00.206 COVER; TIMING,UPR	8-97038-103-1	01	1	0211-0501	●
137	00.206 BOLT; FRT PLATE (A) M6X35 W/LK&PL WASHER	0-50140-635-0	07	1	0505-0512	●
137	00.206 BOLT; FRT PLATE (A) M6X35 W/LK&PL WASHER	0-50640-635-0	07	1	0601-	●
137	00.206 BOLT; FRT PLATE (B) M6X50 W/LK WASHER	8-94152-616-1	03	1	0505-	●
137	00.206 BOLT; FRT PLATE (A) M6X35 W/LK&PL WASHER	0-50140-635-0	07	1	0211-0501	●
137	00.206 BOLT; FRT PLATE (B) M6X50 W/LK WASHER	8-94152-616-1	03	1	0211-0501	●
139	00.207 GASKET; TIMING COVER,UPR ALSO INCLUDED IN GASKET SET(ENGINE) . L=215	8-97318-924-0	01	1	0505-	●
139	00.207 GASKET; TIMING COVER,UPR ALSO INCLUDED IN GASKET SET(ENGINE) . L=215	8-97318-924-0	01	1	0211-0501	●
145	00.206 BOLT; TENSIONER GUIDE M8X20	8-94152-617-1	01	1	0505-	●
145	00.206 BOLT; TENSIONER GUIDE M8X20	8-94152-617-1	01	1	0211-0501	●
162	00.206 BOLT; FRT PLATE 01.252 M8X45 W/LK WASHER	0-50040-845-0	03	1	0505-0909	●
162	00.206 BOLT; FRT PLATE 03.704 M8X45 W/LK WASHER	0-50540-845-0	03	1	0910-	●
162	00.206 BOLT; FRT PLATE 01.252 M8X45 W/LK WASHER	0-50040-845-0	03	1	0211-0501	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=95 OD=118	8-97071-561-1	01	1	0211-0501	●	●		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=95 OD=118	8-97071-561-1	01	1	0502-0504		●	●		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=95 OD=118	8-97071-561-1	01	1	0505-	●	●	●		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=104 OD=139	8-97602-379-0	01	1	0211-0501						●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=104 OD=139	8-97602-379-0	01	1	0502-1004							●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=104 OD=139	8-97602-379-0	01	1	1005-							●	●

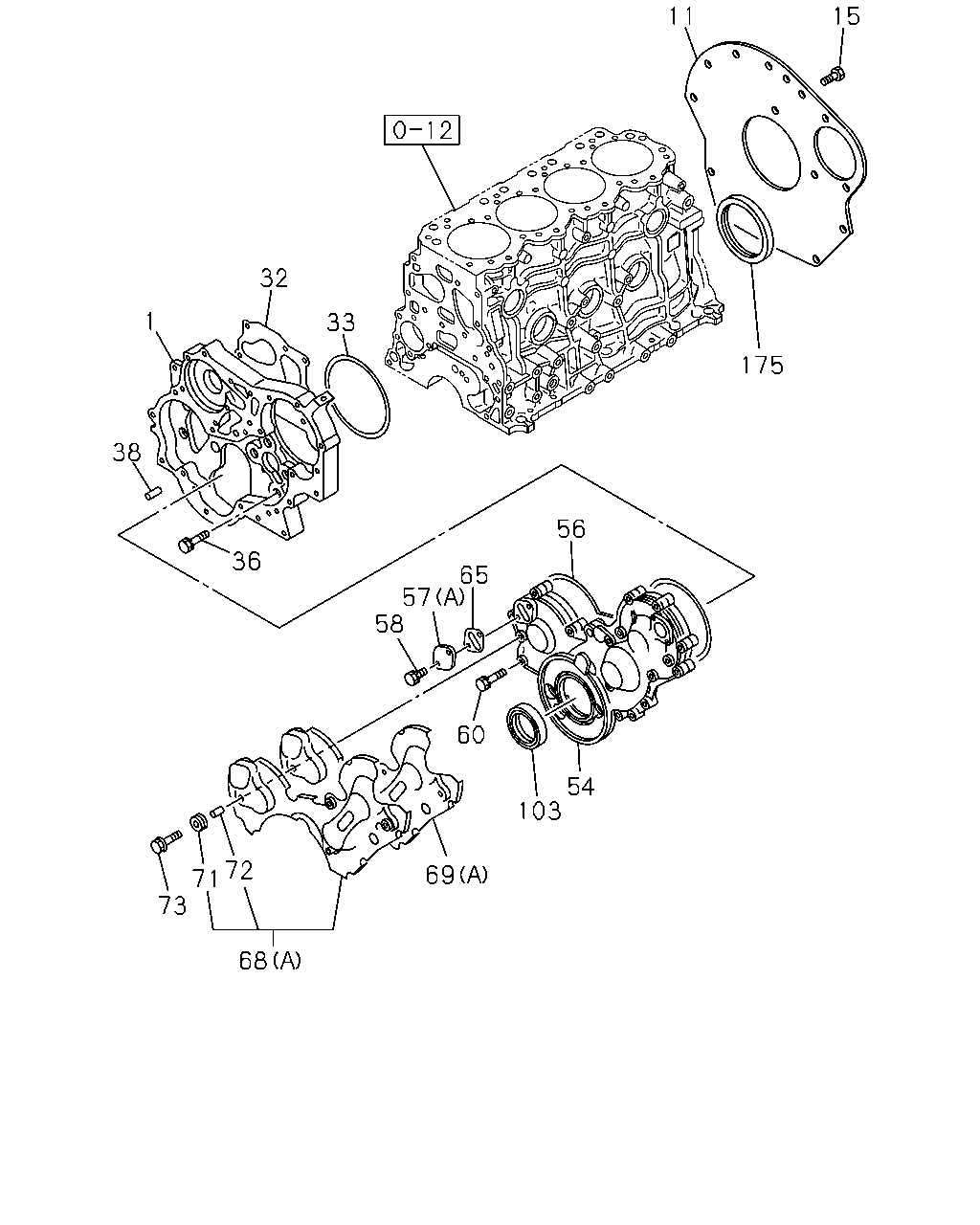

15 11 32 1 33 175 38 56 36 65 57 58 60 54 103 72 71 73 69 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	00.206 CASE; TIMING GEAR	8-97141-532-2	01	1	0505-	●
1	00.206 CASE; TIMING GEAR	8-97141-532-2	01	1	0211-0501	●
1	00.206 CASE; TIMING GEAR TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97219-001-4	01	1	0211-0501		●
1	00.206 CASE; TIMING GEAR	8-97219-001-4	01	1	0502-			●
1	00.206 CASE; TIMING GEAR TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97129-982-3	01	1	0211-0501		●
1	00.206 CASE; TIMING GEAR EXC. TURBOCHARGER<K51>	8-97129-982-3	01	1	0211-0501		●
1	00.206 CASE; TIMING GEAR	8-97129-982-3	01	1	0502-		●
1	00.206 CASE; TIMING GEAR	8-97239-983-2	01	1	0211-0501				●
1	00.206 CASE; TIMING GEAR	8-97239-983-2	01	1	0502-					●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	0211-0501	●	●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	0502-0504		●	●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	0505-	●	●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	0211-0501	●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	0502-0504		●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	0505-	●	●	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97129-427-0	01	1	0211-0501		●		●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97129-427-1	01	1	0502-		●	●		●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94109-707-0	01	1	0211-0501		●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94109-707-0	01	1	0502-		●	●
33	00.207 GASKET; BRKT TO CASE	8-97287-672-0	01	1	0211-0501				●
33	00.207 GASKET; BRKT TO CASE	8-97287-672-0	01	1	0502-					●
36	00.206 BOLT; GEAR CASE POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0211-0501		●
36	00.206 BOLT; GEAR CASE 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0211-0501				●
36	00.206 BOLT; GEAR CASE EXC. POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0502-0503		●	●
36	00.206 BOLT; GEAR CASE EXC. POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0211-0501		●
36	00.206 BOLT; GEAR CASE POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0502-0503		●	●		●
36	00.206 BOLT; GEAR CASE 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0504-0909		●	●		●
36	00.206 BOLT; GEAR CASE 03.704 M8X45 W/LK WASHER	0-50540-845-0	02	1	0910-		●	●		●
36	00.206 BOLT; GEAR CASE 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	0211-0501		●		●
36	00.206 BOLT; GEAR CASE 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	0502-0909		●	●		●
36	00.206 BOLT; GEAR CASE M8X20 W/LK WASHER	0-50540-820-0	06	1	0910-		●	●		●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0211-0501		●		●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0502-		●	●		●
54	00.206 COVER; GEAR CASE	8-97231-214-1	01	1	0211-0501		●
54	00.206 COVER; GEAR CASE	8-97231-214-1	01	1	0502-		●	●
54	00.206 COVER; GEAR CASE	8-97239-984-4	01	1	0211-0501				●
54	00.206 COVER; GEAR CASE	8-97239-984-4	01	1	0502-					●
56	00.207 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97287-694-0	01	1	0211-0501		●		●
56	00.207 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97287-694-0	01	1	0502-		●	●		●
57	00.206 COVER; TIMING CHECK HOLE (B)	5-11321-009-0	02	1	0211-0501		●		●
57	00.206 COVER; TIMING CHECK HOLE (B)	5-11321-009-0	02	1	0502-		●	●		●
57	00.206 COVER; TIMING CHECK HOLE (A)	8-97304-608-1	01	1	0211-0501				●
57	00.206 COVER; TIMING CHECK HOLE (A)	8-97304-608-1	01	1	0502-					●
58	00.206 BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	04	1	0211-0403		●
58	00.206 BOLT; CHECK HOLE COVER 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0404-0501		●
58	00.206 BOLT; CHECK HOLE COVER 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0502-0512		●	●
58	00.206 BOLT; CHECK HOLE COVER 03.162 M6X12 FLANGE	0-28050-612-0	04	1	0601-		●	●
58	00.206 BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	06	1	0211-0403				●
58	00.206 BOLT; CHECK HOLE COVER 01.428 M6X12 FLANGE	0-28080-612-0	06	1	0404-0501				●
58	00.206 BOLT; CHECK HOLE COVER 01.428 M6X12 FLANGE	0-28080-612-0	06	1	0502-0512					●
58	00.206 BOLT; CHECK HOLE COVER 03.162 M6X12 FLANGE	0-28050-612-0	06	1	0601-					●
60	00.206 BOLT; COVER TO CASE 03.275 M8X30 FLANGE	0-28080-830-0	08	1	0211-0501		●
60	00.206 BOLT; COVER TO CASE 03.275 M8X30 FLANGE	0-28080-830-0	08	1	0502-0512		●	●
60	00.206 BOLT; COVER TO CASE M8X30 FLANGE	0-28050-830-0	08	1	0601-		●	●
60	00.206 BOLT; COVER TO CASE 01.840 M8X70 W/LK WASHER	0-50040-870-0	06	1	0211-0501		●
60	00.206 BOLT; COVER TO CASE 01.840 M8X70 W/LK WASHER	0-50040-870-0	06	1	0502-0512		●	●
60	00.206 BOLT; COVER TO CASE M8X70 W/LK WASHER	0-50540-870-0	06	1	0601-		●	●
60	00.206 BOLT; COVER TO CASE M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0211-0501		●
60	00.206 BOLT; COVER TO CASE M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0502-0512		●	●
60	00.206 BOLT; COVER TO CASE M12X55 HEX SOCKET	0-58331-255-0	01	1	0601-		●	●
60	00.206 BOLT; COVER TO CASE 01.252 M8X58 FLANGE	8-94130-055-1	01	1	0211-0501		●
60	00.206 BOLT; COVER TO CASE 01.252 M8X58 FLANGE	8-94130-055-1	01	1	0502-		●	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97118-698-1	02	1	0211-0501		●
65	00.207 GASKET; COVER,TIMING CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97118-698-1	02	1	0502-		●	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97027-601-1	03	1	0211-0311				●
65	00.207 GASKET; COVER,TIMING CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97118-698-1	03	1	0312-0501				●
65	00.207 GASKET; COVER,TIMING CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97118-698-1	03	1	0502-					●
68	00.206 COVER ASM; GEAR CASE COVER (A)	8-94155-721-1	01	1	0211-0501		●
68	00.206 COVER ASM; GEAR CASE COVER (A)	8-94155-721-1	01	1	0502-		●	●
68	00.206 COVER ASM; GEAR CASE COVER (B)	8-97255-034-1	01	1	0211-0501				●
68	00.206 COVER ASM; GEAR CASE COVER (B)	8-97255-034-1	01	1	0502-					●
68	00.206 COVER ASM; GEAR CASE COVER (C)	8-97358-022-0	01	1	0211-0501				●
68	00.206 COVER ASM; GEAR CASE COVER (C)	8-97358-022-0	01	1	0502-					●
69	00.206 SEAL; RUBBER,COVER TO COVER (A)	8-94155-722-3	01	1	0211-0501		●
69	00.206 SEAL; RUBBER,COVER TO COVER (A)	8-94155-722-3	01	1	0502-		●	●
69	00.206 SEAL; RUBBER,COVER TO COVER (B)	8-97255-035-1	01	1	0211-0302				●
69	00.206 SEAL; RUBBER,COVER TO COVER (B)	8-97329-009-0	01	1	0303-0501				●
69	00.206 SEAL; RUBBER,COVER TO COVER (B)	8-97329-009-1	01	1	0502-					●
69	00.206 SEAL; RUBBER,COVER TO COVER (C)	8-97239-992-0	01	1	0211-0211				●
69	00.206 SEAL; RUBBER,COVER TO COVER (C)	8-97358-025-0	01	1	0212-0302				●
69	00.206 SEAL; RUBBER,COVER TO COVER (C)	8-97329-011-0	01	1	0303-0501				●
69	00.206 SEAL; RUBBER,COVER TO COVER (C)	8-97329-011-1	01	1	0502-					●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	04	1	0211-0501		●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	04	1	0502-		●	●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	05	1	0211-0501				●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	05	1	0502-					●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	04	1	0211-0501		●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	04	1	0502-		●	●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	05	1	0211-0501				●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	05	1	0502-					●
73	00.206 BOLT; COVER FIX 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	04	1	0211-0403		●
73	00.206 BOLT; COVER FIX 00.738 M6X16 FLANGE	0-28080-616-0	04	1	0404-0501		●
73	00.206 BOLT; COVER FIX 00.738 M6X16 FLANGE	0-28080-616-0	04	1	0502-0512		●	●
73	00.206 BOLT; COVER FIX 09.242 M6X16 FLANGE	0-28050-616-0	04	1	0601-		●	●
73	00.206 BOLT; COVER FIX 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	05	1	0211-0403				●
73	00.206 BOLT; COVER FIX 00.738 M6X16 FLANGE	0-28080-616-0	05	1	0404-0501				●
73	00.206 BOLT; COVER FIX 00.738 M6X16 FLANGE	0-28080-616-0	05	1	0502-0512					●
73	00.206 BOLT; COVER FIX 09.242 M6X16 FLANGE	0-28050-616-0	05	1	0601-					●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97071-560-1	01	1	0505-	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97071-560-1	01	1	0211-0501	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97351-704-0	01	1	0211-0501		●		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97351-704-0	01	1	0502-		●	●		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) . ID=109 OD=137	8-97329-780-0	01	1	0211-0501						●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) . ID=109 OD=137	8-97329-780-0	01	1	0502-1004							●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) . ID=109 OD=137	8-97329-780-0	01	1	1005-							●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=95 OD=118	8-97071-561-1	01	1	0211-0501	●	●		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=95 OD=118	8-97071-561-1	01	1	0502-0504		●	●		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=95 OD=118	8-97071-561-1	01	1	0505-	●	●	●		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=104 OD=139	8-97602-379-0	01	1	0211-0501						●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=104 OD=139	8-97602-379-0	01	1	0502-1004							●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=104 OD=139	8-97602-379-0	01	1	1005-							●	●

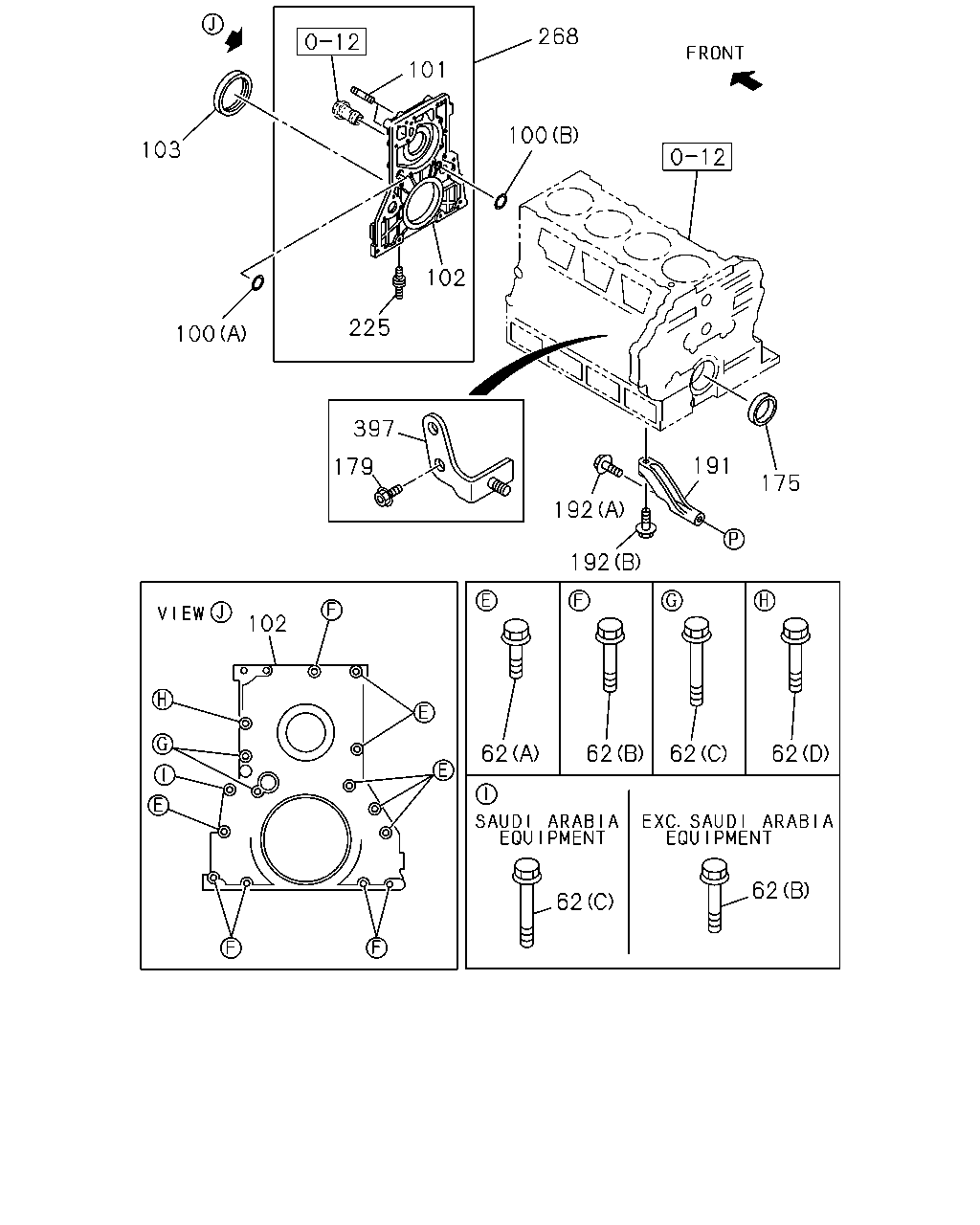

268 101 100 103 102 225 100 397 191 179 175 192 192 102 62 62 62 62 62 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
62	00.206 BOLT; COVER EXC. SAUDI ARABIA EQUIPMENT(EU2) 01.060 (B) M8X35 FLANGE	0-28650-835-0	06	1	0709-0807							●
62	00.206 BOLT; COVER EXC. SAUDI ARABIA EQUIPMENT(EU2) 01.097 (C) M8X65 FLANGE	1-09044-072-1	02	1	0709-0807							●
62	00.206 BOLT; COVER 02.559 (A) M8X25 FLANGE	0-28680-825-0	06	1	0211-0501						●
62	00.206 BOLT; COVER 02.559 (A) M8X25 FLANGE	0-28680-825-0	06	1	0502-0512							●
62	00.206 BOLT; COVER 06.216 (A) M8X25 FLANGE	0-28650-825-0	06	1	0601-1004							●
62	00.206 BOLT; COVER 06.216 (A) M8X25 FLANGE	0-28650-825-0	06	1	1005-							●	●
62	00.206 BOLT; COVER 02.183 (B) M8X35 FLANGE	0-28680-835-0	05	1	0211-0501						●
62	00.206 BOLT; COVER 02.183 (B) M8X35 FLANGE	0-28680-835-0	05	1	0502-0512							●
62	00.206 BOLT; COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	05	1	0601-0706							●
62	00.206 BOLT; COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	06	1	0707-0708							●
62	00.206 BOLT; COVER SAUDI ARABIA EQUIPMENT(EU2) 01.060 (B) M8X35 FLANGE	0-28650-835-0	05	1	0709-0807							●
62	00.206 BOLT; COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	06	1	0808-1004							●
62	00.206 BOLT; COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	06	1	1005-							●	●
62	00.206 BOLT; COVER 01.097 (C) M8X65 FLANGE	1-09044-072-1	03	1	0211-0501						●
62	00.206 BOLT; COVER 01.097 (C) M8X65 FLANGE	1-09044-072-1	03	1	0502-0706							●
62	00.206 BOLT; COVER 01.097 (C) M8X65 FLANGE	1-09044-072-1	02	1	0707-0708							●
62	00.206 BOLT; COVER SAUDI ARABIA EQUIPMENT(EU2) 01.097 (C) M8X65 FLANGE	1-09044-072-1	03	1	0709-0807							●
62	00.206 BOLT; COVER 01.097 (C) M8X65 FLANGE	1-09044-072-1	02	1	0808-1004							●
62	00.206 BOLT; COVER 01.097 (C) M8X65 FLANGE	1-09044-072-1	02	1	1005-							●	●
62	00.206 BOLT; COVER 04.686 (D) M8X30 FLANGE	0-28680-830-0	01	1	0306-0501						●
62	00.206 BOLT; COVER 04.686 (D) M8X30 FLANGE	0-28680-830-0	01	1	0502-0512							●
62	00.206 BOLT; COVER 03.403 (D) M8X30 FLANGE	0-28650-830-0	01	1	0601-1004							●
62	00.206 BOLT; COVER 03.403 (D) M8X30 FLANGE	0-28650-830-0	01	1	1005-							●	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.206 (A) ID=35.1	8-97028-748-1	01	1	0211-0501						●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.206 (A) ID=35.1	8-97028-748-1	01	1	0502-1004							●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.206 (A) ID=35.1	8-97028-748-1	01	1	1005-							●	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE) . 04.439 (B) ID=17.8	9-09561-318-0	01	1	0211-0501						●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE) . 04.439 (B) ID=17.8	9-09561-318-0	01	1	0502-1004							●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE) . 04.439 (B) ID=17.8	9-09561-318-0	01	1	1005-							●	●
101	01.073 STUD; WATER PUMP 00.206 LOWER M8X18 L=29	8-97028-541-0	01	1	0211-0501						●
101	01.073 STUD; WATER PUMP 00.206 LOWER M8X18 L=29	8-97028-541-0	01	1	0502-1004							●
101	01.073 STUD; WATER PUMP 00.206 LOWER M8X18 L=29	8-97028-541-0	01	1	1005-							●	●
101	01.073 STUD; WATER PUMP 01.428 UPPER M8X18 L=30	9-04110-818-0	01	1	0211-0501						●
101	01.073 STUD; WATER PUMP 01.428 UPPER M8X18 L=30	9-04110-818-0	01	1	0502-0604							●
101	01.073 STUD; WATER PUMP 01.428 UPPER M8X18 L=30	0-41010-818-0	01	1	0605-1004							●
101	01.073 STUD; WATER PUMP 01.428 UPPER M8X18 L=30	0-41010-818-0	01	1	1005-							●	●
102	00.137 RETAINER; FRT SAUDI ARABIA EQUIPMENT(EU2)	8-97212-677-0	01	1	0211-0501						●
102	00.137 RETAINER; FRT SAUDI ARABIA EQUIPMENT(EU2)	8-97212-677-0	01	1	0502-0807							●
102	00.137 RETAINER; FRT SAUDI ARABIA EQUIPMENT(EU2)	8-98081-351-1	01	1	0808-0811							●
102	00.137 RETAINER; FRT ANTI EROSION SPEC<7XK> EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-98081-351-1	01	1	0812-							●
102	00.137 RETAINER; FRT SAUDI ARABIA EQUIPMENT(EU2)	8-98081-351-1	01	1	0812-							●
102	00.137 RETAINER; FRT EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97094-943-3	01	1	0211-0501						●
102	00.137 RETAINER; FRT EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97094-943-3	01	1	0502-0706							●
102	00.137 RETAINER; FRT EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-98039-932-1	01	1	0707-0811							●
102	00.137 RETAINER; FRT EXC. SAUDI ARABIA EQUIPMENT(EU2), ANTI EROSION SPEC<7XK>	8-98039-932-1	01	1	0812-1004							●
102	00.137 RETAINER; FRT EXC. SAUDI ARABIA EQUIPMENT(EU2), ANTI EROSION SPEC<7XK>	8-98039-932-2	01	1	1005-							●
102	00.137 RETAINER; FRT	8-98039-932-2	01	1	1005-								●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97071-560-1	01	1	0505-	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97071-560-1	01	1	0211-0501	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97351-704-0	01	1	0211-0501		●		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97351-704-0	01	1	0502-		●	●		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) . ID=109 OD=137	8-97329-780-0	01	1	0211-0501						●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) . ID=109 OD=137	8-97329-780-0	01	1	0502-1004							●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) . ID=109 OD=137	8-97329-780-0	01	1	1005-							●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=95 OD=118	8-97071-561-1	01	1	0211-0501	●	●		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=95 OD=118	8-97071-561-1	01	1	0502-0504		●	●		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=95 OD=118	8-97071-561-1	01	1	0505-	●	●	●		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=104 OD=139	8-97602-379-0	01	1	0211-0501						●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=104 OD=139	8-97602-379-0	01	1	0502-1004							●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=104 OD=139	8-97602-379-0	01	1	1005-							●	●
179	00.206 BOLT; BRKT ENGINE POWER N-SPEC(7QV) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0211-0501						●
179	00.206 BOLT; BRKT 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0502-0512							●
179	00.206 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-							●
191	00.669 STAY; FLYWHEEL HSG	8-97167-292-0	01	1	1005-1404								●
192	00.206 BOLT; STAY TO HSG 02.510 (A) M12X100 FLANGE	0-28151-200-0	01	1	1005-1404								●
192	00.206 BOLT; STAY TO HSG 00.685 (B) M12X50 FLANGE	0-28151-250-0	01	1	1005-1404								●
225	01.428 STUD; OIL PAN M8X16,M8X19 L=39 W/PL WASHER, RUBBERTUBE	8-97190-392-0	03	1	0211-0501						●
225	01.428 STUD; OIL PAN M8X16,M8X19 L=39 W/PL WASHER, RUBBERTUBE	8-97190-392-0	03	1	0502-1004							●
225	01.428 STUD; OIL PAN M8X16,M8X19 L=39 W/PL WASHER, RUBBERTUBE	8-97190-392-0	03	1	1005-							●	●
268	00.206 COVER; FRT SAUDI ARABIA EQUIPMENT(EU2)	8-97305-076-0	01	1	0211-0501						●
268	00.206 COVER; FRT SAUDI ARABIA EQUIPMENT(EU2)	8-97305-076-1	01	1	0502-0807							●
268	00.206 COVER; FRT SAUDI ARABIA EQUIPMENT(EU2)	8-98079-080-1	01	1	0808-0811							●
268	00.206 COVER; FRT ANTI EROSION SPEC<7XK> EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-98079-080-1	01	1	0812-							●
268	00.206 COVER; FRT SAUDI ARABIA EQUIPMENT(EU2)	8-98079-080-1	01	1	0812-							●
268	00.206 COVER; FRT EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97259-416-0	01	1	0211-0501						●
268	00.206 COVER; FRT EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97259-416-0	01	1	0502-0706							●
268	00.206 COVER; FRT EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-98039-931-1	01	1	0707-0811							●
268	00.206 COVER; FRT EXC. SAUDI ARABIA EQUIPMENT(EU2), ANTI EROSION SPEC<7XK>	8-98039-931-1	01	1	0812-1004							●
268	00.206 COVER; FRT EXC. SAUDI ARABIA EQUIPMENT(EU2), ANTI EROSION SPEC<7XK>	8-98039-931-2	01	1	1005-							●
268	00.206 COVER; FRT	8-98039-931-2	01	1	1005-								●
397	00.206 BRACKET; CONNECTOR ENGINE POWER N-SPEC(7QV)	8-97163-042-0	01	1	0211-0501						●
397	00.206 BRACKET; CONNECTOR	8-97163-042-0	01	1	0502-							●

2 211 2 205 211 32 36 36 175 124 124 65 57 33 58 38 124 56 1 69 69 54 124 124 103 65 57 72 71 58 68 73 72 71 58 68 73 65 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	00.206 CASE; TIMING GEAR	8-97141-532-2	01	1	0505-	●
1	00.206 CASE; TIMING GEAR	8-97141-532-2	01	1	0211-0501	●
1	00.206 CASE; TIMING GEAR TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97219-001-4	01	1	0211-0501		●
1	00.206 CASE; TIMING GEAR	8-97219-001-4	01	1	0502-			●
1	00.206 CASE; TIMING GEAR TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97129-982-3	01	1	0211-0501		●
1	00.206 CASE; TIMING GEAR EXC. TURBOCHARGER<K51>	8-97129-982-3	01	1	0211-0501		●
1	00.206 CASE; TIMING GEAR	8-97129-982-3	01	1	0502-		●
1	00.206 CASE; TIMING GEAR	8-97239-983-2	01	1	0211-0501				●
1	00.206 CASE; TIMING GEAR	8-97239-983-2	01	1	0502-					●
2	00.683 HOUSING; FLYWHEEL	8-97241-584-0	01	1	0211-0308						●
2	00.683 HOUSING; FLYWHEEL	8-97364-899-2	01	1	0309-0501						●
2	00.683 HOUSING; FLYWHEEL	8-97364-899-4	01	1	0502-1004							●
2	00.683 HOUSING; FLYWHEEL	8-97364-899-6	01	1	1005-							●	●
2	00.683 HOUSING; FLYWHEEL	8-97240-094-1	01	1	0211-0501				●
2	00.683 HOUSING; FLYWHEEL	8-97240-094-1	01	1	0502-					●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97129-427-0	01	1	0211-0501		●		●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97129-427-1	01	1	0502-		●	●		●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94109-707-0	01	1	0211-0501		●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94109-707-0	01	1	0502-		●	●
33	00.207 GASKET; BRKT TO CASE	8-97287-672-0	01	1	0211-0501				●
33	00.207 GASKET; BRKT TO CASE	8-97287-672-0	01	1	0502-					●
36	00.206 BOLT; GEAR CASE POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0211-0501		●
36	00.206 BOLT; GEAR CASE 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0211-0501				●
36	00.206 BOLT; GEAR CASE EXC. POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0502-0503		●	●
36	00.206 BOLT; GEAR CASE EXC. POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0211-0501		●
36	00.206 BOLT; GEAR CASE POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0502-0503		●	●		●
36	00.206 BOLT; GEAR CASE 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0504-0909		●	●		●
36	00.206 BOLT; GEAR CASE 03.704 M8X45 W/LK WASHER	0-50540-845-0	02	1	0910-		●	●		●
36	00.206 BOLT; GEAR CASE 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	0211-0501		●		●
36	00.206 BOLT; GEAR CASE 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	0502-0909		●	●		●
36	00.206 BOLT; GEAR CASE M8X20 W/LK WASHER	0-50540-820-0	06	1	0910-		●	●		●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0211-0501		●		●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0502-		●	●		●
54	00.206 COVER; GEAR CASE	8-97231-214-1	01	1	0211-0501		●
54	00.206 COVER; GEAR CASE	8-97231-214-1	01	1	0502-		●	●
54	00.206 COVER; GEAR CASE	8-97239-984-4	01	1	0211-0501				●
54	00.206 COVER; GEAR CASE	8-97239-984-4	01	1	0502-					●
56	00.207 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97287-694-0	01	1	0211-0501		●		●
56	00.207 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97287-694-0	01	1	0502-		●	●		●
57	00.206 COVER; TIMING CHECK HOLE (B)	5-11321-009-0	02	1	0211-0501		●		●
57	00.206 COVER; TIMING CHECK HOLE (B)	5-11321-009-0	02	1	0502-		●	●		●
57	00.206 COVER; TIMING CHECK HOLE (A)	8-97304-608-1	01	1	0211-0501				●
57	00.206 COVER; TIMING CHECK HOLE (A)	8-97304-608-1	01	1	0502-					●
58	00.206 BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	04	1	0211-0403		●
58	00.206 BOLT; CHECK HOLE COVER 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0404-0501		●
58	00.206 BOLT; CHECK HOLE COVER 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0502-0512		●	●
58	00.206 BOLT; CHECK HOLE COVER 03.162 M6X12 FLANGE	0-28050-612-0	04	1	0601-		●	●
58	00.206 BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	06	1	0211-0403				●
58	00.206 BOLT; CHECK HOLE COVER 01.428 M6X12 FLANGE	0-28080-612-0	06	1	0404-0501				●
58	00.206 BOLT; CHECK HOLE COVER 01.428 M6X12 FLANGE	0-28080-612-0	06	1	0502-0512					●
58	00.206 BOLT; CHECK HOLE COVER 03.162 M6X12 FLANGE	0-28050-612-0	06	1	0601-					●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97118-698-1	02	1	0211-0501		●
65	00.207 GASKET; COVER,TIMING CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97118-698-1	02	1	0502-		●	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97027-601-1	03	1	0211-0311				●
65	00.207 GASKET; COVER,TIMING CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97118-698-1	03	1	0312-0501				●
65	00.207 GASKET; COVER,TIMING CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97118-698-1	03	1	0502-					●
68	00.206 COVER ASM; GEAR CASE COVER (A)	8-94155-721-1	01	1	0211-0501		●
68	00.206 COVER ASM; GEAR CASE COVER (A)	8-94155-721-1	01	1	0502-		●	●
68	00.206 COVER ASM; GEAR CASE COVER (B)	8-97255-034-1	01	1	0211-0501				●
68	00.206 COVER ASM; GEAR CASE COVER (B)	8-97255-034-1	01	1	0502-					●
68	00.206 COVER ASM; GEAR CASE COVER (C)	8-97358-022-0	01	1	0211-0501				●
68	00.206 COVER ASM; GEAR CASE COVER (C)	8-97358-022-0	01	1	0502-					●
69	00.206 SEAL; RUBBER,COVER TO COVER (A)	8-94155-722-3	01	1	0211-0501		●
69	00.206 SEAL; RUBBER,COVER TO COVER (A)	8-94155-722-3	01	1	0502-		●	●
69	00.206 SEAL; RUBBER,COVER TO COVER (B)	8-97255-035-1	01	1	0211-0302				●
69	00.206 SEAL; RUBBER,COVER TO COVER (B)	8-97329-009-0	01	1	0303-0501				●
69	00.206 SEAL; RUBBER,COVER TO COVER (B)	8-97329-009-1	01	1	0502-					●
69	00.206 SEAL; RUBBER,COVER TO COVER (C)	8-97239-992-0	01	1	0211-0211				●
69	00.206 SEAL; RUBBER,COVER TO COVER (C)	8-97358-025-0	01	1	0212-0302				●
69	00.206 SEAL; RUBBER,COVER TO COVER (C)	8-97329-011-0	01	1	0303-0501				●
69	00.206 SEAL; RUBBER,COVER TO COVER (C)	8-97329-011-1	01	1	0502-					●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	04	1	0211-0501		●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	04	1	0502-		●	●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	05	1	0211-0501				●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	05	1	0502-					●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	04	1	0211-0501		●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	04	1	0502-		●	●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	05	1	0211-0501				●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	05	1	0502-					●
73	00.206 BOLT; COVER FIX 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	04	1	0211-0403		●
73	00.206 BOLT; COVER FIX 00.738 M6X16 FLANGE	0-28080-616-0	04	1	0404-0501		●
73	00.206 BOLT; COVER FIX 00.738 M6X16 FLANGE	0-28080-616-0	04	1	0502-0512		●	●
73	00.206 BOLT; COVER FIX 09.242 M6X16 FLANGE	0-28050-616-0	04	1	0601-		●	●
73	00.206 BOLT; COVER FIX 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	05	1	0211-0403				●
73	00.206 BOLT; COVER FIX 00.738 M6X16 FLANGE	0-28080-616-0	05	1	0404-0501				●
73	00.206 BOLT; COVER FIX 00.738 M6X16 FLANGE	0-28080-616-0	05	1	0502-0512					●
73	00.206 BOLT; COVER FIX 09.242 M6X16 FLANGE	0-28050-616-0	05	1	0601-					●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97071-560-1	01	1	0505-	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97071-560-1	01	1	0211-0501	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97351-704-0	01	1	0211-0501		●		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97351-704-0	01	1	0502-		●	●		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) . ID=109 OD=137	8-97329-780-0	01	1	0211-0501						●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) . ID=109 OD=137	8-97329-780-0	01	1	0502-1004							●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) . ID=109 OD=137	8-97329-780-0	01	1	1005-							●	●
124	00.206 BOLT; TIMING COVER 03.275 (A) M8X30 FLANGE	0-28080-830-0	08	1	0211-0501				●
124	00.206 BOLT; TIMING COVER 03.275 (A) M8X30 FLANGE	0-28080-830-0	08	1	0502-0512					●
124	00.206 BOLT; TIMING COVER (A) M8X30 FLANGE	0-28050-830-0	08	1	0601-					●
124	00.206 BOLT; TIMING COVER 01.840 (B) M8X70 W/LK WASHER	0-50040-870-0	06	1	0211-0501				●
124	00.206 BOLT; TIMING COVER 01.840 (B) M8X70 W/LK WASHER	0-50040-870-0	06	1	0502-0512					●
124	00.206 BOLT; TIMING COVER (B) M8X70 W/LK WASHER	0-50540-870-0	06	1	0601-					●
124	00.206 BOLT; TIMING COVER (C) M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0211-0501				●
124	00.206 BOLT; TIMING COVER (C) M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0502-0512					●
124	00.206 BOLT; TIMING COVER (C) M12X55 HEX SOCKET	0-58331-255-0	01	1	0601-					●
124	00.206 BOLT; TIMING COVER 01.252 (D) M8X58 FLANGE	8-94130-055-1	01	1	0211-0501				●
124	00.206 BOLT; TIMING COVER 01.252 (D) M8X58 FLANGE	8-94130-055-1	01	1	0502-					●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=95 OD=118	8-97071-561-1	01	1	0211-0501	●	●		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=95 OD=118	8-97071-561-1	01	1	0502-0504		●	●		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=95 OD=118	8-97071-561-1	01	1	0505-	●	●	●		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=104 OD=139	8-97602-379-0	01	1	0211-0501						●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=104 OD=139	8-97602-379-0	01	1	0502-1004							●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=104 OD=139	8-97602-379-0	01	1	1005-							●	●
205	00.669 NUT; HSG 08.917 M10 FLANGE	0-91150-210-0	01	1	0211-0501				●
205	00.669 NUT; HSG 08.917 M10 FLANGE	0-91150-210-0	01	1	0502-0602					●
205	00.669 NUT; HSG 04.085 M10 FLANGE	0-91180-210-0	01	1	0603-					●
211	00.669 BOLT; HSG (C) M8X20,M8X65 L=90	8-97200-622-1	02	1	1005-								●
211	00.669 BOLT; HSG (F) M10X40 FLANGE	0-28781-040-0	01	1	0211-0501						●
211	00.669 BOLT; HSG (F) M10X40 FLANGE	0-28781-040-0	01	1	0502-0512							●
211	00.669 BOLT; HSG 00.029 (F) M10X40 FLANGE	0-28751-040-0	01	1	0601-1004							●
211	00.669 BOLT; HSG 00.029 (F) M10X40 FLANGE	0-28751-040-0	01	1	1005-							●	●
211	00.669 BOLT; HSG (D) M8X65 W/PL WASHER	8-94388-781-0	02	1	0211-0501						●
211	00.669 BOLT; HSG (D) M8X65 W/PL WASHER	8-94388-781-0	02	1	0502-							●
211	00.669 BOLT; HSG (E) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	0211-0501						●
211	00.669 BOLT; HSG (E) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	0502-1004							●
211	00.669 BOLT; HSG (E) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	1005-1102							●	●
211	00.669 BOLT; HSG (E) M12X70 FLANGE, W/PL WASHER	8-98179-087-1	09	1	1103-							●	●
211	00.669 BOLT; HSG (C) M12X30 FLANGE	8-97135-419-0	01	1	0211-0501						●
211	00.669 BOLT; HSG (C) M12X30 FLANGE	8-97135-419-0	01	1	0502-1004							●
211	00.669 BOLT; HSG (C) M12X30 FLANGE	8-97135-419-0	01	1	1005-							●	●
211	00.669 BOLT; HSG EXC. POWER STEERING<N40> (E) M14X35 FLANGE	0-28791-435-0	01	1	0211-0501						●
211	00.669 BOLT; HSG EXC. POWER STEERING<N40> (E) M14X35 FLANGE	0-28791-435-0	01	1	0502-0512							●
211	00.669 BOLT; HSG EXC. POWER STEERING<N40> (E) M14X35 FLANGE	0-28761-435-0	01	1	0601-							●
211	00.669 BOLT; HSG 00.685 (A) M10X30 FLANGE	0-28081-030-0	03	1	0211-0501				●
211	00.669 BOLT; HSG 00.685 (A) M10X30 FLANGE	0-28081-030-0	03	1	0502-0512					●
211	00.669 BOLT; HSG 03.890 (A) M10X30 FLANGE	0-28051-030-0	03	1	0601-					●
211	00.669 BOLT; HSG 00.683 (B) M12X25	5-09000-227-0	03	1	0211-0501				●
211	00.669 BOLT; HSG 00.683 (B) M12X25	5-09000-227-0	03	1	0502-					●

480 63 356 211 465 467 464 2 573 236 237 2 211 211 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	D	E	F	G	H
2	00.683 HOUSING; FLYWHEEL	8-97241-584-0	01	1	0211-0308			●
2	00.683 HOUSING; FLYWHEEL	8-97364-899-2	01	1	0309-0501			●
2	00.683 HOUSING; FLYWHEEL	8-97364-899-4	01	1	0502-1004				●
2	00.683 HOUSING; FLYWHEEL	8-97364-899-6	01	1	1005-				●	●
2	00.683 HOUSING; FLYWHEEL	8-97240-094-1	01	1	0211-0501	●
2	00.683 HOUSING; FLYWHEEL	8-97240-094-1	01	1	0502-		●
63	00.206 COVER; P/S EXC. POWER STEERING<N40>	8-97126-392-0	01	1	0211-0501			●
63	00.206 COVER; P/S EXC. POWER STEERING<N40>	8-97126-392-0	01	1	0502-				●
211	00.669 BOLT; HSG (C) M8X20,M8X65 L=90	8-97200-622-1	02	1	1005-					●
211	00.669 BOLT; HSG (F) M10X40 FLANGE	0-28781-040-0	01	1	0211-0501			●
211	00.669 BOLT; HSG (F) M10X40 FLANGE	0-28781-040-0	01	1	0502-0512				●
211	00.669 BOLT; HSG 00.029 (F) M10X40 FLANGE	0-28751-040-0	01	1	0601-1004				●
211	00.669 BOLT; HSG 00.029 (F) M10X40 FLANGE	0-28751-040-0	01	1	1005-				●	●
211	00.669 BOLT; HSG (D) M8X65 W/PL WASHER	8-94388-781-0	02	1	0211-0501			●
211	00.669 BOLT; HSG (D) M8X65 W/PL WASHER	8-94388-781-0	02	1	0502-				●
211	00.669 BOLT; HSG (E) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	0211-0501			●
211	00.669 BOLT; HSG (E) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	0502-1004				●
211	00.669 BOLT; HSG (E) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	1005-1102				●	●
211	00.669 BOLT; HSG (E) M12X70 FLANGE, W/PL WASHER	8-98179-087-1	09	1	1103-				●	●
211	00.669 BOLT; HSG (C) M12X30 FLANGE	8-97135-419-0	01	1	0211-0501			●
211	00.669 BOLT; HSG (C) M12X30 FLANGE	8-97135-419-0	01	1	0502-1004				●
211	00.669 BOLT; HSG (C) M12X30 FLANGE	8-97135-419-0	01	1	1005-				●	●
211	00.669 BOLT; HSG EXC. POWER STEERING<N40> (E) M14X35 FLANGE	0-28791-435-0	01	1	0211-0501			●
211	00.669 BOLT; HSG EXC. POWER STEERING<N40> (E) M14X35 FLANGE	0-28791-435-0	01	1	0502-0512				●
211	00.669 BOLT; HSG EXC. POWER STEERING<N40> (E) M14X35 FLANGE	0-28761-435-0	01	1	0601-				●
211	00.669 BOLT; HSG 00.685 (A) M10X30 FLANGE	0-28081-030-0	03	1	0211-0501	●
211	00.669 BOLT; HSG 00.685 (A) M10X30 FLANGE	0-28081-030-0	03	1	0502-0512		●
211	00.669 BOLT; HSG 03.890 (A) M10X30 FLANGE	0-28051-030-0	03	1	0601-		●
211	00.669 BOLT; HSG 00.683 (B) M12X25	5-09000-227-0	03	1	0211-0501	●
211	00.669 BOLT; HSG 00.683 (B) M12X25	5-09000-227-0	03	1	0502-		●
236	00.669 GASKET; FLYWHEEL HSG ENGINE POWER N-SPEC(7QV) 01.531 ID=10.2 OD=15.2	1-09630-083-0	01	1	0211-0501			●
236	00.669 GASKET; FLYWHEEL HSG 01.531 ID=10.2 OD=15.2	1-09630-083-0	01	1	0502-				●
237	00.686 PLUG; FLYWHEEL HSG ENGINE POWER N-SPEC(7QV) 04.640 M10X12 FLANGE	0-28081-012-0	01	1	0211-0501			●
237	00.686 PLUG; FLYWHEEL HSG 04.640 M10X12 FLANGE	0-28081-012-0	01	1	0502-0512				●
237	00.686 PLUG; FLYWHEEL HSG 06.225 M10X12 FLANGE	0-28051-012-0	01	1	0601-				●
356	00.207 GASKET; COVER EXC. POWER STEERING<N40> 06.673	8-97101-875-2	01	1	0211-0501			●
356	00.207 GASKET; COVER EXC. POWER STEERING<N40> 06.673	8-97101-875-2	01	1	0502-				●
464	00.686 PIPE; PCV,FLYWHEEL HSG 00.669	8-94373-246-3	01	1	0211-0501			●
464	00.686 PIPE; PCV,FLYWHEEL HSG 00.669	8-94373-246-3	01	1	0502-1004				●
464	00.686 PIPE; PCV,FLYWHEEL HSG 00.669	8-94373-246-3	01	1	1005-				●	●
465	00.686 PLATE; FLYWHEEL HSG 00.669	8-94370-384-3	01	1	0211-0308			●
465	00.686 PLATE; FLYWHEEL HSG	8-97363-824-1	01	1	0309-0501			●
465	00.686 PLATE; FLYWHEEL HSG	8-97363-824-1	01	1	0502-1004				●
465	00.686 PLATE; FLYWHEEL HSG	8-97363-824-1	01	1	1005-				●	●
467	00.686 BOLT; PLATE 02.500 M6X10 FLANGE	0-28080-610-0	06	1	0211-0501			●
467	00.686 BOLT; PLATE 02.500 M6X10 FLANGE	0-28080-610-0	06	1	0502-0507				●
467	00.686 BOLT; PLATE 05.815 M6X10	0-20800-610-0	06	1	0508-0805				●
467	00.686 BOLT; PLATE 06.321 M6X10	8-98030-649-0	06	1	0806-1004				●
467	00.686 BOLT; PLATE 06.321 M6X10	8-98030-649-0	06	1	1005-				●	●
480	00.206 BOLT; COVER EXC. POWER STEERING<N40> 00.685 M10X28 FLANGE	0-28181-028-0	02	1	0211-0501			●
480	00.206 BOLT; COVER EXC. POWER STEERING<N40> 00.685 M10X28 FLANGE	0-28181-028-0	02	1	0502-0805				●
480	00.206 BOLT; COVER EXC. POWER STEERING<N40> 04.439 M10X28 FLANGE	8-98044-944-0	02	1	0806-1010				●
480	00.206 BOLT; COVER EXC. POWER STEERING<N40> 00.780 M10X30 FLANGE	0-28751-030-0	02	1	1011-				●
573	00.206 CUP; SEALING 00.034 OD=19	8-94150-231-0	01	1	0211-0501			●
573	00.206 CUP; SEALING 00.034 OD=19	8-94150-231-0	01	1	0502-1004				●
573	00.206 CUP; SEALING 00.034 OD=19	8-94150-231-0	01	1	1005-				●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
