◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50943 - NKR55,66,69,71,77LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-15 - CRANKSHAFT,PISTON AND FLYWHEEL ▶
0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#50708) — 1038 parça

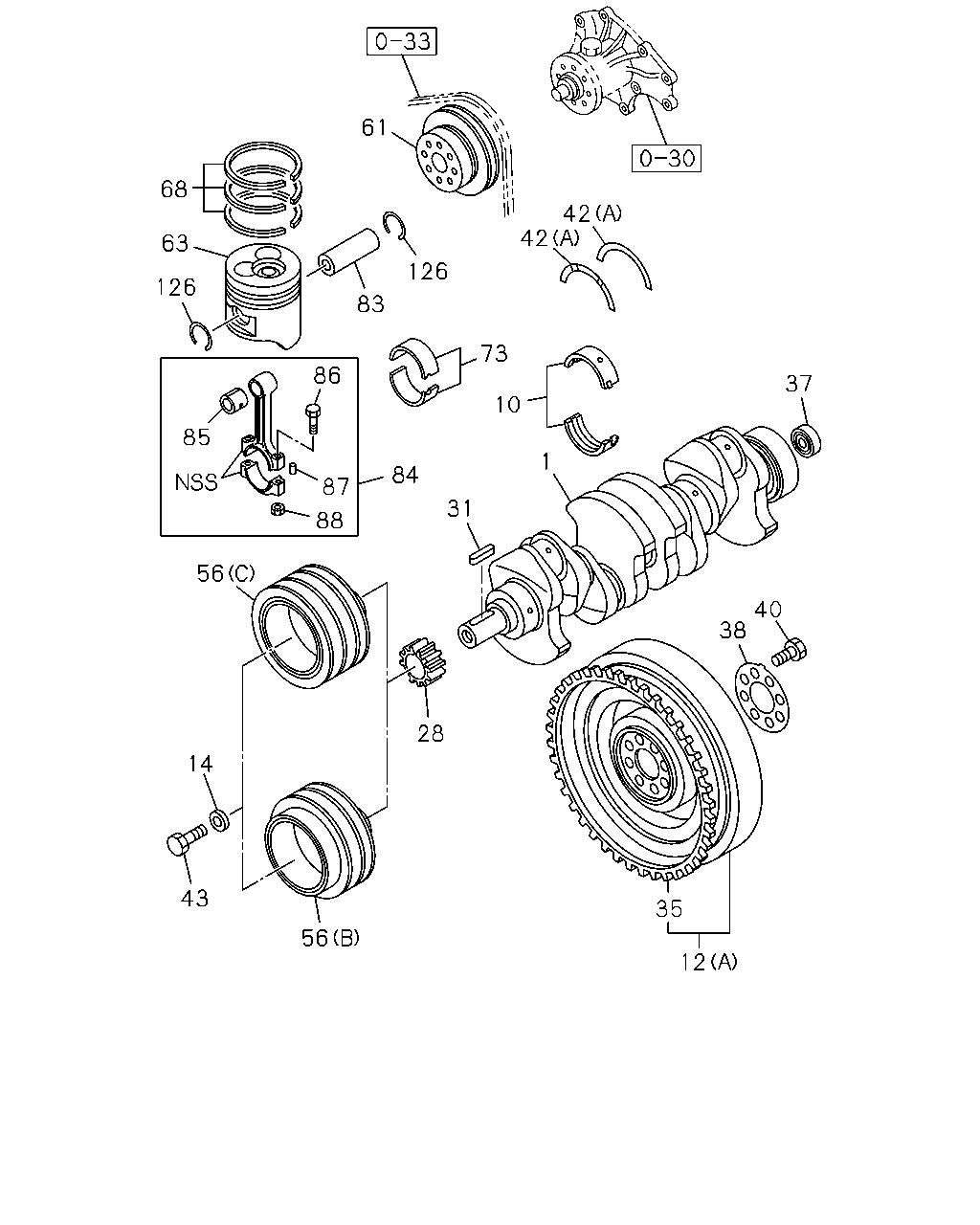

çizim 46966
37 42 42 61 126 83 68 63 126 86 87 85 88 84 31 73 10 1 56 28 56 43 14 38 40 35 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 00.646 CRANKSHAFT 8-97190-930-3 01 1 0505- ●
1 00.646 CRANKSHAFT 8-97190-930-1 01 1 0211-0501 ●
1 00.646 CRANKSHAFT
TURBOCHARGER<K51> 		8-97331-853-0 01 1 0211-0501 ●
1 00.646 CRANKSHAFT 8-97331-853-1 01 1 0502- ●
1 00.646 CRANKSHAFT
EXC. TURBOCHARGER<K51> 		8-97190-928-2 01 1 0211-0501 ●
1 00.646 CRANKSHAFT 8-97190-928-3 01 1 0502- ●
1 00.646 CRANKSHAFT 8-97112-981-3 01 1 0211-0501 ●
1 00.646 CRANKSHAFT 8-97112-981-3 01 1 0502-1004 ●
1 00.646 CRANKSHAFT 8-97112-981-3 01 1 1005- ● ●
1 00.646 CRANKSHAFT 8-97254-611-1 01 1 0211-0501 ●
1 00.646 CRANKSHAFT 8-97254-611-2 01 1 0502- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 1 		8-97202-878-0 05 1 0211-0411 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 1 		8-97387-964-0 05 1 0412-0501 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 1 		8-97387-964-0 05 1 0502-0504 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 1 		8-97387-964-0 05 1 0505- ● ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 2 		8-97202-879-0 05 1 0211-0411 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 2 		8-97387-965-0 05 1 0412-0501 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 2 		8-97387-965-0 05 1 0502-0504 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 2 		8-97387-965-0 05 1 0505- ● ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 3 		8-97202-880-0 05 1 0211-0411 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 3 		8-97387-966-0 05 1 0412-0501 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 3 		8-97387-966-0 05 1 0502-0504 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 3 		8-97387-966-0 05 1 0505- ● ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 4 		8-97202-881-0 05 1 0211-0411 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 4 		8-97387-967-0 05 1 0412-0501 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 4 		8-97387-967-0 05 1 0502-0504 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 4 		8-97387-967-0 05 1 0505- ● ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 5 		8-97202-882-0 05 1 0211-0411 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 5 		8-97387-968-0 05 1 0412-0501 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 5 		8-97387-968-0 05 1 0502-0504 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 5 		8-97387-968-0 05 1 0505- ● ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97219-456-0 05 1 0211-0303 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97372-076-0 05 1 0304-0501 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97372-076-1 05 1 0502-1004 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97372-076-1 05 1 1005- ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97219-457-0 05 1 0211-0303 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97372-077-0 05 1 0304-0501 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97372-077-1 05 1 0502-1004 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97372-077-1 05 1 1005- ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97219-458-0 05 1 0211-0303 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97372-078-0 05 1 0304-0501 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97372-078-1 05 1 0502-1004 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97372-078-1 05 1 1005- ● ●
12 00.666 FLYWHEEL
(A) 		8-97034-430-2 01 1 0211-0501 ●
12 00.666 FLYWHEEL
TURBOCHARGER<K51> (A) 		8-97034-430-2 01 1 0211-0501 ●
12 00.666 FLYWHEEL
(A) 		8-97034-430-2 01 1 0502-0504 ●
12 00.666 FLYWHEEL
(A) 		8-97034-430-2 01 1 0505- ● ●
12 00.666 FLYWHEEL
EXC. TURBOCHARGER<K51> (A) 		8-94125-761-4 01 1 0211-0501 ●
12 00.666 FLYWHEEL
(A) 		8-94125-761-4 01 1 0502- ●
12 00.666 FLYWHEEL
(C) 		8-97330-892-0 01 1 0211-0501 ●
12 00.666 FLYWHEEL
(C) 		8-97330-892-1 01 1 0502-1004 ●
12 00.666 FLYWHEEL
(C) 		8-97330-892-1 01 1 1005- ● ●
12 00.666 FLYWHEEL
(B) 		8-97333-111-1 01 1 0211-0501 ●
12 00.666 FLYWHEEL
(B) 		8-97333-111-1 01 1 0502-0911 ●
12 00.666 FLYWHEEL
(B) 		8-98148-091-0 01 1 0912- ●
14 00.662 WASHER; PULLEY DAMPER
ID=16.5 OD=45 T=12 		5-09503-127-0 01 1 0211-0501 ● ● ●
14 00.662 WASHER; PULLEY DAMPER
ID=16.5 OD=45 T=12 		5-09503-127-0 01 1 0502-0504 ● ● ●
14 00.662 WASHER; PULLEY DAMPER
ID=16.5 OD=45 T=12 		5-09503-127-1 01 1 0505- ● ● ● ●
28 00.728 GEAR; CR/SHF
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> Z=21 		8-97229-593-1 01 1 0211-0501 ●
28 00.728 GEAR; CR/SHF
Z=21 		8-97229-593-1 01 1 0502- ●
28 00.728 GEAR; CR/SHF
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> Z=21 		8-94139-754-0 01 1 0211-0501 ●
28 00.728 GEAR; CR/SHF
EXC. TURBOCHARGER<K51> Z=21 		8-94139-754-0 01 1 0211-0501 ●
28 00.728 GEAR; CR/SHF
Z=21 		8-94139-754-0 01 1 0502- ●
28 00.728 GEAR; CR/SHF
Z=42 		8-97109-626-1 01 1 0211-0501 ●
28 00.728 GEAR; CR/SHF
Z=42 		8-97109-626-1 01 1 0502-1004 ●
28 00.728 GEAR; CR/SHF
Z=42 		8-97109-626-1 01 1 1005- ● ●
28 00.728 GEAR; CR/SHF
Z=30 		8-97240-011-2 01 1 0211-0501 ●
28 00.728 GEAR; CR/SHF
Z=30 		8-97240-011-2 01 1 0502- ●
31 00.662 KEY; FEATHER,CR/SHF
00.729 		8-94201-641-0 01 1 0211-0501 ● ● ●
31 00.662 KEY; FEATHER,CR/SHF
00.729 		8-94201-641-0 01 1 0502-0504 ● ● ●
31 00.662 KEY; FEATHER,CR/SHF
00.729 		8-94201-641-0 01 1 0505- ● ● ● ●
35 00.673 GEAR; RING
Z=108 		8-94419-602-1 01 1 0211-0501 ● ●
35 00.673 GEAR; RING
Z=108 		8-94419-602-1 01 1 0502-0504 ● ●
35 00.673 GEAR; RING
Z=108 		8-94419-602-1 01 1 0505- ● ● ●
35 00.673 GEAR; RING
Z=138 		8-97046-366-0 01 1 0211-0501 ●
35 00.673 GEAR; RING
Z=138 		8-97046-366-1 01 1 0502-1004 ●
35 00.673 GEAR; RING
Z=138 		8-97046-366-1 01 1 1005- ● ●
35 00.673 GEAR; RING
Z=122 		8-94364-395-1 01 1 0211-0501 ●
35 00.673 GEAR; RING
Z=122 		8-94364-395-1 01 1 0502- ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT
00.649 NSK 		9-00090-679-0 01 1 0211-0501 ● ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT
00.649 NSK 		9-00090-679-0 01 1 0502-0504 ● ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT
00.649 NSK 		9-00090-679-0 01 1 0505- ● ● ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT
BEST VALUE PARTS 		5-87610-165-0 01 1 0211-0501 ● ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT
BEST VALUE PARTS 		5-87610-165-0 01 1 0502-0504 ● ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT
BEST VALUE PARTS 		5-87610-165-0 01 1 0505- ● ● ●
38 00.862 WASHER; FLYWHEEL
00.669 		8-94133-970-0 01 1 0211-0501 ● ● ●
38 00.862 WASHER; FLYWHEEL
00.669 		8-94133-970-0 01 1 0502-0504 ● ● ●
38 00.862 WASHER; FLYWHEEL
00.669 		8-94133-970-1 01 1 0505-1005 ● ● ● ●
38 00.862 WASHER; FLYWHEEL
ID=50.5 OD=97 		8-98171-700-0 01 1 1006- ● ● ● ●
38 00.862 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 0211-0501 ●
38 00.862 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 0502-1004 ●
38 00.862 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 1005- ● ●
40 00.669 BOLT; FLYWHEEL
M13X36 		8-97065-984-1 08 1 0211-0501 ● ●
40 00.669 BOLT; FLYWHEEL
M13X36 		8-97065-984-1 08 1 0502-0504 ● ●
40 00.669 BOLT; FLYWHEEL
M13X36 		8-97065-984-1 08 1 0505- ● ● ●
40 00.669 BOLT; FLYWHEEL
M16X42 		8-97178-013-0 08 1 0211-0501 ●
40 00.669 BOLT; FLYWHEEL
M16X42 		8-97178-013-0 08 1 0502-1004 ●
40 00.669 BOLT; FLYWHEEL
M16X42 		8-97178-013-0 08 1 1005- ● ●
40 00.669 BOLT; FLYWHEEL
M13X45 		8-94418-050-0 08 1 0211-0501 ●
40 00.669 BOLT; FLYWHEEL
M13X45 		8-94418-050-0 08 1 0502- ●
42 00.095 WASHER; THRUST,CR/SHF
(A) 		8-94453-520-0 02 1 0211-0411 ● ● ●
42 00.095 WASHER; THRUST,CR/SHF
(A) 		8-97383-740-0 02 1 0412-0501 ● ● ●
42 00.095 WASHER; THRUST,CR/SHF
(A) 		8-97383-740-0 02 1 0502-0504 ● ● ●
42 00.095 WASHER; THRUST,CR/SHF
(A) 		8-97383-740-0 02 1 0505-1108 ● ● ● ●
42 00.095 WASHER; THRUST,CR/SHF
(A) 		8-98040-704-0 02 1 1109- ● ● ● ●
42 00.095 WASHER; THRUST,CR/SHF
(C) 		8-94399-277-0 01 1 0211-0501 ●
42 00.095 WASHER; THRUST,CR/SHF
(C) 		8-94399-277-0 01 1 0502-0703 ●
42 00.095 WASHER; THRUST,CR/SHF
(C) 		8-97386-548-0 01 1 0704-1004 ●
42 00.095 WASHER; THRUST,CR/SHF
(C) 		8-97386-548-0 01 1 1005- ● ●
42 00.095 WASHER; THRUST,CR/SHF
(B) 		8-94399-283-0 02 1 0211-0501 ●
42 00.095 WASHER; THRUST,CR/SHF
(B) 		8-94399-283-0 02 1 0502-0703 ●
42 00.095 WASHER; THRUST,CR/SHF
(B) 		8-97386-549-0 02 1 0704-1004 ●
42 00.095 WASHER; THRUST,CR/SHF
(B) 		8-97386-549-0 02 1 1005- ● ●
43 00.662 BOLT; CR/SHF PULLEY
M16X43 		8-98138-817-0 01 1 1004-1004 ● ● ● ●
43 00.662 BOLT; CR/SHF PULLEY
M16X43 		5-09000-273-2 01 1 0211-0501 ● ● ●
43 00.662 BOLT; CR/SHF PULLEY
M16X43 		5-09000-273-2 01 1 0502-0504 ● ● ●
43 00.662 BOLT; CR/SHF PULLEY
M16X43 		5-09000-273-2 01 1 0505- ● ● ● ●
56 00.659 PULLEY; CR/SHF DAMPER
(A) 3-GROOVE 		8-97182-904-0 01 1 0505- ●
56 00.659 PULLEY; CR/SHF DAMPER
(A) 3-GROOVE 		8-97182-904-0 01 1 0211-0501 ●
56 00.659 PULLEY; CR/SHF DAMPER
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (C) 4-GROOVE 		8-97204-204-0 01 1 0211-0501 ●
56 00.659 PULLEY; CR/SHF DAMPER
(C) 4-GROOVE 		8-97204-204-0 01 1 0502- ●
56 00.659 PULLEY; CR/SHF DAMPER
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> (C) 3-GROOVE YAMATO PRESS 		8-94419-457-2 01 1 0211-0501 ●
56 00.659 PULLEY; CR/SHF DAMPER
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> (C) 3-GROOVE FUKOKU 		8-94442-166-6 01 1 0211-0501 ●
56 00.659 PULLEY; CR/SHF DAMPER
POWER STEERING<N40> EXC. TURBOCHARGER<K51> (C) 3-GROOVE FUKOKU 		8-94442-166-6 01 1 0211-0501 ●
56 00.659 PULLEY; CR/SHF DAMPER
POWER STEERING<N40> (C) 3-GROOVE FUKOKU 		8-94442-166-6 01 1 0502- ●
56 00.659 PULLEY; CR/SHF DAMPER
EXC. TURBOCHARGER<K51>,POWER STEERING<N40> (B) 2-GROOVE 		8-94453-552-3 01 1 0211-0501 ●
56 00.659 PULLEY; CR/SHF DAMPER
EXC. POWER STEERING<N40> (B) 2-GROOVE 		8-94453-552-3 01 1 0502- ●
56 00.659 PULLEY; CR/SHF DAMPER
(E) 4-GROOVE 		8-97222-031-3 01 1 0211-0501 ●
56 00.659 PULLEY; CR/SHF DAMPER
(E) 4-GROOVE 		8-97222-031-3 01 1 0502-1004 ●
56 00.659 PULLEY; CR/SHF DAMPER
(E) 4-GROOVE 		8-97222-031-3 01 1 1005- ● ●
56 00.659 PULLEY; CR/SHF DAMPER
(D) 4-GROOVE 		8-97254-844-0 01 1 0211-0501 ●
56 00.659 PULLEY; CR/SHF DAMPER
(D) 4-GROOVE 		8-97254-844-0 01 1 0502- ●
61 00.659 PULLEY; FAN DRIVE
1-GROOVE OD=120 		8-94459-815-4 01 1 0211-0501 ● ●
61 00.659 PULLEY; FAN DRIVE
TURBOCHARGER<K51> 1-GROOVE OD=120 		8-94459-815-4 01 1 0211-0501 ●
61 00.659 PULLEY; FAN DRIVE
1-GROOVE OD=120 		8-94459-815-4 01 1 0502-0504 ● ●
61 00.659 PULLEY; FAN DRIVE
1-GROOVE OD=120 		8-94459-815-4 01 1 0505- ● ● ●
61 00.659 PULLEY; FAN DRIVE
EXC. TURBOCHARGER<K51> 1-GROOVE 		8-94146-638-2 01 1 0211-0501 ●
61 00.659 PULLEY; FAN DRIVE
1-GROOVE 		8-94146-638-2 01 1 0502- ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97174-757-3 01 1 0211-0501 ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97174-757-3 01 1 0502-1004 ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97174-757-3 01 1 1005- ● ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-97219-032-1 04 1 1005-1112 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-98209-745-0 04 1 1201- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		8-97176-618-0 04 1 0505- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		8-97176-619-0 04 1 0505- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		8-97176-618-0 04 1 0211-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		8-97176-619-0 04 1 0211-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=AX 		8-97176-610-0 04 1 0211-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		8-97176-610-0 04 1 0502- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=CX 		8-97176-611-0 04 1 0211-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		8-97176-611-0 04 1 0502- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=AX 		8-97176-606-0 04 1 0211-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		8-97176-606-0 04 1 0502- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=CX 		8-97176-607-0 04 1 0211-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		8-97176-607-0 04 1 0502- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-97176-657-2 04 1 0211-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-97176-657-2 04 1 0502- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		8-97305-585-3 04 1 0211-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		8-97305-585-3 04 1 0502- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		8-97305-586-3 04 1 0211-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		8-97305-586-3 04 1 0502- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97219-054-0 04 1 1005- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97147-984-0 04 1 0505- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97147-984-0 04 1 0211-0501 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-94247-867-1 04 1 0211-0501 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-94247-867-2 04 1 0502- ● ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97109-462-0 04 1 0211-0501 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97109-462-0 04 1 0502- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97259-941-0 04 1 0211-0501 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97259-941-0 04 1 0502- ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97358-234-0 04 1 0211-0501 ● ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97358-234-0 04 1 0502-0504 ● ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97358-234-0 04 1 0505- ● ● ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97045-800-0 04 1 0211-0501 ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97045-800-0 04 1 0502-1004 ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97045-800-0 04 1 1005- ● ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-97045-801-0 04 1 0211-0501 ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-97045-801-0 04 1 0502-1004 ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-97045-801-0 04 1 1005- ● ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97184-534-0 04 1 0211-0501 ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97184-534-0 04 1 0502- ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94457-008-1 04 1 0211-0501 ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> 		8-94457-008-1 04 1 0211-0501 ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94457-008-1 04 1 0502-0504 ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94457-008-1 04 1 0505- ● ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> ALSO INCLUDED IN LINER SET. 		8-94454-479-0 04 1 0211-0501 ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94454-479-0 04 1 0211-0501 ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94454-479-0 04 1 0502- ● ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-589-1 04 1 0211-0501 ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-589-1 04 1 0502-1004 ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-589-1 04 1 1005- ● ●
84 00.603 ROD ASM; CONN 8-97062-300-1 04 1 0211-0306 ●
84 00.603 ROD ASM; CONN
TURBOCHARGER<K51> 		8-97062-300-1 04 1 0211-0306 ●
84 00.603 ROD ASM; CONN 8-97360-243-1 04 1 0307-0307 ●
84 00.603 ROD ASM; CONN
TURBOCHARGER<K51> 		8-97360-243-1 04 1 0307-0307 ●
84 00.603 ROD ASM; CONN 8-97062-300-1 04 1 0308-0501 ●
84 00.603 ROD ASM; CONN
TURBOCHARGER<K51> 		8-97062-300-1 04 1 0308-0501 ●
84 00.603 ROD ASM; CONN 8-97062-300-1 04 1 0502-0504 ●
84 00.603 ROD ASM; CONN 8-98013-290-0 04 1 0505-0505 ●
84 00.603 ROD ASM; CONN 8-98013-290-2 04 1 0505-0705 ● ●
84 00.603 ROD ASM; CONN 8-98013-962-4 04 1 0706- ● ●
84 00.603 ROD ASM; CONN
EXC. TURBOCHARGER<K51> 		8-94329-692-4 04 1 0211-0501 ●
84 00.603 ROD ASM; CONN 8-94329-692-4 04 1 0502-0504 ●
84 00.603 ROD ASM; CONN 8-98012-607-2 04 1 0505- ●
84 00.603 ROD ASM; CONN 8-97135-032-1 04 1 0211-0501 ●
84 00.603 ROD ASM; CONN 8-97135-032-3 04 1 0502-1004 ●
84 00.603 ROD ASM; CONN 8-97135-032-6 04 1 1005- ● ●
84 00.603 ROD ASM; CONN 8-97352-890-1 04 1 0211-0501 ●
84 00.603 ROD ASM; CONN 8-97352-890-1 04 1 0502-0502 ●
84 00.603 ROD ASM; CONN 8-98012-602-2 04 1 0503- ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94457-158-0 04 1 0211-0501 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> 		8-94457-158-0 04 1 0211-0501 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94457-158-0 04 1 0502-0504 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94457-158-0 04 1 0505-0705 ● ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97289-264-1 04 1 0706- ● ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97288-551-0 04 1 0211-0501 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97288-551-0 04 1 0502-0706 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-036-0 04 1 0211-0501 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-036-0 04 1 0502-0805 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 00.603 		8-98075-233-0 04 1 0806-0905 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-98121-309-0 04 1 0906-1004 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-98121-309-0 04 1 1005- ● ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97352-889-0 04 1 0211-0501 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97352-889-0 04 1 0502-0706 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97352-889-0 04 1 0707- ● ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-97062-086-0 08 1 0211-0306 ● ●
86 00.623 BOLT; CONNROD
TURBOCHARGER<K51> M11X44.5 		8-97062-086-0 08 1 0211-0306 ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-97062-086-0 08 1 0307-0307 ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-97062-086-0 08 1 0307-0501 ● ●
86 00.623 BOLT; CONNROD
TURBOCHARGER<K51> M11X44.5 		8-97062-086-0 08 1 0307-0501 ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-97062-086-0 08 1 0502-0504 ● ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-97062-086-0 08 1 0505-0701 ● ● ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-98048-538-0 08 1 0702- ● ● ●
86 00.623 BOLT; CONNROD
EXC. TURBOCHARGER<K51> M11X59 		5-12235-009-0 08 1 0211-0501 ●
86 00.623 BOLT; CONNROD
M11X59 		5-12235-009-0 08 1 0502- ●
86 00.623 BOLT; CONNROD
M13X57 FLANGE 		1-12235-035-0 08 1 0211-0501 ●
86 00.623 BOLT; CONNROD
M13X57 FLANGE 		1-12235-035-0 08 1 0502-1004 ●
86 00.623 BOLT; CONNROD
M13X57 FLANGE 		8-98091-141-0 08 1 1005- ● ●
87 00.613 PIN; CONNROD BIG END
OD=5 L=8 		9-08160-508-0 08 1 0211-0306 ● ●
87 00.613 PIN; CONNROD BIG END
TURBOCHARGER<K51> OD=5 L=8 		9-08160-508-0 08 1 0211-0306 ●
87 00.613 PIN; CONNROD BIG END
OD=5 L=8 		9-08160-508-0 08 1 0307-0307 ●
87 00.613 PIN; CONNROD BIG END
OD=5 L=8 		9-08160-508-0 08 1 0307-0501 ● ●
87 00.613 PIN; CONNROD BIG END
TURBOCHARGER<K51> OD=5 L=8 		9-08160-508-0 08 1 0307-0501 ●
87 00.613 PIN; CONNROD BIG END
OD=5 L=8 		9-08160-508-0 08 1 0502-0504 ● ●
87 00.613 PIN; CONNROD BIG END
OD=5 L=8 		9-08160-508-0 08 1 0505- ● ● ●
88 00.623 NUT; CONNROD
EXC. TURBOCHARGER<K51> 00.626 M11 		5-09409-016-0 08 1 0211-0501 ●
88 00.623 NUT; CONNROD
00.626 M11 		5-09409-016-0 08 1 0502- ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		8-94460-687-0 08 1 0211-0501 ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> OD=37.5 		8-94460-687-0 08 1 0211-0501 ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=37.5 		8-94460-687-0 08 1 0502-0504 ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=37.5 		8-94460-687-0 08 1 0505- ● ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> ALSO INCLUDED IN LINER SET. ID=33.9 		8-94133-969-0 08 1 0211-0501 ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. ID=33.9 		8-94133-969-0 08 1 0211-0501 ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. ID=33.9 		8-94133-969-0 08 1 0502- ● ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=38.8 		8-94318-798-2 08 1 0211-0501 ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=38.8 		8-94318-798-2 08 1 0502-1004 ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=38.8 		8-94318-798-2 08 1 1005- ● ●

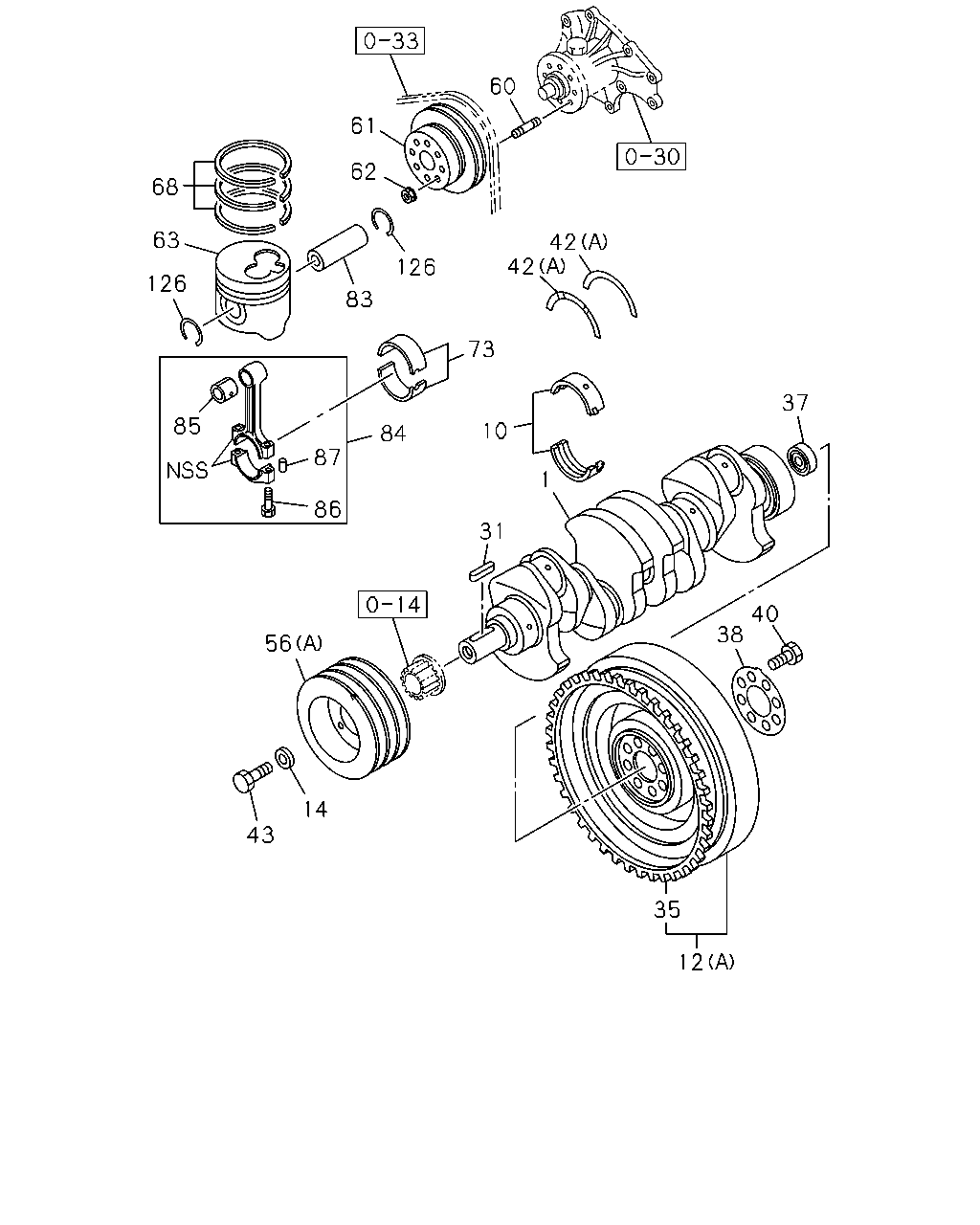

çizim 47003
68 63 126 61 62 126 83 42 42 60 73 84 87 85 86 31 10 56 14 43 38 37 12 35 1 40
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 00.646 CRANKSHAFT 8-97190-930-3 01 1 0505- ●
1 00.646 CRANKSHAFT 8-97190-930-1 01 1 0211-0501 ●
1 00.646 CRANKSHAFT
TURBOCHARGER<K51> 		8-97331-853-0 01 1 0211-0501 ●
1 00.646 CRANKSHAFT 8-97331-853-1 01 1 0502- ●
1 00.646 CRANKSHAFT
EXC. TURBOCHARGER<K51> 		8-97190-928-2 01 1 0211-0501 ●
1 00.646 CRANKSHAFT 8-97190-928-3 01 1 0502- ●
1 00.646 CRANKSHAFT 8-97112-981-3 01 1 0211-0501 ●
1 00.646 CRANKSHAFT 8-97112-981-3 01 1 0502-1004 ●
1 00.646 CRANKSHAFT 8-97112-981-3 01 1 1005- ● ●
1 00.646 CRANKSHAFT 8-97254-611-1 01 1 0211-0501 ●
1 00.646 CRANKSHAFT 8-97254-611-2 01 1 0502- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 1 		8-97202-878-0 05 1 0211-0411 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 1 		8-97387-964-0 05 1 0412-0501 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 1 		8-97387-964-0 05 1 0502-0504 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 1 		8-97387-964-0 05 1 0505- ● ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 2 		8-97202-879-0 05 1 0211-0411 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 2 		8-97387-965-0 05 1 0412-0501 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 2 		8-97387-965-0 05 1 0502-0504 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 2 		8-97387-965-0 05 1 0505- ● ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 3 		8-97202-880-0 05 1 0211-0411 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 3 		8-97387-966-0 05 1 0412-0501 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 3 		8-97387-966-0 05 1 0502-0504 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 3 		8-97387-966-0 05 1 0505- ● ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 4 		8-97202-881-0 05 1 0211-0411 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 4 		8-97387-967-0 05 1 0412-0501 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 4 		8-97387-967-0 05 1 0502-0504 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 4 		8-97387-967-0 05 1 0505- ● ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 5 		8-97202-882-0 05 1 0211-0411 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 5 		8-97387-968-0 05 1 0412-0501 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 5 		8-97387-968-0 05 1 0502-0504 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 5 		8-97387-968-0 05 1 0505- ● ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97219-456-0 05 1 0211-0303 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97372-076-0 05 1 0304-0501 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97372-076-1 05 1 0502-1004 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97372-076-1 05 1 1005- ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97219-457-0 05 1 0211-0303 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97372-077-0 05 1 0304-0501 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97372-077-1 05 1 0502-1004 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97372-077-1 05 1 1005- ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97219-458-0 05 1 0211-0303 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97372-078-0 05 1 0304-0501 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97372-078-1 05 1 0502-1004 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97372-078-1 05 1 1005- ● ●
12 00.666 FLYWHEEL
(A) 		8-97034-430-2 01 1 0211-0501 ●
12 00.666 FLYWHEEL
TURBOCHARGER<K51> (A) 		8-97034-430-2 01 1 0211-0501 ●
12 00.666 FLYWHEEL
(A) 		8-97034-430-2 01 1 0502-0504 ●
12 00.666 FLYWHEEL
(A) 		8-97034-430-2 01 1 0505- ● ●
12 00.666 FLYWHEEL
EXC. TURBOCHARGER<K51> (A) 		8-94125-761-4 01 1 0211-0501 ●
12 00.666 FLYWHEEL
(A) 		8-94125-761-4 01 1 0502- ●
12 00.666 FLYWHEEL
(C) 		8-97330-892-0 01 1 0211-0501 ●
12 00.666 FLYWHEEL
(C) 		8-97330-892-1 01 1 0502-1004 ●
12 00.666 FLYWHEEL
(C) 		8-97330-892-1 01 1 1005- ● ●
12 00.666 FLYWHEEL
(B) 		8-97333-111-1 01 1 0211-0501 ●
12 00.666 FLYWHEEL
(B) 		8-97333-111-1 01 1 0502-0911 ●
12 00.666 FLYWHEEL
(B) 		8-98148-091-0 01 1 0912- ●
14 00.662 WASHER; PULLEY DAMPER
ID=16.5 OD=45 T=12 		5-09503-127-0 01 1 0211-0501 ● ● ●
14 00.662 WASHER; PULLEY DAMPER
ID=16.5 OD=45 T=12 		5-09503-127-0 01 1 0502-0504 ● ● ●
14 00.662 WASHER; PULLEY DAMPER
ID=16.5 OD=45 T=12 		5-09503-127-1 01 1 0505- ● ● ● ●
31 00.662 KEY; FEATHER,CR/SHF
00.729 		8-94201-641-0 01 1 0211-0501 ● ● ●
31 00.662 KEY; FEATHER,CR/SHF
00.729 		8-94201-641-0 01 1 0502-0504 ● ● ●
31 00.662 KEY; FEATHER,CR/SHF
00.729 		8-94201-641-0 01 1 0505- ● ● ● ●
35 00.673 GEAR; RING
Z=108 		8-94419-602-1 01 1 0211-0501 ● ●
35 00.673 GEAR; RING
Z=108 		8-94419-602-1 01 1 0502-0504 ● ●
35 00.673 GEAR; RING
Z=108 		8-94419-602-1 01 1 0505- ● ● ●
35 00.673 GEAR; RING
Z=138 		8-97046-366-0 01 1 0211-0501 ●
35 00.673 GEAR; RING
Z=138 		8-97046-366-1 01 1 0502-1004 ●
35 00.673 GEAR; RING
Z=138 		8-97046-366-1 01 1 1005- ● ●
35 00.673 GEAR; RING
Z=122 		8-94364-395-1 01 1 0211-0501 ●
35 00.673 GEAR; RING
Z=122 		8-94364-395-1 01 1 0502- ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT
00.649 NSK 		9-00090-679-0 01 1 0211-0501 ● ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT
00.649 NSK 		9-00090-679-0 01 1 0502-0504 ● ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT
00.649 NSK 		9-00090-679-0 01 1 0505- ● ● ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT
BEST VALUE PARTS 		5-87610-165-0 01 1 0211-0501 ● ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT
BEST VALUE PARTS 		5-87610-165-0 01 1 0502-0504 ● ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT
BEST VALUE PARTS 		5-87610-165-0 01 1 0505- ● ● ●
38 00.862 WASHER; FLYWHEEL
00.669 		8-94133-970-0 01 1 0211-0501 ● ● ●
38 00.862 WASHER; FLYWHEEL
00.669 		8-94133-970-0 01 1 0502-0504 ● ● ●
38 00.862 WASHER; FLYWHEEL
00.669 		8-94133-970-1 01 1 0505-1005 ● ● ● ●
38 00.862 WASHER; FLYWHEEL
ID=50.5 OD=97 		8-98171-700-0 01 1 1006- ● ● ● ●
38 00.862 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 0211-0501 ●
38 00.862 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 0502-1004 ●
38 00.862 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 1005- ● ●
40 00.669 BOLT; FLYWHEEL
M13X36 		8-97065-984-1 08 1 0211-0501 ● ●
40 00.669 BOLT; FLYWHEEL
M13X36 		8-97065-984-1 08 1 0502-0504 ● ●
40 00.669 BOLT; FLYWHEEL
M13X36 		8-97065-984-1 08 1 0505- ● ● ●
40 00.669 BOLT; FLYWHEEL
M16X42 		8-97178-013-0 08 1 0211-0501 ●
40 00.669 BOLT; FLYWHEEL
M16X42 		8-97178-013-0 08 1 0502-1004 ●
40 00.669 BOLT; FLYWHEEL
M16X42 		8-97178-013-0 08 1 1005- ● ●
40 00.669 BOLT; FLYWHEEL
M13X45 		8-94418-050-0 08 1 0211-0501 ●
40 00.669 BOLT; FLYWHEEL
M13X45 		8-94418-050-0 08 1 0502- ●
42 00.095 WASHER; THRUST,CR/SHF
(A) 		8-94453-520-0 02 1 0211-0411 ● ● ●
42 00.095 WASHER; THRUST,CR/SHF
(A) 		8-97383-740-0 02 1 0412-0501 ● ● ●
42 00.095 WASHER; THRUST,CR/SHF
(A) 		8-97383-740-0 02 1 0502-0504 ● ● ●
42 00.095 WASHER; THRUST,CR/SHF
(A) 		8-97383-740-0 02 1 0505-1108 ● ● ● ●
42 00.095 WASHER; THRUST,CR/SHF
(A) 		8-98040-704-0 02 1 1109- ● ● ● ●
42 00.095 WASHER; THRUST,CR/SHF
(C) 		8-94399-277-0 01 1 0211-0501 ●
42 00.095 WASHER; THRUST,CR/SHF
(C) 		8-94399-277-0 01 1 0502-0703 ●
42 00.095 WASHER; THRUST,CR/SHF
(C) 		8-97386-548-0 01 1 0704-1004 ●
42 00.095 WASHER; THRUST,CR/SHF
(C) 		8-97386-548-0 01 1 1005- ● ●
42 00.095 WASHER; THRUST,CR/SHF
(B) 		8-94399-283-0 02 1 0211-0501 ●
42 00.095 WASHER; THRUST,CR/SHF
(B) 		8-94399-283-0 02 1 0502-0703 ●
42 00.095 WASHER; THRUST,CR/SHF
(B) 		8-97386-549-0 02 1 0704-1004 ●
42 00.095 WASHER; THRUST,CR/SHF
(B) 		8-97386-549-0 02 1 1005- ● ●
43 00.662 BOLT; CR/SHF PULLEY
M16X43 		8-98138-817-0 01 1 1004-1004 ● ● ● ●
43 00.662 BOLT; CR/SHF PULLEY
M16X43 		5-09000-273-2 01 1 0211-0501 ● ● ●
43 00.662 BOLT; CR/SHF PULLEY
M16X43 		5-09000-273-2 01 1 0502-0504 ● ● ●
43 00.662 BOLT; CR/SHF PULLEY
M16X43 		5-09000-273-2 01 1 0505- ● ● ● ●
56 00.659 PULLEY; CR/SHF DAMPER
(A) 3-GROOVE 		8-97182-904-0 01 1 0505- ●
56 00.659 PULLEY; CR/SHF DAMPER
(A) 3-GROOVE 		8-97182-904-0 01 1 0211-0501 ●
56 00.659 PULLEY; CR/SHF DAMPER
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (C) 4-GROOVE 		8-97204-204-0 01 1 0211-0501 ●
56 00.659 PULLEY; CR/SHF DAMPER
(C) 4-GROOVE 		8-97204-204-0 01 1 0502- ●
56 00.659 PULLEY; CR/SHF DAMPER
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> (C) 3-GROOVE YAMATO PRESS 		8-94419-457-2 01 1 0211-0501 ●
56 00.659 PULLEY; CR/SHF DAMPER
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> (C) 3-GROOVE FUKOKU 		8-94442-166-6 01 1 0211-0501 ●
56 00.659 PULLEY; CR/SHF DAMPER
POWER STEERING<N40> EXC. TURBOCHARGER<K51> (C) 3-GROOVE FUKOKU 		8-94442-166-6 01 1 0211-0501 ●
56 00.659 PULLEY; CR/SHF DAMPER
POWER STEERING<N40> (C) 3-GROOVE FUKOKU 		8-94442-166-6 01 1 0502- ●
56 00.659 PULLEY; CR/SHF DAMPER
EXC. TURBOCHARGER<K51>,POWER STEERING<N40> (B) 2-GROOVE 		8-94453-552-3 01 1 0211-0501 ●
56 00.659 PULLEY; CR/SHF DAMPER
EXC. POWER STEERING<N40> (B) 2-GROOVE 		8-94453-552-3 01 1 0502- ●
56 00.659 PULLEY; CR/SHF DAMPER
(E) 4-GROOVE 		8-97222-031-3 01 1 0211-0501 ●
56 00.659 PULLEY; CR/SHF DAMPER
(E) 4-GROOVE 		8-97222-031-3 01 1 0502-1004 ●
56 00.659 PULLEY; CR/SHF DAMPER
(E) 4-GROOVE 		8-97222-031-3 01 1 1005- ● ●
56 00.659 PULLEY; CR/SHF DAMPER
(D) 4-GROOVE 		8-97254-844-0 01 1 0211-0501 ●
56 00.659 PULLEY; CR/SHF DAMPER
(D) 4-GROOVE 		8-97254-844-0 01 1 0502- ●
60 01.060 STUD; FAN FIX
01.073 M6X18 L=27 		9-04110-618-0 04 1 0505-0604 ●
60 01.060 STUD; FAN FIX
01.062 M6X18 L=27 		0-41010-618-0 04 1 0605- ●
60 01.060 STUD; FAN FIX
01.073 M6X18 L=27 		9-04110-618-0 04 1 0211-0501 ●
61 00.659 PULLEY; FAN DRIVE
1-GROOVE OD=120 		8-94459-815-4 01 1 0211-0501 ● ●
61 00.659 PULLEY; FAN DRIVE
TURBOCHARGER<K51> 1-GROOVE OD=120 		8-94459-815-4 01 1 0211-0501 ●
61 00.659 PULLEY; FAN DRIVE
1-GROOVE OD=120 		8-94459-815-4 01 1 0502-0504 ● ●
61 00.659 PULLEY; FAN DRIVE
1-GROOVE OD=120 		8-94459-815-4 01 1 0505- ● ● ●
61 00.659 PULLEY; FAN DRIVE
EXC. TURBOCHARGER<K51> 1-GROOVE 		8-94146-638-2 01 1 0211-0501 ●
61 00.659 PULLEY; FAN DRIVE
1-GROOVE 		8-94146-638-2 01 1 0502- ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97174-757-3 01 1 0211-0501 ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97174-757-3 01 1 0502-1004 ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97174-757-3 01 1 1005- ● ●
62 01.060 NUT; FAN PULLEY
07.829 M6 FLANGE 		5-09440-004-0 04 1 0505- ●
62 01.060 NUT; FAN PULLEY
07.829 M6 FLANGE 		5-09440-004-0 04 1 0211-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-97219-032-1 04 1 1005-1112 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-98209-745-0 04 1 1201- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		8-97176-618-0 04 1 0505- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		8-97176-619-0 04 1 0505- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		8-97176-618-0 04 1 0211-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		8-97176-619-0 04 1 0211-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=AX 		8-97176-610-0 04 1 0211-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		8-97176-610-0 04 1 0502- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=CX 		8-97176-611-0 04 1 0211-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		8-97176-611-0 04 1 0502- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=AX 		8-97176-606-0 04 1 0211-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		8-97176-606-0 04 1 0502- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=CX 		8-97176-607-0 04 1 0211-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		8-97176-607-0 04 1 0502- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-97176-657-2 04 1 0211-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-97176-657-2 04 1 0502- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		8-97305-585-3 04 1 0211-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		8-97305-585-3 04 1 0502- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		8-97305-586-3 04 1 0211-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		8-97305-586-3 04 1 0502- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97219-054-0 04 1 1005- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97147-984-0 04 1 0505- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97147-984-0 04 1 0211-0501 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-94247-867-1 04 1 0211-0501 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-94247-867-2 04 1 0502- ● ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97109-462-0 04 1 0211-0501 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97109-462-0 04 1 0502- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97259-941-0 04 1 0211-0501 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97259-941-0 04 1 0502- ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97358-234-0 04 1 0211-0501 ● ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97358-234-0 04 1 0502-0504 ● ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97358-234-0 04 1 0505- ● ● ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97045-800-0 04 1 0211-0501 ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97045-800-0 04 1 0502-1004 ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97045-800-0 04 1 1005- ● ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-97045-801-0 04 1 0211-0501 ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-97045-801-0 04 1 0502-1004 ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-97045-801-0 04 1 1005- ● ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97184-534-0 04 1 0211-0501 ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97184-534-0 04 1 0502- ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94457-008-1 04 1 0211-0501 ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> 		8-94457-008-1 04 1 0211-0501 ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94457-008-1 04 1 0502-0504 ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94457-008-1 04 1 0505- ● ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> ALSO INCLUDED IN LINER SET. 		8-94454-479-0 04 1 0211-0501 ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94454-479-0 04 1 0211-0501 ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94454-479-0 04 1 0502- ● ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-589-1 04 1 0211-0501 ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-589-1 04 1 0502-1004 ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-589-1 04 1 1005- ● ●
84 00.603 ROD ASM; CONN 8-97062-300-1 04 1 0211-0306 ●
84 00.603 ROD ASM; CONN
TURBOCHARGER<K51> 		8-97062-300-1 04 1 0211-0306 ●
84 00.603 ROD ASM; CONN 8-97360-243-1 04 1 0307-0307 ●
84 00.603 ROD ASM; CONN
TURBOCHARGER<K51> 		8-97360-243-1 04 1 0307-0307 ●
84 00.603 ROD ASM; CONN 8-97062-300-1 04 1 0308-0501 ●
84 00.603 ROD ASM; CONN
TURBOCHARGER<K51> 		8-97062-300-1 04 1 0308-0501 ●
84 00.603 ROD ASM; CONN 8-97062-300-1 04 1 0502-0504 ●
84 00.603 ROD ASM; CONN 8-98013-290-0 04 1 0505-0505 ●
84 00.603 ROD ASM; CONN 8-98013-290-2 04 1 0505-0705 ● ●
84 00.603 ROD ASM; CONN 8-98013-962-4 04 1 0706- ● ●
84 00.603 ROD ASM; CONN
EXC. TURBOCHARGER<K51> 		8-94329-692-4 04 1 0211-0501 ●
84 00.603 ROD ASM; CONN 8-94329-692-4 04 1 0502-0504 ●
84 00.603 ROD ASM; CONN 8-98012-607-2 04 1 0505- ●
84 00.603 ROD ASM; CONN 8-97135-032-1 04 1 0211-0501 ●
84 00.603 ROD ASM; CONN 8-97135-032-3 04 1 0502-1004 ●
84 00.603 ROD ASM; CONN 8-97135-032-6 04 1 1005- ● ●
84 00.603 ROD ASM; CONN 8-97352-890-1 04 1 0211-0501 ●
84 00.603 ROD ASM; CONN 8-97352-890-1 04 1 0502-0502 ●
84 00.603 ROD ASM; CONN 8-98012-602-2 04 1 0503- ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94457-158-0 04 1 0211-0501 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> 		8-94457-158-0 04 1 0211-0501 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94457-158-0 04 1 0502-0504 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94457-158-0 04 1 0505-0705 ● ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97289-264-1 04 1 0706- ● ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97288-551-0 04 1 0211-0501 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97288-551-0 04 1 0502-0706 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-036-0 04 1 0211-0501 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-036-0 04 1 0502-0805 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 00.603 		8-98075-233-0 04 1 0806-0905 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-98121-309-0 04 1 0906-1004 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-98121-309-0 04 1 1005- ● ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97352-889-0 04 1 0211-0501 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97352-889-0 04 1 0502-0706 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97352-889-0 04 1 0707- ● ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-97062-086-0 08 1 0211-0306 ● ●
86 00.623 BOLT; CONNROD
TURBOCHARGER<K51> M11X44.5 		8-97062-086-0 08 1 0211-0306 ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-97062-086-0 08 1 0307-0307 ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-97062-086-0 08 1 0307-0501 ● ●
86 00.623 BOLT; CONNROD
TURBOCHARGER<K51> M11X44.5 		8-97062-086-0 08 1 0307-0501 ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-97062-086-0 08 1 0502-0504 ● ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-97062-086-0 08 1 0505-0701 ● ● ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-98048-538-0 08 1 0702- ● ● ●
86 00.623 BOLT; CONNROD
EXC. TURBOCHARGER<K51> M11X59 		5-12235-009-0 08 1 0211-0501 ●
86 00.623 BOLT; CONNROD
M11X59 		5-12235-009-0 08 1 0502- ●
86 00.623 BOLT; CONNROD
M13X57 FLANGE 		1-12235-035-0 08 1 0211-0501 ●
86 00.623 BOLT; CONNROD
M13X57 FLANGE 		1-12235-035-0 08 1 0502-1004 ●
86 00.623 BOLT; CONNROD
M13X57 FLANGE 		8-98091-141-0 08 1 1005- ● ●
87 00.613 PIN; CONNROD BIG END
OD=5 L=8 		9-08160-508-0 08 1 0211-0306 ● ●
87 00.613 PIN; CONNROD BIG END
TURBOCHARGER<K51> OD=5 L=8 		9-08160-508-0 08 1 0211-0306 ●
87 00.613 PIN; CONNROD BIG END
OD=5 L=8 		9-08160-508-0 08 1 0307-0307 ●
87 00.613 PIN; CONNROD BIG END
OD=5 L=8 		9-08160-508-0 08 1 0307-0501 ● ●
87 00.613 PIN; CONNROD BIG END
TURBOCHARGER<K51> OD=5 L=8 		9-08160-508-0 08 1 0307-0501 ●
87 00.613 PIN; CONNROD BIG END
OD=5 L=8 		9-08160-508-0 08 1 0502-0504 ● ●
87 00.613 PIN; CONNROD BIG END
OD=5 L=8 		9-08160-508-0 08 1 0505- ● ● ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		8-94460-687-0 08 1 0211-0501 ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> OD=37.5 		8-94460-687-0 08 1 0211-0501 ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=37.5 		8-94460-687-0 08 1 0502-0504 ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=37.5 		8-94460-687-0 08 1 0505- ● ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> ALSO INCLUDED IN LINER SET. ID=33.9 		8-94133-969-0 08 1 0211-0501 ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. ID=33.9 		8-94133-969-0 08 1 0211-0501 ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. ID=33.9 		8-94133-969-0 08 1 0502- ● ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=38.8 		8-94318-798-2 08 1 0211-0501 ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=38.8 		8-94318-798-2 08 1 0502-1004 ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=38.8 		8-94318-798-2 08 1 1005- ● ●

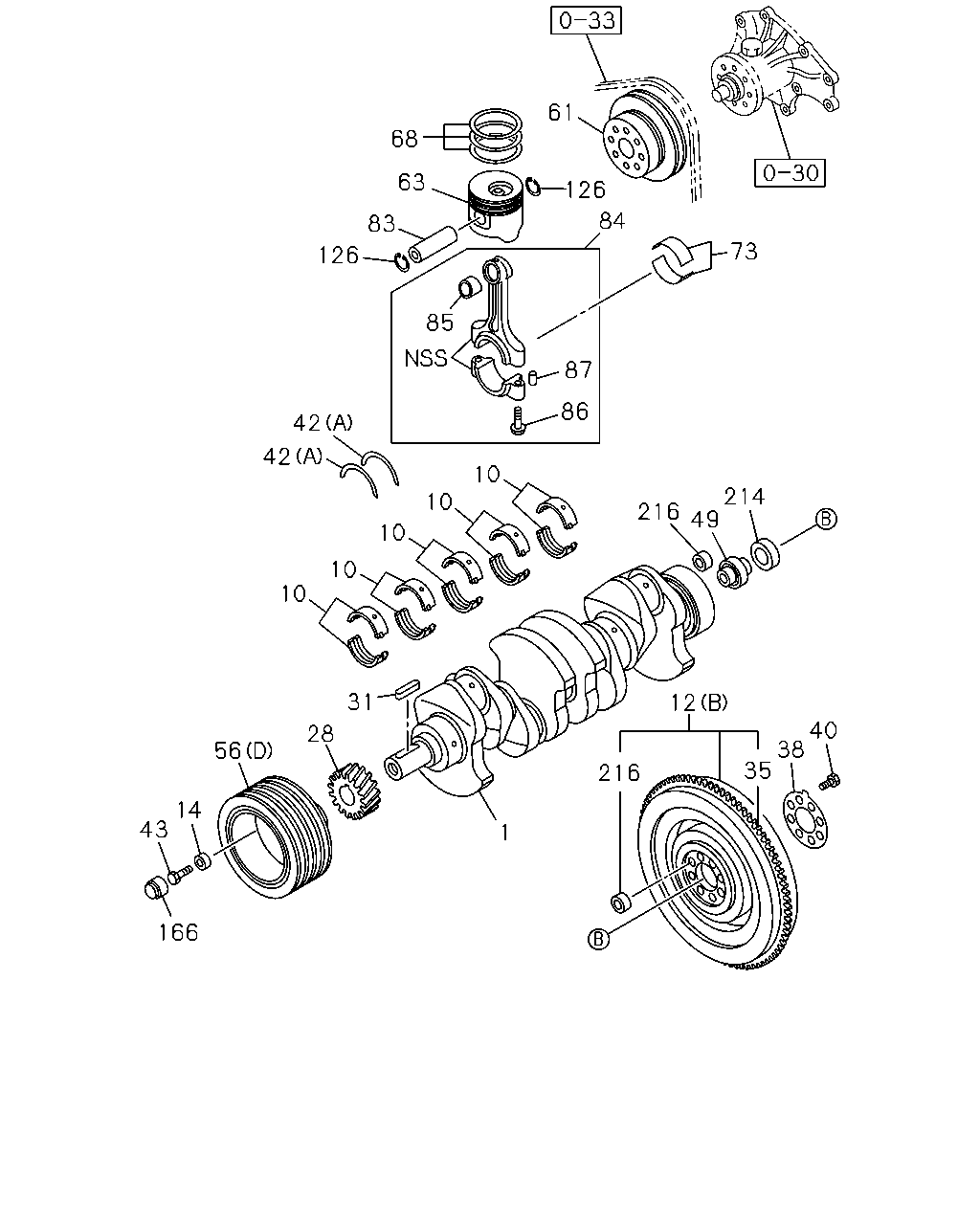

çizim 47841
61 126 73 84 87 86 85 126 83 63 68 42 42 10 10 10 10 216 10 49 214 12 216 35 38 40 1 31 28 56 43 166 14
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 00.646 CRANKSHAFT 8-97190-930-3 01 1 0505- ●
1 00.646 CRANKSHAFT 8-97190-930-1 01 1 0211-0501 ●
1 00.646 CRANKSHAFT
TURBOCHARGER<K51> 		8-97331-853-0 01 1 0211-0501 ●
1 00.646 CRANKSHAFT 8-97331-853-1 01 1 0502- ●
1 00.646 CRANKSHAFT
EXC. TURBOCHARGER<K51> 		8-97190-928-2 01 1 0211-0501 ●
1 00.646 CRANKSHAFT 8-97190-928-3 01 1 0502- ●
1 00.646 CRANKSHAFT 8-97112-981-3 01 1 0211-0501 ●
1 00.646 CRANKSHAFT 8-97112-981-3 01 1 0502-1004 ●
1 00.646 CRANKSHAFT 8-97112-981-3 01 1 1005- ● ●
1 00.646 CRANKSHAFT 8-97254-611-1 01 1 0211-0501 ●
1 00.646 CRANKSHAFT 8-97254-611-2 01 1 0502- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 1 		8-97202-878-0 05 1 0211-0411 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 1 		8-97387-964-0 05 1 0412-0501 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 1 		8-97387-964-0 05 1 0502-0504 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 1 		8-97387-964-0 05 1 0505- ● ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 2 		8-97202-879-0 05 1 0211-0411 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 2 		8-97387-965-0 05 1 0412-0501 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 2 		8-97387-965-0 05 1 0502-0504 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 2 		8-97387-965-0 05 1 0505- ● ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 3 		8-97202-880-0 05 1 0211-0411 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 3 		8-97387-966-0 05 1 0412-0501 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 3 		8-97387-966-0 05 1 0502-0504 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 3 		8-97387-966-0 05 1 0505- ● ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 4 		8-97202-881-0 05 1 0211-0411 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 4 		8-97387-967-0 05 1 0412-0501 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 4 		8-97387-967-0 05 1 0502-0504 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 4 		8-97387-967-0 05 1 0505- ● ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 5 		8-97202-882-0 05 1 0211-0411 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 5 		8-97387-968-0 05 1 0412-0501 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 5 		8-97387-968-0 05 1 0502-0504 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 5 		8-97387-968-0 05 1 0505- ● ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97219-456-0 05 1 0211-0303 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97372-076-0 05 1 0304-0501 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97372-076-1 05 1 0502-1004 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97372-076-1 05 1 1005- ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97219-457-0 05 1 0211-0303 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97372-077-0 05 1 0304-0501 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97372-077-1 05 1 0502-1004 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97372-077-1 05 1 1005- ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97219-458-0 05 1 0211-0303 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97372-078-0 05 1 0304-0501 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97372-078-1 05 1 0502-1004 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97372-078-1 05 1 1005- ● ●
12 00.666 FLYWHEEL
(A) 		8-97034-430-2 01 1 0211-0501 ●
12 00.666 FLYWHEEL
TURBOCHARGER<K51> (A) 		8-97034-430-2 01 1 0211-0501 ●
12 00.666 FLYWHEEL
(A) 		8-97034-430-2 01 1 0502-0504 ●
12 00.666 FLYWHEEL
(A) 		8-97034-430-2 01 1 0505- ● ●
12 00.666 FLYWHEEL
EXC. TURBOCHARGER<K51> (A) 		8-94125-761-4 01 1 0211-0501 ●
12 00.666 FLYWHEEL
(A) 		8-94125-761-4 01 1 0502- ●
12 00.666 FLYWHEEL
(C) 		8-97330-892-0 01 1 0211-0501 ●
12 00.666 FLYWHEEL
(C) 		8-97330-892-1 01 1 0502-1004 ●
12 00.666 FLYWHEEL
(C) 		8-97330-892-1 01 1 1005- ● ●
12 00.666 FLYWHEEL
(B) 		8-97333-111-1 01 1 0211-0501 ●
12 00.666 FLYWHEEL
(B) 		8-97333-111-1 01 1 0502-0911 ●
12 00.666 FLYWHEEL
(B) 		8-98148-091-0 01 1 0912- ●
14 00.662 WASHER; PULLEY DAMPER
ID=16.5 OD=45 T=12 		5-09503-127-0 01 1 0211-0501 ● ● ●
14 00.662 WASHER; PULLEY DAMPER
ID=16.5 OD=45 T=12 		5-09503-127-0 01 1 0502-0504 ● ● ●
14 00.662 WASHER; PULLEY DAMPER
ID=16.5 OD=45 T=12 		5-09503-127-1 01 1 0505- ● ● ● ●
28 00.728 GEAR; CR/SHF
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> Z=21 		8-97229-593-1 01 1 0211-0501 ●
28 00.728 GEAR; CR/SHF
Z=21 		8-97229-593-1 01 1 0502- ●
28 00.728 GEAR; CR/SHF
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> Z=21 		8-94139-754-0 01 1 0211-0501 ●
28 00.728 GEAR; CR/SHF
EXC. TURBOCHARGER<K51> Z=21 		8-94139-754-0 01 1 0211-0501 ●
28 00.728 GEAR; CR/SHF
Z=21 		8-94139-754-0 01 1 0502- ●
28 00.728 GEAR; CR/SHF
Z=42 		8-97109-626-1 01 1 0211-0501 ●
28 00.728 GEAR; CR/SHF
Z=42 		8-97109-626-1 01 1 0502-1004 ●
28 00.728 GEAR; CR/SHF
Z=42 		8-97109-626-1 01 1 1005- ● ●
28 00.728 GEAR; CR/SHF
Z=30 		8-97240-011-2 01 1 0211-0501 ●
28 00.728 GEAR; CR/SHF
Z=30 		8-97240-011-2 01 1 0502- ●
31 00.662 KEY; FEATHER,CR/SHF
00.729 		8-94201-641-0 01 1 0211-0501 ● ● ●
31 00.662 KEY; FEATHER,CR/SHF
00.729 		8-94201-641-0 01 1 0502-0504 ● ● ●
31 00.662 KEY; FEATHER,CR/SHF
00.729 		8-94201-641-0 01 1 0505- ● ● ● ●
35 00.673 GEAR; RING
Z=108 		8-94419-602-1 01 1 0211-0501 ● ●
35 00.673 GEAR; RING
Z=108 		8-94419-602-1 01 1 0502-0504 ● ●
35 00.673 GEAR; RING
Z=108 		8-94419-602-1 01 1 0505- ● ● ●
35 00.673 GEAR; RING
Z=138 		8-97046-366-0 01 1 0211-0501 ●
35 00.673 GEAR; RING
Z=138 		8-97046-366-1 01 1 0502-1004 ●
35 00.673 GEAR; RING
Z=138 		8-97046-366-1 01 1 1005- ● ●
35 00.673 GEAR; RING
Z=122 		8-94364-395-1 01 1 0211-0501 ●
35 00.673 GEAR; RING
Z=122 		8-94364-395-1 01 1 0502- ●
38 00.862 WASHER; FLYWHEEL
00.669 		8-94133-970-0 01 1 0211-0501 ● ● ●
38 00.862 WASHER; FLYWHEEL
00.669 		8-94133-970-0 01 1 0502-0504 ● ● ●
38 00.862 WASHER; FLYWHEEL
00.669 		8-94133-970-1 01 1 0505-1005 ● ● ● ●
38 00.862 WASHER; FLYWHEEL
ID=50.5 OD=97 		8-98171-700-0 01 1 1006- ● ● ● ●
38 00.862 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 0211-0501 ●
38 00.862 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 0502-1004 ●
38 00.862 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 1005- ● ●
40 00.669 BOLT; FLYWHEEL
M13X36 		8-97065-984-1 08 1 0211-0501 ● ●
40 00.669 BOLT; FLYWHEEL
M13X36 		8-97065-984-1 08 1 0502-0504 ● ●
40 00.669 BOLT; FLYWHEEL
M13X36 		8-97065-984-1 08 1 0505- ● ● ●
40 00.669 BOLT; FLYWHEEL
M16X42 		8-97178-013-0 08 1 0211-0501 ●
40 00.669 BOLT; FLYWHEEL
M16X42 		8-97178-013-0 08 1 0502-1004 ●
40 00.669 BOLT; FLYWHEEL
M16X42 		8-97178-013-0 08 1 1005- ● ●
40 00.669 BOLT; FLYWHEEL
M13X45 		8-94418-050-0 08 1 0211-0501 ●
40 00.669 BOLT; FLYWHEEL
M13X45 		8-94418-050-0 08 1 0502- ●
42 00.095 WASHER; THRUST,CR/SHF
(A) 		8-94453-520-0 02 1 0211-0411 ● ● ●
42 00.095 WASHER; THRUST,CR/SHF
(A) 		8-97383-740-0 02 1 0412-0501 ● ● ●
42 00.095 WASHER; THRUST,CR/SHF
(A) 		8-97383-740-0 02 1 0502-0504 ● ● ●
42 00.095 WASHER; THRUST,CR/SHF
(A) 		8-97383-740-0 02 1 0505-1108 ● ● ● ●
42 00.095 WASHER; THRUST,CR/SHF
(A) 		8-98040-704-0 02 1 1109- ● ● ● ●
42 00.095 WASHER; THRUST,CR/SHF
(C) 		8-94399-277-0 01 1 0211-0501 ●
42 00.095 WASHER; THRUST,CR/SHF
(C) 		8-94399-277-0 01 1 0502-0703 ●
42 00.095 WASHER; THRUST,CR/SHF
(C) 		8-97386-548-0 01 1 0704-1004 ●
42 00.095 WASHER; THRUST,CR/SHF
(C) 		8-97386-548-0 01 1 1005- ● ●
42 00.095 WASHER; THRUST,CR/SHF
(B) 		8-94399-283-0 02 1 0211-0501 ●
42 00.095 WASHER; THRUST,CR/SHF
(B) 		8-94399-283-0 02 1 0502-0703 ●
42 00.095 WASHER; THRUST,CR/SHF
(B) 		8-97386-549-0 02 1 0704-1004 ●
42 00.095 WASHER; THRUST,CR/SHF
(B) 		8-97386-549-0 02 1 1005- ● ●
43 00.662 BOLT; CR/SHF PULLEY
M16X43 		8-98138-817-0 01 1 1004-1004 ● ● ● ●
43 00.662 BOLT; CR/SHF PULLEY
M16X43 		5-09000-273-2 01 1 0211-0501 ● ● ●
43 00.662 BOLT; CR/SHF PULLEY
M16X43 		5-09000-273-2 01 1 0502-0504 ● ● ●
43 00.662 BOLT; CR/SHF PULLEY
M16X43 		5-09000-273-2 01 1 0505- ● ● ● ●
49 00.669 BEARING; PILOT 8-97258-239-0 01 1 0211-0501 ●
49 00.669 BEARING; PILOT 8-97258-239-0 01 1 0502-1004 ●
49 00.669 BEARING; PILOT 8-97258-239-0 01 1 1005- ● ●
49 00.669 BEARING; PILOT 8-97325-153-0 01 1 0211-0501 ●
49 00.669 BEARING; PILOT 8-97325-153-0 01 1 0502- ●
49 00.669 BEARING; PILOT
BEST VALUE PARTS 		5-87610-164-0 01 1 0211-0501 ●
49 00.669 BEARING; PILOT
BEST VALUE PARTS 		5-87610-164-0 01 1 0502-1004 ●
49 00.669 BEARING; PILOT
BEST VALUE PARTS 		5-87610-164-0 01 1 1005- ● ●
49 00.669 BEARING; PILOT
BEST VALUE PARTS 		5-87610-166-0 01 1 0211-0501 ●
49 00.669 BEARING; PILOT
BEST VALUE PARTS 		5-87610-166-0 01 1 0502- ●
56 00.659 PULLEY; CR/SHF DAMPER
(A) 3-GROOVE 		8-97182-904-0 01 1 0505- ●
56 00.659 PULLEY; CR/SHF DAMPER
(A) 3-GROOVE 		8-97182-904-0 01 1 0211-0501 ●
56 00.659 PULLEY; CR/SHF DAMPER
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (C) 4-GROOVE 		8-97204-204-0 01 1 0211-0501 ●
56 00.659 PULLEY; CR/SHF DAMPER
(C) 4-GROOVE 		8-97204-204-0 01 1 0502- ●
56 00.659 PULLEY; CR/SHF DAMPER
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> (C) 3-GROOVE YAMATO PRESS 		8-94419-457-2 01 1 0211-0501 ●
56 00.659 PULLEY; CR/SHF DAMPER
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> (C) 3-GROOVE FUKOKU 		8-94442-166-6 01 1 0211-0501 ●
56 00.659 PULLEY; CR/SHF DAMPER
POWER STEERING<N40> EXC. TURBOCHARGER<K51> (C) 3-GROOVE FUKOKU 		8-94442-166-6 01 1 0211-0501 ●
56 00.659 PULLEY; CR/SHF DAMPER
POWER STEERING<N40> (C) 3-GROOVE FUKOKU 		8-94442-166-6 01 1 0502- ●
56 00.659 PULLEY; CR/SHF DAMPER
EXC. TURBOCHARGER<K51>,POWER STEERING<N40> (B) 2-GROOVE 		8-94453-552-3 01 1 0211-0501 ●
56 00.659 PULLEY; CR/SHF DAMPER
EXC. POWER STEERING<N40> (B) 2-GROOVE 		8-94453-552-3 01 1 0502- ●
56 00.659 PULLEY; CR/SHF DAMPER
(E) 4-GROOVE 		8-97222-031-3 01 1 0211-0501 ●
56 00.659 PULLEY; CR/SHF DAMPER
(E) 4-GROOVE 		8-97222-031-3 01 1 0502-1004 ●
56 00.659 PULLEY; CR/SHF DAMPER
(E) 4-GROOVE 		8-97222-031-3 01 1 1005- ● ●
56 00.659 PULLEY; CR/SHF DAMPER
(D) 4-GROOVE 		8-97254-844-0 01 1 0211-0501 ●
56 00.659 PULLEY; CR/SHF DAMPER
(D) 4-GROOVE 		8-97254-844-0 01 1 0502- ●
61 00.659 PULLEY; FAN DRIVE
1-GROOVE OD=120 		8-94459-815-4 01 1 0211-0501 ● ●
61 00.659 PULLEY; FAN DRIVE
TURBOCHARGER<K51> 1-GROOVE OD=120 		8-94459-815-4 01 1 0211-0501 ●
61 00.659 PULLEY; FAN DRIVE
1-GROOVE OD=120 		8-94459-815-4 01 1 0502-0504 ● ●
61 00.659 PULLEY; FAN DRIVE
1-GROOVE OD=120 		8-94459-815-4 01 1 0505- ● ● ●
61 00.659 PULLEY; FAN DRIVE
EXC. TURBOCHARGER<K51> 1-GROOVE 		8-94146-638-2 01 1 0211-0501 ●
61 00.659 PULLEY; FAN DRIVE
1-GROOVE 		8-94146-638-2 01 1 0502- ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97174-757-3 01 1 0211-0501 ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97174-757-3 01 1 0502-1004 ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97174-757-3 01 1 1005- ● ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-97219-032-1 04 1 1005-1112 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-98209-745-0 04 1 1201- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		8-97176-618-0 04 1 0505- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		8-97176-619-0 04 1 0505- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		8-97176-618-0 04 1 0211-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		8-97176-619-0 04 1 0211-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=AX 		8-97176-610-0 04 1 0211-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		8-97176-610-0 04 1 0502- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=CX 		8-97176-611-0 04 1 0211-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		8-97176-611-0 04 1 0502- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=AX 		8-97176-606-0 04 1 0211-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		8-97176-606-0 04 1 0502- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=CX 		8-97176-607-0 04 1 0211-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		8-97176-607-0 04 1 0502- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-97176-657-2 04 1 0211-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-97176-657-2 04 1 0502- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		8-97305-585-3 04 1 0211-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		8-97305-585-3 04 1 0502- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		8-97305-586-3 04 1 0211-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		8-97305-586-3 04 1 0502- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97219-054-0 04 1 1005- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97147-984-0 04 1 0505- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97147-984-0 04 1 0211-0501 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-94247-867-1 04 1 0211-0501 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-94247-867-2 04 1 0502- ● ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97109-462-0 04 1 0211-0501 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97109-462-0 04 1 0502- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97259-941-0 04 1 0211-0501 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97259-941-0 04 1 0502- ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97358-234-0 04 1 0211-0501 ● ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97358-234-0 04 1 0502-0504 ● ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97358-234-0 04 1 0505- ● ● ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97045-800-0 04 1 0211-0501 ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97045-800-0 04 1 0502-1004 ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97045-800-0 04 1 1005- ● ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-97045-801-0 04 1 0211-0501 ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-97045-801-0 04 1 0502-1004 ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-97045-801-0 04 1 1005- ● ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97184-534-0 04 1 0211-0501 ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97184-534-0 04 1 0502- ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94457-008-1 04 1 0211-0501 ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> 		8-94457-008-1 04 1 0211-0501 ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94457-008-1 04 1 0502-0504 ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94457-008-1 04 1 0505- ● ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> ALSO INCLUDED IN LINER SET. 		8-94454-479-0 04 1 0211-0501 ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94454-479-0 04 1 0211-0501 ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94454-479-0 04 1 0502- ● ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-589-1 04 1 0211-0501 ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-589-1 04 1 0502-1004 ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-589-1 04 1 1005- ● ●
84 00.603 ROD ASM; CONN 8-97062-300-1 04 1 0211-0306 ●
84 00.603 ROD ASM; CONN
TURBOCHARGER<K51> 		8-97062-300-1 04 1 0211-0306 ●
84 00.603 ROD ASM; CONN 8-97360-243-1 04 1 0307-0307 ●
84 00.603 ROD ASM; CONN
TURBOCHARGER<K51> 		8-97360-243-1 04 1 0307-0307 ●
84 00.603 ROD ASM; CONN 8-97062-300-1 04 1 0308-0501 ●
84 00.603 ROD ASM; CONN
TURBOCHARGER<K51> 		8-97062-300-1 04 1 0308-0501 ●
84 00.603 ROD ASM; CONN 8-97062-300-1 04 1 0502-0504 ●
84 00.603 ROD ASM; CONN 8-98013-290-0 04 1 0505-0505 ●
84 00.603 ROD ASM; CONN 8-98013-290-2 04 1 0505-0705 ● ●
84 00.603 ROD ASM; CONN 8-98013-962-4 04 1 0706- ● ●
84 00.603 ROD ASM; CONN
EXC. TURBOCHARGER<K51> 		8-94329-692-4 04 1 0211-0501 ●
84 00.603 ROD ASM; CONN 8-94329-692-4 04 1 0502-0504 ●
84 00.603 ROD ASM; CONN 8-98012-607-2 04 1 0505- ●
84 00.603 ROD ASM; CONN 8-97135-032-1 04 1 0211-0501 ●
84 00.603 ROD ASM; CONN 8-97135-032-3 04 1 0502-1004 ●
84 00.603 ROD ASM; CONN 8-97135-032-6 04 1 1005- ● ●
84 00.603 ROD ASM; CONN 8-97352-890-1 04 1 0211-0501 ●
84 00.603 ROD ASM; CONN 8-97352-890-1 04 1 0502-0502 ●
84 00.603 ROD ASM; CONN 8-98012-602-2 04 1 0503- ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94457-158-0 04 1 0211-0501 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> 		8-94457-158-0 04 1 0211-0501 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94457-158-0 04 1 0502-0504 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94457-158-0 04 1 0505-0705 ● ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97289-264-1 04 1 0706- ● ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97288-551-0 04 1 0211-0501 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97288-551-0 04 1 0502-0706 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-036-0 04 1 0211-0501 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-036-0 04 1 0502-0805 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 00.603 		8-98075-233-0 04 1 0806-0905 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-98121-309-0 04 1 0906-1004 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-98121-309-0 04 1 1005- ● ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97352-889-0 04 1 0211-0501 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97352-889-0 04 1 0502-0706 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97352-889-0 04 1 0707- ● ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-97062-086-0 08 1 0211-0306 ● ●
86 00.623 BOLT; CONNROD
TURBOCHARGER<K51> M11X44.5 		8-97062-086-0 08 1 0211-0306 ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-97062-086-0 08 1 0307-0307 ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-97062-086-0 08 1 0307-0501 ● ●
86 00.623 BOLT; CONNROD
TURBOCHARGER<K51> M11X44.5 		8-97062-086-0 08 1 0307-0501 ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-97062-086-0 08 1 0502-0504 ● ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-97062-086-0 08 1 0505-0701 ● ● ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-98048-538-0 08 1 0702- ● ● ●
86 00.623 BOLT; CONNROD
EXC. TURBOCHARGER<K51> M11X59 		5-12235-009-0 08 1 0211-0501 ●
86 00.623 BOLT; CONNROD
M11X59 		5-12235-009-0 08 1 0502- ●
86 00.623 BOLT; CONNROD
M13X57 FLANGE 		1-12235-035-0 08 1 0211-0501 ●
86 00.623 BOLT; CONNROD
M13X57 FLANGE 		1-12235-035-0 08 1 0502-1004 ●
86 00.623 BOLT; CONNROD
M13X57 FLANGE 		8-98091-141-0 08 1 1005- ● ●
87 00.613 PIN; CONNROD BIG END
OD=5 L=8 		9-08160-508-0 08 1 0211-0306 ● ●
87 00.613 PIN; CONNROD BIG END
TURBOCHARGER<K51> OD=5 L=8 		9-08160-508-0 08 1 0211-0306 ●
87 00.613 PIN; CONNROD BIG END
OD=5 L=8 		9-08160-508-0 08 1 0307-0307 ●
87 00.613 PIN; CONNROD BIG END
OD=5 L=8 		9-08160-508-0 08 1 0307-0501 ● ●
87 00.613 PIN; CONNROD BIG END
TURBOCHARGER<K51> OD=5 L=8 		9-08160-508-0 08 1 0307-0501 ●
87 00.613 PIN; CONNROD BIG END
OD=5 L=8 		9-08160-508-0 08 1 0502-0504 ● ●
87 00.613 PIN; CONNROD BIG END
OD=5 L=8 		9-08160-508-0 08 1 0505- ● ● ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		8-94460-687-0 08 1 0211-0501 ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> OD=37.5 		8-94460-687-0 08 1 0211-0501 ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=37.5 		8-94460-687-0 08 1 0502-0504 ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=37.5 		8-94460-687-0 08 1 0505- ● ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> ALSO INCLUDED IN LINER SET. ID=33.9 		8-94133-969-0 08 1 0211-0501 ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. ID=33.9 		8-94133-969-0 08 1 0211-0501 ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. ID=33.9 		8-94133-969-0 08 1 0502- ● ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=38.8 		8-94318-798-2 08 1 0211-0501 ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=38.8 		8-94318-798-2 08 1 0502-1004 ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=38.8 		8-94318-798-2 08 1 1005- ● ●
166 00.659 RUBBER; SPACE,PULLEY 8-97231-528-0 01 1 0211-0501 ●
166 00.659 RUBBER; SPACE,PULLEY 8-97231-528-0 01 1 0502- ●
214 00.724 STOPPER; BEARING 8-97316-560-0 01 1 0211-0501 ●
214 00.724 STOPPER; BEARING 8-97316-560-0 01 1 0502-0911 ●
216 00.293 DOWEL 8-97259-856-0 01 1 0211-0410 ●
216 00.293 DOWEL 8-97378-354-0 01 1 0411-0501 ●
216 00.293 DOWEL 8-97378-354-0 01 1 0502- ●
çizim 48156
61 68 40 63 126 83 126 84 49 38 73 74 75 35 85 12 86 42 9 8 10 42 10 10 10 10 28 34 24 1 57 56 42
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 00.646 CRANKSHAFT 8-97190-930-3 01 1 0505- ●
1 00.646 CRANKSHAFT 8-97190-930-1 01 1 0211-0501 ●
1 00.646 CRANKSHAFT
TURBOCHARGER<K51> 		8-97331-853-0 01 1 0211-0501 ●
1 00.646 CRANKSHAFT 8-97331-853-1 01 1 0502- ●
1 00.646 CRANKSHAFT
EXC. TURBOCHARGER<K51> 		8-97190-928-2 01 1 0211-0501 ●
1 00.646 CRANKSHAFT 8-97190-928-3 01 1 0502- ●
1 00.646 CRANKSHAFT 8-97112-981-3 01 1 0211-0501 ●
1 00.646 CRANKSHAFT 8-97112-981-3 01 1 0502-1004 ●
1 00.646 CRANKSHAFT 8-97112-981-3 01 1 1005- ● ●
1 00.646 CRANKSHAFT 8-97254-611-1 01 1 0211-0501 ●
1 00.646 CRANKSHAFT 8-97254-611-2 01 1 0502- ●
8 00.094 METAL KIT; CRANKSHAFT,U/S=0.25 5-87310-546-0 01 1 0211-0303 ●
9 00.094 METAL KIT; CRANKSHAFT,U/S=0.50 5-87310-547-0 01 1 0211-0303 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 1 		8-97202-878-0 05 1 0211-0411 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 1 		8-97387-964-0 05 1 0412-0501 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 1 		8-97387-964-0 05 1 0502-0504 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 1 		8-97387-964-0 05 1 0505- ● ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 2 		8-97202-879-0 05 1 0211-0411 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 2 		8-97387-965-0 05 1 0412-0501 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 2 		8-97387-965-0 05 1 0502-0504 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 2 		8-97387-965-0 05 1 0505- ● ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 3 		8-97202-880-0 05 1 0211-0411 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 3 		8-97387-966-0 05 1 0412-0501 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 3 		8-97387-966-0 05 1 0502-0504 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 3 		8-97387-966-0 05 1 0505- ● ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 4 		8-97202-881-0 05 1 0211-0411 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 4 		8-97387-967-0 05 1 0412-0501 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 4 		8-97387-967-0 05 1 0502-0504 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 4 		8-97387-967-0 05 1 0505- ● ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 5 		8-97202-882-0 05 1 0211-0411 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 5 		8-97387-968-0 05 1 0412-0501 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 5 		8-97387-968-0 05 1 0502-0504 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 5 		8-97387-968-0 05 1 0505- ● ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97219-456-0 05 1 0211-0303 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97372-076-0 05 1 0304-0501 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97372-076-1 05 1 0502-1004 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97372-076-1 05 1 1005- ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97219-457-0 05 1 0211-0303 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97372-077-0 05 1 0304-0501 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97372-077-1 05 1 0502-1004 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97372-077-1 05 1 1005- ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97219-458-0 05 1 0211-0303 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97372-078-0 05 1 0304-0501 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97372-078-1 05 1 0502-1004 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97372-078-1 05 1 1005- ● ●
12 00.666 FLYWHEEL
(A) 		8-97034-430-2 01 1 0211-0501 ●
12 00.666 FLYWHEEL
TURBOCHARGER<K51> (A) 		8-97034-430-2 01 1 0211-0501 ●
12 00.666 FLYWHEEL
(A) 		8-97034-430-2 01 1 0502-0504 ●
12 00.666 FLYWHEEL
(A) 		8-97034-430-2 01 1 0505- ● ●
12 00.666 FLYWHEEL
EXC. TURBOCHARGER<K51> (A) 		8-94125-761-4 01 1 0211-0501 ●
12 00.666 FLYWHEEL
(A) 		8-94125-761-4 01 1 0502- ●
12 00.666 FLYWHEEL
(C) 		8-97330-892-0 01 1 0211-0501 ●
12 00.666 FLYWHEEL
(C) 		8-97330-892-1 01 1 0502-1004 ●
12 00.666 FLYWHEEL
(C) 		8-97330-892-1 01 1 1005- ● ●
12 00.666 FLYWHEEL
(B) 		8-97333-111-1 01 1 0211-0501 ●
12 00.666 FLYWHEEL
(B) 		8-97333-111-1 01 1 0502-0911 ●
12 00.666 FLYWHEEL
(B) 		8-98148-091-0 01 1 0912- ●
24 00.659 BOLT; DAMPER
M16X42 		8-97028-733-0 04 1 0211-0501 ●
24 00.659 BOLT; DAMPER
M16X42 		8-97028-733-0 04 1 0502-1004 ●
24 00.659 BOLT; DAMPER
M16X42 		8-97028-733-0 04 1 1005- ● ●
28 00.728 GEAR; CR/SHF
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> Z=21 		8-97229-593-1 01 1 0211-0501 ●
28 00.728 GEAR; CR/SHF
Z=21 		8-97229-593-1 01 1 0502- ●
28 00.728 GEAR; CR/SHF
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> Z=21 		8-94139-754-0 01 1 0211-0501 ●
28 00.728 GEAR; CR/SHF
EXC. TURBOCHARGER<K51> Z=21 		8-94139-754-0 01 1 0211-0501 ●
28 00.728 GEAR; CR/SHF
Z=21 		8-94139-754-0 01 1 0502- ●
28 00.728 GEAR; CR/SHF
Z=42 		8-97109-626-1 01 1 0211-0501 ●
28 00.728 GEAR; CR/SHF
Z=42 		8-97109-626-1 01 1 0502-1004 ●
28 00.728 GEAR; CR/SHF
Z=42 		8-97109-626-1 01 1 1005- ● ●
28 00.728 GEAR; CR/SHF
Z=30 		8-97240-011-2 01 1 0211-0501 ●
28 00.728 GEAR; CR/SHF
Z=30 		8-97240-011-2 01 1 0502- ●
34 00.738 PIN; GEAR SETTING
OD=5 L=6 		9-09878-626-0 01 1 0211-0501 ●
34 00.738 PIN; GEAR SETTING
OD=5 L=6 		9-09878-626-0 01 1 0502-1004 ●
34 00.738 PIN; GEAR SETTING
OD=5 L=6 		9-09878-626-0 01 1 1005-1405 ● ●
34 00.738 PIN; GEAR SETTING
OD=5 L=6 		9-09878-626-0 02 1 1406- ● ●
35 00.673 GEAR; RING
Z=108 		8-94419-602-1 01 1 0211-0501 ● ●
35 00.673 GEAR; RING
Z=108 		8-94419-602-1 01 1 0502-0504 ● ●
35 00.673 GEAR; RING
Z=108 		8-94419-602-1 01 1 0505- ● ● ●
35 00.673 GEAR; RING
Z=138 		8-97046-366-0 01 1 0211-0501 ●
35 00.673 GEAR; RING
Z=138 		8-97046-366-1 01 1 0502-1004 ●
35 00.673 GEAR; RING
Z=138 		8-97046-366-1 01 1 1005- ● ●
35 00.673 GEAR; RING
Z=122 		8-94364-395-1 01 1 0211-0501 ●
35 00.673 GEAR; RING
Z=122 		8-94364-395-1 01 1 0502- ●
38 00.862 WASHER; FLYWHEEL
00.669 		8-94133-970-0 01 1 0211-0501 ● ● ●
38 00.862 WASHER; FLYWHEEL
00.669 		8-94133-970-0 01 1 0502-0504 ● ● ●
38 00.862 WASHER; FLYWHEEL
00.669 		8-94133-970-1 01 1 0505-1005 ● ● ● ●
38 00.862 WASHER; FLYWHEEL
ID=50.5 OD=97 		8-98171-700-0 01 1 1006- ● ● ● ●
38 00.862 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 0211-0501 ●
38 00.862 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 0502-1004 ●
38 00.862 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 1005- ● ●
40 00.669 BOLT; FLYWHEEL
M13X36 		8-97065-984-1 08 1 0211-0501 ● ●
40 00.669 BOLT; FLYWHEEL
M13X36 		8-97065-984-1 08 1 0502-0504 ● ●
40 00.669 BOLT; FLYWHEEL
M13X36 		8-97065-984-1 08 1 0505- ● ● ●
40 00.669 BOLT; FLYWHEEL
M16X42 		8-97178-013-0 08 1 0211-0501 ●
40 00.669 BOLT; FLYWHEEL
M16X42 		8-97178-013-0 08 1 0502-1004 ●
40 00.669 BOLT; FLYWHEEL
M16X42 		8-97178-013-0 08 1 1005- ● ●
40 00.669 BOLT; FLYWHEEL
M13X45 		8-94418-050-0 08 1 0211-0501 ●
40 00.669 BOLT; FLYWHEEL
M13X45 		8-94418-050-0 08 1 0502- ●
42 00.095 WASHER; THRUST,CR/SHF
(A) 		8-94453-520-0 02 1 0211-0411 ● ● ●
42 00.095 WASHER; THRUST,CR/SHF
(A) 		8-97383-740-0 02 1 0412-0501 ● ● ●
42 00.095 WASHER; THRUST,CR/SHF
(A) 		8-97383-740-0 02 1 0502-0504 ● ● ●
42 00.095 WASHER; THRUST,CR/SHF
(A) 		8-97383-740-0 02 1 0505-1108 ● ● ● ●
42 00.095 WASHER; THRUST,CR/SHF
(A) 		8-98040-704-0 02 1 1109- ● ● ● ●
42 00.095 WASHER; THRUST,CR/SHF
(C) 		8-94399-277-0 01 1 0211-0501 ●
42 00.095 WASHER; THRUST,CR/SHF
(C) 		8-94399-277-0 01 1 0502-0703 ●
42 00.095 WASHER; THRUST,CR/SHF
(C) 		8-97386-548-0 01 1 0704-1004 ●
42 00.095 WASHER; THRUST,CR/SHF
(C) 		8-97386-548-0 01 1 1005- ● ●
42 00.095 WASHER; THRUST,CR/SHF
(B) 		8-94399-283-0 02 1 0211-0501 ●
42 00.095 WASHER; THRUST,CR/SHF
(B) 		8-94399-283-0 02 1 0502-0703 ●
42 00.095 WASHER; THRUST,CR/SHF
(B) 		8-97386-549-0 02 1 0704-1004 ●
42 00.095 WASHER; THRUST,CR/SHF
(B) 		8-97386-549-0 02 1 1005- ● ●
49 00.669 BEARING; PILOT 8-97258-239-0 01 1 0211-0501 ●
49 00.669 BEARING; PILOT 8-97258-239-0 01 1 0502-1004 ●
49 00.669 BEARING; PILOT 8-97258-239-0 01 1 1005- ● ●
49 00.669 BEARING; PILOT 8-97325-153-0 01 1 0211-0501 ●
49 00.669 BEARING; PILOT 8-97325-153-0 01 1 0502- ●
49 00.669 BEARING; PILOT
BEST VALUE PARTS 		5-87610-164-0 01 1 0211-0501 ●
49 00.669 BEARING; PILOT
BEST VALUE PARTS 		5-87610-164-0 01 1 0502-1004 ●
49 00.669 BEARING; PILOT
BEST VALUE PARTS 		5-87610-164-0 01 1 1005- ● ●
49 00.669 BEARING; PILOT
BEST VALUE PARTS 		5-87610-166-0 01 1 0211-0501 ●
49 00.669 BEARING; PILOT
BEST VALUE PARTS 		5-87610-166-0 01 1 0502- ●
56 00.659 PULLEY; CR/SHF DAMPER
(A) 3-GROOVE 		8-97182-904-0 01 1 0505- ●
56 00.659 PULLEY; CR/SHF DAMPER
(A) 3-GROOVE 		8-97182-904-0 01 1 0211-0501 ●
56 00.659 PULLEY; CR/SHF DAMPER
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (C) 4-GROOVE 		8-97204-204-0 01 1 0211-0501 ●
56 00.659 PULLEY; CR/SHF DAMPER
(C) 4-GROOVE 		8-97204-204-0 01 1 0502- ●
56 00.659 PULLEY; CR/SHF DAMPER
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> (C) 3-GROOVE YAMATO PRESS 		8-94419-457-2 01 1 0211-0501 ●
56 00.659 PULLEY; CR/SHF DAMPER
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> (C) 3-GROOVE FUKOKU 		8-94442-166-6 01 1 0211-0501 ●
56 00.659 PULLEY; CR/SHF DAMPER
POWER STEERING<N40> EXC. TURBOCHARGER<K51> (C) 3-GROOVE FUKOKU 		8-94442-166-6 01 1 0211-0501 ●
56 00.659 PULLEY; CR/SHF DAMPER
POWER STEERING<N40> (C) 3-GROOVE FUKOKU 		8-94442-166-6 01 1 0502- ●
56 00.659 PULLEY; CR/SHF DAMPER
EXC. TURBOCHARGER<K51>,POWER STEERING<N40> (B) 2-GROOVE 		8-94453-552-3 01 1 0211-0501 ●
56 00.659 PULLEY; CR/SHF DAMPER
EXC. POWER STEERING<N40> (B) 2-GROOVE 		8-94453-552-3 01 1 0502- ●
56 00.659 PULLEY; CR/SHF DAMPER
(E) 4-GROOVE 		8-97222-031-3 01 1 0211-0501 ●
56 00.659 PULLEY; CR/SHF DAMPER
(E) 4-GROOVE 		8-97222-031-3 01 1 0502-1004 ●
56 00.659 PULLEY; CR/SHF DAMPER
(E) 4-GROOVE 		8-97222-031-3 01 1 1005- ● ●
56 00.659 PULLEY; CR/SHF DAMPER
(D) 4-GROOVE 		8-97254-844-0 01 1 0211-0501 ●
56 00.659 PULLEY; CR/SHF DAMPER
(D) 4-GROOVE 		8-97254-844-0 01 1 0502- ●
57 00.662 PIN; PULLEY
08.939 OD=8 L=16 		9-08150-816-0 02 1 0211-0212 ●
57 00.662 PIN; PULLEY
08.939 OD=8 L=20 		9-08160-820-0 02 1 0301-0304 ●
57 00.662 PIN; PULLEY
00.862 OD=8 L=20 		9-08150-820-0 02 1 0305-0501 ●
57 00.662 PIN; PULLEY
00.862 OD=8 L=20 		9-08150-820-0 02 1 0502-1004 ●
57 00.662 PIN; PULLEY
00.862 OD=8 L=20 		9-08150-820-0 02 1 1005-1405 ● ●
57 00.662 PIN; PULLEY
00.862 OD=8 L=20 		9-08150-820-0 04 1 1406- ● ●
61 00.659 PULLEY; FAN DRIVE
1-GROOVE OD=120 		8-94459-815-4 01 1 0211-0501 ● ●
61 00.659 PULLEY; FAN DRIVE
TURBOCHARGER<K51> 1-GROOVE OD=120 		8-94459-815-4 01 1 0211-0501 ●
61 00.659 PULLEY; FAN DRIVE
1-GROOVE OD=120 		8-94459-815-4 01 1 0502-0504 ● ●
61 00.659 PULLEY; FAN DRIVE
1-GROOVE OD=120 		8-94459-815-4 01 1 0505- ● ● ●
61 00.659 PULLEY; FAN DRIVE
EXC. TURBOCHARGER<K51> 1-GROOVE 		8-94146-638-2 01 1 0211-0501 ●
61 00.659 PULLEY; FAN DRIVE
1-GROOVE 		8-94146-638-2 01 1 0502- ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97174-757-3 01 1 0211-0501 ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97174-757-3 01 1 0502-1004 ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97174-757-3 01 1 1005- ● ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-97219-032-1 04 1 1005-1112 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-98209-745-0 04 1 1201- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		8-97176-618-0 04 1 0505- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		8-97176-619-0 04 1 0505- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		8-97176-618-0 04 1 0211-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		8-97176-619-0 04 1 0211-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=AX 		8-97176-610-0 04 1 0211-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		8-97176-610-0 04 1 0502- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=CX 		8-97176-611-0 04 1 0211-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		8-97176-611-0 04 1 0502- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=AX 		8-97176-606-0 04 1 0211-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		8-97176-606-0 04 1 0502- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=CX 		8-97176-607-0 04 1 0211-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		8-97176-607-0 04 1 0502- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-97176-657-2 04 1 0211-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-97176-657-2 04 1 0502- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		8-97305-585-3 04 1 0211-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		8-97305-585-3 04 1 0502- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		8-97305-586-3 04 1 0211-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		8-97305-586-3 04 1 0502- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97219-054-0 04 1 1005- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97147-984-0 04 1 0505- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97147-984-0 04 1 0211-0501 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-94247-867-1 04 1 0211-0501 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-94247-867-2 04 1 0502- ● ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97109-462-0 04 1 0211-0501 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97109-462-0 04 1 0502- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97259-941-0 04 1 0211-0501 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97259-941-0 04 1 0502- ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97358-234-0 04 1 0211-0501 ● ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97358-234-0 04 1 0502-0504 ● ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97358-234-0 04 1 0505- ● ● ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97045-800-0 04 1 0211-0501 ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97045-800-0 04 1 0502-1004 ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97045-800-0 04 1 1005- ● ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-97045-801-0 04 1 0211-0501 ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-97045-801-0 04 1 0502-1004 ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-97045-801-0 04 1 1005- ● ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97184-534-0 04 1 0211-0501 ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97184-534-0 04 1 0502- ●
74 00.616 METAL SET; CONN ROD,U/S=0.25 8-97175-127-0 04 1 0211-0501 ●
74 00.616 METAL SET; CONN ROD,U/S=0.25 8-97175-127-0 04 1 0502-1004 ●
74 00.616 METAL SET; CONN ROD,U/S=0.25 8-97175-127-0 04 1 1005-1405 ● ●
74 00.616 METAL SET; CONN ROD,U/S=0.25 8-97175-127-0 08 1 1406- ● ●
75 00.616 METAL SET; CONN ROD,U/S=0.50 8-97175-128-0 04 1 0211-0501 ●
75 00.616 METAL SET; CONN ROD,U/S=0.50 8-97175-128-0 04 1 0502-1004 ●
75 00.616 METAL SET; CONN ROD,U/S=0.50 8-97175-128-0 04 1 1005-1405 ● ●
75 00.616 METAL SET; CONN ROD,U/S=0.50 8-97175-128-0 08 1 1406- ● ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94457-008-1 04 1 0211-0501 ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> 		8-94457-008-1 04 1 0211-0501 ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94457-008-1 04 1 0502-0504 ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94457-008-1 04 1 0505- ● ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> ALSO INCLUDED IN LINER SET. 		8-94454-479-0 04 1 0211-0501 ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94454-479-0 04 1 0211-0501 ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94454-479-0 04 1 0502- ● ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-589-1 04 1 0211-0501 ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-589-1 04 1 0502-1004 ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-589-1 04 1 1005- ● ●
84 00.603 ROD ASM; CONN 8-97062-300-1 04 1 0211-0306 ●
84 00.603 ROD ASM; CONN
TURBOCHARGER<K51> 		8-97062-300-1 04 1 0211-0306 ●
84 00.603 ROD ASM; CONN 8-97360-243-1 04 1 0307-0307 ●
84 00.603 ROD ASM; CONN
TURBOCHARGER<K51> 		8-97360-243-1 04 1 0307-0307 ●
84 00.603 ROD ASM; CONN 8-97062-300-1 04 1 0308-0501 ●
84 00.603 ROD ASM; CONN
TURBOCHARGER<K51> 		8-97062-300-1 04 1 0308-0501 ●
84 00.603 ROD ASM; CONN 8-97062-300-1 04 1 0502-0504 ●
84 00.603 ROD ASM; CONN 8-98013-290-0 04 1 0505-0505 ●
84 00.603 ROD ASM; CONN 8-98013-290-2 04 1 0505-0705 ● ●
84 00.603 ROD ASM; CONN 8-98013-962-4 04 1 0706- ● ●
84 00.603 ROD ASM; CONN
EXC. TURBOCHARGER<K51> 		8-94329-692-4 04 1 0211-0501 ●
84 00.603 ROD ASM; CONN 8-94329-692-4 04 1 0502-0504 ●
84 00.603 ROD ASM; CONN 8-98012-607-2 04 1 0505- ●
84 00.603 ROD ASM; CONN 8-97135-032-1 04 1 0211-0501 ●
84 00.603 ROD ASM; CONN 8-97135-032-3 04 1 0502-1004 ●
84 00.603 ROD ASM; CONN 8-97135-032-6 04 1 1005- ● ●
84 00.603 ROD ASM; CONN 8-97352-890-1 04 1 0211-0501 ●
84 00.603 ROD ASM; CONN 8-97352-890-1 04 1 0502-0502 ●
84 00.603 ROD ASM; CONN 8-98012-602-2 04 1 0503- ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94457-158-0 04 1 0211-0501 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> 		8-94457-158-0 04 1 0211-0501 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94457-158-0 04 1 0502-0504 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94457-158-0 04 1 0505-0705 ● ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97289-264-1 04 1 0706- ● ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97288-551-0 04 1 0211-0501 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97288-551-0 04 1 0502-0706 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-036-0 04 1 0211-0501 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-036-0 04 1 0502-0805 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 00.603 		8-98075-233-0 04 1 0806-0905 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-98121-309-0 04 1 0906-1004 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-98121-309-0 04 1 1005- ● ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97352-889-0 04 1 0211-0501 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97352-889-0 04 1 0502-0706 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97352-889-0 04 1 0707- ● ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-97062-086-0 08 1 0211-0306 ● ●
86 00.623 BOLT; CONNROD
TURBOCHARGER<K51> M11X44.5 		8-97062-086-0 08 1 0211-0306 ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-97062-086-0 08 1 0307-0307 ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-97062-086-0 08 1 0307-0501 ● ●
86 00.623 BOLT; CONNROD
TURBOCHARGER<K51> M11X44.5 		8-97062-086-0 08 1 0307-0501 ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-97062-086-0 08 1 0502-0504 ● ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-97062-086-0 08 1 0505-0701 ● ● ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-98048-538-0 08 1 0702- ● ● ●
86 00.623 BOLT; CONNROD
EXC. TURBOCHARGER<K51> M11X59 		5-12235-009-0 08 1 0211-0501 ●
86 00.623 BOLT; CONNROD
M11X59 		5-12235-009-0 08 1 0502- ●
86 00.623 BOLT; CONNROD
M13X57 FLANGE 		1-12235-035-0 08 1 0211-0501 ●
86 00.623 BOLT; CONNROD
M13X57 FLANGE 		1-12235-035-0 08 1 0502-1004 ●
86 00.623 BOLT; CONNROD
M13X57 FLANGE 		8-98091-141-0 08 1 1005- ● ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		8-94460-687-0 08 1 0211-0501 ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> OD=37.5 		8-94460-687-0 08 1 0211-0501 ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=37.5 		8-94460-687-0 08 1 0502-0504 ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=37.5 		8-94460-687-0 08 1 0505- ● ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> ALSO INCLUDED IN LINER SET. ID=33.9 		8-94133-969-0 08 1 0211-0501 ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. ID=33.9 		8-94133-969-0 08 1 0211-0501 ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. ID=33.9 		8-94133-969-0 08 1 0502- ● ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=38.8 		8-94318-798-2 08 1 0211-0501 ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=38.8 		8-94318-798-2 08 1 0502-1004 ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=38.8 		8-94318-798-2 08 1 1005- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
