Sayfa 0-13 - Isuzu EPC

0-13 — OIL PAN AND LEVEL GAUGE (#50706) — 364 parça

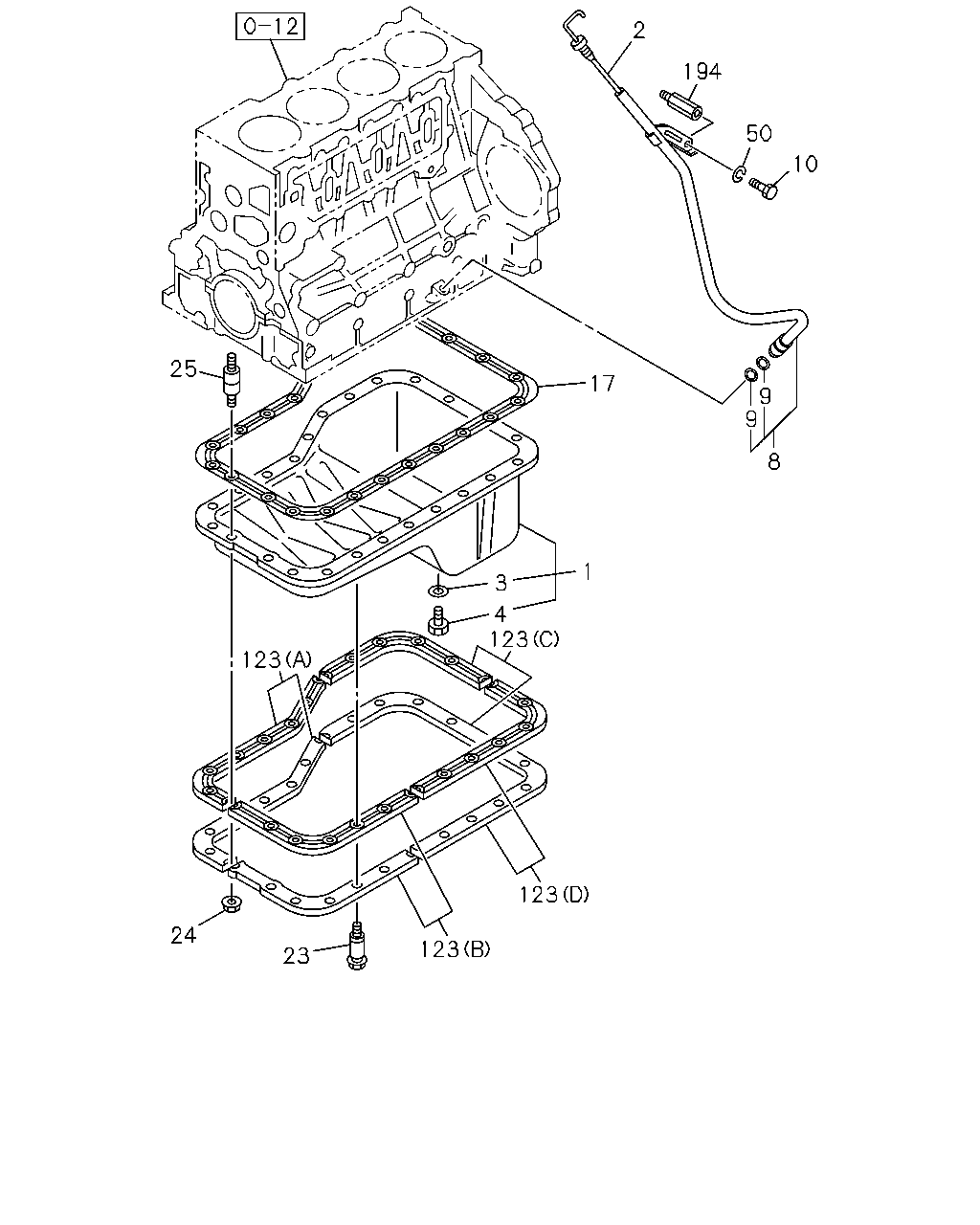

2 194 50 10 9 9 25 17 8 1 3 4 123 123 123 24 123 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	0211-0312	●
1	01.426 PAN ASM; OIL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97083-322-3	01	1	0211-0312		●
1	01.426 PAN ASM; OIL EXC. TURBOCHARGER<K51>	8-97083-322-3	01	1	0211-0312		●
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	0401-0411	●
1	01.426 PAN ASM; OIL COLOMBIA EQUIPMENT(X74)	8-97083-322-3	01	1	0401-0411		●
1	01.426 PAN ASM; OIL EXC. TURBOCHARGER<K51>	8-97083-322-3	01	1	0401-0411		●
1	01.426 PAN ASM; OIL	8-98000-123-0	01	1	0412-0501	●
1	01.426 PAN ASM; OIL COLOMBIA EQUIPMENT(X74)	8-98000-123-0	01	1	0412-0501		●
1	01.426 PAN ASM; OIL EXC. TURBOCHARGER<K51>	8-98000-123-0	01	1	0412-0501		●
1	01.426 PAN ASM; OIL	8-98000-123-0	01	1	0502-0504		●	●
1	01.426 PAN ASM; OIL	8-98000-123-0	01	1	0505-	●	●	●
1	01.426 PAN ASM; OIL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97223-955-0	01	1	0211-0312		●
1	01.426 PAN ASM; OIL	8-97223-955-0	01	1	0211-0312				●
1	01.426 PAN ASM; OIL	8-97223-955-0	01	1	0401-0411				●
1	01.426 PAN ASM; OIL	8-98000-124-0	01	1	0412-0501				●
1	01.426 PAN ASM; OIL	8-98000-124-0	01	1	0502-					●
1	01.426 PAN ASM; OIL	8-97305-077-0	01	1	0211-0405						●
1	01.426 PAN ASM; OIL	8-97385-249-0	01	1	0406-0501						●
1	01.426 PAN ASM; OIL	8-97385-249-0	01	1	0502-1004							●
1	01.426 PAN ASM; OIL	8-97385-249-0	01	1	1005-1202							●	●
1	01.426 PAN ASM; OIL	8-98203-596-0	01	1	1203-							●	●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	0211-0501	●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER<K51>	8-97092-924-0	01	1	0211-0501		●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	0502-0504		●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	0505-	●	●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51>	8-97231-295-0	01	1	0211-0501		●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	0211-0501				●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	0502-			●		●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	0211-0501						●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	0502-1004							●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	1005-							●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24	8-94158-328-0	01	1	0211-0501	●	●		●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24	8-94158-328-0	01	1	0502-0504		●	●		●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24	8-94158-328-0	01	1	0505-1004	●	●	●		●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24	8-94158-328-0	01	1	1005-	●	●	●		●		●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0211-0501	●	●		●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0502-0504		●	●		●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0505-1004	●	●	●		●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	1005-	●	●	●		●		●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97200-567-1	01	1	1005-								●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	0211-0501	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97044-886-0	01	1	0211-0501		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. TURBOCHARGER<K51>	8-97044-886-0	01	1	0211-0501		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	0502-0504		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	0505-	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97221-497-0	01	1	0211-0501		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97221-497-0	01	1	0502-			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	0211-0501						●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	0502-							●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97239-977-0	01	1	0211-0501				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97239-977-0	01	1	0502-					●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) .	5-09623-002-0	01	1	0211-0501	●			●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	01	1	0211-0501		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. TURBOCHARGER<K51> ID=11	5-09623-002-0	01	1	0211-0501		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	02	1	0502-1004			●				●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	02	1	1005-			●				●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	02	1	0211-0212						●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> . ID=11	5-09623-002-0	02	1	0301-0501		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	02	1	0301-0501						●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	01	1	0502-0504		●			●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	01	1	0505-	●	●			●
10	01.516 BOLT; GUIDE TUBE 09.171 M10X110 FLANGE	0-28156-011-0	01	1	1005-								●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0211-0501						●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0502-0512							●
10	01.516 BOLT; GUIDE TUBE 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0601-							●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97190-191-1	01	1	0211-0402						●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97364-386-0	01	1	0403-0501						●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97364-386-0	01	1	0502-1004							●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97364-386-0	01	1	1005-							●	●
23	01.428 BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0211-0501						●
23	01.428 BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0502-1004							●
23	01.428 BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	1005-							●	●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	13	1	0211-0501						●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	13	1	0502-0602							●
24	01.453 NUT; OIL PAN 01.062 M8 FLANGE	0-91180-108-0	13	1	0603-1004							●
24	01.453 NUT; OIL PAN 01.062 M8 FLANGE	0-91180-108-0	13	1	1005-							●	●
25	01.453 STUD; OIL PAN M8X16,M8X17 L=37 W/PL WASHER, RUBBERTUBE	8-97190-391-0	01	1	0211-0501						●
25	01.453 STUD; OIL PAN M8X16,M8X17 L=37 W/PL WASHER, RUBBERTUBE	8-97190-391-0	01	1	0502-1004							●
25	01.453 STUD; OIL PAN M8X16,M8X17 L=37 W/PL WASHER, RUBBERTUBE	8-97190-391-0	01	1	1005-							●	●
25	01.453 STUD; OIL PAN 01.428 M8X16,M8X19 L=39 W/PL WASHER, RUBBERTUBE	8-97190-392-0	09	1	0211-0501						●
25	01.453 STUD; OIL PAN 01.428 M8X16,M8X19 L=39 W/PL WASHER, RUBBERTUBE	8-97190-392-0	09	1	0502-1004							●
25	01.453 STUD; OIL PAN 01.428 M8X16,M8X19 L=39 W/PL WASHER, RUBBERTUBE	8-97190-392-0	09	1	1005-							●	●
50	01.516 WASHER; PL,GUIDE TUBE 04.085 ID=10.5 OD=22	9-09164-610-0	01	1	0211-0501						●
50	01.516 WASHER; PL,GUIDE TUBE 04.085 ID=10.5 OD=22	9-09164-610-0	01	1	0502-0605							●
50	01.516 WASHER; PL,GUIDE TUBE 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0606-							●
123	01.516 RUBBER; SEAL OIL (A)	8-97186-988-0	01	1	0211-0501						●
123	01.516 RUBBER; SEAL OIL (A)	8-97186-988-0	01	1	0502-1004							●
123	01.516 RUBBER; SEAL OIL (A)	8-97186-988-0	01	1	1005-							●	●
123	01.516 RUBBER; SEAL OIL (B)	8-97186-994-0	01	1	0211-0501						●
123	01.516 RUBBER; SEAL OIL (B)	8-97186-994-0	01	1	0502-1004							●
123	01.516 RUBBER; SEAL OIL (B)	8-97186-994-0	01	1	1005-							●	●
123	01.516 RUBBER; SEAL OIL (C)	8-97186-998-0	01	1	0211-0501						●
123	01.516 RUBBER; SEAL OIL (C)	8-97186-998-0	01	1	0502-1004							●
123	01.516 RUBBER; SEAL OIL (C)	8-97186-998-0	01	1	1005-							●	●
123	01.516 RUBBER; SEAL OIL (D)	8-97187-000-0	01	1	0211-0501						●
123	01.516 RUBBER; SEAL OIL (D)	8-97187-000-0	01	1	0502-1004							●
123	01.516 RUBBER; SEAL OIL (D)	8-97187-000-0	01	1	1005-							●	●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	0211-0501						●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	0502-							●

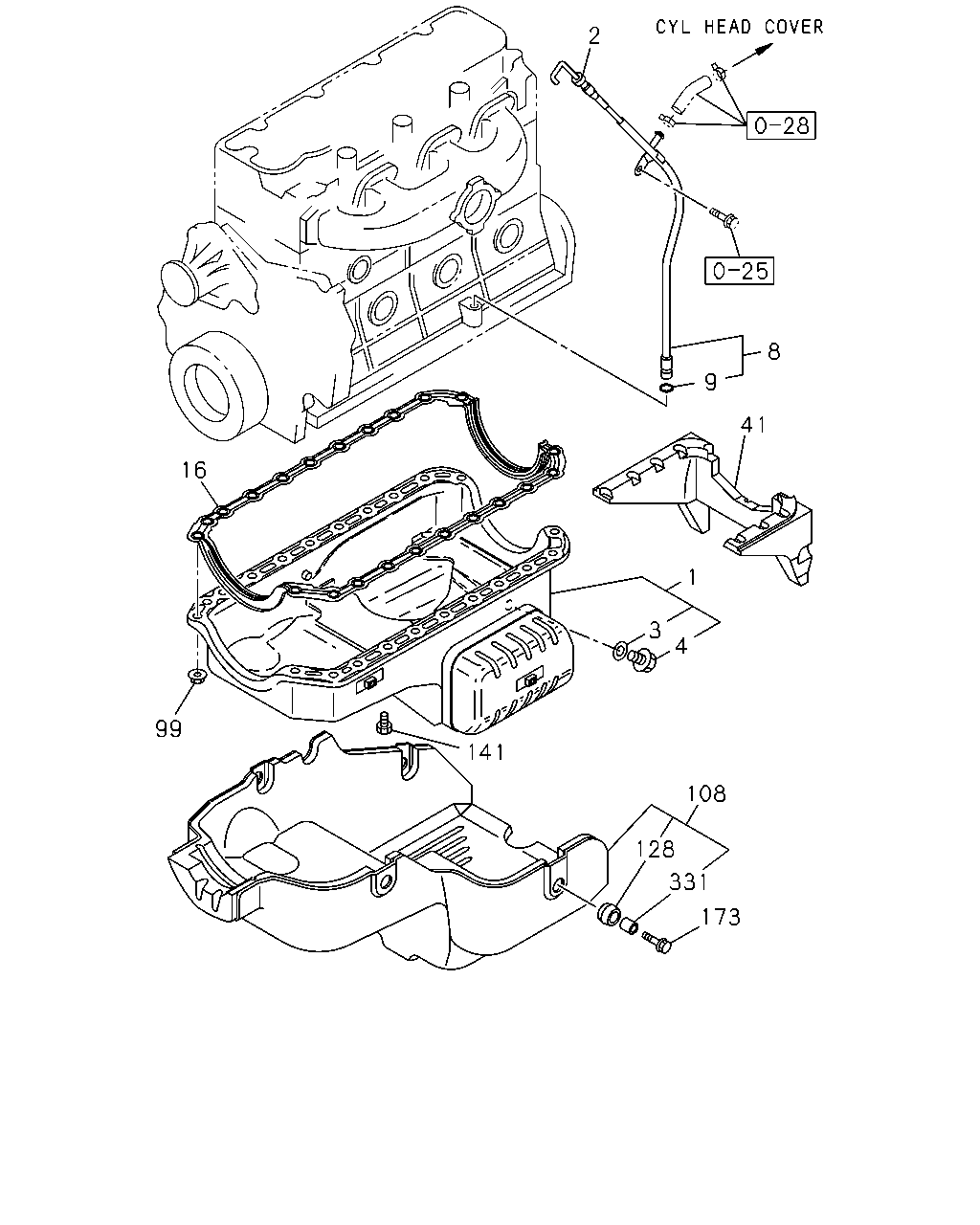

2 8 9 41 16 1 3 4 141 99 108 128 331 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	0211-0312	●
1	01.426 PAN ASM; OIL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97083-322-3	01	1	0211-0312		●
1	01.426 PAN ASM; OIL EXC. TURBOCHARGER<K51>	8-97083-322-3	01	1	0211-0312		●
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	0401-0411	●
1	01.426 PAN ASM; OIL COLOMBIA EQUIPMENT(X74)	8-97083-322-3	01	1	0401-0411		●
1	01.426 PAN ASM; OIL EXC. TURBOCHARGER<K51>	8-97083-322-3	01	1	0401-0411		●
1	01.426 PAN ASM; OIL	8-98000-123-0	01	1	0412-0501	●
1	01.426 PAN ASM; OIL COLOMBIA EQUIPMENT(X74)	8-98000-123-0	01	1	0412-0501		●
1	01.426 PAN ASM; OIL EXC. TURBOCHARGER<K51>	8-98000-123-0	01	1	0412-0501		●
1	01.426 PAN ASM; OIL	8-98000-123-0	01	1	0502-0504		●	●
1	01.426 PAN ASM; OIL	8-98000-123-0	01	1	0505-	●	●	●
1	01.426 PAN ASM; OIL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97223-955-0	01	1	0211-0312		●
1	01.426 PAN ASM; OIL	8-97223-955-0	01	1	0211-0312				●
1	01.426 PAN ASM; OIL	8-97223-955-0	01	1	0401-0411				●
1	01.426 PAN ASM; OIL	8-98000-124-0	01	1	0412-0501				●
1	01.426 PAN ASM; OIL	8-98000-124-0	01	1	0502-					●
1	01.426 PAN ASM; OIL	8-97305-077-0	01	1	0211-0405						●
1	01.426 PAN ASM; OIL	8-97385-249-0	01	1	0406-0501						●
1	01.426 PAN ASM; OIL	8-97385-249-0	01	1	0502-1004							●
1	01.426 PAN ASM; OIL	8-97385-249-0	01	1	1005-1202							●	●
1	01.426 PAN ASM; OIL	8-98203-596-0	01	1	1203-							●	●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	0211-0501	●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER<K51>	8-97092-924-0	01	1	0211-0501		●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	0502-0504		●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	0505-	●	●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51>	8-97231-295-0	01	1	0211-0501		●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	0211-0501				●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	0502-			●		●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	0211-0501						●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	0502-1004							●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	1005-							●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24	8-94158-328-0	01	1	0211-0501	●	●		●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24	8-94158-328-0	01	1	0502-0504		●	●		●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24	8-94158-328-0	01	1	0505-1004	●	●	●		●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24	8-94158-328-0	01	1	1005-	●	●	●		●		●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0211-0501	●	●		●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0502-0504		●	●		●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0505-1004	●	●	●		●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	1005-	●	●	●		●		●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97200-567-1	01	1	1005-								●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	0211-0501	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97044-886-0	01	1	0211-0501		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. TURBOCHARGER<K51>	8-97044-886-0	01	1	0211-0501		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	0502-0504		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	0505-	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97221-497-0	01	1	0211-0501		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97221-497-0	01	1	0502-			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	0211-0501						●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	0502-							●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97239-977-0	01	1	0211-0501				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97239-977-0	01	1	0502-					●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) .	5-09623-002-0	01	1	0211-0501	●			●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	01	1	0211-0501		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. TURBOCHARGER<K51> ID=11	5-09623-002-0	01	1	0211-0501		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	02	1	0502-1004			●				●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	02	1	1005-			●				●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	02	1	0211-0212						●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> . ID=11	5-09623-002-0	02	1	0301-0501		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	02	1	0301-0501						●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	01	1	0502-0504		●			●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	01	1	0505-	●	●			●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97080-194-0	01	1	0211-0501	●	●		●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97080-194-0	01	1	0502-0504		●	●		●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97080-194-0	01	1	0505-	●	●	●		●
41	00.137 RUBBER; SPACE EXC. BRAZIL EQUIPMENT(RWF)	8-97286-992-0	01	1	0211-0501	●
41	00.137 RUBBER; SPACE TURBOCHARGER<K51>	8-97286-992-0	01	1	0211-0501		●
41	00.137 RUBBER; SPACE TURKISH EQUIPMENT(S6S) EXC. TURBOCHARGER<K51>	8-97286-992-0	01	1	0211-0501		●
41	00.137 RUBBER; SPACE	8-97286-992-0	01	1	0211-0501				●
41	00.137 RUBBER; SPACE TURKISH EQUIPMENT(S6S)	8-97286-992-0	01	1	0502-0504		●
41	00.137 RUBBER; SPACE	8-97286-992-0	01	1	0502-0504			●		●
41	00.137 RUBBER; SPACE EURO2 SPECIFICATION(NT2)	8-97286-992-0	01	1	0505-1204	●
41	00.137 RUBBER; SPACE TURKISH EQUIPMENT(S6S)	8-97286-992-0	01	1	0505-1204		●
41	00.137 RUBBER; SPACE	8-97286-992-0	01	1	0505-1204			●		●
41	00.137 RUBBER; SPACE	8-97286-992-0	01	1	1205-					●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	0211-0501	●	●		●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	0502-0504		●	●		●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	0505-	●	●	●		●
108	01.426 COVER; OIL PAN	8-97248-296-2	01	1	0211-0305				●
108	01.426 COVER; OIL PAN	8-97370-031-0	01	1	0306-0501				●
108	01.426 COVER; OIL PAN	8-97370-031-0	01	1	0502-0612					●
108	01.426 COVER; OIL PAN	8-98067-854-0	01	1	0701-					●
128	01.516 RUBBER; MTG,OIL PAN	8-97227-521-0	04	1	0211-0501				●
128	01.516 RUBBER; MTG,OIL PAN	8-97227-521-0	04	1	0502-					●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	0211-0501	●	●		●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	0502-0504		●	●		●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	0505-	●	●	●		●
173	01.428 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	04	1	0211-0501				●
173	01.428 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	04	1	0502-					●
331	01.516 COLLAR; MTG RUBBER	8-97224-450-0	04	1	0211-0501				●
331	01.516 COLLAR; MTG RUBBER	8-97224-450-0	04	1	0502-					●

2 10 25 17 49 9 9 8 1 3 4 123 123 123 24 123 23

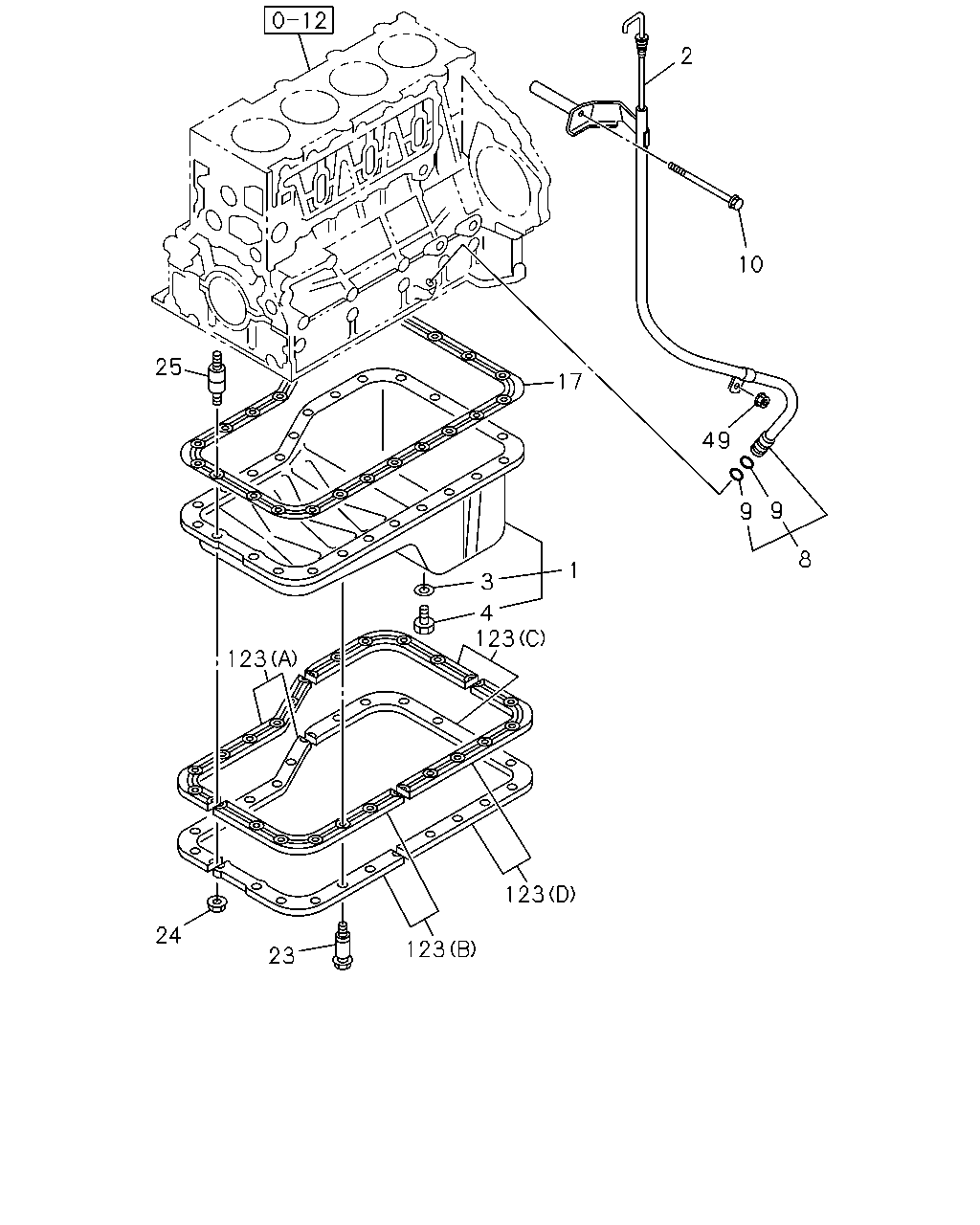

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	0211-0312	●
1	01.426 PAN ASM; OIL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97083-322-3	01	1	0211-0312		●
1	01.426 PAN ASM; OIL EXC. TURBOCHARGER<K51>	8-97083-322-3	01	1	0211-0312		●
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	0401-0411	●
1	01.426 PAN ASM; OIL COLOMBIA EQUIPMENT(X74)	8-97083-322-3	01	1	0401-0411		●
1	01.426 PAN ASM; OIL EXC. TURBOCHARGER<K51>	8-97083-322-3	01	1	0401-0411		●
1	01.426 PAN ASM; OIL	8-98000-123-0	01	1	0412-0501	●
1	01.426 PAN ASM; OIL COLOMBIA EQUIPMENT(X74)	8-98000-123-0	01	1	0412-0501		●
1	01.426 PAN ASM; OIL EXC. TURBOCHARGER<K51>	8-98000-123-0	01	1	0412-0501		●
1	01.426 PAN ASM; OIL	8-98000-123-0	01	1	0502-0504		●	●
1	01.426 PAN ASM; OIL	8-98000-123-0	01	1	0505-	●	●	●
1	01.426 PAN ASM; OIL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97223-955-0	01	1	0211-0312		●
1	01.426 PAN ASM; OIL	8-97223-955-0	01	1	0211-0312				●
1	01.426 PAN ASM; OIL	8-97223-955-0	01	1	0401-0411				●
1	01.426 PAN ASM; OIL	8-98000-124-0	01	1	0412-0501				●
1	01.426 PAN ASM; OIL	8-98000-124-0	01	1	0502-					●
1	01.426 PAN ASM; OIL	8-97305-077-0	01	1	0211-0405						●
1	01.426 PAN ASM; OIL	8-97385-249-0	01	1	0406-0501						●
1	01.426 PAN ASM; OIL	8-97385-249-0	01	1	0502-1004							●
1	01.426 PAN ASM; OIL	8-97385-249-0	01	1	1005-1202							●	●
1	01.426 PAN ASM; OIL	8-98203-596-0	01	1	1203-							●	●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	0211-0501	●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER<K51>	8-97092-924-0	01	1	0211-0501		●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	0502-0504		●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	0505-	●	●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51>	8-97231-295-0	01	1	0211-0501		●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	0211-0501				●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	0502-			●		●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	0211-0501						●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	0502-1004							●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	1005-							●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24	8-94158-328-0	01	1	0211-0501	●	●		●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24	8-94158-328-0	01	1	0502-0504		●	●		●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24	8-94158-328-0	01	1	0505-1004	●	●	●		●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24	8-94158-328-0	01	1	1005-	●	●	●		●		●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0211-0501	●	●		●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0502-0504		●	●		●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0505-1004	●	●	●		●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	1005-	●	●	●		●		●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97200-567-1	01	1	1005-								●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	0211-0501	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97044-886-0	01	1	0211-0501		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. TURBOCHARGER<K51>	8-97044-886-0	01	1	0211-0501		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	0502-0504		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	0505-	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97221-497-0	01	1	0211-0501		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97221-497-0	01	1	0502-			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	0211-0501						●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	0502-							●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97239-977-0	01	1	0211-0501				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97239-977-0	01	1	0502-					●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) .	5-09623-002-0	01	1	0211-0501	●			●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	01	1	0211-0501		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. TURBOCHARGER<K51> ID=11	5-09623-002-0	01	1	0211-0501		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	02	1	0502-1004			●				●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	02	1	1005-			●				●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	02	1	0211-0212						●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> . ID=11	5-09623-002-0	02	1	0301-0501		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	02	1	0301-0501						●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	01	1	0502-0504		●			●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	01	1	0505-	●	●			●
10	01.516 BOLT; GUIDE TUBE 09.171 M10X110 FLANGE	0-28156-011-0	01	1	1005-								●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0211-0501						●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0502-0512							●
10	01.516 BOLT; GUIDE TUBE 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0601-							●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97190-191-1	01	1	0211-0402						●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97364-386-0	01	1	0403-0501						●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97364-386-0	01	1	0502-1004							●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97364-386-0	01	1	1005-							●	●
23	01.428 BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0211-0501						●
23	01.428 BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0502-1004							●
23	01.428 BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	1005-							●	●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	13	1	0211-0501						●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	13	1	0502-0602							●
24	01.453 NUT; OIL PAN 01.062 M8 FLANGE	0-91180-108-0	13	1	0603-1004							●
24	01.453 NUT; OIL PAN 01.062 M8 FLANGE	0-91180-108-0	13	1	1005-							●	●
25	01.453 STUD; OIL PAN M8X16,M8X17 L=37 W/PL WASHER, RUBBERTUBE	8-97190-391-0	01	1	0211-0501						●
25	01.453 STUD; OIL PAN M8X16,M8X17 L=37 W/PL WASHER, RUBBERTUBE	8-97190-391-0	01	1	0502-1004							●
25	01.453 STUD; OIL PAN M8X16,M8X17 L=37 W/PL WASHER, RUBBERTUBE	8-97190-391-0	01	1	1005-							●	●
25	01.453 STUD; OIL PAN 01.428 M8X16,M8X19 L=39 W/PL WASHER, RUBBERTUBE	8-97190-392-0	09	1	0211-0501						●
25	01.453 STUD; OIL PAN 01.428 M8X16,M8X19 L=39 W/PL WASHER, RUBBERTUBE	8-97190-392-0	09	1	0502-1004							●
25	01.453 STUD; OIL PAN 01.428 M8X16,M8X19 L=39 W/PL WASHER, RUBBERTUBE	8-97190-392-0	09	1	1005-							●	●
49	01.516 NUT; GUIDE TUBE 03.162 M10 FLANGE	0-91180-110-0	01	1	1005-								●
123	01.516 RUBBER; SEAL OIL (A)	8-97186-988-0	01	1	0211-0501						●
123	01.516 RUBBER; SEAL OIL (A)	8-97186-988-0	01	1	0502-1004							●
123	01.516 RUBBER; SEAL OIL (A)	8-97186-988-0	01	1	1005-							●	●
123	01.516 RUBBER; SEAL OIL (B)	8-97186-994-0	01	1	0211-0501						●
123	01.516 RUBBER; SEAL OIL (B)	8-97186-994-0	01	1	0502-1004							●
123	01.516 RUBBER; SEAL OIL (B)	8-97186-994-0	01	1	1005-							●	●
123	01.516 RUBBER; SEAL OIL (C)	8-97186-998-0	01	1	0211-0501						●
123	01.516 RUBBER; SEAL OIL (C)	8-97186-998-0	01	1	0502-1004							●
123	01.516 RUBBER; SEAL OIL (C)	8-97186-998-0	01	1	1005-							●	●
123	01.516 RUBBER; SEAL OIL (D)	8-97187-000-0	01	1	0211-0501						●
123	01.516 RUBBER; SEAL OIL (D)	8-97187-000-0	01	1	0502-1004							●
123	01.516 RUBBER; SEAL OIL (D)	8-97187-000-0	01	1	1005-							●	●

2 8 16 9 41 1 3 4 99 141

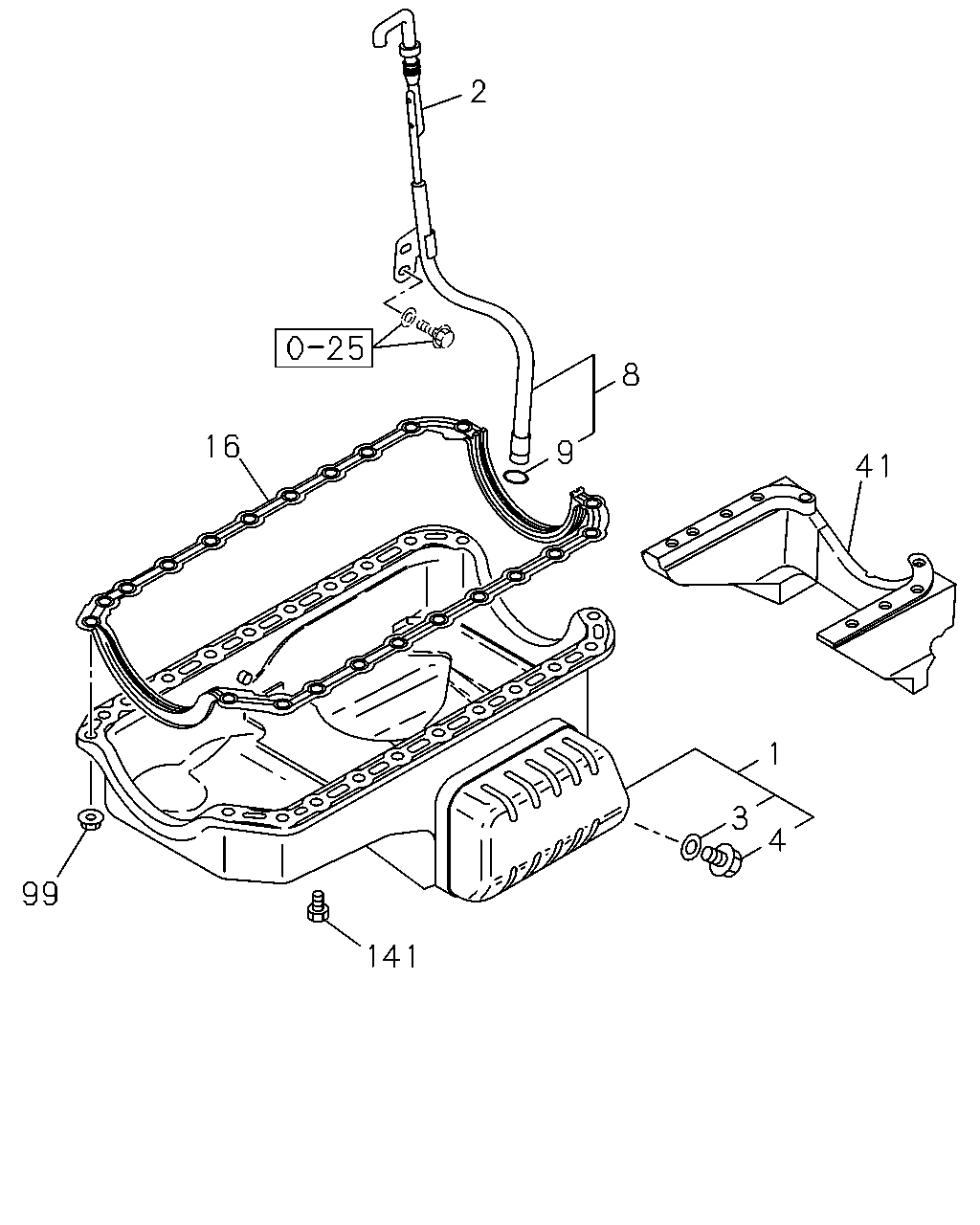

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	0211-0312	●
1	01.426 PAN ASM; OIL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97083-322-3	01	1	0211-0312		●
1	01.426 PAN ASM; OIL EXC. TURBOCHARGER<K51>	8-97083-322-3	01	1	0211-0312		●
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	0401-0411	●
1	01.426 PAN ASM; OIL COLOMBIA EQUIPMENT(X74)	8-97083-322-3	01	1	0401-0411		●
1	01.426 PAN ASM; OIL EXC. TURBOCHARGER<K51>	8-97083-322-3	01	1	0401-0411		●
1	01.426 PAN ASM; OIL	8-98000-123-0	01	1	0412-0501	●
1	01.426 PAN ASM; OIL COLOMBIA EQUIPMENT(X74)	8-98000-123-0	01	1	0412-0501		●
1	01.426 PAN ASM; OIL EXC. TURBOCHARGER<K51>	8-98000-123-0	01	1	0412-0501		●
1	01.426 PAN ASM; OIL	8-98000-123-0	01	1	0502-0504		●	●
1	01.426 PAN ASM; OIL	8-98000-123-0	01	1	0505-	●	●	●
1	01.426 PAN ASM; OIL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97223-955-0	01	1	0211-0312		●
1	01.426 PAN ASM; OIL	8-97223-955-0	01	1	0211-0312				●
1	01.426 PAN ASM; OIL	8-97223-955-0	01	1	0401-0411				●
1	01.426 PAN ASM; OIL	8-98000-124-0	01	1	0412-0501				●
1	01.426 PAN ASM; OIL	8-98000-124-0	01	1	0502-					●
1	01.426 PAN ASM; OIL	8-97305-077-0	01	1	0211-0405						●
1	01.426 PAN ASM; OIL	8-97385-249-0	01	1	0406-0501						●
1	01.426 PAN ASM; OIL	8-97385-249-0	01	1	0502-1004							●
1	01.426 PAN ASM; OIL	8-97385-249-0	01	1	1005-1202							●	●
1	01.426 PAN ASM; OIL	8-98203-596-0	01	1	1203-							●	●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	0211-0501	●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER<K51>	8-97092-924-0	01	1	0211-0501		●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	0502-0504		●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	0505-	●	●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51>	8-97231-295-0	01	1	0211-0501		●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	0211-0501				●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	0502-			●		●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	0211-0501						●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	0502-1004							●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	1005-							●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24	8-94158-328-0	01	1	0211-0501	●	●		●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24	8-94158-328-0	01	1	0502-0504		●	●		●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24	8-94158-328-0	01	1	0505-1004	●	●	●		●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24	8-94158-328-0	01	1	1005-	●	●	●		●		●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0211-0501	●	●		●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0502-0504		●	●		●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0505-1004	●	●	●		●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	1005-	●	●	●		●		●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97200-567-1	01	1	1005-								●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	0211-0501	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97044-886-0	01	1	0211-0501		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. TURBOCHARGER<K51>	8-97044-886-0	01	1	0211-0501		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	0502-0504		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	0505-	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97221-497-0	01	1	0211-0501		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97221-497-0	01	1	0502-			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	0211-0501						●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	0502-							●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97239-977-0	01	1	0211-0501				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97239-977-0	01	1	0502-					●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) .	5-09623-002-0	01	1	0211-0501	●			●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	01	1	0211-0501		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. TURBOCHARGER<K51> ID=11	5-09623-002-0	01	1	0211-0501		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	02	1	0502-1004			●				●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	02	1	1005-			●				●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	02	1	0211-0212						●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> . ID=11	5-09623-002-0	02	1	0301-0501		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	02	1	0301-0501						●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	01	1	0502-0504		●			●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	01	1	0505-	●	●			●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97080-194-0	01	1	0211-0501	●	●		●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97080-194-0	01	1	0502-0504		●	●		●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97080-194-0	01	1	0505-	●	●	●		●
41	00.137 RUBBER; SPACE EXC. BRAZIL EQUIPMENT(RWF)	8-97286-992-0	01	1	0211-0501	●
41	00.137 RUBBER; SPACE TURBOCHARGER<K51>	8-97286-992-0	01	1	0211-0501		●
41	00.137 RUBBER; SPACE TURKISH EQUIPMENT(S6S) EXC. TURBOCHARGER<K51>	8-97286-992-0	01	1	0211-0501		●
41	00.137 RUBBER; SPACE	8-97286-992-0	01	1	0211-0501				●
41	00.137 RUBBER; SPACE TURKISH EQUIPMENT(S6S)	8-97286-992-0	01	1	0502-0504		●
41	00.137 RUBBER; SPACE	8-97286-992-0	01	1	0502-0504			●		●
41	00.137 RUBBER; SPACE EURO2 SPECIFICATION(NT2)	8-97286-992-0	01	1	0505-1204	●
41	00.137 RUBBER; SPACE TURKISH EQUIPMENT(S6S)	8-97286-992-0	01	1	0505-1204		●
41	00.137 RUBBER; SPACE	8-97286-992-0	01	1	0505-1204			●		●
41	00.137 RUBBER; SPACE	8-97286-992-0	01	1	1205-					●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	0211-0501	●	●		●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	0502-0504		●	●		●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	0505-	●	●	●		●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	0211-0501	●	●		●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	0502-0504		●	●		●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	0505-	●	●	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
