◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50943 - NKR55,66,69,71,77LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-12 - CYLINDER BLOCK ▶
0-12 — CYLINDER BLOCK (#50705) — 905 parça

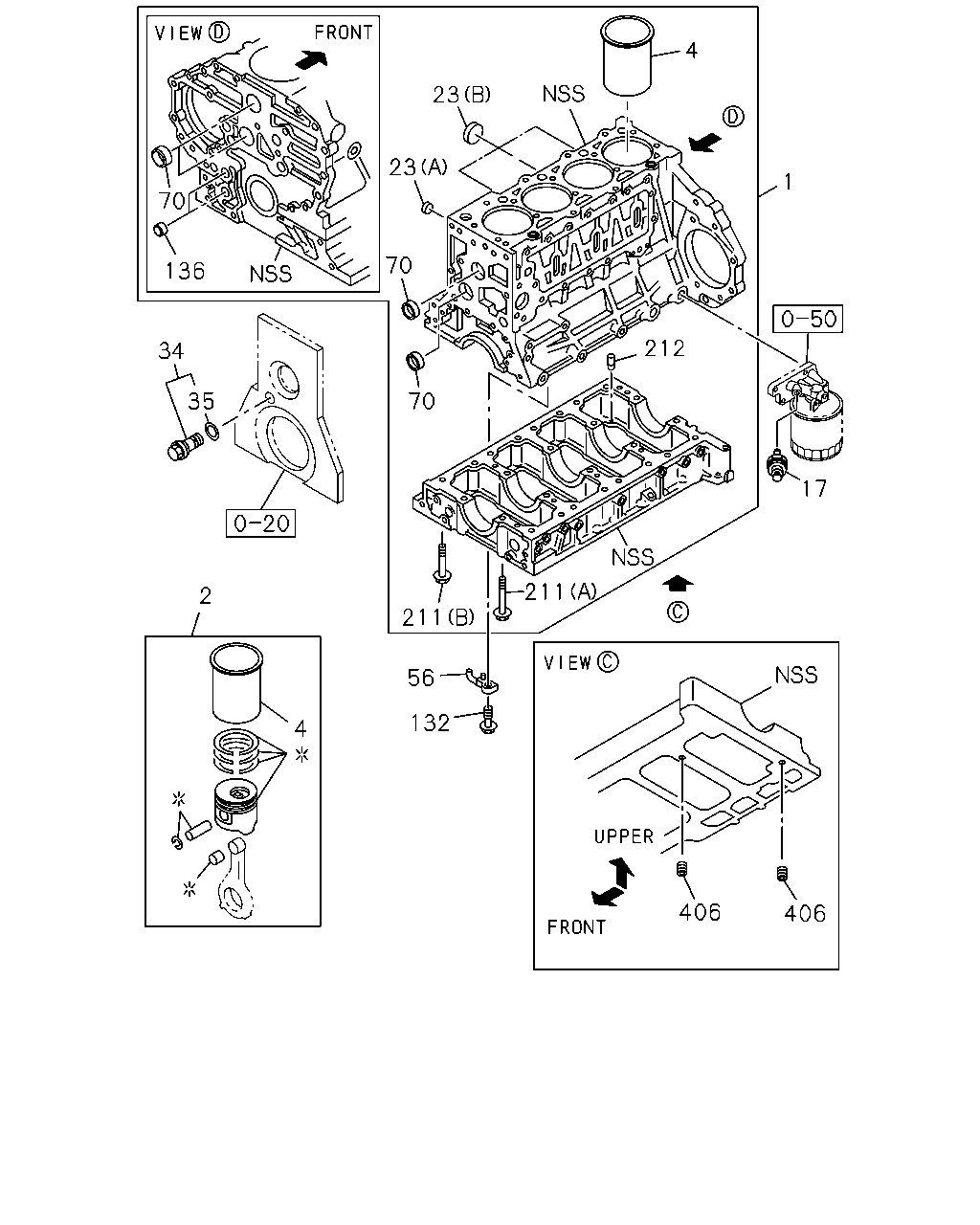

çizim 45923
4 1 212 17 211 406 406 211 70 70 23 23 136 34 35 2 4 56 132 70
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 00.033 BLOCK ASM; CYL 8-98005-434-3 01 1 1005-1209 ●
1 00.033 BLOCK ASM; CYL 8-98204-534-0 01 1 1210- ●
1 00.033 BLOCK ASM; CYL 8-97314-579-2 01 1 0505- ●
1 00.033 BLOCK ASM; CYL 8-97314-579-2 01 1 0211-0501 ●
1 00.033 BLOCK ASM; CYL 8-97352-707-2 01 1 0211-0501 ●
1 00.033 BLOCK ASM; CYL 8-97352-707-2 01 1 0502- ● ●
1 00.033 BLOCK ASM; CYL 8-97163-853-5 01 1 0211-0501 ●
1 00.033 BLOCK ASM; CYL 8-97163-853-7 01 1 0502- ●
1 00.033 BLOCK ASM; CYL 8-97257-264-3 01 1 0211-0501 ●
1 00.033 BLOCK ASM; CYL 8-97257-264-3 01 1 0502- ●
2 00.030 LINER SET; ENG CYL
OD GRADE=1X,ID GRADE=NON 		5-87814-834-5 04 1 1005-1112 ●
2 00.030 LINER SET; ENG CYL
OD GRADE=1X,ID GRADE=NON 		5-87816-317-0 04 1 1201- ●
2 00.030 LINER SET; ENG CYL
OD GRADE=3X,ID GRADE=NON 		5-87814-835-5 04 1 1005-1112 ●
2 00.030 LINER SET; ENG CYL
OD GRADE=3X,ID GRADE=NON 		5-87816-318-0 04 1 1201- ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=1 		5-87813-209-0 04 1 0505-0705 ●
2 00.030 LINER SET; ENG CYL
GRADE=1 		5-87815-229-0 04 1 0706- ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=2 		5-87813-210-0 04 1 0505-0705 ●
2 00.030 LINER SET; ENG CYL
GRADE=2 		5-87815-230-0 04 1 0706- ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=3 		5-87813-211-0 04 1 0505-0705 ●
2 00.030 LINER SET; ENG CYL
GRADE=3 		5-87815-231-0 04 1 0706- ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=4 		5-87813-212-0 04 1 0505-0705 ●
2 00.030 LINER SET; ENG CYL
GRADE=4 		5-87815-232-0 04 1 0706- ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=1 		5-87813-209-0 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=2 		5-87813-210-0 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=3 		5-87813-211-0 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=4 		5-87813-212-0 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
TURBOCHARGER<K51> GRADE=1 		5-87813-193-0 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=1 		5-87813-193-2 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
TURBOCHARGER<K51> GRADE=2 		5-87813-194-0 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=2 		5-87813-194-2 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
TURBOCHARGER<K51> GRADE=3 		5-87813-195-0 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=3 		5-87813-195-2 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
TURBOCHARGER<K51> GRADE=4 		5-87813-196-0 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=4 		5-87813-196-2 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
EXC. TURBOCHARGER<K51> 00.094 GRADE=1 		5-87813-181-1 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=1 		5-87813-181-3 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
EXC. TURBOCHARGER<K51> 00.094 GRADE=2 		5-87813-182-1 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=2 		5-87813-182-3 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
EXC. TURBOCHARGER<K51> 00.094 GRADE=3 		5-87813-183-1 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=3 		5-87813-183-3 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
EXC. TURBOCHARGER<K51> 00.094 GRADE=4 		5-87813-184-1 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=4 		5-87813-184-3 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
GRADE=1X 		5-87813-390-1 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=1X 		5-87813-390-4 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
GRADE=3X 		5-87813-391-1 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=3X 		5-87813-391-4 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
GRADE=1 		5-87814-090-2 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=1 		5-87814-090-2 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
GRADE=2 		5-87814-091-2 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=2 		5-87814-091-2 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
GRADE=3 		5-87814-092-2 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=3 		5-87814-092-2 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
GRADE=4 		5-87814-093-2 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=4 		5-87814-093-2 04 1 0502- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-98014-048-1 04 1 1005- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-98014-049-1 04 1 1005- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX 		8-97176-699-0 04 1 0211-0501 ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX 		8-97176-699-0 04 1 0502-0504 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX 		8-97176-699-0 04 1 0505- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX 		8-97176-700-0 04 1 0211-0501 ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX 		8-97176-700-0 04 1 0502-0504 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX 		8-97176-700-0 04 1 0505- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX 		8-97176-701-0 04 1 0211-0501 ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX 		8-97176-701-0 04 1 0502-0504 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX 		8-97176-701-0 04 1 0505- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX 		8-97176-702-0 04 1 0211-0501 ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX 		8-97176-702-0 04 1 0502-0504 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX 		8-97176-702-0 04 1 0505- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX 		8-97176-703-0 04 1 0211-0501 ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX 		8-97176-703-0 04 1 0502-0504 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX 		8-97176-703-0 04 1 0505- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX 		8-97176-704-0 04 1 0211-0501 ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX 		8-97176-704-0 04 1 0502-0504 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX 		8-97176-704-0 04 1 0505- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX 		8-97176-705-0 04 1 0211-0501 ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX 		8-97176-705-0 04 1 0502-0504 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX 		8-97176-705-0 04 1 0505- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX 		8-97176-706-0 04 1 0211-0501 ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX 		8-97176-706-0 04 1 0502-0504 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX 		8-97176-706-0 04 1 0505- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX 		8-97176-683-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX 		8-97176-683-0 04 1 0502- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX 		8-97176-684-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX 		8-97176-684-0 04 1 0502- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX 		8-97176-685-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX 		8-97176-685-0 04 1 0502- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX 		8-97176-686-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX 		8-97176-686-0 04 1 0502- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX 		8-97176-687-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX 		8-97176-687-0 04 1 0502- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX 		8-97176-688-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX 		8-97176-688-0 04 1 0502- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX 		8-97176-689-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX 		8-97176-689-0 04 1 0502- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX 		8-97176-690-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX 		8-97176-690-0 04 1 0502- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-97176-727-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-97176-727-1 04 1 0502- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-97176-728-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-97176-728-1 04 1 0502- ●
17 01.800 SWITCH; OIL PRESSURE 8-97072-947-0 01 1 0211-0501 ● ● ●
17 01.800 SWITCH; OIL PRESSURE 8-97072-947-0 01 1 0502-0504 ● ● ●
17 01.800 SWITCH; OIL PRESSURE 8-97072-947-0 01 1 0505- ● ● ● ●
17 01.800 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 0211-0501 ●
17 01.800 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 0502-1004 ●
17 01.800 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 1005- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=36 		5-11219-018-0 03 1 0211-0501 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
EXC. TURBOCHARGER<K51> (C) OD=36 		5-11219-018-0 03 1 0211-0501 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=36 		5-11219-018-0 03 1 0502-0504 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=36 		5-11219-018-0 03 1 0505- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 0211-0501 ● ● ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 0502-0504 ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 0505-1004 ● ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 1005- ● ● ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (A) OD=18 		5-11219-008-0 03 1 0211-0410 ● ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (A) OD=18 		5-11219-008-0 03 1 0411-0501 ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (A) OD=18 		5-11219-008-0 03 1 0502-0504 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (A) OD=18 		5-11219-008-0 03 1 0505- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=32 		5-11219-015-0 02 1 0211-0410 ● ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=32 		5-11219-015-0 02 1 0411-0501 ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=32 		5-11219-015-0 02 1 0502-0504 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=32 		5-11219-015-0 02 1 0505- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (A) OD=18 		5-11219-008-0 03 1 0411-0501 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (A) OD=18 		5-11219-008-0 03 1 0502- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=32 		5-11219-015-0 02 1 0411-0501 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=32 		5-11219-015-0 02 1 0502- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 0411-0501 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 0502- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
TURBOCHARGER<K51> (C) OD=36 		5-11219-018-0 02 1 0211-0501 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=36 		5-11219-018-0 02 1 0211-0501 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=36 		5-11219-018-0 02 1 0502- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.293 (A) OD=25 		1-09600-016-0 01 1 0211-0501 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.293 (A) OD=25 		1-09600-016-0 01 1 0502-1004 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.293 (A) OD=25 		1-09600-016-0 01 1 1005- ● ●
34 01.609 VALVE; OIL RELIEF 8-94386-047-1 01 1 0211-0501 ●
34 01.609 VALVE; OIL RELIEF 8-94386-047-1 01 1 0502-0706 ●
34 01.609 VALVE; OIL RELIEF
00.213 		8-97328-859-0 01 1 0707-1004 ●
34 01.609 VALVE; OIL RELIEF
00.213 		8-97328-859-0 01 1 1005- ● ●
35 01.609 GASKET; RELIEF VLV
ID=23.3 		8-94173-412-0 01 1 0211-0501 ●
35 01.609 GASKET; RELIEF VLV
ID=23.3 		8-94173-412-0 01 1 0502-1004 ●
35 01.609 GASKET; RELIEF VLV
ID=23.3 		8-94173-412-0 01 1 1005- ● ●
56 01.519 JET; OIL,PISTON COOLING 8-97213-294-1 04 1 1005- ●
56 01.519 JET; OIL,PISTON COOLING 8-94370-579-0 04 1 0211-0501 ●
56 01.519 JET; OIL,PISTON COOLING 8-94370-579-1 04 1 0502- ●
70 00.034 CUP; SEALING,FRT & RR
00.253 OD=16 		5-11129-006-0 02 1 0211-0501 ● ● ●
70 00.034 CUP; SEALING,FRT & RR
00.253 OD=16 		5-11129-006-0 02 1 0502-0504 ● ● ●
70 00.034 CUP; SEALING,FRT & RR
00.253 OD=16 		5-11129-006-0 02 1 0505- ● ● ● ●
70 00.034 CUP; SEALING,FRT & RR
OD=40 		8-97096-824-0 04 1 0211-0501 ●
70 00.034 CUP; SEALING,FRT & RR
OD=40 		8-97096-824-0 04 1 0502-1004 ●
70 00.034 CUP; SEALING,FRT & RR
OD=40 		8-97096-824-0 04 1 1005- ● ●
132 01.519 VALVE; CHECK,OIL
M10X18.5 		1-13161-012-0 04 1 0211-0501 ●
132 01.519 VALVE; CHECK,OIL
M10X18.5 		1-13161-012-0 04 1 0502-0704 ●
132 01.519 VALVE; CHECK,OIL
M10X18.5 		8-97329-618-0 04 1 0705-1004 ●
132 01.519 VALVE; CHECK,OIL
M10X18.5 		8-97329-618-0 04 1 1005- ● ●
136 01.639 BUSHING; DRIVE SHAFT,OIL PUMP 8-94393-596-0 02 1 0211-0501 ●
136 01.639 BUSHING; DRIVE SHAFT,OIL PUMP 8-94393-596-1 02 1 0502-0812 ●
136 01.639 BUSHING; DRIVE SHAFT,OIL PUMP 8-98091-566-0 02 1 0901-1004 ●
136 01.639 BUSHING; DRIVE SHAFT,OIL PUMP 8-98091-566-0 02 1 1005- ● ●
211 01.428 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 17 1 0211-0501 ●
211 01.428 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 17 1 0502-1004 ●
211 01.428 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 17 1 1005- ● ●
211 01.428 BOLT; CRANKCASE
00.293 (A) M14X115 W/FLANGE 		8-97077-638-0 10 1 0211-0501 ●
211 01.428 BOLT; CRANKCASE
00.293 (A) M14X115 W/FLANGE 		8-97077-638-0 10 1 0502-1004 ●
211 01.428 BOLT; CRANKCASE
00.293 (A) M14X115 W/FLANGE 		8-97077-638-0 10 1 1005- ● ●
212 01.428 PIN; CRANKCASE
04.510 OD=10 L=20 		8-97135-423-0 02 1 0211-0501 ●
212 01.428 PIN; CRANKCASE
04.510 OD=10 L=20 		8-97135-423-0 02 1 0502-1004 ●
212 01.428 PIN; CRANKCASE
04.510 OD=10 L=20 		8-97135-423-0 02 1 1005- ● ●
406 01.531 PLUG; CRANK CASE
01.073 PT3/8 		5-09605-005-0 02 1 0211-0501 ●
406 01.531 PLUG; CRANK CASE
01.073 PT3/8 		5-09605-005-0 02 1 0502-1004 ●
406 01.531 PLUG; CRANK CASE
01.073 PT3/8 		5-09605-005-0 02 1 1005- ● ●

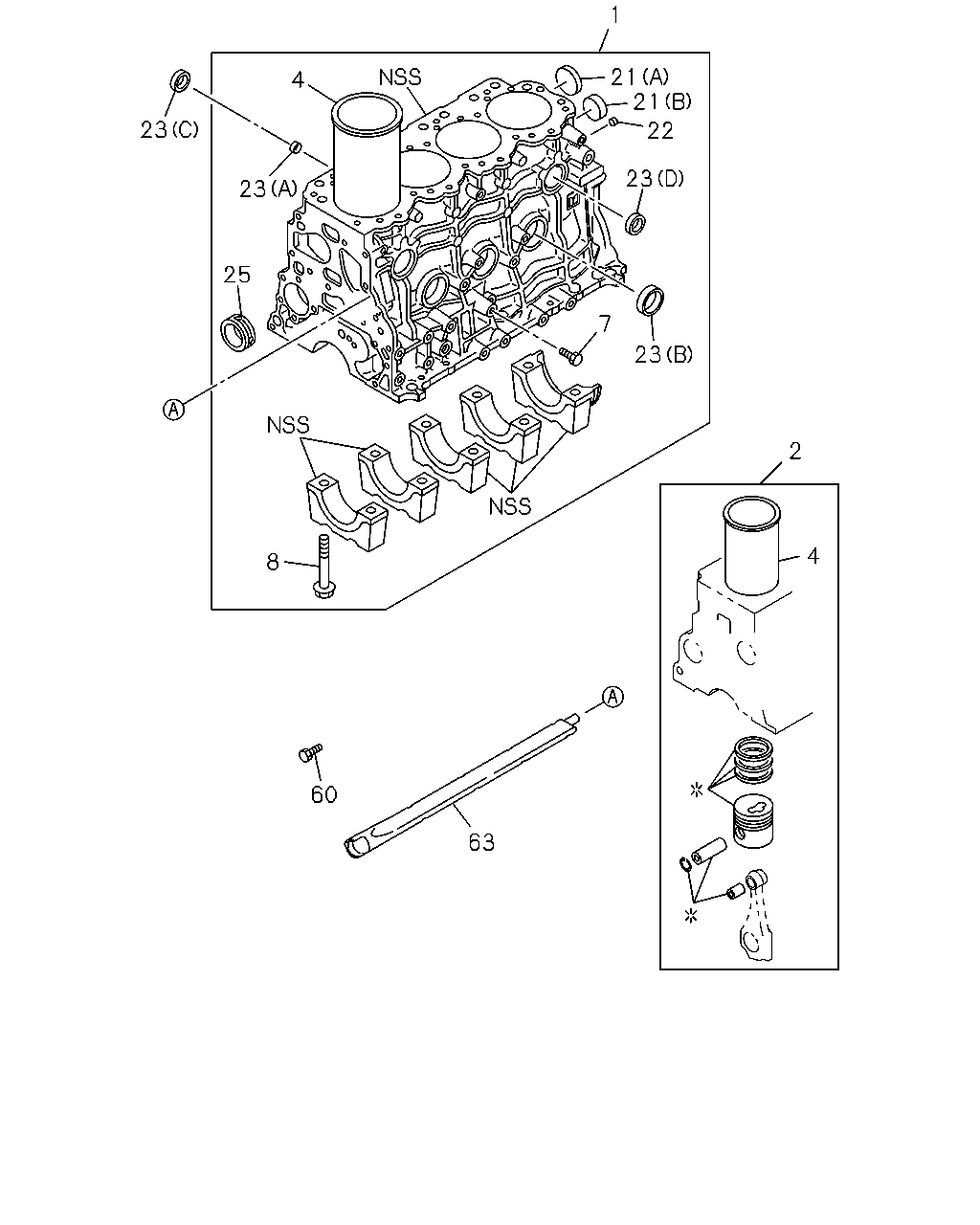

çizim 45960
4 2 63 60 8 23 7 23 22 21 21 1 25 23 4 23
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 00.033 BLOCK ASM; CYL 8-98005-434-3 01 1 1005-1209 ●
1 00.033 BLOCK ASM; CYL 8-98204-534-0 01 1 1210- ●
1 00.033 BLOCK ASM; CYL 8-97314-579-2 01 1 0505- ●
1 00.033 BLOCK ASM; CYL 8-97314-579-2 01 1 0211-0501 ●
1 00.033 BLOCK ASM; CYL 8-97352-707-2 01 1 0211-0501 ●
1 00.033 BLOCK ASM; CYL 8-97352-707-2 01 1 0502- ● ●
1 00.033 BLOCK ASM; CYL 8-97163-853-5 01 1 0211-0501 ●
1 00.033 BLOCK ASM; CYL 8-97163-853-7 01 1 0502- ●
1 00.033 BLOCK ASM; CYL 8-97257-264-3 01 1 0211-0501 ●
1 00.033 BLOCK ASM; CYL 8-97257-264-3 01 1 0502- ●
2 00.030 LINER SET; ENG CYL
OD GRADE=1X,ID GRADE=NON 		5-87814-834-5 04 1 1005-1112 ●
2 00.030 LINER SET; ENG CYL
OD GRADE=1X,ID GRADE=NON 		5-87816-317-0 04 1 1201- ●
2 00.030 LINER SET; ENG CYL
OD GRADE=3X,ID GRADE=NON 		5-87814-835-5 04 1 1005-1112 ●
2 00.030 LINER SET; ENG CYL
OD GRADE=3X,ID GRADE=NON 		5-87816-318-0 04 1 1201- ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=1 		5-87813-209-0 04 1 0505-0705 ●
2 00.030 LINER SET; ENG CYL
GRADE=1 		5-87815-229-0 04 1 0706- ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=2 		5-87813-210-0 04 1 0505-0705 ●
2 00.030 LINER SET; ENG CYL
GRADE=2 		5-87815-230-0 04 1 0706- ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=3 		5-87813-211-0 04 1 0505-0705 ●
2 00.030 LINER SET; ENG CYL
GRADE=3 		5-87815-231-0 04 1 0706- ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=4 		5-87813-212-0 04 1 0505-0705 ●
2 00.030 LINER SET; ENG CYL
GRADE=4 		5-87815-232-0 04 1 0706- ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=1 		5-87813-209-0 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=2 		5-87813-210-0 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=3 		5-87813-211-0 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=4 		5-87813-212-0 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
TURBOCHARGER<K51> GRADE=1 		5-87813-193-0 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=1 		5-87813-193-2 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
TURBOCHARGER<K51> GRADE=2 		5-87813-194-0 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=2 		5-87813-194-2 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
TURBOCHARGER<K51> GRADE=3 		5-87813-195-0 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=3 		5-87813-195-2 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
TURBOCHARGER<K51> GRADE=4 		5-87813-196-0 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=4 		5-87813-196-2 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
EXC. TURBOCHARGER<K51> 00.094 GRADE=1 		5-87813-181-1 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=1 		5-87813-181-3 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
EXC. TURBOCHARGER<K51> 00.094 GRADE=2 		5-87813-182-1 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=2 		5-87813-182-3 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
EXC. TURBOCHARGER<K51> 00.094 GRADE=3 		5-87813-183-1 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=3 		5-87813-183-3 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
EXC. TURBOCHARGER<K51> 00.094 GRADE=4 		5-87813-184-1 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=4 		5-87813-184-3 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
GRADE=1X 		5-87813-390-1 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=1X 		5-87813-390-4 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
GRADE=3X 		5-87813-391-1 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=3X 		5-87813-391-4 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
GRADE=1 		5-87814-090-2 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=1 		5-87814-090-2 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
GRADE=2 		5-87814-091-2 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=2 		5-87814-091-2 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
GRADE=3 		5-87814-092-2 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=3 		5-87814-092-2 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
GRADE=4 		5-87814-093-2 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=4 		5-87814-093-2 04 1 0502- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-98014-048-1 04 1 1005- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-98014-049-1 04 1 1005- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX 		8-97176-699-0 04 1 0211-0501 ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX 		8-97176-699-0 04 1 0502-0504 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX 		8-97176-699-0 04 1 0505- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX 		8-97176-700-0 04 1 0211-0501 ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX 		8-97176-700-0 04 1 0502-0504 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX 		8-97176-700-0 04 1 0505- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX 		8-97176-701-0 04 1 0211-0501 ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX 		8-97176-701-0 04 1 0502-0504 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX 		8-97176-701-0 04 1 0505- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX 		8-97176-702-0 04 1 0211-0501 ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX 		8-97176-702-0 04 1 0502-0504 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX 		8-97176-702-0 04 1 0505- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX 		8-97176-703-0 04 1 0211-0501 ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX 		8-97176-703-0 04 1 0502-0504 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX 		8-97176-703-0 04 1 0505- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX 		8-97176-704-0 04 1 0211-0501 ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX 		8-97176-704-0 04 1 0502-0504 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX 		8-97176-704-0 04 1 0505- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX 		8-97176-705-0 04 1 0211-0501 ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX 		8-97176-705-0 04 1 0502-0504 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX 		8-97176-705-0 04 1 0505- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX 		8-97176-706-0 04 1 0211-0501 ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX 		8-97176-706-0 04 1 0502-0504 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX 		8-97176-706-0 04 1 0505- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX 		8-97176-683-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX 		8-97176-683-0 04 1 0502- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX 		8-97176-684-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX 		8-97176-684-0 04 1 0502- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX 		8-97176-685-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX 		8-97176-685-0 04 1 0502- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX 		8-97176-686-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX 		8-97176-686-0 04 1 0502- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX 		8-97176-687-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX 		8-97176-687-0 04 1 0502- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX 		8-97176-688-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX 		8-97176-688-0 04 1 0502- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX 		8-97176-689-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX 		8-97176-689-0 04 1 0502- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX 		8-97176-690-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX 		8-97176-690-0 04 1 0502- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-97176-727-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-97176-727-1 04 1 0502- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-97176-728-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-97176-728-1 04 1 0502- ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 0211-0410 ● ● ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 0411-0501 ● ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 0502-0504 ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 0505- ● ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 0411-0501 ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 0502- ● ●
7 00.034 PLUG; WATER DRAIN
M10X10 		8-97352-537-0 01 1 0211-0501 ●
7 00.034 PLUG; WATER DRAIN
M10X10 		8-97352-537-0 01 1 0502-1004 ●
7 00.034 PLUG; WATER DRAIN
M10X10 		8-97352-537-0 01 1 1005- ● ●
8 00.056 BOLT; BRG CAP
M14X89 FLANGE 		8-94432-642-0 10 1 0211-0410 ● ● ●
8 00.056 BOLT; BRG CAP
M14X89 FLANGE 		8-94432-642-0 10 1 0411-0501 ● ●
8 00.056 BOLT; BRG CAP
M14X89 FLANGE 		8-94432-642-0 10 1 0502-0504 ●
8 00.056 BOLT; BRG CAP
M14X89 FLANGE 		8-94432-642-0 10 1 0505- ● ●
8 00.056 BOLT; BRG CAP
M14X89 FLANGE 		8-94432-642-0 10 1 0411-0501 ●
8 00.056 BOLT; BRG CAP
M14X89 FLANGE 		8-94432-642-0 10 1 0502- ● ●
21 00.034 CUP; SEALING,RR
(A) OD=38 		5-11219-017-0 01 1 0211-0410 ● ● ●
21 00.034 CUP; SEALING,RR
(A) OD=38 		5-11219-017-0 01 1 0411-0501 ● ●
21 00.034 CUP; SEALING,RR
(A) OD=38 		5-11219-017-0 01 1 0502-0504 ●
21 00.034 CUP; SEALING,RR
(A) OD=38 		5-11219-017-0 01 1 0505- ● ●
21 00.034 CUP; SEALING,RR
(B) OD=36 		5-11219-018-0 01 1 0211-0410 ● ● ●
21 00.034 CUP; SEALING,RR
(B) OD=36 		5-11219-018-0 01 1 0411-0501 ● ●
21 00.034 CUP; SEALING,RR
(B) OD=36 		5-11219-018-0 01 1 0502-0504 ●
21 00.034 CUP; SEALING,RR
(B) OD=36 		5-11219-018-0 01 1 0505- ● ●
21 00.034 CUP; SEALING,RR
(A) OD=38 		5-11219-017-0 01 1 0411-0501 ●
21 00.034 CUP; SEALING,RR
(A) OD=38 		5-11219-017-0 01 1 0502- ● ●
21 00.034 CUP; SEALING,RR
(B) OD=36 		5-11219-018-0 01 1 0411-0501 ●
21 00.034 CUP; SEALING,RR
(B) OD=36 		5-11219-018-0 01 1 0502- ● ●
22 00.034 CUP; SEALING,DUCT HOLE
00.253 OD=12.3 		5-09600-013-0 01 1 0211-0410 ● ● ●
22 00.034 CUP; SEALING,DUCT HOLE
00.253 OD=12.3 		5-09600-013-0 01 1 0411-0501 ● ●
22 00.034 CUP; SEALING,DUCT HOLE
00.253 OD=12.3 		5-09600-013-0 01 1 0502-0504 ●
22 00.034 CUP; SEALING,DUCT HOLE
00.253 OD=12.3 		5-09600-013-0 01 1 0505- ● ●
22 00.034 CUP; SEALING,DUCT HOLE
00.253 OD=12.3 		5-09600-013-0 01 1 0411-0501 ●
22 00.034 CUP; SEALING,DUCT HOLE
00.253 OD=12.3 		5-09600-013-0 01 1 0502- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=36 		5-11219-018-0 03 1 0211-0501 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
EXC. TURBOCHARGER<K51> (C) OD=36 		5-11219-018-0 03 1 0211-0501 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=36 		5-11219-018-0 03 1 0502-0504 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=36 		5-11219-018-0 03 1 0505- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 0211-0501 ● ● ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 0502-0504 ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 0505-1004 ● ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 1005- ● ● ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (A) OD=18 		5-11219-008-0 03 1 0211-0410 ● ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (A) OD=18 		5-11219-008-0 03 1 0411-0501 ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (A) OD=18 		5-11219-008-0 03 1 0502-0504 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (A) OD=18 		5-11219-008-0 03 1 0505- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=32 		5-11219-015-0 02 1 0211-0410 ● ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=32 		5-11219-015-0 02 1 0411-0501 ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=32 		5-11219-015-0 02 1 0502-0504 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=32 		5-11219-015-0 02 1 0505- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (A) OD=18 		5-11219-008-0 03 1 0411-0501 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (A) OD=18 		5-11219-008-0 03 1 0502- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=32 		5-11219-015-0 02 1 0411-0501 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=32 		5-11219-015-0 02 1 0502- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 0411-0501 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 0502- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
TURBOCHARGER<K51> (C) OD=36 		5-11219-018-0 02 1 0211-0501 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=36 		5-11219-018-0 02 1 0211-0501 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=36 		5-11219-018-0 02 1 0502- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.293 (A) OD=25 		1-09600-016-0 01 1 0211-0501 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.293 (A) OD=25 		1-09600-016-0 01 1 0502-1004 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.293 (A) OD=25 		1-09600-016-0 01 1 1005- ● ●
25 00.539 METAL; CM/SHF
CENTER & REAR 		8-94427-201-2 02 1 0211-0411 ● ● ●
25 00.539 METAL; CM/SHF
CENTER & REAR 		8-97378-147-0 02 1 0412-0501 ● ●
25 00.539 METAL; CM/SHF
CENTER & REAR 		8-97378-147-0 02 1 0502-0504 ●
25 00.539 METAL; CM/SHF
CENTER & REAR 		8-97378-147-0 02 1 0505- ● ●
25 00.539 METAL; CM/SHF
CENTER & REAR 		8-97378-147-0 02 1 0412-0501 ●
25 00.539 METAL; CM/SHF
CENTER & REAR 		8-97378-147-0 02 1 0502-1004 ● ●
25 00.539 METAL; CM/SHF
CENTER & REAR 		8-97378-147-0 03 1 1005- ● ●
25 00.539 METAL; CM/SHF
FRONT 		8-97378-148-0 01 1 0412-0501 ●
25 00.539 METAL; CM/SHF
FRONT 		8-97378-148-0 01 1 0502- ● ●
25 00.539 METAL; CM/SHF
FRONT 		8-94427-206-2 01 1 0211-0411 ● ● ●
25 00.539 METAL; CM/SHF
FRONT 		8-97378-148-0 01 1 0412-0501 ● ●
25 00.539 METAL; CM/SHF
FRONT 		8-97378-148-0 01 1 0502-0504 ●
25 00.539 METAL; CM/SHF
FRONT 		8-97378-148-0 01 1 0505- ● ●
60 01.531 BOLT; OIL JET
EXC. TURBOCHARGER<K51> 04.105 M16X12 		9-99202-316-0 01 1 0211-0501 ●
60 01.531 BOLT; OIL JET
04.105 M16X12 		9-99202-316-0 01 1 0502-0606 ●
60 01.531 BOLT; OIL JET
M16X12 		0-92002-416-0 01 1 0607- ●
63 01.153 DUCT; WATER,C/BL 8-94456-794-3 01 1 0211-0501 ● ●
63 01.153 DUCT; WATER,C/BL 8-94456-794-3 01 1 0502-0504 ●
63 01.153 DUCT; WATER,C/BL 8-94456-794-3 01 1 0505- ● ●
63 01.153 DUCT; WATER,C/BL 8-94419-436-2 01 1 0211-0501 ●
63 01.153 DUCT; WATER,C/BL 8-94419-436-2 01 1 0502- ● ●

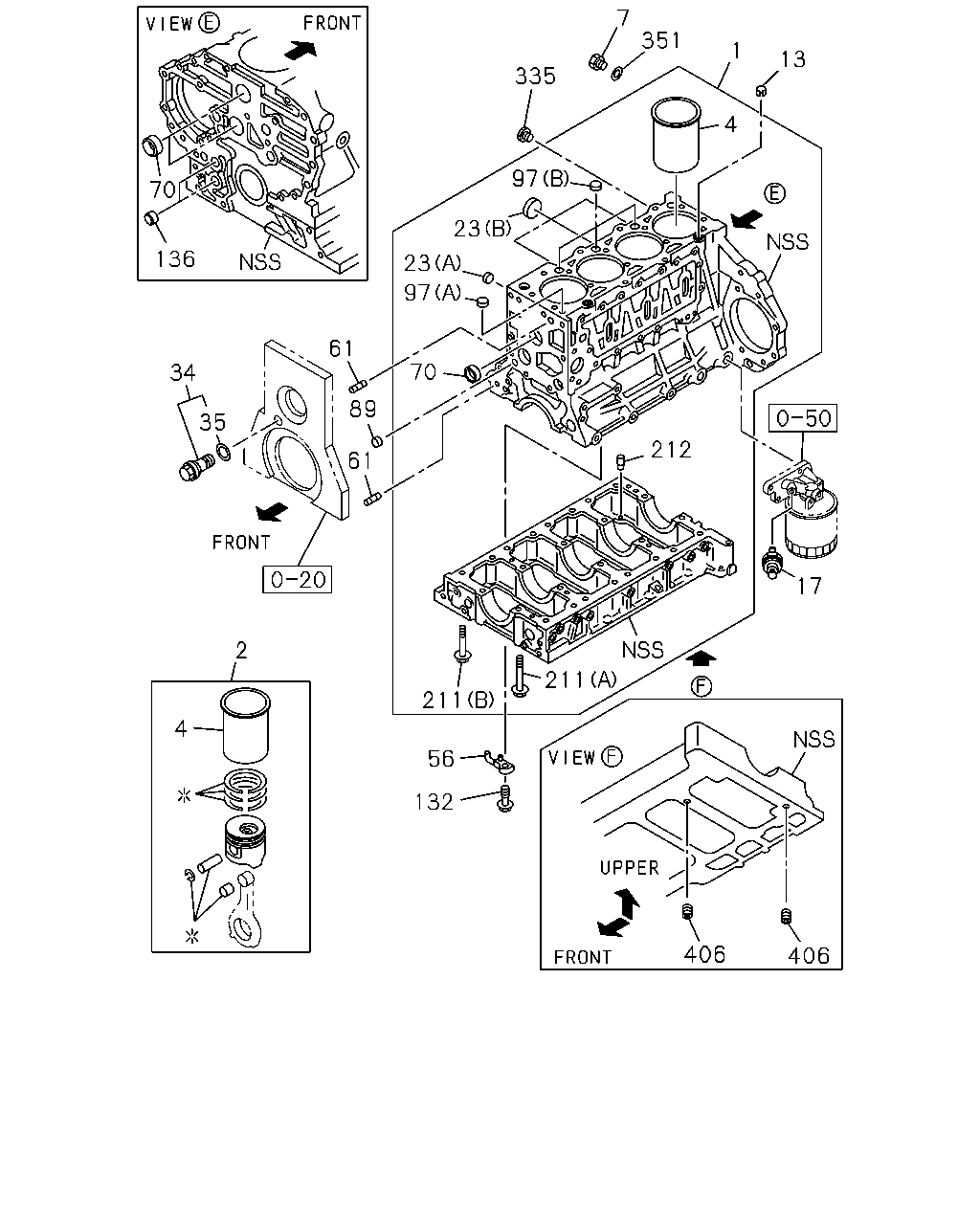

çizim 46356
70 136 34 35 61 89 61 2 4 70 97 23 23 97 335 7 351 1 13 4 212 17 406 406 211 211 132 56
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 00.033 BLOCK ASM; CYL 8-98005-434-3 01 1 1005-1209 ●
1 00.033 BLOCK ASM; CYL 8-98204-534-0 01 1 1210- ●
1 00.033 BLOCK ASM; CYL 8-97314-579-2 01 1 0505- ●
1 00.033 BLOCK ASM; CYL 8-97314-579-2 01 1 0211-0501 ●
1 00.033 BLOCK ASM; CYL 8-97352-707-2 01 1 0211-0501 ●
1 00.033 BLOCK ASM; CYL 8-97352-707-2 01 1 0502- ● ●
1 00.033 BLOCK ASM; CYL 8-97163-853-5 01 1 0211-0501 ●
1 00.033 BLOCK ASM; CYL 8-97163-853-7 01 1 0502- ●
1 00.033 BLOCK ASM; CYL 8-97257-264-3 01 1 0211-0501 ●
1 00.033 BLOCK ASM; CYL 8-97257-264-3 01 1 0502- ●
2 00.030 LINER SET; ENG CYL
OD GRADE=1X,ID GRADE=NON 		5-87814-834-5 04 1 1005-1112 ●
2 00.030 LINER SET; ENG CYL
OD GRADE=1X,ID GRADE=NON 		5-87816-317-0 04 1 1201- ●
2 00.030 LINER SET; ENG CYL
OD GRADE=3X,ID GRADE=NON 		5-87814-835-5 04 1 1005-1112 ●
2 00.030 LINER SET; ENG CYL
OD GRADE=3X,ID GRADE=NON 		5-87816-318-0 04 1 1201- ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=1 		5-87813-209-0 04 1 0505-0705 ●
2 00.030 LINER SET; ENG CYL
GRADE=1 		5-87815-229-0 04 1 0706- ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=2 		5-87813-210-0 04 1 0505-0705 ●
2 00.030 LINER SET; ENG CYL
GRADE=2 		5-87815-230-0 04 1 0706- ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=3 		5-87813-211-0 04 1 0505-0705 ●
2 00.030 LINER SET; ENG CYL
GRADE=3 		5-87815-231-0 04 1 0706- ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=4 		5-87813-212-0 04 1 0505-0705 ●
2 00.030 LINER SET; ENG CYL
GRADE=4 		5-87815-232-0 04 1 0706- ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=1 		5-87813-209-0 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=2 		5-87813-210-0 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=3 		5-87813-211-0 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=4 		5-87813-212-0 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
TURBOCHARGER<K51> GRADE=1 		5-87813-193-0 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=1 		5-87813-193-2 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
TURBOCHARGER<K51> GRADE=2 		5-87813-194-0 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=2 		5-87813-194-2 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
TURBOCHARGER<K51> GRADE=3 		5-87813-195-0 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=3 		5-87813-195-2 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
TURBOCHARGER<K51> GRADE=4 		5-87813-196-0 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=4 		5-87813-196-2 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
EXC. TURBOCHARGER<K51> 00.094 GRADE=1 		5-87813-181-1 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=1 		5-87813-181-3 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
EXC. TURBOCHARGER<K51> 00.094 GRADE=2 		5-87813-182-1 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=2 		5-87813-182-3 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
EXC. TURBOCHARGER<K51> 00.094 GRADE=3 		5-87813-183-1 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=3 		5-87813-183-3 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
EXC. TURBOCHARGER<K51> 00.094 GRADE=4 		5-87813-184-1 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=4 		5-87813-184-3 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
GRADE=1X 		5-87813-390-1 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=1X 		5-87813-390-4 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
GRADE=3X 		5-87813-391-1 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=3X 		5-87813-391-4 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
GRADE=1 		5-87814-090-2 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=1 		5-87814-090-2 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
GRADE=2 		5-87814-091-2 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=2 		5-87814-091-2 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
GRADE=3 		5-87814-092-2 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=3 		5-87814-092-2 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
GRADE=4 		5-87814-093-2 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=4 		5-87814-093-2 04 1 0502- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-98014-048-1 04 1 1005- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-98014-049-1 04 1 1005- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX 		8-97176-699-0 04 1 0211-0501 ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX 		8-97176-699-0 04 1 0502-0504 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX 		8-97176-699-0 04 1 0505- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX 		8-97176-700-0 04 1 0211-0501 ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX 		8-97176-700-0 04 1 0502-0504 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX 		8-97176-700-0 04 1 0505- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX 		8-97176-701-0 04 1 0211-0501 ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX 		8-97176-701-0 04 1 0502-0504 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX 		8-97176-701-0 04 1 0505- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX 		8-97176-702-0 04 1 0211-0501 ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX 		8-97176-702-0 04 1 0502-0504 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX 		8-97176-702-0 04 1 0505- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX 		8-97176-703-0 04 1 0211-0501 ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX 		8-97176-703-0 04 1 0502-0504 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX 		8-97176-703-0 04 1 0505- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX 		8-97176-704-0 04 1 0211-0501 ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX 		8-97176-704-0 04 1 0502-0504 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX 		8-97176-704-0 04 1 0505- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX 		8-97176-705-0 04 1 0211-0501 ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX 		8-97176-705-0 04 1 0502-0504 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX 		8-97176-705-0 04 1 0505- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX 		8-97176-706-0 04 1 0211-0501 ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX 		8-97176-706-0 04 1 0502-0504 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX 		8-97176-706-0 04 1 0505- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX 		8-97176-683-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX 		8-97176-683-0 04 1 0502- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX 		8-97176-684-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX 		8-97176-684-0 04 1 0502- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX 		8-97176-685-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX 		8-97176-685-0 04 1 0502- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX 		8-97176-686-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX 		8-97176-686-0 04 1 0502- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX 		8-97176-687-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX 		8-97176-687-0 04 1 0502- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX 		8-97176-688-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX 		8-97176-688-0 04 1 0502- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX 		8-97176-689-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX 		8-97176-689-0 04 1 0502- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX 		8-97176-690-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX 		8-97176-690-0 04 1 0502- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-97176-727-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-97176-727-1 04 1 0502- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-97176-728-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-97176-728-1 04 1 0502- ●

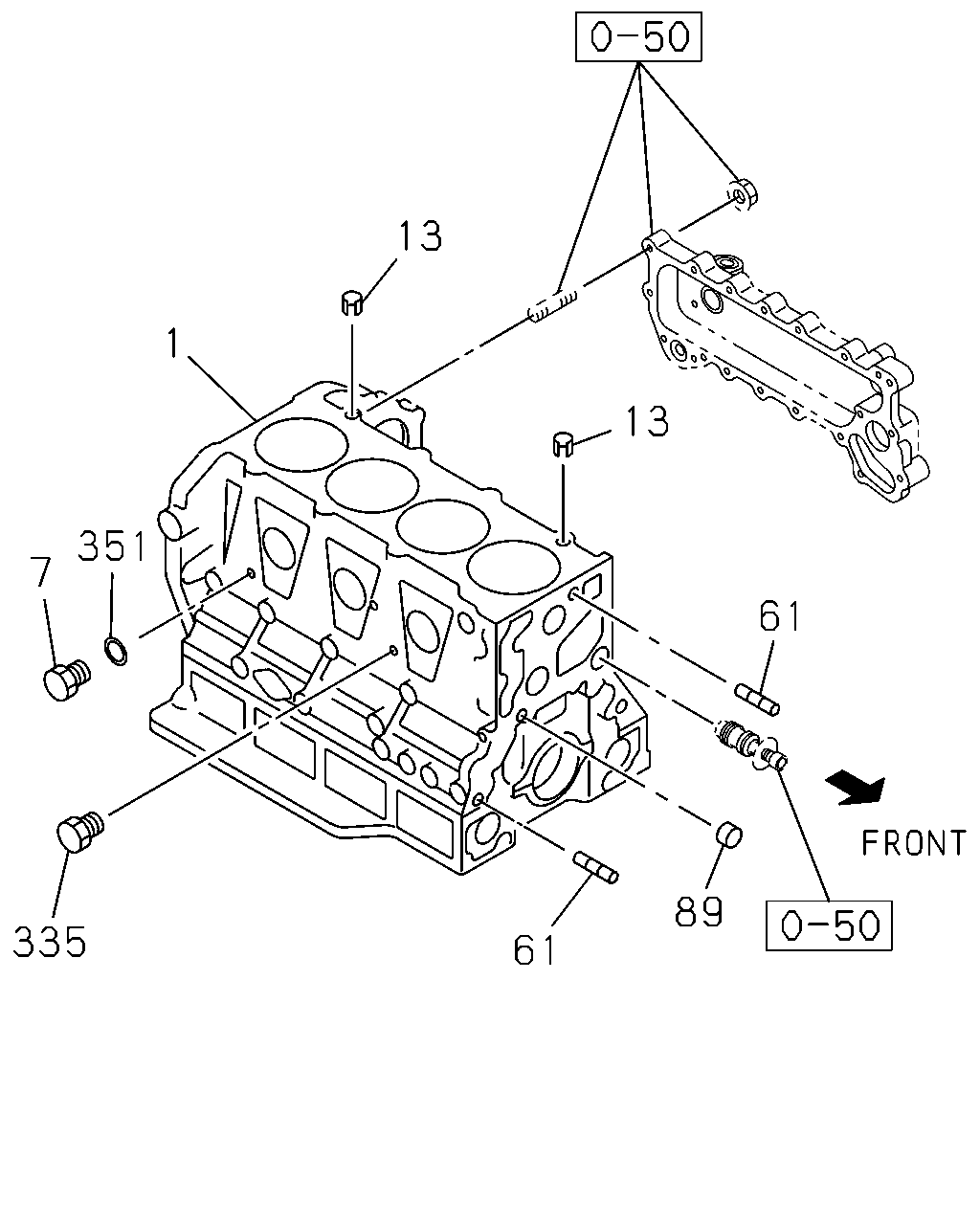

7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 0211-0410 ● ● ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 0411-0501 ● ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 0502-0504 ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 0505- ● ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 0411-0501 ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 0502- ● ●
7 00.034 PLUG; WATER DRAIN
M10X10 		8-97352-537-0 01 1 0211-0501 ●
7 00.034 PLUG; WATER DRAIN
M10X10 		8-97352-537-0 01 1 0502-1004 ●
7 00.034 PLUG; WATER DRAIN
M10X10 		8-97352-537-0 01 1 1005- ● ●
13 00.293 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 0211-0501 ● ● ●
13 00.293 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 0502-0504 ● ● ●
13 00.293 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 0505- ● ● ● ●
13 00.293 DOWEL; C/BL TO HD
OD=18.15 		8-94399-688-1 02 1 0211-0501 ●
13 00.293 DOWEL; C/BL TO HD
OD=18.15 		8-94399-688-1 02 1 0502-1004 ●
13 00.293 DOWEL; C/BL TO HD
OD=18.15 		8-94399-688-1 02 1 1005- ● ●

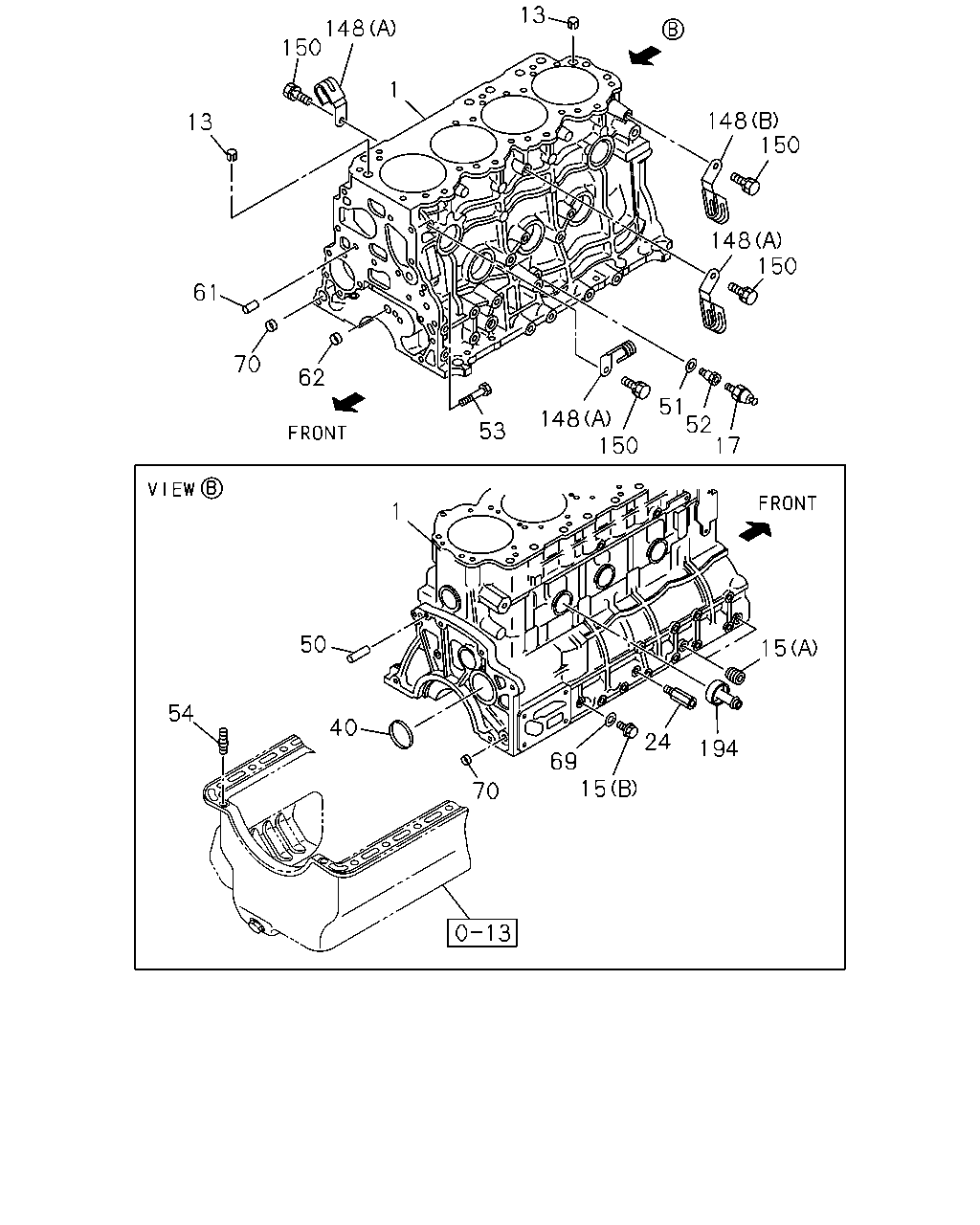

17 01.800 SWITCH; OIL PRESSURE 8-97072-947-0 01 1 0211-0501 ● ● ●
17 01.800 SWITCH; OIL PRESSURE 8-97072-947-0 01 1 0502-0504 ● ● ●
17 01.800 SWITCH; OIL PRESSURE 8-97072-947-0 01 1 0505- ● ● ● ●
17 01.800 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 0211-0501 ●
17 01.800 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 0502-1004 ●
17 01.800 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 1005- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=36 		5-11219-018-0 03 1 0211-0501 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
EXC. TURBOCHARGER<K51> (C) OD=36 		5-11219-018-0 03 1 0211-0501 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=36 		5-11219-018-0 03 1 0502-0504 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=36 		5-11219-018-0 03 1 0505- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 0211-0501 ● ● ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 0502-0504 ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 0505-1004 ● ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 1005- ● ● ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (A) OD=18 		5-11219-008-0 03 1 0211-0410 ● ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (A) OD=18 		5-11219-008-0 03 1 0411-0501 ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (A) OD=18 		5-11219-008-0 03 1 0502-0504 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (A) OD=18 		5-11219-008-0 03 1 0505- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=32 		5-11219-015-0 02 1 0211-0410 ● ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=32 		5-11219-015-0 02 1 0411-0501 ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=32 		5-11219-015-0 02 1 0502-0504 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=32 		5-11219-015-0 02 1 0505- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (A) OD=18 		5-11219-008-0 03 1 0411-0501 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (A) OD=18 		5-11219-008-0 03 1 0502- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=32 		5-11219-015-0 02 1 0411-0501 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=32 		5-11219-015-0 02 1 0502- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 0411-0501 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 0502- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
TURBOCHARGER<K51> (C) OD=36 		5-11219-018-0 02 1 0211-0501 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=36 		5-11219-018-0 02 1 0211-0501 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=36 		5-11219-018-0 02 1 0502- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.293 (A) OD=25 		1-09600-016-0 01 1 0211-0501 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.293 (A) OD=25 		1-09600-016-0 01 1 0502-1004 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.293 (A) OD=25 		1-09600-016-0 01 1 1005- ● ●
34 01.609 VALVE; OIL RELIEF 8-94386-047-1 01 1 0211-0501 ●
34 01.609 VALVE; OIL RELIEF 8-94386-047-1 01 1 0502-0706 ●
34 01.609 VALVE; OIL RELIEF
00.213 		8-97328-859-0 01 1 0707-1004 ●
34 01.609 VALVE; OIL RELIEF
00.213 		8-97328-859-0 01 1 1005- ● ●
35 01.609 GASKET; RELIEF VLV
ID=23.3 		8-94173-412-0 01 1 0211-0501 ●
35 01.609 GASKET; RELIEF VLV
ID=23.3 		8-94173-412-0 01 1 0502-1004 ●
35 01.609 GASKET; RELIEF VLV
ID=23.3 		8-94173-412-0 01 1 1005- ● ●
56 01.519 JET; OIL,PISTON COOLING 8-97213-294-1 04 1 1005- ●
56 01.519 JET; OIL,PISTON COOLING 8-94370-579-0 04 1 0211-0501 ●
56 01.519 JET; OIL,PISTON COOLING 8-94370-579-1 04 1 0502- ●
61 00.206 PIN; STRAIGHT
04.510 OD=10 L=20 		8-97135-423-0 02 1 0211-0501 ●
61 00.206 PIN; STRAIGHT
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 04.510 OD=10 L=20 		8-97135-423-0 02 1 0211-0501 ●
61 00.206 PIN; STRAIGHT
EXC. TURBOCHARGER<K51> 04.510 OD=10 L=20 		8-97135-423-0 02 1 0211-0501 ●
61 00.206 PIN; STRAIGHT
04.510 OD=10 L=20 		8-97135-423-0 02 1 0502-0504 ●
61 00.206 PIN; STRAIGHT
04.510 OD=10 L=20 		8-97135-423-0 02 1 0505- ● ●
61 00.206 PIN; STRAIGHT
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.510 OD=10 L=20 		8-97135-423-0 01 1 0211-0501 ●
61 00.206 PIN; STRAIGHT
04.510 OD=10 L=20 		8-97135-423-0 01 1 0211-0501 ●
61 00.206 PIN; STRAIGHT
04.510 OD=10 L=20 		8-97135-423-0 01 1 0502- ● ●
61 00.206 PIN; STRAIGHT
L=22 		8-94483-674-0 04 1 0211-0501 ●
61 00.206 PIN; STRAIGHT
L=22 		8-94483-674-0 04 1 0502-1004 ●
61 00.206 PIN; STRAIGHT
L=22 		8-94483-674-0 04 1 1005- ● ●
70 00.034 CUP; SEALING,FRT & RR
00.253 OD=16 		5-11129-006-0 02 1 0211-0501 ● ● ●
70 00.034 CUP; SEALING,FRT & RR
00.253 OD=16 		5-11129-006-0 02 1 0502-0504 ● ● ●
70 00.034 CUP; SEALING,FRT & RR
00.253 OD=16 		5-11129-006-0 02 1 0505- ● ● ● ●
70 00.034 CUP; SEALING,FRT & RR
OD=40 		8-97096-824-0 04 1 0211-0501 ●
70 00.034 CUP; SEALING,FRT & RR
OD=40 		8-97096-824-0 04 1 0502-1004 ●
70 00.034 CUP; SEALING,FRT & RR
OD=40 		8-97096-824-0 04 1 1005- ● ●
89 00.034 CUP; SEALING,OIL GALLERY
00.253 OD=20 		9-11129-128-0 03 1 0211-0501 ●
89 00.034 CUP; SEALING,OIL GALLERY
00.253 OD=20 		9-11129-128-0 03 1 0502-1004 ●
89 00.034 CUP; SEALING,OIL GALLERY
00.253 OD=20 		9-11129-128-0 03 1 1005- ● ●
97 00.034 CUP; SEALING
00.253 (A) OD=16 		5-11129-006-0 01 1 1005- ●
97 00.034 CUP; SEALING
00.253 (B) OD=22 		8-97209-609-0 03 1 1005- ●
132 01.519 VALVE; CHECK,OIL
M10X18.5 		1-13161-012-0 04 1 0211-0501 ●
132 01.519 VALVE; CHECK,OIL
M10X18.5 		1-13161-012-0 04 1 0502-0704 ●
132 01.519 VALVE; CHECK,OIL
M10X18.5 		8-97329-618-0 04 1 0705-1004 ●
132 01.519 VALVE; CHECK,OIL
M10X18.5 		8-97329-618-0 04 1 1005- ● ●
136 01.639 BUSHING; DRIVE SHAFT,OIL PUMP 8-94393-596-0 02 1 0211-0501 ●
136 01.639 BUSHING; DRIVE SHAFT,OIL PUMP 8-94393-596-1 02 1 0502-0812 ●
136 01.639 BUSHING; DRIVE SHAFT,OIL PUMP 8-98091-566-0 02 1 0901-1004 ●
136 01.639 BUSHING; DRIVE SHAFT,OIL PUMP 8-98091-566-0 02 1 1005- ● ●
211 01.428 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 17 1 0211-0501 ●
211 01.428 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 17 1 0502-1004 ●
211 01.428 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 17 1 1005- ● ●
211 01.428 BOLT; CRANKCASE
00.293 (A) M14X115 W/FLANGE 		8-97077-638-0 10 1 0211-0501 ●
211 01.428 BOLT; CRANKCASE
00.293 (A) M14X115 W/FLANGE 		8-97077-638-0 10 1 0502-1004 ●
211 01.428 BOLT; CRANKCASE
00.293 (A) M14X115 W/FLANGE 		8-97077-638-0 10 1 1005- ● ●
212 01.428 PIN; CRANKCASE
04.510 OD=10 L=20 		8-97135-423-0 02 1 0211-0501 ●
212 01.428 PIN; CRANKCASE
04.510 OD=10 L=20 		8-97135-423-0 02 1 0502-1004 ●
212 01.428 PIN; CRANKCASE
04.510 OD=10 L=20 		8-97135-423-0 02 1 1005- ● ●
335 01.531 PLUG; C/BL,SIDE
M14X16.5 		8-97018-606-0 01 1 0211-0501 ●
335 01.531 PLUG; C/BL,SIDE
M14X16.5 		8-97018-606-0 01 1 0502-0712 ●
335 01.531 PLUG; C/BL,SIDE
M14X16.5 		8-97329-617-0 01 1 0801-1004 ●
335 01.531 PLUG; C/BL,SIDE
M14X16.5 		8-97329-617-0 01 1 1005- ● ●
351 01.531 GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=10.2 OD=15.2 		1-09630-083-0 01 1 0211-0501 ●
351 01.531 GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=10.2 OD=15.2 		1-09630-083-0 01 1 0502-1004 ●
351 01.531 GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=10.2 OD=15.2 		1-09630-083-0 01 1 1005- ● ●
406 01.531 PLUG; CRANK CASE
01.073 PT3/8 		5-09605-005-0 02 1 0211-0501 ●
406 01.531 PLUG; CRANK CASE
01.073 PT3/8 		5-09605-005-0 02 1 0502-1004 ●
406 01.531 PLUG; CRANK CASE
01.073 PT3/8 		5-09605-005-0 02 1 1005- ● ●
çizim 46406
119 117 121 120 119 119 1 119 115 222 117 120 121 119 115 119
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 00.033 BLOCK ASM; CYL 8-98005-434-3 01 1 1005-1209 ●
1 00.033 BLOCK ASM; CYL 8-98204-534-0 01 1 1210- ●
1 00.033 BLOCK ASM; CYL 8-97314-579-2 01 1 0505- ●
1 00.033 BLOCK ASM; CYL 8-97314-579-2 01 1 0211-0501 ●
1 00.033 BLOCK ASM; CYL 8-97352-707-2 01 1 0211-0501 ●
1 00.033 BLOCK ASM; CYL 8-97352-707-2 01 1 0502- ● ●
1 00.033 BLOCK ASM; CYL 8-97163-853-5 01 1 0211-0501 ●
1 00.033 BLOCK ASM; CYL 8-97163-853-7 01 1 0502- ●
1 00.033 BLOCK ASM; CYL 8-97257-264-3 01 1 0211-0501 ●
1 00.033 BLOCK ASM; CYL 8-97257-264-3 01 1 0502- ●
115 00.034 RUBBER; SPACE 8-97264-913-2 01 1 0505- ●
115 00.034 RUBBER; SPACE 8-97379-896-1 01 1 0505- ●
115 00.034 RUBBER; SPACE 8-97141-688-2 01 1 0211-0406 ●
115 00.034 RUBBER; SPACE 8-97379-896-0 01 1 0407-0501 ●
115 00.034 RUBBER; SPACE 8-97264-913-1 01 1 0211-0501 ●
115 00.034 RUBBER; SPACE
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97204-194-0 01 1 0211-0501 ●
115 00.034 RUBBER; SPACE 8-97204-194-0 01 1 0211-0501 ●
115 00.034 RUBBER; SPACE 8-97204-194-0 01 1 0502-1304 ● ●
115 00.034 RUBBER; SPACE
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97204-193-0 01 1 0211-0501 ●
115 00.034 RUBBER; SPACE 8-97204-193-0 01 1 0211-0501 ●
115 00.034 RUBBER; SPACE 8-97204-193-0 01 1 0502-1304 ● ●
117 00.030 COVER ASM; C/BL 8-97383-819-0 01 1 0505- ●
117 00.030 COVER ASM; C/BL 8-97388-300-0 01 1 0505- ●
117 00.030 COVER ASM; C/BL 8-97141-686-1 01 1 0211-0405 ●
117 00.030 COVER ASM; C/BL 8-97383-819-0 01 1 0406-0501 ●
117 00.030 COVER ASM; C/BL 8-97141-685-2 01 1 0211-0408 ●
117 00.030 COVER ASM; C/BL 8-97388-300-0 01 1 0409-0501 ●
117 00.030 COVER ASM; C/BL
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97020-126-0 01 1 0211-0501 ●
117 00.030 COVER ASM; C/BL 8-97020-126-0 01 1 0502-1304 ●
117 00.030 COVER ASM; C/BL
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97204-191-1 01 1 0211-0501 ●
117 00.030 COVER ASM; C/BL 8-97204-191-1 01 1 0502-1304 ●
117 00.030 COVER ASM; C/BL 8-97259-600-0 01 1 0211-0501 ●
117 00.030 COVER ASM; C/BL 8-97259-600-0 01 1 0502- ●
117 00.030 COVER ASM; C/BL 8-97300-309-1 01 1 0211-0501 ●
117 00.030 COVER ASM; C/BL 8-97300-309-1 01 1 0502- ●
119 00.034 BOLT; COVER FIX
00.206 (C) M8X10 FLANGE 		0-28080-810-0 01 1 0211-0501 ●
119 00.034 BOLT; COVER FIX
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 00.206 (C) M8X10 FLANGE 		0-28080-810-0 01 1 0211-0501 ●
119 00.034 BOLT; COVER FIX
00.206 (C) M8X10 FLANGE 		0-28080-810-0 01 1 0502-0504 ●
119 00.034 BOLT; COVER FIX
00.206 (C) M8X10 FLANGE 		0-28080-810-0 01 1 0505-0512 ● ●
119 00.034 BOLT; COVER FIX
03.407 (C) M8X10 FLANGE 		0-28050-810-0 01 1 0601-1304 ● ●
119 00.034 BOLT; COVER FIX
11.377 (C) M10X20 W/LK WASHER 		0-50041-020-0 01 1 0211-0501 ●
119 00.034 BOLT; COVER FIX
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 11.377 (C) M10X20 W/LK WASHER 		0-50041-020-0 01 1 0211-0501 ●
119 00.034 BOLT; COVER FIX
11.377 (C) M10X20 W/LK WASHER 		0-50041-020-0 01 1 0502-0504 ●
119 00.034 BOLT; COVER FIX
11.377 (C) M10X20 W/LK WASHER 		0-50041-020-0 01 1 0505-0512 ● ●
119 00.034 BOLT; COVER FIX
(C) M10X20 W/LK WASHER 		0-50541-020-0 01 1 0601-1304 ● ●
119 00.034 BOLT; COVER FIX
(B) M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 0211-0501 ●
119 00.034 BOLT; COVER FIX
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B) M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 0211-0501 ●
119 00.034 BOLT; COVER FIX
(B) M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 0502-0504 ●
119 00.034 BOLT; COVER FIX
(B) M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 0505-1304 ● ●
119 00.034 BOLT; COVER FIX
(A) M10X28 		8-94329-952-1 01 1 0211-0501 ● ●
119 00.034 BOLT; COVER FIX
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A) M10X28 		8-94329-952-1 01 1 0211-0501 ●
119 00.034 BOLT; COVER FIX
(A) M10X28 		8-94329-952-1 01 1 0502-0504 ● ●
119 00.034 BOLT; COVER FIX
(A) M10X28 		8-94329-952-1 01 1 0505-1304 ● ● ●
119 00.034 BOLT; COVER FIX
00.004 (D) M8X32 FLANGE 		0-28080-832-0 01 1 0211-0501 ●
119 00.034 BOLT; COVER FIX
00.004 (D) M8X32 FLANGE 		0-28080-832-0 01 1 0502- ●
119 00.034 BOLT; COVER FIX
(E) M8X22 W/LK&PL WASHER 		8-94329-953-1 03 1 0211-0501 ●
119 00.034 BOLT; COVER FIX
(E) M8X22 W/LK&PL WASHER 		8-94329-953-1 03 1 0502- ●
120 00.034 BUSHING; MTG RUBBER
(A) OD=13 T=9.5 		8-94140-427-1 06 1 0211-0501 ●
120 00.034 BUSHING; MTG RUBBER
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A) OD=13 T=9.5 		8-94140-427-1 06 1 0211-0501 ●
120 00.034 BUSHING; MTG RUBBER
(A) OD=13 T=9.5 		8-94140-427-1 06 1 0502-0504 ●
120 00.034 BUSHING; MTG RUBBER
(A) OD=13 T=9.5 		8-94140-427-1 06 1 0505-1304 ● ●
120 00.034 BUSHING; MTG RUBBER
(A) OD=13 T=9.5 		8-94140-427-1 05 1 0211-0501 ●
120 00.034 BUSHING; MTG RUBBER
(A) OD=13 T=9.5 		8-94140-427-1 05 1 0502- ●
120 00.034 BUSHING; MTG RUBBER
(B) OD=18 T=4.5 		8-97188-506-0 01 1 0211-0501 ●
120 00.034 BUSHING; MTG RUBBER
(B) OD=18 T=4.5 		8-97188-506-0 01 1 0502- ●
121 00.034 RUBBER; MTG,COVER
(A) OD=22 		8-94140-428-1 06 1 0211-0501 ●
121 00.034 RUBBER; MTG,COVER
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A) OD=22 		8-94140-428-1 06 1 0211-0501 ●
121 00.034 RUBBER; MTG,COVER
(A) OD=22 		8-94140-428-1 06 1 0502-0504 ●
121 00.034 RUBBER; MTG,COVER
(A) OD=22 		8-94140-428-1 06 1 0505-1304 ● ●
121 00.034 RUBBER; MTG,COVER
(A) OD=22 		8-94140-428-1 05 1 0211-0501 ●
121 00.034 RUBBER; MTG,COVER
(A) OD=22 		8-94140-428-1 05 1 0502- ●
121 00.034 RUBBER; MTG,COVER
(B) OD=16 		8-97188-507-0 01 1 0211-0501 ●
121 00.034 RUBBER; MTG,COVER
(B) OD=16 		8-97188-507-0 01 1 0502- ●
222 00.340 BRACKET; COVER,C/BL 8-94460-512-0 01 1 0211-0410 ●
222 00.340 BRACKET; COVER,C/BL
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-94460-512-0 01 1 0211-0410 ●
222 00.340 BRACKET; COVER,C/BL 8-97209-129-0 01 1 0411-0501 ●
222 00.340 BRACKET; COVER,C/BL
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97209-129-0 01 1 0411-0501 ●
222 00.340 BRACKET; COVER,C/BL 8-97209-129-0 01 1 0502-0504 ●
222 00.340 BRACKET; COVER,C/BL 8-97209-129-0 01 1 0505-1304 ● ●
çizim 46509
13 1 13 351 7 61 89 335 61
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 00.033 BLOCK ASM; CYL 8-98005-434-3 01 1 1005-1209 ●
1 00.033 BLOCK ASM; CYL 8-98204-534-0 01 1 1210- ●
1 00.033 BLOCK ASM; CYL 8-97314-579-2 01 1 0505- ●
1 00.033 BLOCK ASM; CYL 8-97314-579-2 01 1 0211-0501 ●
1 00.033 BLOCK ASM; CYL 8-97352-707-2 01 1 0211-0501 ●
1 00.033 BLOCK ASM; CYL 8-97352-707-2 01 1 0502- ● ●
1 00.033 BLOCK ASM; CYL 8-97163-853-5 01 1 0211-0501 ●
1 00.033 BLOCK ASM; CYL 8-97163-853-7 01 1 0502- ●
1 00.033 BLOCK ASM; CYL 8-97257-264-3 01 1 0211-0501 ●
1 00.033 BLOCK ASM; CYL 8-97257-264-3 01 1 0502- ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 0211-0410 ● ● ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 0411-0501 ● ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 0502-0504 ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 0505- ● ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 0411-0501 ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 0502- ● ●
7 00.034 PLUG; WATER DRAIN
M10X10 		8-97352-537-0 01 1 0211-0501 ●
7 00.034 PLUG; WATER DRAIN
M10X10 		8-97352-537-0 01 1 0502-1004 ●
7 00.034 PLUG; WATER DRAIN
M10X10 		8-97352-537-0 01 1 1005- ● ●
13 00.293 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 0211-0501 ● ● ●
13 00.293 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 0502-0504 ● ● ●
13 00.293 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 0505- ● ● ● ●
13 00.293 DOWEL; C/BL TO HD
OD=18.15 		8-94399-688-1 02 1 0211-0501 ●
13 00.293 DOWEL; C/BL TO HD
OD=18.15 		8-94399-688-1 02 1 0502-1004 ●
13 00.293 DOWEL; C/BL TO HD
OD=18.15 		8-94399-688-1 02 1 1005- ● ●
61 00.206 PIN; STRAIGHT
04.510 OD=10 L=20 		8-97135-423-0 02 1 0211-0501 ●
61 00.206 PIN; STRAIGHT
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 04.510 OD=10 L=20 		8-97135-423-0 02 1 0211-0501 ●
61 00.206 PIN; STRAIGHT
EXC. TURBOCHARGER<K51> 04.510 OD=10 L=20 		8-97135-423-0 02 1 0211-0501 ●
61 00.206 PIN; STRAIGHT
04.510 OD=10 L=20 		8-97135-423-0 02 1 0502-0504 ●
61 00.206 PIN; STRAIGHT
04.510 OD=10 L=20 		8-97135-423-0 02 1 0505- ● ●
61 00.206 PIN; STRAIGHT
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.510 OD=10 L=20 		8-97135-423-0 01 1 0211-0501 ●
61 00.206 PIN; STRAIGHT
04.510 OD=10 L=20 		8-97135-423-0 01 1 0211-0501 ●
61 00.206 PIN; STRAIGHT
04.510 OD=10 L=20 		8-97135-423-0 01 1 0502- ● ●
61 00.206 PIN; STRAIGHT
L=22 		8-94483-674-0 04 1 0211-0501 ●
61 00.206 PIN; STRAIGHT
L=22 		8-94483-674-0 04 1 0502-1004 ●
61 00.206 PIN; STRAIGHT
L=22 		8-94483-674-0 04 1 1005- ● ●
89 00.034 CUP; SEALING,OIL GALLERY
00.253 OD=20 		9-11129-128-0 03 1 0211-0501 ●
89 00.034 CUP; SEALING,OIL GALLERY
00.253 OD=20 		9-11129-128-0 03 1 0502-1004 ●
89 00.034 CUP; SEALING,OIL GALLERY
00.253 OD=20 		9-11129-128-0 03 1 1005- ● ●
335 01.531 PLUG; C/BL,SIDE
M14X16.5 		8-97018-606-0 01 1 0211-0501 ●
335 01.531 PLUG; C/BL,SIDE
M14X16.5 		8-97018-606-0 01 1 0502-0712 ●
335 01.531 PLUG; C/BL,SIDE
M14X16.5 		8-97329-617-0 01 1 0801-1004 ●
335 01.531 PLUG; C/BL,SIDE
M14X16.5 		8-97329-617-0 01 1 1005- ● ●
351 01.531 GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=10.2 OD=15.2 		1-09630-083-0 01 1 0211-0501 ●
351 01.531 GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=10.2 OD=15.2 		1-09630-083-0 01 1 0502-1004 ●
351 01.531 GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=10.2 OD=15.2 		1-09630-083-0 01 1 1005- ● ●
çizim 46517
117 119 121 144 118 120 121 120 119 300 1 381 502 115 381 117 120 121 409 148 119 119 115 119 148
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 00.033 BLOCK ASM; CYL 8-98005-434-3 01 1 1005-1209 ●
1 00.033 BLOCK ASM; CYL 8-98204-534-0 01 1 1210- ●
1 00.033 BLOCK ASM; CYL 8-97314-579-2 01 1 0505- ●
1 00.033 BLOCK ASM; CYL 8-97314-579-2 01 1 0211-0501 ●
1 00.033 BLOCK ASM; CYL 8-97352-707-2 01 1 0211-0501 ●
1 00.033 BLOCK ASM; CYL 8-97352-707-2 01 1 0502- ● ●
1 00.033 BLOCK ASM; CYL 8-97163-853-5 01 1 0211-0501 ●
1 00.033 BLOCK ASM; CYL 8-97163-853-7 01 1 0502- ●
1 00.033 BLOCK ASM; CYL 8-97257-264-3 01 1 0211-0501 ●
1 00.033 BLOCK ASM; CYL 8-97257-264-3 01 1 0502- ●
115 00.034 RUBBER; SPACE 8-97264-913-2 01 1 0505- ●
115 00.034 RUBBER; SPACE 8-97379-896-1 01 1 0505- ●
115 00.034 RUBBER; SPACE 8-97141-688-2 01 1 0211-0406 ●
115 00.034 RUBBER; SPACE 8-97379-896-0 01 1 0407-0501 ●
115 00.034 RUBBER; SPACE 8-97264-913-1 01 1 0211-0501 ●
115 00.034 RUBBER; SPACE
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97204-194-0 01 1 0211-0501 ●
115 00.034 RUBBER; SPACE 8-97204-194-0 01 1 0211-0501 ●
115 00.034 RUBBER; SPACE 8-97204-194-0 01 1 0502-1304 ● ●
115 00.034 RUBBER; SPACE
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97204-193-0 01 1 0211-0501 ●
115 00.034 RUBBER; SPACE 8-97204-193-0 01 1 0211-0501 ●
115 00.034 RUBBER; SPACE 8-97204-193-0 01 1 0502-1304 ● ●
117 00.030 COVER ASM; C/BL 8-97383-819-0 01 1 0505- ●
117 00.030 COVER ASM; C/BL 8-97388-300-0 01 1 0505- ●
117 00.030 COVER ASM; C/BL 8-97141-686-1 01 1 0211-0405 ●
117 00.030 COVER ASM; C/BL 8-97383-819-0 01 1 0406-0501 ●
117 00.030 COVER ASM; C/BL 8-97141-685-2 01 1 0211-0408 ●
117 00.030 COVER ASM; C/BL 8-97388-300-0 01 1 0409-0501 ●
117 00.030 COVER ASM; C/BL
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97020-126-0 01 1 0211-0501 ●
117 00.030 COVER ASM; C/BL 8-97020-126-0 01 1 0502-1304 ●
117 00.030 COVER ASM; C/BL
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97204-191-1 01 1 0211-0501 ●
117 00.030 COVER ASM; C/BL 8-97204-191-1 01 1 0502-1304 ●
117 00.030 COVER ASM; C/BL 8-97259-600-0 01 1 0211-0501 ●
117 00.030 COVER ASM; C/BL 8-97259-600-0 01 1 0502- ●
117 00.030 COVER ASM; C/BL 8-97300-309-1 01 1 0211-0501 ●
117 00.030 COVER ASM; C/BL 8-97300-309-1 01 1 0502- ●
118 00.446 WASHER; PL,COVER FIX
02.334 ID=8.4 OD=26 		9-09164-808-0 01 1 0211-0501 ●
118 00.446 WASHER; PL,COVER FIX
02.334 ID=8.4 OD=26 		9-09164-808-0 01 1 0502-0605 ●
118 00.446 WASHER; PL,COVER FIX
03.706 ID=8.4 OD=26 		0-91614-808-0 01 1 0606- ●
119 00.034 BOLT; COVER FIX
00.206 (C) M8X10 FLANGE 		0-28080-810-0 01 1 0211-0501 ●
119 00.034 BOLT; COVER FIX
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 00.206 (C) M8X10 FLANGE 		0-28080-810-0 01 1 0211-0501 ●
119 00.034 BOLT; COVER FIX
00.206 (C) M8X10 FLANGE 		0-28080-810-0 01 1 0502-0504 ●
119 00.034 BOLT; COVER FIX
00.206 (C) M8X10 FLANGE 		0-28080-810-0 01 1 0505-0512 ● ●
119 00.034 BOLT; COVER FIX
03.407 (C) M8X10 FLANGE 		0-28050-810-0 01 1 0601-1304 ● ●
119 00.034 BOLT; COVER FIX
11.377 (C) M10X20 W/LK WASHER 		0-50041-020-0 01 1 0211-0501 ●
119 00.034 BOLT; COVER FIX
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 11.377 (C) M10X20 W/LK WASHER 		0-50041-020-0 01 1 0211-0501 ●
119 00.034 BOLT; COVER FIX
11.377 (C) M10X20 W/LK WASHER 		0-50041-020-0 01 1 0502-0504 ●
119 00.034 BOLT; COVER FIX
11.377 (C) M10X20 W/LK WASHER 		0-50041-020-0 01 1 0505-0512 ● ●
119 00.034 BOLT; COVER FIX
(C) M10X20 W/LK WASHER 		0-50541-020-0 01 1 0601-1304 ● ●
119 00.034 BOLT; COVER FIX
(B) M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 0211-0501 ●
119 00.034 BOLT; COVER FIX
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B) M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 0211-0501 ●
119 00.034 BOLT; COVER FIX
(B) M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 0502-0504 ●
119 00.034 BOLT; COVER FIX
(B) M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 0505-1304 ● ●
119 00.034 BOLT; COVER FIX
(A) M10X28 		8-94329-952-1 01 1 0211-0501 ● ●
119 00.034 BOLT; COVER FIX
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A) M10X28 		8-94329-952-1 01 1 0211-0501 ●
119 00.034 BOLT; COVER FIX
(A) M10X28 		8-94329-952-1 01 1 0502-0504 ● ●
119 00.034 BOLT; COVER FIX
(A) M10X28 		8-94329-952-1 01 1 0505-1304 ● ● ●
119 00.034 BOLT; COVER FIX
00.004 (D) M8X32 FLANGE 		0-28080-832-0 01 1 0211-0501 ●
119 00.034 BOLT; COVER FIX
00.004 (D) M8X32 FLANGE 		0-28080-832-0 01 1 0502- ●
119 00.034 BOLT; COVER FIX
(E) M8X22 W/LK&PL WASHER 		8-94329-953-1 03 1 0211-0501 ●
119 00.034 BOLT; COVER FIX
(E) M8X22 W/LK&PL WASHER 		8-94329-953-1 03 1 0502- ●
120 00.034 BUSHING; MTG RUBBER
(A) OD=13 T=9.5 		8-94140-427-1 06 1 0211-0501 ●
120 00.034 BUSHING; MTG RUBBER
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A) OD=13 T=9.5 		8-94140-427-1 06 1 0211-0501 ●
120 00.034 BUSHING; MTG RUBBER
(A) OD=13 T=9.5 		8-94140-427-1 06 1 0502-0504 ●
120 00.034 BUSHING; MTG RUBBER
(A) OD=13 T=9.5 		8-94140-427-1 06 1 0505-1304 ● ●
120 00.034 BUSHING; MTG RUBBER
(A) OD=13 T=9.5 		8-94140-427-1 05 1 0211-0501 ●
120 00.034 BUSHING; MTG RUBBER
(A) OD=13 T=9.5 		8-94140-427-1 05 1 0502- ●
120 00.034 BUSHING; MTG RUBBER
(B) OD=18 T=4.5 		8-97188-506-0 01 1 0211-0501 ●
120 00.034 BUSHING; MTG RUBBER
(B) OD=18 T=4.5 		8-97188-506-0 01 1 0502- ●
121 00.034 RUBBER; MTG,COVER
(A) OD=22 		8-94140-428-1 06 1 0211-0501 ●
121 00.034 RUBBER; MTG,COVER
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A) OD=22 		8-94140-428-1 06 1 0211-0501 ●
121 00.034 RUBBER; MTG,COVER
(A) OD=22 		8-94140-428-1 06 1 0502-0504 ●
121 00.034 RUBBER; MTG,COVER
(A) OD=22 		8-94140-428-1 06 1 0505-1304 ● ●
121 00.034 RUBBER; MTG,COVER
(A) OD=22 		8-94140-428-1 05 1 0211-0501 ●
121 00.034 RUBBER; MTG,COVER
(A) OD=22 		8-94140-428-1 05 1 0502- ●
121 00.034 RUBBER; MTG,COVER
(B) OD=16 		8-97188-507-0 01 1 0211-0501 ●
121 00.034 RUBBER; MTG,COVER
(B) OD=16 		8-97188-507-0 01 1 0502- ●
144 02.100 NUT; COVER FIX
01.540 M8 FLANGE 		0-91150-208-0 01 1 0211-0501 ●
144 02.100 NUT; COVER FIX
01.540 M8 FLANGE 		0-91150-208-0 01 1 0502-0602 ●
144 02.100 NUT; COVER FIX
01.540 M8 FLANGE 		0-91180-208-0 01 1 0603- ●
148 02.313 CLIP; HARNESS
03.671 (A) ID=12 VINYL CHLORIDE 		8-97367-984-1 02 1 0908-1304 ● ●
148 02.313 CLIP; HARNESS
00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 0211-0501 ● ●
148 02.313 CLIP; HARNESS
00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 0502-0504 ● ●
148 02.313 CLIP; HARNESS
04.930 (B) L=91 ID=8.5 		8-94329-956-0 01 1 0211-0501 ● ●
148 02.313 CLIP; HARNESS
04.930 (B) L=91 ID=8.5 		8-94329-956-0 01 1 0502-0504 ● ●
148 02.313 CLIP; HARNESS
04.930 (B) L=91 ID=8.5 		8-94329-956-0 01 1 0505-1304 ● ● ●
148 02.313 CLIP; HARNESS
00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 02 1 0211-0501 ●
148 02.313 CLIP; HARNESS
00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 02 1 0502-0504 ●
148 02.313 CLIP; HARNESS
00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 0505-0505 ● ● ●
148 02.313 CLIP; HARNESS
00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 0505-0801 ● ● ● ●
148 02.313 CLIP; HARNESS
03.671 (A) ID=12 VINYL CHLORIDE 		8-97367-984-1 03 1 0802-0907 ● ● ● ●
148 02.313 CLIP; HARNESS
03.671 (A) ID=12 VINYL CHLORIDE 		8-97367-984-1 03 1 0908- ● ●
148 02.313 CLIP; HARNESS
04.686 (B) ID=21 L=24 		8-94176-807-1 01 1 0211-0501 ●
148 02.313 CLIP; HARNESS
04.686 (B) ID=21 L=24 		8-94176-807-1 01 1 0502-0504 ●
148 02.313 CLIP; HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0505- ●
148 02.313 CLIP; HARNESS
01.516 (A) ID=13 L=20 		9-09525-235-0 01 1 0211-0501 ●
148 02.313 CLIP; HARNESS
01.516 (A) ID=13 L=20 		9-09525-235-0 01 1 0502-0504 ●
300 02.042 STUD; COVER
05.387 M8X30 L=41 		9-04110-830-0 01 1 0211-0501 ●
300 02.042 STUD; COVER
05.387 M8X30 L=41 		9-04110-830-0 01 1 0502-0604 ●
300 02.042 STUD; COVER
M8X30 L=41 		0-41010-830-0 01 1 0605- ●
381 01.531 BOLT; BRKT
00.206 (B) M8X10 FLANGE 		0-28080-810-0 01 1 0211-0501 ●
381 01.531 BOLT; BRKT
00.206 (B) M8X10 FLANGE 		0-28080-810-0 01 1 0502-0512 ●
381 01.531 BOLT; BRKT
03.407 (B) M8X10 FLANGE 		0-28050-810-0 01 1 0601- ●
381 01.531 BOLT; BRKT
11.377 (A) M10X20 W/LK WASHER 		0-50041-020-0 01 1 0211-0501 ●
381 01.531 BOLT; BRKT
11.377 (A) M10X20 W/LK WASHER 		0-50041-020-0 01 1 0502-0512 ●
381 01.531 BOLT; BRKT
00.034 (A) M10X20 W/LK WASHER 		0-50541-020-0 01 1 0601- ●
409 00.033 SPACER; COVER
ID=8.5 L=10 		5-13642-077-0 01 1 0211-0501 ●
409 00.033 SPACER; COVER
ID=8.5 L=10 		5-13642-077-0 01 1 0502- ●
502 00.340 BRACKET; BODY COVER 8-97209-129-0 01 1 0211-0501 ●
502 00.340 BRACKET; BODY COVER 8-97209-129-0 01 1 0502- ●
çizim 46940
62 70 61 13 150 148 13 148 150 148 150 51 52 17 150 148 54 50 1 15 194 24 15 70 40 69 53 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 00.033 BLOCK ASM; CYL 8-98005-434-3 01 1 1005-1209 ●
1 00.033 BLOCK ASM; CYL 8-98204-534-0 01 1 1210- ●
1 00.033 BLOCK ASM; CYL 8-97314-579-2 01 1 0505- ●
1 00.033 BLOCK ASM; CYL 8-97314-579-2 01 1 0211-0501 ●
1 00.033 BLOCK ASM; CYL 8-97352-707-2 01 1 0211-0501 ●
1 00.033 BLOCK ASM; CYL 8-97352-707-2 01 1 0502- ● ●
1 00.033 BLOCK ASM; CYL 8-97163-853-5 01 1 0211-0501 ●
1 00.033 BLOCK ASM; CYL 8-97163-853-7 01 1 0502- ●
1 00.033 BLOCK ASM; CYL 8-97257-264-3 01 1 0211-0501 ●
1 00.033 BLOCK ASM; CYL 8-97257-264-3 01 1 0502- ●
13 00.293 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 0211-0501 ● ● ●
13 00.293 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 0502-0504 ● ● ●
13 00.293 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 0505- ● ● ● ●
13 00.293 DOWEL; C/BL TO HD
OD=18.15 		8-94399-688-1 02 1 0211-0501 ●
13 00.293 DOWEL; C/BL TO HD
OD=18.15 		8-94399-688-1 02 1 0502-1004 ●
13 00.293 DOWEL; C/BL TO HD
OD=18.15 		8-94399-688-1 02 1 1005- ● ●
15 01.531 PLUG; OIL GALLERY
03.001 (B) M14X14 		8-94152-613-0 01 1 0211-0501 ●
15 01.531 PLUG; OIL GALLERY
EXC. TURBOCHARGER<K51> 03.001 (B) M14X14 		8-94152-613-0 01 1 0211-0501 ●
15 01.531 PLUG; OIL GALLERY
03.001 (B) M14X14 		8-94152-613-0 01 1 0502-0504 ●
15 01.531 PLUG; OIL GALLERY
03.001 (B) M14X14 		8-94152-613-0 01 1 0505- ● ●
15 01.531 PLUG; OIL GALLERY
(A) PT1/8 		1-09605-050-0 02 1 0211-0501 ● ● ●
15 01.531 PLUG; OIL GALLERY
(A) PT1/8 		1-09605-050-0 02 1 0502-0504 ● ● ●
15 01.531 PLUG; OIL GALLERY
(A) PT1/8 		1-09605-050-0 02 1 0505- ● ● ● ●
17 01.800 SWITCH; OIL PRESSURE 8-97072-947-0 01 1 0211-0501 ● ● ●
17 01.800 SWITCH; OIL PRESSURE 8-97072-947-0 01 1 0502-0504 ● ● ●
17 01.800 SWITCH; OIL PRESSURE 8-97072-947-0 01 1 0505- ● ● ● ●
17 01.800 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 0211-0501 ●
17 01.800 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 0502-1004 ●
17 01.800 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 1005- ● ●
24 01.531 NIPPLE; OIL FEED,VAC PUMP 8-94443-670-1 01 1 0211-0501 ● ● ●
24 01.531 NIPPLE; OIL FEED,VAC PUMP 8-94443-670-1 01 1 0502-0504 ● ● ●
24 01.531 NIPPLE; OIL FEED,VAC PUMP 8-94443-670-1 01 1 0505- ● ● ● ●
40 00.034 CUP; SEALING,C/BL RR
00.253 OD=56 		8-94250-514-1 01 1 0211-0501 ● ● ●
40 00.034 CUP; SEALING,C/BL RR
00.253 OD=56 		8-94250-514-1 01 1 0502-0504 ● ● ●
40 00.034 CUP; SEALING,C/BL RR
00.253 OD=56 		8-94250-514-1 01 1 0505- ● ● ● ●
50 00.685 PIN; STRAIGHT,RR PLATE
08.939 OD=10 L=32 		9-08161-032-0 01 1 0211-0501 ● ● ●
50 00.685 PIN; STRAIGHT,RR PLATE
08.939 OD=10 L=32 		9-08161-032-0 01 1 0502-0504 ● ● ●
50 00.685 PIN; STRAIGHT,RR PLATE
08.939 OD=10 L=32 		9-08161-032-0 01 1 0505- ● ● ● ●
51 01.803 GASKET; OIL PRESS WARNING SW,C/B
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-94336-292-0 01 1 0211-0402 ● ● ●
51 01.803 GASKET; OIL PRESS WARNING SW,C/B
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-94336-292-0 01 1 0403-0501 ● ●
51 01.803 GASKET; OIL PRESS WARNING SW,C/B
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-94336-292-0 01 1 0502-0504 ● ● ●
51 01.803 GASKET; OIL PRESS WARNING SW,C/B
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-94336-292-0 01 1 0505- ● ● ● ●
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B 8-94167-750-2 01 1 0211-0501 ● ●
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-94167-750-2 01 1 0211-0501 ●
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B 8-94167-750-2 01 1 0502-0504 ● ●
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B 8-94167-750-2 01 1 0505-0709 ● ● ●
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B 8-98089-872-0 01 1 0710-1501 ● ● ●
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B 8-94167-750-2 01 1 1502- ● ● ●
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-94167-749-2 01 1 0211-0501 ●
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B
EXC. TURBOCHARGER<K51> 		8-94167-749-2 01 1 0211-0501 ●
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B 8-94167-749-2 01 1 0502- ●
53 00.862 BOLT; REAMER
00.683 M10X52 		9-09806-020-0 01 1 0211-0501 ● ●
53 00.862 BOLT; REAMER
00.683 M10X52 		9-09806-020-0 01 1 0502-0504 ● ●
53 00.862 BOLT; REAMER
00.683 M10X52 		9-09806-020-0 01 1 0505- ● ● ●
53 00.862 BOLT; REAMER
M10X43 		9-09606-535-0 01 1 0211-0501 ●
53 00.862 BOLT; REAMER
M10X43 		9-09606-535-0 01 1 0502- ●
54 01.428 STUD; OIL PAN TO BLOCK 8-94133-974-2 10 1 0211-0501 ● ● ●
54 01.428 STUD; OIL PAN TO BLOCK 8-94133-974-2 10 1 0502-0504 ● ● ●
54 01.428 STUD; OIL PAN TO BLOCK 8-94133-974-2 10 1 0505- ● ● ● ●
61 00.206 PIN; STRAIGHT
04.510 OD=10 L=20 		8-97135-423-0 02 1 0211-0501 ●
61 00.206 PIN; STRAIGHT
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 04.510 OD=10 L=20 		8-97135-423-0 02 1 0211-0501 ●
61 00.206 PIN; STRAIGHT
EXC. TURBOCHARGER<K51> 04.510 OD=10 L=20 		8-97135-423-0 02 1 0211-0501 ●
61 00.206 PIN; STRAIGHT
04.510 OD=10 L=20 		8-97135-423-0 02 1 0502-0504 ●
61 00.206 PIN; STRAIGHT
04.510 OD=10 L=20 		8-97135-423-0 02 1 0505- ● ●
61 00.206 PIN; STRAIGHT
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.510 OD=10 L=20 		8-97135-423-0 01 1 0211-0501 ●
61 00.206 PIN; STRAIGHT
04.510 OD=10 L=20 		8-97135-423-0 01 1 0211-0501 ●
61 00.206 PIN; STRAIGHT
04.510 OD=10 L=20 		8-97135-423-0 01 1 0502- ● ●
61 00.206 PIN; STRAIGHT
L=22 		8-94483-674-0 04 1 0211-0501 ●
61 00.206 PIN; STRAIGHT
L=22 		8-94483-674-0 04 1 0502-1004 ●
61 00.206 PIN; STRAIGHT
L=22 		8-94483-674-0 04 1 1005- ● ●
62 00.034 CUP; SEALING,C/BL FRT
OD=14 		5-11219-011-0 01 1 0505- ●
62 00.034 CUP; SEALING,C/BL FRT
OD=14 		5-11219-011-0 01 1 0211-0501 ●
69 01.531 GASKET; PLUG,OIL GALLERY,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . 		9-09571-414-0 01 1 0211-0501 ●
69 01.531 GASKET; PLUG,OIL GALLERY,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. TURBOCHARGER<K51> 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 0211-0501 ●
69 01.531 GASKET; PLUG,OIL GALLERY,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 0502-0504 ●
69 01.531 GASKET; PLUG,OIL GALLERY,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 0505- ● ●
70 00.034 CUP; SEALING,FRT & RR
00.253 OD=16 		5-11129-006-0 02 1 0211-0501 ● ● ●
70 00.034 CUP; SEALING,FRT & RR
00.253 OD=16 		5-11129-006-0 02 1 0502-0504 ● ● ●
70 00.034 CUP; SEALING,FRT & RR
00.253 OD=16 		5-11129-006-0 02 1 0505- ● ● ● ●
70 00.034 CUP; SEALING,FRT & RR
OD=40 		8-97096-824-0 04 1 0211-0501 ●
70 00.034 CUP; SEALING,FRT & RR
OD=40 		8-97096-824-0 04 1 0502-1004 ●
70 00.034 CUP; SEALING,FRT & RR
OD=40 		8-97096-824-0 04 1 1005- ● ●
148 02.313 CLIP; HARNESS
03.671 (A) ID=12 VINYL CHLORIDE 		8-97367-984-1 02 1 0908-1304 ● ●
148 02.313 CLIP; HARNESS
00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 0211-0501 ● ●
148 02.313 CLIP; HARNESS
00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 0502-0504 ● ●
148 02.313 CLIP; HARNESS
04.930 (B) L=91 ID=8.5 		8-94329-956-0 01 1 0211-0501 ● ●
148 02.313 CLIP; HARNESS
04.930 (B) L=91 ID=8.5 		8-94329-956-0 01 1 0502-0504 ● ●
148 02.313 CLIP; HARNESS
04.930 (B) L=91 ID=8.5 		8-94329-956-0 01 1 0505-1304 ● ● ●
148 02.313 CLIP; HARNESS
00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 02 1 0211-0501 ●
148 02.313 CLIP; HARNESS
00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 02 1 0502-0504 ●
148 02.313 CLIP; HARNESS
00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 0505-0505 ● ● ●
148 02.313 CLIP; HARNESS
00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 0505-0801 ● ● ● ●
148 02.313 CLIP; HARNESS
03.671 (A) ID=12 VINYL CHLORIDE 		8-97367-984-1 03 1 0802-0907 ● ● ● ●
148 02.313 CLIP; HARNESS
03.671 (A) ID=12 VINYL CHLORIDE 		8-97367-984-1 03 1 0908- ● ●
148 02.313 CLIP; HARNESS
04.686 (B) ID=21 L=24 		8-94176-807-1 01 1 0211-0501 ●
148 02.313 CLIP; HARNESS
04.686 (B) ID=21 L=24 		8-94176-807-1 01 1 0502-0504 ●
148 02.313 CLIP; HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0505- ●
148 02.313 CLIP; HARNESS
01.516 (A) ID=13 L=20 		9-09525-235-0 01 1 0211-0501 ●
148 02.313 CLIP; HARNESS
01.516 (A) ID=13 L=20 		9-09525-235-0 01 1 0502-0504 ●
150 02.313 BOLT; CLIP
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0211-0501 ● ●
150 02.313 BOLT; CLIP
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0211-0501 ●
150 02.313 BOLT; CLIP
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0502-0504 ● ●
150 02.313 BOLT; CLIP
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0505-0512 ● ● ●
150 02.313 BOLT; CLIP
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0601-1304 ● ● ●
150 02.313 BOLT; CLIP
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE 		0-28080-812-0 03 1 0211-0501 ●
150 02.313 BOLT; CLIP
EXC. TURBOCHARGER<K51> 08.900 M8X12 FLANGE 		0-28080-812-0 03 1 0211-0501 ●
150 02.313 BOLT; CLIP
08.900 M8X12 FLANGE 		0-28080-812-0 03 1 0502-0512 ●
150 02.313 BOLT; CLIP
02.343 M8X12 FLANGE 		0-28050-812-0 03 1 0601- ●
194 00.439 PIPE; OIL DRAIN,C/BL
TURBOCHARGER<K51> 		8-97137-781-0 01 1 0211-0501 ●
194 00.439 PIPE; OIL DRAIN,C/BL 8-97137-781-0 01 1 0211-0501 ●
194 00.439 PIPE; OIL DRAIN,C/BL 8-97137-781-0 01 1 0502- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
