Sayfa 0-10 - Isuzu EPC

0-10 — CYLINDER HEAD COVER (#50703) — 278 parça

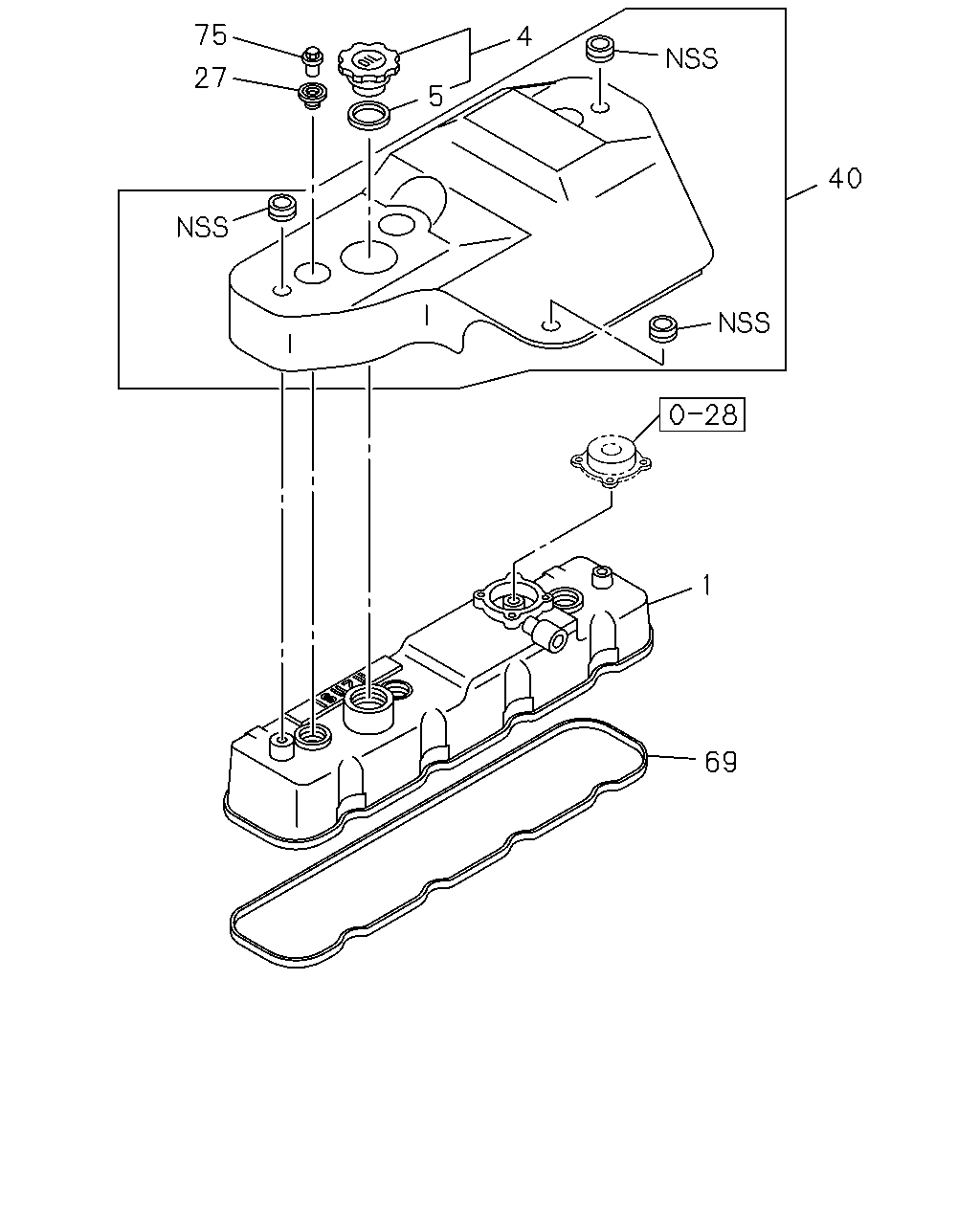

75 4 27 5 40 1 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	00.386 COVER; CYL HD	8-94476-696-1	01	1	0211-0501	●	●
1	00.386 COVER; CYL HD	8-94476-696-1	01	1	0502-0504		●	●
1	00.386 COVER; CYL HD	8-94476-696-1	01	1	0505-	●	●	●
1	00.386 COVER; CYL HD	8-97226-760-1	01	1	0211-0501				●
1	00.386 COVER; CYL HD	8-97226-760-1	01	1	0502-0910					●
1	00.386 COVER; CYL HD	8-97113-025-3	01	1	0911-1004					●
1	00.386 COVER; CYL HD	8-97113-025-3	01	1	1005-1006					●	●
1	00.386 COVER; CYL HD	8-98171-615-0	01	1	1007-					●	●
1	00.386 COVER; CYL HD	8-97287-782-1	01	1	0211-0501							●
1	00.386 COVER; CYL HD	8-97287-782-1	01	1	0502-								●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0211-0501	●	●		●			●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0502-0504		●	●		●			●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0505-1004	●	●	●		●			●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	1005-	●	●	●		●	●		●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	01	1	0502-0504		●	●		●			●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	01	1	0505-1004	●	●	●		●			●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	01	1	1005-	●	●	●		●	●		●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	02	1	0211-0501	●	●		●			●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5	8-97263-801-1	03	1	0211-0501	●	●					●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5	8-97263-801-1	03	1	0502-0504		●	●					●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5	8-97263-801-1	03	1	0505-	●	●	●					●
40	00.386 COVER	8-97141-690-4	01	1	0505-	●
40	00.386 COVER BRAZIL EQUIPMENT(RWF)	8-94133-732-2	01	1	0211-0501	●
40	00.386 COVER EXC. BRAZIL EQUIPMENT(RWF)	8-97141-690-4	01	1	0211-0501	●
40	00.386 COVER	8-97240-037-0	01	1	0211-0501							●
40	00.386 COVER	8-97240-037-0	01	1	0502-								●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97161-131-0	01	1	0211-0301	●	●					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-0	01	1	0302-0501	●	●					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-0	01	1	0502-0504		●	●					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-1	01	1	0505-	●	●	●					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97189-871-1	01	1	0211-0501				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97189-871-1	01	1	0502-0910					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97105-690-2	01	1	0911-1004					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97105-690-2	01	1	1005-					●	●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	0211-0501	●	●					●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	0502-0504		●	●					●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	0505-	●	●	●					●

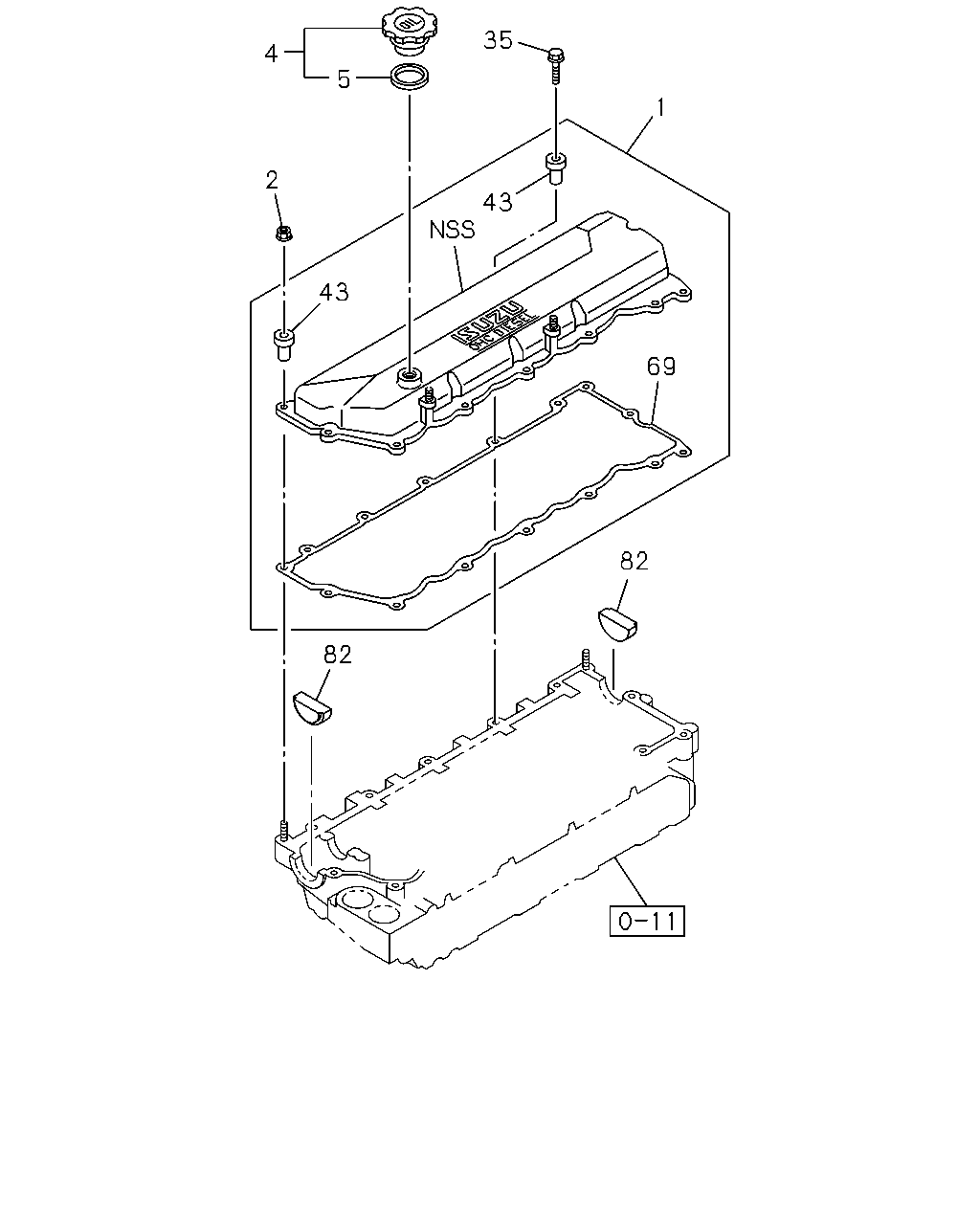

35 4 5 1 2 43 43 69 82 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	00.386 COVER; CYL HD	8-94476-696-1	01	1	0211-0501	●	●
1	00.386 COVER; CYL HD	8-94476-696-1	01	1	0502-0504		●	●
1	00.386 COVER; CYL HD	8-94476-696-1	01	1	0505-	●	●	●
1	00.386 COVER; CYL HD	8-97226-760-1	01	1	0211-0501				●
1	00.386 COVER; CYL HD	8-97226-760-1	01	1	0502-0910					●
1	00.386 COVER; CYL HD	8-97113-025-3	01	1	0911-1004					●
1	00.386 COVER; CYL HD	8-97113-025-3	01	1	1005-1006					●	●
1	00.386 COVER; CYL HD	8-98171-615-0	01	1	1007-					●	●
1	00.386 COVER; CYL HD	8-97287-782-1	01	1	0211-0501							●
1	00.386 COVER; CYL HD	8-97287-782-1	01	1	0502-								●
2	00.413 NUT; COVER,HD 01.062 M8 FLANGE	0-91180-108-0	01	1	1005-						●
2	00.413 NUT; COVER,HD 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501				●
2	00.413 NUT; COVER,HD 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602					●
2	00.413 NUT; COVER,HD 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-1004					●
2	00.413 NUT; COVER,HD 01.062 M8 FLANGE	0-91180-108-0	02	1	1005-					●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0211-0501	●	●		●			●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0502-0504		●	●		●			●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0505-1004	●	●	●		●			●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	1005-	●	●	●		●	●		●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	01	1	0502-0504		●	●		●			●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	01	1	0505-1004	●	●	●		●			●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	01	1	1005-	●	●	●		●	●		●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	02	1	0211-0501	●	●		●			●
35	00.293 BOLT; NOISE SHIELD COVER 03.403 M8X30 FLANGE	0-28650-830-0	12	1	1005-						●
35	00.293 BOLT; NOISE SHIELD COVER BRAZIL EQUIPMENT(RWF) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0211-0501	●
35	00.293 BOLT; NOISE SHIELD COVER 03.704 M8X40 FLANGE	0-28680-840-0	06	1	0211-0501				●
35	00.293 BOLT; NOISE SHIELD COVER 03.704 M8X40 FLANGE	0-28680-840-0	06	1	0502-0512					●
35	00.293 BOLT; NOISE SHIELD COVER 00.685 M8X40 FLANGE	0-28650-840-0	06	1	0601-0910					●
35	00.293 BOLT; NOISE SHIELD COVER 03.403 M8X30 FLANGE	0-28650-830-0	13	1	0911-					●
43	00.413 RUBBER; MTG,HD COVER,OUTER OD=23	8-97190-120-2	08	1	0211-0501				●
43	00.413 RUBBER; MTG,HD COVER,OUTER OD=23	8-97190-120-2	08	1	0502-0910					●
43	00.413 RUBBER; MTG,HD COVER,OUTER 03.265 OD=23	8-97105-689-6	15	1	0911-1004					●
43	00.413 RUBBER; MTG,HD COVER,OUTER 03.265 OD=23	8-97105-689-6	15	1	1005-					●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97161-131-0	01	1	0211-0301	●	●					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-0	01	1	0302-0501	●	●					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-0	01	1	0502-0504		●	●					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-1	01	1	0505-	●	●	●					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97189-871-1	01	1	0211-0501				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97189-871-1	01	1	0502-0910					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97105-690-2	01	1	0911-1004					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97105-690-2	01	1	1005-					●	●
82	00.386 PLUG; CYL HD COVER	8-94399-605-0	02	1	0211-0501				●
82	00.386 PLUG; CYL HD COVER	8-94399-605-0	02	1	0502-1004					●
82	00.386 PLUG; CYL HD COVER	8-94399-605-0	02	1	1005-1005					●	●
82	00.386 PLUG; CYL HD COVER	8-98163-813-0	02	1	1006-					●	●

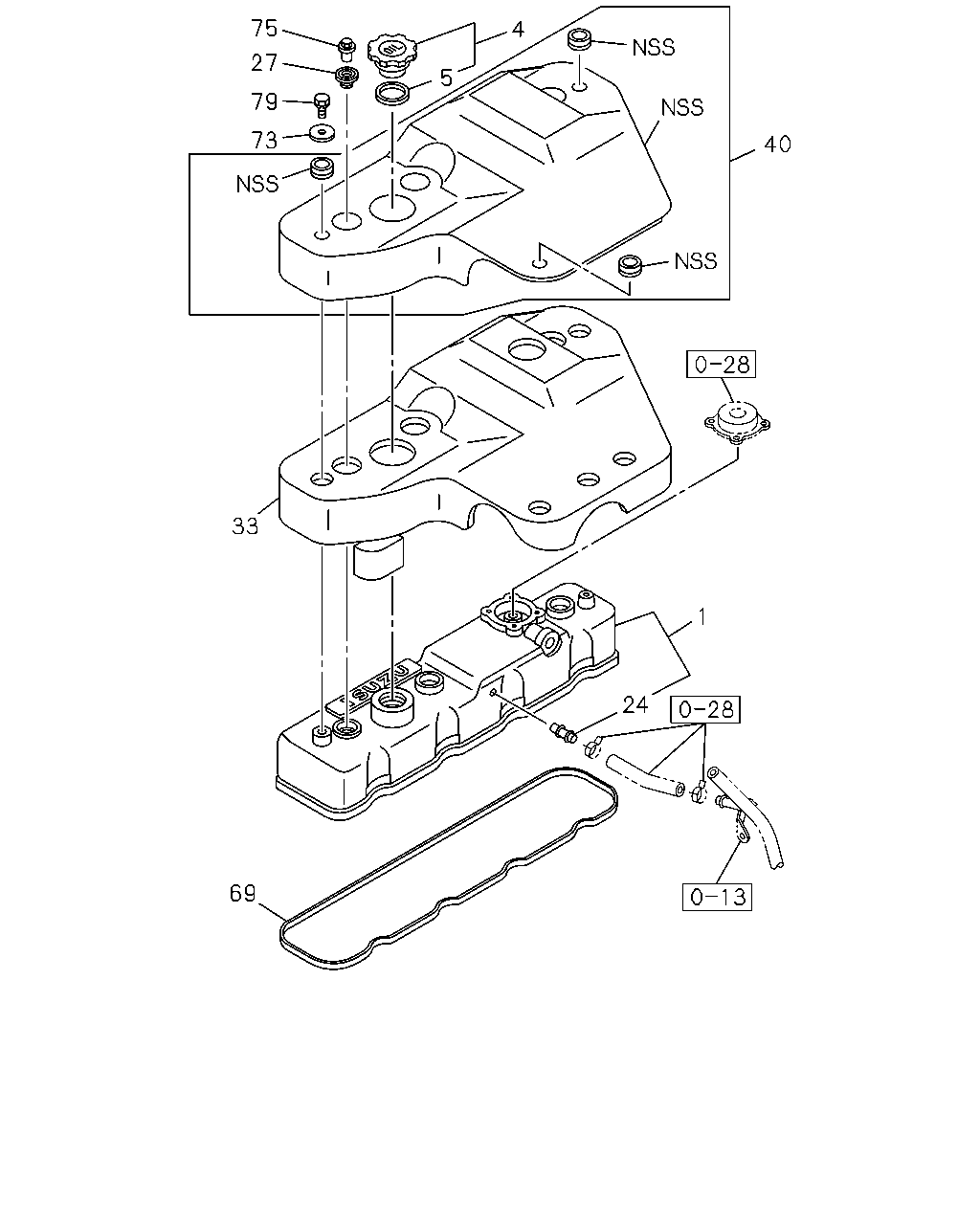

75 4 27 5 79 73 40 33 1 24 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	00.386 COVER; CYL HD	8-94476-696-1	01	1	0211-0501	●	●
1	00.386 COVER; CYL HD	8-94476-696-1	01	1	0502-0504		●	●
1	00.386 COVER; CYL HD	8-94476-696-1	01	1	0505-	●	●	●
1	00.386 COVER; CYL HD	8-97226-760-1	01	1	0211-0501				●
1	00.386 COVER; CYL HD	8-97226-760-1	01	1	0502-0910					●
1	00.386 COVER; CYL HD	8-97113-025-3	01	1	0911-1004					●
1	00.386 COVER; CYL HD	8-97113-025-3	01	1	1005-1006					●	●
1	00.386 COVER; CYL HD	8-98171-615-0	01	1	1007-					●	●
1	00.386 COVER; CYL HD	8-97287-782-1	01	1	0211-0501							●
1	00.386 COVER; CYL HD	8-97287-782-1	01	1	0502-								●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0211-0501	●	●		●			●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0502-0504		●	●		●			●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0505-1004	●	●	●		●			●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	1005-	●	●	●		●	●		●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	01	1	0502-0504		●	●		●			●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	01	1	0505-1004	●	●	●		●			●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	01	1	1005-	●	●	●		●	●		●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	02	1	0211-0501	●	●		●			●
24	00.413 PIPE; BREATHER,OIL FILLER 01.430	8-94455-311-1	01	1	0211-0501							●
24	00.413 PIPE; BREATHER,OIL FILLER 01.430	8-94455-311-1	01	1	0502-								●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5	8-97263-801-1	03	1	0211-0501	●	●					●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5	8-97263-801-1	03	1	0502-0504		●	●					●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5	8-97263-801-1	03	1	0505-	●	●	●					●
33	00.386 RUBBER; SPACE,CYL HD COVER	8-97289-599-2	01	1	0505-	●
33	00.386 RUBBER; SPACE,CYL HD COVER BRAZIL EQUIPMENT(RWF)	8-97147-921-0	01	1	0211-0501	●
33	00.386 RUBBER; SPACE,CYL HD COVER EXC. BRAZIL EQUIPMENT(RWF)	8-97289-599-1	01	1	0211-0501	●
33	00.386 RUBBER; SPACE,CYL HD COVER	8-97240-038-0	01	1	0211-0501							●
33	00.386 RUBBER; SPACE,CYL HD COVER	8-97240-038-0	01	1	0502-								●
40	00.386 COVER	8-97141-690-4	01	1	0505-	●
40	00.386 COVER BRAZIL EQUIPMENT(RWF)	8-94133-732-2	01	1	0211-0501	●
40	00.386 COVER EXC. BRAZIL EQUIPMENT(RWF)	8-97141-690-4	01	1	0211-0501	●
40	00.386 COVER	8-97240-037-0	01	1	0211-0501							●
40	00.386 COVER	8-97240-037-0	01	1	0502-								●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97161-131-0	01	1	0211-0301	●	●					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-0	01	1	0302-0501	●	●					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-0	01	1	0502-0504		●	●					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-1	01	1	0505-	●	●	●					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97189-871-1	01	1	0211-0501				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97189-871-1	01	1	0502-0910					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97105-690-2	01	1	0911-1004					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97105-690-2	01	1	1005-					●	●
73	00.413 WASHER; PL,HD COVER EXC. BRAZIL EQUIPMENT(RWF) 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	0211-0501	●
73	00.413 WASHER; PL,HD COVER 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	0211-0501							●
73	00.413 WASHER; PL,HD COVER 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	0502-0504								●
73	00.413 WASHER; PL,HD COVER 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	0505-	●							●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	0211-0501	●	●					●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	0502-0504		●	●					●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	0505-	●	●	●					●
79	00.293 BOLT; COVER EXC. BRAZIL EQUIPMENT(RWF) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0211-0501	●
79	00.293 BOLT; COVER 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0211-0501							●
79	00.293 BOLT; COVER 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0502-0504								●
79	00.293 BOLT; COVER 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0505-0512	●							●
79	00.293 BOLT; COVER 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0601-	●							●
79	00.293 BOLT; COVER EXC. BRAZIL EQUIPMENT(RWF) 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0211-0501	●
79	00.293 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0211-0501							●
79	00.293 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0502-0504								●
79	00.293 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0505-	●							●

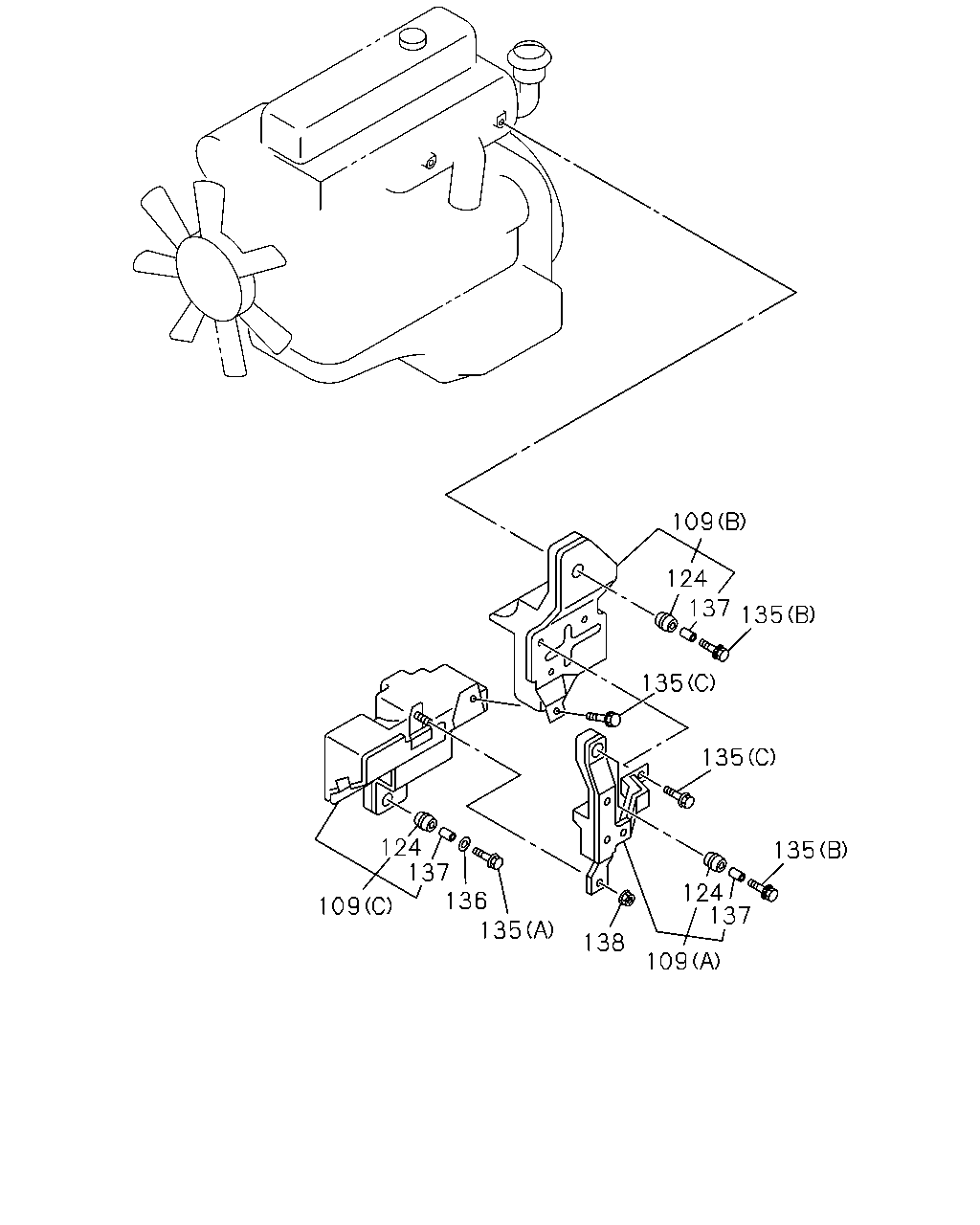

109 124 137 135 135 135 124 137 136 135 135 124 137 109 138 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
109	00.386 COVER; ENG TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A)	8-97223-628-2	01	1	0211-0501	●
109	00.386 COVER; ENG COLOMBIA EQUIPMENT(X74) (A)	8-97223-628-2	01	1	0502-0910		●
109	00.386 COVER; ENG PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(X74) (A)	8-97223-628-2	01	1	0911-1201		●
109	00.386 COVER; ENG TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B)	8-97223-629-1	01	1	0211-0501	●
109	00.386 COVER; ENG COLOMBIA EQUIPMENT(X74) (B)	8-97223-629-1	01	1	0502-0910		●
109	00.386 COVER; ENG PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(X74) (B)	8-97223-629-1	01	1	0911-1201		●
109	00.386 COVER; ENG TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (C)	8-97223-630-1	01	1	0211-0501	●
109	00.386 COVER; ENG COLOMBIA EQUIPMENT(X74) (C)	8-97223-630-1	01	1	0502-0910		●
109	00.386 COVER; ENG PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(X74) (C)	8-97223-630-1	01	1	0911-1201		●
124	00.413 RUBBER; MTG,COVER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> OD=21.8	8-97325-051-0	03	1	0211-0501	●
124	00.413 RUBBER; MTG,COVER COLOMBIA EQUIPMENT(X74) OD=21.8	8-97325-051-0	03	1	0502-0910		●
124	00.413 RUBBER; MTG,COVER PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(X74) OD=21.8	8-97325-051-0	03	1	0911-1201		●
135	00.413 BOLT; COVER,ENG TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 00.206 (C) M8X10 FLANGE	0-28080-810-0	02	1	0211-0501	●
135	00.413 BOLT; COVER,ENG COLOMBIA EQUIPMENT(X74) 00.206 (C) M8X10 FLANGE	0-28080-810-0	02	1	0502-0512		●
135	00.413 BOLT; COVER,ENG COLOMBIA EQUIPMENT(X74) 03.407 (C) M8X10 FLANGE	0-28050-810-0	02	1	0601-0910		●
135	00.413 BOLT; COVER,ENG PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(X74) 03.407 (C) M8X10 FLANGE	0-28050-810-0	02	1	0911-1201		●
135	00.413 BOLT; COVER,ENG TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 09.008 (A) M10X20 FLANGE	0-28081-020-0	01	1	0211-0501	●
135	00.413 BOLT; COVER,ENG COLOMBIA EQUIPMENT(X74) 09.008 (A) M10X20 FLANGE	0-28081-020-0	01	1	0502-0512		●
135	00.413 BOLT; COVER,ENG COLOMBIA EQUIPMENT(X74) 00.029 (A) M10X20 FLANGE	0-28051-020-0	01	1	0601-0910		●
135	00.413 BOLT; COVER,ENG PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(X74) 00.029 (A) M10X20 FLANGE	0-28051-020-0	01	1	0911-1201		●
135	00.413 BOLT; COVER,ENG TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	02	1	0211-0501	●
135	00.413 BOLT; COVER,ENG COLOMBIA EQUIPMENT(X74) 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	02	1	0502-0910		●
135	00.413 BOLT; COVER,ENG PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(X74) 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	02	1	0911-1201		●
136	00.413 WASHER; PL,ENG COVER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.085 ID=10.5 OD=22	9-09164-610-0	01	1	0211-0501	●
136	00.413 WASHER; PL,ENG COVER COLOMBIA EQUIPMENT(X74) 04.085 ID=10.5 OD=22	9-09164-610-0	01	1	0502-0605		●
136	00.413 WASHER; PL,ENG COVER COLOMBIA EQUIPMENT(X74) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0606-0910		●
136	00.413 WASHER; PL,ENG COVER PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(X74) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0911-1201		●
137	00.413 BUSHING; MTG RUBBER,COVER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 00.034 OD=13 T=9.5	8-94140-427-1	03	1	0211-0501	●
137	00.413 BUSHING; MTG RUBBER,COVER COLOMBIA EQUIPMENT(X74) 00.034 OD=13 T=9.5	8-94140-427-1	03	1	0502-0910		●
137	00.413 BUSHING; MTG RUBBER,COVER PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(X74) 00.034 OD=13 T=9.5	8-94140-427-1	03	1	0911-1201		●
138	00.413 NUT; COVER,ENG TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501	●
138	00.413 NUT; COVER,ENG COLOMBIA EQUIPMENT(X74) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602		●
138	00.413 NUT; COVER,ENG COLOMBIA EQUIPMENT(X74) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0910		●
138	00.413 NUT; COVER,ENG PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(X74) 01.062 M8 FLANGE	0-91180-108-0	01	1	0911-1201		●

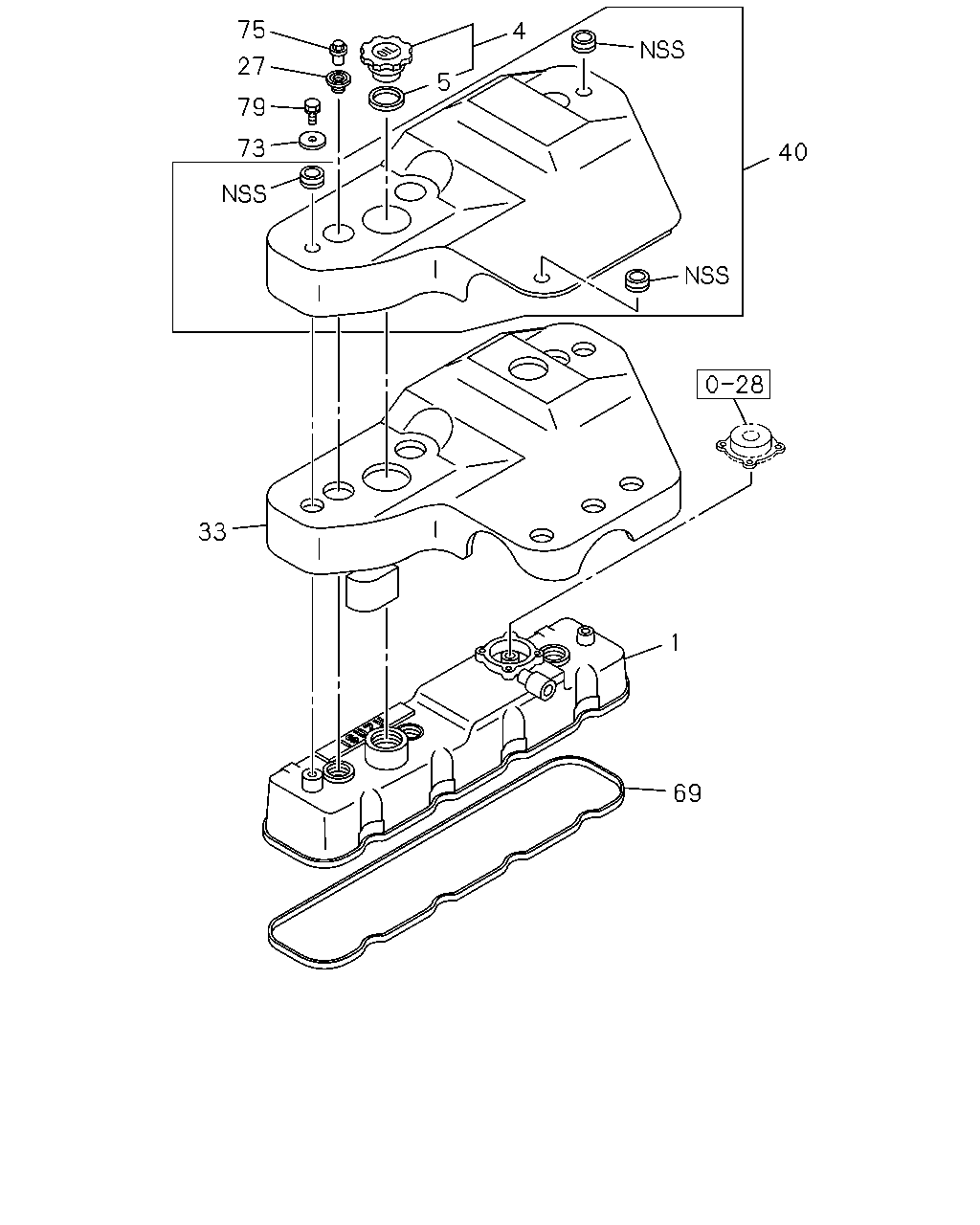

75 4 27 5 79 73 40 33 1 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	00.386 COVER; CYL HD	8-94476-696-1	01	1	0211-0501	●	●
1	00.386 COVER; CYL HD	8-94476-696-1	01	1	0502-0504		●	●
1	00.386 COVER; CYL HD	8-94476-696-1	01	1	0505-	●	●	●
1	00.386 COVER; CYL HD	8-97226-760-1	01	1	0211-0501				●
1	00.386 COVER; CYL HD	8-97226-760-1	01	1	0502-0910					●
1	00.386 COVER; CYL HD	8-97113-025-3	01	1	0911-1004					●
1	00.386 COVER; CYL HD	8-97113-025-3	01	1	1005-1006					●	●
1	00.386 COVER; CYL HD	8-98171-615-0	01	1	1007-					●	●
1	00.386 COVER; CYL HD	8-97287-782-1	01	1	0211-0501							●
1	00.386 COVER; CYL HD	8-97287-782-1	01	1	0502-								●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0211-0501	●	●		●			●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0502-0504		●	●		●			●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0505-1004	●	●	●		●			●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	1005-	●	●	●		●	●		●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	01	1	0502-0504		●	●		●			●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	01	1	0505-1004	●	●	●		●			●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	01	1	1005-	●	●	●		●	●		●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	02	1	0211-0501	●	●		●			●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5	8-97263-801-1	03	1	0211-0501	●	●					●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5	8-97263-801-1	03	1	0502-0504		●	●					●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5	8-97263-801-1	03	1	0505-	●	●	●					●
33	00.386 RUBBER; SPACE,CYL HD COVER	8-97289-599-2	01	1	0505-	●
33	00.386 RUBBER; SPACE,CYL HD COVER BRAZIL EQUIPMENT(RWF)	8-97147-921-0	01	1	0211-0501	●
33	00.386 RUBBER; SPACE,CYL HD COVER EXC. BRAZIL EQUIPMENT(RWF)	8-97289-599-1	01	1	0211-0501	●
33	00.386 RUBBER; SPACE,CYL HD COVER	8-97240-038-0	01	1	0211-0501							●
33	00.386 RUBBER; SPACE,CYL HD COVER	8-97240-038-0	01	1	0502-								●
40	00.386 COVER	8-97141-690-4	01	1	0505-	●
40	00.386 COVER BRAZIL EQUIPMENT(RWF)	8-94133-732-2	01	1	0211-0501	●
40	00.386 COVER EXC. BRAZIL EQUIPMENT(RWF)	8-97141-690-4	01	1	0211-0501	●
40	00.386 COVER	8-97240-037-0	01	1	0211-0501							●
40	00.386 COVER	8-97240-037-0	01	1	0502-								●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97161-131-0	01	1	0211-0301	●	●					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-0	01	1	0302-0501	●	●					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-0	01	1	0502-0504		●	●					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-1	01	1	0505-	●	●	●					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97189-871-1	01	1	0211-0501				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97189-871-1	01	1	0502-0910					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97105-690-2	01	1	0911-1004					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97105-690-2	01	1	1005-					●	●
73	00.413 WASHER; PL,HD COVER EXC. BRAZIL EQUIPMENT(RWF) 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	0211-0501	●
73	00.413 WASHER; PL,HD COVER 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	0211-0501							●
73	00.413 WASHER; PL,HD COVER 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	0502-0504								●
73	00.413 WASHER; PL,HD COVER 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	0505-	●							●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	0211-0501	●	●					●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	0502-0504		●	●					●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	0505-	●	●	●					●
79	00.293 BOLT; COVER EXC. BRAZIL EQUIPMENT(RWF) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0211-0501	●
79	00.293 BOLT; COVER 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0211-0501							●
79	00.293 BOLT; COVER 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0502-0504								●
79	00.293 BOLT; COVER 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0505-0512	●							●
79	00.293 BOLT; COVER 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0601-	●							●
79	00.293 BOLT; COVER EXC. BRAZIL EQUIPMENT(RWF) 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0211-0501	●
79	00.293 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0211-0501							●
79	00.293 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0502-0504								●
79	00.293 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0505-	●							●

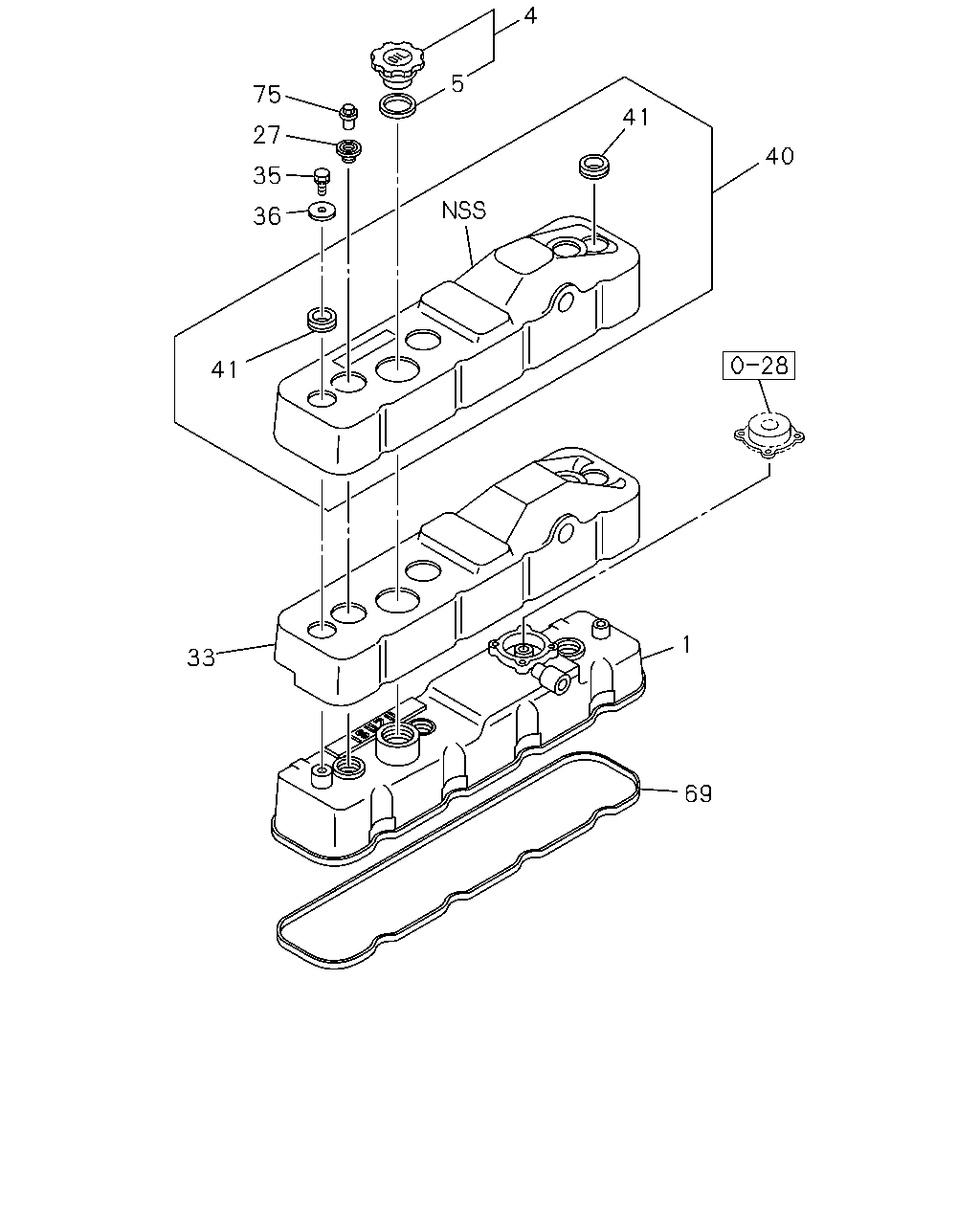

4 5 75 41 27 40 35 36 41 1 33 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	00.386 COVER; CYL HD	8-94476-696-1	01	1	0211-0501	●	●
1	00.386 COVER; CYL HD	8-94476-696-1	01	1	0502-0504		●	●
1	00.386 COVER; CYL HD	8-94476-696-1	01	1	0505-	●	●	●
1	00.386 COVER; CYL HD	8-97226-760-1	01	1	0211-0501				●
1	00.386 COVER; CYL HD	8-97226-760-1	01	1	0502-0910					●
1	00.386 COVER; CYL HD	8-97113-025-3	01	1	0911-1004					●
1	00.386 COVER; CYL HD	8-97113-025-3	01	1	1005-1006					●	●
1	00.386 COVER; CYL HD	8-98171-615-0	01	1	1007-					●	●
1	00.386 COVER; CYL HD	8-97287-782-1	01	1	0211-0501							●
1	00.386 COVER; CYL HD	8-97287-782-1	01	1	0502-								●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0211-0501	●	●		●			●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0502-0504		●	●		●			●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0505-1004	●	●	●		●			●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	1005-	●	●	●		●	●		●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	01	1	0502-0504		●	●		●			●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	01	1	0505-1004	●	●	●		●			●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	01	1	1005-	●	●	●		●	●		●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	02	1	0211-0501	●	●		●			●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5	8-97263-801-1	03	1	0211-0501	●	●					●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5	8-97263-801-1	03	1	0502-0504		●	●					●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5	8-97263-801-1	03	1	0505-	●	●	●					●
33	00.386 RUBBER; SPACE,CYL HD COVER	8-97289-599-2	01	1	0505-	●
33	00.386 RUBBER; SPACE,CYL HD COVER BRAZIL EQUIPMENT(RWF)	8-97147-921-0	01	1	0211-0501	●
33	00.386 RUBBER; SPACE,CYL HD COVER EXC. BRAZIL EQUIPMENT(RWF)	8-97289-599-1	01	1	0211-0501	●
33	00.386 RUBBER; SPACE,CYL HD COVER	8-97240-038-0	01	1	0211-0501							●
33	00.386 RUBBER; SPACE,CYL HD COVER	8-97240-038-0	01	1	0502-								●
35	00.293 BOLT; NOISE SHIELD COVER 03.403 M8X30 FLANGE	0-28650-830-0	12	1	1005-						●
35	00.293 BOLT; NOISE SHIELD COVER BRAZIL EQUIPMENT(RWF) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0211-0501	●
35	00.293 BOLT; NOISE SHIELD COVER 03.704 M8X40 FLANGE	0-28680-840-0	06	1	0211-0501				●
35	00.293 BOLT; NOISE SHIELD COVER 03.704 M8X40 FLANGE	0-28680-840-0	06	1	0502-0512					●
35	00.293 BOLT; NOISE SHIELD COVER 00.685 M8X40 FLANGE	0-28650-840-0	06	1	0601-0910					●
35	00.293 BOLT; NOISE SHIELD COVER 03.403 M8X30 FLANGE	0-28650-830-0	13	1	0911-					●
36	00.413 WASHER; PL,NOISE SHIELD COVER BRAZIL EQUIPMENT(RWF) 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	0211-0501	●
40	00.386 COVER	8-97141-690-4	01	1	0505-	●
40	00.386 COVER BRAZIL EQUIPMENT(RWF)	8-94133-732-2	01	1	0211-0501	●
40	00.386 COVER EXC. BRAZIL EQUIPMENT(RWF)	8-97141-690-4	01	1	0211-0501	●
40	00.386 COVER	8-97240-037-0	01	1	0211-0501							●
40	00.386 COVER	8-97240-037-0	01	1	0502-								●
41	00.413 GROMMET; HD COVER,OUTER BRAZIL EQUIPMENT(RWF)	8-94256-959-0	02	1	0211-0501	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97161-131-0	01	1	0211-0301	●	●					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-0	01	1	0302-0501	●	●					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-0	01	1	0502-0504		●	●					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-1	01	1	0505-	●	●	●					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97189-871-1	01	1	0211-0501				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97189-871-1	01	1	0502-0910					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97105-690-2	01	1	0911-1004					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97105-690-2	01	1	1005-					●	●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	0211-0501	●	●					●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	0502-0504		●	●					●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	0505-	●	●	●					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
