11438 - FTS(PAKISTAN)D-TIRE
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

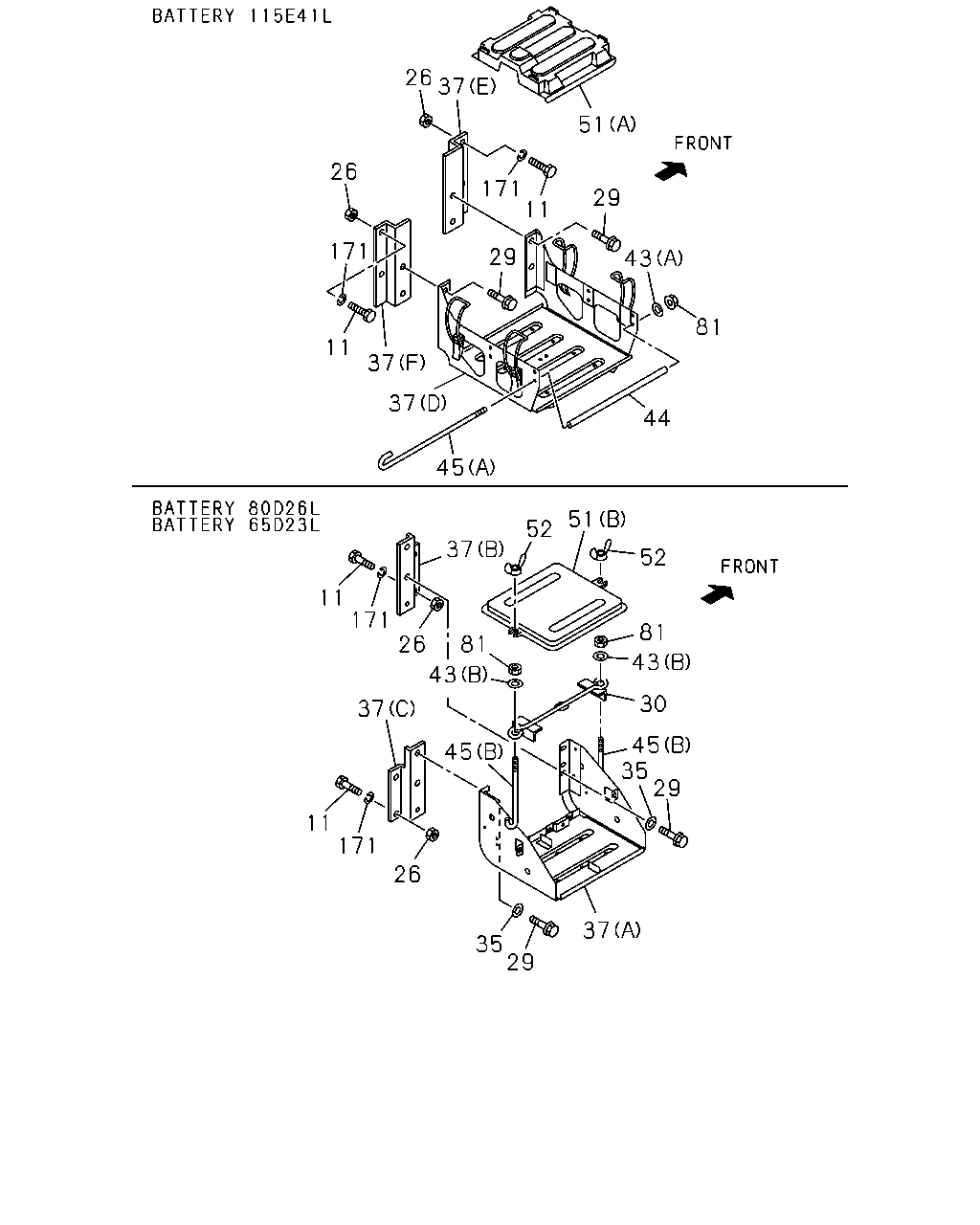

5-20 — BATTERY CARRIER
(#50694) — 23 parça
26
11
171
37
37
45
29
171
37
26
51
11
29
43
81
44
51
52
37
11
171
26
81
43
37
11
171
26
35
29
37
29
35
45
30
43
81
45
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BOLT; BRKT FIX
M14X35
0-20851-435-0
04
1
1101-
26
NUT; BRKT
M14
0-91110-514-0
04
1
1101-
29
BOLT; BRKT TO FRAME
M10X35 FLANGE
0-28651-035-0
04
1
1101-
30
PLATE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
5-53615-004-1
01
1
1101-
35
WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22
0-91614-610-0
04
1
1101-
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (D)
8-98091-497-0
01
1
1101-1405
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (D) PAK
8-98261-636-0
01
1
1406-
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (E)
8-98152-834-1
01
1
1101-
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (F)
8-98152-835-1
01
1
1101-
37
BRACKET; BATTERY
BATTERY 65D23L<8EJ> (A)
8-97384-068-2
01
1
1101-
37
BRACKET; BATTERY
BATTERY 80D26L<TM1> (A)
8-97384-067-2
01
1
1101-
37
BRACKET; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)
1-53619-056-1
01
1
1101-
37
BRACKET; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (C)
1-53619-057-2
01
1
1101-
43
WASHER; PL,CLAMP
BATTERY 115E41L<8MA> (A) ID=8.4 OD=16
0-91610-508-0
02
1
1101-
43
WASHER; PL,CLAMP
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) ID=8.4 OD=22
0-91614-708-0
02
1
1101-
44
SPACER; BATTERY
BATTERY 115E41L<8MA>
8-98261-682-0
02
1
1406-
45
ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> (A) L=430
8-97134-740-0
02
1
1101-
45
ROD; TENSION,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120
9-53616-615-0
02
1
1101-
51
COVER; BATTERY
BATTERY 115E41L<8MA> (A)
1-53612-037-2
01
1
1101-
51
COVER; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)
8-97120-747-0
01
1
1101-
52
NUT; WING,COVER FIX
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT
0-91118-408-0
02
1
1101-
81
NUT; BATTERY
M8 FLANGE
0-91180-108-0
02
1
1101-
171
WASHER; BRKT
ID=14.2
0-91510-814-0
04
1
1101-
