Sayfa 2-30B - Isuzu EPC

2-30B — GEAR SHIFTER AND QUADRANT BOX (#5069) — 787 parça

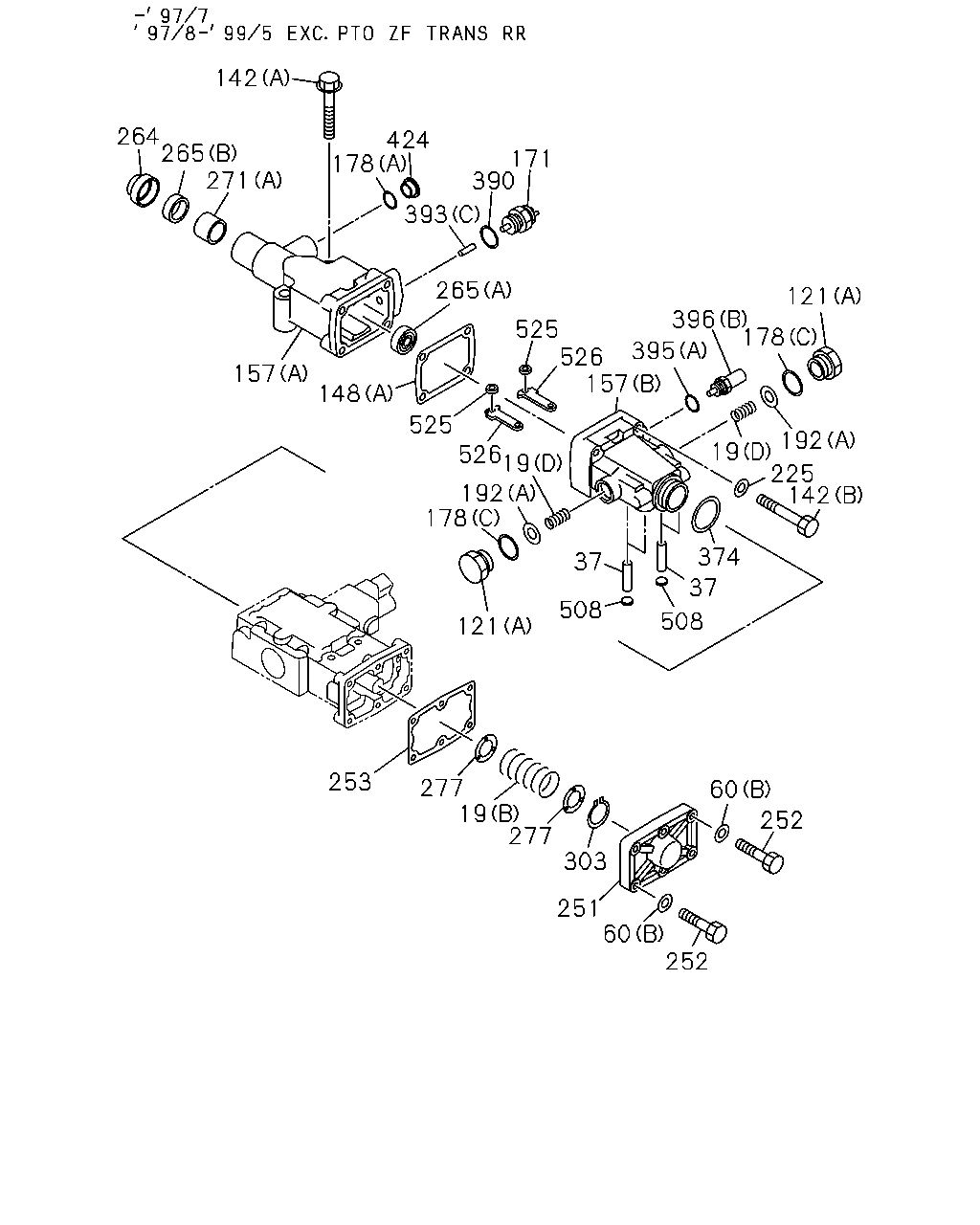

142 264 265 271 424 178 171 390 393 265 121 396 178 525 526 157 395 157 148 525 526 19 192 19 225 142 192 178 374 37 37 508 508 121 253 277 19 277 60 252 303 251 60 252

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	SPRING; COIL COMP (A)	1-33519-014-0	01	1	9606-
19	SPRING; COIL COMP (D)	1-33539-022-0	02	1	9606-9707
19	SPRING; COIL COMP (D)	1-33549-189-0	02	1	9708-
19	SPRING; COIL COMP (B)	1-33539-028-0	01	1	9606-
19	SPRING; COIL COMP (C)	1-33539-030-0	01	1	9606-
37	PIN; STOPPER ARM	1-33529-064-0	04	1	9606-9707
37	PIN; STOPPER ARM EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33529-064-0	04	1	9708-9905
60	WASHER; LK EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A)	1-33519-059-0	02	1	9708-9905
60	WASHER; LK (A)	1-33519-059-0	02	1	9606-9707
60	WASHER; LK POWER TAKE OFF-ZF TRANSMISSION<BDM> (A)	1-33519-059-0	01	1	9708-9905
60	WASHER; LK (A)	1-33519-059-0	02	1	9906-
60	WASHER; LK (B)	1-33549-159-0	06	1	9606-9707
60	WASHER; LK POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-33549-159-0	04	1	9708-9905
121	PLUG; DETENT SPR POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-33549-305-0	01	1	9708-9905
121	PLUG; DETENT SPR (B)	1-33549-305-0	01	1	9906-
121	PLUG; DETENT SPR (A)	1-33549-194-0	03	1	9606-
142	BOLT; QUAD BOX POWER TAKE OFF-ZF TRANSMISSION<BDM> (B) M8X30	1-33549-172-0	11	1	9708-9905
142	BOLT; QUAD BOX (B) M8X30	1-33549-172-0	09	1	9906-
142	BOLT; QUAD BOX POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) M8X80	1-33549-256-0	10	1	9708-9905
142	BOLT; QUAD BOX (A) M8X80	1-33549-256-0	14	1	9906-
142	BOLT; QUAD BOX (B)	1-33549-185-0	04	1	9606-9707
142	BOLT; QUAD BOX EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-33549-185-0	04	1	9708-9905
142	BOLT; QUAD BOX (A)	1-33549-193-0	10	1	9606-9707
142	BOLT; QUAD BOX EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A)	1-33549-193-0	10	1	9708-9905
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-33544-044-0	01	1	9708-9905
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33544-044-0	01	1	9906-
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). POWER TAKE OFF-ZF TRANSMISSION<BDM> (A)	1-33549-299-0	01	1	9708-9905
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33549-319-0	01	1	9906-
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33542-055-0	01	1	9606-9707
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A)	1-33542-055-0	01	1	9708-9905
157	BOX; QUAD,TRANS POWER TAKE OFF-ZF TRANSMISSION<BDM> (A)	1-33549-292-0	01	1	9708-9905
157	BOX; QUAD,TRANS (A)	1-33549-313-0	01	1	9906-
157	BOX; QUAD,TRANS POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-33549-306-0	01	1	9708-9905
157	BOX; QUAD,TRANS (B)	1-33549-326-0	01	1	9906-
157	BOX; QUAD,TRANS (B)	1-33541-475-0	01	1	9606-9707
157	BOX; QUAD,TRANS EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-33541-475-0	01	1	9708-9905
157	BOX; QUAD,TRANS (C)	1-33541-476-0	01	1	9606-9707
157	BOX; QUAD,TRANS EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (C)	1-33541-476-0	01	1	9708-9905
157	BOX; QUAD,TRANS (A)	1-33541-498-0	01	1	9606-9707
157	BOX; QUAD,TRANS EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A)	1-33541-498-0	01	1	9708-9905
171	SWITCH; NEUTRAL	1-82440-095-0	01	1	9606-
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (C)	1-33549-195-0	03	1	9708-9905
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33119-249-0	01	1	9606-
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33519-057-0	01	1	9606-
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). (C)	1-33549-195-0	03	1	9606-9707
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). POWER TAKE OFF-ZF TRANSMISSION<BDM> (C)	1-33549-195-0	04	1	9708-9905
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). (C)	1-33549-195-0	03	1	9906-
192	WASHER; PL (A)	1-33549-188-0	02	1	9606-9707
192	WASHER; PL EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A)	1-33549-188-0	02	1	9708-9905
192	WASHER; PL (B)	9-09160-714-0	02	1	9606-9905
225	WASHER; LK,QUAD BOX	1-33549-159-0	04	1	9606-9707
225	WASHER; LK,QUAD BOX POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33549-159-0	11	1	9708-9905
225	WASHER; LK,QUAD BOX	1-33549-159-0	09	1	9906-
251	COVER; SIDE POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33549-309-0	01	1	9708-9905
251	COVER; SIDE	1-33549-330-0	01	1	9906-
251	COVER; SIDE	1-33543-044-0	01	1	9606-9707
251	COVER; SIDE EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33543-044-0	01	1	9708-9905
252	BOLT; SIDE COVER POWER TAKE OFF-ZF TRANSMISSION<BDM> M8X30	1-33549-172-0	04	1	9708-9905
252	BOLT; SIDE COVER M8X35	1-33119-271-0	06	1	9606-9707
252	BOLT; SIDE COVER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> M8X35	1-33119-271-0	06	1	9708-9905
253	GASKET; SIDE COVER ALSO INCLUDED IN GASKET SET(M/T). POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33544-044-0	01	1	9708-9905
253	GASKET; SIDE COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33544-045-0	01	1	9606-9707
253	GASKET; SIDE COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33544-045-0	01	1	9708-9905
264	SEAL; DUST,SHAFT	1-33549-119-0	01	1	9606-9905
264	SEAL; DUST,SHAFT	1-33549-327-0	01	1	9906-
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33549-118-0	01	1	9606-9905
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33549-120-0	01	1	9606-9707
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-33549-120-0	01	1	9708-9905
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33549-328-0	01	1	9906-
271	BUSHING; QUAD BOX POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-33549-297-0	01	1	9708-9905
271	BUSHING; QUAD BOX (B)	1-33549-329-0	01	1	9906-
271	BUSHING; QUAD BOX (A)	1-33549-124-0	01	1	9606-9905
271	BUSHING; QUAD BOX (A)	1-33549-318-0	01	1	9906-
271	BUSHING; QUAD BOX (B)	1-33549-190-0	01	1	9606-9707
271	BUSHING; QUAD BOX EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-33549-190-0	01	1	9708-9905
277	PLATE; SPRING SEAT	1-33539-039-0	02	1	9606-
303	RING; SNAP,SHAFT	1-33539-040-0	01	1	9606-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T).	1-33542-056-0	01	1	9606-9707
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33542-056-0	01	1	9708-9905
390	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	01	1	9606-
393	PIN; SW (A)	1-33519-029-0	02	1	9606-
393	PIN; SW (B)	1-33519-077-0	01	1	9606-
393	PIN; SW (C)	1-33549-066-0	01	1	9606-9905
393	PIN; SW (C)	1-33549-335-0	01	1	9906-
395	GASKET; PLUNGER POWER TAKE OFF-ZF TRANSMISSION<BDM> (A)	1-36289-021-0	01	1	9708-9905
395	GASKET; PLUNGER (A) T=2.80	1-33529-068-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=2.80	1-33529-068-0	AR	1	9708-9905
395	GASKET; PLUNGER (A) T=2.70	1-33529-069-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=2.70	1-33529-069-0	AR	1	9708-9905
395	GASKET; PLUNGER (A) T=2.60	1-33529-070-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=2.60	1-33529-070-0	AR	1	9708-9905
395	GASKET; PLUNGER (A) T=2.50	1-33529-071-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=2.50	1-33529-071-0	AR	1	9708-9905
395	GASKET; PLUNGER (A) T=2.40	1-33529-072-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=2.40	1-33529-072-0	AR	1	9708-9905
395	GASKET; PLUNGER (A) T=2.30	1-33529-073-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=2.30	1-33529-073-0	AR	1	9708-9905
395	GASKET; PLUNGER (A) T=2.20	1-33529-074-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=2.20	1-33529-074-0	AR	1	9708-9905
395	GASKET; PLUNGER (A) T=2.10	1-33529-075-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=2.10	1-33529-075-0	AR	1	9708-9905
395	GASKET; PLUNGER (A) T=2.00	1-33529-076-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=2.00	1-33529-076-0	AR	1	9708-9905
395	GASKET; PLUNGER (A) T=1.90	1-33529-077-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=1.90	1-33529-077-0	AR	1	9708-9905
395	GASKET; PLUNGER (A) T=3.30	1-33529-100-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=3.30	1-33529-100-0	AR	1	9708-9905
395	GASKET; PLUNGER (A) T=3.20	1-33529-101-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=3.20	1-33529-101-0	AR	1	9708-9905
395	GASKET; PLUNGER (A) T=3.10	1-33529-102-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=3.10	1-33529-102-0	AR	1	9708-9905
395	GASKET; PLUNGER (A) T=3.00	1-33529-103-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=3.00	1-33529-103-0	AR	1	9708-9905
395	GASKET; PLUNGER (A) T=2.90	1-33529-104-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=2.90	1-33529-104-0	AR	1	9708-9905
395	GASKET; PLUNGER (B)	1-33549-167-0	02	1	9606-
396	PLUNGER; SHIFT ROD (C)	1-33519-073-0	01	1	9606-
396	PLUNGER; SHIFT ROD (A)	1-33519-118-0	01	1	9606-
396	PLUNGER; SHIFT ROD (B)	1-33529-067-0	01	1	9606-9905
396	PLUNGER; SHIFT ROD (B)	1-33529-085-0	02	1	9606-
424	PLUG; NEUTRAL SW HOLE	1-33119-171-0	01	1	9606-
508	CUP; SEALING	1-33529-065-0	04	1	9606-9707
508	CUP; SEALING EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33529-065-0	04	1	9708-9905
525	RING; DETENT	1-33549-186-0	02	1	9606-9707
525	RING; DETENT EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33549-186-0	02	1	9708-9905
526	LEVER; DETENT EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33549-310-0	02	1	9708-9905
526	LEVER; DETENT	1-33549-187-0	02	1	9606-9707
526	LEVER; DETENT POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33549-298-0	02	1	9708-9905
526	LEVER; DETENT	1-33549-298-0	02	1	9906-

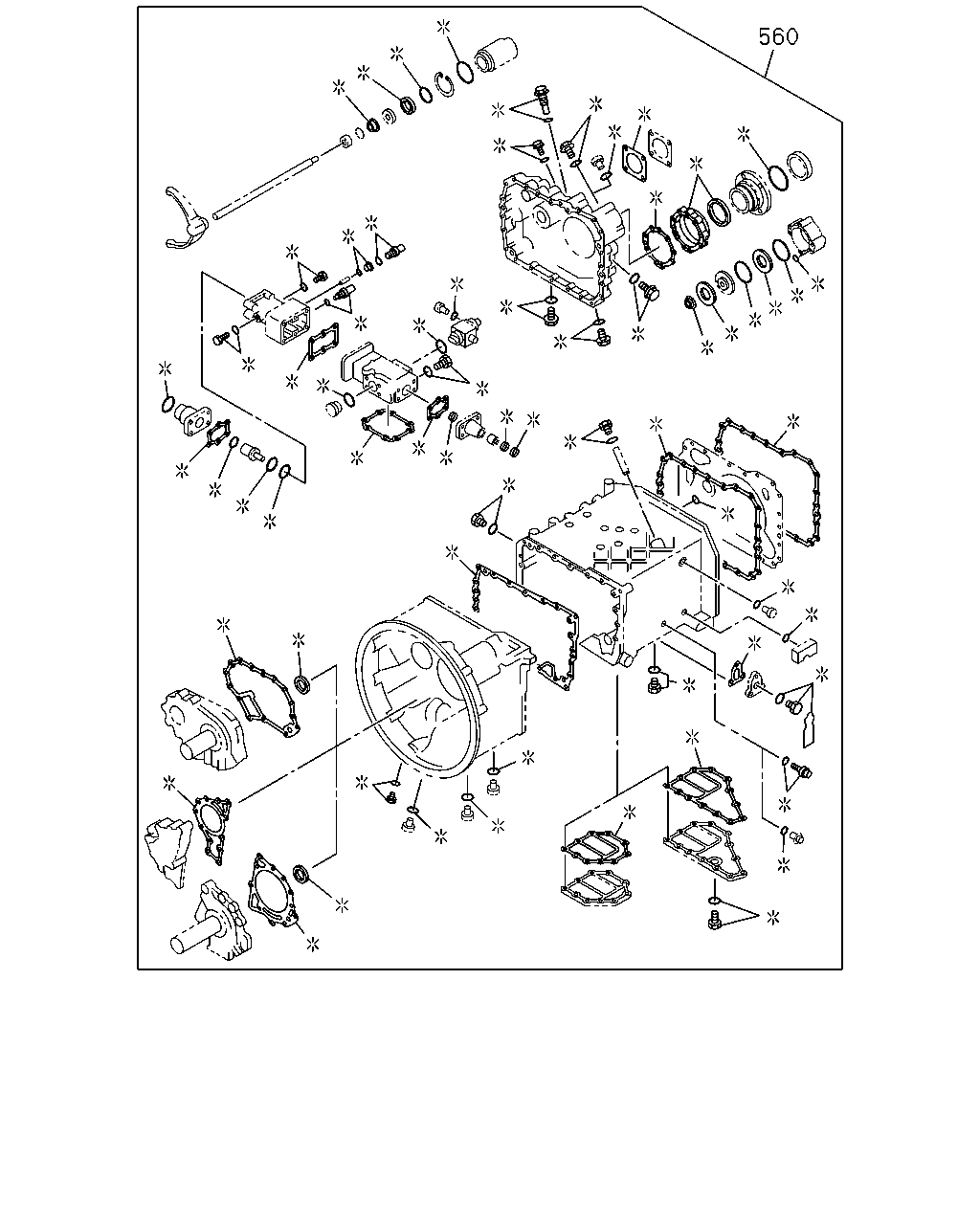

560

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	560	REPAIR KIT; CONT VLV	1-33739-922-0	01	1	9606-9707

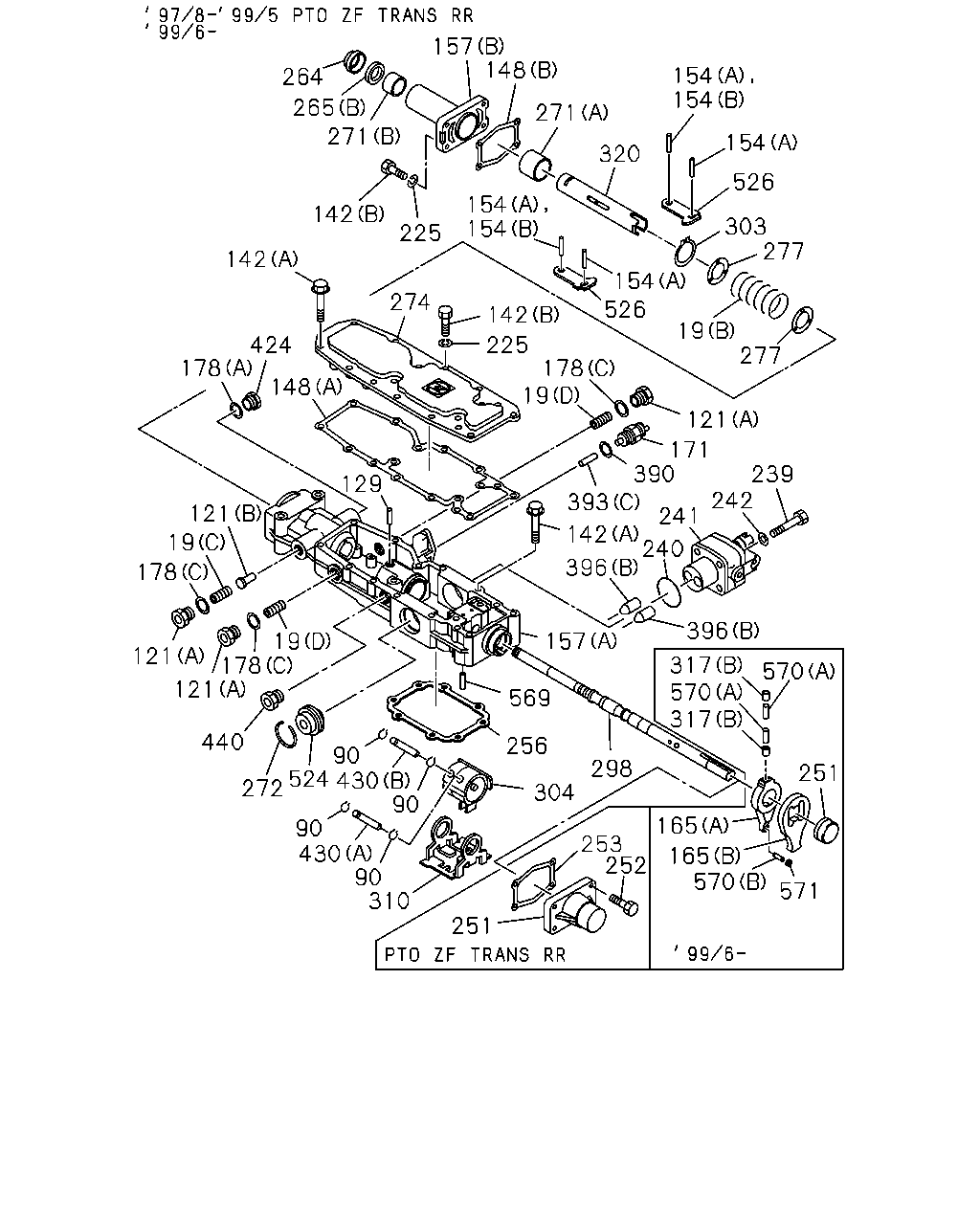

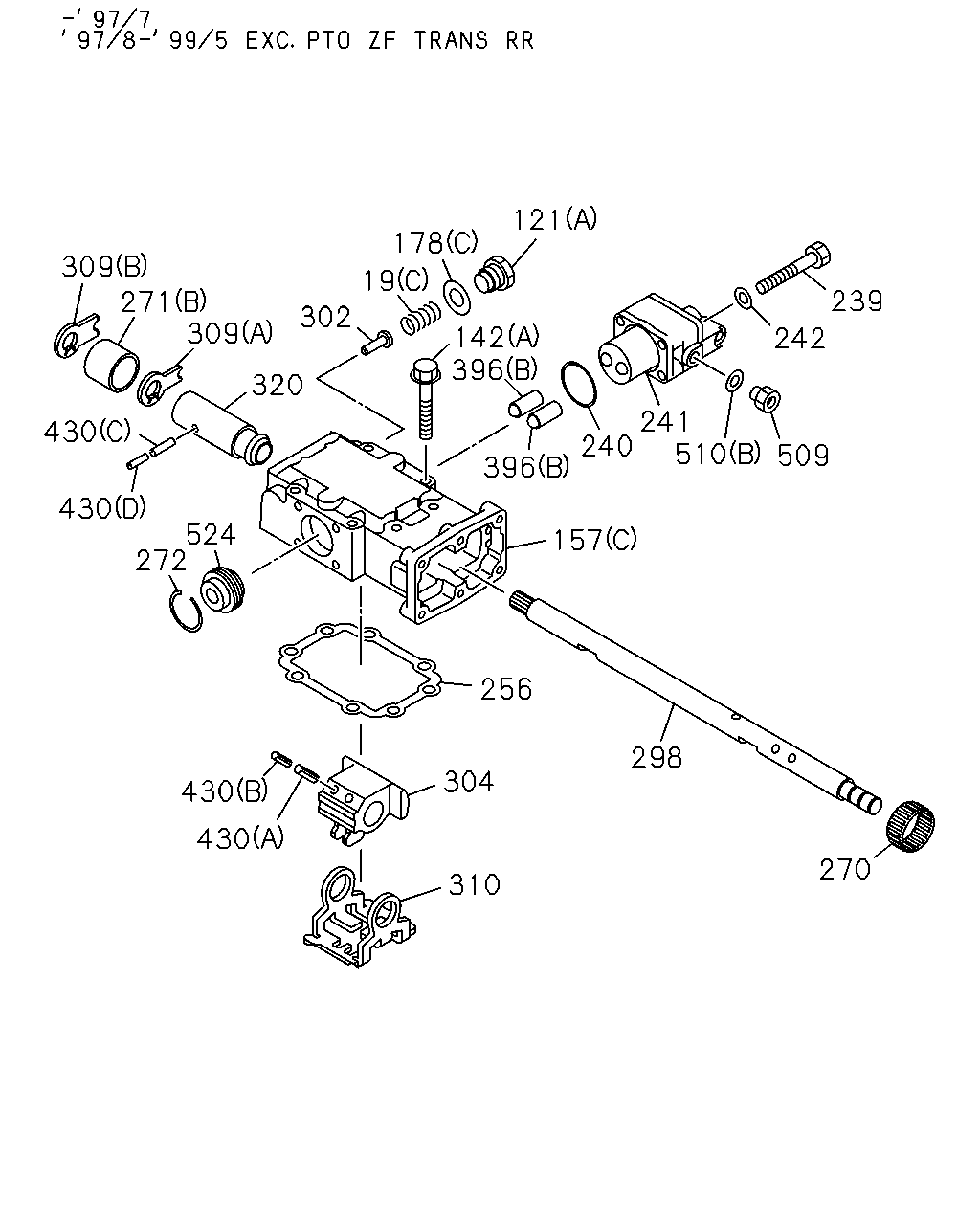

157 148 154 154 264 265 271 271 154 320 526 154 154 142 303 277 225 142 154 526 142 274 19 277 225 424 178 178 19 148 121 171 390 393 129 239 242 121 241 142 240 396 19 178 396 19 178 121 157 121 317 570 317 570 569 440 256 90 272 90 298 251 304 165 90 430 90 310 253 252 165 570 571 251 524 430

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	SPRING; COIL COMP (A)	1-33519-014-0	01	1	9606-
19	SPRING; COIL COMP (D)	1-33539-022-0	02	1	9606-9707
19	SPRING; COIL COMP (D)	1-33549-189-0	02	1	9708-
19	SPRING; COIL COMP (B)	1-33539-028-0	01	1	9606-
19	SPRING; COIL COMP (C)	1-33539-030-0	01	1	9606-
90	RING; SNAP,SHIFT ROD	1-33529-109-0	04	1	9906-
121	PLUG; DETENT SPR POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-33549-305-0	01	1	9708-9905
121	PLUG; DETENT SPR (B)	1-33549-305-0	01	1	9906-
121	PLUG; DETENT SPR (A)	1-33549-194-0	03	1	9606-
129	PIN; SPR,SHIFT	1-33529-107-0	01	1	9906-
142	BOLT; QUAD BOX POWER TAKE OFF-ZF TRANSMISSION<BDM> (B) M8X30	1-33549-172-0	11	1	9708-9905
142	BOLT; QUAD BOX (B) M8X30	1-33549-172-0	09	1	9906-
142	BOLT; QUAD BOX POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) M8X80	1-33549-256-0	10	1	9708-9905
142	BOLT; QUAD BOX (A) M8X80	1-33549-256-0	14	1	9906-
142	BOLT; QUAD BOX (B)	1-33549-185-0	04	1	9606-9707
142	BOLT; QUAD BOX EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-33549-185-0	04	1	9708-9905
142	BOLT; QUAD BOX (A)	1-33549-193-0	10	1	9606-9707
142	BOLT; QUAD BOX EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A)	1-33549-193-0	10	1	9708-9905
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-33544-044-0	01	1	9708-9905
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33544-044-0	01	1	9906-
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). POWER TAKE OFF-ZF TRANSMISSION<BDM> (A)	1-33549-299-0	01	1	9708-9905
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33549-319-0	01	1	9906-
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33542-055-0	01	1	9606-9707
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A)	1-33542-055-0	01	1	9708-9905
154	PIN; SELECT LEVER POWER TAKE OFF-ZF TRANSMISSION<BDM> (A)	1-33529-040-0	02	1	9708-9905
154	PIN; SELECT LEVER (A)	1-33529-040-0	04	1	9906-
154	PIN; SELECT LEVER POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-33529-064-0	02	1	9708-9905
157	BOX; QUAD,TRANS POWER TAKE OFF-ZF TRANSMISSION<BDM> (A)	1-33549-292-0	01	1	9708-9905
157	BOX; QUAD,TRANS (A)	1-33549-313-0	01	1	9906-
157	BOX; QUAD,TRANS POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-33549-306-0	01	1	9708-9905
157	BOX; QUAD,TRANS (B)	1-33549-326-0	01	1	9906-
157	BOX; QUAD,TRANS (B)	1-33541-475-0	01	1	9606-9707
157	BOX; QUAD,TRANS EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-33541-475-0	01	1	9708-9905
157	BOX; QUAD,TRANS (C)	1-33541-476-0	01	1	9606-9707
157	BOX; QUAD,TRANS EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (C)	1-33541-476-0	01	1	9708-9905
157	BOX; QUAD,TRANS (A)	1-33541-498-0	01	1	9606-9707
157	BOX; QUAD,TRANS EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A)	1-33541-498-0	01	1	9708-9905
165	LEVER; SHIFT (A)	1-33549-321-0	01	1	9906-
165	LEVER; SHIFT (B)	1-33549-325-0	01	1	9906-
171	SWITCH; NEUTRAL	1-82440-095-0	01	1	9606-
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (C)	1-33549-195-0	03	1	9708-9905
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33119-249-0	01	1	9606-
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33519-057-0	01	1	9606-
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). (C)	1-33549-195-0	03	1	9606-9707
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). POWER TAKE OFF-ZF TRANSMISSION<BDM> (C)	1-33549-195-0	04	1	9708-9905
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). (C)	1-33549-195-0	03	1	9906-
225	WASHER; LK,QUAD BOX	1-33549-159-0	04	1	9606-9707
225	WASHER; LK,QUAD BOX POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33549-159-0	11	1	9708-9905
225	WASHER; LK,QUAD BOX	1-33549-159-0	09	1	9906-
239	BOLT; CUT OFF VALVE EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33549-301-0	04	1	9708-9905
239	BOLT; CUT OFF VALVE	1-33549-168-0	04	1	9606-9707
239	BOLT; CUT OFF VALVE POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33549-302-0	04	1	9708-9905
239	BOLT; CUT OFF VALVE	1-33549-302-0	04	1	9906-
240	GASKET; CUT OFF VALVE	1-33549-198-0	01	1	9606-
241	VALVE; CUT OFF	1-33549-199-0	01	1	9606-9905
241	VALVE; CUT OFF	1-33549-334-0	01	1	9906-
242	WASHER; CUT OFF VALVE	1-33549-159-0	04	1	9606-9707
242	WASHER; CUT OFF VALVE POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33549-159-0	04	1	9708-9905
242	WASHER; CUT OFF VALVE	1-33549-159-0	04	1	9906-
251	COVER; SIDE POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33549-309-0	01	1	9708-9905
251	COVER; SIDE	1-33549-330-0	01	1	9906-
251	COVER; SIDE	1-33543-044-0	01	1	9606-9707
251	COVER; SIDE EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33543-044-0	01	1	9708-9905
252	BOLT; SIDE COVER POWER TAKE OFF-ZF TRANSMISSION<BDM> M8X30	1-33549-172-0	04	1	9708-9905
252	BOLT; SIDE COVER M8X35	1-33119-271-0	06	1	9606-9707
252	BOLT; SIDE COVER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> M8X35	1-33119-271-0	06	1	9708-9905
253	GASKET; SIDE COVER ALSO INCLUDED IN GASKET SET(M/T). POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33544-044-0	01	1	9708-9905
253	GASKET; SIDE COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33544-045-0	01	1	9606-9707
253	GASKET; SIDE COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33544-045-0	01	1	9708-9905
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33542-057-0	01	1	9606-
264	SEAL; DUST,SHAFT	1-33549-119-0	01	1	9606-9905
264	SEAL; DUST,SHAFT	1-33549-327-0	01	1	9906-
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33549-118-0	01	1	9606-9905
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33549-120-0	01	1	9606-9707
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-33549-120-0	01	1	9708-9905
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33549-328-0	01	1	9906-
271	BUSHING; QUAD BOX POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-33549-297-0	01	1	9708-9905
271	BUSHING; QUAD BOX (B)	1-33549-329-0	01	1	9906-
271	BUSHING; QUAD BOX (A)	1-33549-124-0	01	1	9606-9905
271	BUSHING; QUAD BOX (A)	1-33549-318-0	01	1	9906-
271	BUSHING; QUAD BOX (B)	1-33549-190-0	01	1	9606-9707
271	BUSHING; QUAD BOX EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-33549-190-0	01	1	9708-9905
272	RING; SNAP,QUAD BOX	1-44519-217-0	01	1	9606-
274	COVER; SHAFT,QUAD BOX POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33549-300-0	01	1	9708-9905
274	COVER; SHAFT,QUAD BOX	1-33549-320-0	01	1	9906-
277	PLATE; SPRING SEAT	1-33539-039-0	02	1	9606-
298	SHAFT; SHIFT LEVER POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33549-293-0	01	1	9708-9905
298	SHAFT; SHIFT LEVER	1-33549-314-0	01	1	9906-
298	SHAFT; SHIFT LEVER	1-33522-151-0	01	1	9606-9707
298	SHAFT; SHIFT LEVER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33522-151-0	01	1	9708-9905
303	RING; SNAP,SHAFT	1-33539-040-0	01	1	9606-
304	BLOCK; SHIFT SHAFT	1-33529-078-0	01	1	9606-9707
304	BLOCK; SHIFT SHAFT	1-33549-294-0	01	1	9708-9905
304	BLOCK; SHIFT SHAFT	1-33549-315-0	01	1	9906-
310	PLATE; LOCK,SHIFT LEVER POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33549-295-0	01	1	9708-9905
310	PLATE; LOCK,SHIFT LEVER	1-33549-316-0	01	1	9906-
310	PLATE; LOCK,SHIFT LEVER	1-33529-081-0	01	1	9606-9707
310	PLATE; LOCK,SHIFT LEVER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33529-081-0	01	1	9708-9905
317	BUSHING; LEVER (A)	1-09330-119-0	02	1	9701-9902
317	BUSHING; LEVER (A)	1-09330-119-0	02	1	9701-9902
317	BUSHING; LEVER (A)	1-09330-119-0	02	1	9903-9905
317	BUSHING; LEVER (A)	1-09330-119-0	02	1	9906-9907
317	BUSHING; LEVER (A)	1-09330-119-0	02	1	9908-
317	BUSHING; LEVER (A)	1-09330-119-0	02	1	9908-
317	BUSHING; LEVER (B)	1-33549-322-0	02	1	9906-
317	BUSHING; LEVER (A)	1-09330-119-0	04	1	9606-9612
320	SHAFT; LEVER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33529-105-0	01	1	9708-9905
320	SHAFT; LEVER	1-33529-082-0	01	1	9606-9707
320	SHAFT; LEVER POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33549-296-0	01	1	9708-9905
320	SHAFT; LEVER	1-33549-317-0	01	1	9906-
390	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	01	1	9606-
393	PIN; SW (A)	1-33519-029-0	02	1	9606-
393	PIN; SW (B)	1-33519-077-0	01	1	9606-
393	PIN; SW (C)	1-33549-066-0	01	1	9606-9905
393	PIN; SW (C)	1-33549-335-0	01	1	9906-
396	PLUNGER; SHIFT ROD (C)	1-33519-073-0	01	1	9606-
396	PLUNGER; SHIFT ROD (A)	1-33519-118-0	01	1	9606-
396	PLUNGER; SHIFT ROD (B)	1-33529-067-0	01	1	9606-9905
396	PLUNGER; SHIFT ROD (B)	1-33529-085-0	02	1	9606-
424	PLUG; NEUTRAL SW HOLE	1-33119-171-0	01	1	9606-
430	PIN; SPR,SHIFT ROD (A)	1-33529-079-0	02	1	9606-9905
430	PIN; SPR,SHIFT ROD (B)	1-33529-080-0	02	1	9606-9905
430	PIN; SPR,SHIFT ROD (C)	1-33529-083-0	01	1	9606-9905
430	PIN; SPR,SHIFT ROD (D)	1-33529-084-0	01	1	9606-9707
430	PIN; SPR,SHIFT ROD EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (D)	1-33529-084-0	01	1	9708-9905
430	PIN; SPR,SHIFT ROD (D)	1-33529-108-0	02	1	9906-
440	PLUG; OIL POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-34139-032-0	01	1	9708-9905
524	DETENT; QUAD BOX	1-33549-197-0	01	1	9606-
526	LEVER; DETENT EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33549-310-0	02	1	9708-9905
526	LEVER; DETENT	1-33549-187-0	02	1	9606-9707
526	LEVER; DETENT POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33549-298-0	02	1	9708-9905
526	LEVER; DETENT	1-33549-298-0	02	1	9906-
569	PIN; QUADRANT BOX	1-33529-106-0	01	1	9906-
570	PIN; SHIFT LEVER (A)	1-33529-110-0	02	1	9906-
570	PIN; SHIFT LEVER (B)	1-33529-111-0	01	1	9906-
571	ROLLER; LEVER	1-33549-324-0	01	1	9906-

323 319 358 433 323 315 317 319 296 292 335 317 433 295 317 315 433 292 296 358 319 317 433 324 332 321 326 42 48 358 321 358 296 292 295 292 296 319

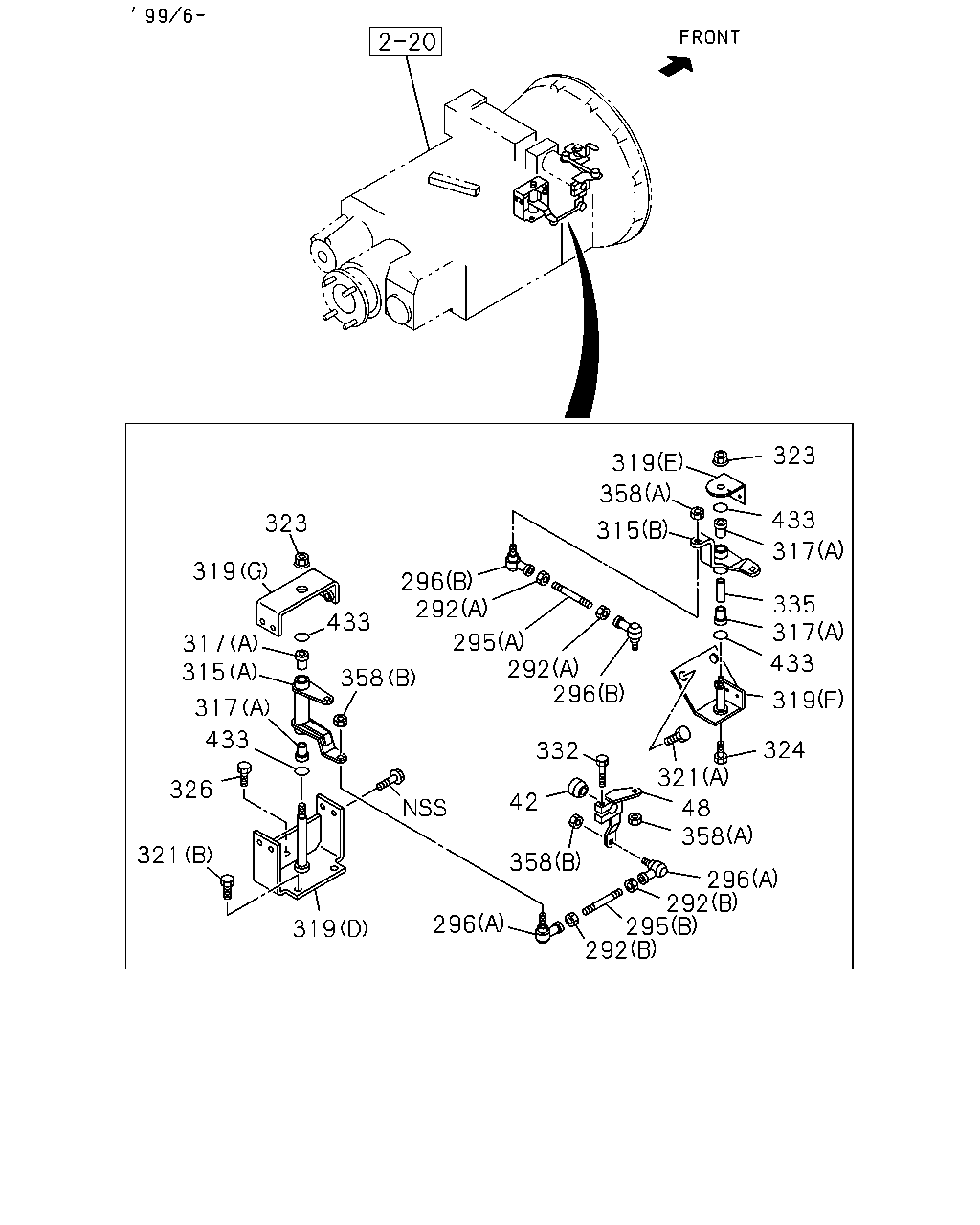

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
42	CAP; QUAD BOX	1-33549-111-0	01	1	9606-9707
42	CAP; QUAD BOX POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33549-111-0	01	1	9708-9905
42	CAP; QUAD BOX	1-33549-111-0	01	1	9906-
48	LEVER; 4TH,SHIFT	1-33651-639-0	01	1	9606-
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9606-9612
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9701-9902
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9903-9905
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9906-9907
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9908-
292	NUT; LINK ROD (B) M10	9-09111-410-0	02	1	9606-
295	ROD; LINK,RELAY LEVER (A) M8 L=50	9-08400-805-0	01	1	9606-
295	ROD; LINK,RELAY LEVER (B) M8 L=90	9-08401-009-0	01	1	9606-
296	ROD END (A)	1-09760-108-0	02	1	9606-9612
296	ROD END (A)	1-09760-108-0	02	1	9701-9902
296	ROD END (A)	1-09760-108-0	02	1	9903-9905
296	ROD END (A)	1-09760-108-0	02	1	9906-9907
296	ROD END (A)	1-09760-108-0	02	1	9908-
296	ROD END (B)	1-09760-110-0	02	1	9606-9710
296	ROD END (B)	1-09760-124-0	02	1	9711-
315	LEVER; SELECT (A)	1-33651-672-0	01	1	9606-9905
315	LEVER; SELECT (A)	1-33651-743-0	01	1	9906-
315	LEVER; SELECT (B)	1-33651-673-0	01	1	9606-9807
315	LEVER; SELECT (B)	1-33651-720-0	01	1	9808-9905
315	LEVER; SELECT 10PE1N(61L) (B)	1-33651-745-0	01	1	9906-
315	LEVER; SELECT 6WA1 TC-S(56L) (B)	1-33651-721-0	01	1	9808-9905
315	LEVER; SELECT 6WA1 TC-C(55L) (B)	1-33651-744-0	01	1	9906-
317	BUSHING; LEVER (A)	1-09330-119-0	02	1	9701-9902
317	BUSHING; LEVER (A)	1-09330-119-0	02	1	9701-9902
317	BUSHING; LEVER (A)	1-09330-119-0	02	1	9903-9905
317	BUSHING; LEVER (A)	1-09330-119-0	02	1	9906-9907
317	BUSHING; LEVER (A)	1-09330-119-0	02	1	9908-
317	BUSHING; LEVER (A)	1-09330-119-0	02	1	9908-
317	BUSHING; LEVER (B)	1-33549-322-0	02	1	9906-
317	BUSHING; LEVER (A)	1-09330-119-0	04	1	9606-9612
319	BRACKET; SELECT LEVER (B)	1-33657-635-2	01	1	9606-9810
319	BRACKET; SELECT LEVER (B)	1-33657-728-0	01	1	9811-9905
319	BRACKET; SELECT LEVER (E)	1-33657-718-0	01	1	9906-
319	BRACKET; SELECT LEVER (A)	1-33657-636-0	01	1	9606-9905
319	BRACKET; SELECT LEVER (F)	1-33657-717-0	01	1	9906-
319	BRACKET; SELECT LEVER (C)	1-33657-637-0	01	1	9606-9612
319	BRACKET; SELECT LEVER (C)	1-33657-637-1	01	1	9701-9807
319	BRACKET; SELECT LEVER (C)	1-33657-698-0	01	1	9808-9810
319	BRACKET; SELECT LEVER (C)	1-33657-731-0	01	1	9811-9905
319	BRACKET; SELECT LEVER (G)	1-33657-741-0	01	1	9906-
319	BRACKET; SELECT LEVER (D)	1-33657-742-0	01	1	9906-
321	BOLT; BRKT,RELAY LEVER (B) M12X30	0-28781-230-0	03	1	9606-
321	BOLT; BRKT,RELAY LEVER (A) M16X30 FLANGE	0-28881-630-0	02	1	9606-
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	9701-9807
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	9701-9807
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	9808-9905
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	9808-9905
323	NUT; LK,SELECT LEVER	1-33659-219-0	01	1	9906-9907
323	NUT; LK,SELECT LEVER	1-33659-219-0	01	1	9908-
323	NUT; LK,SELECT LEVER	1-33659-219-0	01	1	9908-
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	02	1	9606-9612
324	BOLT; SHAFT M10X80 FLANGE	0-28081-080-0	01	1	9906-
326	BOLT; RELAY LEVER ASM M8X20 FLANGE	0-28680-820-0	02	1	9606-9905
326	BOLT; RELAY LEVER ASM M8X20 FLANGE	0-28680-820-0	02	1	9906-
326	BOLT; RELAY LEVER ASM M8X20 FLANGE	0-28680-820-0	04	1	9906-
332	BOLT; 4TH,SHIFT LEVER M8X35 W/LK WASHER	0-50040-835-0	01	1	9606-9606
332	BOLT; 4TH,SHIFT LEVER M8X40 FLANGE	0-28680-840-0	01	1	9607-
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-221-0	01	1	9906-
358	NUT; SHIFT ROD (A) M8 FLANGE	1-09440-049-0	02	1	9606-9804
358	NUT; SHIFT ROD (A) M8 FLANGE	1-09440-062-1	02	1	9805-
358	NUT; SHIFT ROD (B) M10 FLANGE	1-09440-050-0	02	1	9606-9710
358	NUT; SHIFT ROD (B) M10 FLANGE	1-09440-056-0	02	1	9711-9802
358	NUT; SHIFT ROD (B) M10 FLANGE	1-09440-061-0	02	1	9803-
358	NUT; SHIFT ROD (C)	1-33519-049-0	02	1	9606-
433	GASKET; BUSHING	1-09623-594-0	02	1	9701-9807
433	GASKET; BUSHING	1-09623-594-0	02	1	9701-9807
433	GASKET; BUSHING	1-09623-594-0	02	1	9808-9905
433	GASKET; BUSHING	1-09623-636-0	02	1	9808-9902
433	GASKET; BUSHING	1-09623-636-0	02	1	9903-9905
433	GASKET; BUSHING	1-09623-636-0	02	1	9906-9907
433	GASKET; BUSHING	1-09623-636-0	02	1	9908-
433	GASKET; BUSHING	1-09623-636-0	02	1	9908-
433	GASKET; BUSHING	1-09623-594-0	04	1	9606-9612

59 436 192 436 435 435 444 513 512 323 316 433 315 296 292 317 323 317 319 433 358 317 433 295 292 296 358 315 321 317 319 48 326 433 332 426 358 321 358 296 292 295 292 296 319

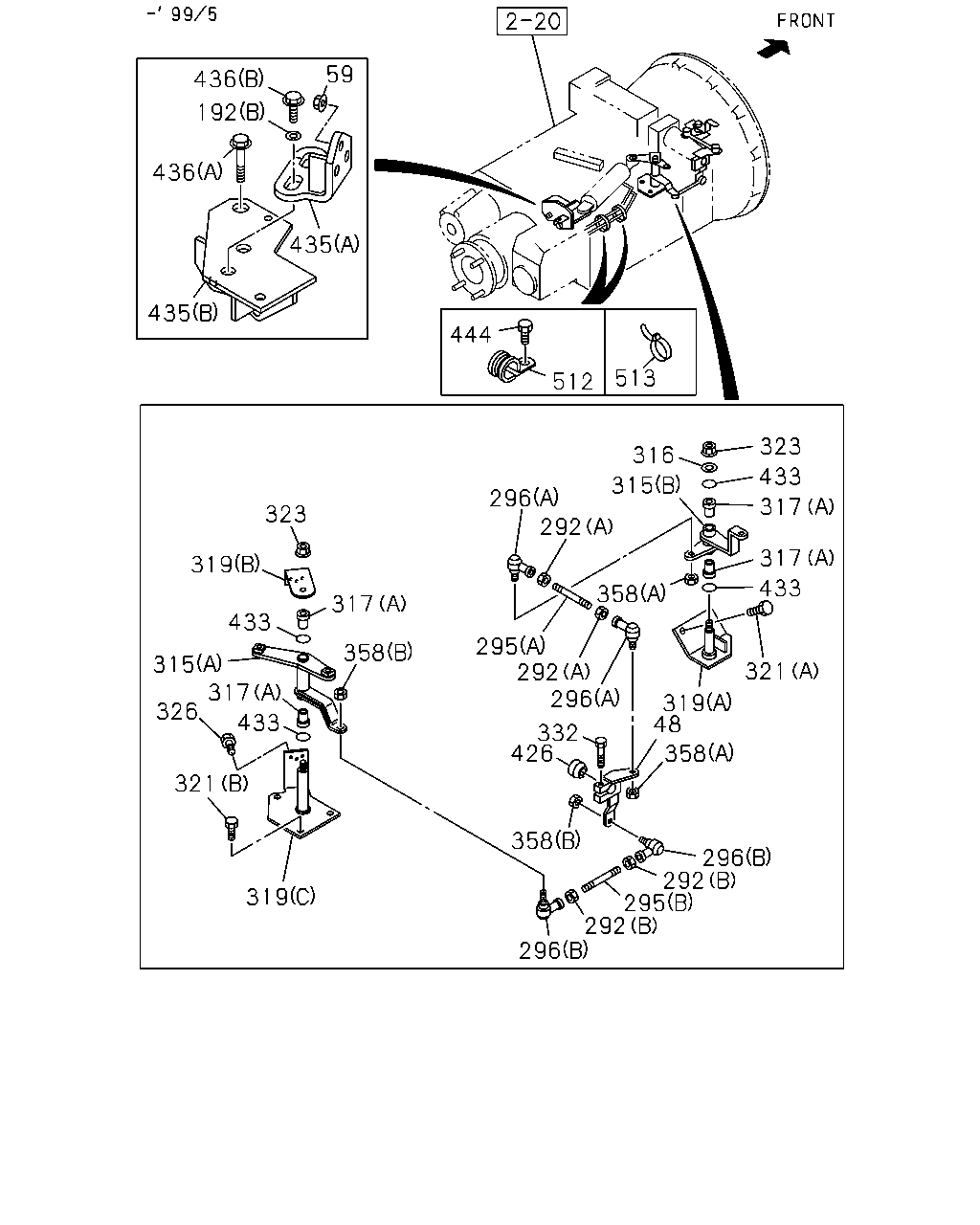

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	LEVER; 4TH,SHIFT	1-33651-639-0	01	1	9606-
59	NUT	1-33739-440-0	03	1	9606-9905
192	WASHER; PL (A)	1-33549-188-0	02	1	9606-9707
192	WASHER; PL EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A)	1-33549-188-0	02	1	9708-9905
192	WASHER; PL (B)	9-09160-714-0	02	1	9606-9905
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9606-9612
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9701-9902
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9903-9905
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9906-9907
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9908-
292	NUT; LINK ROD (B) M10	9-09111-410-0	02	1	9606-
295	ROD; LINK,RELAY LEVER (A) M8 L=50	9-08400-805-0	01	1	9606-
295	ROD; LINK,RELAY LEVER (B) M8 L=90	9-08401-009-0	01	1	9606-
296	ROD END (A)	1-09760-108-0	02	1	9606-9612
296	ROD END (A)	1-09760-108-0	02	1	9701-9902
296	ROD END (A)	1-09760-108-0	02	1	9903-9905
296	ROD END (A)	1-09760-108-0	02	1	9906-9907
296	ROD END (A)	1-09760-108-0	02	1	9908-
296	ROD END (B)	1-09760-110-0	02	1	9606-9710
296	ROD END (B)	1-09760-124-0	02	1	9711-
315	LEVER; SELECT (A)	1-33651-672-0	01	1	9606-9905
315	LEVER; SELECT (A)	1-33651-743-0	01	1	9906-
315	LEVER; SELECT (B)	1-33651-673-0	01	1	9606-9807
315	LEVER; SELECT (B)	1-33651-720-0	01	1	9808-9905
315	LEVER; SELECT 10PE1N(61L) (B)	1-33651-745-0	01	1	9906-
315	LEVER; SELECT 6WA1 TC-S(56L) (B)	1-33651-721-0	01	1	9808-9905
315	LEVER; SELECT 6WA1 TC-C(55L) (B)	1-33651-744-0	01	1	9906-
316	WASHER; PL,LEVER ID=10.5 OD=26	9-09160-710-0	01	1	9606-9612
316	WASHER; PL,LEVER ID=10.5 OD=26	9-09160-710-0	01	1	9701-9905
317	BUSHING; LEVER (A)	1-09330-119-0	02	1	9701-9902
317	BUSHING; LEVER (A)	1-09330-119-0	02	1	9701-9902
317	BUSHING; LEVER (A)	1-09330-119-0	02	1	9903-9905
317	BUSHING; LEVER (A)	1-09330-119-0	02	1	9906-9907
317	BUSHING; LEVER (A)	1-09330-119-0	02	1	9908-
317	BUSHING; LEVER (A)	1-09330-119-0	02	1	9908-
317	BUSHING; LEVER (B)	1-33549-322-0	02	1	9906-
317	BUSHING; LEVER (A)	1-09330-119-0	04	1	9606-9612
319	BRACKET; SELECT LEVER (B)	1-33657-635-2	01	1	9606-9810
319	BRACKET; SELECT LEVER (B)	1-33657-728-0	01	1	9811-9905
319	BRACKET; SELECT LEVER (E)	1-33657-718-0	01	1	9906-
319	BRACKET; SELECT LEVER (A)	1-33657-636-0	01	1	9606-9905
319	BRACKET; SELECT LEVER (F)	1-33657-717-0	01	1	9906-
319	BRACKET; SELECT LEVER (C)	1-33657-637-0	01	1	9606-9612
319	BRACKET; SELECT LEVER (C)	1-33657-637-1	01	1	9701-9807
319	BRACKET; SELECT LEVER (C)	1-33657-698-0	01	1	9808-9810
319	BRACKET; SELECT LEVER (C)	1-33657-731-0	01	1	9811-9905
319	BRACKET; SELECT LEVER (G)	1-33657-741-0	01	1	9906-
319	BRACKET; SELECT LEVER (D)	1-33657-742-0	01	1	9906-
321	BOLT; BRKT,RELAY LEVER (B) M12X30	0-28781-230-0	03	1	9606-
321	BOLT; BRKT,RELAY LEVER (A) M16X30 FLANGE	0-28881-630-0	02	1	9606-
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	9701-9807
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	9701-9807
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	9808-9905
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	9808-9905
323	NUT; LK,SELECT LEVER	1-33659-219-0	01	1	9906-9907
323	NUT; LK,SELECT LEVER	1-33659-219-0	01	1	9908-
323	NUT; LK,SELECT LEVER	1-33659-219-0	01	1	9908-
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	02	1	9606-9612
326	BOLT; RELAY LEVER ASM M8X20 FLANGE	0-28680-820-0	02	1	9606-9905
326	BOLT; RELAY LEVER ASM M8X20 FLANGE	0-28680-820-0	02	1	9906-
326	BOLT; RELAY LEVER ASM M8X20 FLANGE	0-28680-820-0	04	1	9906-
332	BOLT; 4TH,SHIFT LEVER M8X35 W/LK WASHER	0-50040-835-0	01	1	9606-9606
332	BOLT; 4TH,SHIFT LEVER M8X40 FLANGE	0-28680-840-0	01	1	9607-
358	NUT; SHIFT ROD (A) M8 FLANGE	1-09440-049-0	02	1	9606-9804
358	NUT; SHIFT ROD (A) M8 FLANGE	1-09440-062-1	02	1	9805-
358	NUT; SHIFT ROD (B) M10 FLANGE	1-09440-050-0	02	1	9606-9710
358	NUT; SHIFT ROD (B) M10 FLANGE	1-09440-056-0	02	1	9711-9802
358	NUT; SHIFT ROD (B) M10 FLANGE	1-09440-061-0	02	1	9803-
358	NUT; SHIFT ROD (C)	1-33519-049-0	02	1	9606-
426	CAP; POWER CYL	1-33549-111-0	01	1	9606-9701
433	GASKET; BUSHING	1-09623-594-0	02	1	9701-9807
433	GASKET; BUSHING	1-09623-594-0	02	1	9701-9807
433	GASKET; BUSHING	1-09623-594-0	02	1	9808-9905
433	GASKET; BUSHING	1-09623-636-0	02	1	9808-9902
433	GASKET; BUSHING	1-09623-636-0	02	1	9903-9905
433	GASKET; BUSHING	1-09623-636-0	02	1	9906-9907
433	GASKET; BUSHING	1-09623-636-0	02	1	9908-
433	GASKET; BUSHING	1-09623-636-0	02	1	9908-
433	GASKET; BUSHING	1-09623-594-0	04	1	9606-9612
435	BRACKET; POWER CYL (A)	1-33657-650-0	01	1	9606-9905
435	BRACKET; POWER CYL (B)	1-33657-659-1	01	1	9606-9606
435	BRACKET; POWER CYL (B)	1-33657-665-0	01	1	9607-9706
435	BRACKET; POWER CYL (B)	1-33657-688-0	01	1	9707-9802
435	BRACKET; POWER CYL (B)	1-33657-699-0	01	1	9803-9905
436	BOLT; BRKT,POWER CYL (B) M14X40 FLANGE	0-28681-440-0	02	1	9606-9905
436	BOLT; BRKT,POWER CYL (A) M16X25 FLANGE	0-28881-625-0	01	1	9606-9905
444	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	9606-9905
512	CLIP; PIPE ID=21 L=24	8-94176-807-1	01	1	9606-9905
513	CLIP; BAND L=140	5-09707-031-1	03	1	9606-9905
513	CLIP; BAND L=250	5-09707-030-1	01	1	9906-0004

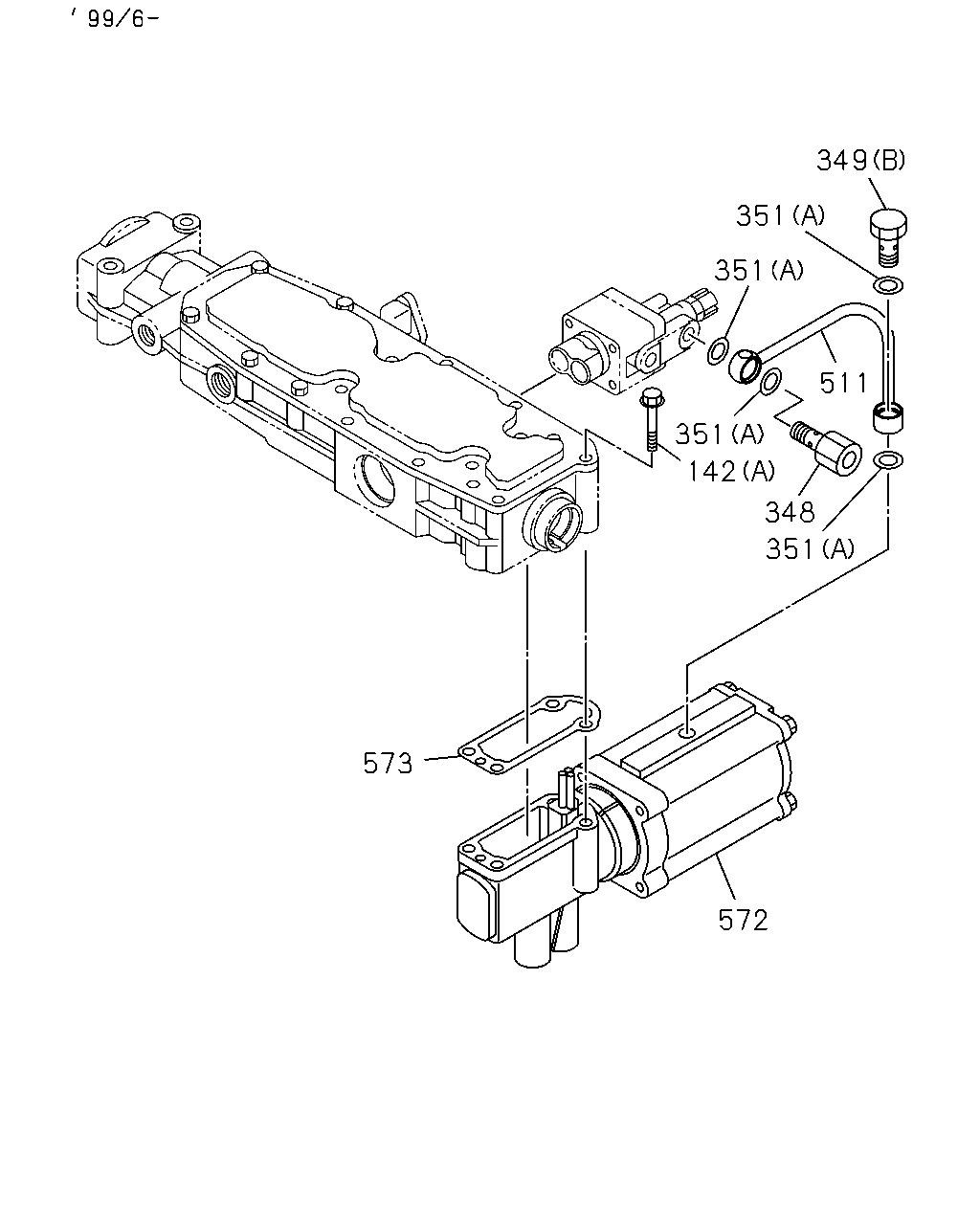

349 351 351 511 351 142 348 351 573 572

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
142	BOLT; QUAD BOX POWER TAKE OFF-ZF TRANSMISSION<BDM> (B) M8X30	1-33549-172-0	11	1	9708-9905
142	BOLT; QUAD BOX (B) M8X30	1-33549-172-0	09	1	9906-
142	BOLT; QUAD BOX POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) M8X80	1-33549-256-0	10	1	9708-9905
142	BOLT; QUAD BOX (A) M8X80	1-33549-256-0	14	1	9906-
142	BOLT; QUAD BOX (B)	1-33549-185-0	04	1	9606-9707
142	BOLT; QUAD BOX EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-33549-185-0	04	1	9708-9905
142	BOLT; QUAD BOX (A)	1-33549-193-0	10	1	9606-9707
142	BOLT; QUAD BOX EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A)	1-33549-193-0	10	1	9708-9905
348	CONNECTOR; AIR HOSE	1-33549-333-0	01	1	9906-
349	BOLT; EYE,AIR HOSE POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-82440-095-0	01	1	9708-9905
349	BOLT; EYE,AIR HOSE (A)	1-33549-144-0	05	1	9606-9905
349	BOLT; EYE,AIR HOSE (B)	1-33549-144-0	01	1	9906-
349	BOLT; EYE,AIR HOSE (C)	1-33549-155-0	04	1	9606-
351	GASKET; CONNECTOR EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-33549-184-0	08	1	9708-9905
351	GASKET; CONNECTOR (A)	1-33549-129-0	10	1	9606-9905
351	GASKET; CONNECTOR (A)	1-33549-307-0	04	1	9906-
351	GASKET; CONNECTOR (B)	1-33549-184-0	08	1	9606-9707
351	GASKET; CONNECTOR POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-33549-184-0	07	1	9708-9905
351	GASKET; CONNECTOR (B)	1-33549-184-0	08	1	9906-
511	PIPE; AIR	1-33529-112-0	01	1	9906-
572	SERVO UNIT; GEAR SHIFT	1-33549-331-0	01	1	9906-
573	GASKET; SERVO UNIT	1-33549-332-0	01	1	9906-

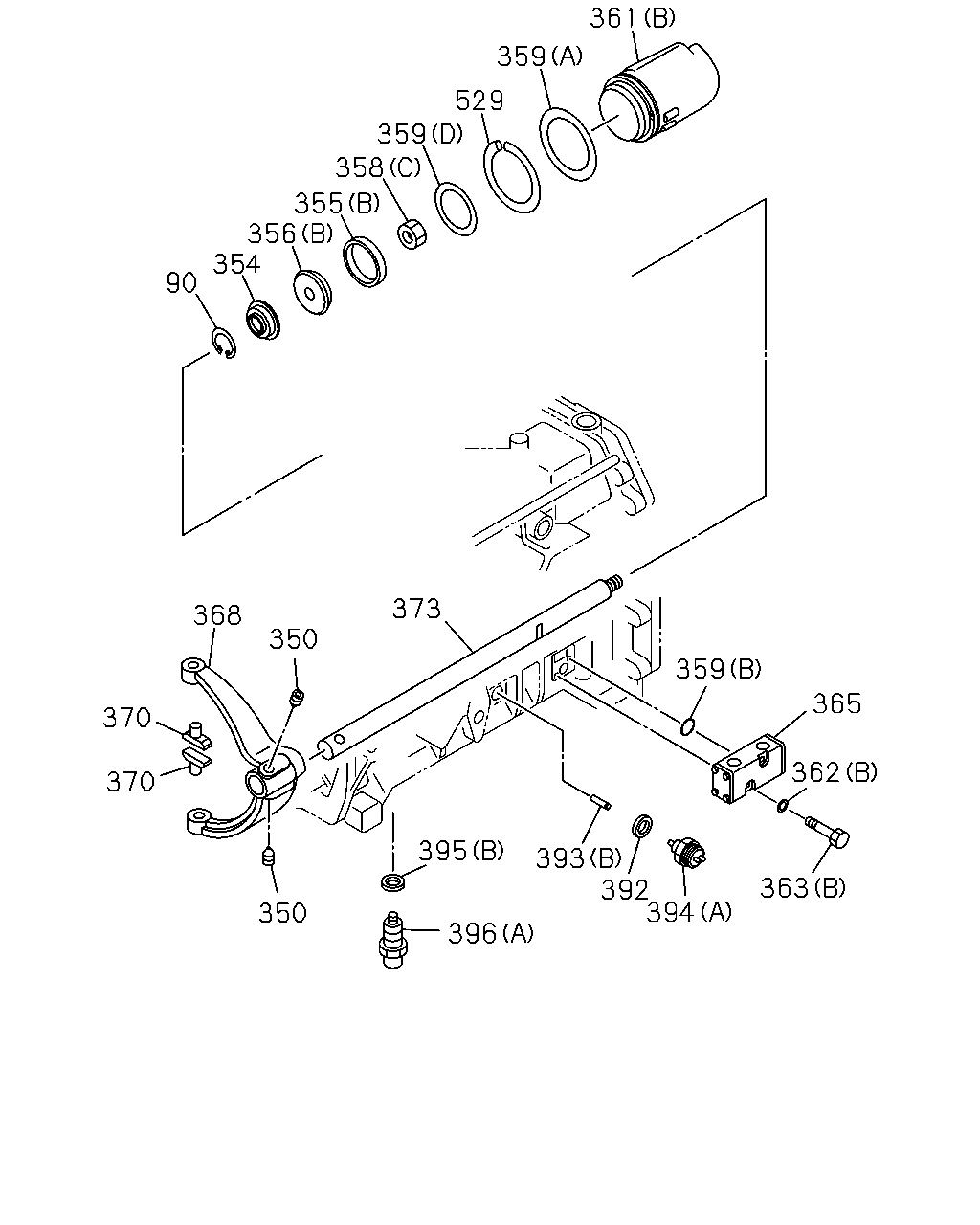

361 359 529 359 358 355 356 354 90 373 368 350 359 365 370 362 370 395 393 392 394 363 350 396

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
90	RING; SNAP,SHIFT ROD	1-33529-109-0	04	1	9906-
350	SCREW; SHIFT ARM	1-33519-065-0	02	1	9606-
354	SEAL; AIR CYL	1-33519-068-0	02	1	9606-
355	CUP; PISTON,AIR CYL (B)	1-33519-070-0	01	1	9606-
355	CUP; PISTON,AIR CYL (A)	1-33519-119-0	02	1	9606-
356	PISTON; AIR CYL (A)	1-33519-060-0	01	1	9606-
356	PISTON; AIR CYL (B)	1-33519-069-0	01	1	9606-
358	NUT; SHIFT ROD (A) M8 FLANGE	1-09440-049-0	02	1	9606-9804
358	NUT; SHIFT ROD (A) M8 FLANGE	1-09440-062-1	02	1	9805-
358	NUT; SHIFT ROD (B) M10 FLANGE	1-09440-050-0	02	1	9606-9710
358	NUT; SHIFT ROD (B) M10 FLANGE	1-09440-056-0	02	1	9711-9802
358	NUT; SHIFT ROD (B) M10 FLANGE	1-09440-061-0	02	1	9803-
358	NUT; SHIFT ROD (C)	1-33519-049-0	02	1	9606-
359	GASKET; AIR CYL (B)	1-33519-034-0	02	1	9906-
359	GASKET; AIR CYL (A)	1-09623-606-0	01	1	9606-
359	GASKET; AIR CYL (B)	1-33519-034-0	04	1	9606-9905
359	GASKET; AIR CYL (D)	1-33519-072-0	01	1	9606-
359	GASKET; AIR CYL (C)	1-33519-121-0	01	1	9606-
361	CYLINDER; AIR,SHIFT (A)	1-33519-140-0	01	1	9906-
361	CYLINDER; AIR,SHIFT (B)	1-33519-117-0	01	1	9606-
361	CYLINDER; AIR,SHIFT (A)	1-33519-120-0	01	1	9606-9905
362	WASHER; AIR CYL (A)	1-09469-010-0	04	1	9606-
362	WASHER; AIR CYL (B)	1-33519-076-0	02	1	9606-
363	BOLT; AIR CYL POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-33519-128-0	02	1	9708-9905
363	BOLT; AIR CYL (B)	1-33519-128-0	02	1	9906-
363	BOLT; AIR CYL (A)	1-33519-064-0	04	1	9606-
363	BOLT; AIR CYL (B)	1-33519-075-0	02	1	9606-9707
363	BOLT; AIR CYL EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-33519-075-0	02	1	9708-9905
365	VALVE; AIR CYL	1-33519-074-0	01	1	9606-
368	ARM; SHIFT,SPLITTER GEAR	1-33511-508-0	01	1	9606-
370	BLOCK; SHIFT,SPLITTER GEAR	1-33519-053-0	02	1	9606-
373	ROD; SHIFT,SPLITTER GEAR	1-33531-450-0	01	1	9606-
392	GASKET; PLUG & SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	03	1	9606-9707
392	GASKET; PLUG & SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	04	1	9708-
393	PIN; SW (A)	1-33519-029-0	02	1	9606-
393	PIN; SW (B)	1-33519-077-0	01	1	9606-
393	PIN; SW (C)	1-33549-066-0	01	1	9606-9905
393	PIN; SW (C)	1-33549-335-0	01	1	9906-
394	SWITCH; RANGE CHANGE (A)	1-82440-080-1	01	1	9606-
394	SWITCH; RANGE CHANGE (B)	1-82440-095-0	01	1	9606-9707
394	SWITCH; RANGE CHANGE EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-82440-095-0	01	1	9708-9905
394	SWITCH; RANGE CHANGE (B)	1-82440-095-0	01	1	9906-
395	GASKET; PLUNGER POWER TAKE OFF-ZF TRANSMISSION<BDM> (A)	1-36289-021-0	01	1	9708-9905
395	GASKET; PLUNGER (A) T=2.80	1-33529-068-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=2.80	1-33529-068-0	AR	1	9708-9905
395	GASKET; PLUNGER (A) T=2.70	1-33529-069-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=2.70	1-33529-069-0	AR	1	9708-9905
395	GASKET; PLUNGER (A) T=2.60	1-33529-070-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=2.60	1-33529-070-0	AR	1	9708-9905
395	GASKET; PLUNGER (A) T=2.50	1-33529-071-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=2.50	1-33529-071-0	AR	1	9708-9905
395	GASKET; PLUNGER (A) T=2.40	1-33529-072-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=2.40	1-33529-072-0	AR	1	9708-9905
395	GASKET; PLUNGER (A) T=2.30	1-33529-073-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=2.30	1-33529-073-0	AR	1	9708-9905
395	GASKET; PLUNGER (A) T=2.20	1-33529-074-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=2.20	1-33529-074-0	AR	1	9708-9905
395	GASKET; PLUNGER (A) T=2.10	1-33529-075-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=2.10	1-33529-075-0	AR	1	9708-9905
395	GASKET; PLUNGER (A) T=2.00	1-33529-076-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=2.00	1-33529-076-0	AR	1	9708-9905
395	GASKET; PLUNGER (A) T=1.90	1-33529-077-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=1.90	1-33529-077-0	AR	1	9708-9905
395	GASKET; PLUNGER (A) T=3.30	1-33529-100-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=3.30	1-33529-100-0	AR	1	9708-9905
395	GASKET; PLUNGER (A) T=3.20	1-33529-101-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=3.20	1-33529-101-0	AR	1	9708-9905
395	GASKET; PLUNGER (A) T=3.10	1-33529-102-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=3.10	1-33529-102-0	AR	1	9708-9905
395	GASKET; PLUNGER (A) T=3.00	1-33529-103-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=3.00	1-33529-103-0	AR	1	9708-9905
395	GASKET; PLUNGER (A) T=2.90	1-33529-104-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=2.90	1-33529-104-0	AR	1	9708-9905
395	GASKET; PLUNGER (B)	1-33549-167-0	02	1	9606-
396	PLUNGER; SHIFT ROD (C)	1-33519-073-0	01	1	9606-
396	PLUNGER; SHIFT ROD (A)	1-33519-118-0	01	1	9606-
396	PLUNGER; SHIFT ROD (B)	1-33529-067-0	01	1	9606-9905
396	PLUNGER; SHIFT ROD (B)	1-33529-085-0	02	1	9606-
529	SPRING; AIR CYL	1-33519-078-0	01	1	9606-

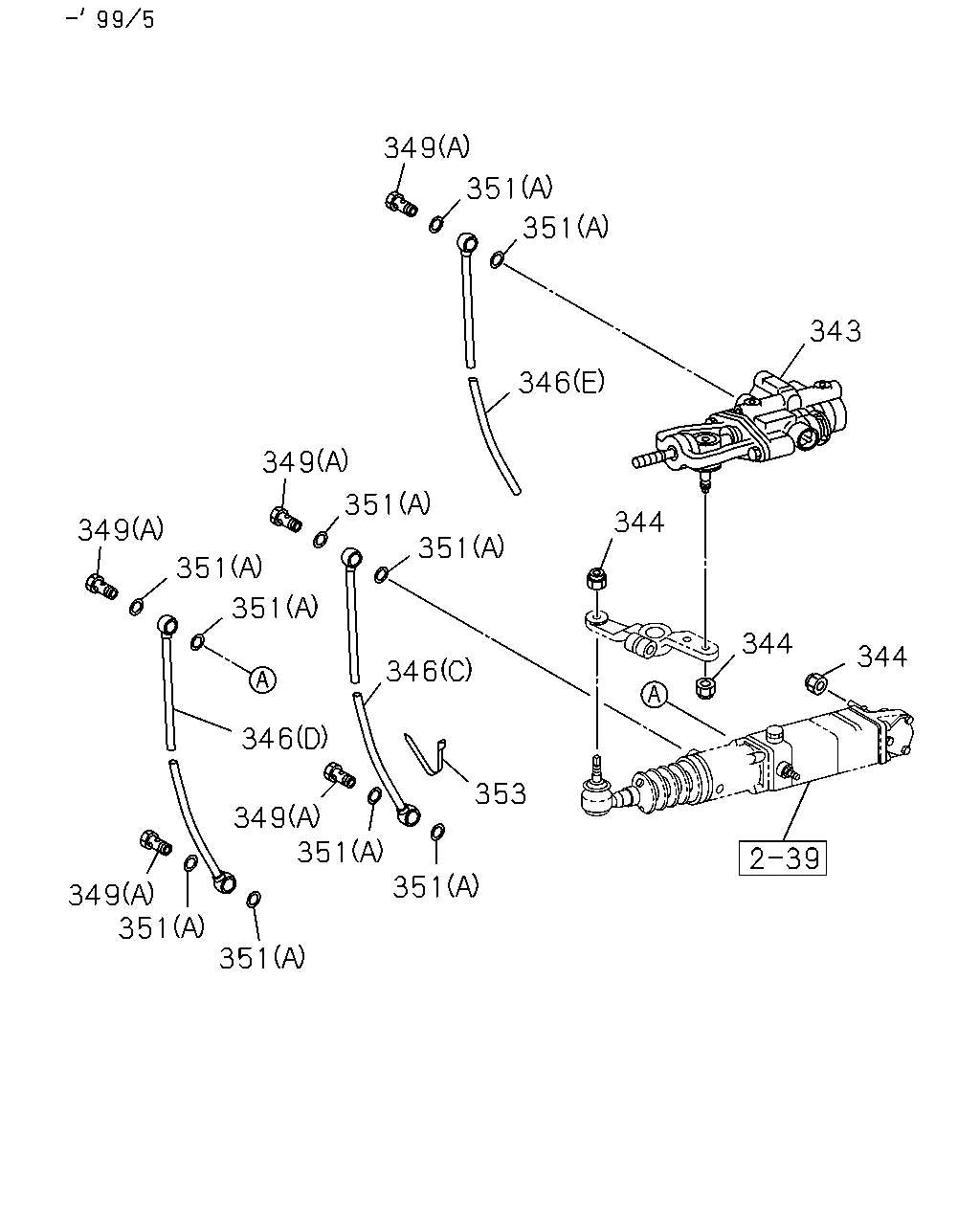

349 351 351 343 346 349 351 344 349 351 351 351 344 344 346 346 353 349 351 351 349 351 351

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
343	VALVE; SHIFT CONT	1-33712-005-0	01	1	9606-9905
344	NUT; SHIFT CONT VALVE	1-33739-440-0	03	1	9606-9905
346	HOSE; AIR (A)	1-33549-202-0	01	1	9606-9905
346	HOSE; AIR (A)	1-33549-336-0	01	1	9906-
346	HOSE; AIR (B)	1-33549-203-0	01	1	9606-9905
346	HOSE; AIR (B)	1-33549-337-0	01	1	9906-
346	HOSE; AIR (C)	1-33739-798-0	01	1	9606-9905
346	HOSE; AIR (D)	1-33739-866-0	01	1	9606-9905
346	HOSE; AIR (E)	1-33739-867-0	01	1	9606-9905
349	BOLT; EYE,AIR HOSE POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-82440-095-0	01	1	9708-9905
349	BOLT; EYE,AIR HOSE (A)	1-33549-144-0	05	1	9606-9905
349	BOLT; EYE,AIR HOSE (B)	1-33549-144-0	01	1	9906-
349	BOLT; EYE,AIR HOSE (C)	1-33549-155-0	04	1	9606-
351	GASKET; CONNECTOR EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-33549-184-0	08	1	9708-9905
351	GASKET; CONNECTOR (A)	1-33549-129-0	10	1	9606-9905
351	GASKET; CONNECTOR (A)	1-33549-307-0	04	1	9906-
351	GASKET; CONNECTOR (B)	1-33549-184-0	08	1	9606-9707
351	GASKET; CONNECTOR POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-33549-184-0	07	1	9708-9905
351	GASKET; CONNECTOR (B)	1-33549-184-0	08	1	9906-
353	CLIP; AIR HOSE	1-33549-142-0	03	1	9606-9905
353	CLIP; AIR HOSE	1-33549-142-0	01	1	9906-

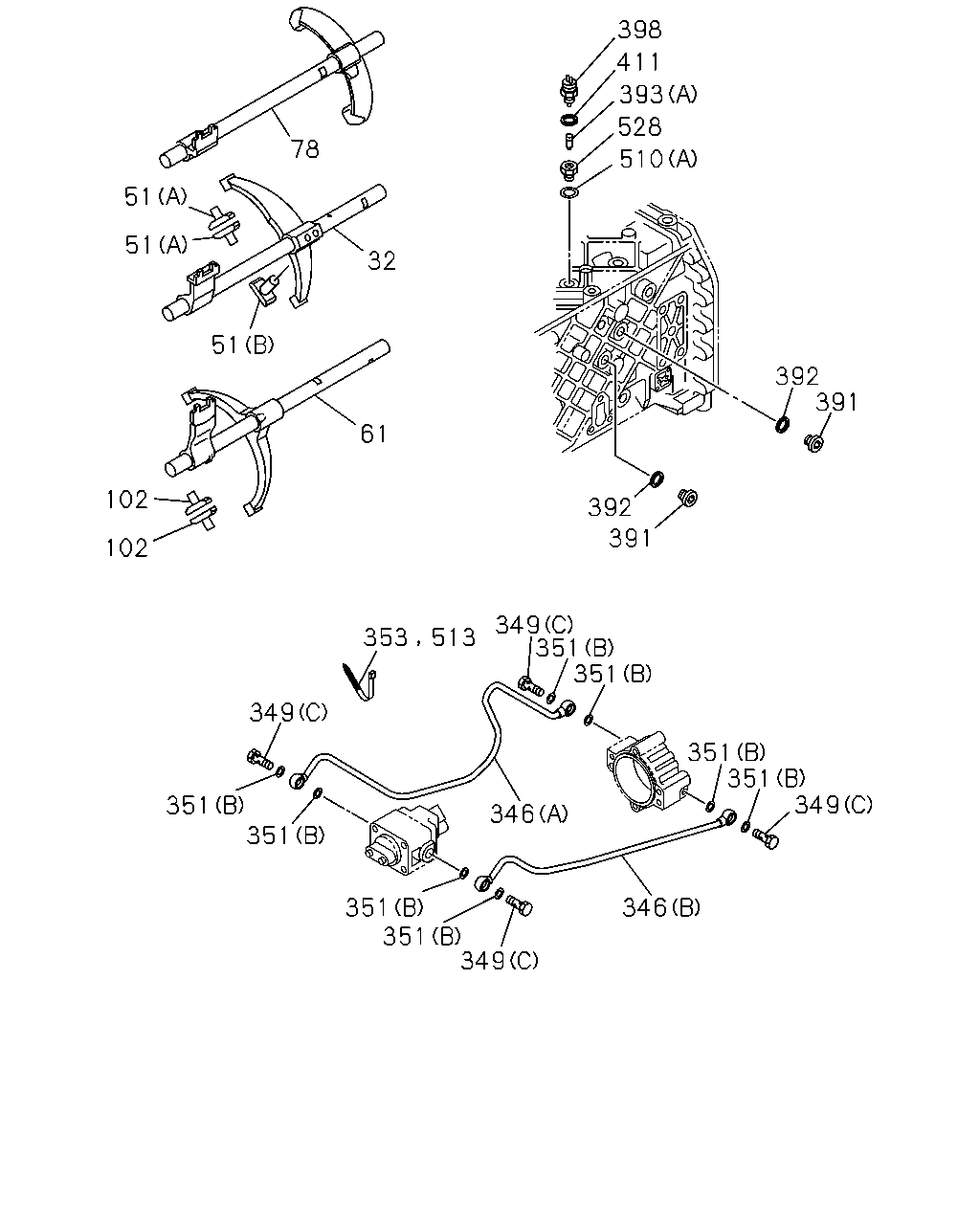

398 411 393 528 78 510 51 51 32 51 392 391 61 102 392 391 102 349 351 351 353 513 349 351 351 349 351 351 346 351 351 349 346

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	ARM; SHIFT,1ST & 2ND	1-33511-565-0	01	1	9606-
51	BLOCK; SHIFT,1ST & 2ND (A)	1-33519-053-0	02	1	9606-
51	BLOCK; SHIFT,1ST & 2ND (B)	1-33519-116-0	01	1	9606-
61	ARM; SHIFT,3RD & 4TH	1-33511-522-0	01	1	9606-
78	ARM; SHIFT,REV	1-33511-523-0	01	1	9606-
102	BLOCK; SHIFT,3RD & 4TH	1-33519-053-0	02	1	9606-
346	HOSE; AIR (A)	1-33549-202-0	01	1	9606-9905
346	HOSE; AIR (A)	1-33549-336-0	01	1	9906-
346	HOSE; AIR (B)	1-33549-203-0	01	1	9606-9905
346	HOSE; AIR (B)	1-33549-337-0	01	1	9906-
346	HOSE; AIR (C)	1-33739-798-0	01	1	9606-9905
346	HOSE; AIR (D)	1-33739-866-0	01	1	9606-9905
346	HOSE; AIR (E)	1-33739-867-0	01	1	9606-9905
349	BOLT; EYE,AIR HOSE POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-82440-095-0	01	1	9708-9905
349	BOLT; EYE,AIR HOSE (A)	1-33549-144-0	05	1	9606-9905
349	BOLT; EYE,AIR HOSE (B)	1-33549-144-0	01	1	9906-
349	BOLT; EYE,AIR HOSE (C)	1-33549-155-0	04	1	9606-
351	GASKET; CONNECTOR EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-33549-184-0	08	1	9708-9905
351	GASKET; CONNECTOR (A)	1-33549-129-0	10	1	9606-9905
351	GASKET; CONNECTOR (A)	1-33549-307-0	04	1	9906-
351	GASKET; CONNECTOR (B)	1-33549-184-0	08	1	9606-9707
351	GASKET; CONNECTOR POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-33549-184-0	07	1	9708-9905
351	GASKET; CONNECTOR (B)	1-33549-184-0	08	1	9906-
353	CLIP; AIR HOSE	1-33549-142-0	03	1	9606-9905
353	CLIP; AIR HOSE	1-33549-142-0	01	1	9906-
391	PLUG; SW HOLE	1-33119-171-0	01	1	9606-9707
391	PLUG; SW HOLE	1-33119-171-0	02	1	9708-
392	GASKET; PLUG & SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	03	1	9606-9707
392	GASKET; PLUG & SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	04	1	9708-
393	PIN; SW (A)	1-33519-029-0	02	1	9606-
393	PIN; SW (B)	1-33519-077-0	01	1	9606-
393	PIN; SW (C)	1-33549-066-0	01	1	9606-9905
393	PIN; SW (C)	1-33549-335-0	01	1	9906-
398	SWITCH; REV LAMP	1-82440-095-0	01	1	9606-
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). T=1.8	1-82449-003-0	01	1	9606-9707
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). T=2.0	1-82449-010-0	01	1	9708-
510	GASKET; ADAPTER POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-33549-307-0	01	1	9708-9905
510	GASKET; ADAPTER (A)	1-33119-249-0	01	1	9606-9707
510	GASKET; ADAPTER (A) T=2.0	1-82449-010-0	01	1	9708-
510	GASKET; ADAPTER (B)	1-33549-250-0	01	1	9606-9707
510	GASKET; ADAPTER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-33549-250-0	01	1	9708-9905
513	CLIP; BAND L=140	5-09707-031-1	03	1	9606-9905
513	CLIP; BAND L=250	5-09707-030-1	01	1	9906-0004
528	ADAPTER; SWITCH	1-33119-278-0	01	1	9606-

121 178 309 271 19 239 309 302 142 396 242 320 241 240 510 430 396 509 430 524 272 157 256 298 304 430 430 270 310

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	SPRING; COIL COMP (A)	1-33519-014-0	01	1	9606-
19	SPRING; COIL COMP (D)	1-33539-022-0	02	1	9606-9707
19	SPRING; COIL COMP (D)	1-33549-189-0	02	1	9708-
19	SPRING; COIL COMP (B)	1-33539-028-0	01	1	9606-
19	SPRING; COIL COMP (C)	1-33539-030-0	01	1	9606-
121	PLUG; DETENT SPR POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-33549-305-0	01	1	9708-9905
121	PLUG; DETENT SPR (B)	1-33549-305-0	01	1	9906-
121	PLUG; DETENT SPR (A)	1-33549-194-0	03	1	9606-
142	BOLT; QUAD BOX POWER TAKE OFF-ZF TRANSMISSION<BDM> (B) M8X30	1-33549-172-0	11	1	9708-9905
142	BOLT; QUAD BOX (B) M8X30	1-33549-172-0	09	1	9906-
142	BOLT; QUAD BOX POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) M8X80	1-33549-256-0	10	1	9708-9905
142	BOLT; QUAD BOX (A) M8X80	1-33549-256-0	14	1	9906-
142	BOLT; QUAD BOX (B)	1-33549-185-0	04	1	9606-9707
142	BOLT; QUAD BOX EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-33549-185-0	04	1	9708-9905
142	BOLT; QUAD BOX (A)	1-33549-193-0	10	1	9606-9707
142	BOLT; QUAD BOX EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A)	1-33549-193-0	10	1	9708-9905
157	BOX; QUAD,TRANS POWER TAKE OFF-ZF TRANSMISSION<BDM> (A)	1-33549-292-0	01	1	9708-9905
157	BOX; QUAD,TRANS (A)	1-33549-313-0	01	1	9906-
157	BOX; QUAD,TRANS POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-33549-306-0	01	1	9708-9905
157	BOX; QUAD,TRANS (B)	1-33549-326-0	01	1	9906-
157	BOX; QUAD,TRANS (B)	1-33541-475-0	01	1	9606-9707
157	BOX; QUAD,TRANS EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-33541-475-0	01	1	9708-9905
157	BOX; QUAD,TRANS (C)	1-33541-476-0	01	1	9606-9707
157	BOX; QUAD,TRANS EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (C)	1-33541-476-0	01	1	9708-9905
157	BOX; QUAD,TRANS (A)	1-33541-498-0	01	1	9606-9707
157	BOX; QUAD,TRANS EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A)	1-33541-498-0	01	1	9708-9905
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (C)	1-33549-195-0	03	1	9708-9905
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33119-249-0	01	1	9606-
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33519-057-0	01	1	9606-
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). (C)	1-33549-195-0	03	1	9606-9707
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). POWER TAKE OFF-ZF TRANSMISSION<BDM> (C)	1-33549-195-0	04	1	9708-9905
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). (C)	1-33549-195-0	03	1	9906-
239	BOLT; CUT OFF VALVE EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33549-301-0	04	1	9708-9905
239	BOLT; CUT OFF VALVE	1-33549-168-0	04	1	9606-9707
239	BOLT; CUT OFF VALVE POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33549-302-0	04	1	9708-9905
239	BOLT; CUT OFF VALVE	1-33549-302-0	04	1	9906-
240	GASKET; CUT OFF VALVE	1-33549-198-0	01	1	9606-
241	VALVE; CUT OFF	1-33549-199-0	01	1	9606-9905
241	VALVE; CUT OFF	1-33549-334-0	01	1	9906-
242	WASHER; CUT OFF VALVE	1-33549-159-0	04	1	9606-9707
242	WASHER; CUT OFF VALVE POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33549-159-0	04	1	9708-9905
242	WASHER; CUT OFF VALVE	1-33549-159-0	04	1	9906-
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33542-057-0	01	1	9606-
270	BEARING; NEEDLE,QUAD BOX	1-33549-162-0	01	1	9606-9905
271	BUSHING; QUAD BOX POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-33549-297-0	01	1	9708-9905
271	BUSHING; QUAD BOX (B)	1-33549-329-0	01	1	9906-
271	BUSHING; QUAD BOX (A)	1-33549-124-0	01	1	9606-9905
271	BUSHING; QUAD BOX (A)	1-33549-318-0	01	1	9906-
271	BUSHING; QUAD BOX (B)	1-33549-190-0	01	1	9606-9707
271	BUSHING; QUAD BOX EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-33549-190-0	01	1	9708-9905
272	RING; SNAP,QUAD BOX	1-44519-217-0	01	1	9606-
298	SHAFT; SHIFT LEVER POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33549-293-0	01	1	9708-9905
298	SHAFT; SHIFT LEVER	1-33549-314-0	01	1	9906-
298	SHAFT; SHIFT LEVER	1-33522-151-0	01	1	9606-9707
298	SHAFT; SHIFT LEVER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33522-151-0	01	1	9708-9905
302	BOLT; LEVER SHAFT	1-33549-288-0	01	1	9606-9707
302	BOLT; LEVER SHAFT EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33549-288-0	01	1	9708-9905
304	BLOCK; SHIFT SHAFT	1-33529-078-0	01	1	9606-9707
304	BLOCK; SHIFT SHAFT	1-33549-294-0	01	1	9708-9905
304	BLOCK; SHIFT SHAFT	1-33549-315-0	01	1	9906-
309	PLATE; SHIFT LEVER (A)	1-33549-191-0	01	1	9606-9905
309	PLATE; SHIFT LEVER (B)	1-33549-192-0	01	1	9606-9905
310	PLATE; LOCK,SHIFT LEVER POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33549-295-0	01	1	9708-9905
310	PLATE; LOCK,SHIFT LEVER	1-33549-316-0	01	1	9906-
310	PLATE; LOCK,SHIFT LEVER	1-33529-081-0	01	1	9606-9707
310	PLATE; LOCK,SHIFT LEVER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33529-081-0	01	1	9708-9905
320	SHAFT; LEVER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33529-105-0	01	1	9708-9905
320	SHAFT; LEVER	1-33529-082-0	01	1	9606-9707
320	SHAFT; LEVER POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33549-296-0	01	1	9708-9905
320	SHAFT; LEVER	1-33549-317-0	01	1	9906-
396	PLUNGER; SHIFT ROD (C)	1-33519-073-0	01	1	9606-
396	PLUNGER; SHIFT ROD (A)	1-33519-118-0	01	1	9606-
396	PLUNGER; SHIFT ROD (B)	1-33529-067-0	01	1	9606-9905
396	PLUNGER; SHIFT ROD (B)	1-33529-085-0	02	1	9606-
430	PIN; SPR,SHIFT ROD (A)	1-33529-079-0	02	1	9606-9905
430	PIN; SPR,SHIFT ROD (B)	1-33529-080-0	02	1	9606-9905
430	PIN; SPR,SHIFT ROD (C)	1-33529-083-0	01	1	9606-9905
430	PIN; SPR,SHIFT ROD (D)	1-33529-084-0	01	1	9606-9707
430	PIN; SPR,SHIFT ROD EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (D)	1-33529-084-0	01	1	9708-9905
430	PIN; SPR,SHIFT ROD (D)	1-33529-108-0	02	1	9906-
509	ADAPTER	1-33549-169-0	01	1	9606-9905
510	GASKET; ADAPTER POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-33549-307-0	01	1	9708-9905
510	GASKET; ADAPTER (A)	1-33119-249-0	01	1	9606-9707
510	GASKET; ADAPTER (A) T=2.0	1-82449-010-0	01	1	9708-
510	GASKET; ADAPTER (B)	1-33549-250-0	01	1	9606-9707
510	GASKET; ADAPTER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-33549-250-0	01	1	9708-9905
524	DETENT; QUAD BOX	1-33549-197-0	01	1	9606-

52 363 60 362 186 396 359 395 394 178 392 361 393 476 359 358 355 19 356 355 357 354 352 392 391 345 345 347

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	SPRING; COIL COMP (A)	1-33519-014-0	01	1	9606-
19	SPRING; COIL COMP (D)	1-33539-022-0	02	1	9606-9707
19	SPRING; COIL COMP (D)	1-33549-189-0	02	1	9708-
19	SPRING; COIL COMP (B)	1-33539-028-0	01	1	9606-
19	SPRING; COIL COMP (C)	1-33539-030-0	01	1	9606-
52	BOLT; SHIFT ARM EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33519-058-0	02	1	9708-9905
52	BOLT; SHIFT ARM	1-33519-058-0	02	1	9606-9707
52	BOLT; SHIFT ARM POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33519-058-0	01	1	9708-9905
52	BOLT; SHIFT ARM	1-33519-058-0	02	1	9906-
60	WASHER; LK EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A)	1-33519-059-0	02	1	9708-9905
60	WASHER; LK (A)	1-33519-059-0	02	1	9606-9707
60	WASHER; LK POWER TAKE OFF-ZF TRANSMISSION<BDM> (A)	1-33519-059-0	01	1	9708-9905
60	WASHER; LK (A)	1-33519-059-0	02	1	9906-
60	WASHER; LK (B)	1-33549-159-0	06	1	9606-9707
60	WASHER; LK POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-33549-159-0	04	1	9708-9905
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (C)	1-33549-195-0	03	1	9708-9905
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33119-249-0	01	1	9606-
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33519-057-0	01	1	9606-
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). (C)	1-33549-195-0	03	1	9606-9707
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). POWER TAKE OFF-ZF TRANSMISSION<BDM> (C)	1-33549-195-0	04	1	9708-9905
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). (C)	1-33549-195-0	03	1	9906-
186	PLUG; SHIFTER ROD	1-33519-056-0	01	1	9606-
345	BLOCK; SHIFT,RANGE CHANGE	1-33519-037-0	02	1	9606-
347	ARM; SHIFT,RANGE CHANGE	1-33511-566-0	01	1	9606-
352	ROD; SHIFT,RANGE CHANGE	1-33511-524-0	01	1	9606-
354	SEAL; AIR CYL	1-33519-068-0	02	1	9606-
355	CUP; PISTON,AIR CYL (B)	1-33519-070-0	01	1	9606-
355	CUP; PISTON,AIR CYL (A)	1-33519-119-0	02	1	9606-
356	PISTON; AIR CYL (A)	1-33519-060-0	01	1	9606-
356	PISTON; AIR CYL (B)	1-33519-069-0	01	1	9606-
357	RING; GUIDE,AIR CYL	1-33519-032-0	01	1	9606-
358	NUT; SHIFT ROD (A) M8 FLANGE	1-09440-049-0	02	1	9606-9804
358	NUT; SHIFT ROD (A) M8 FLANGE	1-09440-062-1	02	1	9805-
358	NUT; SHIFT ROD (B) M10 FLANGE	1-09440-050-0	02	1	9606-9710
358	NUT; SHIFT ROD (B) M10 FLANGE	1-09440-056-0	02	1	9711-9802
358	NUT; SHIFT ROD (B) M10 FLANGE	1-09440-061-0	02	1	9803-
358	NUT; SHIFT ROD (C)	1-33519-049-0	02	1	9606-
359	GASKET; AIR CYL (B)	1-33519-034-0	02	1	9906-
359	GASKET; AIR CYL (A)	1-09623-606-0	01	1	9606-
359	GASKET; AIR CYL (B)	1-33519-034-0	04	1	9606-9905
359	GASKET; AIR CYL (D)	1-33519-072-0	01	1	9606-
359	GASKET; AIR CYL (C)	1-33519-121-0	01	1	9606-
361	CYLINDER; AIR,SHIFT (A)	1-33519-140-0	01	1	9906-
361	CYLINDER; AIR,SHIFT (B)	1-33519-117-0	01	1	9606-
361	CYLINDER; AIR,SHIFT (A)	1-33519-120-0	01	1	9606-9905
362	WASHER; AIR CYL (A)	1-09469-010-0	04	1	9606-
362	WASHER; AIR CYL (B)	1-33519-076-0	02	1	9606-
363	BOLT; AIR CYL POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-33519-128-0	02	1	9708-9905
363	BOLT; AIR CYL (B)	1-33519-128-0	02	1	9906-
363	BOLT; AIR CYL (A)	1-33519-064-0	04	1	9606-
363	BOLT; AIR CYL (B)	1-33519-075-0	02	1	9606-9707
363	BOLT; AIR CYL EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-33519-075-0	02	1	9708-9905
391	PLUG; SW HOLE	1-33119-171-0	01	1	9606-9707
391	PLUG; SW HOLE	1-33119-171-0	02	1	9708-
392	GASKET; PLUG & SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	03	1	9606-9707
392	GASKET; PLUG & SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	04	1	9708-
393	PIN; SW (A)	1-33519-029-0	02	1	9606-
393	PIN; SW (B)	1-33519-077-0	01	1	9606-
393	PIN; SW (C)	1-33549-066-0	01	1	9606-9905
393	PIN; SW (C)	1-33549-335-0	01	1	9906-
394	SWITCH; RANGE CHANGE (A)	1-82440-080-1	01	1	9606-
394	SWITCH; RANGE CHANGE (B)	1-82440-095-0	01	1	9606-9707
394	SWITCH; RANGE CHANGE EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-82440-095-0	01	1	9708-9905
394	SWITCH; RANGE CHANGE (B)	1-82440-095-0	01	1	9906-
395	GASKET; PLUNGER POWER TAKE OFF-ZF TRANSMISSION<BDM> (A)	1-36289-021-0	01	1	9708-9905
395	GASKET; PLUNGER (A) T=2.80	1-33529-068-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=2.80	1-33529-068-0	AR	1	9708-9905
395	GASKET; PLUNGER (A) T=2.70	1-33529-069-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=2.70	1-33529-069-0	AR	1	9708-9905
395	GASKET; PLUNGER (A) T=2.60	1-33529-070-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=2.60	1-33529-070-0	AR	1	9708-9905
395	GASKET; PLUNGER (A) T=2.50	1-33529-071-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=2.50	1-33529-071-0	AR	1	9708-9905
395	GASKET; PLUNGER (A) T=2.40	1-33529-072-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=2.40	1-33529-072-0	AR	1	9708-9905
395	GASKET; PLUNGER (A) T=2.30	1-33529-073-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=2.30	1-33529-073-0	AR	1	9708-9905
395	GASKET; PLUNGER (A) T=2.20	1-33529-074-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=2.20	1-33529-074-0	AR	1	9708-9905
395	GASKET; PLUNGER (A) T=2.10	1-33529-075-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=2.10	1-33529-075-0	AR	1	9708-9905
395	GASKET; PLUNGER (A) T=2.00	1-33529-076-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=2.00	1-33529-076-0	AR	1	9708-9905
395	GASKET; PLUNGER (A) T=1.90	1-33529-077-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=1.90	1-33529-077-0	AR	1	9708-9905
395	GASKET; PLUNGER (A) T=3.30	1-33529-100-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=3.30	1-33529-100-0	AR	1	9708-9905
395	GASKET; PLUNGER (A) T=3.20	1-33529-101-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=3.20	1-33529-101-0	AR	1	9708-9905
395	GASKET; PLUNGER (A) T=3.10	1-33529-102-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=3.10	1-33529-102-0	AR	1	9708-9905
395	GASKET; PLUNGER (A) T=3.00	1-33529-103-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=3.00	1-33529-103-0	AR	1	9708-9905
395	GASKET; PLUNGER (A) T=2.90	1-33529-104-0	01	1	9606-9707
395	GASKET; PLUNGER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) T=2.90	1-33529-104-0	AR	1	9708-9905
395	GASKET; PLUNGER (B)	1-33549-167-0	02	1	9606-
396	PLUNGER; SHIFT ROD (C)	1-33519-073-0	01	1	9606-
396	PLUNGER; SHIFT ROD (A)	1-33519-118-0	01	1	9606-
396	PLUNGER; SHIFT ROD (B)	1-33529-067-0	01	1	9606-9905
396	PLUNGER; SHIFT ROD (B)	1-33529-085-0	02	1	9606-
476	PIN; SHIFT ROD	1-33519-040-0	01	1	9606-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
