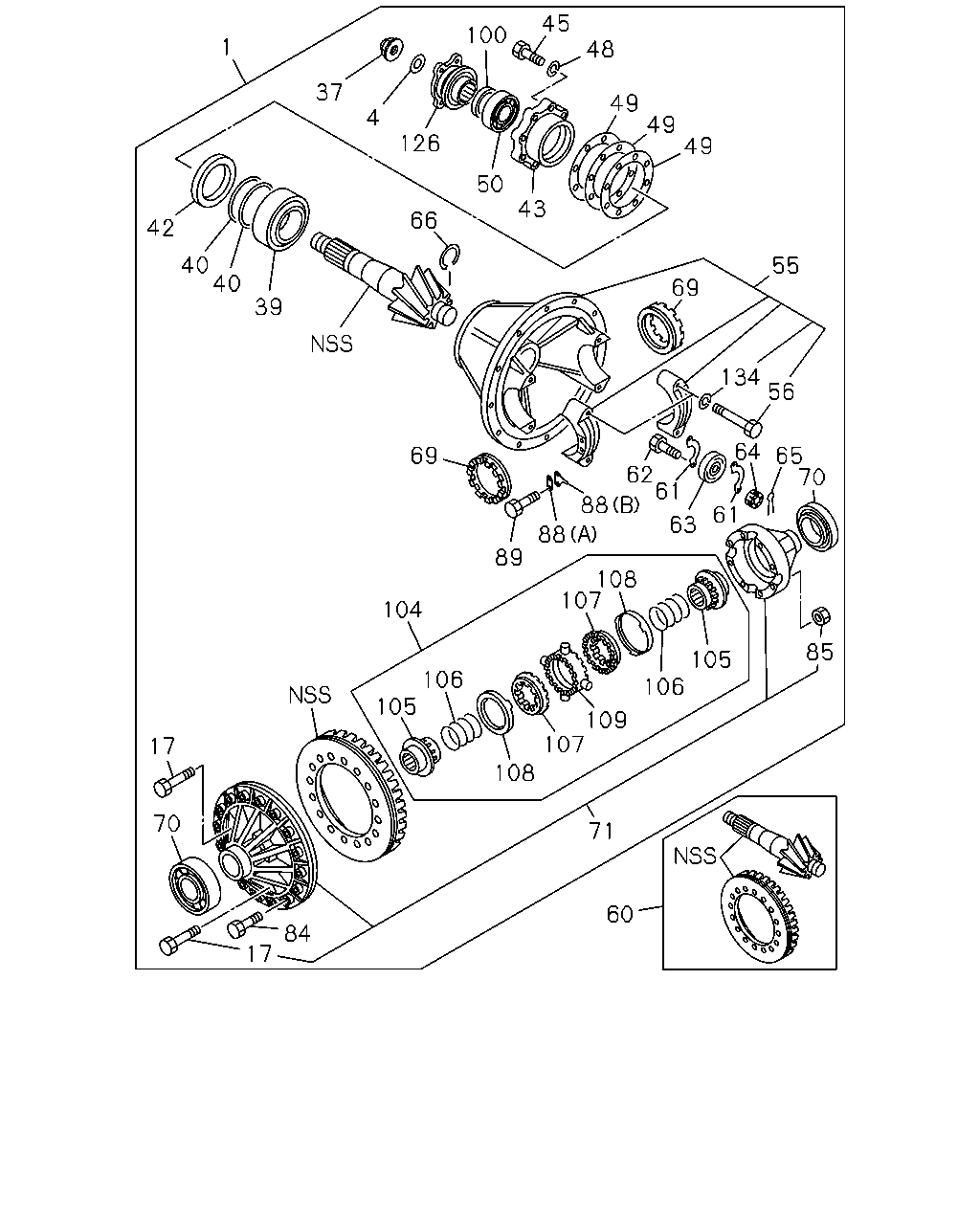

4-25 — REAR FINAL DRIVE (#50678) — 59 parça

45 100 1 48 37 49 49 49 4 126 50 43 66 42 40 40 55 69 39 134 56 64 69 65 70 62 61 88 61 63 88 89 108 107 104 85 105 106 106 105 109 107 17 108 70 71 60 84 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRIVE ASM; FINAL,RR 39/6	1-41001-549-0	01	1	1101-
4	GASKET; FLANGE,FINAL PINION ID=42	9-09921-116-0	01	1	1101-
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	12	1	1101-
37	NUT; DRIVING PINION M36 FLANGE	1-09449-067-0	01	1	1101-
39	BEARING; FINAL PINION JTEKT	1-09812-218-0	01	1	1101-
40	SHIM; FINAL PINION T=3.50	1-41229-256-0	AR	1	1101-
40	SHIM; FINAL PINION T=3.51	1-41229-257-0	AR	1	1101-
40	SHIM; FINAL PINION T=3.52	1-41229-258-0	AR	1	1101-
40	SHIM; FINAL PINION T=3.53	1-41229-259-0	AR	1	1101-
40	SHIM; FINAL PINION T=3.54	1-41229-260-0	AR	1	1101-
40	SHIM; FINAL PINION T=3.55	1-41229-261-0	AR	1	1101-
40	SHIM; FINAL PINION T=3.56	1-41229-262-0	AR	1	1101-
40	SHIM; FINAL PINION T=3.57	1-41229-263-0	AR	1	1101-
40	SHIM; FINAL PINION T=3.58	1-41229-264-0	AR	1	1101-
40	SHIM; FINAL PINION T=3.59	1-41229-265-0	AR	1	1101-
40	SHIM; FINAL PINION T=3.60	1-41229-266-0	AR	1	1101-
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	1101-
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	1101-
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	1101-
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	1101-
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	1101-
43	CAGE; FINAL PINION	1-41151-028-1	01	1	1101-
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	1101-
48	WASHER; LK,FINAL PINION ID=14.2	0-91510-514-0	08	1	1101-
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-063-0	AR	1	1101-
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-064-0	AR	1	1101-
49	SHIM; FINAL PINION CAGE T=1.00	9-41154-013-0	AR	1	1101-
49	SHIM; FINAL PINION CAGE T=0.50	9-41154-014-0	AR	1	1101-
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1101-
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1101-
55	CARRIER; DIFF	1-41110-052-0	01	1	1101-
56	BOLT; BRG CAP M18X107	1-09050-002-1	04	1	1101-
60	GEAR SET; FINAL DRIVE,RR 39/6	1-41210-276-3	01	1	1101-
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1101-
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	1101-
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	1101-
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	1101-
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1101-
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1101-
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	1101-
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	1101-
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	1101-
70	BEARING; DIFF CAGE NSK	1-09812-150-0	02	1	1101-
70	BEARING; DIFF CAGE NACHI	1-09812-151-0	02	1	1101-
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	1101-
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	1101-
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	1101-
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	1101-
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	1101-
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	1101-
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	1101-
104	DIFF ASM; NO SPIN	1-41530-040-0	01	1	1101-
105	GEAR; SIDE	1-41561-100-0	02	1	1101-
106	SPRING; NO SPIN DIFF	1-09580-314-0	02	1	1101-
107	CLUTCH; DRIVEN	1-41532-003-0	02	1	1101-
108	RING; HOLD OUT	1-41539-032-0	02	1	1101-
109	SPIDER; DIFF	1-41521-034-0	01	1	1101-
126	COUPLING; DRIVING PINION	1-37245-388-0	01	1	1101-
134	WASHER; LK,BRG CAP ID=18.2	0-91510-518-0	04	1	1101-
