3-77 — BRAKE PIPING; AIR,REAR (#50668) — 12 parça

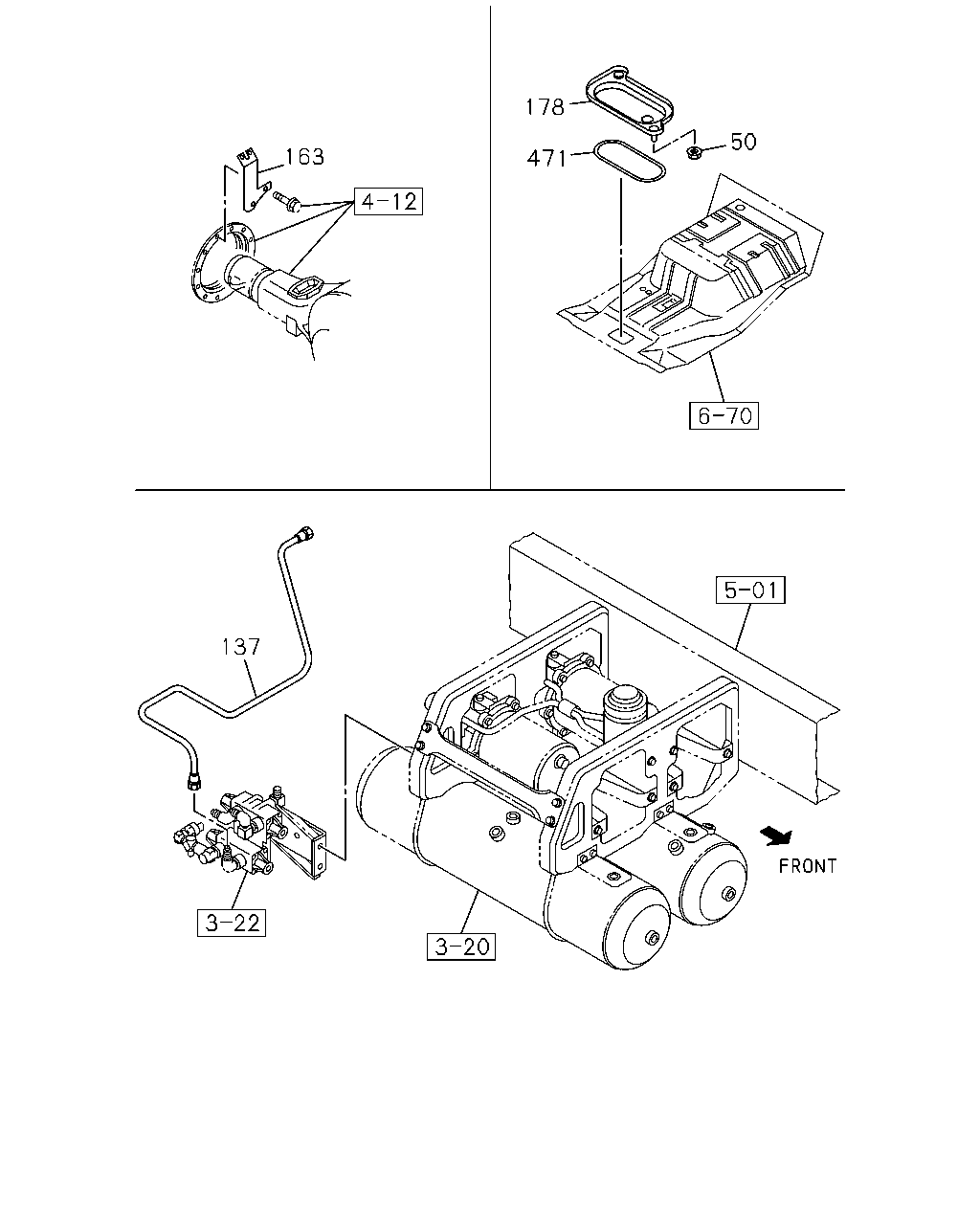

çizim 149382
178 50 163 471 137
BalonParca AdiParca NoAdetTipApplied Date
50 NUT; UNION BRKT
M8 FLANGE 		0-91180-108-0 02 1 1101-
137 PIPE; AIR,PROTECTION VLV TO UNION
L=776 SERVICED BY L=800 		1-47428-872-0 01 1 1101-
163 BRACKET; FLEX HOSE 8-98093-260-0 01 1 1101-
163 BRACKET; FLEX HOSE 8-98106-706-0 01 1 1101-
178 BRACKET; UNION 8-98017-052-1 01 1 1101-
471 SEAL; BRKT 1-79738-832-0 01 1 1101-

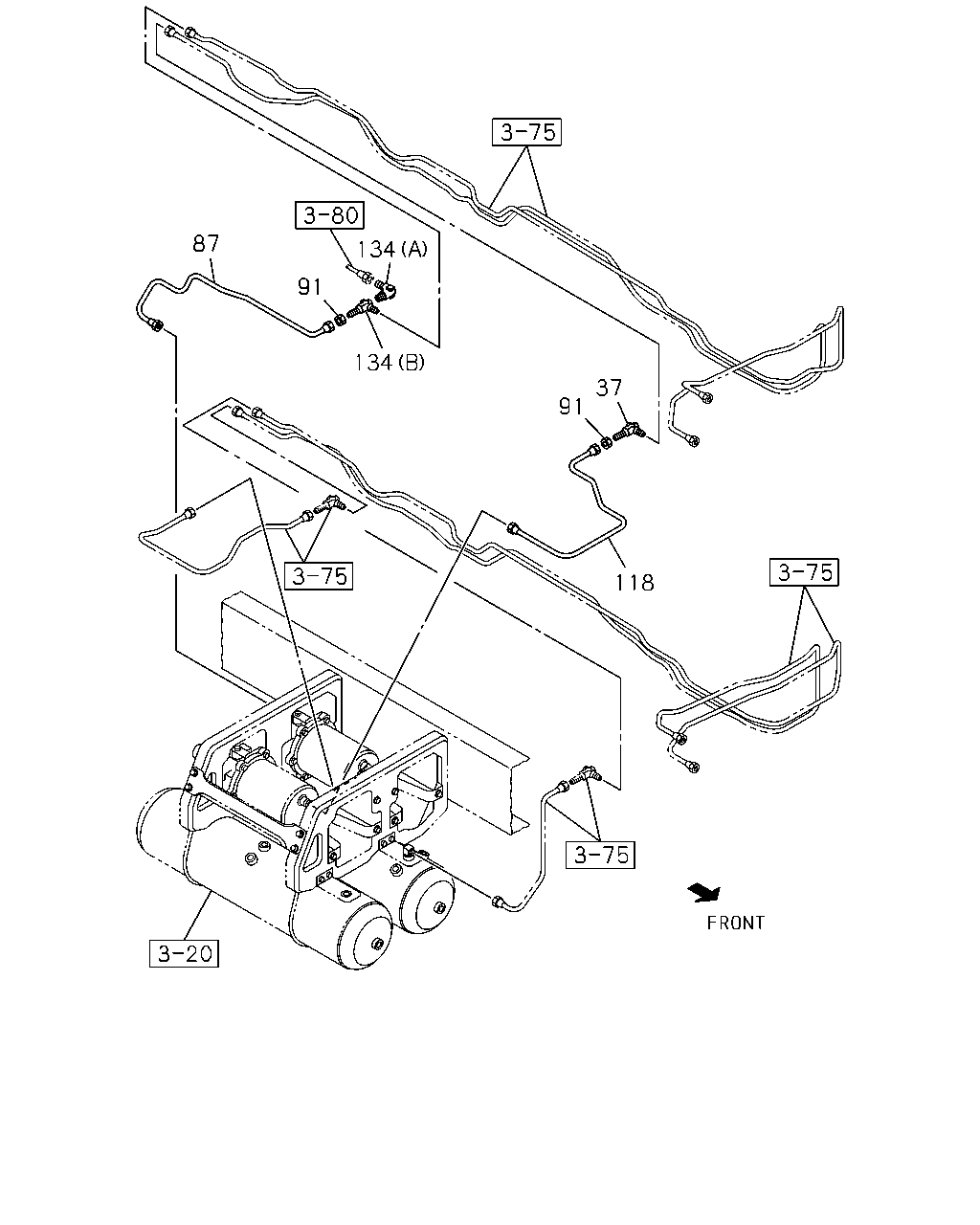

çizim 149395
87 134 91 134 37 91 118
BalonParca AdiParca NoAdetTipApplied Date
37 UNION; AIR PIPE
M16 ELBOW 		0-92135-210-0 01 1 1101-
87 PIPE; AIR,AIR TANK TO UNION
L=954 SERVICED BY L=1000 		1-47428-874-0 01 1 1101-
91 NUT; PIPE UNION
M16 		0-91111-516-0 02 1 1101-
118 PIPE; AIR,UNION TO AIR MASTER
L=688 SERVICED BY L=700 		1-47428-870-0 01 1 1101-
134 CONNECTOR
(A) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 1101-
134 CONNECTOR
(B) 		1-09656-561-1 01 1 1101-
