3-70 — BRAKE PIPING; AIR,AIR MASTER
(#50666) — 56 parça
◀

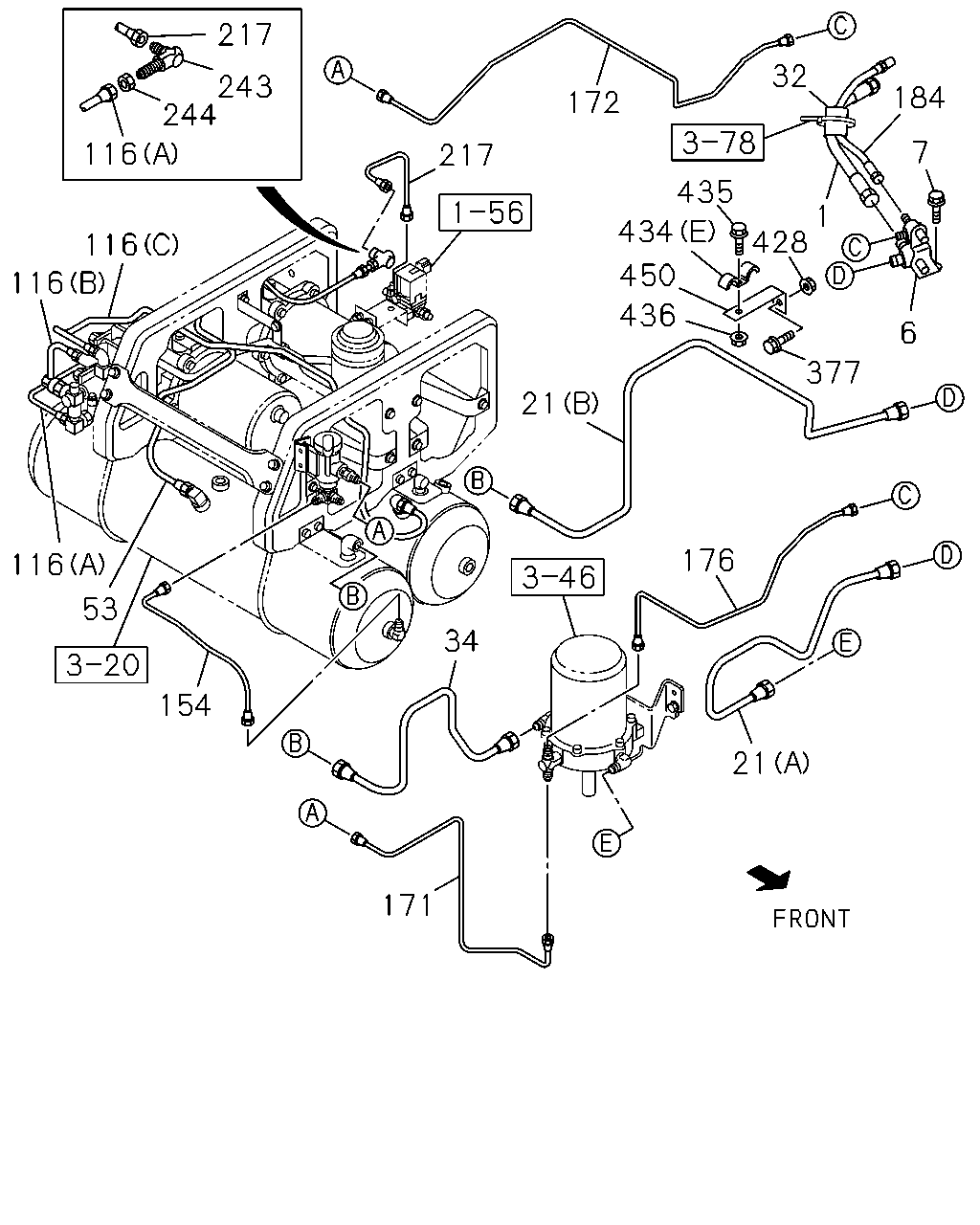

[370A] AIR TANK SIDE (26 parça)

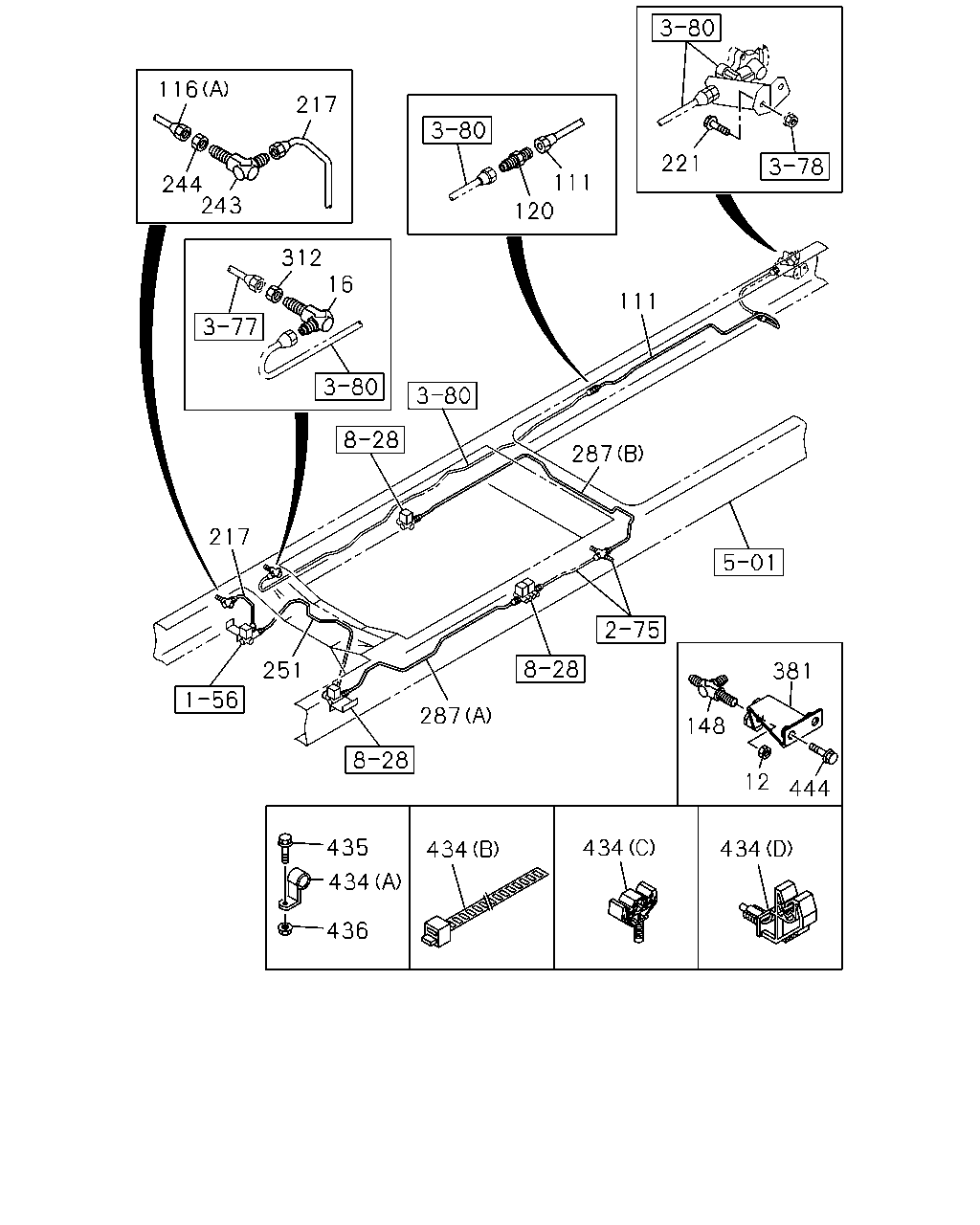

[370A] FRAME SIDE (30 parça)
▶
116
217
221
111
244
243
120
312
16
111
287
217
251
381
287
148
12
444
435
434
434
434
434
436
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
NUT; UNION
EXC. PTO CONTROL<SV6> M12
0-91111-512-0
01
1
1101-
16
UNION; AIR PIPE
M16 ELBOW
0-92135-210-0
01
1
1101-
111
PIPE; AIR,UNION TO UNION
L=1277 SERVICED BY L=1300
1-47428-877-0
01
1
1101-
116
PIPE; AIR,PROTECTION VLV
(A) L=957 SERVICED BY L=1000
1-47428-814-0
01
1
1101-
116
PIPE; AIR,PROTECTION VLV
(B)
8-98108-561-0
01
1
1101-
116
PIPE; AIR,PROTECTION VLV
(C)
8-98108-563-0
01
1
1101-
120
CONNECTOR; AIR PIPE
M16 STRAIGHT L=42
0-92123-010-0
01
1
1101-
148
CONNECTOR; UNION
EXC. PTO CONTROL<SV6> M12 2WAY
1-09654-059-2
01
1
1101-
217
PIPE; VAC,UNION TO MAG VLV
L=268
8-98111-589-0
01
1
1101-
221
BOLT; BRKT
M10X30 FLANGE
0-28651-030-0
02
1
1101-
243
UNION; AIR PIPE
M12 ELBOW
0-92125-206-0
01
1
1101-
244
NUT; UNION,AIR PIPE
M12
9-09840-280-0
01
1
1101-
251
PIPE; AIR,UNION TO MAG VLV
L=1154 SERVICED BY L=1200
1-47428-816-0
01
1
1101-
287
PIPE; AIR,MAG VLV
(A) L=1138 SERVICED BY L=1200
1-47428-816-0
01
1
1101-
287
PIPE; AIR,MAG VLV
(B) L=1672 SERVICED BY L=1700
1-47428-821-0
01
1
1101-
312
NUT; UNION
M16
0-91111-516-0
01
1
1101-
381
BRACKET
EXC. PTO CONTROL<SV6>
8-98131-569-0
01
1
1101-
434
CLIP
(D) ID=6.35
1-09701-247-1
04
1
1101-
434
CLIP
(B) L=600
1-09707-107-1
01
1
1101-
434
CLIP
(B) L=250
5-09707-030-1
01
1
1101-
434
CLIP
(C)
8-98012-254-1
01
1
1101-
434
CLIP
EXC. AIR DRYER<PS7> (E) ID=16 & 7 L=21 & 17
1-09700-675-0
01
1
1101-
434
CLIP
EXC. AIR DRYER<PS7> (A) ID=10 & 15
1-09709-279-1
01
1
1101-
435
BOLT; CLIP
EXC. AIR DRYER<PS7> M8X20 FLANGE
0-28650-820-0
01
1
1101-
436
NUT; CLIP
EXC. AIR DRYER<PS7> M8 FLANGE
0-91180-108-0
01
1
1101-
444
BOLT; UNION
EXC. PTO CONTROL<SV6> M10X30 FLANGE
0-28651-030-0
02
1
1101-
217
32
243
244
184
172
7
116
217
435
1
428
434
116
450
116
436
6
377
21
176
116
53
34
154
21
171
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,AIR TANK
8-98140-111-0
01
1
1101-
6
BRACKET; FLEX HOSE,AIR TANK
8-98133-392-0
01
1
1101-
7
BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE
0-28650-825-0
02
1
1101-
21
PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> (A) L=751
8-98111-626-0
01
1
1101-
21
PIPE; AIR,UNION TO AIR DRYER
EXC. AIR DRYER<PS7> (B) L=1511
8-98164-599-0
01
1
1101-
32
SLEEVE; RUBBER,AIR PIPE
ID=32 OD=36 L=50
1-09337-023-0
01
1
1101-
34
PIPE; AIR
AIR DRYER<PS7> L=639 SERVICED BY L=660
1-49115-480-0
01
1
1101-
53
PIPE; AIR,AIR TANK TO VALVE
L=732
8-98108-559-0
01
1
1101-
116
PIPE; AIR,PROTECTION VLV
(A) L=957 SERVICED BY L=1000
1-47428-814-0
01
1
1101-
116
PIPE; AIR,PROTECTION VLV
(B)
8-98108-561-0
01
1
1101-
116
PIPE; AIR,PROTECTION VLV
(C)
8-98108-563-0
01
1
1101-
154
PIPE; AIR,AIR TANK TO AIR GOV
8-98152-813-0
01
1
1101-
171
PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> L=762 SERVICED BY L=800
1-47428-812-0
01
1
1101-
172
PIPE; AIR,GOV TO UNION
EXC. AIR DRYER<PS7>
8-98164-600-0
01
1
1101-
176
PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> L=695 SERVICED BY L=700
1-47428-811-0
01
1
1101-
184
HOSE; FLEX,AIR GOV
L=340
1-09363-622-0
01
1
1101-
217
PIPE; VAC,UNION TO MAG VLV
L=268
8-98111-589-0
01
1
1101-
243
UNION; AIR PIPE
M12 ELBOW
0-92125-206-0
01
1
1101-
244
NUT; UNION,AIR PIPE
M12
9-09840-280-0
01
1
1101-
377
BOLT; BRKT FIX
EXC. AIR DRYER<PS7> M8X25 FLANGE
0-28650-825-0
01
1
1101-
428
NUT; BRKT
EXC. AIR DRYER<PS7> M8 FLANGE
0-91180-108-0
01
1
1101-
434
CLIP
(D) ID=6.35
1-09701-247-1
04
1
1101-
434
CLIP
(B) L=600
1-09707-107-1
01
1
1101-
434
CLIP
(B) L=250
5-09707-030-1
01
1
1101-
434
CLIP
(C)
8-98012-254-1
01
1
1101-
434
CLIP
EXC. AIR DRYER<PS7> (E) ID=16 & 7 L=21 & 17
1-09700-675-0
01
1
1101-
434
CLIP
EXC. AIR DRYER<PS7> (A) ID=10 & 15
1-09709-279-1
01
1
1101-
435
BOLT; CLIP
EXC. AIR DRYER<PS7> M8X20 FLANGE
0-28650-820-0
01
1
1101-
436
NUT; CLIP
EXC. AIR DRYER<PS7> M8 FLANGE
0-91180-108-0
01
1
1101-
450
BRACKET; CLIP
EXC. AIR DRYER<PS7> L=115 B=25
1-47476-758-0
01
1
1101-
