3-55 — BRAKE PIPING; OIL,REAR (#50664) — 15 parça

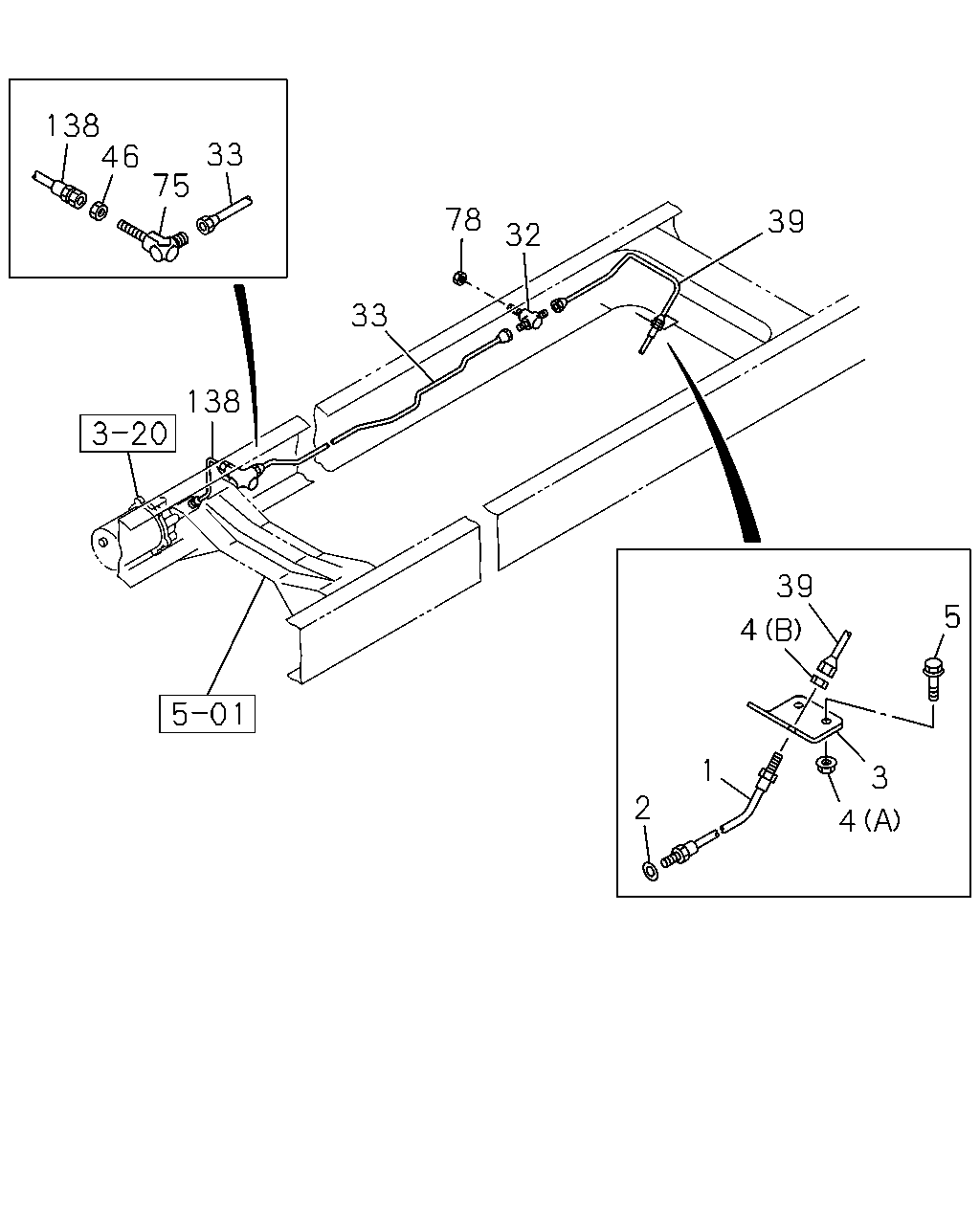

çizim 149377
138 46 75 33 78 39 32 33 138 39 5 4 1 3 2 4
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,RR BRK
L=770 		0-05212-770-0 01 1 1101-
2 GASKET; FLEX HOSE,RR BRK
ID=9 OD=17 		9-09920-472-0 01 1 1101-
3 BRACKET; FLEX HOSE,RR BRK 8-98146-322-0 01 1 1101-
4 NUT; BRKT,FLEX HOSE,RR BRK
(A) M8 FLANGE 		0-91180-108-0 02 1 1101-
4 NUT; BRKT,FLEX HOSE,RR BRK
(B) M12 		9-09840-280-0 01 1 1101-
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE 		0-28650-830-0 02 1 1101-
32 UNION; OIL PIPE
M12 3WAY 		1-09654-137-2 01 1 1101-
33 PIPE; OIL,UNION TO UNION
L=2668 SERVICED BY L=2900 		1-47428-744-0 01 1 1101-
39 PIPE; OIL,UNION TO RR FLEX HOSE
L=612 SERVICED BY L=650 		1-47428-726-0 01 1 1101-
46 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 1101-
75 UNION; OIL PIPE
M12 ELBOW 		0-92125-206-0 01 1 1101-
78 NUT; UNION,OIL PIPE
M12 		0-91111-512-0 01 1 1101-
138 PIPE; HYDRAULIC UNIT
L=531 SERVICED BY L=550 		1-47428-724-0 01 1 1101-

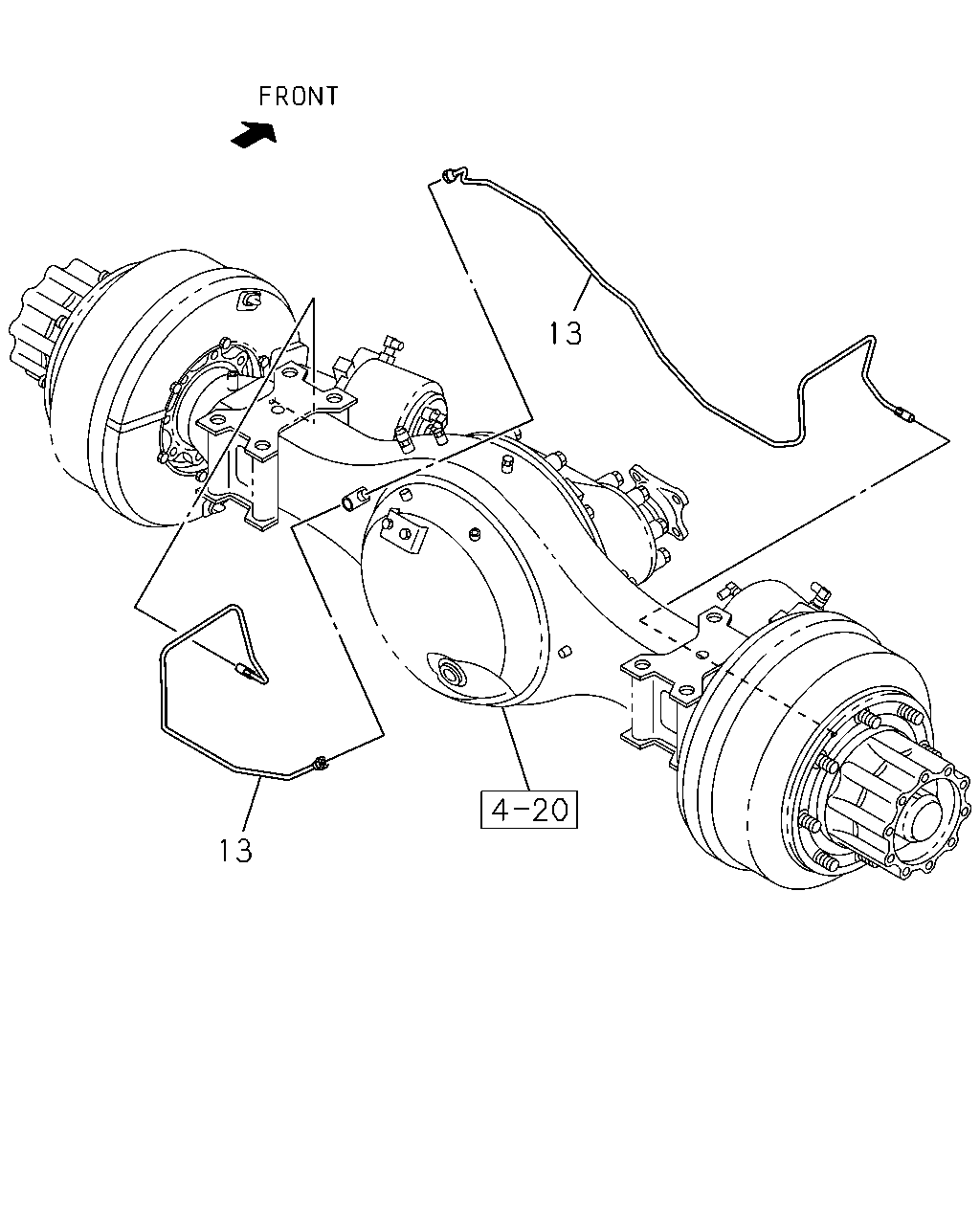

çizim 149397
13 13
BalonParca AdiParca NoAdetTipApplied Date
13 PIPE; BRK,RR AXLE 8-98134-989-0 01 1 1101-
13 PIPE; BRK,RR AXLE 8-98134-990-0 01 1 1101-
