2-26B — MANUAL TRANSMISSION GEAR (#5066) — 311 parça

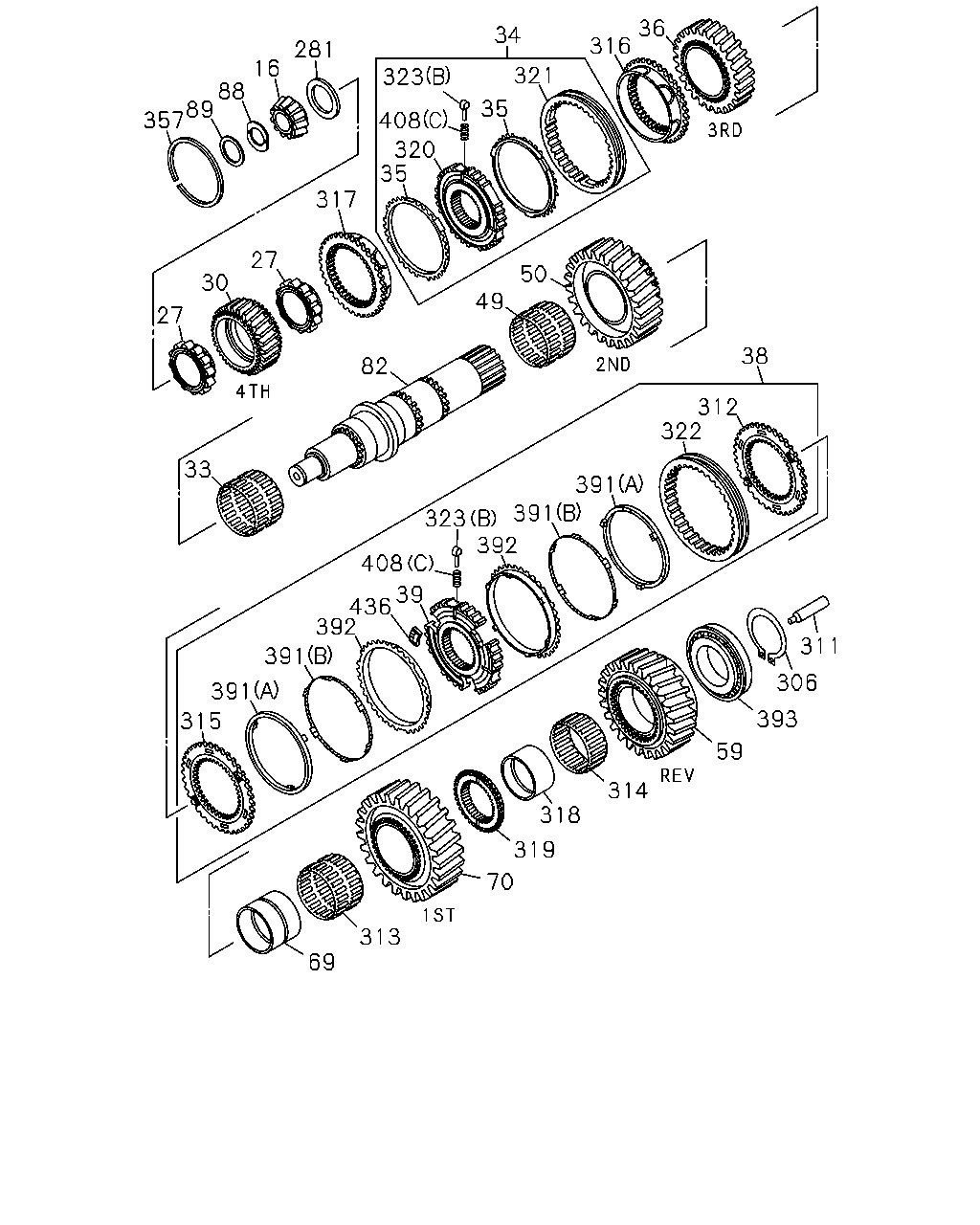

çizim 5800
36 316 34 281 16 321 323 88 89 357 35 408 320 35 317 27 50 30 49 27 38 82 312 322 33 391 391 323 392 408 39 436 392 311 391 306 391 393 315 59 314 318 319 70 313 69
BalonParca AdiParca NoAdetTipApplied Date
16 BEARING; PILOT,MAINSHAFT 1-33239-212-0 01 1 9606-
27 BEARING; 4TH GEAR 1-33259-046-0 02 1 9606-
30 GEAR; 4TH,MAINSHAFT 1-33252-451-0 01 1 9606-9905
30 GEAR; 4TH,MAINSHAFT 1-33252-466-0 01 1 9906-
33 BEARING; NEEDLE,3RD GEAR 1-33239-223-0 01 1 9606-
34 SYNCHRONIZER; 4TH & 3RD 1-33260-151-0 01 1 9606-
35 RING; BLOCK,4TH & 3RD
POWER TAKE OFF-ZF TRANSMISSION<BDM> 		1-33219-241-0 02 1 9708-9807
35 RING; BLOCK,4TH & 3RD 1-33219-241-0 02 1 9808-
35 RING; BLOCK,4TH & 3RD 1-33265-438-0 02 1 9606-9707
35 RING; BLOCK,4TH & 3RD
EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> 		1-33265-438-0 02 1 9708-9807
36 GEAR; 3RD,MAINSHAFT 1-33252-450-0 01 1 9606-9905
36 GEAR; 3RD,MAINSHAFT 1-33252-465-0 01 1 9906-
38 SYNCHRONIZER; LOW & 2ND 1-33260-152-0 01 1 9606-
39 HUB; CLU,LOW & 2ND 1-33261-224-0 01 1 9606-
49 BEARING; NEEDLE,2ND GEAR 1-33239-223-0 01 1 9606-
50 GEAR; 2ND,MAINSHAFT 1-33251-371-0 01 1 9606-9905
50 GEAR; 2ND,MAINSHAFT 1-33251-395-0 01 1 9906-
59 GEAR; REV MAINSHAFT 1-33257-076-0 01 1 9606-9905
59 GEAR; REV MAINSHAFT 1-33257-082-0 01 1 9906-
69 COLLAR; 1ST GEAR MAIN 1-33259-067-0 01 1 9606-
70 GEAR; 1ST,MAINSHAFT 1-33251-372-0 01 1 9606-9905
70 GEAR; 1ST,MAINSHAFT 1-33251-396-0 01 1 9906-
82 SHAFT; MAIN,TRANS 1-33231-239-0 01 1 9606-
88 RING; THRUST,THRUST WASHER
POWER TAKE OFF-ZF TRANSMISSION<BDM> T=5.00 		1-33239-305-0 02 1 9708-9905
88 RING; THRUST,THRUST WASHER
T=5.00 		1-33239-305-0 02 1 9906-
88 RING; THRUST,THRUST WASHER
POWER TAKE OFF-ZF TRANSMISSION<BDM> T=4.80 		1-33239-306-0 02 1 9708-9905
88 RING; THRUST,THRUST WASHER
T=4.80 		1-33239-306-0 02 1 9906-
88 RING; THRUST,THRUST WASHER
EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> T=4.90 		1-33239-213-0 AR 1 9708-9905
88 RING; THRUST,THRUST WASHER
EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> T=4.70 		1-33239-214-0 AR 1 9708-9905
88 RING; THRUST,THRUST WASHER
EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> T=4.60 		1-33239-215-0 AR 1 9708-9905
88 RING; THRUST,THRUST WASHER
EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> T=5.00 		1-33239-305-0 AR 1 9708-9905
88 RING; THRUST,THRUST WASHER
EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> T=4.80 		1-33239-306-0 AR 1 9708-9905
88 RING; THRUST,THRUST WASHER
T=4.90 		1-33239-213-0 AR 1 9606-9707
88 RING; THRUST,THRUST WASHER
POWER TAKE OFF-ZF TRANSMISSION<BDM> T=4.90 		1-33239-213-0 02 1 9708-9905
88 RING; THRUST,THRUST WASHER
T=4.90 		1-33239-213-0 02 1 9906-
88 RING; THRUST,THRUST WASHER
T=4.70 		1-33239-214-0 AR 1 9606-9707
88 RING; THRUST,THRUST WASHER
POWER TAKE OFF-ZF TRANSMISSION<BDM> T=4.70 		1-33239-214-0 02 1 9708-9905
88 RING; THRUST,THRUST WASHER
T=4.70 		1-33239-214-0 02 1 9906-
88 RING; THRUST,THRUST WASHER
T=4.60 		1-33239-215-0 AR 1 9606-9707
88 RING; THRUST,THRUST WASHER
POWER TAKE OFF-ZF TRANSMISSION<BDM> T=4.60 		1-33239-215-0 02 1 9708-9905
88 RING; THRUST,THRUST WASHER
T=4.60 		1-33239-215-0 02 1 9906-
89 RING; RET,THRUST RING 1-33239-216-0 01 1 9606-
281 WASHER; THRUST,MAINSHAFT
EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> T=8.30 		1-33239-210-0 AR 1 9708-9905
281 WASHER; THRUST,MAINSHAFT
EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> T=7.90 		1-33239-211-0 AR 1 9708-9905
281 WASHER; THRUST,MAINSHAFT
T=8.30 		1-33239-210-0 AR 1 9606-9707
281 WASHER; THRUST,MAINSHAFT
POWER TAKE OFF-ZF TRANSMISSION<BDM> T=8.30 		1-33239-210-0 01 1 9708-9905
281 WASHER; THRUST,MAINSHAFT
T=8.30 		1-33239-210-0 01 1 9906-
281 WASHER; THRUST,MAINSHAFT
T=7.90 		1-33239-211-0 AR 1 9606-9707
281 WASHER; THRUST,MAINSHAFT
POWER TAKE OFF-ZF TRANSMISSION<BDM> T=7.90 		1-33239-211-0 01 1 9708-9905
281 WASHER; THRUST,MAINSHAFT
T=7.90 		1-33239-211-0 01 1 9906-
306 RING; SNAP,MAINSHAFT
T=2.50 		1-33239-098-0 AR 1 9606-
306 RING; SNAP,MAINSHAFT
T=2.40 		1-33239-099-0 AR 1 9606-
306 RING; SNAP,MAINSHAFT
T=2.30 		1-33239-100-0 AR 1 9606-
306 RING; SNAP,MAINSHAFT
T=2.20 		1-33239-101-0 AR 1 9606-
306 RING; SNAP,MAINSHAFT
T=3.50 		1-33239-189-0 AR 1 9606-
306 RING; SNAP,MAINSHAFT
T=3.45 		1-33239-190-0 AR 1 9606-
306 RING; SNAP,MAINSHAFT
T=3.40 		1-33239-191-0 AR 1 9606-
306 RING; SNAP,MAINSHAFT
T=3.35 		1-33239-192-0 AR 1 9606-
306 RING; SNAP,MAINSHAFT
T=3.30 		1-33239-193-0 AR 1 9606-
306 RING; SNAP,MAINSHAFT
T=3.25 		1-33239-194-0 AR 1 9606-
306 RING; SNAP,MAINSHAFT
T=3.20 		1-33239-195-0 AR 1 9606-
306 RING; SNAP,MAINSHAFT
T=3.15 		1-33239-196-0 AR 1 9606-
306 RING; SNAP,MAINSHAFT
T=3.10 		1-33239-197-0 AR 1 9606-
306 RING; SNAP,MAINSHAFT
T=3.05 		1-33239-198-0 AR 1 9606-
306 RING; SNAP,MAINSHAFT
T=3.00 		1-33239-199-0 AR 1 9606-
306 RING; SNAP,MAINSHAFT
T=2.95 		1-33239-200-0 AR 1 9606-
306 RING; SNAP,MAINSHAFT
T=2.90 		1-33239-201-0 AR 1 9606-
306 RING; SNAP,MAINSHAFT
T=2.85 		1-33239-202-0 AR 1 9606-
306 RING; SNAP,MAINSHAFT
T=2.80 		1-33239-203-0 AR 1 9606-
306 RING; SNAP,MAINSHAFT
T=2.70 		1-33239-204-0 AR 1 9606-
306 RING; SNAP,MAINSHAFT
T=2.60 		1-33239-205-0 AR 1 9606-
306 RING; SNAP,MAINSHAFT
T=3.55 		1-33239-206-0 AR 1 9606-
306 RING; SNAP,MAINSHAFT
T=3.60 		1-33239-207-0 AR 1 9606-
306 RING; SNAP,MAINSHAFT
T=3.65 		1-33239-208-0 AR 1 9606-
311 PIPE; MAINSHAFT 1-33239-209-0 01 1 9606-
312 CLUTCH; DOG,1ST GEAR 1-33265-439-0 01 1 9606-
313 BEARING; NEEDLE,LOW GEAR 1-33259-043-0 01 1 9606-
314 BEARING; NEEDLE,REV GEAR 1-33259-045-0 01 1 9606-
315 CLUTCH; DOG,2ND GEAR 1-33265-439-0 01 1 9606-
316 CLUTCH; DOG,3RD GEAR 1-33265-436-0 01 1 9606-
317 CLUTCH; DOG,4TH GEAR 1-33265-436-0 01 1 9606-
318 COLLAR; DIST,REV GEAR 1-33259-044-0 01 1 9606-
319 CLUTCH; SLIDING 1-33261-229-0 01 1 9606-
320 HUB; CLU,4TH & 3RD 1-33261-228-0 01 1 9606-
321 SLEEVE; SYN,4TH & 3RD 1-33262-185-0 01 1 9606-9707
321 SLEEVE; SYN,4TH & 3RD 1-33262-208-0 01 1 9708-
322 SLEEVE; SYN,LOW & 2ND
POWER TAKE OFF-ZF TRANSMISSION<BDM> 		1-33269-079-0 01 1 9708-9905
322 SLEEVE; SYN,LOW & 2ND 1-33269-079-0 01 1 9906-
322 SLEEVE; SYN,LOW & 2ND 1-33262-186-0 01 1 9606-9707
322 SLEEVE; SYN,LOW & 2ND
EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> 		1-33262-186-0 01 1 9708-9905
323 INSERT
(A) 		1-33263-027-0 09 1 9606-
323 INSERT
(B) 		1-33263-030-0 09 1 9606-
357 RING
EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> T=4.00 		1-33239-217-0 AR 1 9708-9905
357 RING
EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> T=3.60 		1-33239-218-0 AR 1 9708-9905
357 RING
T=4.00 		1-33239-217-0 AR 1 9606-9707
357 RING
POWER TAKE OFF-ZF TRANSMISSION<BDM> T=4.00 		1-33239-217-0 01 1 9708-9905
357 RING
T=4.00 		1-33239-217-0 01 1 9906-
357 RING
T=3.60 		1-33239-218-0 AR 1 9606-9707
357 RING
POWER TAKE OFF-ZF TRANSMISSION<BDM> T=3.60 		1-33239-218-0 01 1 9708-9905
357 RING
T=3.60 		1-33239-218-0 01 1 9906-
391 RING; INSIDE,SYN
(A) 		1-33265-440-0 02 1 9606-
391 RING; INSIDE,SYN
(B) 		1-33269-044-0 02 1 9606-
392 RING; OUTSIDE,SYN 1-33269-045-0 02 1 9606-
393 BEARING; MAINSHAFT END 1-33239-222-0 01 1 9606-9701
393 BEARING; MAINSHAFT END 1-33239-304-0 01 1 9702-
408 SPRING
(A) 		1-33269-038-0 09 1 9606-
408 SPRING
(B) 		1-33269-039-0 09 1 9606-
408 SPRING
(C) 		1-33269-042-0 09 1 9606-
436 KEY; LOW & 2ND 1-33269-046-0 03 1 9606-

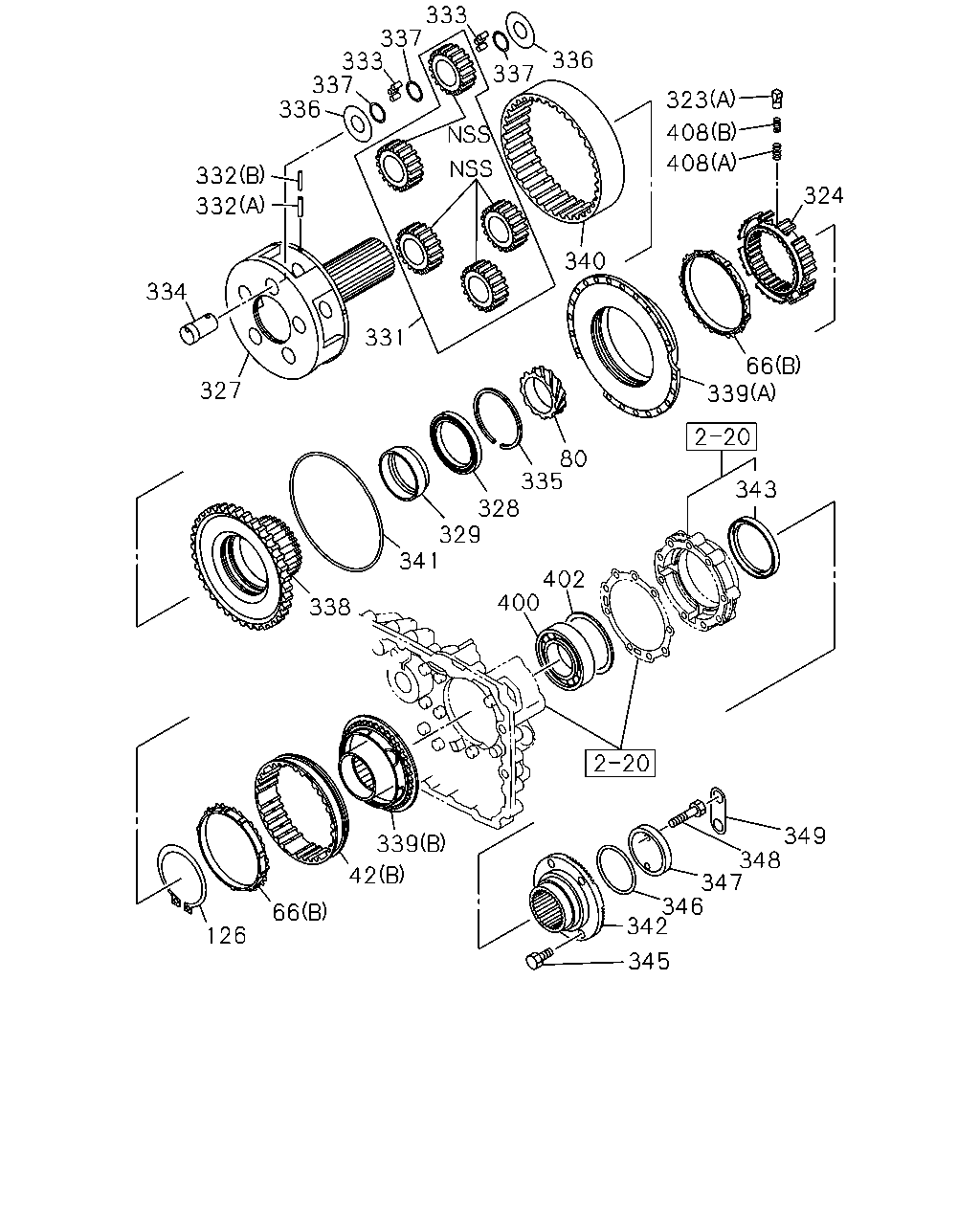

çizim 6353
333 337 333 337 336 336 337 323 408 408 332 324 332 340 334 331 66 339 327 80 335 328 329 341 343 402 400 338 349 348 347 346 342 339 42 66 126 345
BalonParca AdiParca NoAdetTipApplied Date
42 SLEEVE
(A) 		1-33262-185-0 01 1 9606-9707
42 SLEEVE
(A) 		1-33262-208-0 01 1 9708-
42 SLEEVE
(B) 		1-33339-020-0 01 1 9606-
66 RING; BLOCK,SYN
EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) 		1-33265-438-0 02 1 9708-9807
66 RING; BLOCK,SYN
(A) 		1-33265-438-0 02 1 9606-9707
66 RING; BLOCK,SYN
(B) 		1-33339-069-0 02 1 9708-
66 RING; BLOCK,SYN
(B) 		1-33339-019-0 02 1 9606-9707
66 RING; BLOCK,SYN
POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) 		1-33219-241-0 02 1 9708-9807
66 RING; BLOCK,SYN
(A) 		1-33219-241-0 02 1 9808-
80 GEAR; SPD DRIVE 1-33371-063-0 01 1 9606-
126 RING; SNAP,CLU HUB
EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> T=4.0 		1-33269-047-0 AR 1 9708-9905
126 RING; SNAP,CLU HUB
EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> T=3.9 		1-33269-048-0 AR 1 9708-9905
126 RING; SNAP,CLU HUB
EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> T=3.8 		1-33269-049-0 AR 1 9708-9905
126 RING; SNAP,CLU HUB
EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> T=3.7 		1-33269-050-0 AR 1 9708-9905
126 RING; SNAP,CLU HUB
T=4.0 		1-33269-047-0 AR 1 9606-9707
126 RING; SNAP,CLU HUB
POWER TAKE OFF-ZF TRANSMISSION<BDM> T=4.0 		1-33269-047-0 01 1 9708-9905
126 RING; SNAP,CLU HUB
T=4.0 		1-33269-047-0 01 1 9906-
126 RING; SNAP,CLU HUB
T=3.9 		1-33269-048-0 AR 1 9606-9707
126 RING; SNAP,CLU HUB
POWER TAKE OFF-ZF TRANSMISSION<BDM> T=3.9 		1-33269-048-0 01 1 9708-9905
126 RING; SNAP,CLU HUB
T=3.9 		1-33269-048-0 01 1 9906-
126 RING; SNAP,CLU HUB
T=3.8 		1-33269-049-0 AR 1 9606-9707
126 RING; SNAP,CLU HUB
POWER TAKE OFF-ZF TRANSMISSION<BDM> T=3.8 		1-33269-049-0 01 1 9708-9905
126 RING; SNAP,CLU HUB
T=3.8 		1-33269-049-0 01 1 9906-
126 RING; SNAP,CLU HUB
T=3.7 		1-33269-050-0 AR 1 9606-9707
126 RING; SNAP,CLU HUB
POWER TAKE OFF-ZF TRANSMISSION<BDM> T=3.7 		1-33269-050-0 01 1 9708-9905
126 RING; SNAP,CLU HUB
T=3.7 		1-33269-050-0 01 1 9906-
323 INSERT
(A) 		1-33263-027-0 09 1 9606-
323 INSERT
(B) 		1-33263-030-0 09 1 9606-
324 HUB; CLU 1-33261-230-0 01 1 9606-
327 CARRIER; PLANETARY GEAR 1-33231-284-0 01 1 9606-
328 BEARING; CARRIER 1-33339-025-0 01 1 9606-
329 COLLAR; BEARING 1-33339-002-0 01 1 9606-
331 GEAR SET; PLANETARY 1-33239-224-0 01 1 9606-
332 PIN; LOCK,SHAFT
(A) 		1-33239-185-0 05 1 9606-
332 PIN; LOCK,SHAFT
(B) 		1-33239-186-0 05 1 9606-
333 ROLLER; PLANETARY GEAR 1-33239-225-0 AR 1 9606-
334 SHAFT; PLANETARY GEAR 1-33239-226-0 05 1 9606-
335 RING; SNAP,BEARING
POWER TAKE OFF-ZF TRANSMISSION<BDM> 		1-33219-246-0 01 1 9708-9905
335 RING; SNAP,BEARING 1-33219-246-0 01 1 9906-
335 RING; SNAP,BEARING
T=2.50 		1-33339-005-0 AR 1 9606-9905
335 RING; SNAP,BEARING
T=2.00 		1-33339-080-0 AR 1 9906-
335 RING; SNAP,BEARING
T=2.40 		1-33339-006-0 AR 1 9606-9905
335 RING; SNAP,BEARING
T=2.50 		1-33339-075-0 AR 1 9906-
335 RING; SNAP,BEARING
T=2.30 		1-33339-007-0 AR 1 9606-9905
335 RING; SNAP,BEARING
T=2.40 		1-33339-076-0 AR 1 9906-
335 RING; SNAP,BEARING
T=2.20 		1-33339-008-0 AR 1 9606-9905
335 RING; SNAP,BEARING
T=2.30 		1-33339-077-0 AR 1 9906-
335 RING; SNAP,BEARING
T=2.10 		1-33339-009-0 AR 1 9606-9905
335 RING; SNAP,BEARING
T=2.20 		1-33339-078-0 AR 1 9906-
335 RING; SNAP,BEARING
T=2.00 		1-33339-010-0 AR 1 9606-9905
335 RING; SNAP,BEARING
T=2.10 		1-33339-079-0 AR 1 9906-
336 WASHER; THRUST,PLANETARY GEAR 1-33239-182-0 10 1 9606-
337 WASHER; PLANETARY GEAR,INNER 1-33239-181-0 15 1 9606-
338 CARRIER; RING GEAR 1-33331-240-0 01 1 9606-
339 CLUTCH; PLANETARY GEAR
(A) 		1-33261-226-0 01 1 9606-
339 CLUTCH; PLANETARY GEAR
(B) 		1-33339-021-0 01 1 9606-
340 GEAR; RING 1-33339-046-0 01 1 9606-
341 WIRE; LOCK,CARRIER 1-33339-012-0 01 1 9606-
342 FLANGE; OUTPUT 1-37243-324-0 01 1 9606-
343 SEAL; FLANGE 1-33139-052-0 01 1 9606-
345 BOLT; FLANGE TO YOKE 1-37249-147-0 04 1 9906-
345 BOLT; FLANGE TO YOKE 1-37249-147-0 04 1 9606-9905
346 GASKET; FLANGE 1-37249-079-0 01 1 9606-
347 WASHER; FLANGE 1-37249-080-0 01 1 9606-
348 BOLT; SHAFT 1-37249-155-0 02 1 9606-
349 WASHER; LK,SHAFT 1-37249-081-0 01 1 9606-
400 BEARING; OUTPUT SHAFT RR 1-33139-014-0 01 1 9606-
402 SHIM
T=0.60 		1-33139-015-0 AR 1 9606-
402 SHIM
T=0.50 		1-33139-016-0 AR 1 9606-
402 SHIM
T=0.30 		1-33139-017-0 AR 1 9606-
402 SHIM
T=0.40 		1-33139-018-0 AR 1 9606-
402 SHIM
T=0.20 		1-33139-019-0 AR 1 9606-
408 SPRING
(A) 		1-33269-038-0 09 1 9606-
408 SPRING
(B) 		1-33269-039-0 09 1 9606-
408 SPRING
(C) 		1-33269-042-0 09 1 9606-

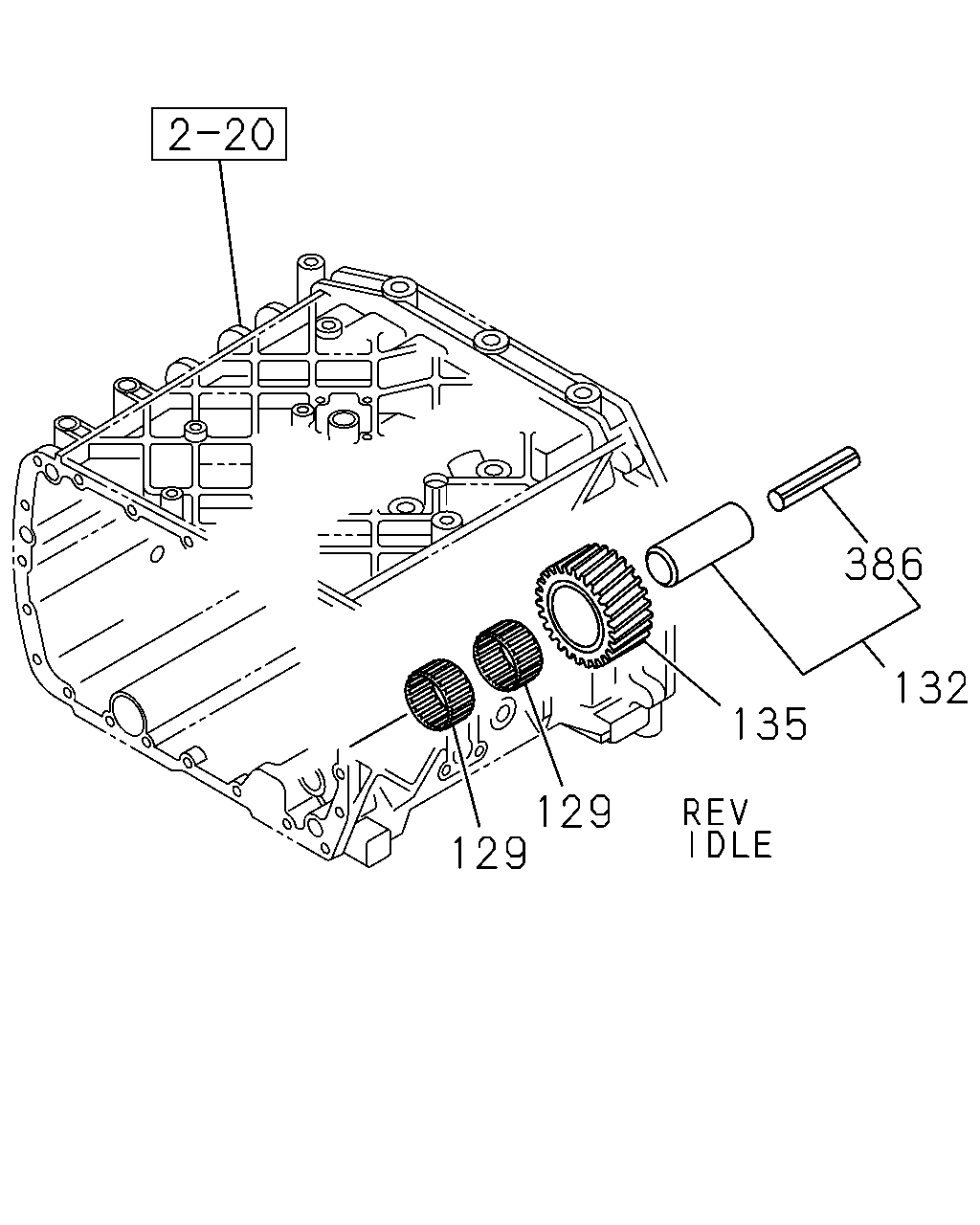

çizim 6800
386 132 135 129 129
BalonParca AdiParca NoAdetTipApplied Date
129 BEARING; NEEDLE,IDLER 1-33369-020-0 02 1 9606-
132 SHAFT; REV 1-33351-027-0 01 1 9606-9905
132 SHAFT; REV 1-33351-032-0 01 1 9906-
135 GEAR; REV IDLER 1-33361-076-0 01 1 9606-9905
135 GEAR; REV IDLER 1-33361-082-0 01 1 9906-
386 PIN; REV SHAFT 1-33359-003-0 01 1 9606-9905
386 PIN; REV SHAFT 1-33359-012-0 01 1 9906-

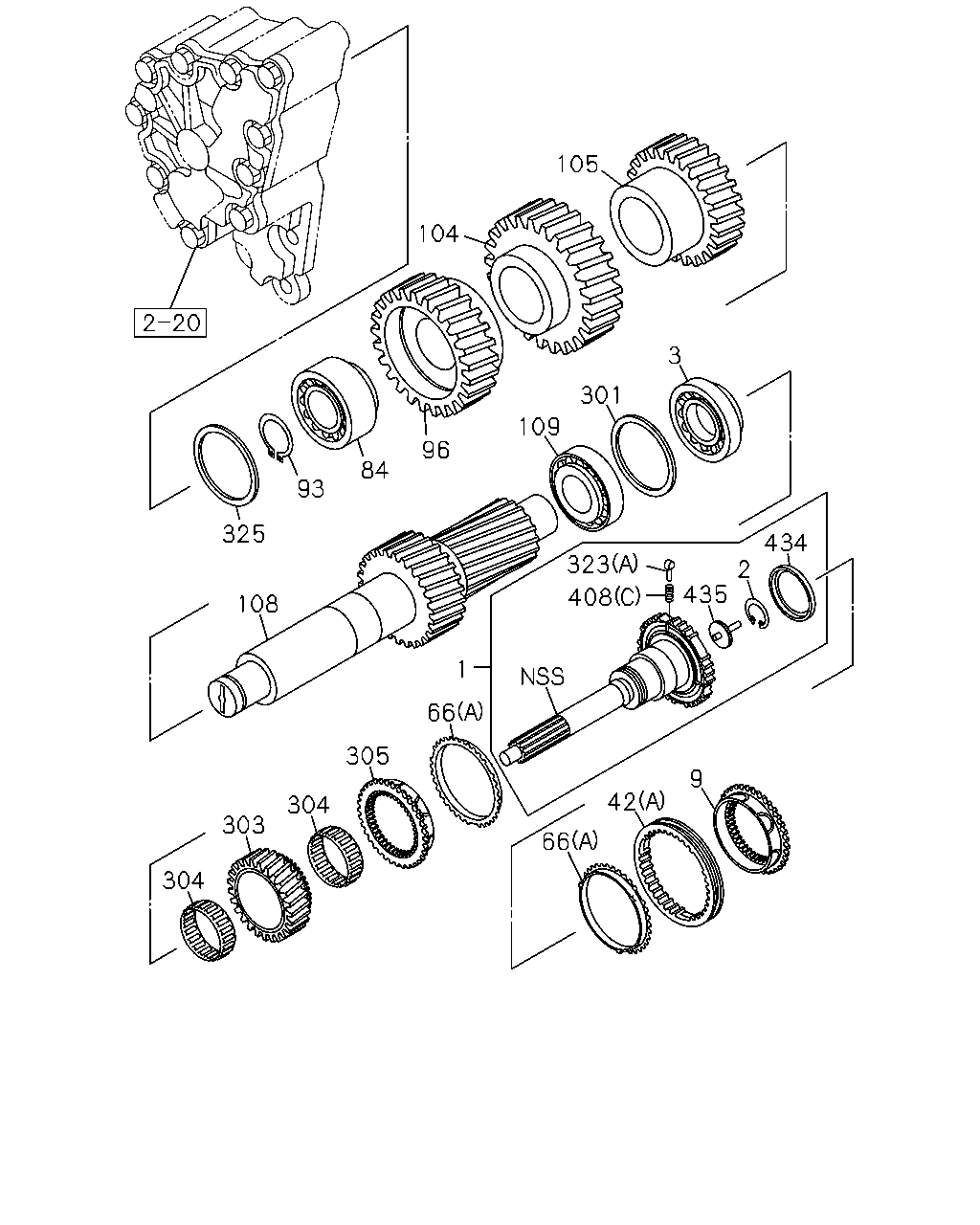

çizim 39484
105 104 3 301 109 96 84 93 325 434 323 2 435 408 108 1 66 305 9 42 304 303 66 304
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; TOP GEAR,TRANS
POWER TAKE OFF-ZF TRANSMISSION<BDM> 		1-33219-244-0 01 1 9708-9905
1 SHAFT; TOP GEAR,TRANS 1-33219-244-0 01 1 9906-
1 SHAFT; TOP GEAR,TRANS 1-33211-928-0 01 1 9606-9707
1 SHAFT; TOP GEAR,TRANS
EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> 		1-33211-928-0 01 1 9708-9905
2 RING; SNAP,TOP GEAR SHAFT 1-33219-115-0 01 1 9606-
3 BEARING; TOP GEAR SHAFT
POWER TAKE OFF-ZF TRANSMISSION<BDM> 		1-33219-242-0 01 1 9708-9905
3 BEARING; TOP GEAR SHAFT 1-33219-242-0 01 1 9906-
3 BEARING; TOP GEAR SHAFT 1-33219-113-0 01 1 9606-9707
3 BEARING; TOP GEAR SHAFT
EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> 		1-33219-113-0 01 1 9708-9905
9 CLUTCH; DOG,TOP GEAR 1-33265-437-0 01 1 9606-
42 SLEEVE
(A) 		1-33262-185-0 01 1 9606-9707
42 SLEEVE
(A) 		1-33262-208-0 01 1 9708-
42 SLEEVE
(B) 		1-33339-020-0 01 1 9606-
66 RING; BLOCK,SYN
EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) 		1-33265-438-0 02 1 9708-9807
66 RING; BLOCK,SYN
(A) 		1-33265-438-0 02 1 9606-9707
66 RING; BLOCK,SYN
(B) 		1-33339-069-0 02 1 9708-
66 RING; BLOCK,SYN
(B) 		1-33339-019-0 02 1 9606-9707
66 RING; BLOCK,SYN
POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) 		1-33219-241-0 02 1 9708-9807
66 RING; BLOCK,SYN
(A) 		1-33219-241-0 02 1 9808-
84 BEARING; COUNTER SHAFT,FRT 1-33319-087-0 01 1 9606-
93 RING; SNAP,COUNTER FRT BRG
T=3.20 		1-33319-061-0 AR 1 9606-
93 RING; SNAP,COUNTER FRT BRG
T=3.15 		1-33319-062-0 AR 1 9606-
93 RING; SNAP,COUNTER FRT BRG
T=3.10 		1-33319-063-0 AR 1 9606-
93 RING; SNAP,COUNTER FRT BRG
T=3.05 		1-33319-064-0 AR 1 9606-
93 RING; SNAP,COUNTER FRT BRG
T=3.00 		1-33319-065-0 AR 1 9606-
93 RING; SNAP,COUNTER FRT BRG
T=2.95 		1-33319-066-0 AR 1 9606-
93 RING; SNAP,COUNTER FRT BRG
T=2.90 		1-33319-067-0 AR 1 9606-
93 RING; SNAP,COUNTER FRT BRG
T=2.85 		1-33319-068-0 AR 1 9606-
93 RING; SNAP,COUNTER FRT BRG
T=2.80 		1-33319-069-0 AR 1 9606-
93 RING; SNAP,COUNTER FRT BRG
T=2.75 		1-33319-070-0 AR 1 9606-
93 RING; SNAP,COUNTER FRT BRG
T=2.70 		1-33319-071-0 AR 1 9606-
93 RING; SNAP,COUNTER FRT BRG
T=2.65 		1-33319-072-0 AR 1 9606-
93 RING; SNAP,COUNTER FRT BRG
T=2.60 		1-33319-073-0 AR 1 9606-
93 RING; SNAP,COUNTER FRT BRG
T=2.55 		1-33319-074-0 AR 1 9606-
93 RING; SNAP,COUNTER FRT BRG
T=2.50 		1-33319-075-0 AR 1 9606-
93 RING; SNAP,COUNTER FRT BRG
T=2.45 		1-33319-076-0 AR 1 9606-
93 RING; SNAP,COUNTER FRT BRG
T=2.40 		1-33319-077-0 AR 1 9606-
93 RING; SNAP,COUNTER FRT BRG
T=2.35 		1-33319-078-0 AR 1 9606-
93 RING; SNAP,COUNTER FRT BRG
T=2.30 		1-33319-079-0 AR 1 9606-
93 RING; SNAP,COUNTER FRT BRG
T=2.25 		1-33319-080-0 AR 1 9606-
93 RING; SNAP,COUNTER FRT BRG
T=2.20 		1-33319-081-0 AR 1 9606-
93 RING; SNAP,COUNTER FRT BRG
T=2.15 		1-33319-082-0 AR 1 9606-
93 RING; SNAP,COUNTER FRT BRG
T=2.10 		1-33319-083-0 AR 1 9606-
96 GEAR; COUNTER DRIVE 1-33331-238-0 01 1 9606-9704
96 GEAR; COUNTER DRIVE 1-33331-253-0 01 1 9705-9905
96 GEAR; COUNTER DRIVE 1-33331-259-0 01 1 9906-
104 GEAR; 4TH,COUNTER 1-33338-357-0 01 1 9606-9905
104 GEAR; 4TH,COUNTER 1-33338-375-0 01 1 9906-
105 GEAR; 3RD,COUNTER 1-33333-159-0 01 1 9606-9905
105 GEAR; 3RD,COUNTER 1-33333-163-0 01 1 9906-
108 SHAFT; COUNTER 1-33311-293-0 01 1 9606-9905
108 SHAFT; COUNTER 1-33311-310-0 01 1 9906-
109 BEARING; COUNTER SHAFT,RR 1-33319-134-0 01 1 9606-
301 SHIM; TOP GEAR SHAFT
T=2.20 		1-33219-117-0 AR 1 9606-
301 SHIM; TOP GEAR SHAFT
T=2.15 		1-33219-118-0 AR 1 9606-
301 SHIM; TOP GEAR SHAFT
T=2.10 		1-33219-119-0 AR 1 9606-
301 SHIM; TOP GEAR SHAFT
T=2.05 		1-33219-120-0 AR 1 9606-
301 SHIM; TOP GEAR SHAFT
T=2.00 		1-33219-121-0 AR 1 9606-
301 SHIM; TOP GEAR SHAFT
T=1.95 		1-33219-122-0 AR 1 9606-
301 SHIM; TOP GEAR SHAFT
T=1.90 		1-33219-123-0 AR 1 9606-
301 SHIM; TOP GEAR SHAFT
T=1.85 		1-33219-124-0 AR 1 9606-
301 SHIM; TOP GEAR SHAFT
T=1.80 		1-33219-125-0 AR 1 9606-
301 SHIM; TOP GEAR SHAFT
T=1.75 		1-33219-126-0 AR 1 9606-
301 SHIM; TOP GEAR SHAFT
T=1.70 		1-33219-127-0 AR 1 9606-
301 SHIM; TOP GEAR SHAFT
T=1.65 		1-33219-128-0 AR 1 9606-
301 SHIM; TOP GEAR SHAFT
T=1.60 		1-33219-129-0 AR 1 9606-
301 SHIM; TOP GEAR SHAFT
T=1.55 		1-33219-130-0 AR 1 9606-
301 SHIM; TOP GEAR SHAFT
T=1.50 		1-33219-131-0 AR 1 9606-
301 SHIM; TOP GEAR SHAFT
T=1.45 		1-33219-132-0 AR 1 9606-
301 SHIM; TOP GEAR SHAFT
T=1.40 		1-33219-133-0 AR 1 9606-
301 SHIM; TOP GEAR SHAFT
T=1.35 		1-33219-134-0 AR 1 9606-
301 SHIM; TOP GEAR SHAFT
T=1.30 		1-33219-135-0 AR 1 9606-
301 SHIM; TOP GEAR SHAFT
T=1.25 		1-33219-136-0 AR 1 9606-
301 SHIM; TOP GEAR SHAFT
T=1.20 		1-33219-137-0 AR 1 9606-
301 SHIM; TOP GEAR SHAFT
T=1.15 		1-33219-138-0 AR 1 9606-
301 SHIM; TOP GEAR SHAFT
T=1.10 		1-33219-139-0 AR 1 9606-
301 SHIM; TOP GEAR SHAFT
T=1.05 		1-33219-140-0 AR 1 9606-
301 SHIM; TOP GEAR SHAFT
T=1.00 		1-33219-141-0 AR 1 9606-
301 SHIM; TOP GEAR SHAFT
T=0.95 		1-33219-142-0 AR 1 9606-
301 SHIM; TOP GEAR SHAFT
T=0.90 		1-33219-143-0 AR 1 9606-
303 GEAR; SPLITTER
POWER TAKE OFF-ZF TRANSMISSION<BDM> 		1-33219-245-0 01 1 9708-9905
303 GEAR; SPLITTER 1-33219-249-0 01 1 9906-
303 GEAR; SPLITTER 1-33219-157-0 01 1 9606-9707
303 GEAR; SPLITTER
EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> 		1-33219-157-0 01 1 9708-9905
304 BEARING; SPLITTER GEAR 1-33219-156-0 02 1 9606-9611
304 BEARING; SPLITTER GEAR 1-33219-238-0 01 1 9612-9707
304 BEARING; SPLITTER GEAR
EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> 		1-33219-238-0 02 1 9708-9905
305 CLUTCH; DOG,SPLITTER GEAR 1-33265-436-0 01 1 9606-
323 INSERT
(A) 		1-33263-027-0 09 1 9606-
323 INSERT
(B) 		1-33263-030-0 09 1 9606-
325 SHIM; COUNTER SHAFT BRG
T=3.05 		1-33319-108-0 AR 1 9606-
325 SHIM; COUNTER SHAFT BRG
T=3.00 		1-33319-109-0 AR 1 9606-
325 SHIM; COUNTER SHAFT BRG
T=2.95 		1-33319-110-0 AR 1 9606-
325 SHIM; COUNTER SHAFT BRG
T=2.90 		1-33319-111-0 AR 1 9606-
325 SHIM; COUNTER SHAFT BRG
T=2.85 		1-33319-112-0 AR 1 9606-
325 SHIM; COUNTER SHAFT BRG
T=2.80 		1-33319-113-0 AR 1 9606-
325 SHIM; COUNTER SHAFT BRG
T=2.75 		1-33319-114-0 AR 1 9606-
325 SHIM; COUNTER SHAFT BRG
T=2.70 		1-33319-115-0 AR 1 9606-
325 SHIM; COUNTER SHAFT BRG
T=2.65 		1-33319-116-0 AR 1 9606-
325 SHIM; COUNTER SHAFT BRG
T=2.60 		1-33319-117-0 AR 1 9606-
325 SHIM; COUNTER SHAFT BRG
T=2.55 		1-33319-118-0 AR 1 9606-
325 SHIM; COUNTER SHAFT BRG
T=2.50 		1-33319-119-0 AR 1 9606-
325 SHIM; COUNTER SHAFT BRG
T=2.45 		1-33319-120-0 AR 1 9606-
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33319-121-0 AR 1 9606-
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33319-122-0 AR 1 9606-
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33319-123-0 AR 1 9606-
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33319-124-0 AR 1 9606-
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33319-125-0 AR 1 9606-
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33319-126-0 AR 1 9606-
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33319-127-0 AR 1 9606-
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33319-128-0 AR 1 9606-
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33319-129-0 AR 1 9606-
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33319-130-0 AR 1 9606-
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33319-131-0 AR 1 9606-
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33319-132-0 AR 1 9606-
408 SPRING
(A) 		1-33269-038-0 09 1 9606-
408 SPRING
(B) 		1-33269-039-0 09 1 9606-
408 SPRING
(C) 		1-33269-042-0 09 1 9606-
434 GASKET; INPUTSHAFT 1-33219-116-0 01 1 9606-
435 PIPE; INPUTSHAFT 1-33219-114-0 01 1 9606-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
