4-30 — STEERING WHEEL AND COWL (#50641) — 49 parça

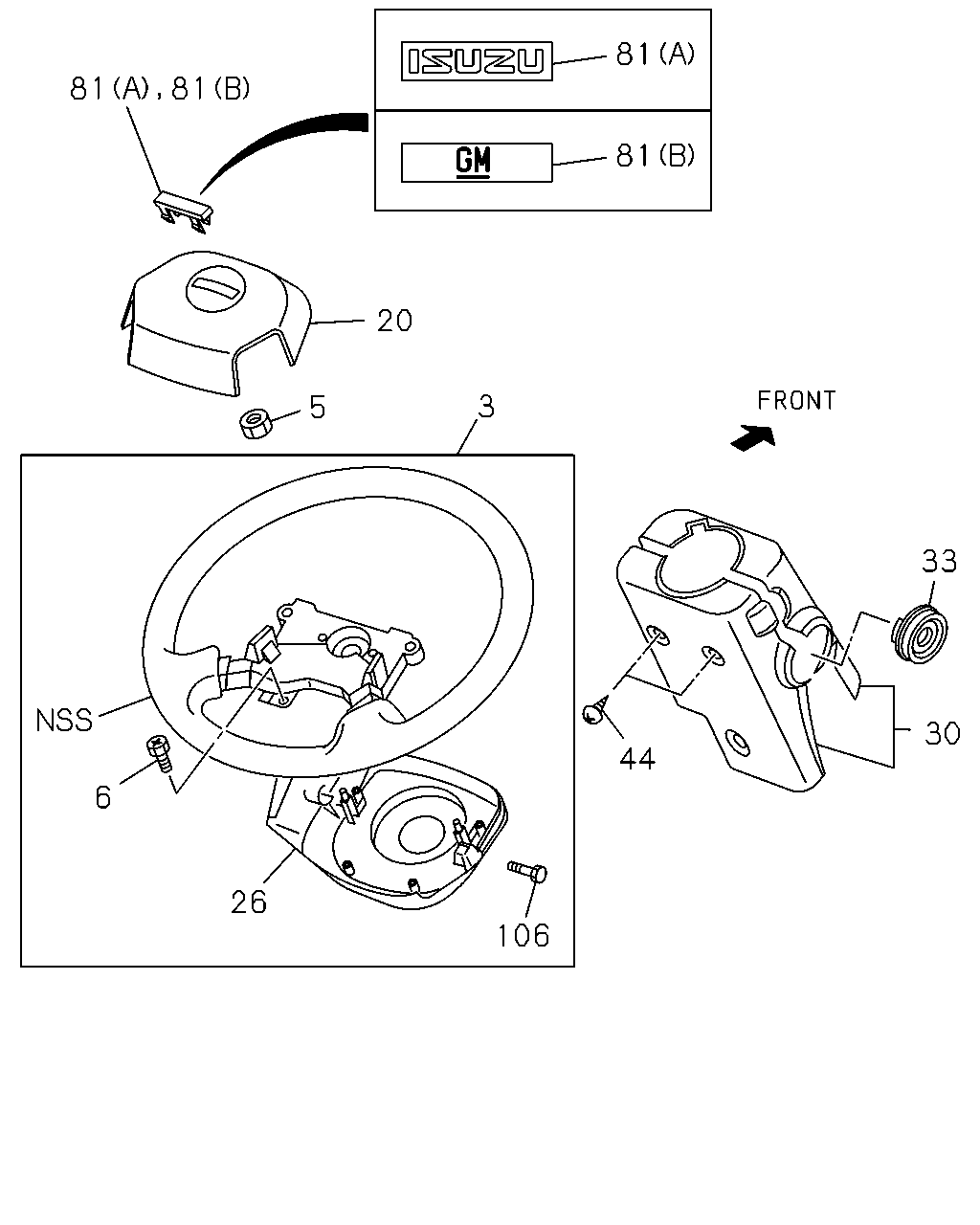

81 81 81 81 20 5 3 6 26 106 44 30 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	06.513 WHEEL; STRG SPECIAL PACKAGE<7BB> ISUZU BRAND<7WL> DARK GRAY	8-97465-649-2	01	1	1602-
3	06.513 WHEEL; STRG DARK GRAY	8-97412-556-1	01	1	1004-1601
3	06.513 WHEEL; STRG EXC. ISUZU BRAND<7WL> DARK GRAY	8-97412-556-1	01	1	1602-
3	06.513 WHEEL; STRG ISUZU BRAND<7WL> EXC. SPECIAL PACKAGE<7BB> DARK GRAY	8-97412-556-1	01	1	1602-
5	06.515 NUT; STRG WHEEL TO SHAFT M14	0-91111-514-0	01	1	1004-
6	02.820 SCREW; HORN SPR CONTACT M4X12	8-97167-588-0	04	1	1004-1601
6	02.820 SCREW; HORN SPR CONTACT EXC. ISUZU BRAND<7WL> M4X12	8-97167-588-0	04	1	1602-
6	02.820 SCREW; HORN SPR CONTACT ISUZU BRAND<7WL> EXC. SPECIAL PACKAGE<7BB> M4X12	8-97167-588-0	04	1	1602-
20	06.512 SHROUD; PAD,STRG WHEEL SPECIAL PACKAGE<7BB> ISUZU BRAND<7WL> DARK GRAY	8-97465-647-0	01	1	1602-
20	06.512 SHROUD; PAD,STRG WHEEL DARK GRAY	8-97405-985-1	01	1	1004-1601
20	06.512 SHROUD; PAD,STRG WHEEL EXC. ISUZU BRAND<7WL> DARK GRAY	8-97405-985-1	01	1	1602-
20	06.512 SHROUD; PAD,STRG WHEEL ISUZU BRAND<7WL> EXC. SPECIAL PACKAGE<7BB> DARK GRAY	8-97405-985-1	01	1	1602-
26	06.514 COVER; STRG WHEEL,LWR SPECIAL PACKAGE<7BB> ISUZU BRAND<7WL> DARK GRAY	8-97465-650-0	01	1	1602-
26	06.514 COVER; STRG WHEEL,LWR DARK GRAY	8-97409-275-2	01	1	1004-1601
26	06.514 COVER; STRG WHEEL,LWR EXC. ISUZU BRAND<7WL> DARK GRAY	8-97409-275-2	01	1	1602-
26	06.514 COVER; STRG WHEEL,LWR ISUZU BRAND<7WL> EXC. SPECIAL PACKAGE<7BB> DARK GRAY	8-97409-275-2	01	1	1602-
30	06.518 COWL; STEERING DARK GRAY	8-97405-356-5	01	1	1004-1110
30	06.518 COWL; STEERING DARK GRAY	8-97418-761-1	01	1	1111-
33	06.518 COVER; STRG COWL DARK GRAY	8-97409-495-0	01	1	1004-
44	06.514 SCREW; STRG COWL M5X12	0-38050-512-0	03	1	1004-
81	02.820 EMBLEM; STRG WHEEL SPECIAL PACKAGE<7BB> ISUZU BRAND<7WL> (A) DARK GRAY	8-97465-648-0	01	1	1602-
81	02.820 EMBLEM; STRG WHEEL ISUZU BRAND<7WL> (A) DARK GRAY	8-97405-986-0	01	1	1004-1601
81	02.820 EMBLEM; STRG WHEEL ISUZU BRAND<7WL> EXC. SPECIAL PACKAGE<7BB> (A) DARK GRAY	8-97405-986-0	01	1	1602-
81	02.820 EMBLEM; STRG WHEEL EXC. ISUZU BRAND<7WL> (B) DARK GRAY	8-97405-987-0	01	1	1004-
106	05.453 BOLT; TORX	8-98231-397-0	02	1	1004-1601
106	05.453 BOLT; TORX EXC. ISUZU BRAND<7WL>	8-98231-397-0	02	1	1602-
106	05.453 BOLT; TORX ISUZU BRAND<7WL> EXC. SPECIAL PACKAGE<7BB>	8-98231-397-0	02	1	1602-

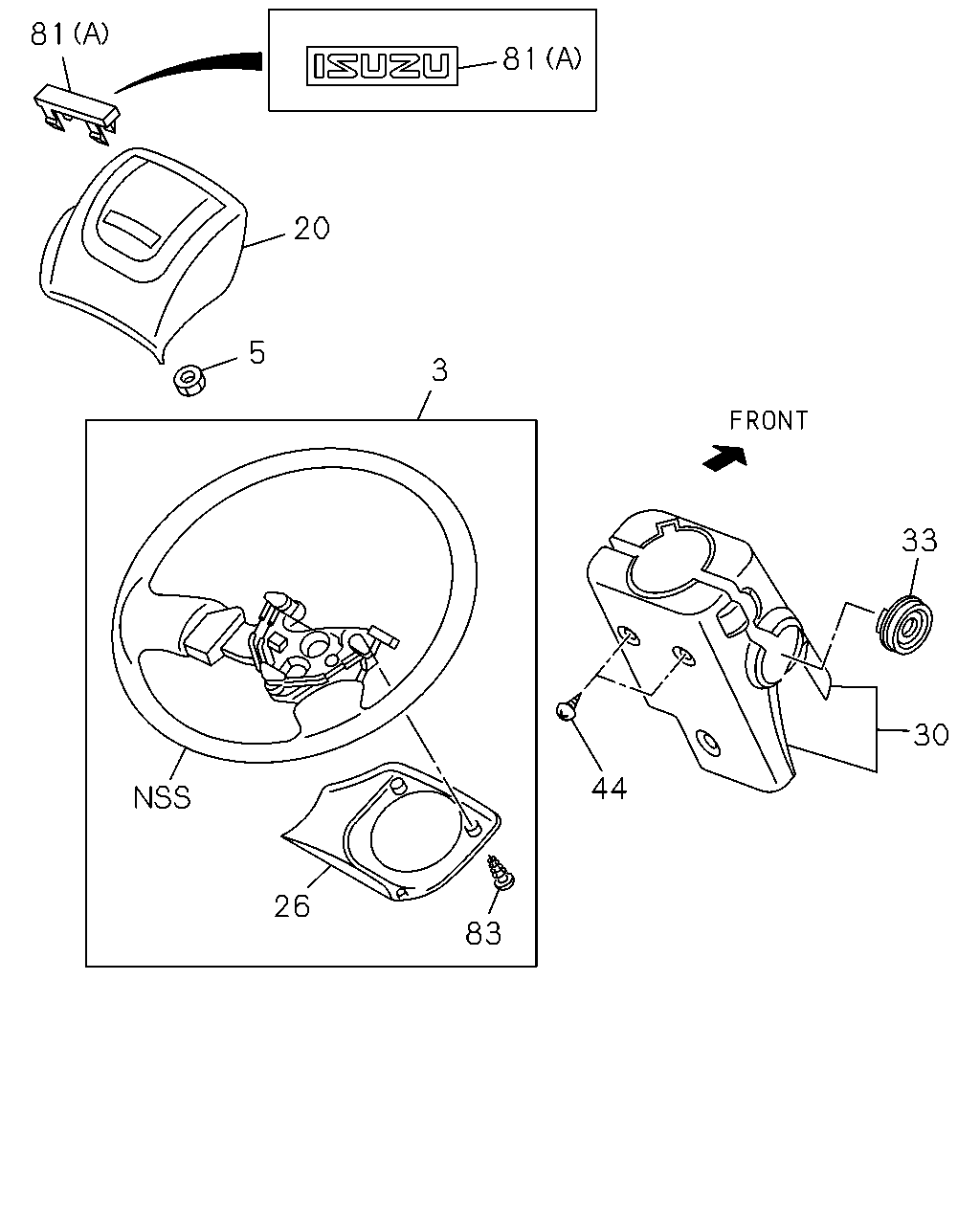

81 20 5 3 33 30 44 83 26 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	06.513 WHEEL; STRG SPECIAL PACKAGE<7BB> ISUZU BRAND<7WL> DARK GRAY	8-97465-649-2	01	1	1602-
3	06.513 WHEEL; STRG DARK GRAY	8-97412-556-1	01	1	1004-1601
3	06.513 WHEEL; STRG EXC. ISUZU BRAND<7WL> DARK GRAY	8-97412-556-1	01	1	1602-
3	06.513 WHEEL; STRG ISUZU BRAND<7WL> EXC. SPECIAL PACKAGE<7BB> DARK GRAY	8-97412-556-1	01	1	1602-
5	06.515 NUT; STRG WHEEL TO SHAFT M14	0-91111-514-0	01	1	1004-
20	06.512 SHROUD; PAD,STRG WHEEL SPECIAL PACKAGE<7BB> ISUZU BRAND<7WL> DARK GRAY	8-97465-647-0	01	1	1602-
20	06.512 SHROUD; PAD,STRG WHEEL DARK GRAY	8-97405-985-1	01	1	1004-1601
20	06.512 SHROUD; PAD,STRG WHEEL EXC. ISUZU BRAND<7WL> DARK GRAY	8-97405-985-1	01	1	1602-
20	06.512 SHROUD; PAD,STRG WHEEL ISUZU BRAND<7WL> EXC. SPECIAL PACKAGE<7BB> DARK GRAY	8-97405-985-1	01	1	1602-
26	06.514 COVER; STRG WHEEL,LWR SPECIAL PACKAGE<7BB> ISUZU BRAND<7WL> DARK GRAY	8-97465-650-0	01	1	1602-
26	06.514 COVER; STRG WHEEL,LWR DARK GRAY	8-97409-275-2	01	1	1004-1601
26	06.514 COVER; STRG WHEEL,LWR EXC. ISUZU BRAND<7WL> DARK GRAY	8-97409-275-2	01	1	1602-
26	06.514 COVER; STRG WHEEL,LWR ISUZU BRAND<7WL> EXC. SPECIAL PACKAGE<7BB> DARK GRAY	8-97409-275-2	01	1	1602-
30	06.518 COWL; STEERING DARK GRAY	8-97405-356-5	01	1	1004-1110
30	06.518 COWL; STEERING DARK GRAY	8-97418-761-1	01	1	1111-
33	06.518 COVER; STRG COWL DARK GRAY	8-97409-495-0	01	1	1004-
44	06.514 SCREW; STRG COWL M5X12	0-38050-512-0	03	1	1004-
81	02.820 EMBLEM; STRG WHEEL SPECIAL PACKAGE<7BB> ISUZU BRAND<7WL> (A) DARK GRAY	8-97465-648-0	01	1	1602-
81	02.820 EMBLEM; STRG WHEEL ISUZU BRAND<7WL> (A) DARK GRAY	8-97405-986-0	01	1	1004-1601
81	02.820 EMBLEM; STRG WHEEL ISUZU BRAND<7WL> EXC. SPECIAL PACKAGE<7BB> (A) DARK GRAY	8-97405-986-0	01	1	1602-
81	02.820 EMBLEM; STRG WHEEL EXC. ISUZU BRAND<7WL> (B) DARK GRAY	8-97405-987-0	01	1	1004-
83	06.514 SCREW; LWR COVER TO WHEEL SPECIAL PACKAGE<7BB> ISUZU BRAND<7WL> 09.242 M4X10 TAPPING	0-71240-410-0	03	1	1602-
