◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51245 - NPR CNG-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#50637) — 65 parça

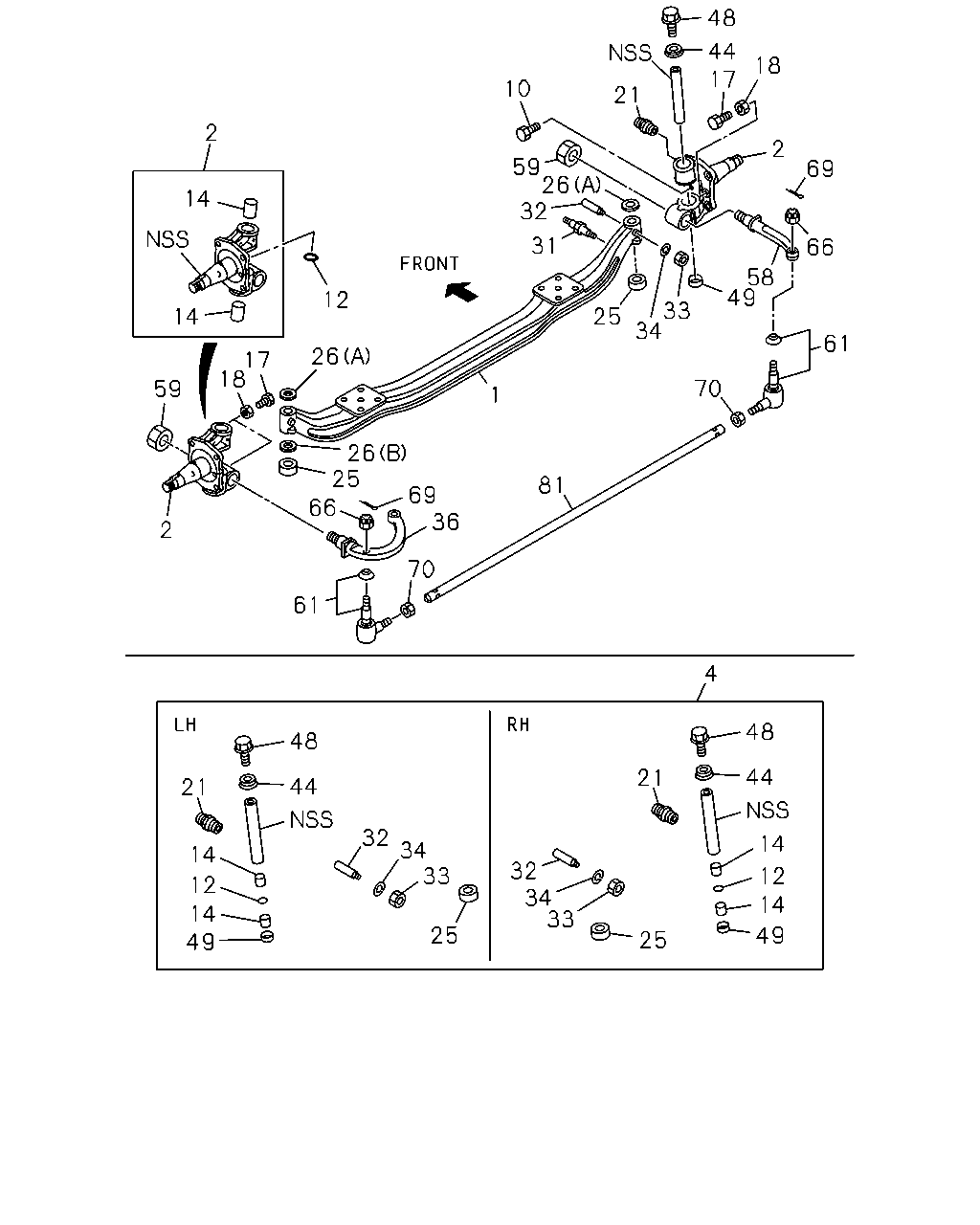

çizim 101448
48 44 17 18 10 21 2 2 59 26 32 69 14 31 66 58 49 12 33 34 25 14 61 26 17 18 70 59 1 26 25 81 69 36 66 2 70 61 4 48 48 44 21 44 21 32 14 34 33 14 32 34 33 12 12 14 14 49 25 49 25
BalonParca AdiParca NoAdetTipApplied Date
1 06.008 AXLE; FRT
FRONT WIDE TREAD<7GV> 		8-98141-521-1 01 1 1004-
1 06.008 AXLE; FRT
EXC. FRONT WIDE TREAD<7GV> 		8-98038-384-3 01 1 1004-
2 06.020 KNUCKLE; FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98009-941-1 01 1 1004-
2 06.020 KNUCKLE; FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98009-942-1 01 1 1004-
2 06.020 KNUCKLE; FRT AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97261-549-2 01 1 1004-
2 06.020 KNUCKLE; FRT AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97261-550-2 01 1 1004-
4 06.203 KING PIN KIT 5-87832-219-2 01 1 1004-1402
4 06.203 KING PIN KIT 5-87832-220-2 01 1 1403-
10 06.009 PLUG; PLATE,KNUCKLE 8-97360-117-0 01 1 1004-
12 06.021 GASKET; KNUCKLE 8-98084-500-0 02 1 1004-
14 06.021 BUSHING; KING PIN
DAIDO WO/NOTCH 		8-94107-672-3 04 1 1004-
17 06.009 BOLT; STOPPER KNUCKLE
M12X24 EYE-BOLT 		8-97360-059-0 03 1 1004-
18 06.216 NUT; STOPPER BOLT,KNUCKLE
04.439 M12 		0-91111-512-0 03 1 1004-
21 06.166 NIPPLE; GREASE,KING PIN
05.601 M6 STRAIGHT 		0-90301-406-0 04 1 1004-
25 06.210 BEARING; THRUST,KING PIN
06.021 OD=54 ID=30.2 T=13.8 		8-94248-883-2 02 1 1004-1402
25 06.210 BEARING; THRUST,KING PIN
06.021 OD=54 ID=30.2 T=13.8 		8-94248-883-3 01 1 1403-
25 06.210 BEARING; THRUST,KING PIN
OD=51.6 ID=30.5 T=15.6 		8-97141-943-1 01 1 1403-
26 06.022 SHIM; KING PIN,BRG
(A) T=0.50 		8-94162-574-0 AR 1 1004-
26 06.022 SHIM; KING PIN,BRG
(A) T=0.55 		8-94162-575-0 AR 1 1004-
26 06.022 SHIM; KING PIN,BRG
(A) T=0.60 		8-94162-576-0 AR 1 1004-
26 06.022 SHIM; KING PIN,BRG
(A) T=0.65 		8-94162-577-0 AR 1 1004-
26 06.022 SHIM; KING PIN,BRG
05.460 (B) T=1.95 		8-94168-490-0 02 1 1004-1402
26 06.022 SHIM; KING PIN,BRG
05.460 (B) T=1.95 		8-94168-490-0 01 1 1403-
26 06.022 SHIM; KING PIN,BRG
(A) T=0.70 		8-94174-352-0 AR 1 1004-
26 06.022 SHIM; KING PIN,BRG
(A) T=0.80 		8-94174-354-0 AR 1 1004-
26 06.022 SHIM; KING PIN,BRG
(A) T=0.90 		8-94174-356-0 AR 1 1004-
31 07.347 PIN; S/ABS,LWR
EXC. FRONT WIDE TREAD<7GV> 		8-97145-460-0 02 1 1004-
32 06.216 BOLT; KEY,KING PIN 8-97141-945-2 02 1 1004-
33 06.216 NUT; KEY BOLT
00.833 M10 		0-91110-510-0 02 1 1004-
34 06.216 WASHER; LK,KEY BOLT
06.606 ID=10.2 		0-91510-510-0 02 1 1004-
36 06.103 ARM; KNUCKLE
FRONT WIDE TREAD<7GV> 		8-98135-280-2 01 1 1004-
36 06.103 ARM; KNUCKLE
EXC. FRONT WIDE TREAD<7GV> 		8-97210-771-5 01 1 1004-
44 06.225 COVER; KING PIN
OD=36 		8-97360-023-0 02 1 1004-
48 06.225 BOLT; COVER
M10X12 FLANGE 		0-28051-012-0 02 1 1004-
49 06.225 CAP; KNUCKLE 8-97360-024-0 02 1 1004-
58 06.103 ARM; TIE ROD 8-97147-636-2 01 1 1004-
59 06.104 NUT; TIE ROD ARM 8-97360-123-0 02 1 1004-
61 06.233 ROD END; TIE ROD 8-97142-100-1 01 1 1004-1310
61 06.233 ROD END; TIE ROD 8-97107-348-2 01 1 1311-
61 06.233 ROD END; TIE ROD 8-97142-101-1 01 1 1004-1310
61 06.233 ROD END; TIE ROD 8-97107-349-2 01 1 1311-
66 06.234 NUT; TIE ROD END
M16 SLOTTED 		0-91116-516-0 02 1 1004-1204
66 06.234 NUT; TIE ROD END
06.216 M16 SLOTTED 		8-98049-689-0 02 1 1205-
69 06.255 PIN; SPLIT,TIE ROD END
OD=3.7 L=20 		0-81124-020-0 02 1 1004-
70 06.234 NUT; TIE ROD END
M20 LH THREAD 		8-94254-726-0 01 1 1004-1310
70 06.234 NUT; TIE ROD END
M20 LH THREAD 		8-94254-726-0 01 1 1311-
70 06.234 NUT; TIE ROD END
M20 RH THREAD 		8-98043-530-0 01 1 1004-
81 06.230 ROD; TIE
FRONT WIDE TREAD<7GV> 		8-98137-615-0 01 1 1004-
81 06.230 ROD; TIE
EXC. FRONT WIDE TREAD<7GV> 		8-97061-869-0 01 1 1004-

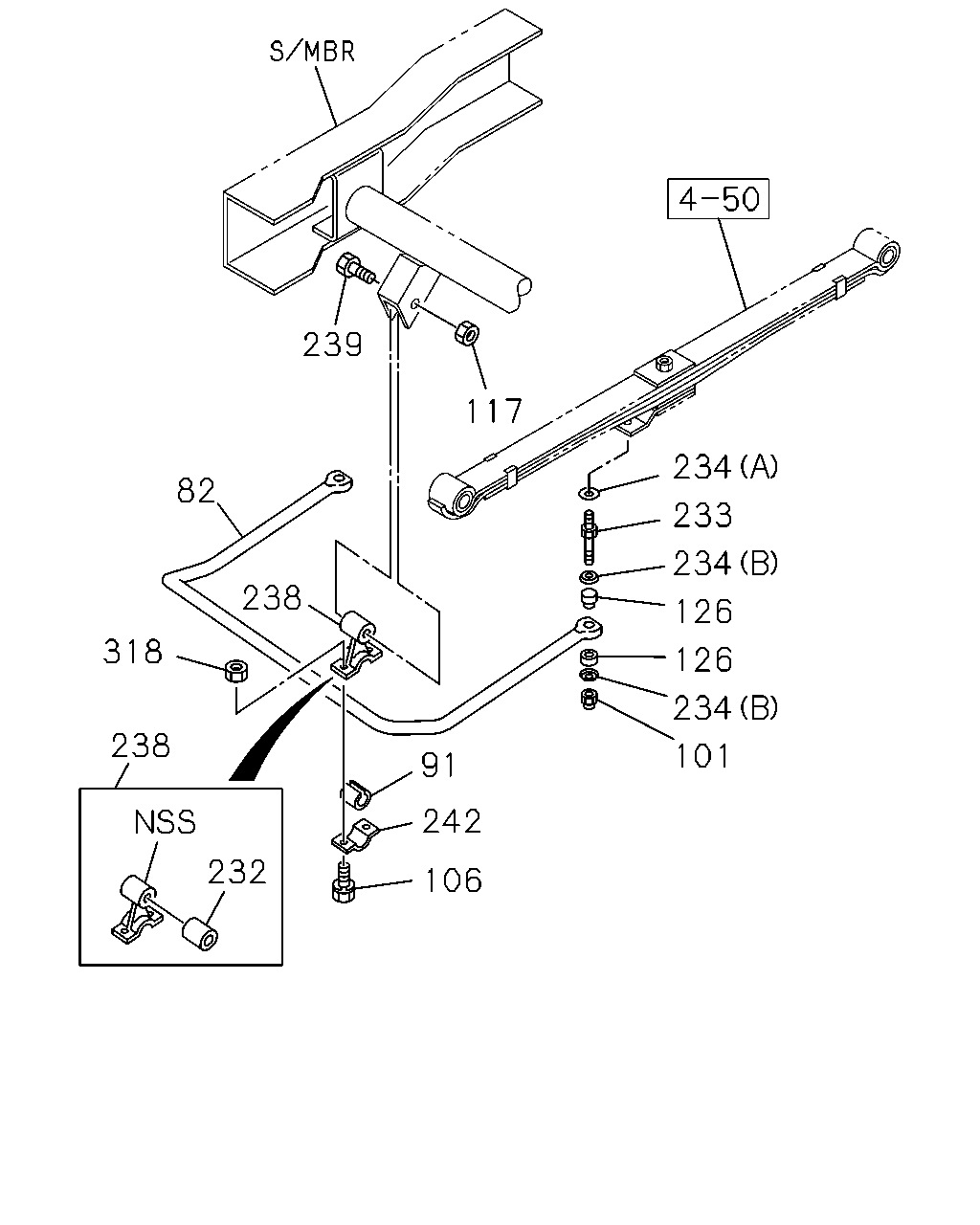

çizim 292069
239 82 238 318 238 91 242 106 232 101 126 234 126 233 234 234 117
BalonParca AdiParca NoAdetTipApplied Date
82 07.241 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 		8-98150-721-0 01 1 1206-
82 07.241 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV> 		8-98006-957-0 01 1 1206-
91 07.243 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 		8-94440-790-0 02 1 1206-
91 07.243 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV> 		8-94342-187-0 02 1 1206-
101 07.242 NUT; STAB BAR
FRONT STABILIZER SHAFT<F59> M12 LOCK NUT 		0-91370-012-0 02 1 1206-
106 06.216 BOLT; CAP FIX
FRONT STABILIZER SHAFT<F59> 00.029 M10X25 FLANGE 		0-28651-025-0 04 1 1206-
117 06.174 NUT; STAB BAR BUSHING
FRONT STABILIZER SHAFT<F59> M14 FLANGE 		8-97360-124-0 02 1 1206-
126 07.243 RUBBER; MTG,STAB BAR
FRONT STABILIZER SHAFT<F59> 		8-94342-083-0 04 1 1206-
232 07.243 BUSHING; LINK ROD
FRONT STABILIZER SHAFT<F59> 		8-97239-911-0 02 1 1206-
233 07.242 STUD; STABILIZER
FRONT STABILIZER SHAFT<F59> 		8-97360-120-0 02 1 1206-
234 07.242 WASHER; STAB
FRONT STABILIZER SHAFT<F59> 05.605 (A) ID=14.2 		0-91510-514-0 02 1 1206-
234 07.242 WASHER; STAB
FRONT STABILIZER SHAFT<F59> (B) ID=12.5 		8-97360-055-0 04 1 1206-
238 07.240 ROD LINK ASM; STABILIZER,FRT
FRONT STABILIZER SHAFT<F59> 		8-97239-907-0 02 1 1206-
239 07.242 BOLT; LINK ROD
FRONT STABILIZER SHAFT<F59> M14X70 FLANGE 		0-28851-470-0 02 1 1206-
242 07.242 CAP; LINK ROD
FRONT STABILIZER SHAFT<F59> 		8-94178-430-2 02 1 1206-
318 07.242 NUT; CAP FIX
FRONT STABILIZER SHAFT<F59> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1206-
