Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#50635) — 233 parça

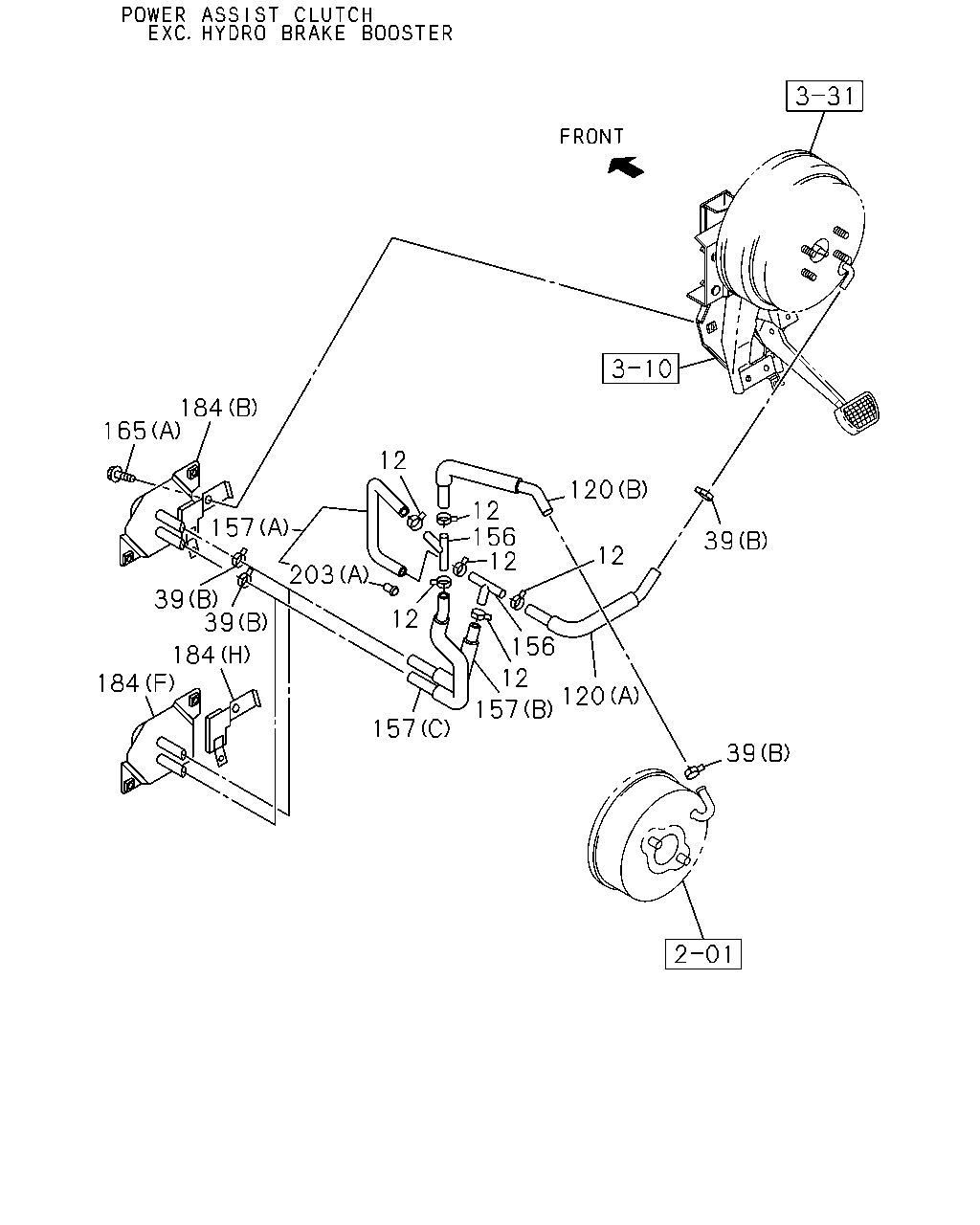

184 165 12 120 12 156 12 157 39 12 203 39 39 12 156 184 184 12 120 157 157 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5	8-98008-097-0	02	1	1004-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5	8-98008-097-0	02	1	1004-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	1004-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5	8-98008-097-0	06	1	1004-
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1004-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1004-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	1004-
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	1004-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	1004-1205
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	1004-1205
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	04	1	1004-
39	04.681 CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5	8-94426-597-0	06	1	1004-1005
39	04.681 CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17	8-98173-762-1	06	1	1006-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98060-857-3	01	1	1004-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98060-856-2	01	1	1004-
156	04.931 JOINT; 3 WAY POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.681	8-98035-106-0	02	1	1004-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98060-860-2	01	1	1004-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98060-858-1	01	1	1004-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98060-859-2	01	1	1004-
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1004-
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1004-
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (H)	8-98255-541-0	01	1	1312-
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (F)	8-98156-346-0	01	1	1004-1012
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (F)	8-98183-468-1	01	1	1101-
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98089-763-0	01	1	1004-1012
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-465-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (F)	8-98255-536-0	01	1	1312-
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (G)	8-98156-316-0	01	1	1004-1012
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (G)	8-98183-474-1	01	1	1101-
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98089-764-0	01	1	1004-1012
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-471-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (G)	8-98255-538-0	01	1	1312-
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (H)	8-98156-526-0	01	1	1004-
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E)	8-98156-347-0	01	1	1004-1012
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E)	8-98183-469-1	01	1	1101-
184	04.685 BRACKET; UNION FIX (A)	8-98039-684-3	01	1	1004-1204
184	04.685 BRACKET; UNION FIX (A)	8-98211-373-0	01	1	1205-
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (D)	8-98150-760-0	01	1	1004-1012
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (D)	8-98183-466-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-537-0	01	1	1312-
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	1004-
203	04.690 VALVE; CHECK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-94386-540-0	01	1	1004-

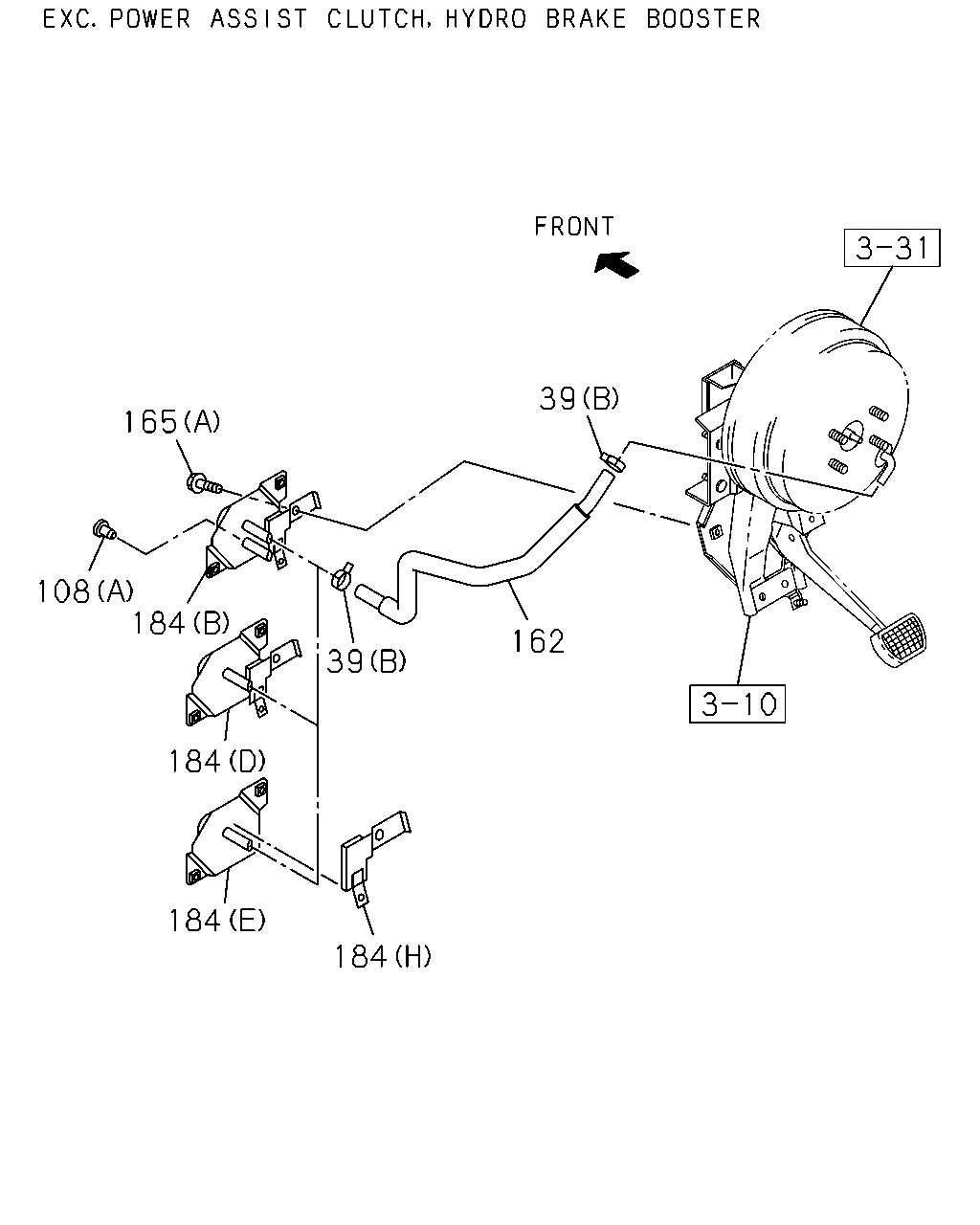

39 165 108 184 39 162 184 184 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1004-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1004-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	1004-
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	1004-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	1004-1205
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	1004-1205
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	04	1	1004-
39	04.681 CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5	8-94426-597-0	06	1	1004-1005
39	04.681 CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17	8-98173-762-1	06	1	1006-
108	04.931 GROMMET; PIPE HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	1004-
108	04.931 GROMMET; PIPE 02.343 (B) ID=17	8-94128-319-2	01	1	1004-
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ)	8-98034-154-2	01	1	1004-
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1004-
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1004-
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (H)	8-98255-541-0	01	1	1312-
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (F)	8-98156-346-0	01	1	1004-1012
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (F)	8-98183-468-1	01	1	1101-
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98089-763-0	01	1	1004-1012
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-465-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (F)	8-98255-536-0	01	1	1312-
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (G)	8-98156-316-0	01	1	1004-1012
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (G)	8-98183-474-1	01	1	1101-
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98089-764-0	01	1	1004-1012
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-471-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (G)	8-98255-538-0	01	1	1312-
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (H)	8-98156-526-0	01	1	1004-
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E)	8-98156-347-0	01	1	1004-1012
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E)	8-98183-469-1	01	1	1101-
184	04.685 BRACKET; UNION FIX (A)	8-98039-684-3	01	1	1004-1204
184	04.685 BRACKET; UNION FIX (A)	8-98211-373-0	01	1	1205-
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (D)	8-98150-760-0	01	1	1004-1012
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (D)	8-98183-466-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-537-0	01	1	1312-

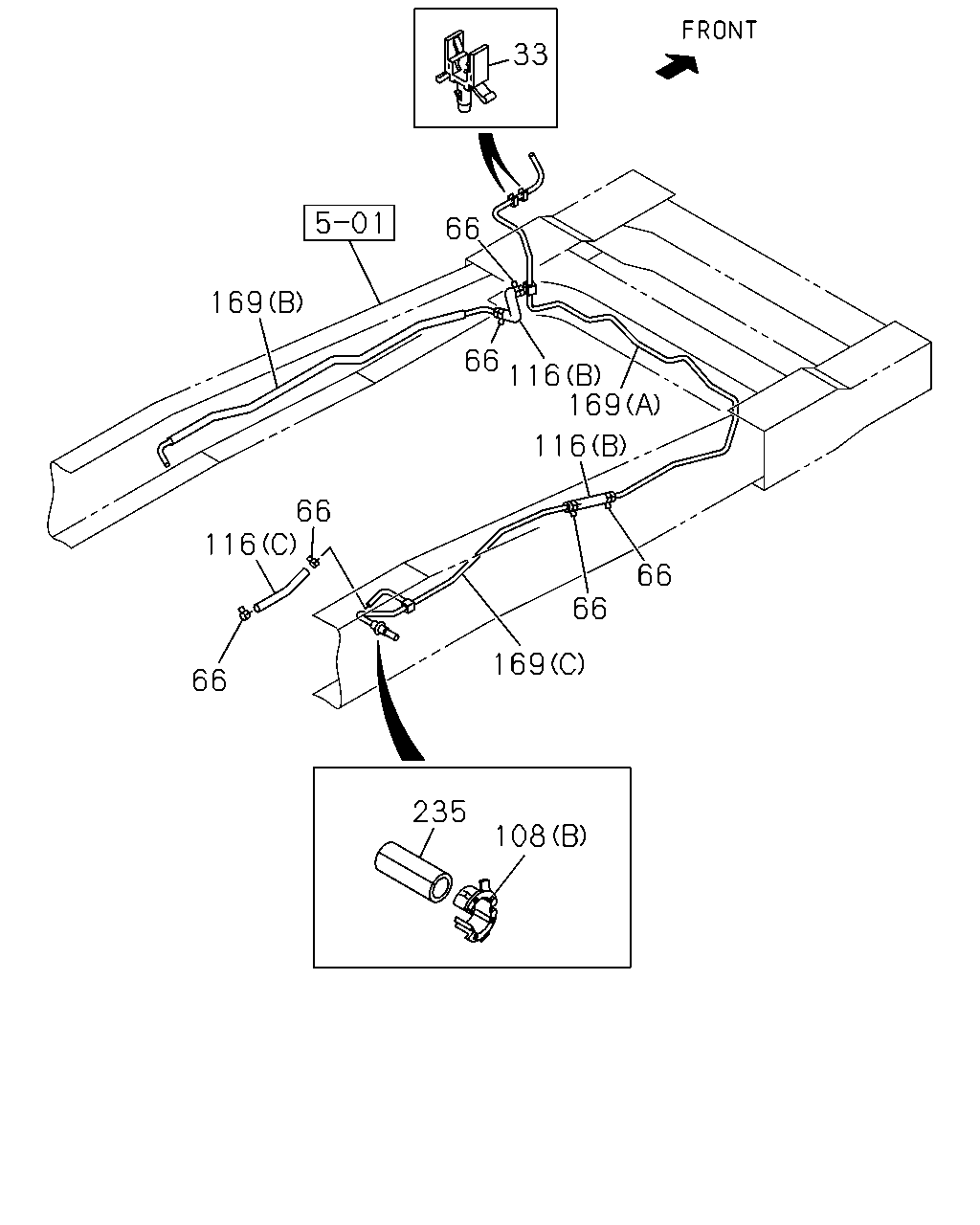

33 66 169 66 116 169 116 66 116 66 66 169 66 235 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	04.930 CLIP; VAC PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) ID=10 H=40	8-94462-219-0	02	1	1004-
33	04.930 CLIP; VAC PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) ID=10 H=40	8-94462-219-0	02	1	1004-
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1004-
66	04.930 CLIP; VAC HOSE,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 ID=16	8-98008-098-0	02	1	1004-
66	04.930 CLIP; VAC HOSE,M/VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 ID=16	8-98008-098-0	02	1	1004-
108	04.931 GROMMET; PIPE HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	1004-
108	04.931 GROMMET; PIPE 02.343 (B) ID=17	8-94128-319-2	01	1	1004-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-000-1	01	1	1004-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	1004-
116	04.931 HOSE; VAC,M/VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (B) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	1004-
116	04.931 HOSE; VAC,M/VAC (C)	8-98124-755-1	01	1	1004-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98113-001-0	01	1	1004-
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98082-404-1	01	1	1004-
169	04.930 PIPE; VAC,BOOSTER SIDE EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98082-404-1	01	1	1004-
169	04.930 PIPE; VAC,BOOSTER SIDE EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98132-683-1	01	1	1004-
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (C)	8-98132-683-1	01	1	1004-
169	04.930 PIPE; VAC,BOOSTER SIDE HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (B)	8-98082-405-1	01	1	1004-
235	04.931 RUBBER; SUPPORT,PIPE 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1004-

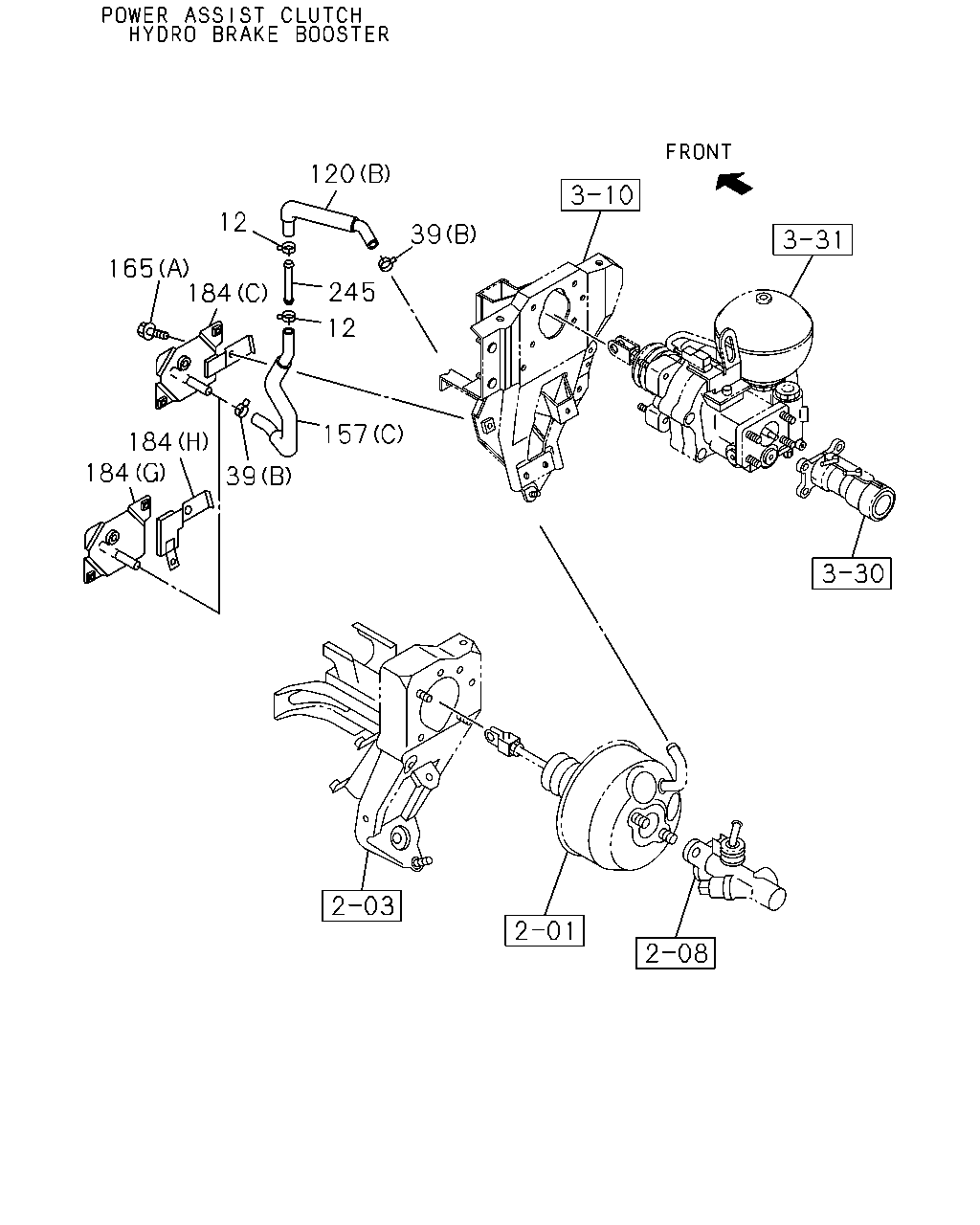

120 12 39 165 184 245 12 157 184 184 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5	8-98008-097-0	02	1	1004-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5	8-98008-097-0	02	1	1004-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	1004-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5	8-98008-097-0	06	1	1004-
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1004-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1004-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	1004-
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	1004-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	1004-1205
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	1004-1205
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	04	1	1004-
39	04.681 CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5	8-94426-597-0	06	1	1004-1005
39	04.681 CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17	8-98173-762-1	06	1	1006-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98060-857-3	01	1	1004-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98060-856-2	01	1	1004-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98060-860-2	01	1	1004-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98060-858-1	01	1	1004-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98060-859-2	01	1	1004-
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1004-
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1004-
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (H)	8-98255-541-0	01	1	1312-
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (F)	8-98156-346-0	01	1	1004-1012
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (F)	8-98183-468-1	01	1	1101-
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98089-763-0	01	1	1004-1012
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-465-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (F)	8-98255-536-0	01	1	1312-
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (G)	8-98156-316-0	01	1	1004-1012
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (G)	8-98183-474-1	01	1	1101-
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98089-764-0	01	1	1004-1012
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-471-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (G)	8-98255-538-0	01	1	1312-
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (H)	8-98156-526-0	01	1	1004-
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E)	8-98156-347-0	01	1	1004-1012
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E)	8-98183-469-1	01	1	1101-
184	04.685 BRACKET; UNION FIX (A)	8-98039-684-3	01	1	1004-1204
184	04.685 BRACKET; UNION FIX (A)	8-98211-373-0	01	1	1205-
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (D)	8-98150-760-0	01	1	1004-1012
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (D)	8-98183-466-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-537-0	01	1	1312-
245	04.931 JOINT; 2 WAY POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.681	8-98048-075-0	01	1	1004-

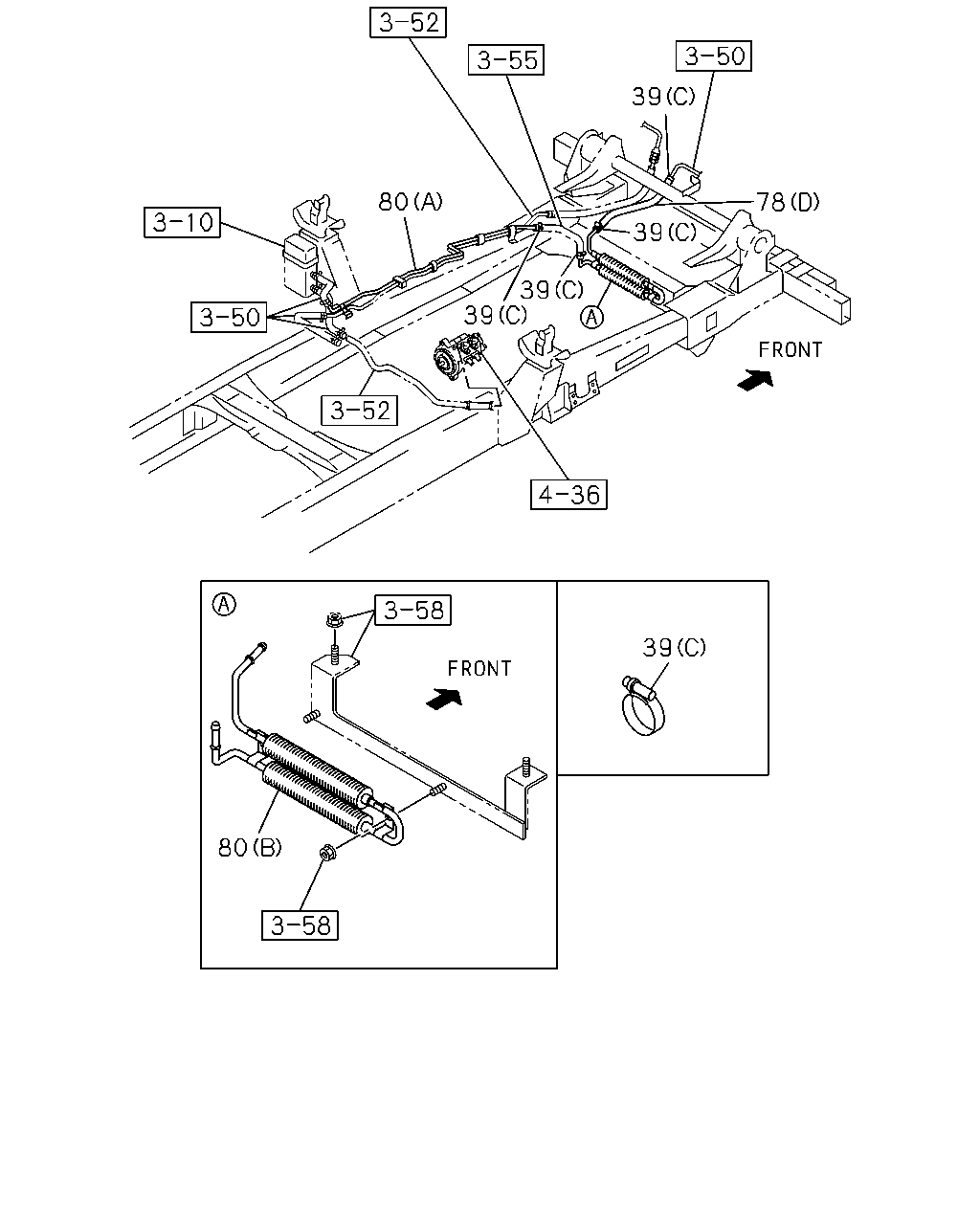

39 80 78 39 39 39 39 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1004-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1004-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	1004-
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	1004-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	1004-1205
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	1004-1205
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	04	1	1004-
39	04.681 CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5	8-94426-597-0	06	1	1004-1005
39	04.681 CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17	8-98173-762-1	06	1	1006-
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98081-681-2	01	1	1004-
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98081-681-2	01	1	1004-
78	04.931 HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (D)	8-98136-614-0	01	1	1004-
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98034-104-4	01	1	1004-1103
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98189-106-0	01	1	1104-
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98162-691-0	01	1	1004-
80	04.930 PIPE; VAC,ENG SIDE HYDRO BRAKE BOOSTER(7QQ) (B)	8-98039-753-0	01	1	1004-
80	04.930 PIPE; VAC,ENG SIDE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98097-788-0	01	1	1004-

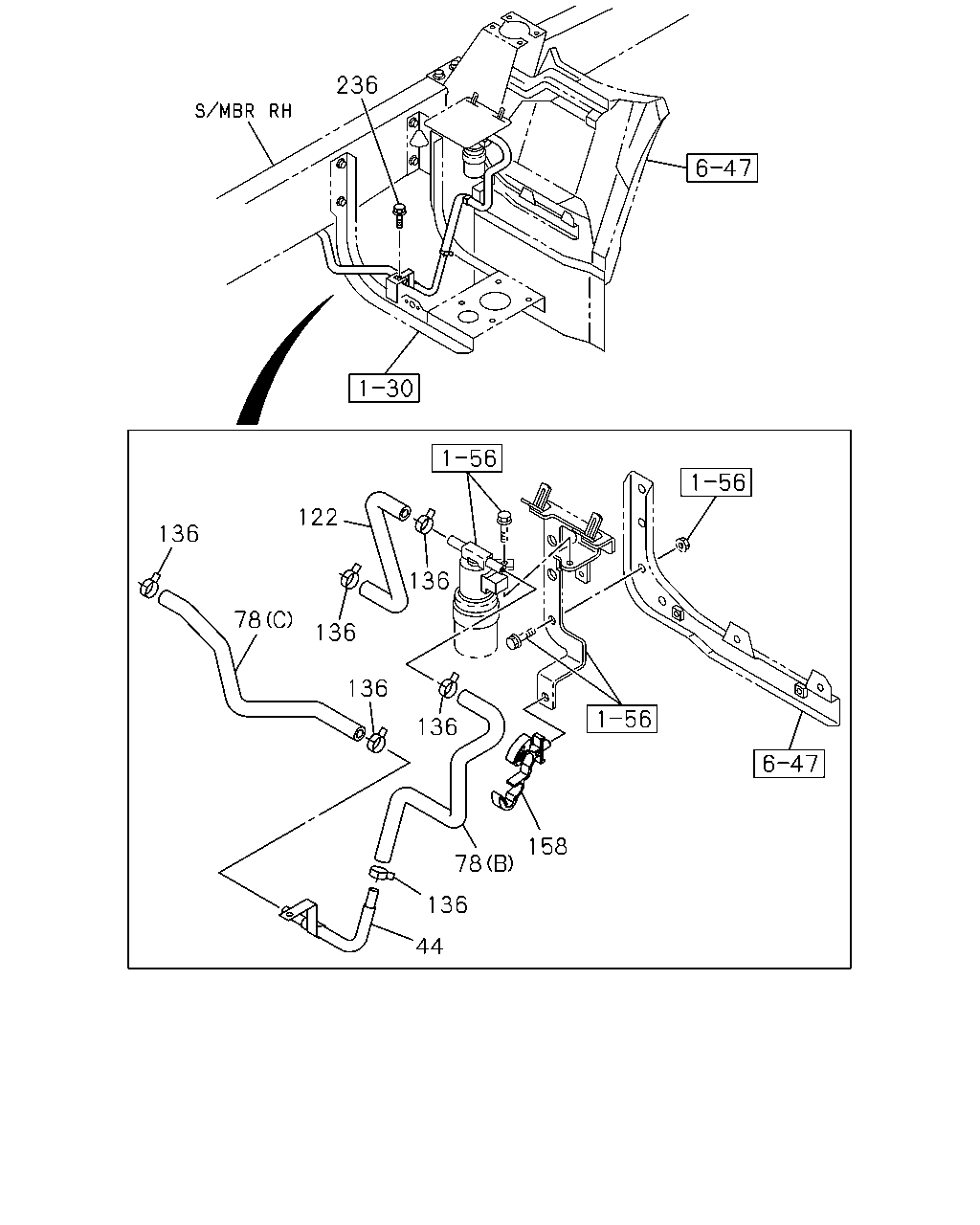

236 122 136 136 78 136 136 136 158 78 136 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	04.930 PIPE; VAC,MAG VLV	8-98034-281-1	01	1	1004-
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98081-681-2	01	1	1004-
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98081-681-2	01	1	1004-
78	04.931 HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (D)	8-98136-614-0	01	1	1004-
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98034-104-4	01	1	1004-1103
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98189-106-0	01	1	1104-
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98162-691-0	01	1	1004-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98034-103-2	01	1	1004-1103
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98189-104-0	01	1	1104-
136	04.681 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	06	1	1004-
158	04.681 CLIP; HOSE 02.559 ID=14-20	8-97061-603-0	01	1	1004-
236	04.930 BOLT; PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1004-

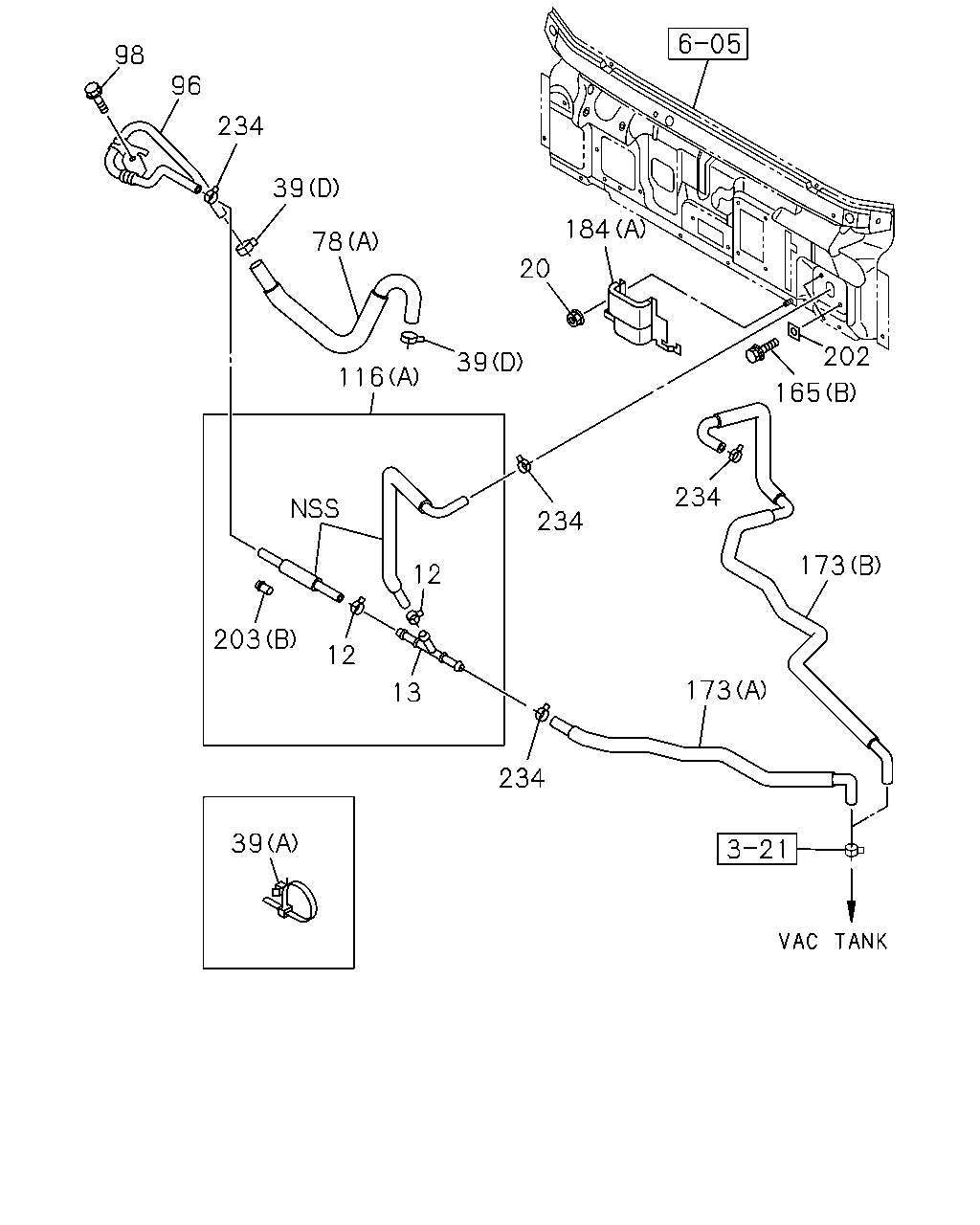

98 96 234 39 184 78 20 202 39 116 165 234 234 173 12 203 12 173 13 234 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5	8-98008-097-0	02	1	1004-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5	8-98008-097-0	02	1	1004-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	1004-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5	8-98008-097-0	06	1	1004-
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ)	8-98035-106-0	01	1	1004-
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	1004-
20	04.686 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	1004-
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1004-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1004-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	1004-
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	1004-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	1004-1205
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	1004-1205
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	04	1	1004-
39	04.681 CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5	8-94426-597-0	06	1	1004-1005
39	04.681 CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17	8-98173-762-1	06	1	1006-
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98081-681-2	01	1	1004-
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98081-681-2	01	1	1004-
78	04.931 HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (D)	8-98136-614-0	01	1	1004-
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98034-104-4	01	1	1004-1103
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98189-106-0	01	1	1104-
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98162-691-0	01	1	1004-
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ)	8-98082-321-0	01	1	1004-
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98082-322-0	01	1	1004-
98	04.931 BOLT; VAC PIPE FIX POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1004-
98	04.931 BOLT; VAC PIPE FIX 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1004-
98	04.931 BOLT; VAC PIPE FIX HYDRO BRAKE BOOSTER(7QQ) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1004-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-000-1	01	1	1004-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	1004-
116	04.931 HOSE; VAC,M/VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (B) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	1004-
116	04.931 HOSE; VAC,M/VAC (C)	8-98124-755-1	01	1	1004-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98113-001-0	01	1	1004-
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1004-
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1004-
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98047-184-2	01	1	1004-
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98031-774-1	01	1	1004-
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (H)	8-98255-541-0	01	1	1312-
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (F)	8-98156-346-0	01	1	1004-1012
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (F)	8-98183-468-1	01	1	1101-
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98089-763-0	01	1	1004-1012
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-465-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (F)	8-98255-536-0	01	1	1312-
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (G)	8-98156-316-0	01	1	1004-1012
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (G)	8-98183-474-1	01	1	1101-
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98089-764-0	01	1	1004-1012
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-471-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (G)	8-98255-538-0	01	1	1312-
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (H)	8-98156-526-0	01	1	1004-
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E)	8-98156-347-0	01	1	1004-1012
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E)	8-98183-469-1	01	1	1101-
184	04.685 BRACKET; UNION FIX (A)	8-98039-684-3	01	1	1004-1204
184	04.685 BRACKET; UNION FIX (A)	8-98211-373-0	01	1	1205-
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (D)	8-98150-760-0	01	1	1004-1012
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (D)	8-98183-466-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-537-0	01	1	1312-
202	04.686 SEAL 08.845	8-97856-616-0	02	1	1004-
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	1004-
203	04.690 VALVE; CHECK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-94386-540-0	01	1	1004-
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16	8-94238-568-0	03	1	1004-
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16	8-94238-568-0	03	1	1004-
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16	8-94238-568-0	04	1	1004-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
