40 |
03.022 BELT; SUPPORT,FUEL TANK
COUNTRY UZBEKISTAN<CL4>
03.023
|
8-98046-440-0 |
04 |
1 |
1410- |
| |
42 |
03.023 NUT; SUPPORT BELT
COUNTRY UZBEKISTAN<CL4>
04.634
M10 LOCK NUT FLANGE
|
0-91380-010-0 |
04 |
1 |
1410- |
| |
43 |

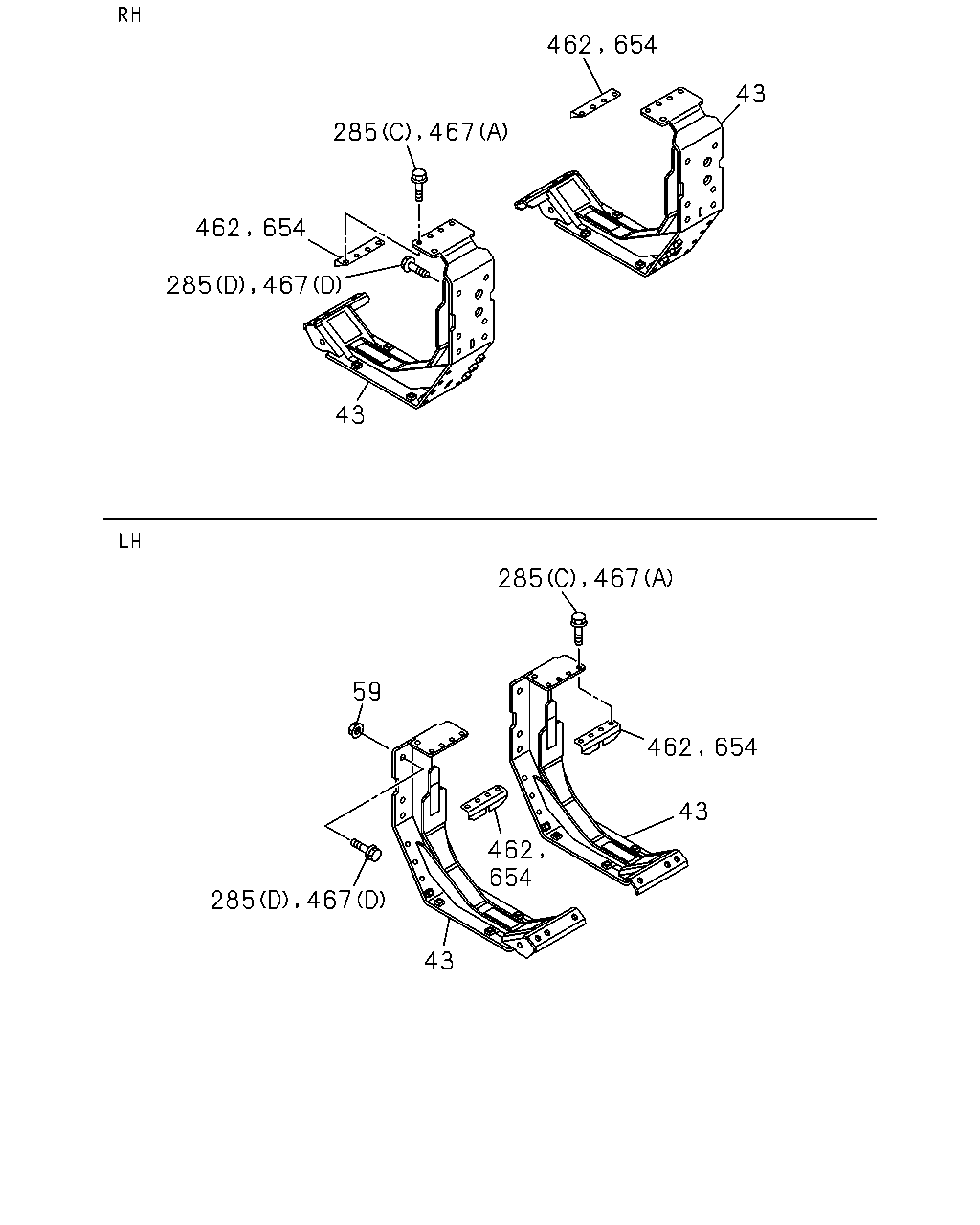

03.015 BRACKET; FUEL TANK
FRONT
|
8-98046-443-3 |
01 |
1 |
1004-1409 |
| |
43 |
03.015 BRACKET; FUEL TANK
EXC. COUNTRY UZBEKISTAN<CL4>
FRONT
|
8-98046-443-3 |
01 |
1 |
1410- |
| |
43 |
03.015 BRACKET; FUEL TANK
REAR
|
8-98046-445-3 |
01 |
1 |
1004-1409 |
| |
43 |
03.015 BRACKET; FUEL TANK
EXC. COUNTRY UZBEKISTAN<CL4>
REAR
|
8-98046-445-3 |
01 |
1 |
1410- |
| |
43 |
03.015 BRACKET; FUEL TANK
FRONT
|
8-98114-212-0 |
01 |
1 |
1004-1409 |
| |
43 |
03.015 BRACKET; FUEL TANK
EXC. COUNTRY UZBEKISTAN<CL4>
FRONT
|
8-98114-212-0 |
01 |
1 |
1410- |
| |
43 |
03.015 BRACKET; FUEL TANK
REAR
|
8-98114-213-0 |
01 |
1 |
1004-1409 |
| |
43 |
03.015 BRACKET; FUEL TANK
EXC. COUNTRY UZBEKISTAN<CL4>
REAR
|
8-98114-213-0 |
01 |
1 |
1410- |
| |
44 |
03.023 BAND; FUEL TANK
|
8-98046-440-0 |
04 |
1 |
1004-1409 |
| |
44 |
03.023 BAND; FUEL TANK
EXC. COUNTRY UZBEKISTAN<CL4>
|
8-98046-440-0 |
04 |
1 |
1410- |
| |
57 |
03.015 FASTENER; FUEL TANK PROTECTOR
COUNTRY UZBEKISTAN<CL4>
03.602
|
8-97372-006-0 |
06 |
1 |
1410- |
| |
59 |
03.023 NUT; FUEL TANK
00.785
M16
|
0-91111-516-0 |
01 |
1 |
1004-1409 |
| |
59 |
03.023 NUT; FUEL TANK
EXC. COUNTRY UZBEKISTAN<CL4>
00.785
M16
|
0-91111-516-0 |
01 |
1 |
1410- |
| |
59 |
03.023 NUT; FUEL TANK
03.162
M10 FLANGE
|
0-91180-110-0 |
20 |
1 |
1004-1012 |
| |
59 |
03.023 NUT; FUEL TANK
04.085
M10 FLANGE
|
0-91180-210-0 |
20 |
1 |
1101- |
| |
64 |
03.023 BOLT; FUEL TANK
02.277
M10X35 FLANGE
|
0-28651-035-0 |
20 |
1 |
1004-1012 |
| |
64 |
03.023 BOLT; FUEL TANK
M10X35 FLANGE
|
0-28661-035-0 |
20 |
1 |
1101- |
| |
181 |
03.001 PLUG; CONNECTOR
|
8-97638-677-0 |
01 |
1 |
1006-1205 |
| |
232 |
03.023 BOLT; COVER
COUNTRY UZBEKISTAN<CL4>
01.531
(B)
M8X20 FLANGE
|
0-28650-820-0 |
34 |
1 |
1510- |
| |
232 |
03.023 BOLT; COVER
COUNTRY UZBEKISTAN<CL4>
02.343
(A)
M8X16 FLANGE
|
0-28050-816-0 |
24 |
1 |
1410- |
| |
232 |
03.023 BOLT; COVER
COUNTRY UZBEKISTAN<CL4>
01.531
(B)
M8X20 FLANGE
|
0-28650-820-0 |
40 |
1 |
1410-1509 |
| |
232 |
03.023 BOLT; COVER
COUNTRY UZBEKISTAN<CL4>
01.531
(B)
M8X20 FLANGE
|
0-28650-820-0 |
06 |
1 |
1510- |
| |
239 |
03.110 SUPPORT; FUEL TANK
COUNTRY UZBEKISTAN<CL4>
03.015
(C) FRONT
|
8-98046-443-3 |
01 |
1 |
1410- |
| |
239 |
03.110 SUPPORT; FUEL TANK
COUNTRY UZBEKISTAN<CL4>
03.015
(D) REAR
|
8-98046-445-3 |
01 |
1 |
1410- |
| |
239 |
03.110 SUPPORT; FUEL TANK
COUNTRY UZBEKISTAN<CL4>
03.015
(E) FRONT
|
8-98114-212-0 |
01 |
1 |
1410- |
| |
239 |
03.110 SUPPORT; FUEL TANK
COUNTRY UZBEKISTAN<CL4>
03.015
(F) REAR
|
8-98114-213-0 |
01 |
1 |
1410- |
| |
239 |
03.110 SUPPORT; FUEL TANK
(B)
|
8-98046-486-0 |
02 |
1 |
1004-1409 |
| |
239 |
03.110 SUPPORT; FUEL TANK
EXC. COUNTRY UZBEKISTAN<CL4>
(B)
|
8-98046-486-0 |
02 |
1 |
1410- |
| |
239 |
03.110 SUPPORT; FUEL TANK
(A)
|
8-98046-487-0 |
02 |
1 |
1004-1409 |
| |
239 |
03.110 SUPPORT; FUEL TANK
EXC. COUNTRY UZBEKISTAN<CL4>
(A)
|
8-98046-487-0 |
02 |
1 |
1410- |
| |
271 |
03.162 CONNECTOR; 2 WAY,FUEL HOSE
|
8-98120-764-0 |
01 |
1 |
1004- |
| |
285 |
03.162 BOLT; BRKT
COUNTRY UZBEKISTAN<CL4>
01.531
(B)
M8X20 FLANGE
|
0-28650-820-0 |
08 |
1 |
1410- |
| |
285 |
03.162 BOLT; BRKT
COUNTRY UZBEKISTAN<CL4>
06.216
(C)
M8X25 FLANGE
|
0-28650-825-0 |
08 |
1 |
1410- |
| |
285 |
03.162 BOLT; BRKT
COUNTRY UZBEKISTAN<CL4>
00.029
(D)
M10X30 FLANGE
|
0-28651-030-0 |
08 |
1 |
1410- |
| |
285 |
03.162 BOLT; BRKT
02.277
(A)
M10X35 FLANGE
|
0-28651-035-0 |
01 |
1 |
1004-1012 |
| |
285 |
03.162 BOLT; BRKT
03.023
(A)
M10X35 FLANGE
|
0-28661-035-0 |
01 |
1 |
1101- |
| |
299 |
03.162 BRACKET; FUEL FILTER
(B)
|
8-98122-627-0 |
01 |
1 |
1004-1205 |
| |
299 |
03.162 BRACKET; FUEL FILTER
(C)
|
8-98200-240-0 |
01 |
1 |
1206-1409 |
| |
299 |
03.162 BRACKET; FUEL FILTER
EXC. COUNTRY UZBEKISTAN<CL4>
(C)
|
8-98200-240-0 |
01 |
1 |
1410- |
| |
299 |
03.162 BRACKET; FUEL FILTER
(A)
|
8-98164-987-0 |
01 |
1 |
1004- |
| |
316 |
03.163 PROTECTOR; EDGE
16.742
SERVICED BY L=120 L=100
|
1-73948-004-0 |
01 |
1 |
1004-1409 |
| |
316 |
03.163 PROTECTOR; EDGE
EXC. COUNTRY UZBEKISTAN<CL4>
16.742
SERVICED BY L=120 L=100
|
1-73948-004-0 |
01 |
1 |
1410- |
| |
425 |
03.890 GASKET; ADAPTER
(A)
|
8-97638-671-0 |
01 |
1 |
1006-1205 |
| |
425 |
03.890 GASKET; ADAPTER
03.023
(A)
|
8-98177-921-0 |
01 |
1 |
1206-1409 |
| |
425 |
03.890 GASKET; ADAPTER
EXC. COUNTRY UZBEKISTAN<CL4>
03.023
(A)
|
8-98177-921-0 |
01 |
1 |
1410- |
| |
425 |
03.890 GASKET; ADAPTER
(B)
|
8-97638-672-0 |
01 |
1 |
1006-1205 |
| |
426 |
03.162 WASHER; PL
04.866
ID=21
|
0-91610-520-0 |
01 |
1 |
1004-1205 |
| |
467 |
03.163 BOLT
EXC. COUNTRY UZBEKISTAN<CL4>
06.216
(A)
M8X25 FLANGE
|
0-28650-825-0 |
18 |
1 |
1410- |
| |
467 |
03.163 BOLT
EXC. COUNTRY UZBEKISTAN<CL4>
00.029
(D)
M10X30 FLANGE
|
0-28651-030-0 |
24 |
1 |
1410- |
| |
467 |
03.163 BOLT
02.343
(B)
M8X16 FLANGE
|
0-28050-816-0 |
24 |
1 |
1004-1409 |
| |
467 |
03.163 BOLT
EXC. COUNTRY UZBEKISTAN<CL4>
02.343
(B)
M8X16 FLANGE
|
0-28050-816-0 |
24 |
1 |
1410- |
| |
467 |
03.163 BOLT
01.531
(C)
M8X20 FLANGE
|
0-28650-820-0 |
65 |
1 |
1004-1205 |
| |
467 |
03.163 BOLT
01.531
(C)
M8X20 FLANGE
|
0-28650-820-0 |
63 |
1 |
1206-1409 |
| |
467 |
03.163 BOLT
EXC. COUNTRY UZBEKISTAN<CL4>
01.531
(C)
M8X20 FLANGE
|
0-28650-820-0 |
63 |
1 |
1410- |
| |
467 |
03.163 BOLT
06.216
(A)
M8X25 FLANGE
|
0-28650-825-0 |
16 |
1 |
1004-1205 |
| |
467 |
03.163 BOLT
06.216
(A)
M8X25 FLANGE
|
0-28650-825-0 |
18 |
1 |
1206-1409 |
| |
467 |
03.163 BOLT
COUNTRY UZBEKISTAN<CL4>
06.216
(A)
M8X25 FLANGE
|
0-28650-825-0 |
08 |
1 |
1410- |
| |
467 |
03.163 BOLT
00.029
(D)
M10X30 FLANGE
|
0-28651-030-0 |
24 |
1 |
1004-1409 |
| |
467 |
03.163 BOLT
COUNTRY UZBEKISTAN<CL4>
00.029
(D)
M10X30 FLANGE
|
0-28651-030-0 |
08 |
1 |
1410- |
| |
468 |
03.162 NUT
00.785
(A)
M16
|
0-91111-516-0 |
01 |
1 |
1004-1409 |
| |
468 |
03.162 NUT
EXC. COUNTRY UZBEKISTAN<CL4>
00.785
(A)
M16
|
0-91111-516-0 |
01 |
1 |
1410- |
| |
468 |
03.162 NUT
04.634
(B)
M10 LOCK NUT FLANGE
|
0-91380-010-0 |
04 |
1 |
1004-1409 |
| |
468 |
03.162 NUT
EXC. COUNTRY UZBEKISTAN<CL4>
04.634
(B)
M10 LOCK NUT FLANGE
|
0-91380-010-0 |
04 |
1 |
1410- |
| |
505 |
03.163 BRACKET
COUNTRY UZBEKISTAN<CL4>
03.015
|
8-98046-481-0 |
04 |
1 |
1410- |
| |
507 |
03.163 ROD
(B)
|
8-98046-474-0 |
01 |
1 |
1004- |
| |
507 |
03.163 ROD
(B)
|
8-98046-475-0 |
01 |
1 |
1004- |
| |
507 |
03.163 ROD
(A)
|
8-98046-476-0 |
01 |
1 |
1004- |
| |
507 |
03.163 ROD
(A)
|
8-98046-477-0 |
01 |
1 |
1004- |
| |
508 |
03.163 STOPPER
COUNTRY UZBEKISTAN<CL4>
03.001
|
8-98135-892-0 |
01 |
1 |
1410- |
| |
508 |
03.163 STOPPER
COUNTRY UZBEKISTAN<CL4>
03.001
|
8-98135-893-0 |
01 |
1 |
1410- |
| |
512 |
03.023 CAP; CONNECTOR
|
8-98207-581-0 |
01 |
1 |
1206-1409 |
| |
512 |
03.023 CAP; CONNECTOR
EXC. COUNTRY UZBEKISTAN<CL4>
|
8-98207-581-0 |
01 |
1 |
1410- |
| |
533 |
03.001 BOLT; STOPPER
COUNTRY UZBEKISTAN<CL4>
01.531
(A)
M8X20 FLANGE
|
0-28650-820-0 |
14 |
1 |
1410- |
| |
533 |
03.001 BOLT; STOPPER
COUNTRY UZBEKISTAN<CL4>
00.029
(B)
M10X30 FLANGE
|
0-28651-030-0 |
08 |
1 |
1410- |
| |
538 |

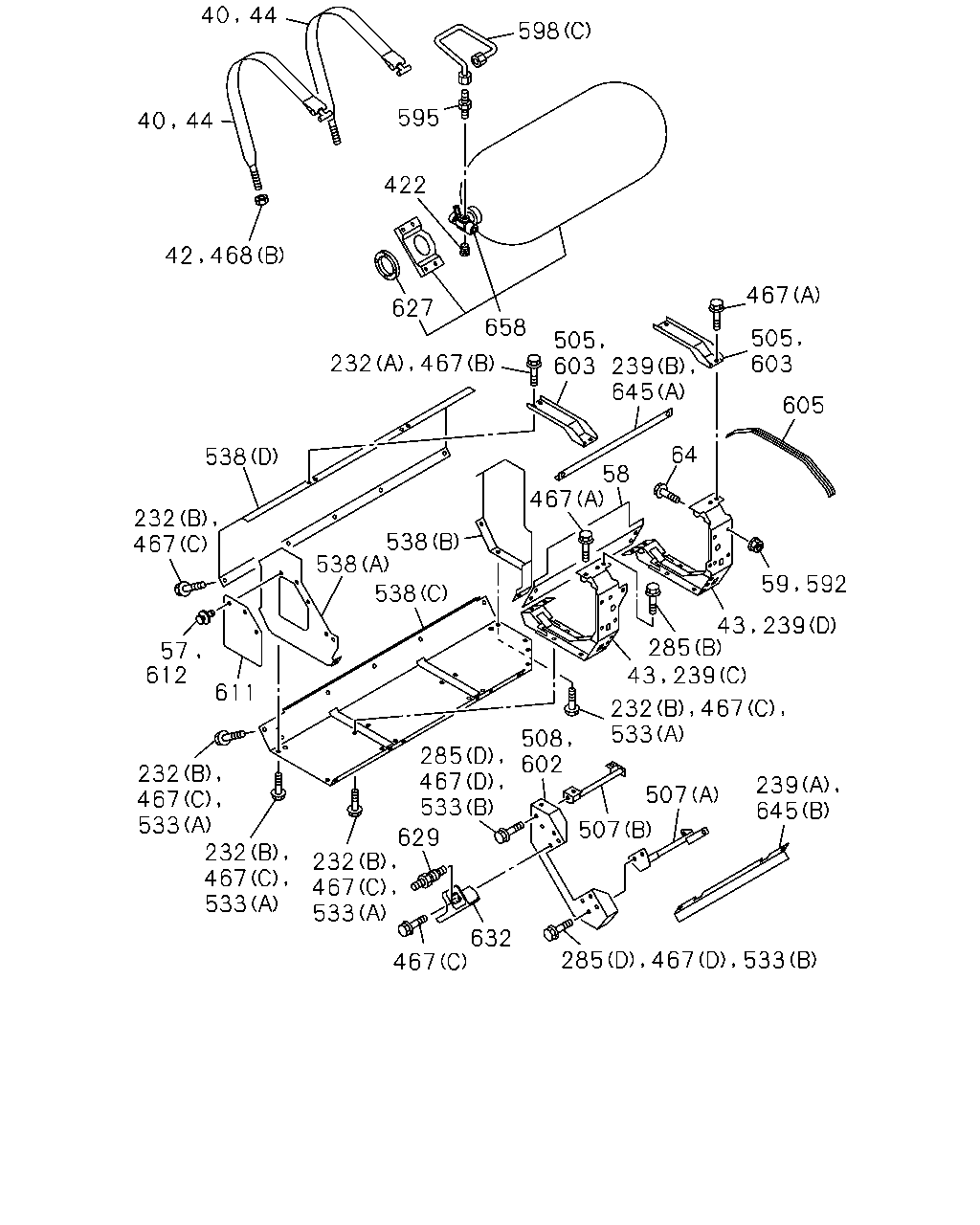

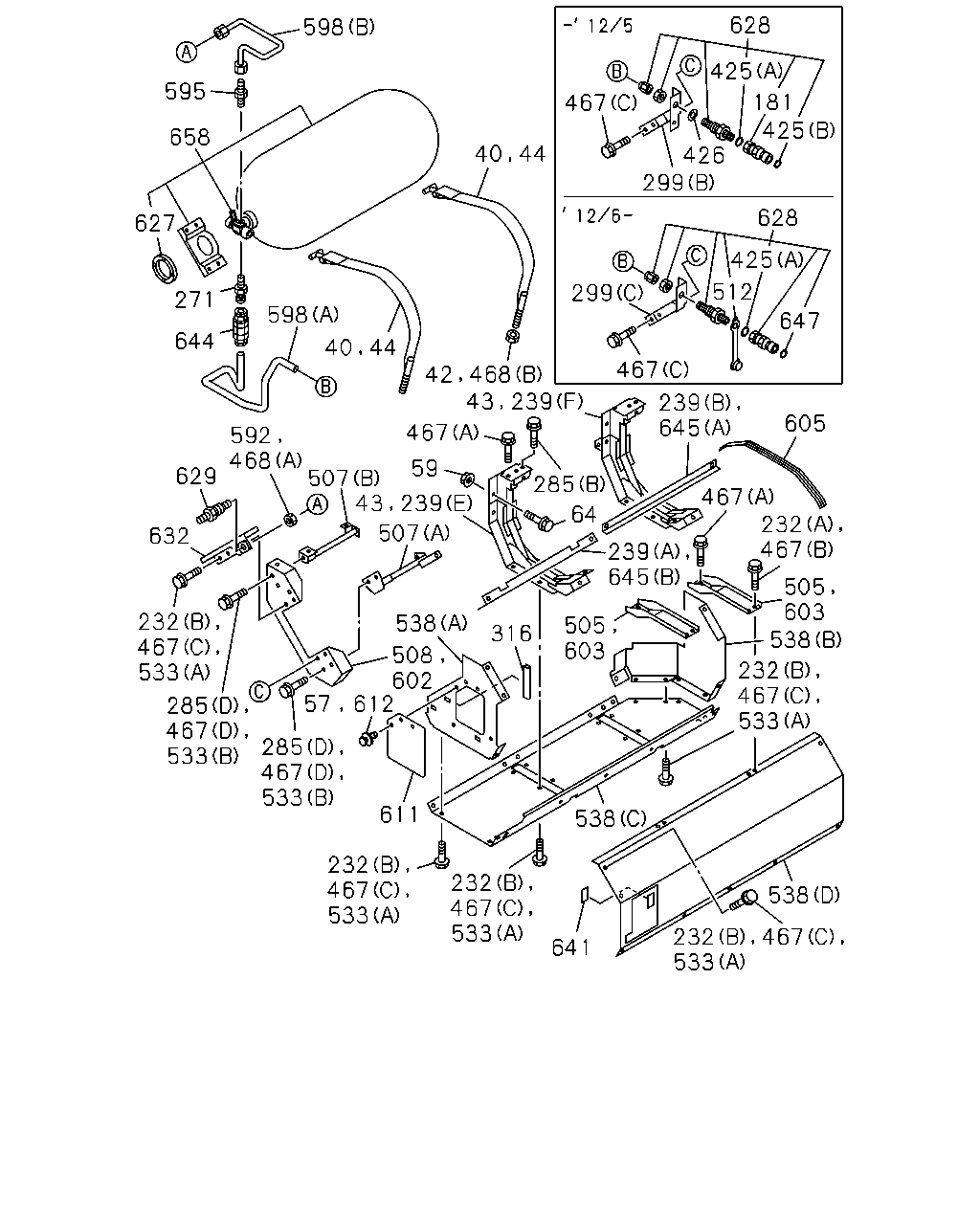

03.008 COVER; FUEL TANK
(D)
|
8-98046-455-0 |
01 |
1 |
1004- |
| |
538 |
03.008 COVER; FUEL TANK
(D)
L=2273
|
8-98046-456-0 |
01 |
1 |
1004- |
| |
538 |
03.008 COVER; FUEL TANK
(C)
|
8-98046-460-0 |
01 |
1 |
1004- |
| |
538 |
03.008 COVER; FUEL TANK
(C)
|
8-98046-461-0 |
01 |
1 |
1004- |
| |
538 |
03.008 COVER; FUEL TANK
(B)
|
8-98081-694-0 |
01 |
1 |
1004- |
| |
538 |
03.008 COVER; FUEL TANK
(B)
|
8-98081-695-0 |
01 |
1 |
1004- |
| |
538 |
03.008 COVER; FUEL TANK
(A)
|
8-98126-118-1 |
01 |
1 |
1004- |
| |
538 |
03.008 COVER; FUEL TANK
(A)
|
8-98142-615-0 |
01 |
1 |
1004- |
| |
592 |
03.023 NUT; PIPE
COUNTRY UZBEKISTAN<CL4>
00.785
M16
|
0-91111-516-0 |
02 |
1 |
1410- |
| |
595 |
03.162 UNION; 2WAY
|
8-97226-436-1 |
02 |
1 |
1004- |
| |
598 |
03.163 PIPE; FUEL,CNG
(C)
|
8-98120-791-0 |
01 |
1 |
1004- |
| |
598 |
03.163 PIPE; FUEL,CNG
(B)
|
8-98120-792-0 |
01 |
1 |
1004- |
| |
598 |
03.163 PIPE; FUEL,CNG
(A)
|
8-98144-789-0 |
01 |
1 |
1004-1205 |
| |
598 |
03.163 PIPE; FUEL,CNG
(A)
|
8-98212-399-0 |
01 |
1 |
1206-1409 |
| |
598 |
03.163 PIPE; FUEL,CNG
EXC. COUNTRY UZBEKISTAN<CL4>
(A)
|
8-98212-399-0 |
01 |
1 |
1410- |
| |
602 |
03.001 PLATET; STOPPER
|
8-98135-892-0 |
01 |
1 |
1004-1409 |
| |
602 |
03.001 PLATET; STOPPER
EXC. COUNTRY UZBEKISTAN<CL4>
|
8-98135-892-0 |
01 |
1 |
1410- |
| |
602 |
03.001 PLATET; STOPPER
|
8-98135-893-0 |
01 |
1 |
1004-1409 |
| |
602 |
03.001 PLATET; STOPPER
EXC. COUNTRY UZBEKISTAN<CL4>
|
8-98135-893-0 |
01 |
1 |
1410- |
| |
603 |
03.015 STAY; COVER
|
8-98046-481-0 |
04 |
1 |
1004-1409 |
| |
603 |
03.015 STAY; COVER
EXC. COUNTRY UZBEKISTAN<CL4>
|
8-98046-481-0 |
04 |
1 |
1410- |
| |
605 |
03.164 GASKET; FUEL TANK
L=960
|
1-22553-044-0 |
02 |
1 |
1004-1409 |
| |
605 |
03.164 GASKET; FUEL TANK
EXC. COUNTRY UZBEKISTAN<CL4>
L=960
|
1-22553-044-0 |
06 |
1 |
1410- |
| |
611 |
03.001 RUBBER; SHUTTER
|
1-53449-093-0 |
02 |
1 |
1004- |
| |
612 |
03.602 FASTENER
|
8-97372-006-0 |
06 |
1 |
1004-1409 |
| |
612 |
03.602 FASTENER
EXC. COUNTRY UZBEKISTAN<CL4>
|
8-97372-006-0 |
06 |
1 |
1410- |
| |
627 |
03.001 RING; STOPPER,FUEL TANK
|
8-98141-602-0 |
02 |
1 |
1004- |
| |
628 |
03.001 COUPLER; FUEL TANK
|
8-98122-626-0 |
01 |
1 |
1004-1205 |
| |
628 |
03.001 COUPLER; FUEL TANK
|
8-98174-958-0 |
01 |
1 |
1206-1409 |
| |
628 |
03.001 COUPLER; FUEL TANK
EXC. COUNTRY UZBEKISTAN<CL4>
|
8-98174-958-0 |
01 |
1 |
1410- |
| |
629 |
03.001 UNION; FUEL,CNG
|
8-97386-218-1 |
02 |
1 |
1004- |
| |
632 |
03.162 BRACKET; UNION
|
8-98046-485-0 |
01 |
1 |
1004- |
| |
632 |
03.162 BRACKET; UNION
|
8-98120-793-0 |
01 |
1 |
1004- |
| |
641 |
03.008 SEAL; COVER,TANK
|
8-98090-873-1 |
01 |
1 |
1004- |
| |
644 |
03.164 VALVE; CHECK
|
8-98120-763-0 |
01 |
1 |
1004- |
| |
645 |
02.277 BRACE
COUNTRY UZBEKISTAN<CL4>
03.110
(A)
|
8-98046-486-0 |
02 |
1 |
1410- |
| |
645 |
02.277 BRACE
COUNTRY UZBEKISTAN<CL4>
03.110
(B)
|
8-98046-487-0 |
02 |
1 |
1410- |
| |
647 |
03.023 CAP; KIT
|
8-98177-921-0 |
01 |
1 |
1206-1404 |
| |
647 |
03.023 CAP; KIT
EXC. COUNTRY UZBEKISTAN<CL4>
|
8-98177-921-0 |
01 |
1 |
1405-1407 |
| |
658 |
03.001 TANK; CNG
OD=404X1440 150L
|
8-98114-208-3 |
02 |
1 |
1004-1205 |
| |
658 |
03.001 TANK; CNG
OD=404X1440 150L
|
8-98188-215-0 |
02 |
1 |
1206-1404 |
| |
658 |
03.001 TANK; CNG
EXC. COUNTRY UZBEKISTAN<CL4>
OD=404X1440 150L
|
8-98188-215-0 |
02 |
1 |
1405-1407 |
| |
658 |
03.001 TANK; CNG
COUNTRY UZBEKISTAN<CL4>
OD=404X1440 150L
|
8-98274-793-0 |
02 |
1 |
1405-1407 |
| |
658 |
03.001 TANK; CNG
OD=404X1440 150L
|
8-98274-793-0 |
02 |
1 |
1408- |
