Sayfa 2-20B - Isuzu EPC

2-20B — MANUAL TRANSMISSION ASM AND CASE (#5060) — 434 parça

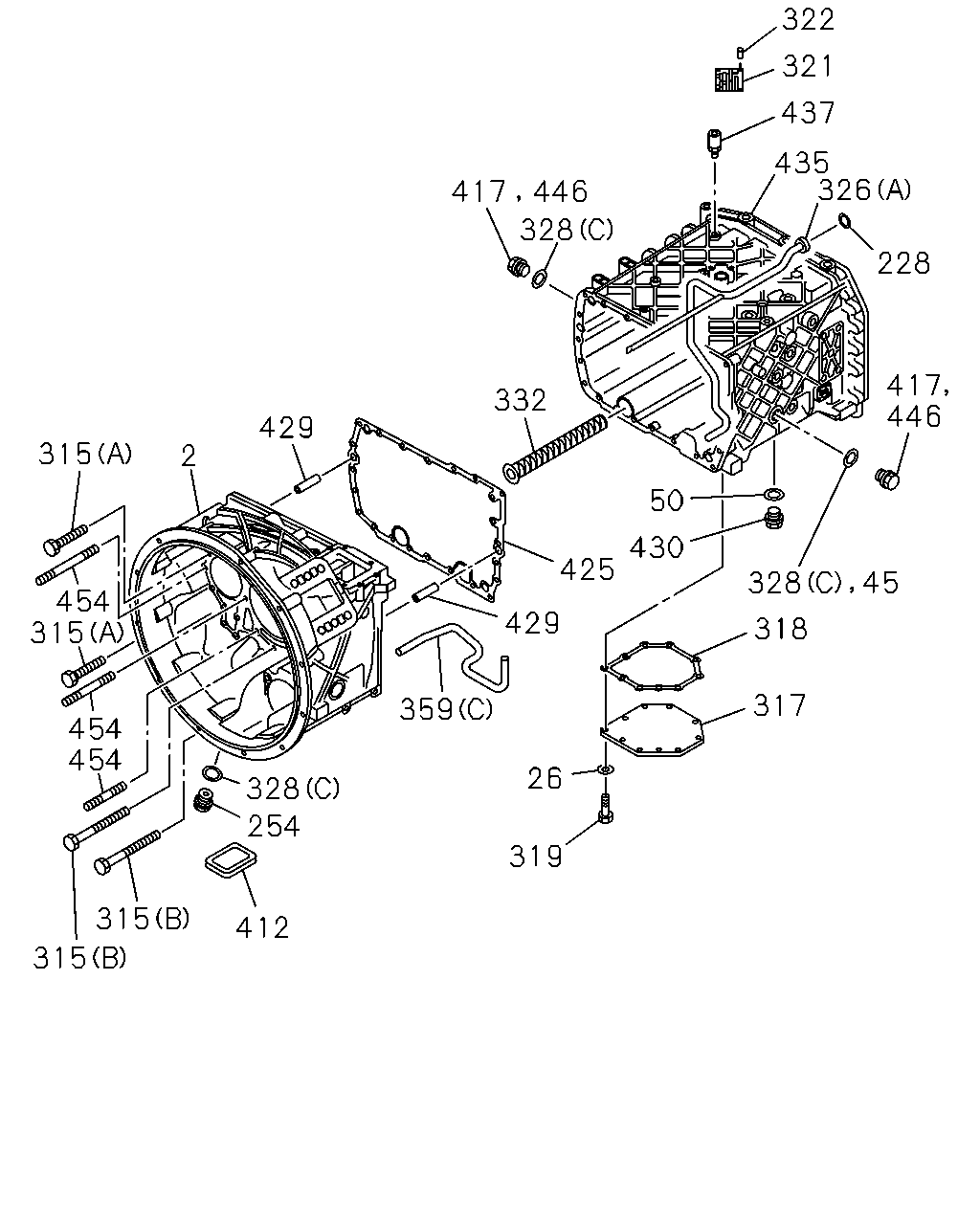

322 321 437 435 326 328 228 417 446 332 429 315 2 50 430 425 429 454 315 318 317 359 454 454 26 328 254 319 315 412 315 417 446 328 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; CLU POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-31111-194-0	01	1	9708-9905
2	HOUSING; CLU	1-31111-194-0	01	1	9906-
2	HOUSING; CLU	1-31111-189-0	01	1	9606-9707
2	HOUSING; CLU EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-31111-189-0	01	1	9708-9905
26	WASHER; PL,COVER	1-09469-010-0	10	1	9606-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33119-264-0	01	1	9708-9905
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-264-0	02	1	9906-
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-264-0	01	1	9606-
228	GASKET; NOZZLE	1-33119-273-0	01	1	9606-
254	PLUG; DRAIN,OIL	1-33119-263-0	01	1	9606-9707
254	PLUG; DRAIN,OIL	1-33119-376-0	01	1	9708-
315	BOLT; CASE (A)	1-33119-266-0	15	1	9606-
315	BOLT; CASE (B)	1-33119-267-0	07	1	9606-
317	COVER; CASE	1-33119-274-0	01	1	9606-
318	GASKET; COVER	1-33119-275-0	01	1	9606-9905
318	GASKET; COVER	1-33119-409-0	01	1	9906-
319	BOLT; COVER	1-33119-276-0	10	1	9606-
321	PLATE; NAME	1-33119-277-0	01	1	9606-
322	RIVET; NAME PLATE EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33449-398-0	04	1	9708-9807
322	RIVET; NAME PLATE	1-36119-006-0	04	1	9606-9707
322	RIVET; NAME PLATE POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33119-398-0	04	1	9708-9807
322	RIVET; NAME PLATE	1-33119-398-0	04	1	9808-
326	NOZZLE; OIL,OUTLET (A)	1-33119-282-0	01	1	9606-
326	NOZZLE; OIL,OUTLET (B)	1-33139-021-0	01	1	9606-
328	GASKET; PLUG EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (C)	1-33119-264-0	03	1	9708-9905
328	GASKET; PLUG (B)	1-33119-249-0	02	1	9606-
328	GASKET; PLUG (C)	1-33119-264-0	03	1	9606-9707
328	GASKET; PLUG POWER TAKE OFF-ZF TRANSMISSION<BDM> (C)	1-33119-264-0	02	1	9708-9905
328	GASKET; PLUG (C)	1-33119-264-0	01	1	9906-
328	GASKET; PLUG (A)	1-33139-023-0	01	1	9606-
332	FILTER; OIL EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33119-157-0	01	1	9708-9905
332	FILTER; OIL	1-33119-157-0	01	1	9606-9707
332	FILTER; OIL POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33119-370-0	01	1	9708-9905
332	FILTER; OIL	1-33119-370-0	01	1	9906-
359	PIPE; AIR,TRANS TO UNION (C)	1-33119-395-0	01	1	9708-
359	PIPE; AIR,TRANS TO UNION (A)	1-49115-055-0	01	1	9606-9608
359	PIPE; AIR,TRANS TO UNION (A)	1-49117-645-0	01	1	9609-9710
359	PIPE; AIR,TRANS TO UNION (A)	1-49118-936-0	01	1	9711-9905
359	PIPE; AIR,TRANS TO UNION (B)	1-49119-463-1	01	1	9906-
359	PIPE; AIR,TRANS TO UNION (B)	1-49115-949-0	01	1	9606-9608
359	PIPE; AIR,TRANS TO UNION (B)	1-49117-647-0	01	1	9609-9710
359	PIPE; AIR,TRANS TO UNION (B)	1-49118-938-0	01	1	9711-9905
359	PIPE; AIR,TRANS TO UNION (A)	1-49119-464-1	01	1	9906-
412	CAP; CLU HSG	1-31119-022-0	01	1	9606-
417	PLUG; OIL FILLER,TRANS POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33119-268-0	01	1	9708-9905
417	PLUG; OIL FILLER,TRANS	1-33119-268-0	02	1	9906-
425	GASKET; CLU HSG TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33119-262-0	01	1	9606-
429	PIN; STRAIGHT	1-33119-265-0	07	1	9606-
430	PLUG; OIL DRAIN	1-33119-268-0	01	1	9606-
435	CASE; TRANS	1-33111-275-0	01	1	9606-9905
435	CASE; TRANS	1-33111-286-0	01	1	9906-
437	BREATHER; TRANS	1-36122-004-0	01	1	9606-
446	PLUG; CASE,TRANS EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33119-268-0	02	1	9708-9905
446	PLUG; CASE,TRANS	1-33119-268-0	02	1	9606-9707
446	PLUG; CASE,TRANS POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33119-268-0	01	1	9708-9905
454	STUD; CLU HSG POWER TAKE OFF-ZF TRANSMISSION<BDM> M10 L=50	1-33119-381-0	04	1	9708-9905
454	STUD; CLU HSG M10 L=50	1-33119-381-0	04	1	9906-
454	STUD; CLU HSG POWER TAKE OFF-ZF TRANSMISSION<BDM> M10 L=80	1-33119-393-0	08	1	9708-9905
454	STUD; CLU HSG M10 L=80	1-33119-393-0	08	1	9906-
454	STUD; CLU HSG POWER TAKE OFF-ZF TRANSMISSION<BDM> M10 L=25	1-33119-394-0	11	1	9708-9905
454	STUD; CLU HSG M10 L=25	1-33119-394-0	11	1	9906-

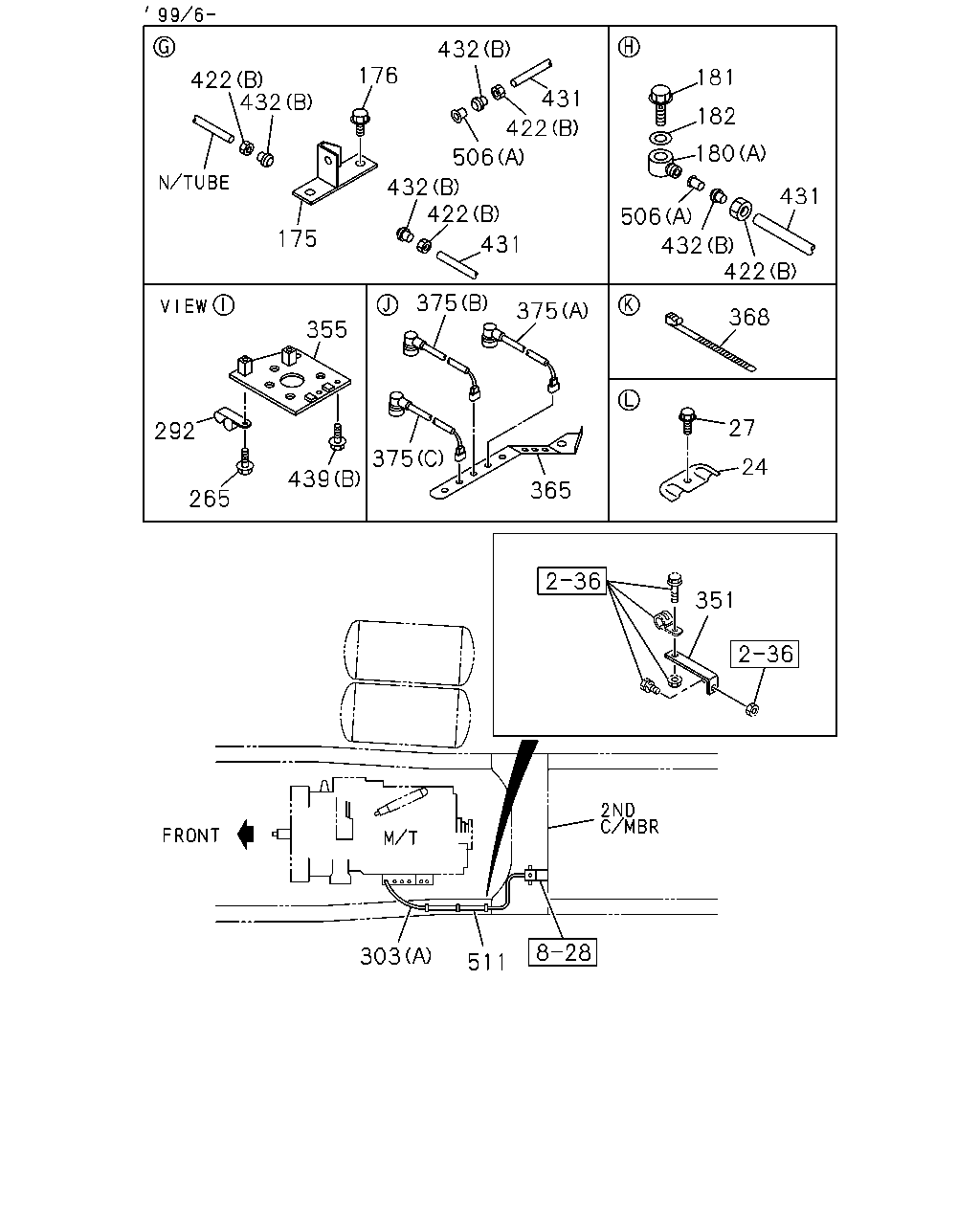

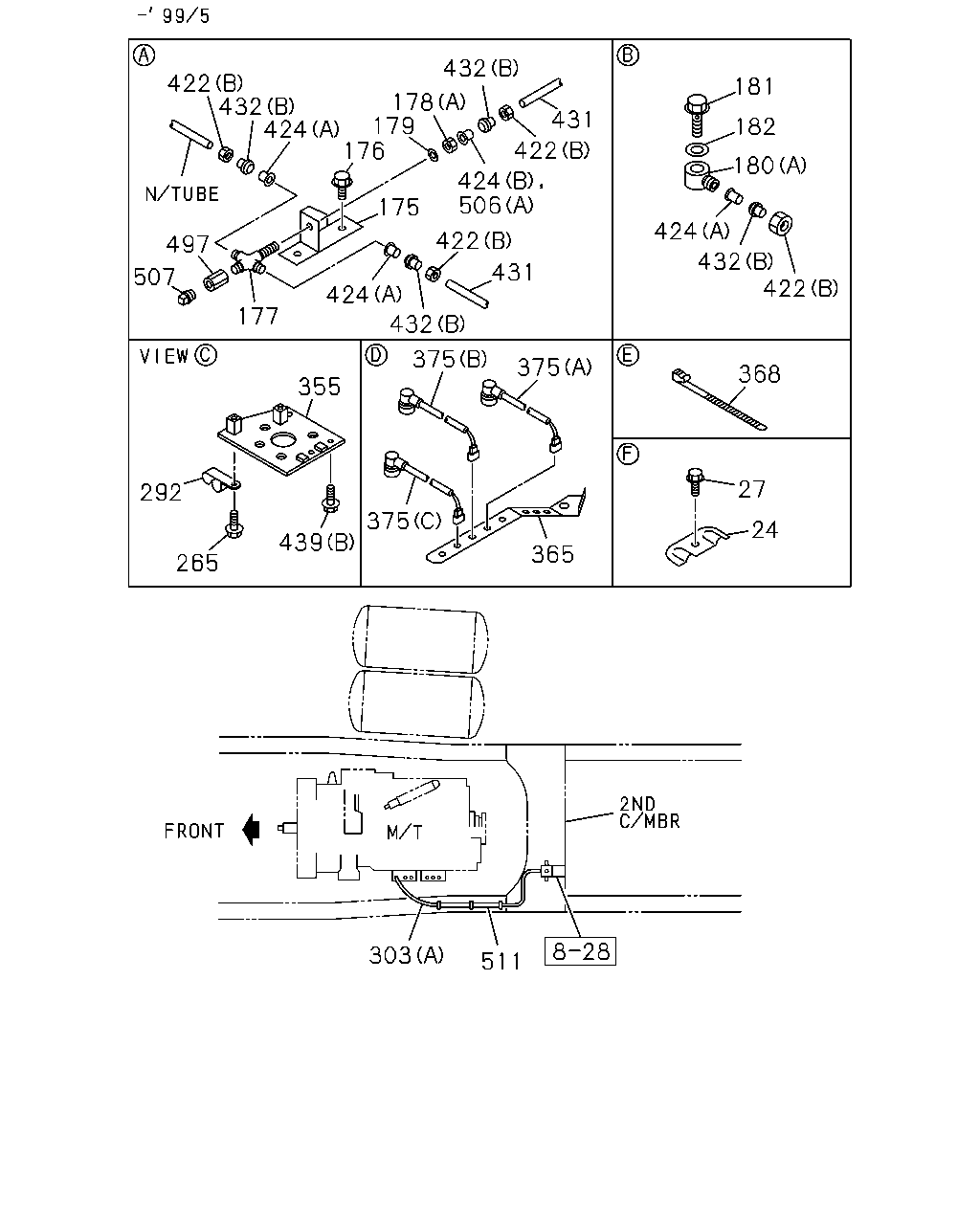

432 422 432 424 181 178 179 176 431 182 422 180 424 506 175 424 422 497 432 422 431 507 424 177 432 375 375 368 355 27 292 375 24 439 365 265 303 511

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	COVER; CHECK HOLE,DUST	1-31131-038-0	02	1	9606-9704
24	COVER; CHECK HOLE,DUST	1-31131-038-0	03	1	9705-
27	BOLT; COVER TO CLU HSG M16X25 FLANGE	0-28881-625-0	02	1	9606-
175	BRACKET; UNION	1-47477-545-0	01	1	9606-
176	BOLT; UNION BRKT M16X25 FLANGE	0-28881-625-0	02	1	9606-
177	UNION; NYLON TUBE	1-09664-070-0	01	1	9606-9905
178	NUT; UNION (A) M14	9-99110-414-0	01	1	9606-9905
178	NUT; UNION (B) M14	9-99111-414-0	01	1	9606-9905
178	NUT; UNION (B) M14	9-99111-414-0	01	1	9906-
179	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9606-9905
180	CONNECTOR; NYLON TUBE (A)	1-09660-239-0	01	1	9606-
180	CONNECTOR; NYLON TUBE (B)	1-09660-466-0	01	1	9606-9905
181	BOLT; EYE,NYLON TUBE M12 L=35.5	1-09675-169-0	01	1	9606-
182	GASKET; EYE BOLT,NYLON TUBE ID=12.2	9-09571-412-0	01	1	9606-
265	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	01	1	9606-
292	CLIP; OIL PIPE ID=16 & 16 L=28	1-09701-219-0	01	1	9606-
303	TUBE; NYLON (A) L=2000 OD=8	1-87410-073-0	01	1	9606-9905
303	TUBE; NYLON FRAME ENG MTG SEPARATE TYPE<SGM> L TYPE ENG<90L> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9906-
303	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9906-
303	TUBE; NYLON V TYPE ENG<91L> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0003-
303	TUBE; NYLON (B) L=30000 OD=8	1-09369-578-0	01	1	9606-9905
303	TUBE; NYLON (C) SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	9606-9905
355	BRACKET; OIL PIPE	1-47477-465-1	01	1	9606-9905
355	BRACKET; OIL PIPE	1-47478-217-1	01	1	9906-
365	BRACKET; HARNESS	1-82699-490-2	01	1	9606-
368	CLIP; BAND,CABLE L=140	5-09707-031-1	02	1	9606-
375	CABLE; TRANS (A) L=250 (RED) NEWTRAL	1-82659-134-1	01	1	9606-
375	CABLE; TRANS (B) L=580 BACK LAMP	1-82659-135-1	01	1	9606-
375	CABLE; TRANS (C) L=880 (YELLOW) SPRITTER SW	1-82659-137-1	01	1	9606-9905
375	CABLE; TRANS (C) L=880	1-82659-137-1	01	1	9906-
422	NUT; SLEEVE (A) M14	1-09660-767-0	01	1	9606-9905
422	NUT; SLEEVE (A) M14	1-09660-767-0	01	1	9906-
422	NUT; SLEEVE (B) M14	1-09660-212-0	04	1	9606-9905
422	NUT; SLEEVE (B) M14	1-09660-212-0	01	1	9906-
424	RING; INSERT (A) ID=4.5 OD=5.8 L=18	1-09669-054-0	02	1	9606-9905
424	RING; INSERT (B) ID=4.2 OD=5 L=18	1-09669-089-0	01	1	9606-9905
431	TUBE; NYLON L=1300 SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9606-9905
432	SLEEVE; TUBE (A) ID=8.2 L=9.5	1-09666-067-0	01	1	9606-9905
432	SLEEVE; TUBE (A) ID=8.2 L=9.5	1-09666-067-0	01	1	9906-
432	SLEEVE; TUBE (B) ID=8.15 OD=11 L=9.5	1-09666-042-0	04	1	9606-9905
432	SLEEVE; TUBE (B) ID=8.15 OD=11 L=9.5	1-09666-042-0	01	1	9906-
439	BOLT; BRKT (A) M10X20 FLANGE	0-28781-020-0	01	1	9606-9905
439	BOLT; BRKT (A) M16X35 FLANGE	0-28881-635-0	04	1	9906-
439	BOLT; BRKT (B) M10X40 FLANGE	0-28781-040-0	04	1	9606-
439	BOLT; BRKT (C) M16X25 FLANGE	0-28881-625-0	02	1	9606-9905
497	ADAPTER; PLUG	1-09660-880-0	01	1	9606-9905
506	INSERT (C) ID=5 OD=5.9 L=16	1-09669-122-0	01	1	9606-9905
506	INSERT (C) ID=5 OD=5.9 L=16	1-09669-122-0	01	1	9906-
506	INSERT (A) ID=4.5 OD=5.8 L=18	1-09669-054-0	01	1	9606-
506	INSERT (B) ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	9606-9905
507	PLUG; UNION PT1/4	9-99204-513-0	01	1	9606-9905
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	9606-9905
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	9906-
511	TUBE; CORRUGATE SERVICED BY L=800 ID=7 L=400	1-83129-031-1	01	1	9708-9905
511	TUBE; CORRUGATE SERVICED BY L=800 ID=7	1-83129-031-1	02	1	9606-9905
511	TUBE; CORRUGATE SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9906-
511	TUBE; CORRUGATE SERVICED BY L=800 ID=7 L=400	1-83129-031-1	02	1	9606-9706
511	TUBE; CORRUGATE SERVICED BY L=800 ID=7 L=620	1-83129-031-1	02	1	9707-9707
511	TUBE; CORRUGATE SERVICED BY L=800 ID=7 L=620	1-83129-031-1	01	1	9708-9905
511	TUBE; CORRUGATE SERVICED BY L=800 ID=7 L=700	1-83129-031-1	01	1	9606-9905
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87410-085-0	01	1	9606-9905
511	TUBE; CORRUGATE L=350 SERVICED BY L=2000 ID=10	1-87410-088-0	03	1	9606-9905
511	TUBE; CORRUGATE L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	03	1	9906-

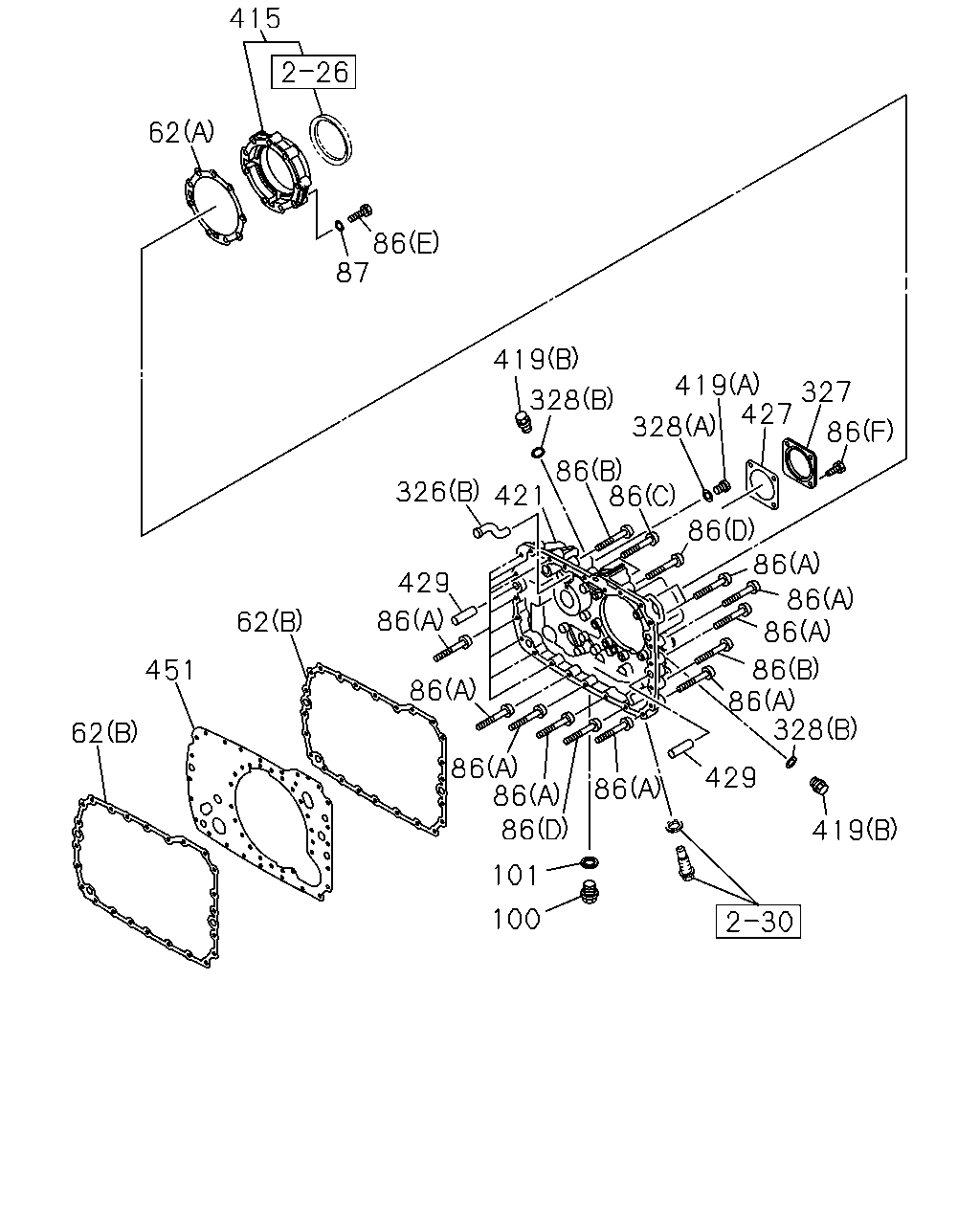

415 62 86 87 419 419 327 427 328 328 86 86 86 86 86 326 421 429 86 86 86 62 86 86 328 451 86 62 86 86 86 429 86 419 101 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-33119-399-0	02	1	9708-9905
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33119-399-0	02	1	9906-
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33132-065-0	02	1	9606-9707
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-33132-065-0	02	1	9708-9905
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33139-053-0	01	1	9606-
86	BOLT; RR COVER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (F) M12X28	1-33139-051-0	04	1	9606-9707
86	BOLT; RR COVER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (F) M12X25	1-33119-400-0	04	1	9708-9905
86	BOLT; RR COVER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (F) M12X25	1-33119-400-0	04	1	9906-
86	BOLT; RR COVER (A)	1-33119-266-0	18	1	9606-
86	BOLT; RR COVER (E)	1-33139-054-0	09	1	9606-
86	BOLT; RR COVER (B)	1-33139-056-0	02	1	9606-
86	BOLT; RR COVER (C) M10X110	1-33139-057-0	02	1	9606-
86	BOLT; RR COVER (D) M10X50	1-33139-058-0	02	1	9606-
87	WASHER; LK,RR COVER	1-09469-010-0	09	1	9606-
100	PLUG; DRAIN RR COVER	1-33119-268-0	01	1	9606-
101	GASKET; DRAIN RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33119-264-0	01	1	9606-
326	NOZZLE; OIL,OUTLET (A)	1-33119-282-0	01	1	9606-
326	NOZZLE; OIL,OUTLET (B)	1-33139-021-0	01	1	9606-
327	COVER; RR,COUNTER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33131-165-0	01	1	9606-9905
327	COVER; RR,COUNTER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33131-165-0	01	1	9906-
328	GASKET; PLUG EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (C)	1-33119-264-0	03	1	9708-9905
328	GASKET; PLUG (B)	1-33119-249-0	02	1	9606-
328	GASKET; PLUG (C)	1-33119-264-0	03	1	9606-9707
328	GASKET; PLUG POWER TAKE OFF-ZF TRANSMISSION<BDM> (C)	1-33119-264-0	02	1	9708-9905
328	GASKET; PLUG (C)	1-33119-264-0	01	1	9906-
328	GASKET; PLUG (A)	1-33139-023-0	01	1	9606-
415	COVER; BRG	1-33159-039-0	01	1	9606-
419	PLUG; RR COVER (B)	1-33119-171-0	02	1	9606-
419	PLUG; RR COVER (A)	1-34119-008-0	01	1	9606-
421	COVER; RR,TRANS	1-33131-244-0	01	1	9906-
421	COVER; RR,TRANS	1-33131-219-0	01	1	9606-9905
427	GASKET; RR COVER EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33132-054-0	01	1	9906-
429	PIN; STRAIGHT	1-33119-265-0	07	1	9606-
451	PLATE; RR COVER	1-33139-055-0	01	1	9606-

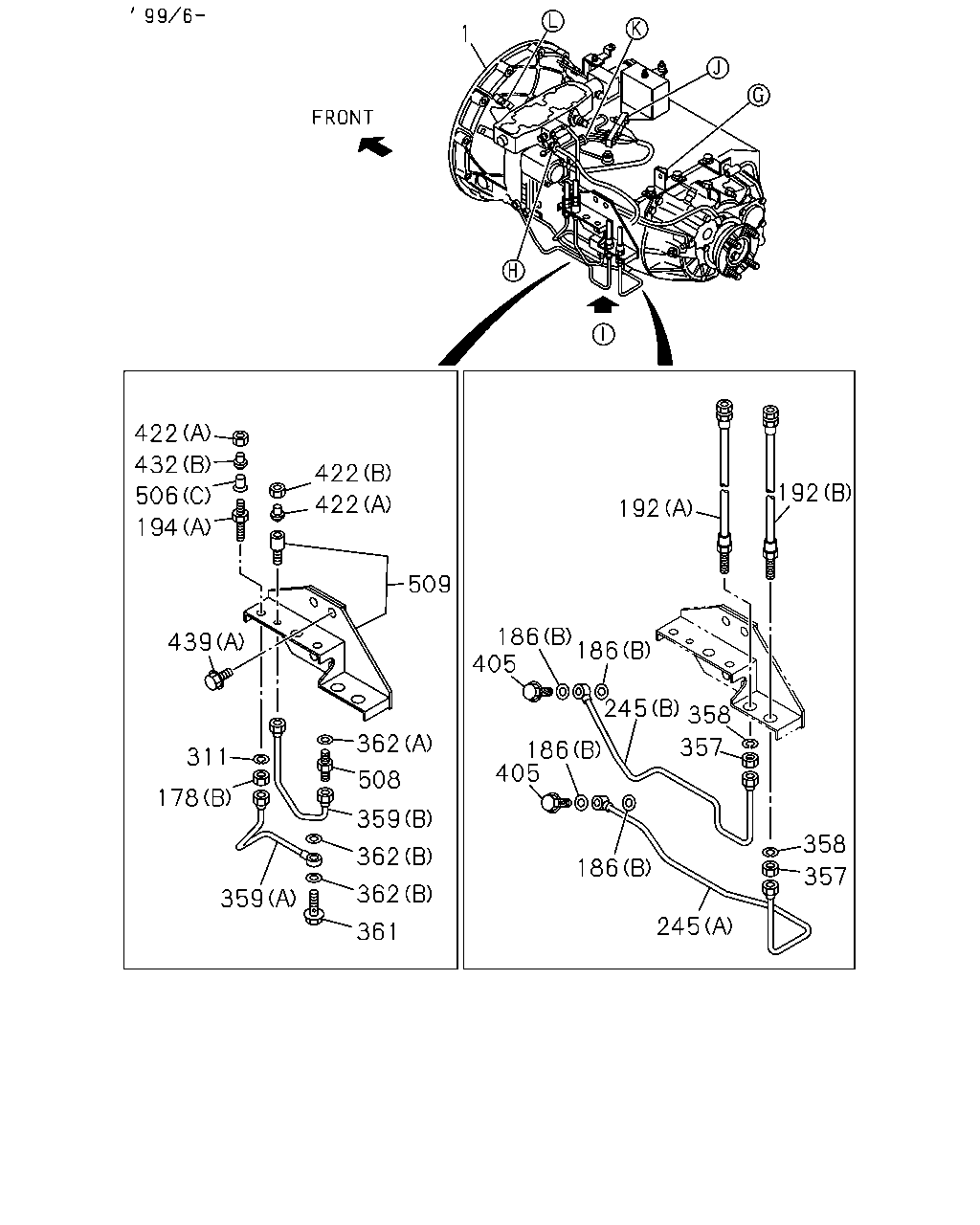

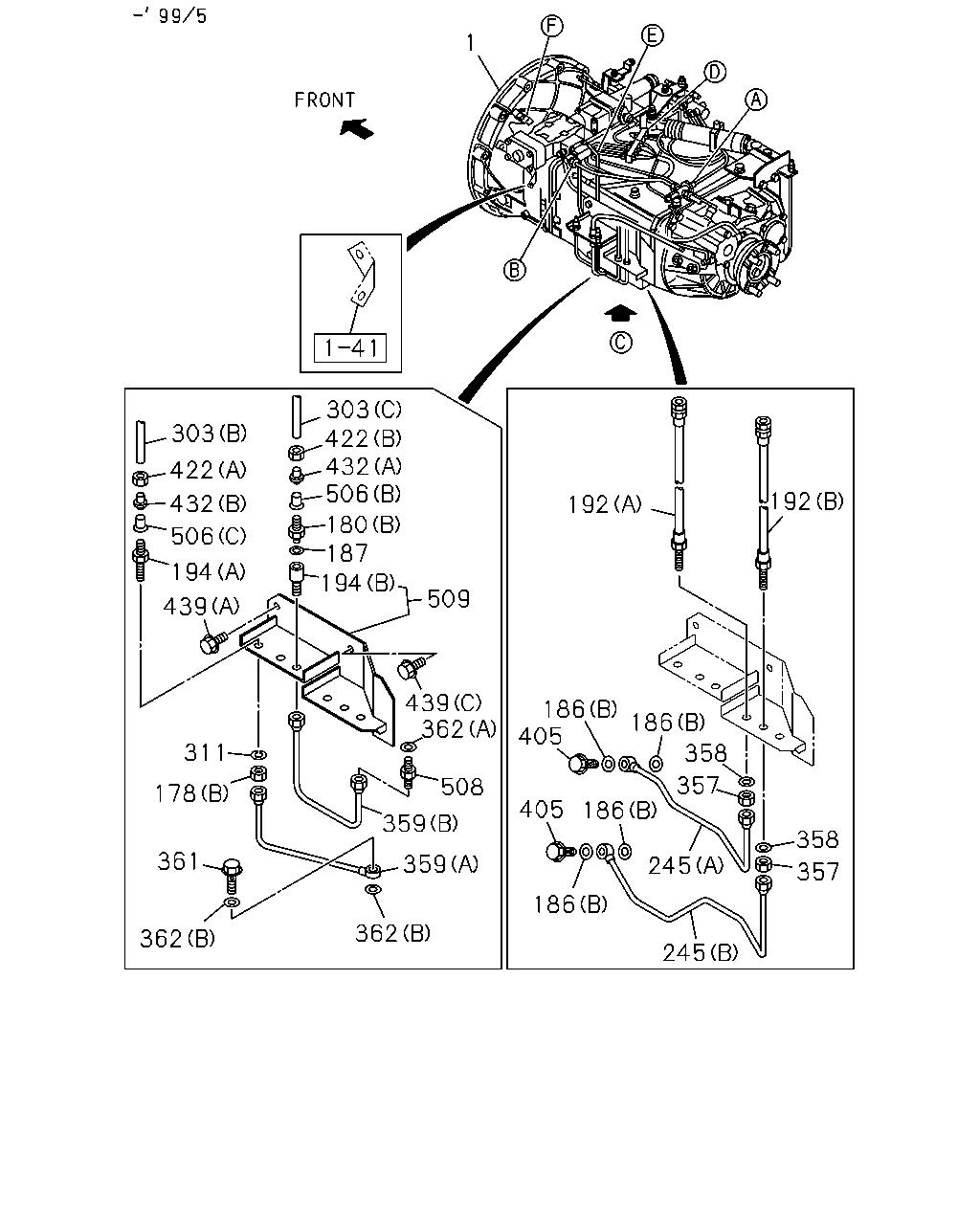

1 303 422 432 506 303 422 192 432 192 180 187 194 506 194 509 439 439 362 186 405 186 358 311 357 508 178 405 186 359 358 361 359 245 357 186 362 362 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

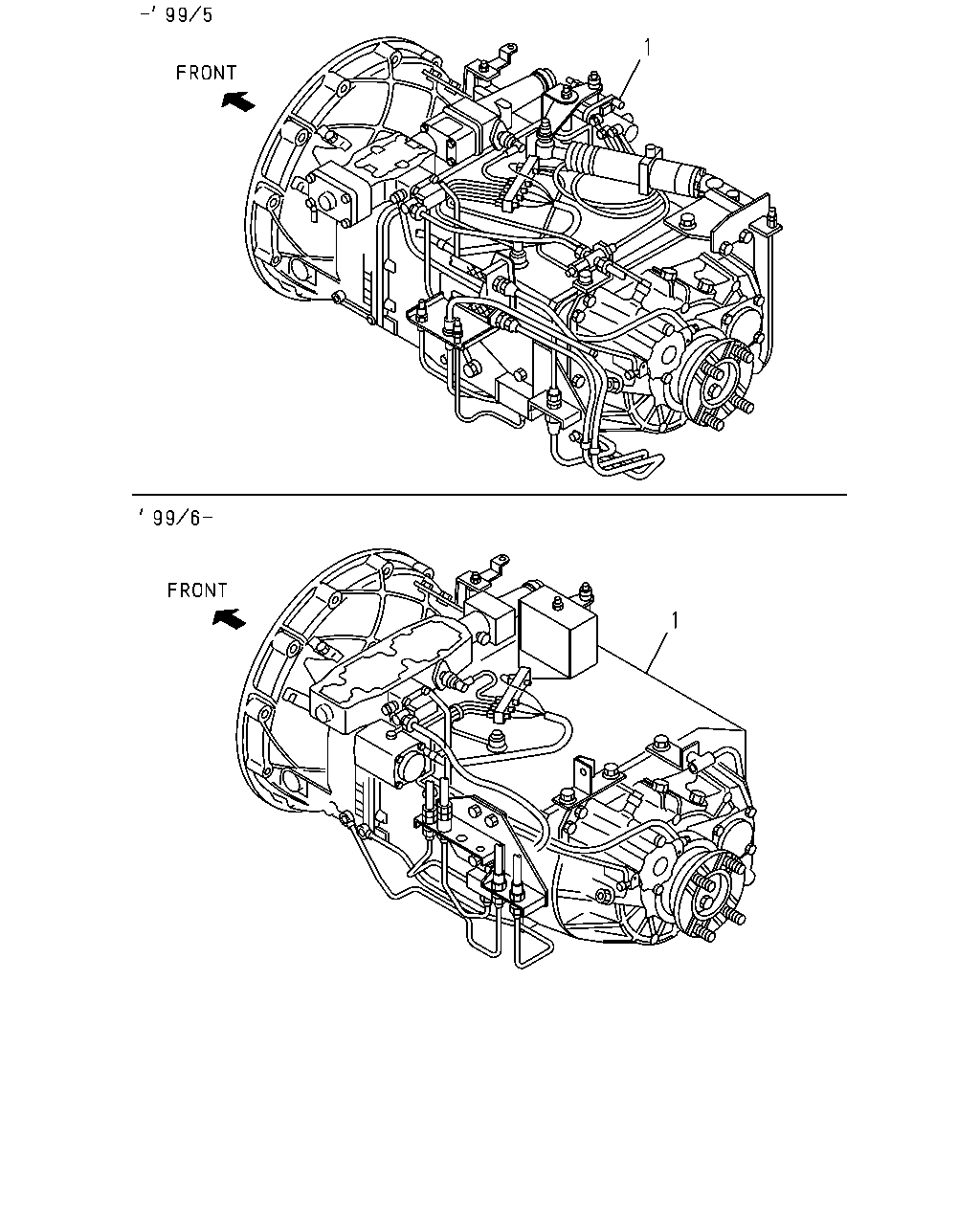

1	TRANSMISSION ASM; MANUAL POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33040-359-2	01	1	9606-9707
1	TRANSMISSION ASM; MANUAL POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33041-633-0	01	1	9708-9905
1	TRANSMISSION ASM; MANUAL POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33042-011-0	01	1	9906-
1	TRANSMISSION ASM; MANUAL EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33040-584-2	01	1	9606-9707
1	TRANSMISSION ASM; MANUAL EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33041-634-0	01	1	9708-9905
1	TRANSMISSION ASM; MANUAL EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33042-012-0	01	1	9906-
178	NUT; UNION (A) M14	9-99110-414-0	01	1	9606-9905
178	NUT; UNION (B) M14	9-99111-414-0	01	1	9606-9905
178	NUT; UNION (B) M14	9-99111-414-0	01	1	9906-
180	CONNECTOR; NYLON TUBE (A)	1-09660-239-0	01	1	9606-
180	CONNECTOR; NYLON TUBE (B)	1-09660-466-0	01	1	9606-9905

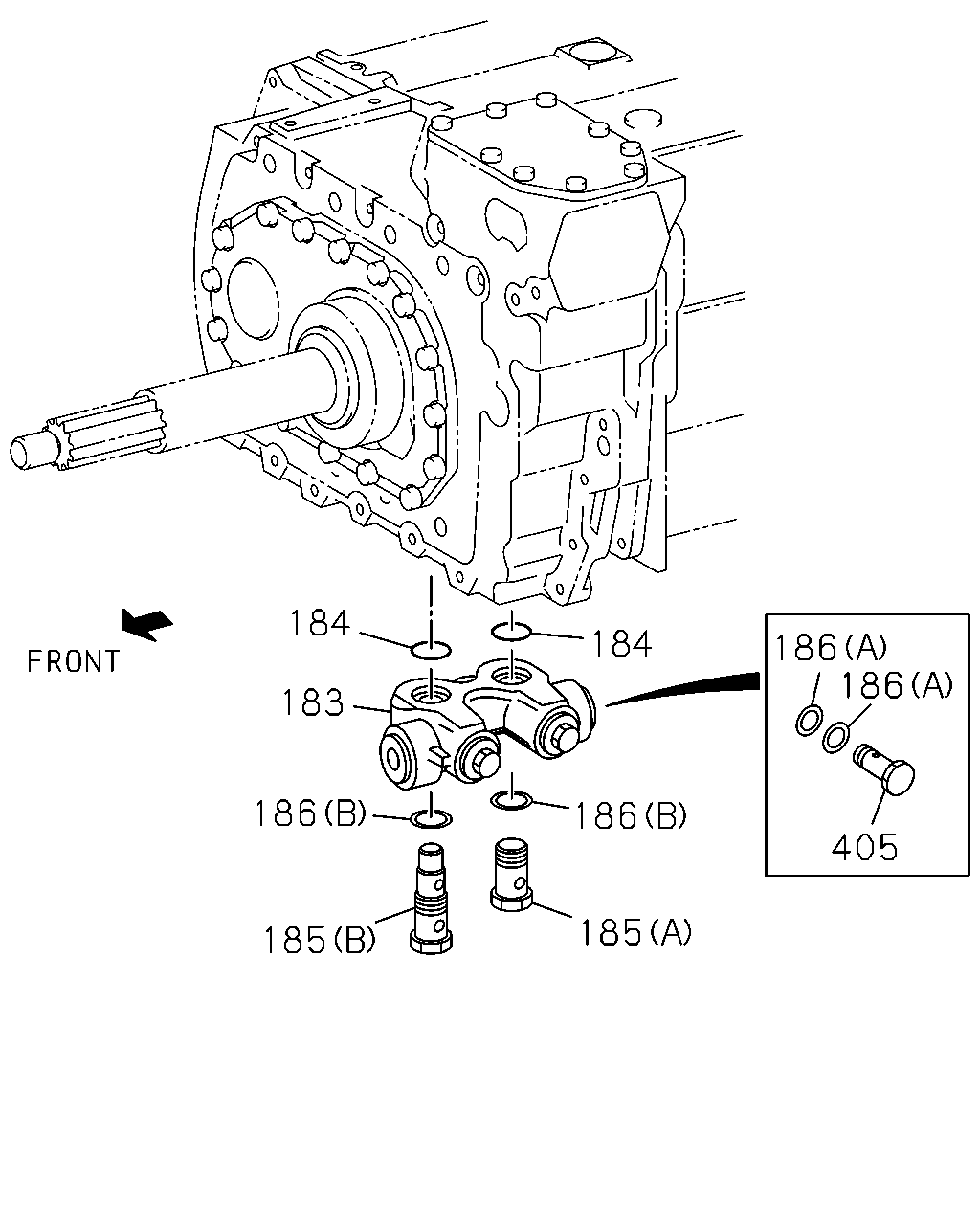

186	RING; SEAL (B) ID=22	1-32568-001-0	04	1	9606-
186	RING; SEAL (A) ID=22	1-32568-002-0	02	1	9606-9905
186	RING; SEAL 6WA1 TC-C(55L),10PE1N(61L) (A) ID=22	1-32568-002-0	02	1	9906-
187	GASKET; CONNECTOR ID=10.2 OD=15.2	1-09630-083-0	01	1	9606-9905
192	HOSE; FLEX,TRANS (B) L=410	1-09364-935-0	01	1	9606-9609
192	HOSE; FLEX,TRANS (B) L=400	1-09364-913-0	01	1	9610-9612
192	HOSE; FLEX,TRANS (B) L=400	1-09364-913-0	01	1	9701-9701
192	HOSE; FLEX,TRANS (B) L=500	1-09364-914-0	01	1	9702-9905
192	HOSE; FLEX,TRANS 10PE1N(61L) (A) L=500	1-09364-914-0	01	1	9906-
192	HOSE; FLEX,TRANS (A) L=535	1-09364-936-0	01	1	9606-9609
192	HOSE; FLEX,TRANS (A) L=406	1-09364-961-0	01	1	9610-9905
192	HOSE; FLEX,TRANS 6WA1 TC-C(55L) (A) L=406	1-09364-961-0	01	1	9906-
192	HOSE; FLEX,TRANS 6WA1 TC-S(56L) (A) L=400	1-09364-913-0	01	1	9702-9804
192	HOSE; FLEX,TRANS 6WA1 TC-S(56L) (A) L=311	1-09364-921-0	01	1	9805-9905
192	HOSE; FLEX,TRANS 6WA1 TC-C(55L) (B) L=535	1-09364-936-0	01	1	9906-
192	HOSE; FLEX,TRANS 10PE1N(61L) (B) L=400	1-09364-913-0	01	1	9906-
194	UNION; NYLON TUBE (A) M14	1-09664-230-0	01	1	9606-9905
194	UNION; NYLON TUBE (A) M14	1-09664-230-0	01	1	9906-
194	UNION; NYLON TUBE (B)	1-09664-234-0	01	1	9606-9905
245	PIPE; OIL (A)	1-47428-569-0	01	1	9606-9608
245	PIPE; OIL (A)	1-49161-057-0	01	1	9609-9905
245	PIPE; OIL (A)	1-49119-467-1	01	1	9906-9906
245	PIPE; OIL (A)	1-49122-031-0	01	1	9907-
245	PIPE; OIL (B)	1-47428-570-0	01	1	9606-9608
245	PIPE; OIL (B)	1-49161-058-0	01	1	9609-9905
245	PIPE; OIL (B)	1-49119-468-1	01	1	9906-
303	TUBE; NYLON (A) L=2000 OD=8	1-87410-073-0	01	1	9606-9905
303	TUBE; NYLON FRAME ENG MTG SEPARATE TYPE<SGM> L TYPE ENG<90L> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9906-
303	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9906-
303	TUBE; NYLON V TYPE ENG<91L> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0003-
303	TUBE; NYLON (B) L=30000 OD=8	1-09369-578-0	01	1	9606-9905
303	TUBE; NYLON (C) SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	9606-9905
311	WASHER; LK ID=14.2	9-09150-514-0	01	1	9606-9905
311	WASHER; LK ID=14.2	9-09150-514-0	01	1	9906-
357	NUT; UNION,FLEX HOSE M22	9-09111-522-0	02	1	9606-
358	WASHER; LK,UNION ID=22.5	9-09150-522-0	02	1	9606-
359	PIPE; AIR,TRANS TO UNION (C)	1-33119-395-0	01	1	9708-
359	PIPE; AIR,TRANS TO UNION (A)	1-49115-055-0	01	1	9606-9608
359	PIPE; AIR,TRANS TO UNION (A)	1-49117-645-0	01	1	9609-9710
359	PIPE; AIR,TRANS TO UNION (A)	1-49118-936-0	01	1	9711-9905
359	PIPE; AIR,TRANS TO UNION (B)	1-49119-463-1	01	1	9906-
359	PIPE; AIR,TRANS TO UNION (B)	1-49115-949-0	01	1	9606-9608
359	PIPE; AIR,TRANS TO UNION (B)	1-49117-647-0	01	1	9609-9710
359	PIPE; AIR,TRANS TO UNION (B)	1-49118-938-0	01	1	9711-9905
359	PIPE; AIR,TRANS TO UNION (A)	1-49119-464-1	01	1	9906-
361	BOLT; EYE,AIR PIPE M12X24 EYE-BOLT	1-09675-082-0	01	1	9606-9611
361	BOLT; EYE,AIR PIPE M12X24 EYE-BOLT	1-09675-229-0	01	1	9612-9905
361	BOLT; EYE,AIR PIPE M12X24 EYE-BOLT	1-09675-229-0	01	1	9906-
362	GASKET; AIR PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	9606-9905
362	GASKET; AIR PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	9906-
362	GASKET; AIR PIPE (B) ID=12.2	1-09630-084-0	02	1	9606-9905
362	GASKET; AIR PIPE (B) ID=12.2	1-09630-084-0	02	1	9906-
405	BOLT; EYE,OIL PIPE M22X37	1-09675-060-0	02	1	9606-
422	NUT; SLEEVE (A) M14	1-09660-767-0	01	1	9606-9905
422	NUT; SLEEVE (A) M14	1-09660-767-0	01	1	9906-
422	NUT; SLEEVE (B) M14	1-09660-212-0	04	1	9606-9905
422	NUT; SLEEVE (B) M14	1-09660-212-0	01	1	9906-
432	SLEEVE; TUBE (A) ID=8.2 L=9.5	1-09666-067-0	01	1	9606-9905
432	SLEEVE; TUBE (A) ID=8.2 L=9.5	1-09666-067-0	01	1	9906-
432	SLEEVE; TUBE (B) ID=8.15 OD=11 L=9.5	1-09666-042-0	04	1	9606-9905
432	SLEEVE; TUBE (B) ID=8.15 OD=11 L=9.5	1-09666-042-0	01	1	9906-
439	BOLT; BRKT (A) M10X20 FLANGE	0-28781-020-0	01	1	9606-9905
439	BOLT; BRKT (A) M16X35 FLANGE	0-28881-635-0	04	1	9906-
439	BOLT; BRKT (B) M10X40 FLANGE	0-28781-040-0	04	1	9606-
439	BOLT; BRKT (C) M16X25 FLANGE	0-28881-625-0	02	1	9606-9905
506	INSERT (C) ID=5 OD=5.9 L=16	1-09669-122-0	01	1	9606-9905
506	INSERT (C) ID=5 OD=5.9 L=16	1-09669-122-0	01	1	9906-
506	INSERT (A) ID=4.5 OD=5.8 L=18	1-09669-054-0	01	1	9606-
506	INSERT (B) ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	9606-9905
508	UNION; AIR M10 & M12 STRAIGHT	1-09664-235-0	01	1	9606-9905
508	UNION; AIR M10 & M12 STRAIGHT	1-09664-235-0	01	1	9906-
509	BRACKET; PIPE	1-47477-551-0	01	1	9606-9905
509	BRACKET; PIPE	1-47478-215-2	01	1	9906-

184 184 186 186 183 186 186 405 185 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
183	VALVE; BYPASS,TRANS	1-32569-046-0	01	1	9606-9905
183	VALVE; BYPASS,TRANS 6WA1 TC-C(55L),10PE1N(61L)	1-32569-046-0	01	1	9906-
184	GASKET; BYPASS VLV	1-32568-003-0	02	1	9606-9905
184	GASKET; BYPASS VLV 6WA1 TC-C(55L),10PE1N(61L)	1-32568-003-0	02	1	9906-
185	UNION; SCREW,BYPASS VLV (A) M22	1-32567-011-0	01	1	9606-9905
185	UNION; SCREW,BYPASS VLV 6WA1 TC-C(55L),10PE1N(61L) (A) M22	1-32567-011-0	01	1	9906-
185	UNION; SCREW,BYPASS VLV (B) L=67	1-32567-014-0	01	1	9606-9701
185	UNION; SCREW,BYPASS VLV (B)	1-32567-016-0	01	1	9702-9905
185	UNION; SCREW,BYPASS VLV 6WA1 TC-C(55L),10PE1N(61L) (B)	1-32567-016-0	01	1	9906-
186	RING; SEAL (B) ID=22	1-32568-001-0	04	1	9606-
186	RING; SEAL (A) ID=22	1-32568-002-0	02	1	9606-9905
186	RING; SEAL 6WA1 TC-C(55L),10PE1N(61L) (A) ID=22	1-32568-002-0	02	1	9906-
405	BOLT; EYE,OIL PIPE M22X37	1-09675-060-0	02	1	9606-

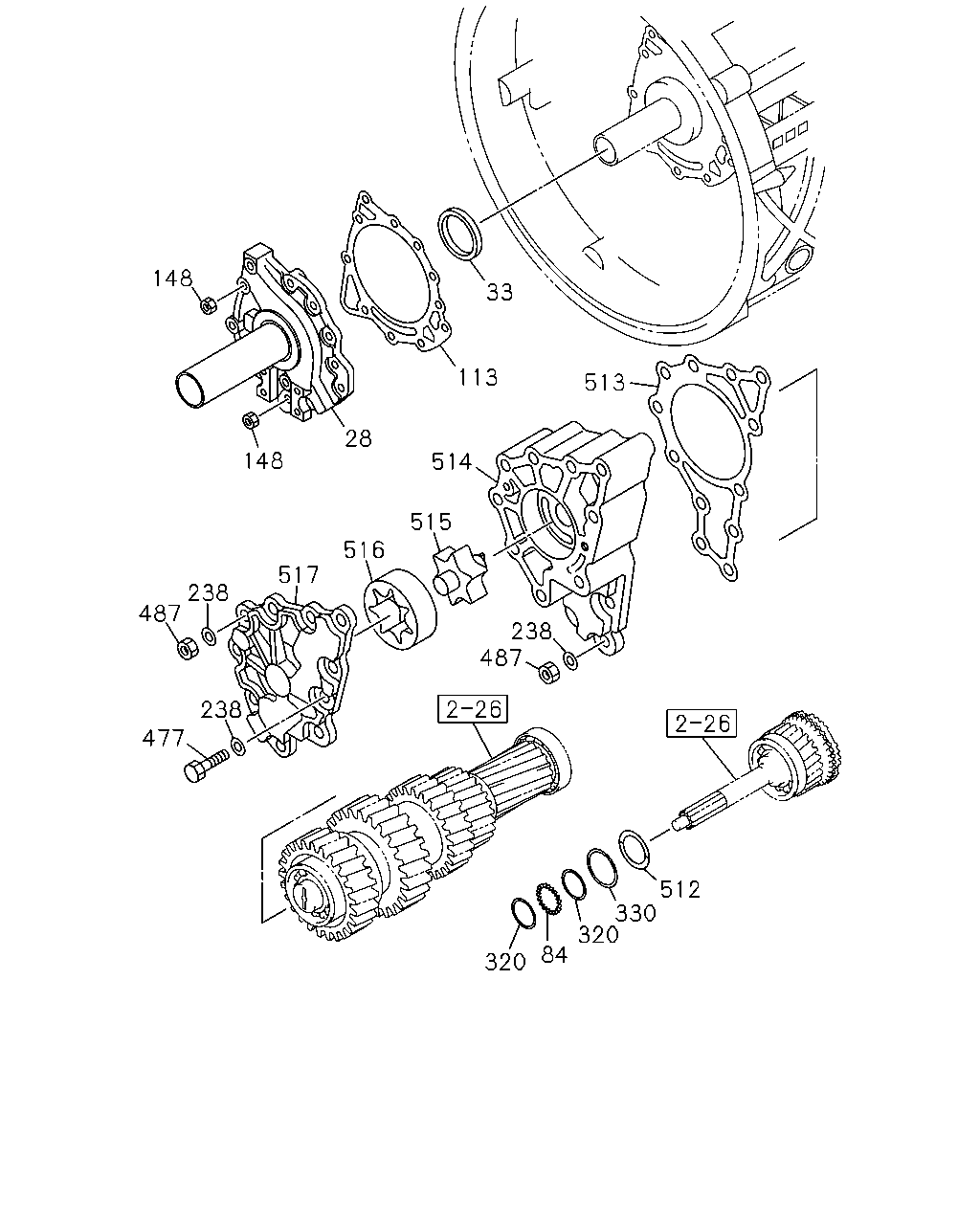

148 33 113 513 28 148 514 515 516 517 238 487 238 487 238 477 512 330 320 84 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
28	COVER; FRT,TRANS CASE EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33121-132-0	01	1	9708-9905
28	COVER; FRT,TRANS CASE	1-33121-149-0	01	1	9606-9707
28	COVER; FRT,TRANS CASE POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33121-149-0	01	1	9708-9905
28	COVER; FRT,TRANS CASE	1-33121-149-0	01	1	9906-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-33219-058-0	01	1	9606-9805
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-33219-248-0	01	1	9806-
84	SPACER; COVER,TRANS	1-33129-006-0	01	1	9906-
84	SPACER; COVER,TRANS	1-33129-006-0	01	1	9606-9905
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33122-018-0	01	1	9606-
148	NUT	1-33529-056-0	11	1	9606-
238	WASHER; PL	1-09469-010-0	14	1	9606-
320	WASHER; COVER	1-33129-007-0	02	1	9606-
330	RING; RET	1-33219-030-0	01	1	9606-9707
330	RING; RET EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33219-030-0	01	1	9708-9905
477	BOLT; OIL PUMP	1-33529-055-0	02	1	9606-
487	NUT; COVER,OIL PUMP	1-33529-056-0	12	1	9606-
512	WASHER; THRUST T=4.20	1-33219-144-0	AR	1	9606-9707
512	WASHER; THRUST EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> T=4.20	1-33219-144-0	AR	1	9708-9905
512	WASHER; THRUST T=4.15	1-33219-145-0	AR	1	9606-9707
512	WASHER; THRUST EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> T=4.15	1-33219-145-0	AR	1	9708-9905
512	WASHER; THRUST T=4.10	1-33219-146-0	AR	1	9606-9707
512	WASHER; THRUST EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> T=4.10	1-33219-146-0	AR	1	9708-9905
512	WASHER; THRUST T=4.05	1-33219-147-0	AR	1	9606-9707
512	WASHER; THRUST EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> T=4.05	1-33219-147-0	AR	1	9708-9905
512	WASHER; THRUST T=4.00	1-33219-148-0	AR	1	9606-9707
512	WASHER; THRUST EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> T=4.00	1-33219-148-0	AR	1	9708-9905
512	WASHER; THRUST T=3.95	1-33219-149-0	AR	1	9606-9707
512	WASHER; THRUST EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> T=3.95	1-33219-149-0	AR	1	9708-9905
512	WASHER; THRUST T=3.90	1-33219-150-0	AR	1	9606-9707
512	WASHER; THRUST EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> T=3.90	1-33219-150-0	AR	1	9708-9905
512	WASHER; THRUST T=3.85	1-33219-151-0	AR	1	9606-9707
512	WASHER; THRUST EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> T=3.85	1-33219-151-0	AR	1	9708-9905
512	WASHER; THRUST T=3.80	1-33219-152-0	AR	1	9606-9707
512	WASHER; THRUST EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> T=3.80	1-33219-152-0	AR	1	9708-9905
512	WASHER; THRUST T=3.75	1-33219-153-0	AR	1	9606-9707
512	WASHER; THRUST EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> T=3.75	1-33219-153-0	AR	1	9708-9905
512	WASHER; THRUST T=3.70	1-33219-154-0	AR	1	9606-9707
512	WASHER; THRUST EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> T=3.70	1-33219-154-0	AR	1	9708-9905
513	GASKET; HOUSING	1-34159-058-0	01	1	9606-
514	HOUSING; OIL PUMP	1-34155-027-0	01	1	9606-
515	SHAFT; OIL PUMP	1-34159-070-0	01	1	9606-
516	ROTOR; OIL PUMP	1-34159-060-0	01	1	9606-
517	COVER; OIL PUMP	1-34159-071-0	01	1	9606-

1 422 432 422 192 506 422 192 194 509 186 186 405 439 245 358 362 357 186 405 311 508 178 359 358 362 186 357 362 359 245 361

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TRANSMISSION ASM; MANUAL POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33040-359-2	01	1	9606-9707
1	TRANSMISSION ASM; MANUAL POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33041-633-0	01	1	9708-9905
1	TRANSMISSION ASM; MANUAL POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33042-011-0	01	1	9906-
1	TRANSMISSION ASM; MANUAL EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33040-584-2	01	1	9606-9707
1	TRANSMISSION ASM; MANUAL EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33041-634-0	01	1	9708-9905
1	TRANSMISSION ASM; MANUAL EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33042-012-0	01	1	9906-
178	NUT; UNION (A) M14	9-99110-414-0	01	1	9606-9905
178	NUT; UNION (B) M14	9-99111-414-0	01	1	9606-9905
178	NUT; UNION (B) M14	9-99111-414-0	01	1	9906-
186	RING; SEAL (B) ID=22	1-32568-001-0	04	1	9606-
186	RING; SEAL (A) ID=22	1-32568-002-0	02	1	9606-9905
186	RING; SEAL 6WA1 TC-C(55L),10PE1N(61L) (A) ID=22	1-32568-002-0	02	1	9906-
192	HOSE; FLEX,TRANS (B) L=410	1-09364-935-0	01	1	9606-9609
192	HOSE; FLEX,TRANS (B) L=400	1-09364-913-0	01	1	9610-9612
192	HOSE; FLEX,TRANS (B) L=400	1-09364-913-0	01	1	9701-9701
192	HOSE; FLEX,TRANS (B) L=500	1-09364-914-0	01	1	9702-9905
192	HOSE; FLEX,TRANS 10PE1N(61L) (A) L=500	1-09364-914-0	01	1	9906-
192	HOSE; FLEX,TRANS (A) L=535	1-09364-936-0	01	1	9606-9609
192	HOSE; FLEX,TRANS (A) L=406	1-09364-961-0	01	1	9610-9905
192	HOSE; FLEX,TRANS 6WA1 TC-C(55L) (A) L=406	1-09364-961-0	01	1	9906-
192	HOSE; FLEX,TRANS 6WA1 TC-S(56L) (A) L=400	1-09364-913-0	01	1	9702-9804
192	HOSE; FLEX,TRANS 6WA1 TC-S(56L) (A) L=311	1-09364-921-0	01	1	9805-9905
192	HOSE; FLEX,TRANS 6WA1 TC-C(55L) (B) L=535	1-09364-936-0	01	1	9906-
192	HOSE; FLEX,TRANS 10PE1N(61L) (B) L=400	1-09364-913-0	01	1	9906-
194	UNION; NYLON TUBE (A) M14	1-09664-230-0	01	1	9606-9905
194	UNION; NYLON TUBE (A) M14	1-09664-230-0	01	1	9906-
194	UNION; NYLON TUBE (B)	1-09664-234-0	01	1	9606-9905
245	PIPE; OIL (A)	1-47428-569-0	01	1	9606-9608
245	PIPE; OIL (A)	1-49161-057-0	01	1	9609-9905
245	PIPE; OIL (A)	1-49119-467-1	01	1	9906-9906
245	PIPE; OIL (A)	1-49122-031-0	01	1	9907-
245	PIPE; OIL (B)	1-47428-570-0	01	1	9606-9608
245	PIPE; OIL (B)	1-49161-058-0	01	1	9609-9905
245	PIPE; OIL (B)	1-49119-468-1	01	1	9906-
311	WASHER; LK ID=14.2	9-09150-514-0	01	1	9606-9905
311	WASHER; LK ID=14.2	9-09150-514-0	01	1	9906-
357	NUT; UNION,FLEX HOSE M22	9-09111-522-0	02	1	9606-
358	WASHER; LK,UNION ID=22.5	9-09150-522-0	02	1	9606-
359	PIPE; AIR,TRANS TO UNION (C)	1-33119-395-0	01	1	9708-
359	PIPE; AIR,TRANS TO UNION (A)	1-49115-055-0	01	1	9606-9608
359	PIPE; AIR,TRANS TO UNION (A)	1-49117-645-0	01	1	9609-9710
359	PIPE; AIR,TRANS TO UNION (A)	1-49118-936-0	01	1	9711-9905
359	PIPE; AIR,TRANS TO UNION (B)	1-49119-463-1	01	1	9906-
359	PIPE; AIR,TRANS TO UNION (B)	1-49115-949-0	01	1	9606-9608
359	PIPE; AIR,TRANS TO UNION (B)	1-49117-647-0	01	1	9609-9710
359	PIPE; AIR,TRANS TO UNION (B)	1-49118-938-0	01	1	9711-9905
359	PIPE; AIR,TRANS TO UNION (A)	1-49119-464-1	01	1	9906-
361	BOLT; EYE,AIR PIPE M12X24 EYE-BOLT	1-09675-082-0	01	1	9606-9611
361	BOLT; EYE,AIR PIPE M12X24 EYE-BOLT	1-09675-229-0	01	1	9612-9905
361	BOLT; EYE,AIR PIPE M12X24 EYE-BOLT	1-09675-229-0	01	1	9906-
362	GASKET; AIR PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	9606-9905
362	GASKET; AIR PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	9906-
362	GASKET; AIR PIPE (B) ID=12.2	1-09630-084-0	02	1	9606-9905
362	GASKET; AIR PIPE (B) ID=12.2	1-09630-084-0	02	1	9906-
405	BOLT; EYE,OIL PIPE M22X37	1-09675-060-0	02	1	9606-
422	NUT; SLEEVE (A) M14	1-09660-767-0	01	1	9606-9905
422	NUT; SLEEVE (A) M14	1-09660-767-0	01	1	9906-
422	NUT; SLEEVE (B) M14	1-09660-212-0	04	1	9606-9905
422	NUT; SLEEVE (B) M14	1-09660-212-0	01	1	9906-
432	SLEEVE; TUBE (A) ID=8.2 L=9.5	1-09666-067-0	01	1	9606-9905
432	SLEEVE; TUBE (A) ID=8.2 L=9.5	1-09666-067-0	01	1	9906-
432	SLEEVE; TUBE (B) ID=8.15 OD=11 L=9.5	1-09666-042-0	04	1	9606-9905
432	SLEEVE; TUBE (B) ID=8.15 OD=11 L=9.5	1-09666-042-0	01	1	9906-
439	BOLT; BRKT (A) M10X20 FLANGE	0-28781-020-0	01	1	9606-9905
439	BOLT; BRKT (A) M16X35 FLANGE	0-28881-635-0	04	1	9906-
439	BOLT; BRKT (B) M10X40 FLANGE	0-28781-040-0	04	1	9606-
439	BOLT; BRKT (C) M16X25 FLANGE	0-28881-625-0	02	1	9606-9905
506	INSERT (C) ID=5 OD=5.9 L=16	1-09669-122-0	01	1	9606-9905
506	INSERT (C) ID=5 OD=5.9 L=16	1-09669-122-0	01	1	9906-
506	INSERT (A) ID=4.5 OD=5.8 L=18	1-09669-054-0	01	1	9606-
506	INSERT (B) ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	9606-9905
508	UNION; AIR M10 & M12 STRAIGHT	1-09664-235-0	01	1	9606-9905
508	UNION; AIR M10 & M12 STRAIGHT	1-09664-235-0	01	1	9906-
509	BRACKET; PIPE	1-47477-551-0	01	1	9606-9905
509	BRACKET; PIPE	1-47478-215-2	01	1	9906-

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TRANSMISSION ASM; MANUAL POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33040-359-2	01	1	9606-9707
1	TRANSMISSION ASM; MANUAL POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33041-633-0	01	1	9708-9905
1	TRANSMISSION ASM; MANUAL POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33042-011-0	01	1	9906-
1	TRANSMISSION ASM; MANUAL EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33040-584-2	01	1	9606-9707
1	TRANSMISSION ASM; MANUAL EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33041-634-0	01	1	9708-9905
1	TRANSMISSION ASM; MANUAL EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM>	1-33042-012-0	01	1	9906-

432 176 181 422 432 431 182 422 180 506 432 422 431 506 175 431 432 422 375 375 368 355 27 292 375 24 439 365 265 351 303 511

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	COVER; CHECK HOLE,DUST	1-31131-038-0	02	1	9606-9704
24	COVER; CHECK HOLE,DUST	1-31131-038-0	03	1	9705-
27	BOLT; COVER TO CLU HSG M16X25 FLANGE	0-28881-625-0	02	1	9606-
175	BRACKET; UNION	1-47477-545-0	01	1	9606-
176	BOLT; UNION BRKT M16X25 FLANGE	0-28881-625-0	02	1	9606-
180	CONNECTOR; NYLON TUBE (A)	1-09660-239-0	01	1	9606-
180	CONNECTOR; NYLON TUBE (B)	1-09660-466-0	01	1	9606-9905
181	BOLT; EYE,NYLON TUBE M12 L=35.5	1-09675-169-0	01	1	9606-
182	GASKET; EYE BOLT,NYLON TUBE ID=12.2	9-09571-412-0	01	1	9606-
265	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	01	1	9606-
292	CLIP; OIL PIPE ID=16 & 16 L=28	1-09701-219-0	01	1	9606-
303	TUBE; NYLON (A) L=2000 OD=8	1-87410-073-0	01	1	9606-9905
303	TUBE; NYLON FRAME ENG MTG SEPARATE TYPE<SGM> L TYPE ENG<90L> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9906-
303	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9906-
303	TUBE; NYLON V TYPE ENG<91L> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0003-
303	TUBE; NYLON (B) L=30000 OD=8	1-09369-578-0	01	1	9606-9905
303	TUBE; NYLON (C) SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	9606-9905
351	BRACKET; UNION,FLEX HOSE L=125	1-47475-897-0	01	1	9906-0001
355	BRACKET; OIL PIPE	1-47477-465-1	01	1	9606-9905
355	BRACKET; OIL PIPE	1-47478-217-1	01	1	9906-
365	BRACKET; HARNESS	1-82699-490-2	01	1	9606-
368	CLIP; BAND,CABLE L=140	5-09707-031-1	02	1	9606-
375	CABLE; TRANS (A) L=250 (RED) NEWTRAL	1-82659-134-1	01	1	9606-
375	CABLE; TRANS (B) L=580 BACK LAMP	1-82659-135-1	01	1	9606-
375	CABLE; TRANS (C) L=880 (YELLOW) SPRITTER SW	1-82659-137-1	01	1	9606-9905
375	CABLE; TRANS (C) L=880	1-82659-137-1	01	1	9906-
422	NUT; SLEEVE (A) M14	1-09660-767-0	01	1	9606-9905
422	NUT; SLEEVE (A) M14	1-09660-767-0	01	1	9906-
422	NUT; SLEEVE (B) M14	1-09660-212-0	04	1	9606-9905
422	NUT; SLEEVE (B) M14	1-09660-212-0	01	1	9906-
431	TUBE; NYLON L=1300 SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9606-9905
432	SLEEVE; TUBE (A) ID=8.2 L=9.5	1-09666-067-0	01	1	9606-9905
432	SLEEVE; TUBE (A) ID=8.2 L=9.5	1-09666-067-0	01	1	9906-
432	SLEEVE; TUBE (B) ID=8.15 OD=11 L=9.5	1-09666-042-0	04	1	9606-9905
432	SLEEVE; TUBE (B) ID=8.15 OD=11 L=9.5	1-09666-042-0	01	1	9906-
439	BOLT; BRKT (A) M10X20 FLANGE	0-28781-020-0	01	1	9606-9905
439	BOLT; BRKT (A) M16X35 FLANGE	0-28881-635-0	04	1	9906-
439	BOLT; BRKT (B) M10X40 FLANGE	0-28781-040-0	04	1	9606-
439	BOLT; BRKT (C) M16X25 FLANGE	0-28881-625-0	02	1	9606-9905
506	INSERT (C) ID=5 OD=5.9 L=16	1-09669-122-0	01	1	9606-9905
506	INSERT (C) ID=5 OD=5.9 L=16	1-09669-122-0	01	1	9906-
506	INSERT (A) ID=4.5 OD=5.8 L=18	1-09669-054-0	01	1	9606-
506	INSERT (B) ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	9606-9905
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	9606-9905
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	9906-
511	TUBE; CORRUGATE SERVICED BY L=800 ID=7 L=400	1-83129-031-1	01	1	9708-9905
511	TUBE; CORRUGATE SERVICED BY L=800 ID=7	1-83129-031-1	02	1	9606-9905
511	TUBE; CORRUGATE SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9906-
511	TUBE; CORRUGATE SERVICED BY L=800 ID=7 L=400	1-83129-031-1	02	1	9606-9706
511	TUBE; CORRUGATE SERVICED BY L=800 ID=7 L=620	1-83129-031-1	02	1	9707-9707
511	TUBE; CORRUGATE SERVICED BY L=800 ID=7 L=620	1-83129-031-1	01	1	9708-9905
511	TUBE; CORRUGATE SERVICED BY L=800 ID=7 L=700	1-83129-031-1	01	1	9606-9905
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87410-085-0	01	1	9606-9905
511	TUBE; CORRUGATE L=350 SERVICED BY L=2000 ID=10	1-87410-088-0	03	1	9606-9905
511	TUBE; CORRUGATE L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	03	1	9906-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
