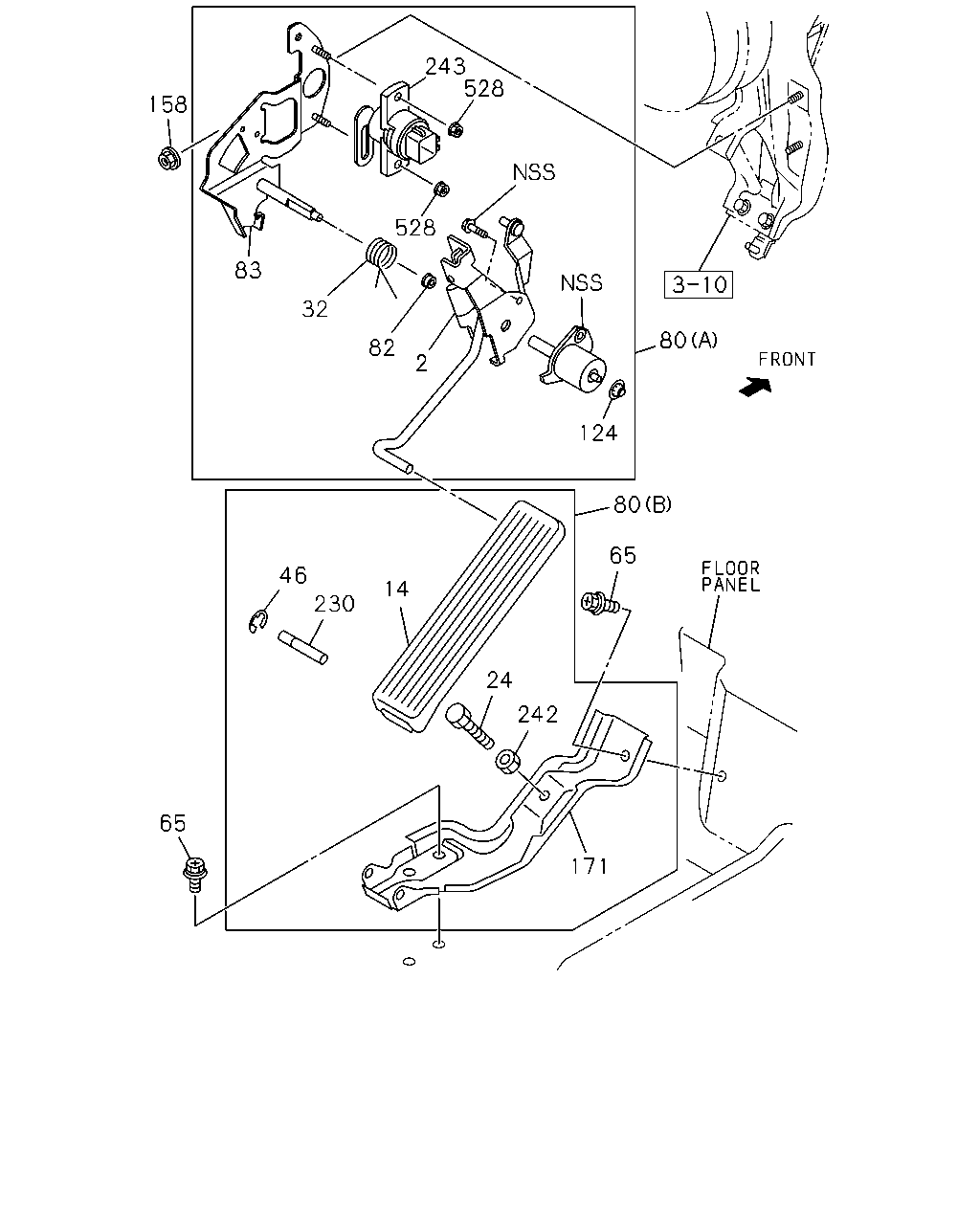

1-01 — ACCELERATOR PEDAL AND CONTROL (#50599) — 18 parça

243 528 158 528 83 32 80 82 2 124 80 65 46 14 230 24 242 65 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	03.454 LEVER; ENG CONT	8-98002-158-2	01	1	1004-
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	1004-
24	03.483 BOLT; BRKT 09.173 M8X35 FLANGE	8-98049-562-0	01	1	1004-
32	03.459 SPRING; RETURN,ACCEL PEDAL	8-98031-665-0	01	1	1004-
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	1004-
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	1004-
80	03.452 LINK ASM; ENG CONT (A)	8-97387-358-3	01	1	1004-
80	03.452 LINK ASM; ENG CONT 03.459 (B)	8-98006-714-1	01	1	1004-
82	03.463 BUSHING; ENG CONT LVR	8-97581-053-0	01	1	1004-
83	03.452 BRACKET; CONT LINK	8-98023-885-2	01	1	1004-
124	03.463 NUT; LEVER 03.452 ID=7.9 PUSH NUT	8-94368-617-0	01	1	1004-
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	1004-
171	03.483 BRACKET ASM; ACCEL PEDAL	8-98006-716-1	01	1	1004-
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-98026-806-0	01	1	1004-
242	03.483 NUT; ACCEL PEDAL 02.559 M8 FLANGE	8-98040-024-0	01	1	1004-
243	03.425 SENSOR; ACCEL	8-98131-263-0	01	1	1004-
528	03.463 NUT; ACCEL SENSOR 12.183 M5	8-94169-022-0	02	1	1004-

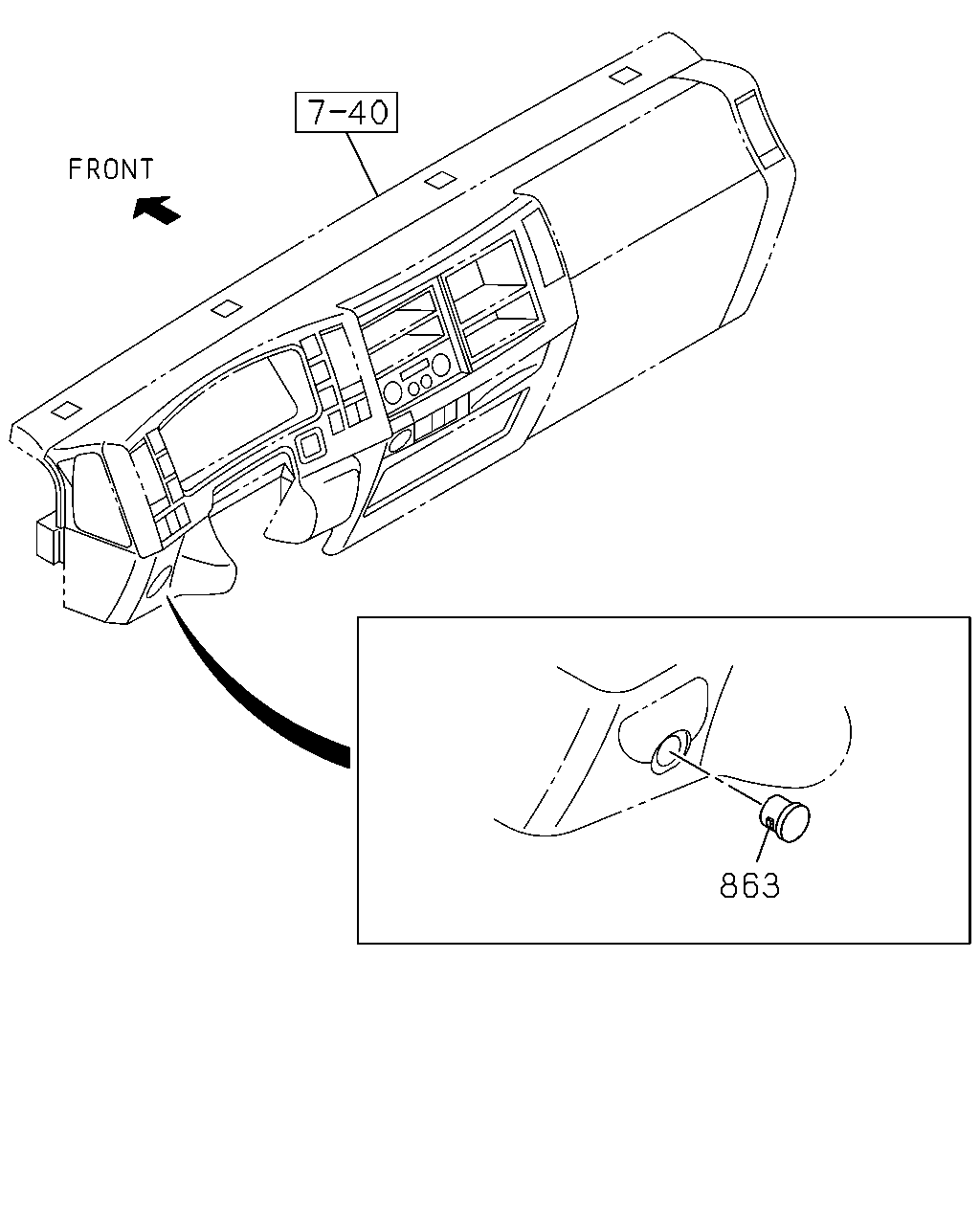

863

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	863	03.463 COVER; SENSOR GRAY	8-97408-816-0	01	1	1004-
