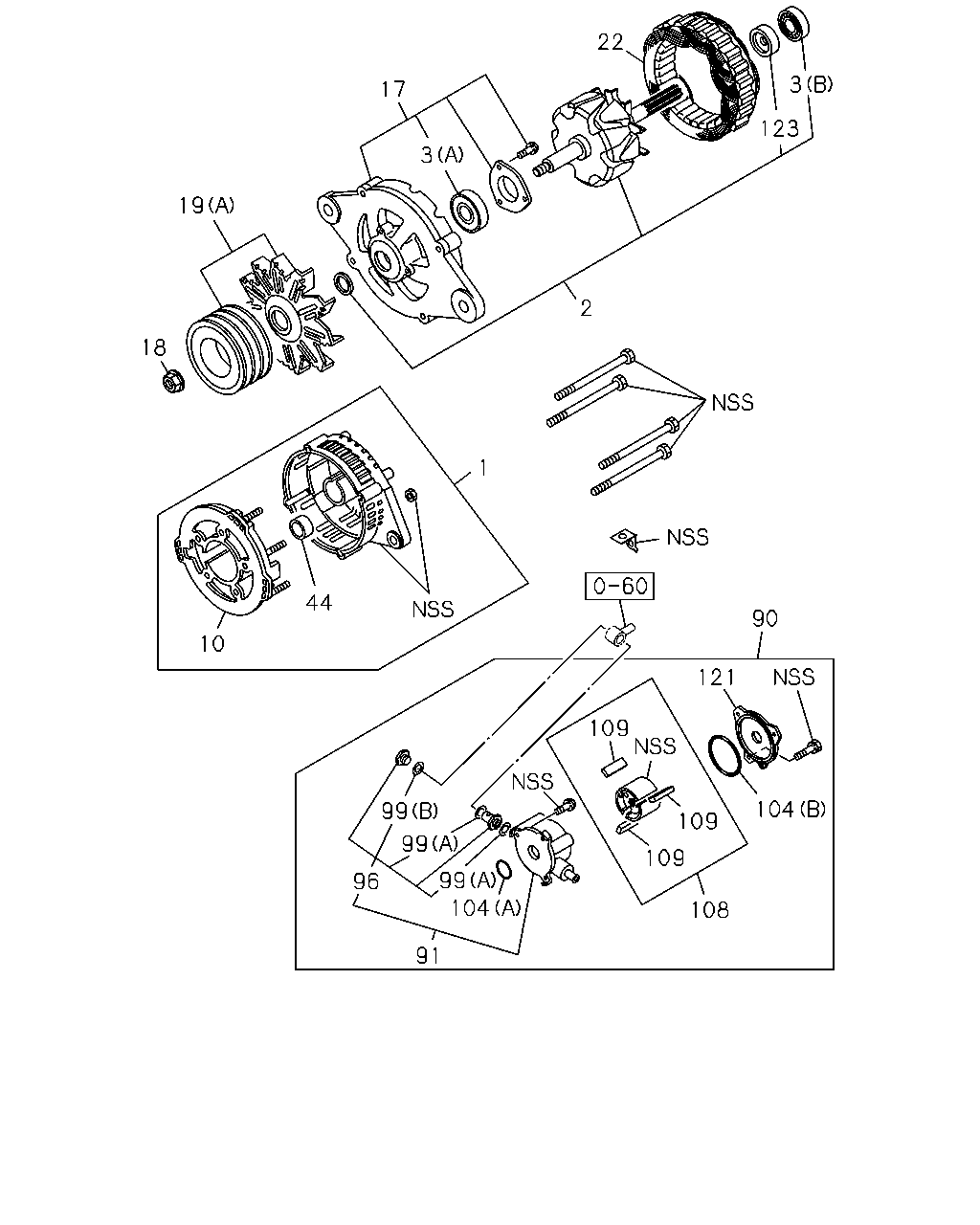

0-66 — GENERATOR (#50596) — 61 parça

22 3 17 123 3 19 2 18 1 44 90 10 121 109 104 99 109 99 109 99 104 96 108 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97351-574-1, 97351574	8-97249-332-0	01	1	-1208
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-97351-573-0, 97351573	8-97302-702-0	01	1	-1208
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-97351-573-0, 97351573	8-98230-321-0	01	1	1209-
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97351-574-1, 97351574	8-98230-322-0	01	1	1209-
2	02.279 ROTOR; GEN ASM PART: B = 8-97351-574-1, 97351574	8-97249-330-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-97351-573-0, 97351573	8-97302-700-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574	8-98146-442-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574	8-97249-333-0	01	1	-1208
10	02.319 RECTIFIER; GEN ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574	8-98230-331-0	01	1	1209-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97351-574-1, 97351574	8-97249-334-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-97351-573-0, 97351573	8-97302-703-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: A = 8-97351-573-0, 97351573	8-97083-293-0	01	1	-
19	02.274 PULLEY; GEN (A) ASM PART: A = 8-97351-573-0, 97351573	8-97083-292-0	01	1	-
19	02.274 PULLEY; GEN (B) ASM PART: B = 8-97351-574-1, 97351574	8-97249-335-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97351-574-1, 97351574	8-97249-331-1	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-97351-573-0, 97351573	8-97302-701-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574	8-94156-589-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574	8-97351-707-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574	8-97148-117-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP 02.307 ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574	8-97148-118-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574	5-19679-003-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574	8-97083-304-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574	8-97148-115-1	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574	8-97083-298-0	03	1	-
121	02.297 COVER; RR,VAC PUMP ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574	8-97148-116-0	01	1	-
123	02.291 GUIDE; BRUSH ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574	8-97062-644-0	01	1	-

22 3 17 123 3 19 2 1 44 90 10 121 109 104 99 109 99 109 99 104 96 108 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97351-574-1, 97351574	8-97249-332-0	01	1	-1208
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-97351-573-0, 97351573	8-97302-702-0	01	1	-1208
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-97351-573-0, 97351573	8-98230-321-0	01	1	1209-
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97351-574-1, 97351574	8-98230-322-0	01	1	1209-
2	02.279 ROTOR; GEN ASM PART: B = 8-97351-574-1, 97351574	8-97249-330-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-97351-573-0, 97351573	8-97302-700-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574	8-98146-442-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574	8-97249-333-0	01	1	-1208
10	02.319 RECTIFIER; GEN ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574	8-98230-331-0	01	1	1209-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97351-574-1, 97351574	8-97249-334-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-97351-573-0, 97351573	8-97302-703-0	01	1	-
19	02.274 PULLEY; GEN (A) ASM PART: A = 8-97351-573-0, 97351573	8-97083-292-0	01	1	-
19	02.274 PULLEY; GEN (B) ASM PART: B = 8-97351-574-1, 97351574	8-97249-335-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97351-574-1, 97351574	8-97249-331-1	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-97351-573-0, 97351573	8-97302-701-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574	8-94156-589-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574	8-97351-707-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574	8-97148-117-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP 02.307 ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574	8-97148-118-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574	5-19679-003-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574	8-97083-304-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574	8-97148-115-1	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574	8-97083-298-0	03	1	-
121	02.297 COVER; RR,VAC PUMP ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574	8-97148-116-0	01	1	-
123	02.291 GUIDE; BRUSH ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574	8-97062-644-0	01	1	-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	24	02.307 SCREW; RECTIFIER,GEN ASM PART: A = 8-97351-573-0, 97351573	8-97131-532-0	01	1	-
	24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-97351-574-1, 97351574	8-97249-336-0	01	1	-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	24	02.307 SCREW; RECTIFIER,GEN ASM PART: A = 8-97351-573-0, 97351573	8-97131-532-0	01	1	-
	24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-97351-574-1, 97351574	8-97249-336-0	01	1	-
