Isuzu WW
▶
TRUCKS
▶
NPR
▶
51245 - NPR CNG-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-61 - BATTERY AND ENGINE ELECTRICAL PARTS
▶

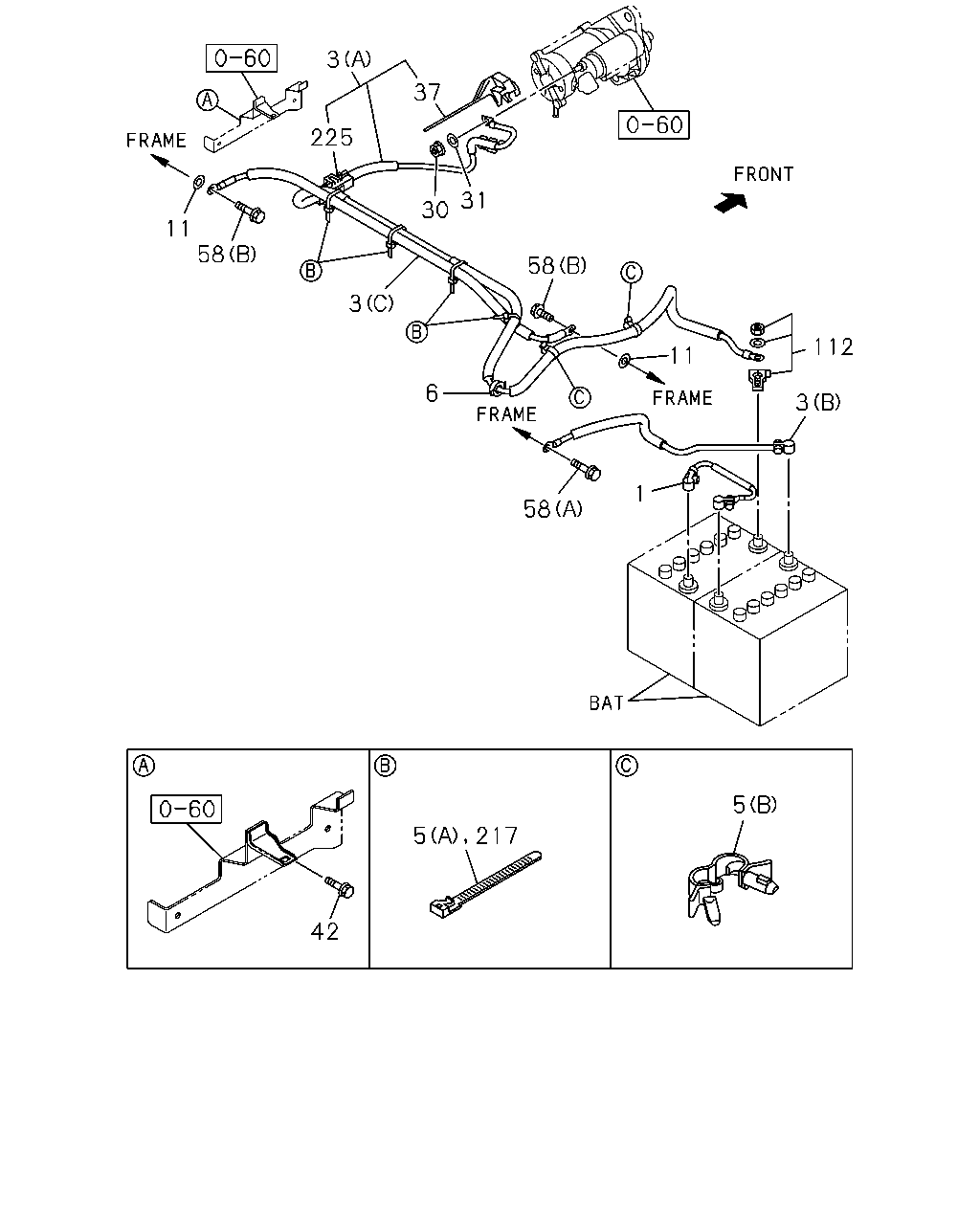

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS
(#50594) — 22 parça
3
37
225
31
30
11
58
58
3
112
11
6
3
1
58
5
5
217
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
02.341 CABLE; BATTERY
L=280
8-98081-510-0
01
1
1004-
3
02.525 HARNESS; CABLE,BATTERY TO STARTE
IDENTIFICATION LABEL FOR KD<6UT> (C)
8-98126-009-0
01
1
1004-
3
02.525 HARNESS; CABLE,BATTERY TO STARTE
(B)
8-98113-881-1
01
1
1004-
3
02.525 HARNESS; CABLE,BATTERY TO STARTE
(A)
8-98162-184-0
01
1
1004-1409
3
02.525 HARNESS; CABLE,BATTERY TO STARTE
(A)
8-98294-696-0
01
1
1410-
5
02.559 CLIP; BATTERY CABLE TO BODY
IDENTIFICATION LABEL FOR KD<6UT> (A) L=250
5-09707-030-1
04
1
1004-
5
02.559 CLIP; BATTERY CABLE TO BODY
(B) ID=13-18 L=18
1-09709-291-0
02
1
1004-
5
02.559 CLIP; BATTERY CABLE TO BODY
03.162 (A) L=140
5-09707-031-1
01
1
1004-
6
02.343 GROMMET; BATTERY CABLE
ID=17
8-94128-319-2
01
1
1004-
11
02.343 WASHER; BATTERY CABLE EARTH
IDENTIFICATION LABEL FOR KD<6UT>
8-98099-007-0
02
1
1004-
30
02.334 NUT; CABLE,STARTER TO BATTERY
M8
0-91110-508-0
01
1
1004-
31
02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2
0-91510-808-0
01
1
1004-
37
02.343 CAP; TERMINAL,BATTERY CABLE
8-98042-507-0
01
1
1004-
42
02.343 BOLT; BRKT,BATTERY CABLE
02.500 M6X16 FLANGE
8-97329-599-0
01
1
1004-
58
02.343 BOLT; CABLE,BATTERY
IDENTIFICATION LABEL FOR KD<6UT> 02.559 (B) M8X20 W/LK&PL WASHER
8-97086-825-0
02
1
1004-1004
58
02.343 BOLT; CABLE,BATTERY
IDENTIFICATION LABEL FOR KD<6UT> (B) M8X18.5 W/PL WASHER
8-98141-255-0
02
1
1005-
58
02.343 BOLT; CABLE,BATTERY
(A) M8X25 W/LK&PL WASHER
8-97087-203-0
01
1
1004-1004
58
02.343 BOLT; CABLE,BATTERY
(A) M8X24 W/PL WASHER
8-98141-256-1
01
1
1005-
112
02.343 TERMINAL; BATTERY
8-97365-770-0
01
1
1004-
217
02.343 CLIP; BAND,CABLE
4 WHEEL ANTI LOCK BRAKE<JE5> IDENTIFICATION LABEL FOR KD<6UT> EXC. SPEED LIMITER 90KM(NMJ) 03.162 L=140
5-09707-031-1
01
1
1101-
225
02.343 BLOCK; TERMINAL
8-98029-689-0
01
1
1004-1409
225
02.343 BLOCK; TERMINAL
8-98294-524-0
01
1
1410-
