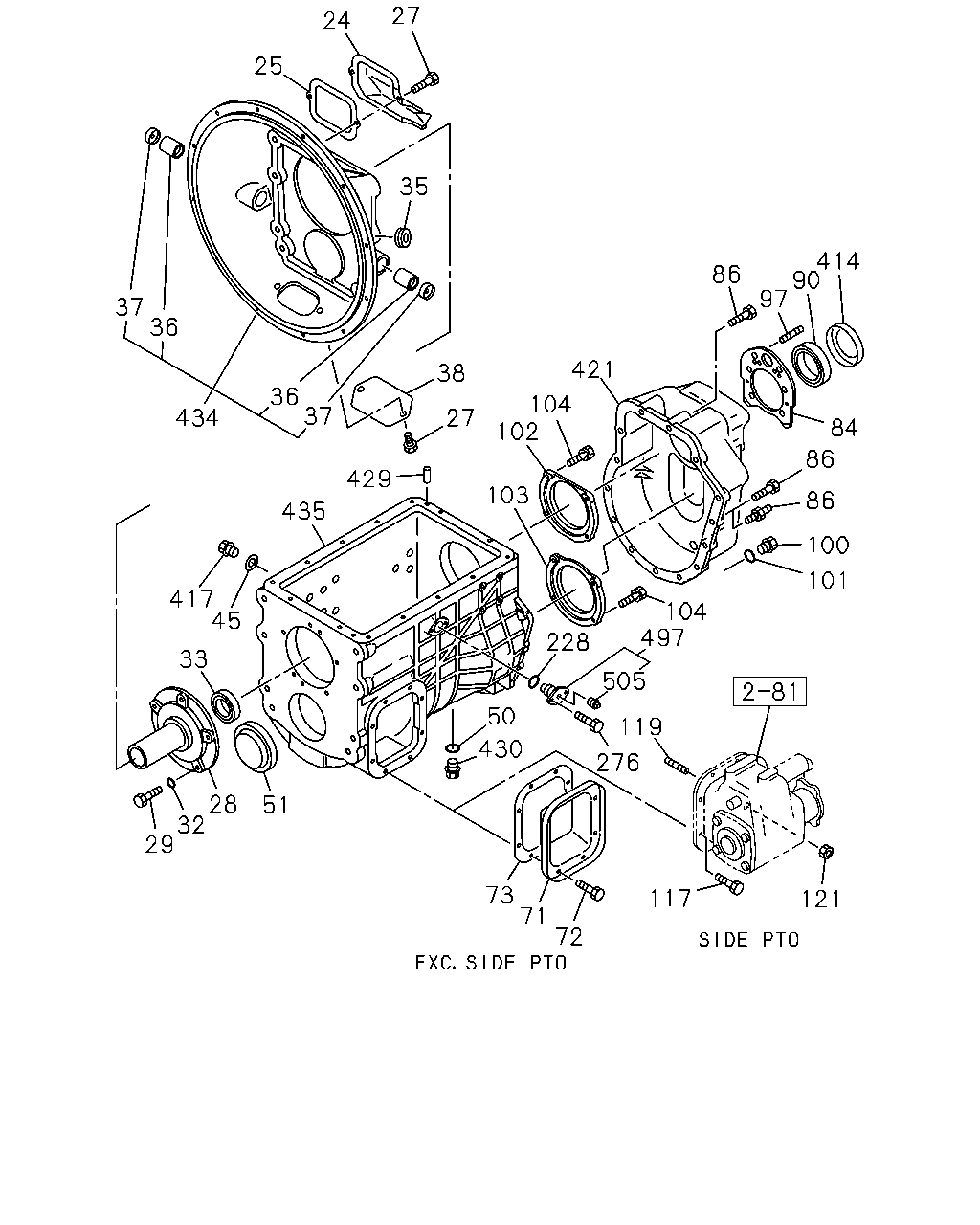

2-20A — MANUAL TRANSMISSION ASM AND CASE (#5059) — 70 parça

27 24 25 35 414 90 97 86 37 36 421 38 36 37 104 102 27 434 84 86 429 103 86 435 100 101 417 45 104 497 228 33 505 50 119 430 276 28 32 29 51 73 71 117 121 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	9606-
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	9606-
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	9606-0104
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0105-
28	COVER; FRT,TRANS CASE	1-33121-063-2	01	1	9606-
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	05	1	9606-
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	05	1	9606-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	9606-
35	GROMMET; CLU HSG	9-09575-796-0	01	1	9606-
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	9606-
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	9606-
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	9606-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9606-
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9606-
51	COVER; SEAL,COUNTER,FRT	1-33319-055-1	01	1	9606-9707
51	COVER; SEAL,COUNTER,FRT	1-33319-195-1	01	1	9708-
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-33141-030-1	01	1	9606-
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X16 FLANGE	0-28181-016-0	08	1	9606-
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-33142-043-0	01	1	9606-
84	SPACER; COVER,TRANS BRAKE SYSTEM RETARDER<RE2>	1-46213-103-0	01	1	9906-
86	BOLT; RR COVER M17X35	1-09044-076-0	09	1	9606-
86	BOLT; RR COVER M12X65	1-09044-077-0	02	1	9606-0011
86	BOLT; RR COVER M12X65 FLANGE	1-09044-113-0	02	1	0012-
86	BOLT; RR COVER M10X16,M12X30 L=57.7	1-09049-018-0	03	1	9606-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	9606-
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	9606-9905
97	STUD; PARKING BRK ASSISTER SHIFT CONTROL<WX8> EXC. BRAKE SYSTEM RETARDER<RE2> M16X41 L=62	1-09302-151-0	01	1	9906-
97	STUD; PARKING BRK BRAKE SYSTEM RETARDER<RE2> M16X25 L=54	1-09302-086-0	04	1	9606-
100	PLUG; DRAIN RR COVER M24X17 FLANGE	1-09604-023-0	01	1	9606-
101	GASKET; DRAIN RR COVER ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9606-
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-035-1	01	1	9606-
103	RETAINER; BRG	1-33151-035-1	01	1	9606-
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	9606-
117	BOLT; PTO FIX M10X22 FLANGE	0-28181-022-0	04	1	9606-9905
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X22 FLANGE	0-28181-022-0	04	1	9906-
117	BOLT; PTO FIX M10X50 FLANGE	0-28181-050-0	02	1	9606-9905
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X50 FLANGE	0-28181-050-0	02	1	9906-
119	STUD; PTO FIX M10X25 L=40	9-04411-025-0	02	1	9606-9905
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X25 L=40	9-04411-025-0	02	1	9906-
121	NUT; PTO FIX M10 FLANGE	0-91150-210-0	02	1	9606-9905
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10 FLANGE	0-91150-210-0	02	1	9906-
228	GASKET; NOZZLE ID=24.4	1-09623-183-0	01	1	9606-9905
228	GASKET; NOZZLE ID=24.4	1-09623-057-0	01	1	9906-
276	BOLT; ADAPTER M14X20	1-09044-078-0	02	1	9606-
414	COVER; DUST,RR COVER	1-33139-011-1	01	1	9606-
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9606-9802
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	9803-
421	COVER; RR,TRANS BRAKE SYSTEM RETARDER<RE2>	1-33131-198-2	01	1	9606-
421	COVER; RR,TRANS EXC. BRAKE SYSTEM RETARDER<RE2>	1-33131-197-1	01	1	9606-9905
421	COVER; RR,TRANS ASSISTER SHIFT CONTROL<WX8> EXC. BRAKE SYSTEM RETARDER<RE2>	1-33131-197-2	01	1	9906-
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9606-
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9606-
434	HOUSING; CLU	1-31110-171-2	01	1	9606-
435	CASE; TRANS	1-33111-195-1	01	1	9606-
497	ADAPTER; PLUG	1-33119-255-0	01	1	9606-
505	PLUG; ADAPTER,OIL INLET PT1/4	9-99204-513-0	01	1	9606-9704
505	PLUG; ADAPTER,OIL INLET PT1/4	9-99204-513-0	01	1	9906-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

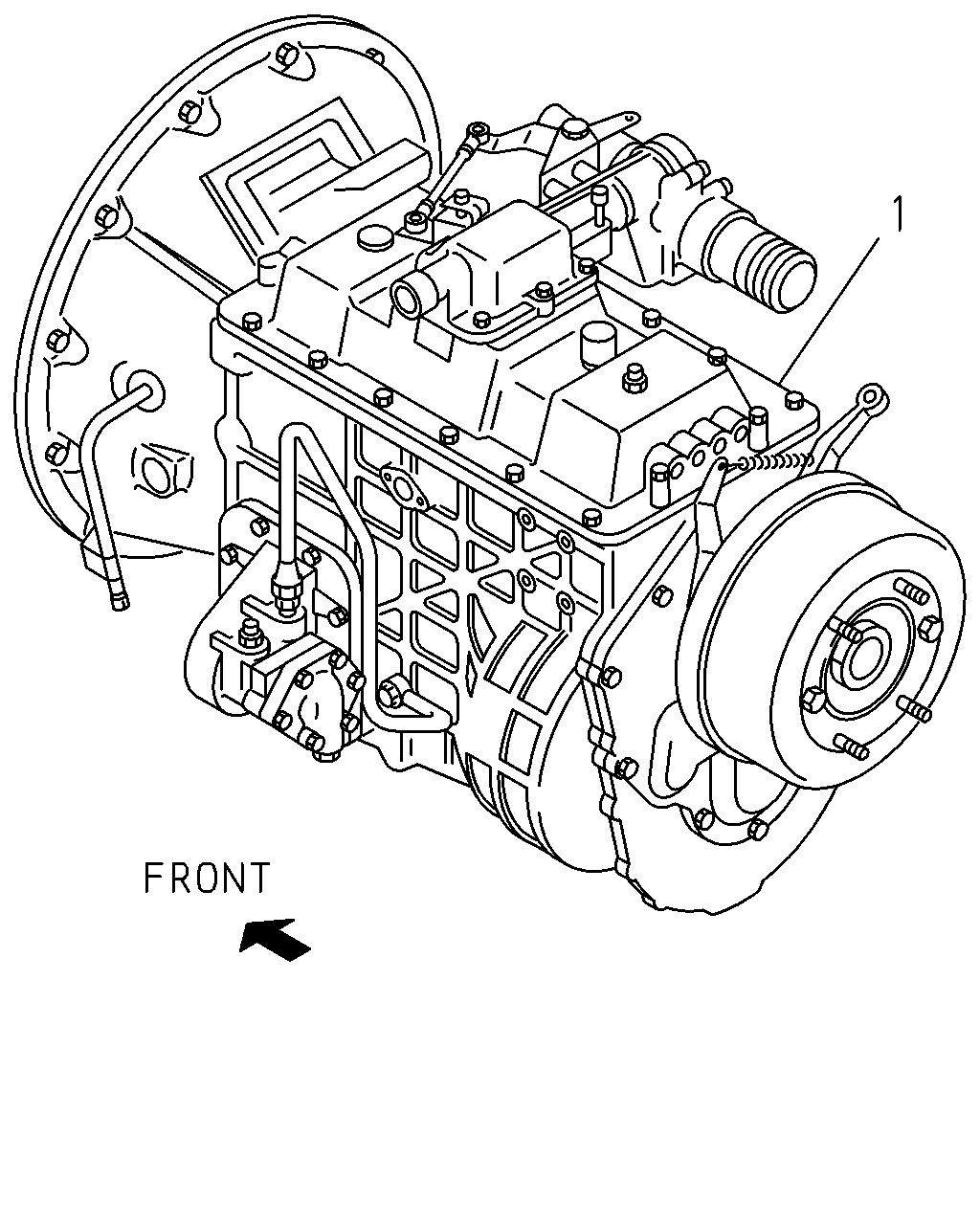

1	TRANSMISSION ASM; MANUAL L TYPE ENG<90L> BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-33041-367-0	01	1	9610-9702
1	TRANSMISSION ASM; MANUAL L TYPE ENG<90L> BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-33041-366-0	01	1	9610-9702
1	TRANSMISSION ASM; MANUAL L TYPE ENG<90L> BRAKE SYSTEM RETARDER<RE2>	1-33041-434-0	01	1	9703-9905
1	TRANSMISSION ASM; MANUAL L TYPE ENG<90L> BRAKE SYSTEM RETARDER<RE2>	1-33042-139-0	01	1	9906-
1	TRANSMISSION ASM; MANUAL L TYPE ENG<90L> EXC. BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-33040-680-0	01	1	9610-9905
1	TRANSMISSION ASM; MANUAL L TYPE ENG<90L> EXC. BRAKE SYSTEM RETARDER<RE2>	1-33042-135-0	01	1	9906-
1	TRANSMISSION ASM; MANUAL L TYPE ENG<90L> TRANSMISSION SIDE PTO WO/LEVER<SH5> EXC. BRAKE SYSTEM RETARDER<RE2>	1-33040-681-0	01	1	9610-9702
1	TRANSMISSION ASM; MANUAL L TYPE ENG<90L> TRANSMISSION SIDE PTO WO/LEVER<SH5> EXC. BRAKE SYSTEM RETARDER<RE2>	1-33040-680-0	01	1	9703-9905
1	TRANSMISSION ASM; MANUAL 10PE1N(61L) BRAKE SYSTEM RETARDER<RE2>	1-33042-133-0	01	1	9906-
1	TRANSMISSION ASM; MANUAL 10PE1S(60L) BRAKE SYSTEM RETARDER<RE2>	1-33040-673-0	01	1	9606-9702
1	TRANSMISSION ASM; MANUAL 10PE1S(60L) BRAKE SYSTEM RETARDER<RE2>	1-33041-443-0	01	1	9703-9905
1	TRANSMISSION ASM; MANUAL 10PE1S(60L) EXC. BRAKE SYSTEM RETARDER<RE2>	1-33040-601-0	01	1	9606-9905
1	TRANSMISSION ASM; MANUAL 10PE1N(61L) EXC. BRAKE SYSTEM RETARDER<RE2>	1-33042-130-0	01	1	9906-
