Isuzu WW
▶
TRUCKS
▶
NPR
▶
51245 - NPR CNG-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-42 - FUEL PUMP AND PIPE
▶

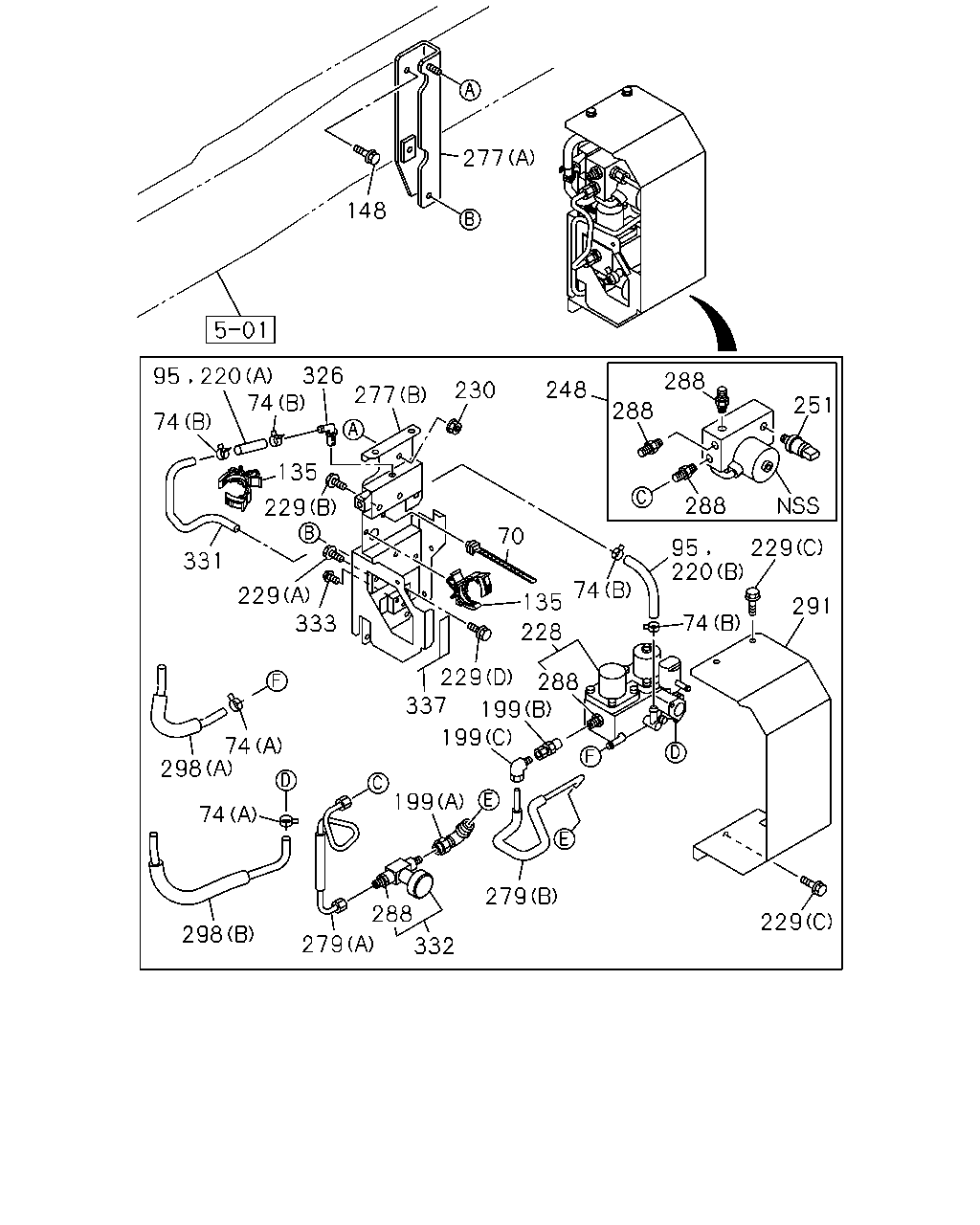

0-42 — FUEL PUMP AND PIPE
(#50588) — 36 parça
229
279
332
288
279
298
74
298
199
199
337
199
74
291
229
220
95
288
251
288
288
248
230
70
135
228
288
74
229
277
326
135
229
333
229
331
74
74
220
95
148
277
74
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
70
03.162 CLIP; HOSE
02.559 L=155
8-97173-307-0
01
1
1004-
74
03.675 CLAMP; HOSE
03.278 (B) ID=14.2
8-97375-636-0
04
1
1307-
74
03.675 CLAMP; HOSE
01.219 (A) ID=13
8-94238-571-0
02
1
1004-1303
74
03.675 CLAMP; HOSE
03.162 (A) ID=13
8-98150-357-0
02
1
1304-
95
03.890 PIPE; VINYL
00.034 L=450 SERVICED BY L=10000
9-09914-701-0
01
1
1004-1107
95
03.890 PIPE; VINYL
L=450
8-98157-811-0
01
1
1108-1306
135
03.162 CLIP; HARNESS
02.559 ID=7-10
8-94472-578-0
02
1
1004-
148
03.162 BOLT; BRKT
00.029 M10X30 FLANGE
0-28651-030-0
02
1
1004-
199
03.162 CONNECTOR; PIPE
(B)
8-98127-024-0
01
1
1004-
199
03.162 CONNECTOR; PIPE
(C)
8-98127-025-0
01
1
1004-
199
03.162 CONNECTOR; PIPE
(A)
8-98154-082-0
01
1
1004-
220
03.163 HOSE; FUEL
01.097 (A) L=70 SERVICED BY L=3000
0-03559-300-0
01
1
1307-
220
03.163 HOSE; FUEL
(B)
8-98240-783-0
01
1
1307-
228
03.162 REGULATOR ASM; CNG
8-98105-083-1
01
1
1004-
229
03.162 BOLT; REGULATOR
(A) M6X12 FLANGE
0-28050-612-0
03
1
1004-
229
03.162 BOLT; REGULATOR
02.343 (B) M8X12 FLANGE
0-28050-812-0
02
1
1004-
229
03.162 BOLT; REGULATOR
01.531 (C) M8X20 FLANGE
0-28650-820-0
04
1
1004-
229
03.162 BOLT; REGULATOR
02.277 (D) M10X35 FLANGE
0-28651-035-0
01
1
1004-1012
229
03.162 BOLT; REGULATOR
03.023 (D) M10X35 FLANGE
0-28661-035-0
01
1
1101-
230
03.162 NUT; REGULATOR
M10 FLANGE
0-91180-110-0
01
1
1004-1012
230
03.162 NUT; REGULATOR
04.085 M10 FLANGE
0-91180-210-0
01
1
1101-
248
03.162 VALVE; MAG
8-98120-794-0
01
1
1004-
251
03.405 SENSOR; AIR PRESS
8-98108-286-0
01
1
1004-
277
03.162 BRACKET; REGULATOR,CNG
(A)
8-98122-594-1
01
1
1004-
277
03.162 BRACKET; REGULATOR,CNG
(B)
8-98154-083-0
01
1
1004-
279
03.901 PIPE; FUEL,CNG
(A)
8-98154-080-0
01
1
1004-
279
03.901 PIPE; FUEL,CNG
(B)
8-98154-081-0
01
1
1004-
288
03.904 NIPPLE; REG
8-97245-227-1
05
1
1004-
291
03.910 COVER; REG
8-98045-070-2
01
1
1004-
298
03.341 HOSE; WATER
(B)
8-98114-295-0
01
1
1004-
298
03.341 HOSE; WATER
(A)
8-98163-988-0
01
1
1004-
326
03.278 BREATHER; FUEL
03.028
8-97357-261-0
01
1
1004-
331
04.867 PIPE; AIR
8-98045-069-1
01
1
1004-
332
03.162 VALVE; AIR
8-98114-283-0
01
1
1004-
333
03.162 SCREW
16.067 M4X8
9-93490-408-0
02
1
1004-
337
03.671 TAPE; COVER
8-98052-313-1
01
1
1004-
