Isuzu WW
▶
TRUCKS
▶
NPR
▶
51245 - NPR CNG-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-15 - CRANKSHAFT,PISTON AND FLYWHEEL
▶
0-15 — CRANKSHAFT,PISTON AND FLYWHEEL
(#50575) — 32 parça
◀

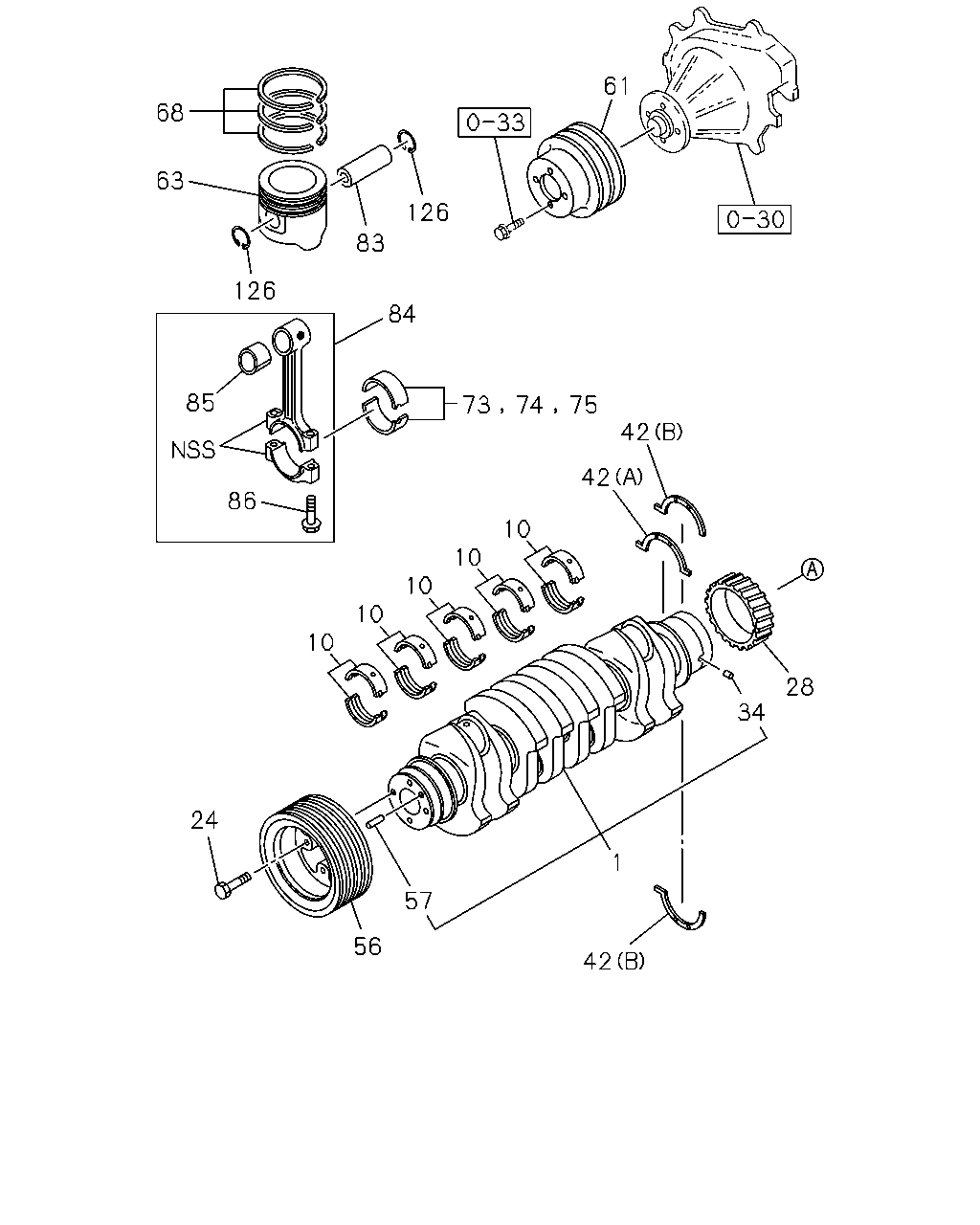

[015A] CRANKSHAFT AND PISTON (26 parça)

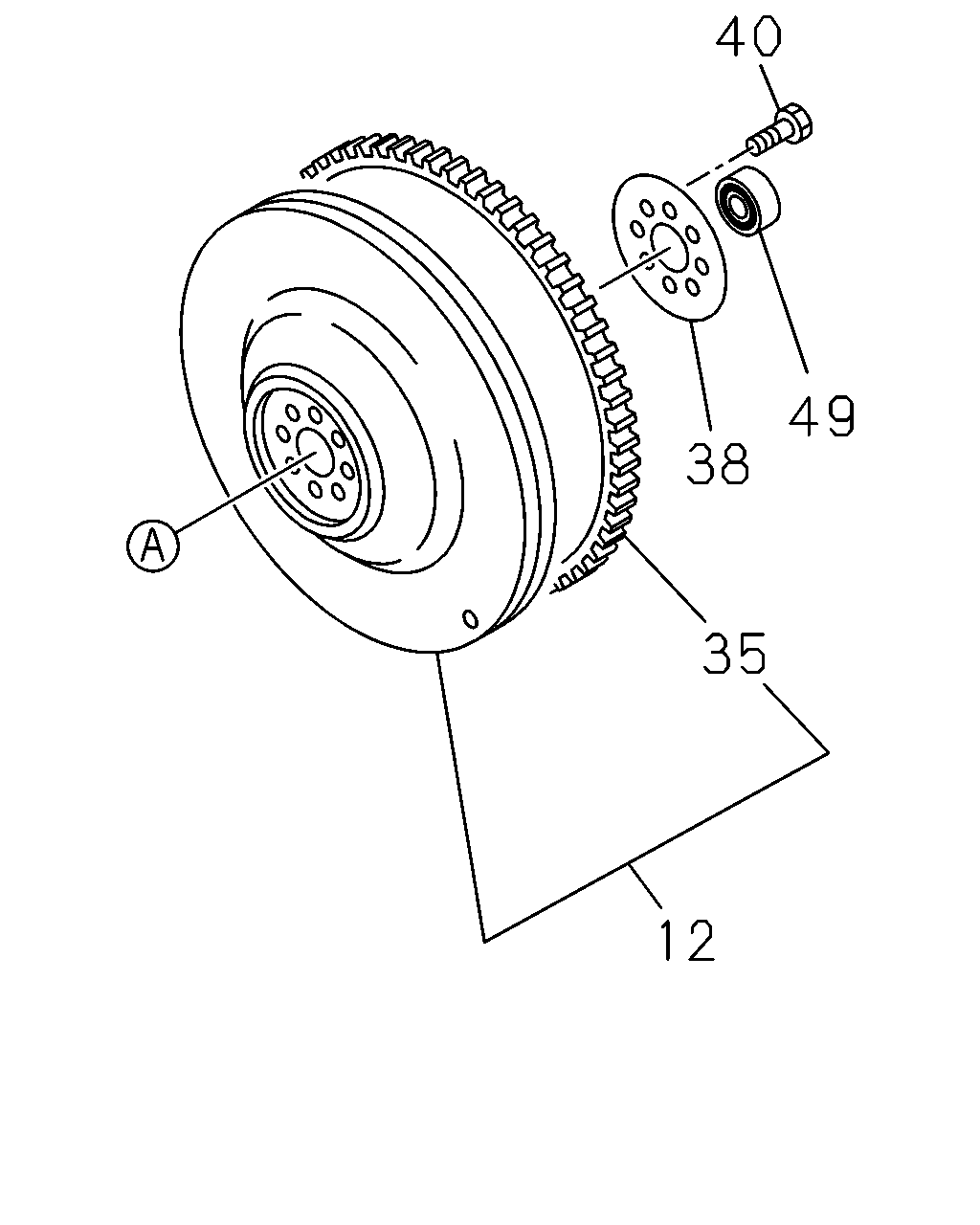

[015A] FLYWHEEL (6 parça)
▶
28
34
1
42
57
56
24
10
10
10
10
42
10
42
75
74
73
84
85
86
63
68
126
83
126
61
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
00.646 CRANKSHAFT
8-97112-981-3
01
1
1004-
10
00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE
8-97372-076-1
05
1
1004-
10
00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK
8-97372-077-1
05
1
1004-
10
00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN
8-97372-078-1
05
1
1004-
24
00.659 BOLT; DAMPER
M16X42
8-97028-733-0
04
1
1004-
28
00.728 GEAR; CR/SHF
Z=42
8-97109-626-1
01
1
1004-
34
00.738 PIN; GEAR SETTING
OD=5 L=6
9-09878-626-0
02
1
1004-
42
00.095 WASHER; THRUST,CR/SHF
(A) FRONT
8-97386-548-0
01
1
1004-
42
00.095 WASHER; THRUST,CR/SHF
(B) REAR
8-97386-549-0
02
1
1004-
56
00.659 PULLEY; CR/SHF DAMPER
4-GROOVE
8-97222-031-3
01
1
1004-
57
00.662 PIN; PULLEY
00.862 OD=8 L=20
9-08150-820-0
04
1
1004-
61
00.659 PULLEY; FAN DRIVE
2-GROOVE
8-97174-757-3
01
1
1004-
63
00.629 PISTON
ALSO INCLUDED IN LINER SET.
8-98120-366-0
04
1
1004-1304
63
00.629 PISTON
ALSO INCLUDED IN LINER SET.
8-98235-600-0
04
1
1305-
68
00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
8-98144-475-0
04
1
1004-1304
68
00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
8-98233-350-0
04
1
1305-
73
00.616 METAL SET; CONN ROD,STANDARD
YELLOW
8-97045-800-0
04
1
1004-
73
00.616 METAL SET; CONN ROD,STANDARD
GREEN
8-97045-801-0
04
1
1004-
74
00.616 METAL SET; CONN ROD,U/S=0.25
8-97175-127-0
04
1
1004-
75
00.616 METAL SET; CONN ROD,U/S=0.50
8-97175-128-0
04
1
1004-
83
00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET.
8-94396-589-1
04
1
1004-
84
00.603 ROD ASM; CONN
8-97135-032-6
04
1
1004-
85
00.613 BUSHING; CONNROD
8-98121-309-0
04
1
1004-
86
00.623 BOLT; CONNROD
M13X57 FLANGE
1-12235-035-0
08
1
1004-1004
86
00.623 BOLT; CONNROD
M13X57 FLANGE
8-98091-141-0
08
1
1005-
126
00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=38.8
8-94318-798-2
08
1
1004-
40
49
38
35
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
00.666 FLYWHEEL
8-97366-601-1
01
1
1004-
35
00.673 GEAR; RING
Z=138
8-97046-366-1
01
1
1004-
38
00.862 WASHER; FLYWHEEL
ID=55 OD=110
8-94397-496-1
01
1
1004-
40
00.669 BOLT; FLYWHEEL
M16X42
8-97178-013-0
08
1
1004-
49
00.669 BEARING; PILOT
8-97258-239-0
01
1
1004-
49
00.669 BEARING; PILOT
BEST VALUE PARTS
5-87610-164-0
01
1
1004-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
