◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51244 - NPR(LHD) EURO5 ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#50568) — 69 parça

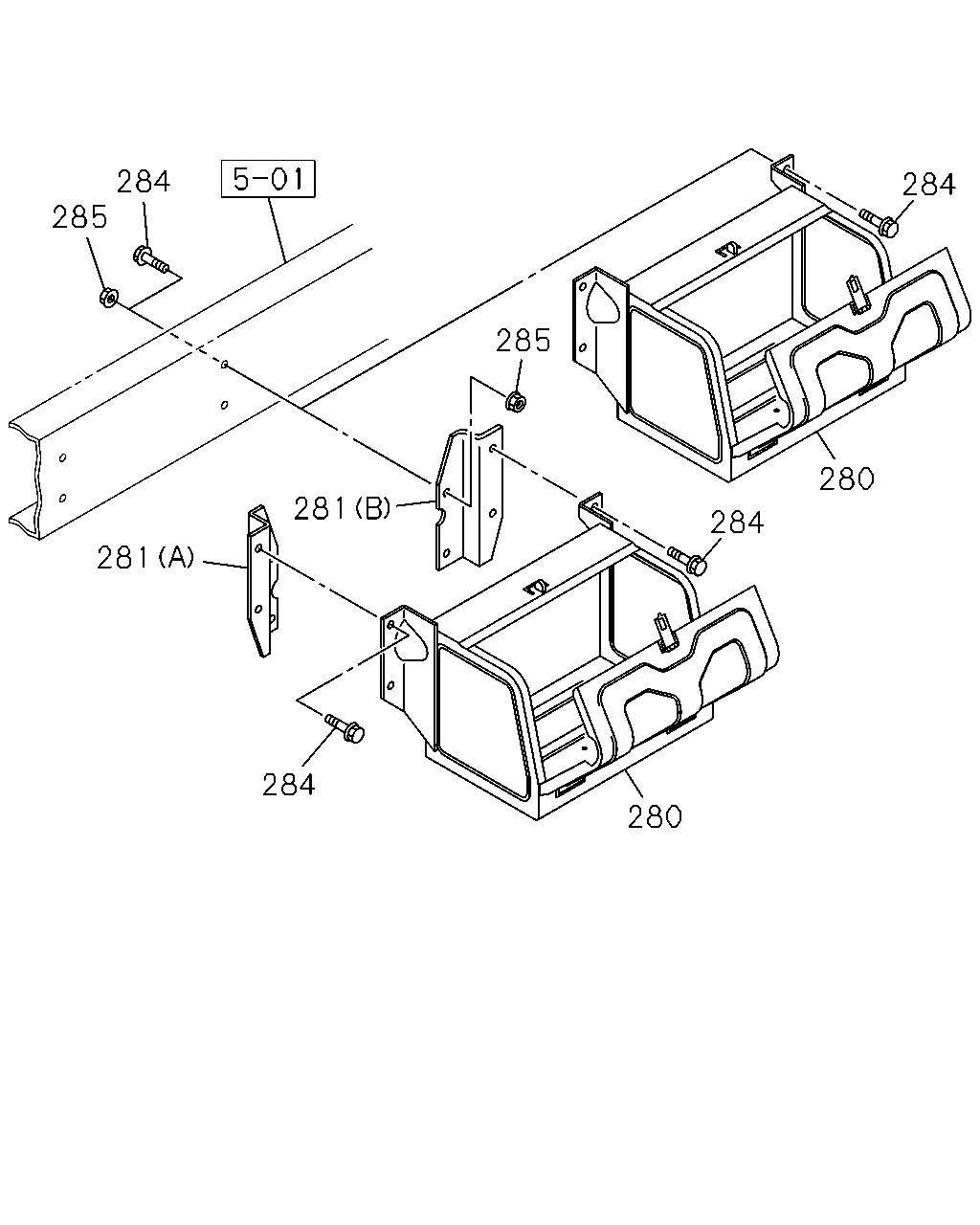

çizim 159461
284 285 284 285 280 281 284 281 284 280
BalonParca AdiParca NoAdetTipApplied Date A B
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97384-079-0 01 1 0911-1108 ●
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97384-079-0 01 1 1109- ● ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (B) 		8-98045-642-1 01 1 1109- ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (A) 		8-98130-709-0 01 1 1109- ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0911-1108 ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1109- ● ●
284 08.821 BOLT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1109- ●
285 08.821 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE 		0-91180-110-0 04 1 0911- ● ●

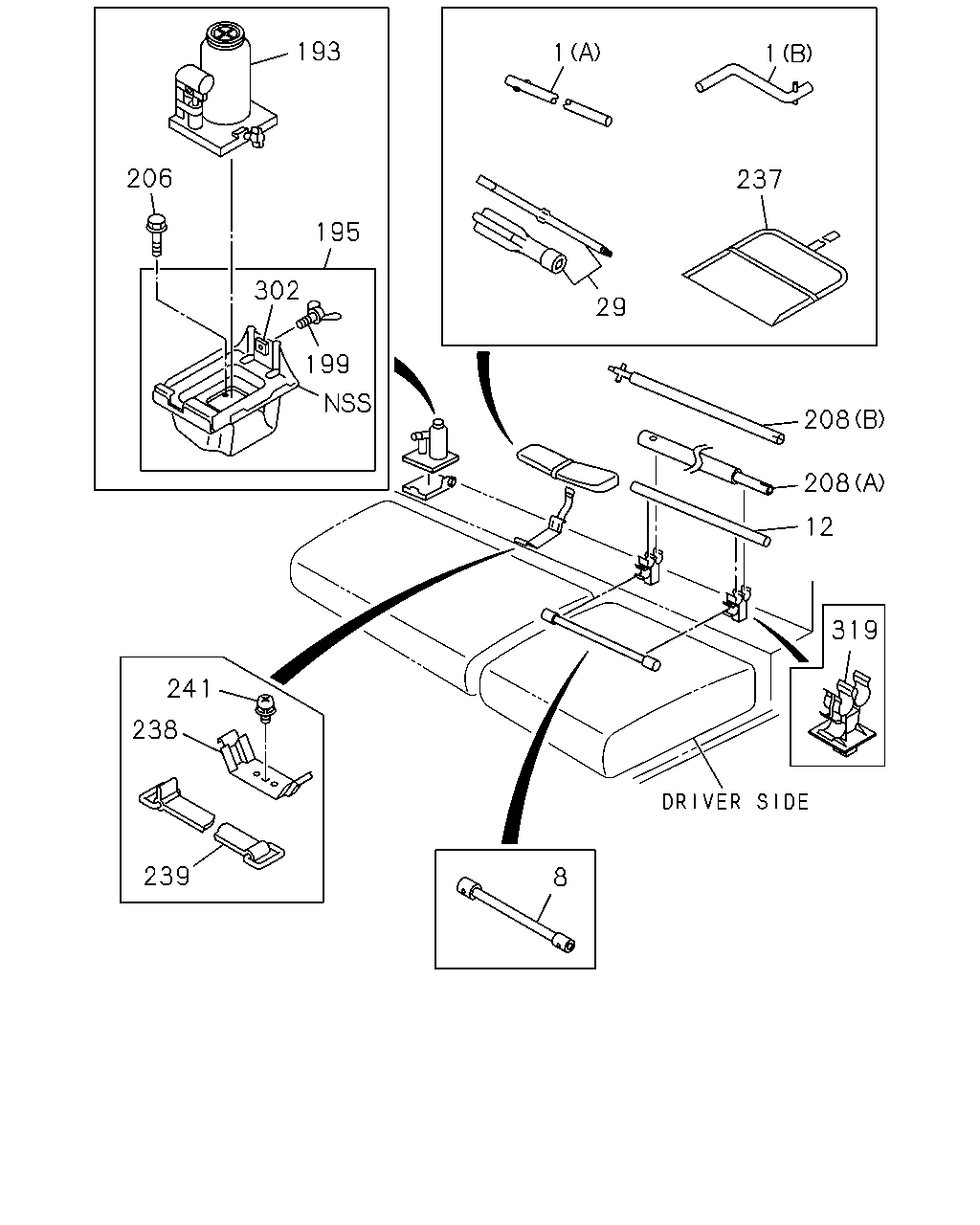

çizim 159467
193 1 1 206 237 195 302 29 199 208 208 12 319 241 238 239 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) SPARE WHEEL CARRIER<P10> (B) 		8-97218-985-0 01 1 1105-1108 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> (B) 		8-97218-985-0 01 1 1109-1211 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> (B) 		8-97218-985-0 01 1 1212- ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
08.821 (A) L=280 		1-85515-007-0 01 1 0911-1104 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W) EXC. SPARE WHEEL CARRIER<P10> 08.821 (A) L=280 		1-85515-007-0 01 1 1105-1108 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> 08.821 (A) L=280 		1-85515-007-0 01 1 1105-1108 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 08.821 (A) L=280 		1-85515-007-0 01 1 1109-1109 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W) EXC. SPARE WHEEL CARRIER<P10> 08.821 (A) L=280 		1-85515-007-0 01 1 1109-1109 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> 08.821 (A) L=280 		1-85515-007-0 01 1 1109-1109 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) L=280 		8-98181-251-0 01 1 1109-1211 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W) EXC. SPARE WHEEL CARRIER<P10> (A) L=280 		8-98181-251-0 01 1 1109-1211 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> (A) L=280 		8-98181-251-0 01 1 1109-1211 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W) EXC. SPARE WHEEL CARRIER<P10> (A) L=280 		8-98181-251-0 01 1 1212- ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> (A) L=280 		8-98181-251-0 01 1 1212- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> (A) L=280 		8-98181-251-0 01 1 1212- ●
8 08.821 WRENCH; WHEEL
B=41X21 L=440 		1-85113-015-1 01 1 0911-1108 ●
8 08.821 WRENCH; WHEEL
B=41X21 L=440 		1-85113-015-1 01 1 1109- ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) SPARE WHEEL CARRIER<P10> 08.820 OD=25 L=480 		1-85116-011-0 01 1 1105-1108 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> 08.820 OD=25 L=480 		1-85116-011-0 01 1 1109-1211 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> 08.820 OD=25 L=480 		1-85116-011-0 01 1 1212-1407 ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> OD=25 L=480 		8-98257-407-0 01 1 1408- ● ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 0911-1108 ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 1109- ● ●
193 08.820 JACK ASM
4TON 		8-98012-285-0 01 1 0911-1108 ●
193 08.820 JACK ASM
4TON 		8-98012-285-0 01 1 1109-1211 ● ●
193 08.820 JACK ASM
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) 4TON 		8-98012-285-0 01 1 1212- ●
193 08.820 JACK ASM
4TON 		8-98012-285-0 01 1 1212- ●
195 08.820 BRACKET; JACK 8-98033-737-2 01 1 0911-1108 ●
195 08.820 BRACKET; JACK 8-98033-737-2 01 1 1109- ● ●
199 08.820 BOLT; JACK
M8X50 WING 		8-98005-537-0 01 1 0911-1108 ●
199 08.820 BOLT; JACK
M8X50 WING 		8-98005-537-0 01 1 1109- ● ●
206 08.820 SCREW; OIL JACK BRKT
06.216 BOLT M8X25 FLANGE 		0-28650-825-0 01 1 0911-1108 ●
206 08.820 SCREW; OIL JACK BRKT
06.216 BOLT M8X25 FLANGE 		0-28650-825-0 01 1 1109- ● ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) SPARE WHEEL CARRIER<P10> (B) L=642 		8-97217-800-0 01 1 1105-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> (B) L=642 		8-97217-800-0 01 1 1109-1109 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> (B) L=642 		8-98181-477-0 01 1 1109-1211 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> (B) L=642 		8-98181-477-0 01 1 1212- ● ●
208 08.820 HANDLE; JACK
(A) L=580 		1-85515-005-1 01 1 0911-1104 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) EXC. SPARE WHEEL CARRIER<P10> (A) L=580 		1-85515-005-1 01 1 1105-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> (A) L=580 		1-85515-005-1 01 1 1105-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) L=580 		1-85515-005-1 01 1 1109-1109 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) EXC. SPARE WHEEL CARRIER<P10> (A) L=580 		1-85515-005-1 01 1 1109-1109 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> (A) L=580 		1-85515-005-1 01 1 1109-1109 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) L=580 		8-98181-249-0 01 1 1109-1211 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) EXC. SPARE WHEEL CARRIER<P10> (A) L=580 		8-98181-249-0 01 1 1109-1211 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> (A) L=580 		8-98181-249-0 01 1 1109-1211 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) EXC. SPARE WHEEL CARRIER<P10> (A) L=580 		8-98181-249-0 01 1 1212- ● ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> (A) L=580 		8-98181-249-0 01 1 1212- ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> (A) L=580 		8-98181-249-0 01 1 1212- ●
237 08.821 BAG; TOOL 8-97130-903-1 01 1 0911-1108 ●
237 08.821 BAG; TOOL 8-97130-903-1 01 1 1109- ● ●
238 08.820 SUPPORT; TOOL BAG 8-97994-977-0 01 1 0911-1108 ●
238 08.820 SUPPORT; TOOL BAG 8-97994-977-0 01 1 1109- ● ●
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 0911-1108 ●
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 1109- ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.570 M6X16 		0-38050-616-0 01 1 0911-1108 ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.570 M6X16 		0-38050-616-0 01 1 1109- ● ●
302 08.820 NUT; JACK BRKT 8-98021-556-0 01 1 0911-1108 ●
302 08.820 NUT; JACK BRKT 8-98021-556-0 01 1 1109- ● ●
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 0911-1108 ●
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 1109- ● ●
