◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51244 - NPR(LHD) EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#50561) — 306 parça
çizim 159465
234 207 41 236
BalonParca AdiParca NoAdetTipApplied Date A B
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-412-0 01 1 0911-1108 ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-412-0 01 1 1109- ● ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-493-0 01 1 0911-1108 ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-493-0 01 1 1109- ● ●
207 08.845 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-413-0 01 1 0911-1108 ●
207 08.845 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-413-0 01 1 1109- ● ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-120-1 01 1 0911-1108 ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-120-1 01 1 1109- ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 0911-1108 ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1109-1510 ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1511- ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1511- ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 0911-1108 ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1109-1510 ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1511- ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1511- ●

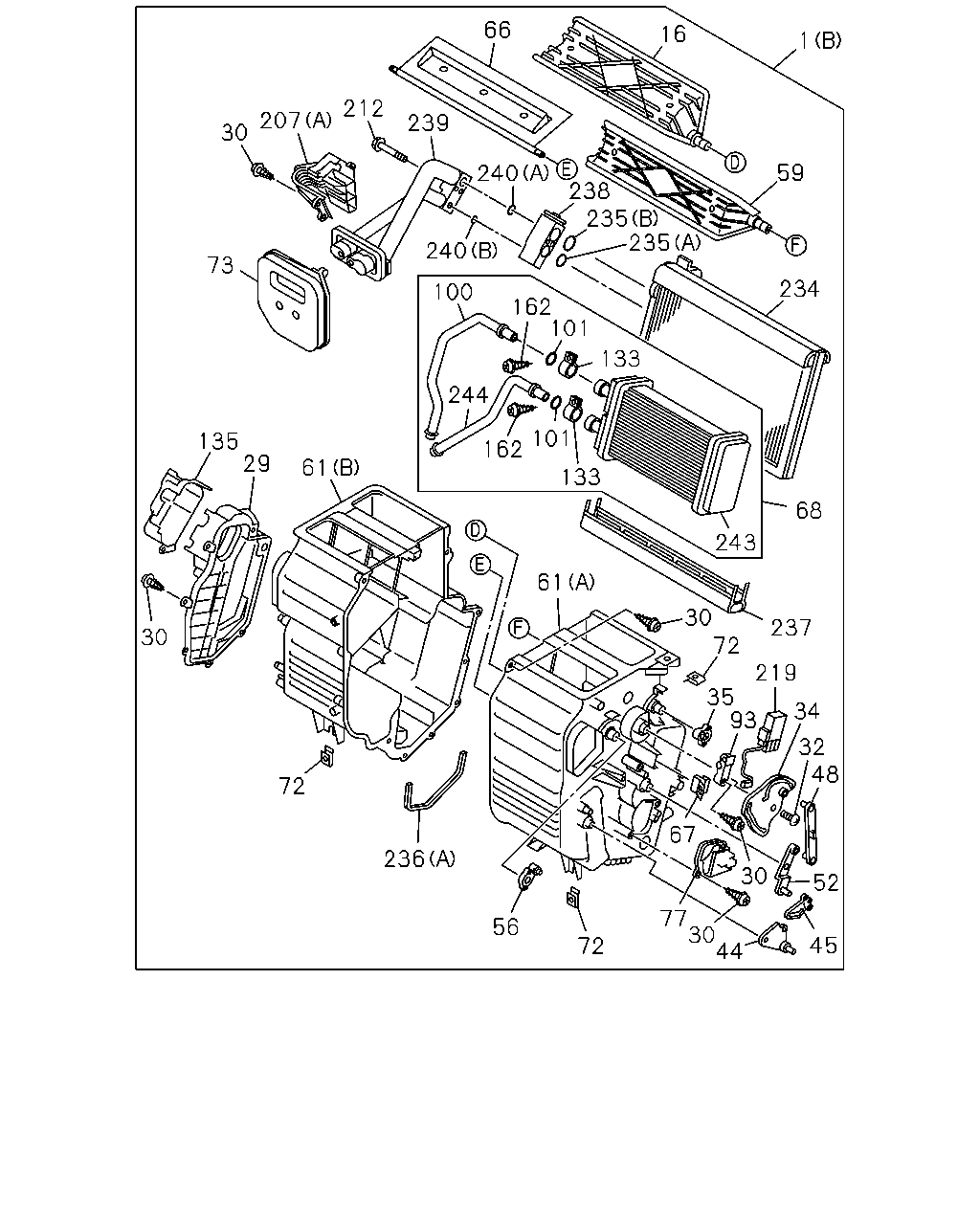

çizim 159466
1 212 207 30 239 240 59 238 235 240 73 235 234 100 162 101 133 244 135 29 61 162 101 133 68 243 61 30 30 237 72 219 35 93 34 32 48 30 52 67 236 72 56 72 77 30 44 45 66 16
BalonParca AdiParca NoAdetTipApplied Date A B
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) (C) 		8-98214-401-1 01 1 1511- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98031-740-3 01 1 0911-1108 ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98031-740-3 01 1 1109- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98034-145-3 01 1 0911-1108 ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98034-145-3 01 1 1109- ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 0911-1108 ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 1109-1510 ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 1511- ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 1511- ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98231-368-0 01 1 1511- ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-480-0 01 1 0911-1108 ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-480-0 01 1 1109- ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING 		8-97957-708-0 20 1 1511- ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 28 1 0911-1108 ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 28 1 1109- ● ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 0911-1108 ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 1109- ● ●
32 08.852 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) M4X16 		8-98047-416-0 02 1 1511- ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M4X16 		8-98047-416-0 03 1 0911-1108 ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M4X16 		8-98047-416-0 03 1 1109- ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-497-0 01 1 0911-1108 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-497-0 01 1 1109-1510 ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-497-0 01 1 1511- ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-497-0 01 1 1511- ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-500-0 01 1 0911-1108 ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-500-0 01 1 1109-1510 ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-500-0 01 1 1511- ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-500-0 01 1 1511- ●
44 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-502-0 01 1 0911-1108 ●
44 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-502-0 01 1 1109- ● ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-503-0 01 1 0911-1108 ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-503-0 01 1 1109- ● ●
48 09.786 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98047-499-0 01 1 1511- ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-391-0 01 1 0911-1108 ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-391-0 01 1 1109- ● ●
52 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-498-0 01 1 0911-1108 ●
52 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-498-0 01 1 1109-1510 ● ●
52 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-498-0 01 1 1511- ●
52 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-498-0 01 1 1511- ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-501-0 01 1 0911-1108 ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-501-0 01 1 1109-1510 ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-501-0 01 1 1511- ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-501-0 01 1 1511- ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 0911-1108 ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 1109-1510 ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 1511- ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 1511- ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98077-424-0 01 1 1511- ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (C) 		8-98077-425-0 01 1 1511- ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-478-0 01 1 0911-1108 ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-478-0 01 1 1109- ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-479-0 01 1 0911-1108 ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-479-0 01 1 1109- ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-385-0 01 1 0911-1108 ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-385-0 01 1 1109- ● ●
67 08.854 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98047-417-0 01 1 1511- ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-417-0 02 1 0911-1108 ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-417-0 02 1 1109- ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98074-122-0 01 1 0911-1108 ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98074-122-0 01 1 1109- ● ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 0911-1108 ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 1109-1510 ● ●
72 08.845 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 1511- ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 1511- ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-817-0 01 1 0911-1108 ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-817-0 01 1 1109- ● ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-491-0 01 1 0911-1108 ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-491-0 01 1 1109- ● ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-482-0 01 1 0911-1108 ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-482-0 01 1 1109-1510 ● ●
77 08.857 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-482-0 01 1 1511- ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-482-0 01 1 1511- ●
93 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-427-0 01 1 0911-1108 ●
93 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-427-0 01 1 1109- ● ●
100 08.854 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-532-0 01 1 0911-1108 ●
100 08.854 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-532-0 01 1 1109- ● ●
101 08.845 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-531-0 02 1 0911-1108 ●
101 08.845 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-531-0 02 1 1109- ● ●
133 08.845 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-530-0 02 1 0911-1108 ●
133 08.845 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-530-0 02 1 1109- ● ●
135 08.854 COVER; HTR
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-481-0 01 1 0911-1108 ●
135 08.854 COVER; HTR
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-481-0 01 1 1109- ● ●
162 08.845 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-529-0 02 1 0911-1108 ●
162 08.845 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-529-0 02 1 1109- ● ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-493-0 01 1 0911-1108 ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-493-0 01 1 1109- ● ●
207 08.845 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-413-0 01 1 0911-1108 ●
207 08.845 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-413-0 01 1 1109- ● ●
212 09.262 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) M5X61 		8-98047-415-0 02 1 0911-1108 ●
212 09.262 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) M5X61 		8-98047-415-0 02 1 1109- ● ●
219 08.854 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-429-0 01 1 0911-1108 ●
219 08.854 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-429-0 01 1 1109- ● ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-120-1 01 1 0911-1108 ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-120-1 01 1 1109- ● ●
235 08.845 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 09.260 (A) ID=11.7 		8-97095-907-0 01 1 0911-1108 ●
235 08.845 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 09.260 (A) ID=11.7 		8-97095-907-0 01 1 1109- ● ●
235 08.845 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5 		8-97095-908-0 01 1 0911-1108 ●
235 08.845 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5 		8-97095-908-0 01 1 1109- ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 0911-1108 ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1109-1510 ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1511- ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1511- ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 0911-1108 ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1109-1510 ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1511- ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1511- ●
237 08.855 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-382-0 01 1 0911-1108 ●
237 08.855 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-382-0 01 1 1109- ● ●
238 08.845 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-383-0 01 1 0911-1108 ●
238 08.845 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-383-0 01 1 1109- ● ●
239 08.846 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-504-0 01 1 0911-1108 ●
239 08.846 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-504-0 01 1 1109- ● ●
240 08.845 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=7.4 		8-97095-906-0 01 1 0911-1108 ●
240 08.845 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=7.4 		8-97095-906-0 01 1 1109- ● ●
240 08.845 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60) 09.225 (A) ID=14.5 		8-97095-908-0 01 1 0911-1108 ●
240 08.845 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60) 09.225 (A) ID=14.5 		8-97095-908-0 01 1 1109- ● ●
243 08.854 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656 		8-98048-508-0 01 1 0911-1108 ●
243 08.854 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656 		8-98048-508-0 01 1 1109- ● ●
244 08.854 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98048-511-0 01 1 0911-1108 ●
244 08.854 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98048-511-0 01 1 1109- ● ●

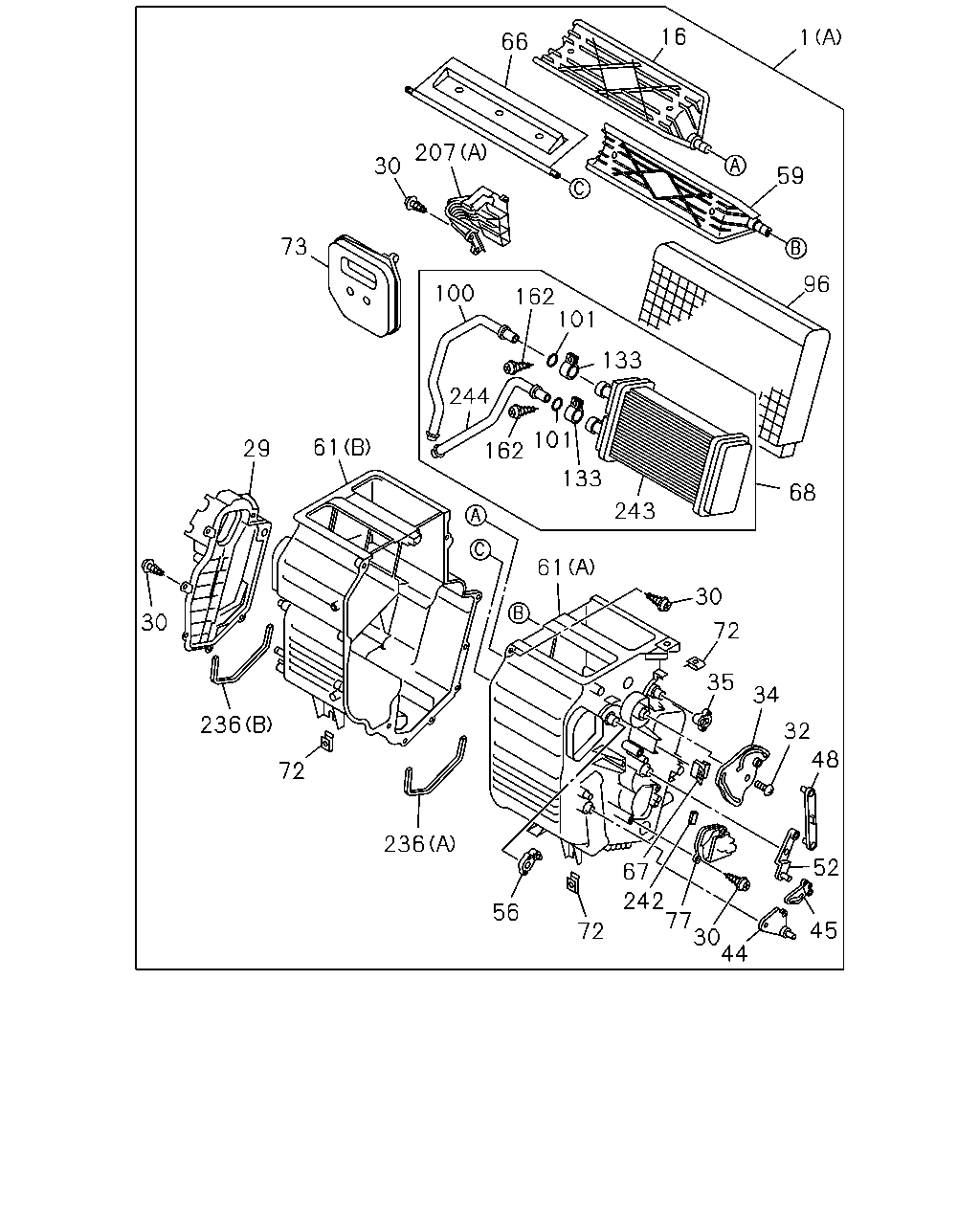

çizim 159478
66 16 1 207 30 59 96 73 100 162 101 133 244 101 162 133 243 68 61 29 61 30 72 35 34 32 48 52 45 67 242 236 72 236 30 77 72 56 30 44
BalonParca AdiParca NoAdetTipApplied Date A B
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) (C) 		8-98214-401-1 01 1 1511- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98031-740-3 01 1 0911-1108 ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98031-740-3 01 1 1109- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98034-145-3 01 1 0911-1108 ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98034-145-3 01 1 1109- ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 0911-1108 ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 1109-1510 ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 1511- ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 1511- ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98231-368-0 01 1 1511- ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-480-0 01 1 0911-1108 ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-480-0 01 1 1109- ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING 		8-97957-708-0 20 1 1511- ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 28 1 0911-1108 ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 28 1 1109- ● ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 0911-1108 ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 1109- ● ●
32 08.852 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) M4X16 		8-98047-416-0 02 1 1511- ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M4X16 		8-98047-416-0 03 1 0911-1108 ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M4X16 		8-98047-416-0 03 1 1109- ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-497-0 01 1 0911-1108 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-497-0 01 1 1109-1510 ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-497-0 01 1 1511- ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-497-0 01 1 1511- ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-500-0 01 1 0911-1108 ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-500-0 01 1 1109-1510 ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-500-0 01 1 1511- ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-500-0 01 1 1511- ●
44 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-502-0 01 1 0911-1108 ●
44 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-502-0 01 1 1109- ● ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-503-0 01 1 0911-1108 ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-503-0 01 1 1109- ● ●
48 09.786 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98047-499-0 01 1 1511- ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-391-0 01 1 0911-1108 ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-391-0 01 1 1109- ● ●
52 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-498-0 01 1 0911-1108 ●
52 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-498-0 01 1 1109-1510 ● ●
52 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-498-0 01 1 1511- ●
52 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-498-0 01 1 1511- ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-501-0 01 1 0911-1108 ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-501-0 01 1 1109-1510 ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-501-0 01 1 1511- ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-501-0 01 1 1511- ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 0911-1108 ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 1109-1510 ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 1511- ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 1511- ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98077-424-0 01 1 1511- ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (C) 		8-98077-425-0 01 1 1511- ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-478-0 01 1 0911-1108 ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-478-0 01 1 1109- ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-479-0 01 1 0911-1108 ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-479-0 01 1 1109- ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-385-0 01 1 0911-1108 ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-385-0 01 1 1109- ● ●
67 08.854 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98047-417-0 01 1 1511- ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-417-0 02 1 0911-1108 ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-417-0 02 1 1109- ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98074-122-0 01 1 0911-1108 ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98074-122-0 01 1 1109- ● ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 0911-1108 ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 1109-1510 ● ●
72 08.845 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 1511- ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 1511- ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-817-0 01 1 0911-1108 ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-817-0 01 1 1109- ● ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-491-0 01 1 0911-1108 ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-491-0 01 1 1109- ● ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-482-0 01 1 0911-1108 ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-482-0 01 1 1109-1510 ● ●
77 08.857 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-482-0 01 1 1511- ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-482-0 01 1 1511- ●
96 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 0911-1108 ●
96 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 1109- ● ●
100 08.854 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-532-0 01 1 0911-1108 ●
100 08.854 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-532-0 01 1 1109- ● ●
101 08.845 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-531-0 02 1 0911-1108 ●
101 08.845 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-531-0 02 1 1109- ● ●
133 08.845 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-530-0 02 1 0911-1108 ●
133 08.845 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-530-0 02 1 1109- ● ●
162 08.845 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-529-0 02 1 0911-1108 ●
162 08.845 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-529-0 02 1 1109- ● ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-493-0 01 1 0911-1108 ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-493-0 01 1 1109- ● ●
207 08.845 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-413-0 01 1 0911-1108 ●
207 08.845 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-413-0 01 1 1109- ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 0911-1108 ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1109-1510 ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1511- ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1511- ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 0911-1108 ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1109-1510 ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1511- ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1511- ●
242 08.855 GASKET; CASE
HEATER & DEFROSTER(C41) 08.845 		8-98048-816-0 01 1 0911-1108 ●
242 08.855 GASKET; CASE
HEATER & DEFROSTER(C41) 08.845 		8-98048-816-0 01 1 1109- ● ●
243 08.854 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656 		8-98048-508-0 01 1 0911-1108 ●
243 08.854 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656 		8-98048-508-0 01 1 1109- ● ●
244 08.854 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98048-511-0 01 1 0911-1108 ●
244 08.854 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98048-511-0 01 1 1109- ● ●

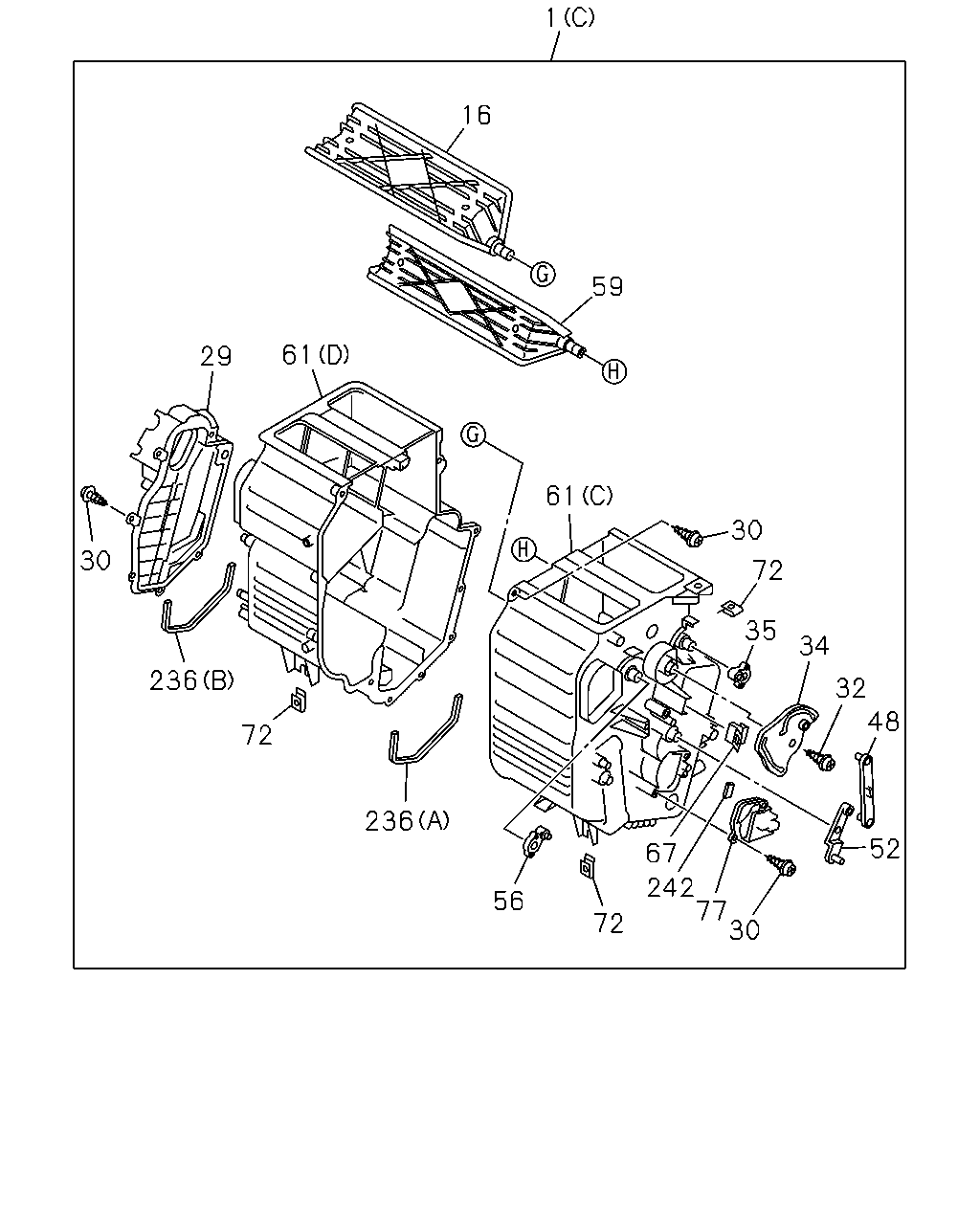

çizim 503613
1 16 59 29 61 30 236 72 61 236 30 72 35 34 32 48 52 56 72 67 242 77 30
BalonParca AdiParca NoAdetTipApplied Date A B
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) (C) 		8-98214-401-1 01 1 1511- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98031-740-3 01 1 0911-1108 ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98031-740-3 01 1 1109- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98034-145-3 01 1 0911-1108 ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98034-145-3 01 1 1109- ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 0911-1108 ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 1109-1510 ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 1511- ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 1511- ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98231-368-0 01 1 1511- ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-480-0 01 1 0911-1108 ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-480-0 01 1 1109- ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING 		8-97957-708-0 20 1 1511- ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 28 1 0911-1108 ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 28 1 1109- ● ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 0911-1108 ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 1109- ● ●
32 08.852 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) M4X16 		8-98047-416-0 02 1 1511- ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M4X16 		8-98047-416-0 03 1 0911-1108 ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M4X16 		8-98047-416-0 03 1 1109- ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-497-0 01 1 0911-1108 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-497-0 01 1 1109-1510 ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-497-0 01 1 1511- ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-497-0 01 1 1511- ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-500-0 01 1 0911-1108 ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-500-0 01 1 1109-1510 ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-500-0 01 1 1511- ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-500-0 01 1 1511- ●
48 09.786 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98047-499-0 01 1 1511- ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-391-0 01 1 0911-1108 ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-391-0 01 1 1109- ● ●
52 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-498-0 01 1 0911-1108 ●
52 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-498-0 01 1 1109-1510 ● ●
52 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-498-0 01 1 1511- ●
52 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-498-0 01 1 1511- ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-501-0 01 1 0911-1108 ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-501-0 01 1 1109-1510 ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-501-0 01 1 1511- ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-501-0 01 1 1511- ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 0911-1108 ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 1109-1510 ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 1511- ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 1511- ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98077-424-0 01 1 1511- ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (C) 		8-98077-425-0 01 1 1511- ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-478-0 01 1 0911-1108 ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-478-0 01 1 1109- ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-479-0 01 1 0911-1108 ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-479-0 01 1 1109- ● ●
67 08.854 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98047-417-0 01 1 1511- ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-417-0 02 1 0911-1108 ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-417-0 02 1 1109- ● ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 0911-1108 ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 1109-1510 ● ●
72 08.845 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 1511- ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 1511- ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-482-0 01 1 0911-1108 ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-482-0 01 1 1109-1510 ● ●
77 08.857 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-482-0 01 1 1511- ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-482-0 01 1 1511- ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 0911-1108 ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1109-1510 ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1511- ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1511- ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 0911-1108 ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1109-1510 ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1511- ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1511- ●
242 08.855 GASKET; CASE
HEATER & DEFROSTER(C41) 08.845 		8-98048-816-0 01 1 0911-1108 ●
242 08.855 GASKET; CASE
HEATER & DEFROSTER(C41) 08.845 		8-98048-816-0 01 1 1109- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
