2-08A — CLUTCH MASTER CYLINDER (#5056) — 20 parça

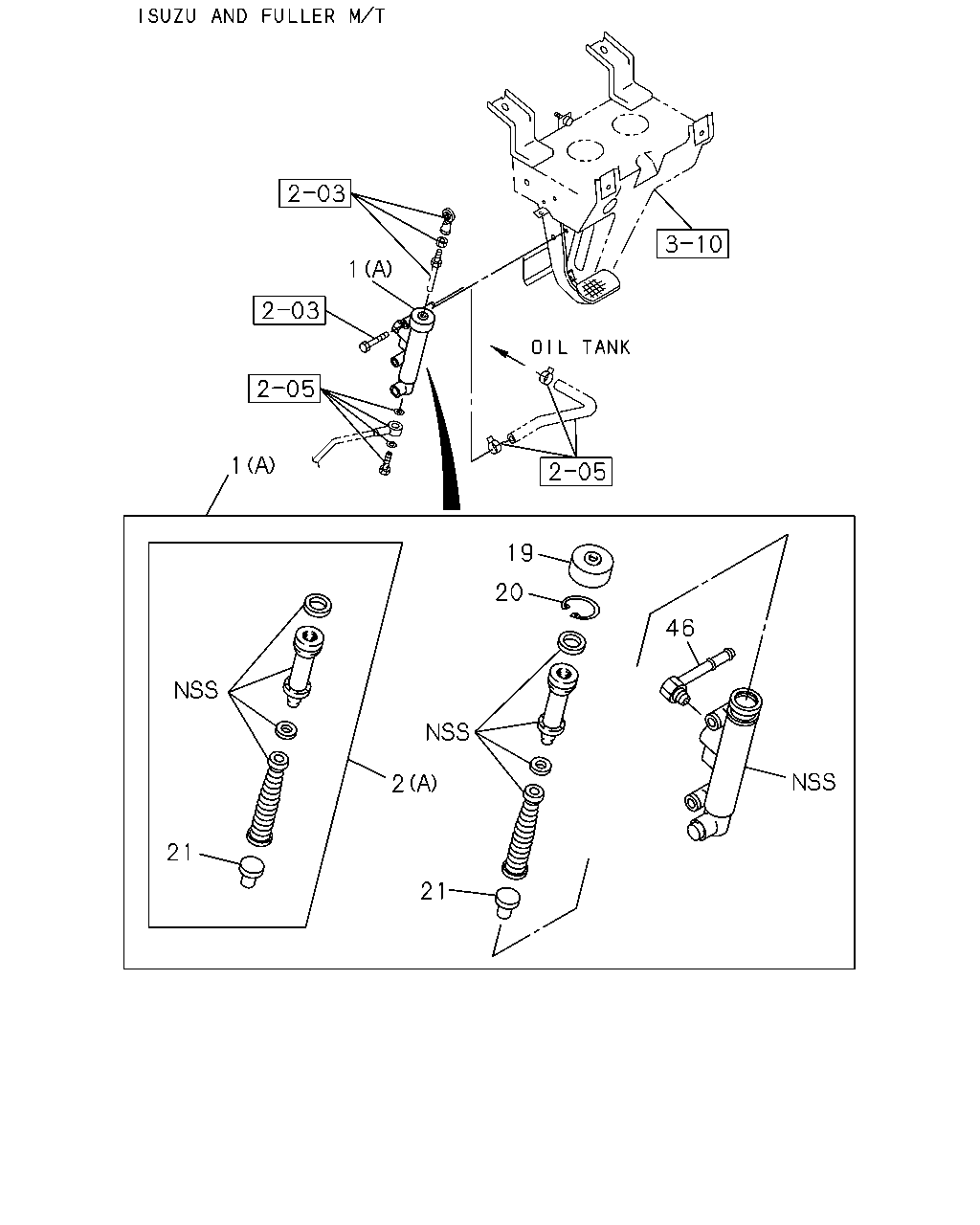

1 1 19 20 46 2 21 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CYLINDER ASM; CLUTCH MASTER ISUZU M/T<X9A>,FULLER M/T<X9B> (A)	1-47500-232-2	01	1	9606-	●	●	●	●
1	CYLINDER ASM; CLUTCH MASTER ZF M/T<X9E> (B)	1-47500-242-2	01	1	9606-	●	●	●	●
2	REPAIR KIT; CLU M/CYL ISUZU M/T<X9A>,FULLER M/T<X9B> (A)	1-85576-114-0	01	1	9606-	●	●	●	●
2	REPAIR KIT; CLU M/CYL ZF M/T<X9E> (B)	1-47550-046-0	01	1	9606-	●	●	●	●
19	BOOT; CLU M/CYL ISUZU M/T<X9A>,FULLER M/T<X9B>	9-47545-032-0	01	1	9606-	●	●	●	●
19	BOOT; CLU M/CYL ZF M/T<X9E>	1-47545-011-0	01	1	9606-	●	●	●	●
20	RING; SNAP,BODY ISUZU M/T<X9A>,FULLER M/T<X9B> OD=26.9	9-09180-125-0	01	1	9606-	●	●	●	●
20	RING; SNAP,BODY ZF M/T<X9E>	1-47515-009-0	01	1	9606-	●	●	●	●
21	VALVE; CHECK	1-47565-004-0	01	1	9606-	●	●	●	●
46	CONNECTOR; PIPE	1-47517-004-0	01	1	9606-	●	●	●	●

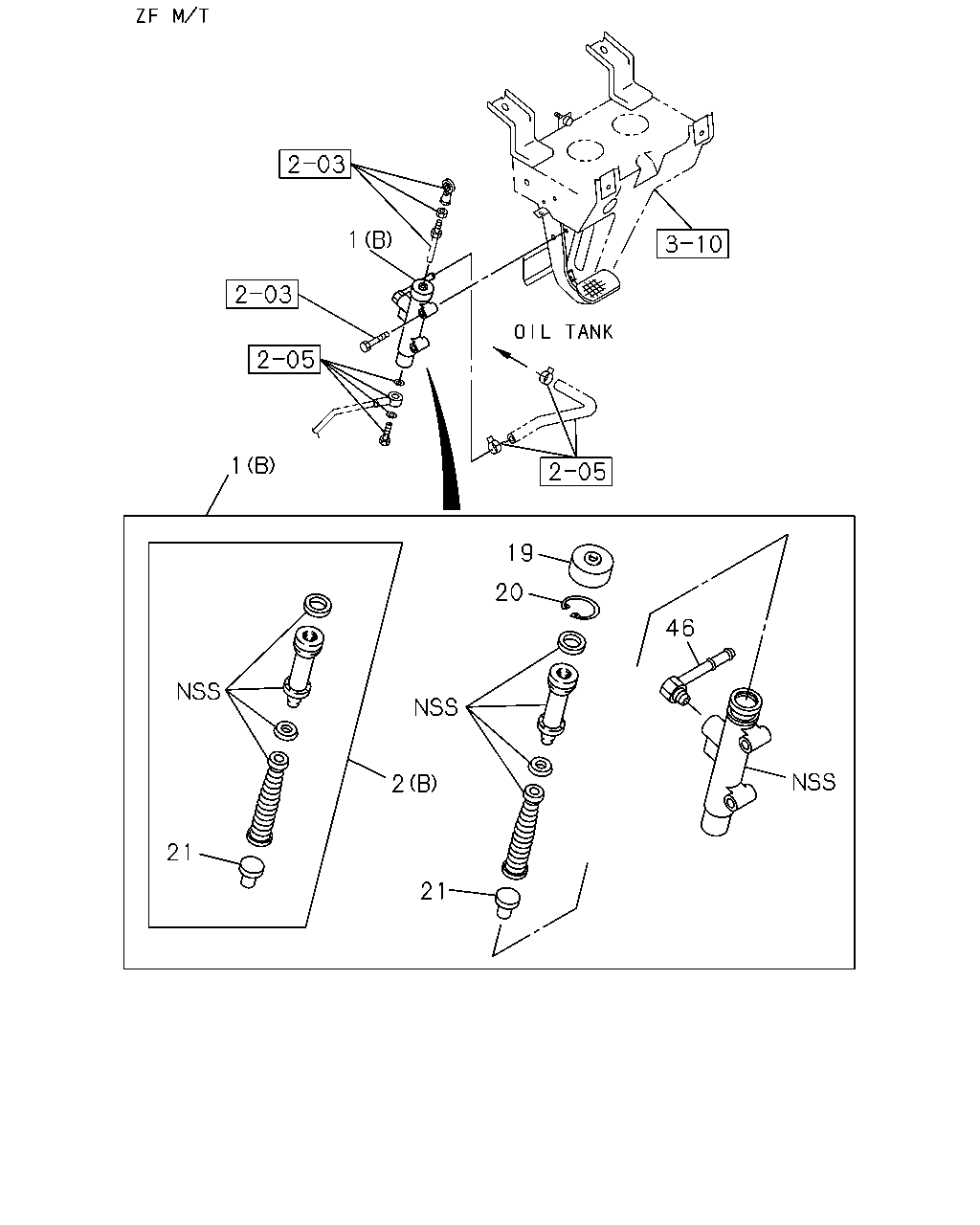

1 1 19 20 46 2 21 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CYLINDER ASM; CLUTCH MASTER ISUZU M/T<X9A>,FULLER M/T<X9B> (A)	1-47500-232-2	01	1	9606-	●	●	●	●
1	CYLINDER ASM; CLUTCH MASTER ZF M/T<X9E> (B)	1-47500-242-2	01	1	9606-	●	●	●	●
2	REPAIR KIT; CLU M/CYL ISUZU M/T<X9A>,FULLER M/T<X9B> (A)	1-85576-114-0	01	1	9606-	●	●	●	●
2	REPAIR KIT; CLU M/CYL ZF M/T<X9E> (B)	1-47550-046-0	01	1	9606-	●	●	●	●
19	BOOT; CLU M/CYL ISUZU M/T<X9A>,FULLER M/T<X9B>	9-47545-032-0	01	1	9606-	●	●	●	●
19	BOOT; CLU M/CYL ZF M/T<X9E>	1-47545-011-0	01	1	9606-	●	●	●	●
20	RING; SNAP,BODY ISUZU M/T<X9A>,FULLER M/T<X9B> OD=26.9	9-09180-125-0	01	1	9606-	●	●	●	●
20	RING; SNAP,BODY ZF M/T<X9E>	1-47515-009-0	01	1	9606-	●	●	●	●
21	VALVE; CHECK	1-47565-004-0	01	1	9606-	●	●	●	●
46	CONNECTOR; PIPE	1-47517-004-0	01	1	9606-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
