8-28 — CHASSIS ELECTRICAL (#50556) — 144 parça

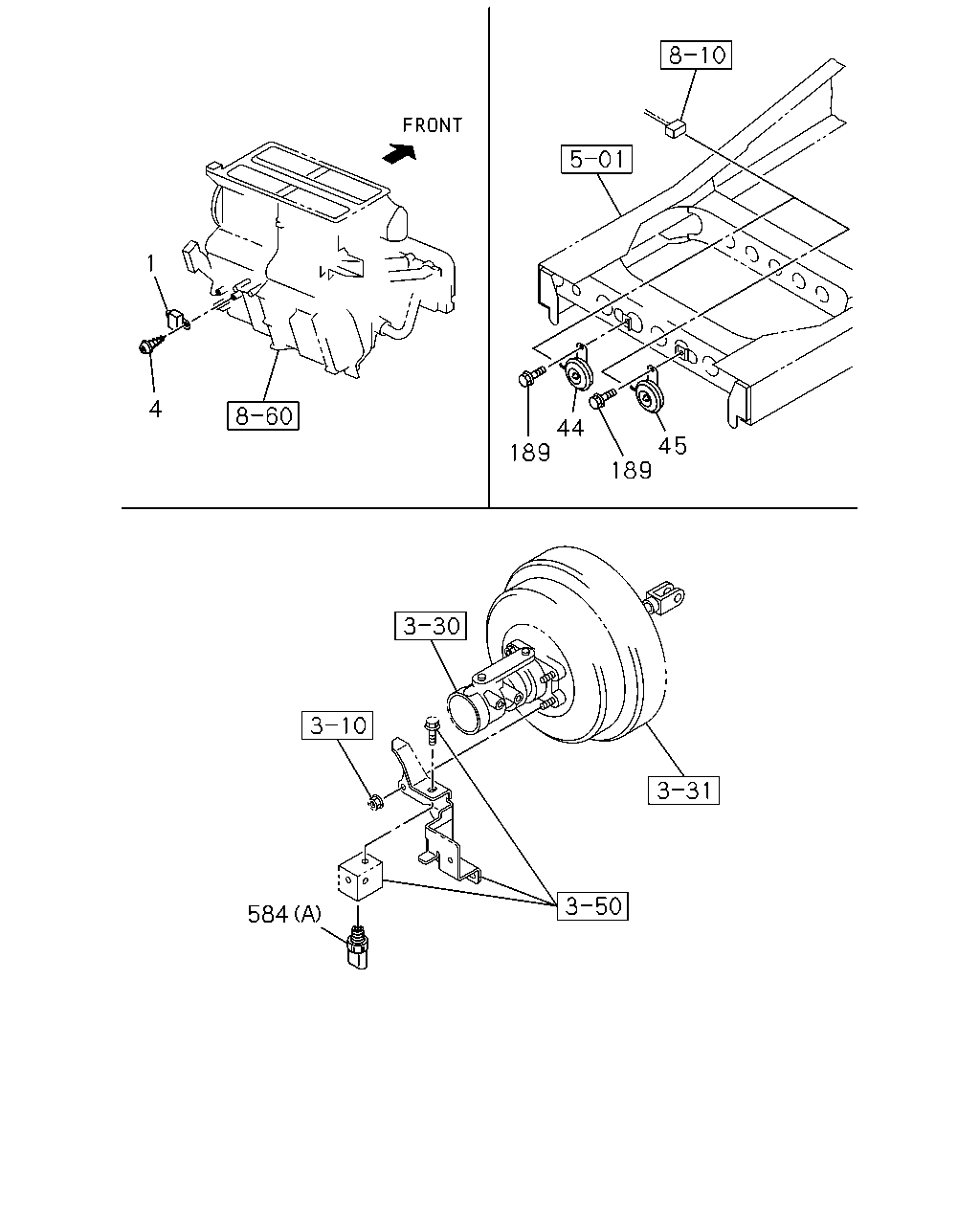

çizim 159442
1 4 189 44 45 189 584
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.575 UNIT; FLASHER 8-98025-533-1 01 1 0911-1108 ●
1 02.575 UNIT; FLASHER 8-98025-533-1 01 1 1109- ● ●
4 02.575 SCREW; FLASHER UNIT
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0911-1101 ●
4 02.575 SCREW; FLASHER UNIT
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1108 ●
4 02.575 SCREW; FLASHER UNIT
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1109-1212 ● ●
4 02.575 SCREW; FLASHER UNIT
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ●
44 02.810 HORN; HIGH NOTE 8-98070-080-0 01 1 0911-1108 ●
44 02.810 HORN; HIGH NOTE 8-98070-080-0 01 1 1109-1211 ● ●
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN(6KK) 		8-98070-080-0 01 1 1212- ●
44 02.810 HORN; HIGH NOTE 8-98070-080-0 01 1 1212- ●
45 02.810 HORN; LOW NOTE 8-98022-023-0 01 1 0911-1108 ●
45 02.810 HORN; LOW NOTE 8-98022-023-0 01 1 1109- ● ●
189 02.812 BOLT; HORN
02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0911-1004 ●
189 02.812 BOLT; HORN
02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0911-1004 ●
189 02.812 BOLT; HORN
02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1005-1108 ●
189 02.812 BOLT; HORN
02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1005-1108 ●
189 02.812 BOLT; HORN
02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1109-1211 ● ●
189 02.812 BOLT; HORN
02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1109-1211 ● ●
189 02.812 BOLT; HORN
02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1212- ● ●
189 02.812 BOLT; HORN
DUAL HEAVY DUTY HORN(6KK) 02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1212- ●
189 02.812 BOLT; HORN
02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1212- ●
584 02.440 SENSOR; PRESSURE
(A) 		8-97387-682-0 01 1 0911-1111 ●
584 02.440 SENSOR; PRESSURE
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97387-682-0 01 1 1112- ●
584 02.440 SENSOR; PRESSURE
03.331 (B) 		8-98020-514-0 01 1 0911-1108 ●
584 02.440 SENSOR; PRESSURE
03.331 (B) 		8-98020-514-0 01 1 1109- ● ●

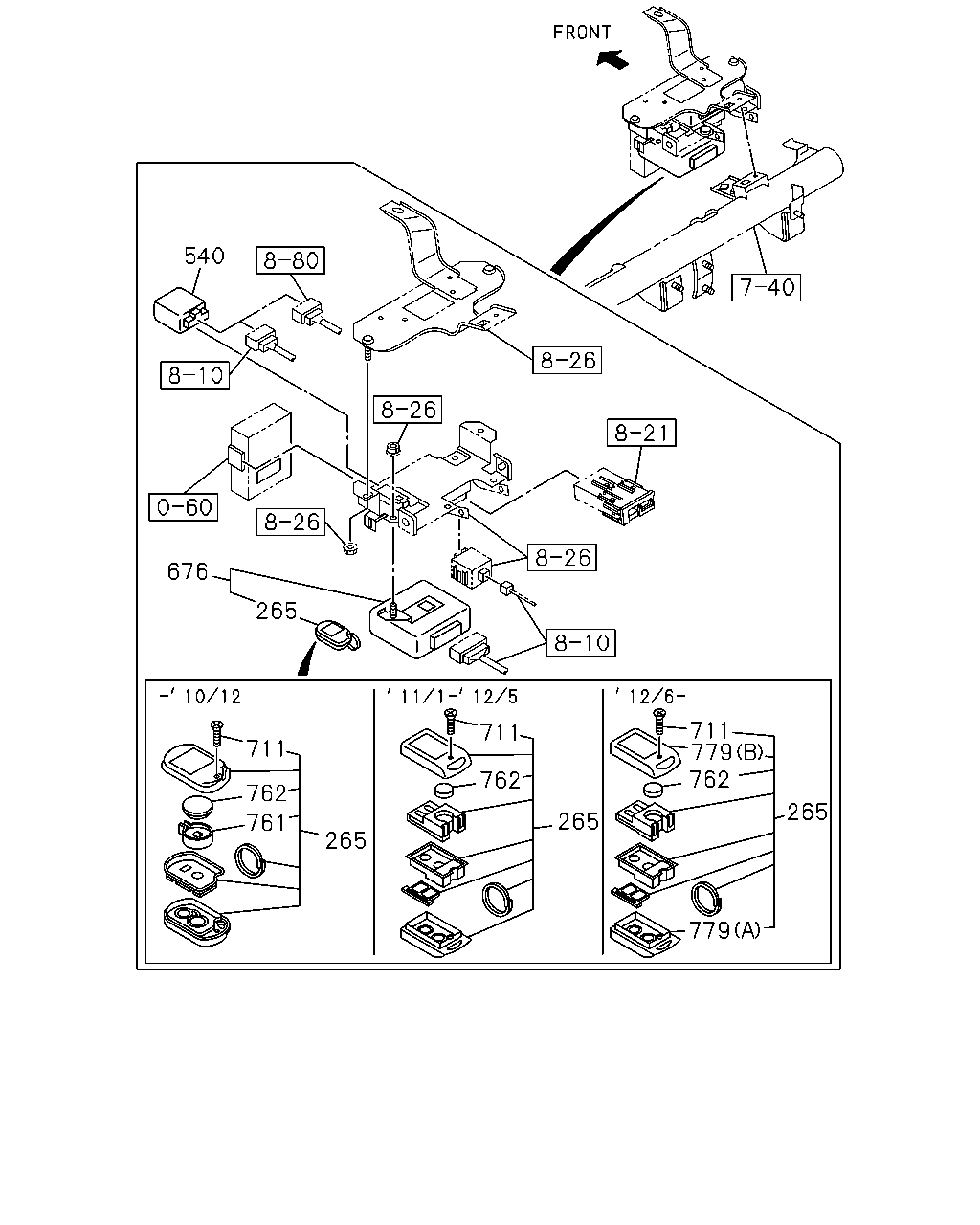

çizim 159447
540 676 265 711 762 761 265 711 762 265 711 779 762 265 779
BalonParca AdiParca NoAdetTipApplied Date A B
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF> 		8-98218-235-0 02 1 1212-1309 ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF> 		8-98249-522-0 02 1 1310- ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK 8-98048-459-1 02 1 0911-1012 ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK 8-98180-751-0 02 1 1101-1104 ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
REMOTE CONT DOOR LOCK<6NF> 		8-98180-751-0 02 1 1105-1108 ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
REMOTE CONT DOOR LOCK<6NF> 		8-98180-751-0 02 1 1109-1205 ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK 8-98180-751-0 02 1 1109-1205 ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
REMOTE CONT DOOR LOCK<6NF> 		8-98218-236-0 02 1 1206-1211 ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK 8-98218-236-0 02 1 1206-1211 ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04) 		8-98218-236-0 02 1 1212- ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK 8-98218-236-0 02 1 1212- ●
540 16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> 		8-98060-388-0 01 1 0911-1108 ●
540 16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> 		8-98060-388-0 01 1 1109-1308 ● ●
540 16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> 		8-98233-976-0 01 1 1309- ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF> 		8-98218-234-0 01 1 1212-1309 ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF> 		8-98249-524-0 01 1 1310- ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY 8-98044-504-1 01 1 0911-1012 ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY 8-98181-810-0 01 1 1101-1104 ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
REMOTE CONT DOOR LOCK<6NF> 		8-98181-810-0 01 1 1105-1108 ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
REMOTE CONT DOOR LOCK<6NF> 		8-98181-810-0 01 1 1109-1205 ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY 8-98181-810-0 01 1 1109-1205 ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
REMOTE CONT DOOR LOCK<6NF> 		8-98218-233-0 01 1 1206-1211 ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY 8-98218-233-0 01 1 1206-1211 ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04) 		8-98218-233-0 01 1 1212- ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY 8-98218-233-0 01 1 1212- ●
711 02.510 SCREW; TRANSMITTER
M2X5 		8-98078-067-0 02 1 0911-1104 ●
711 02.510 SCREW; TRANSMITTER
REMOTE CONT DOOR LOCK<6NF> M2X5 		8-98078-067-0 02 1 1105-1108 ●
711 02.510 SCREW; TRANSMITTER
REMOTE CONT DOOR LOCK<6NF> M2X5 		8-98078-067-0 02 1 1109-1205 ●
711 02.510 SCREW; TRANSMITTER
M2X5 		8-98078-067-0 02 1 1109-1205 ●
711 02.510 SCREW; TRANSMITTER
REMOTE CONT DOOR LOCK<6NF> M2X5 		8-98218-239-0 02 1 1206- ●
711 02.510 SCREW; TRANSMITTER
M2X5 		8-98218-239-0 02 1 1206- ●
761 04.439 HOLDER; BATTERY 8-98078-063-0 02 1 0911-1012 ●
762 02.559 BATTERY 8-98078-061-0 02 1 0911-1104 ●
762 02.559 BATTERY
REMOTE CONT DOOR LOCK<6NF> 		8-98078-061-0 02 1 1105-1108 ●
762 02.559 BATTERY
REMOTE CONT DOOR LOCK<6NF> 		8-98078-061-0 02 1 1109- ●
762 02.559 BATTERY 8-98078-061-0 02 1 1109- ●
779 04.115 COVER; TRANSMITTER
REMOTE CONT DOOR LOCK<6NF> 02.510 (A) 		8-98218-240-0 02 1 1206- ●
779 04.115 COVER; TRANSMITTER
02.510 (A) 		8-98218-240-0 02 1 1206- ●
779 04.115 COVER; TRANSMITTER
REMOTE CONT DOOR LOCK<6NF> 02.510 (B) 		8-98218-243-0 02 1 1206-1211 ●
779 04.115 COVER; TRANSMITTER
02.510 (B) 		8-98218-243-0 02 1 1206-1211 ●
779 04.115 COVER; TRANSMITTER
REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04) 02.510 (B) 		8-98218-243-0 02 1 1212- ●
779 04.115 COVER; TRANSMITTER
02.510 (B) 		8-98218-243-0 02 1 1212- ●
779 04.115 COVER; TRANSMITTER
TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF> 02.510 (B) 		8-98218-241-0 02 1 1212-1309 ●
779 04.115 COVER; TRANSMITTER
TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF> 02.510 (B) 		8-98250-559-0 02 1 1310- ●

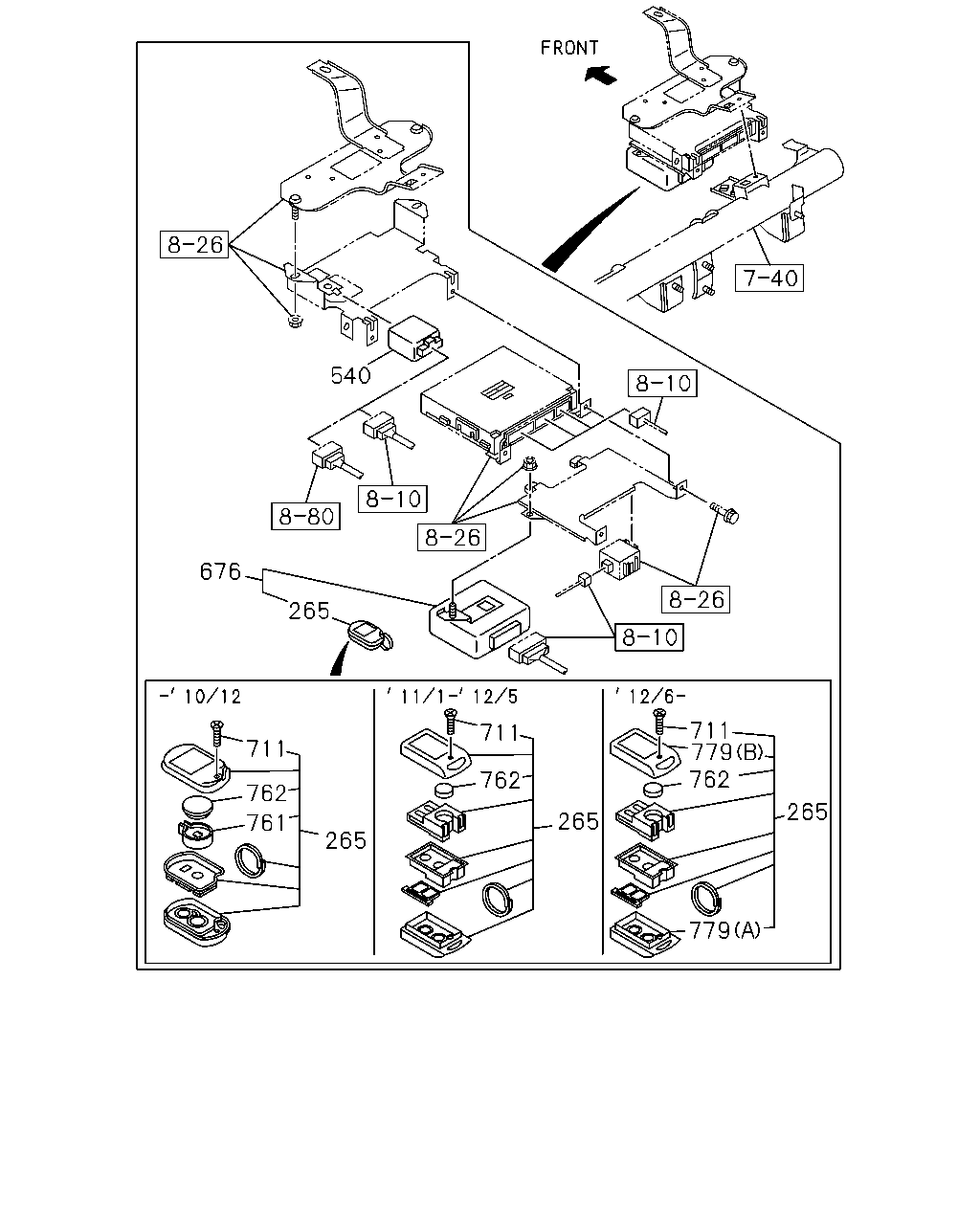

çizim 159449
540 676 265 762 265 779 265 762 711 779 711 265 761 711 762
BalonParca AdiParca NoAdetTipApplied Date A B
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF> 		8-98218-235-0 02 1 1212-1309 ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF> 		8-98249-522-0 02 1 1310- ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK 8-98048-459-1 02 1 0911-1012 ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK 8-98180-751-0 02 1 1101-1104 ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
REMOTE CONT DOOR LOCK<6NF> 		8-98180-751-0 02 1 1105-1108 ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
REMOTE CONT DOOR LOCK<6NF> 		8-98180-751-0 02 1 1109-1205 ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK 8-98180-751-0 02 1 1109-1205 ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
REMOTE CONT DOOR LOCK<6NF> 		8-98218-236-0 02 1 1206-1211 ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK 8-98218-236-0 02 1 1206-1211 ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04) 		8-98218-236-0 02 1 1212- ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK 8-98218-236-0 02 1 1212- ●
540 16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> 		8-98060-388-0 01 1 0911-1108 ●
540 16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> 		8-98060-388-0 01 1 1109-1308 ● ●
540 16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> 		8-98233-976-0 01 1 1309- ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF> 		8-98218-234-0 01 1 1212-1309 ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF> 		8-98249-524-0 01 1 1310- ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY 8-98044-504-1 01 1 0911-1012 ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY 8-98181-810-0 01 1 1101-1104 ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
REMOTE CONT DOOR LOCK<6NF> 		8-98181-810-0 01 1 1105-1108 ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
REMOTE CONT DOOR LOCK<6NF> 		8-98181-810-0 01 1 1109-1205 ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY 8-98181-810-0 01 1 1109-1205 ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
REMOTE CONT DOOR LOCK<6NF> 		8-98218-233-0 01 1 1206-1211 ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY 8-98218-233-0 01 1 1206-1211 ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04) 		8-98218-233-0 01 1 1212- ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY 8-98218-233-0 01 1 1212- ●
711 02.510 SCREW; TRANSMITTER
M2X5 		8-98078-067-0 02 1 0911-1104 ●
711 02.510 SCREW; TRANSMITTER
REMOTE CONT DOOR LOCK<6NF> M2X5 		8-98078-067-0 02 1 1105-1108 ●
711 02.510 SCREW; TRANSMITTER
REMOTE CONT DOOR LOCK<6NF> M2X5 		8-98078-067-0 02 1 1109-1205 ●
711 02.510 SCREW; TRANSMITTER
M2X5 		8-98078-067-0 02 1 1109-1205 ●
711 02.510 SCREW; TRANSMITTER
REMOTE CONT DOOR LOCK<6NF> M2X5 		8-98218-239-0 02 1 1206- ●
711 02.510 SCREW; TRANSMITTER
M2X5 		8-98218-239-0 02 1 1206- ●
761 04.439 HOLDER; BATTERY 8-98078-063-0 02 1 0911-1012 ●
762 02.559 BATTERY 8-98078-061-0 02 1 0911-1104 ●
762 02.559 BATTERY
REMOTE CONT DOOR LOCK<6NF> 		8-98078-061-0 02 1 1105-1108 ●
762 02.559 BATTERY
REMOTE CONT DOOR LOCK<6NF> 		8-98078-061-0 02 1 1109- ●
762 02.559 BATTERY 8-98078-061-0 02 1 1109- ●
779 04.115 COVER; TRANSMITTER
REMOTE CONT DOOR LOCK<6NF> 02.510 (A) 		8-98218-240-0 02 1 1206- ●
779 04.115 COVER; TRANSMITTER
02.510 (A) 		8-98218-240-0 02 1 1206- ●
779 04.115 COVER; TRANSMITTER
REMOTE CONT DOOR LOCK<6NF> 02.510 (B) 		8-98218-243-0 02 1 1206-1211 ●
779 04.115 COVER; TRANSMITTER
02.510 (B) 		8-98218-243-0 02 1 1206-1211 ●
779 04.115 COVER; TRANSMITTER
REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04) 02.510 (B) 		8-98218-243-0 02 1 1212- ●
779 04.115 COVER; TRANSMITTER
02.510 (B) 		8-98218-243-0 02 1 1212- ●
779 04.115 COVER; TRANSMITTER
TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF> 02.510 (B) 		8-98218-241-0 02 1 1212-1309 ●
779 04.115 COVER; TRANSMITTER
TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF> 02.510 (B) 		8-98250-559-0 02 1 1310- ●

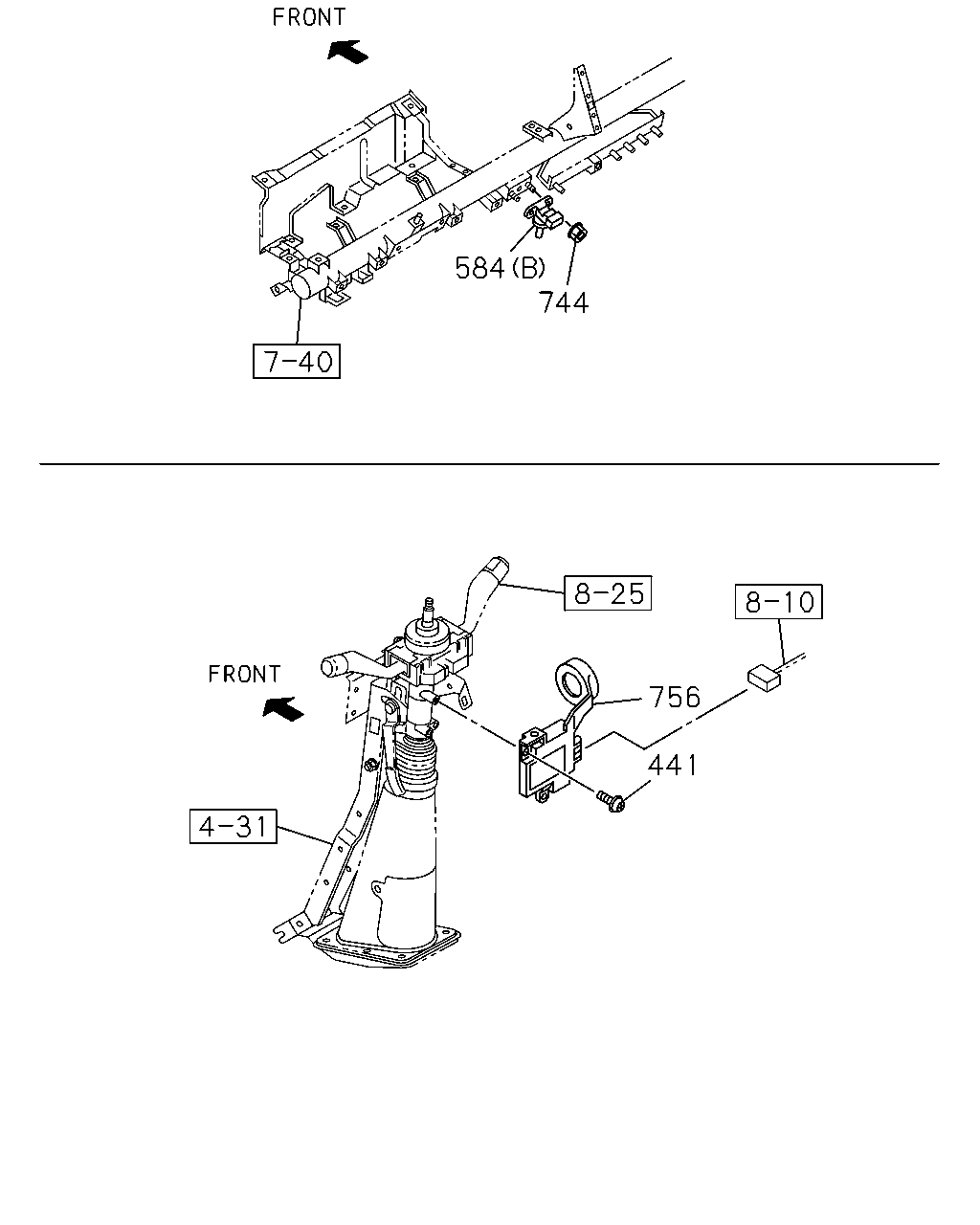

çizim 159463
584 756 441 744
BalonParca AdiParca NoAdetTipApplied Date A B
441 02.575 SCREW; CONT UNIT
09.650 M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 02 1 0911-1104 ●
441 02.575 SCREW; CONT UNIT
IMMOBILIZER SYSTEM(7KC) 09.650 M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 02 1 1105-1108 ●
441 02.575 SCREW; CONT UNIT
09.650 M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 02 1 1109-1211 ● ●
441 02.575 SCREW; CONT UNIT
IMMOBILIZER SYSTEM(7KC) 09.650 M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 02 1 1212- ●
441 02.575 SCREW; CONT UNIT
09.650 M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 02 1 1212- ●
584 02.440 SENSOR; PRESSURE
(A) 		8-97387-682-0 01 1 0911-1111 ●
584 02.440 SENSOR; PRESSURE
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97387-682-0 01 1 1112- ●
584 02.440 SENSOR; PRESSURE
03.331 (B) 		8-98020-514-0 01 1 0911-1108 ●
584 02.440 SENSOR; PRESSURE
03.331 (B) 		8-98020-514-0 01 1 1109- ● ●
744 09.277 NUT; SENSOR
01.062 M6 FLANGE 		0-91180-106-0 02 1 0911-1108 ●
744 09.277 NUT; SENSOR
01.062 M6 FLANGE 		0-91180-106-0 02 1 1109- ● ●
756 16.263 CONTROL UNIT; IMMOBILIZER 8-98097-554-0 01 1 0911-1005 ●
756 16.263 CONTROL UNIT; IMMOBILIZER 8-98158-127-0 01 1 1006-1104 ●
756 16.263 CONTROL UNIT; IMMOBILIZER
IMMOBILIZER SYSTEM(7KC) 		8-98158-127-0 01 1 1105-1108 ●
756 16.263 CONTROL UNIT; IMMOBILIZER 8-98158-127-0 01 1 1109-1211 ● ●
756 16.263 CONTROL UNIT; IMMOBILIZER
IMMOBILIZER SYSTEM(7KC) 		8-98158-127-0 01 1 1212- ●
756 16.263 CONTROL UNIT; IMMOBILIZER 8-98158-127-0 01 1 1212- ●
çizim 159468
531 666 333
BalonParca AdiParca NoAdetTipApplied Date A B
333 09.277 RELAY; MARKER LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0911-1108 ●
333 09.277 RELAY; MARKER LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1109-1211 ● ●
333 09.277 RELAY; MARKER LAMP
RR FOG LAMP<T79> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1212- ●
333 09.277 RELAY; MARKER LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1212- ●
531 02.769 RELAY; MAIN
02.510 24V 30A MITSUBA 		8-97238-540-0 01 1 0911-1108 ●
531 02.769 RELAY; MAIN
02.510 24V 30A MITSUBA 		8-97238-540-0 01 1 1109-1402 ● ●
531 02.769 RELAY; MAIN
02.485 24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ● ●
666 02.173 RELAY; STARTER
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0911-1005 ●
666 02.173 RELAY; STARTER
24V 10A PANASONIC 		8-98167-173-0 01 1 1006-1108 ●
666 02.173 RELAY; STARTER
24V 10A PANASONIC 		8-98167-173-0 01 1 1109- ● ●

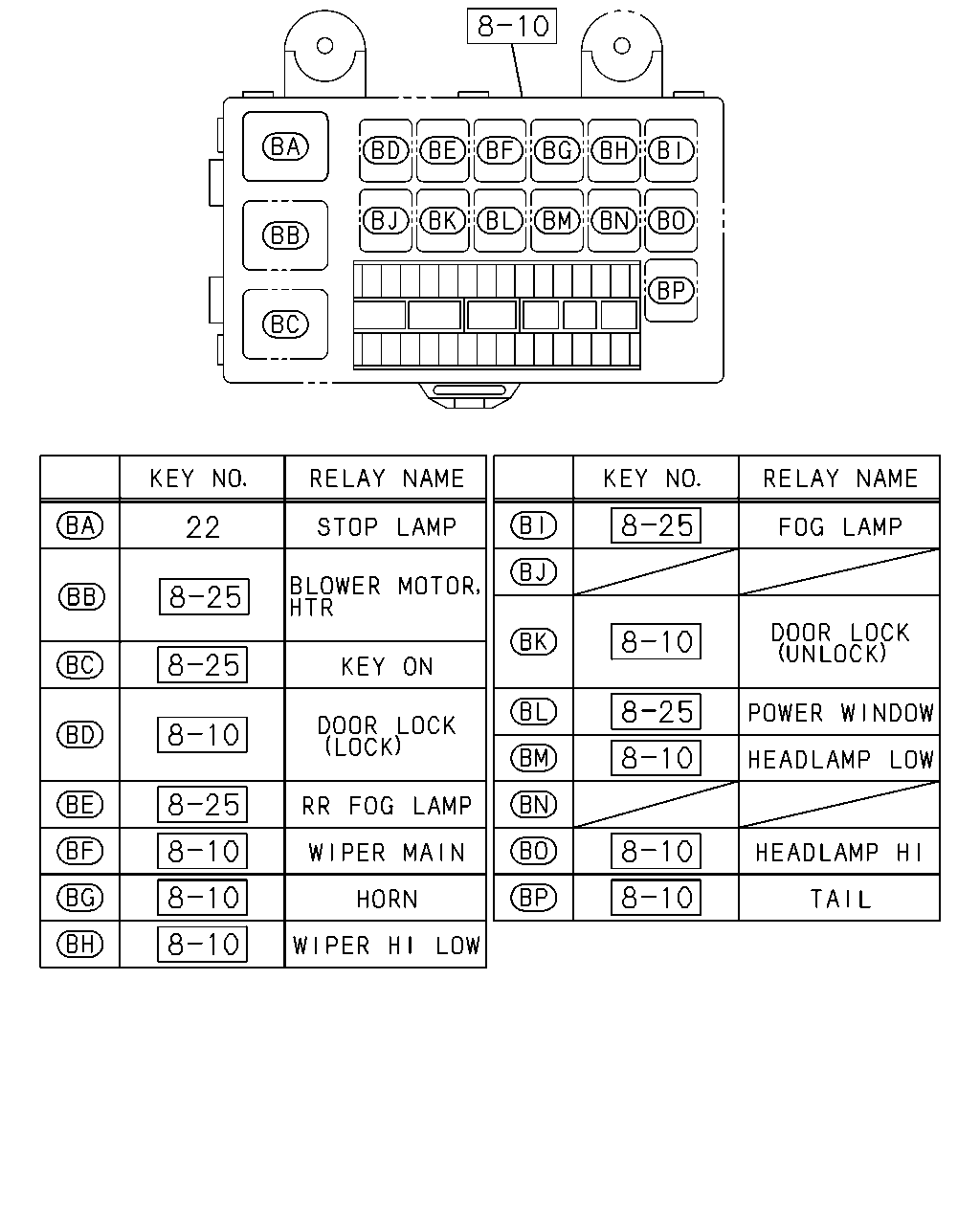

çizim 286494
22
BalonParca AdiParca NoAdetTipApplied Date A B
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0911-1108 ●
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1109- ● ●

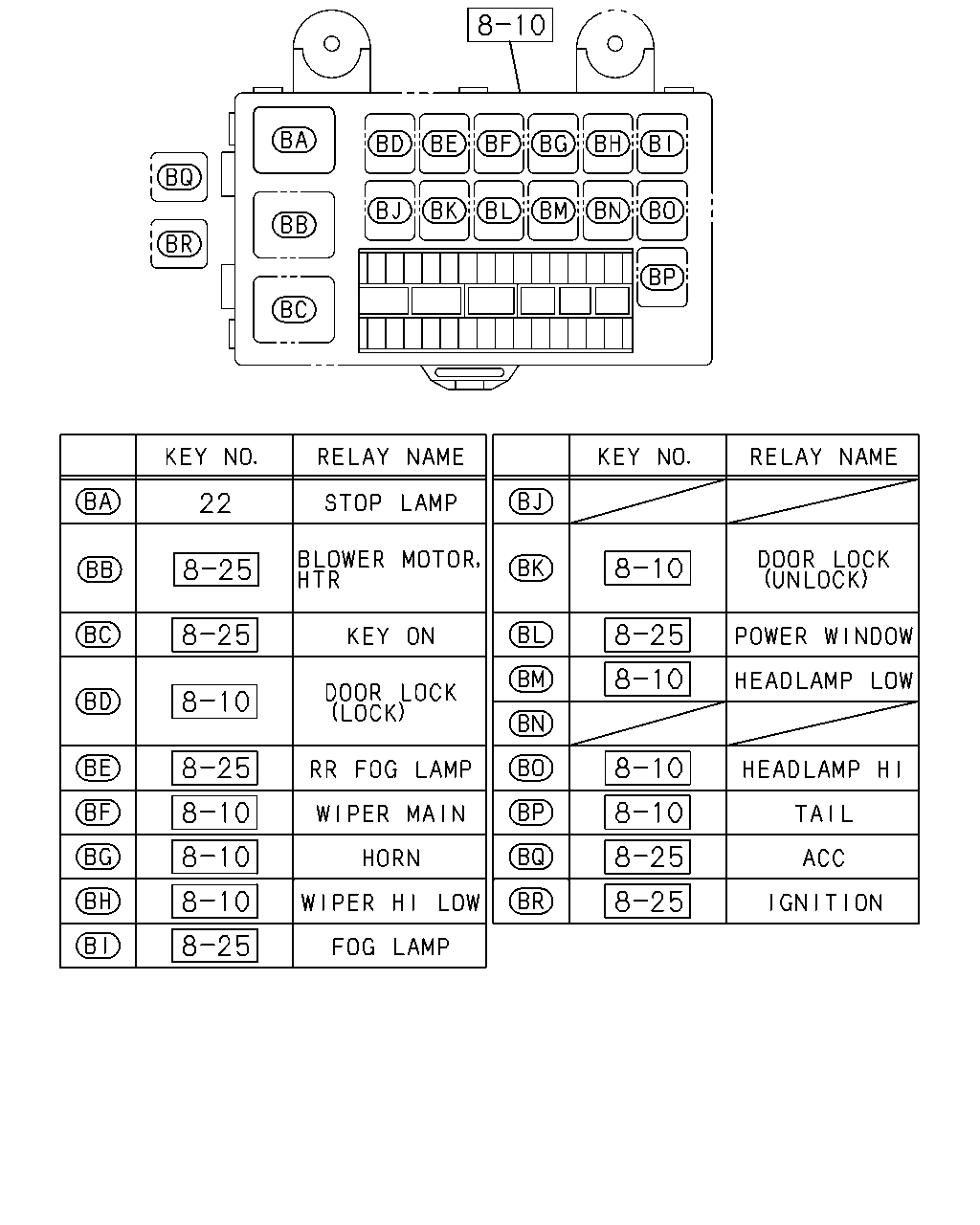

çizim 329957
22
BalonParca AdiParca NoAdetTipApplied Date A B
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0911-1108 ●
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1109- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
