8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#50554) — 160 parça

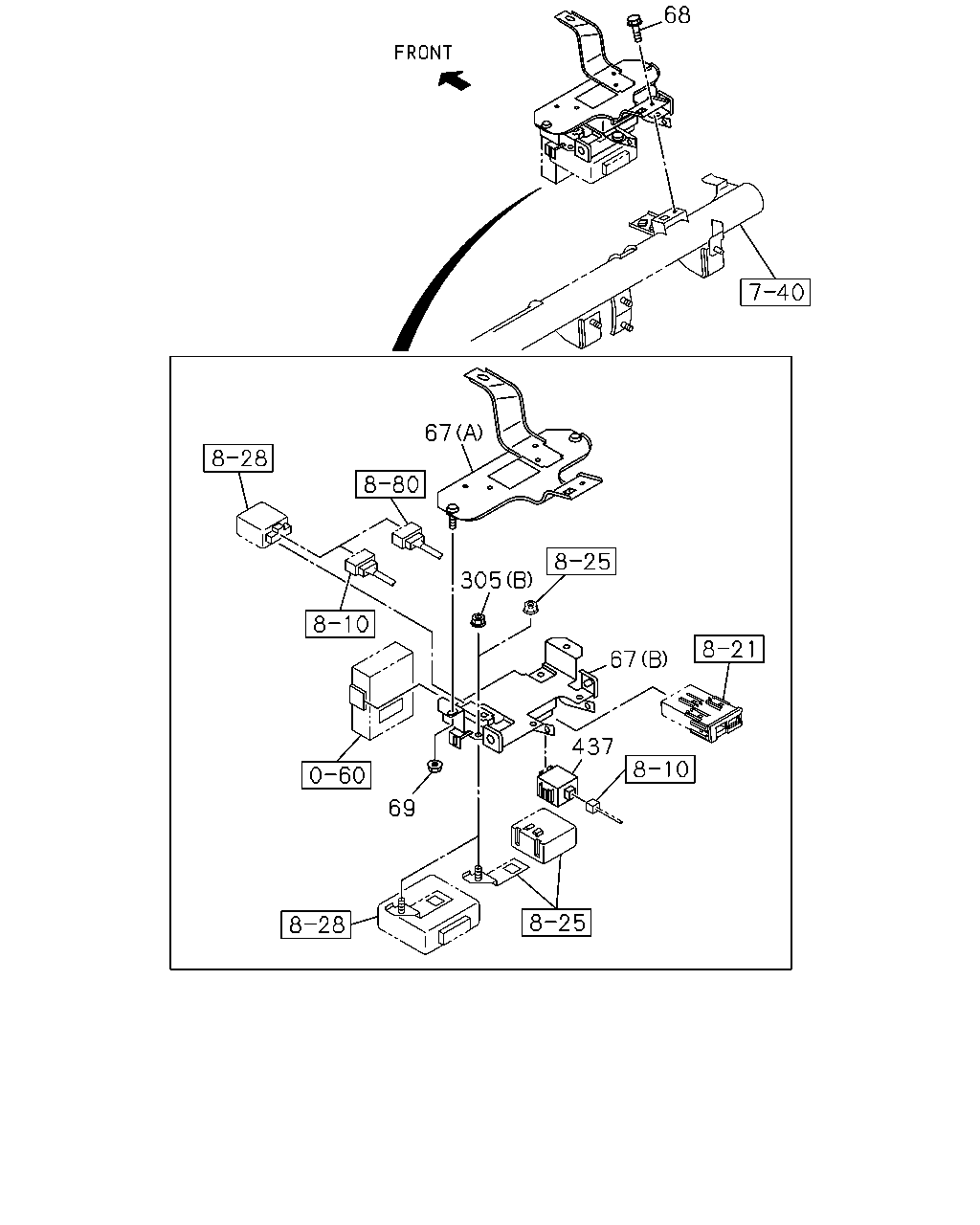

çizim 159438
67 305 67 437 69 68
BalonParca AdiParca NoAdetTipApplied Date A B
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> (D) 		8-98083-834-0 01 1 1212- ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> (C) 		8-98091-662-0 01 1 1212-1212 ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> (C) 		8-98237-556-0 01 1 1301-1404 ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> (C) 		8-98091-662-0 01 1 1405- ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> (E) 		8-98111-836-1 01 1 1212- ●
67 03.887 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98203-057-0 01 1 1112-1207 ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTILOCK BRAKE<JE5> (B) 		8-98203-057-0 01 1 1112-1207 ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB> (B) 		8-98203-057-0 01 1 1112-1207 ●
67 03.887 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98217-377-0 01 1 1208-1211 ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTILOCK BRAKE<JE5> (B) 		8-98217-377-0 01 1 1208-1211 ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB> (B) 		8-98217-377-0 01 1 1208-1211 ●
67 03.887 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MULTI INFORMATION DISPLAY<7NY> (B) 		8-98217-377-0 01 1 1212-1212 ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTILOCK BRAKE<JE5>,MULTI INFORMATION DISPLA Y<7NY> (B) 		8-98217-377-0 01 1 1212-1212 ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB> (B) 		8-98217-377-0 01 1 1212-1212 ●
67 03.887 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MULTI INFORMATION DISPLAY<7NY> (B) 		8-98237-555-0 01 1 1301-1404 ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTILOCK BRAKE<JE5>,MULTI INFORMATION DISPLA Y<7NY> (B) 		8-98237-555-0 01 1 1301-1404 ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB> (B) 		8-98237-555-0 01 1 1301-1404 ●
67 03.887 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MULTI INFORMATION DISPLAY<7NY> (B) 		8-98217-377-0 01 1 1405- ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTILOCK BRAKE<JE5>,MULTI INFORMATION DISPLA Y<7NY> (B) 		8-98217-377-0 01 1 1405- ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB> (B) 		8-98217-377-0 01 1 1405- ●
67 03.887 BRACKET; CONT UNIT
(A) 		8-98015-039-1 01 1 0911-1108 ●
67 03.887 BRACKET; CONT UNIT
(A) 		8-98015-039-1 01 1 1109- ● ●
67 03.887 BRACKET; CONT UNIT
(B) 		8-98022-206-2 01 1 0911-1108 ●
67 03.887 BRACKET; CONT UNIT
(B) 		8-98022-206-2 01 1 1109-1111 ● ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98022-206-2 01 1 1112-1207 ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> (B) 		8-98022-206-2 01 1 1112-1207 ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98217-376-0 01 1 1208-1211 ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> (B) 		8-98217-376-0 01 1 1208-1211 ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MULTI INFORMATION DISPLAY<7NY> (B) 		8-98217-376-0 01 1 1212-1212 ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> (B) 		8-98217-376-0 01 1 1212-1212 ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MULTI INFORMATION DISPLAY<7NY> (B) 		8-98237-554-0 01 1 1301-1404 ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> (B) 		8-98237-554-0 01 1 1301-1404 ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MULTI INFORMATION DISPLAY<7NY> (B) 		8-98217-376-0 01 1 1405- ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> (B) 		8-98217-376-0 01 1 1405- ●
68 02.500 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> 00.206 M6X12 FLANGE 		0-28450-612-0 02 1 1212- ●
68 02.500 BOLT; BRKT
00.206 M6X12 FLANGE 		0-28450-612-0 01 1 0911-1108 ●
68 02.500 BOLT; BRKT
00.206 M6X12 FLANGE 		0-28450-612-0 01 1 1109- ● ●
69 02.458 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0911-1108 ●
69 02.458 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 02 1 1109- ● ●
305 08.915 NUT; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (A) M8 W/LK WASHER 		8-94279-050-0 02 1 1212- ●
305 08.915 NUT; CONT UNIT
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0911-1104 ●
305 08.915 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<6NF> 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 1105-1108 ●
305 08.915 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<6NF> 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 1109- ●
305 08.915 NUT; CONT UNIT
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 1109- ●
437 10.485 CONVERTER; DC
KOITO 		8-97359-129-0 01 1 0911-1108 ●
437 10.485 CONVERTER; DC
KOITO 		8-97359-129-0 01 1 1109-1211 ● ●
437 10.485 CONVERTER; DC
HEADLAMP LEVELING MANUAL CONTROL<TR6> KOITO 		8-97359-129-0 01 1 1212- ●
437 10.485 CONVERTER; DC
KOITO 		8-97359-129-0 01 1 1212- ●

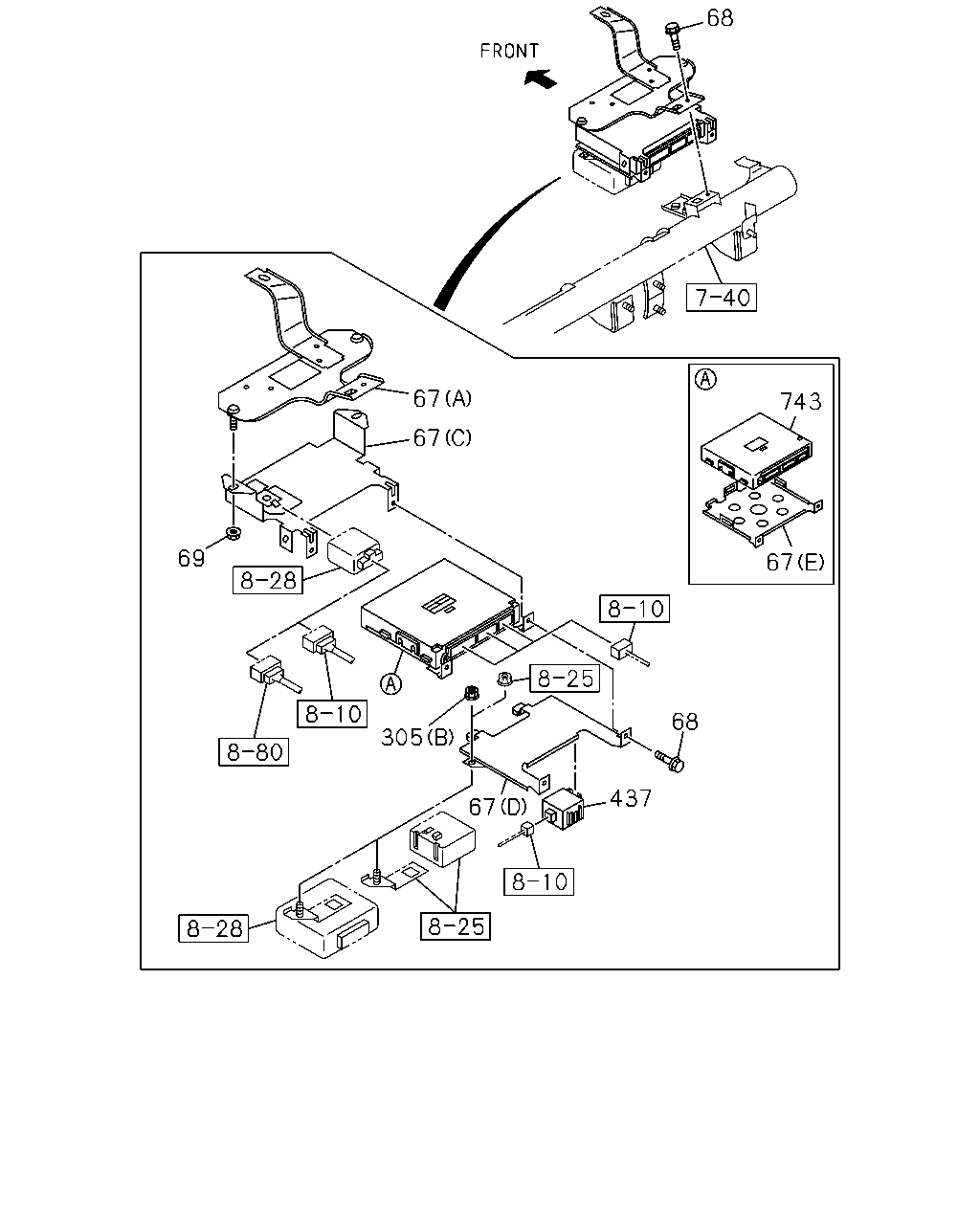

çizim 159444
68 67 69 67 305 67 437 68 743 67
BalonParca AdiParca NoAdetTipApplied Date A B
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> (D) 		8-98083-834-0 01 1 1212- ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> (C) 		8-98091-662-0 01 1 1212-1212 ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> (C) 		8-98237-556-0 01 1 1301-1404 ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> (C) 		8-98091-662-0 01 1 1405- ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> (E) 		8-98111-836-1 01 1 1212- ●
67 03.887 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98203-057-0 01 1 1112-1207 ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTILOCK BRAKE<JE5> (B) 		8-98203-057-0 01 1 1112-1207 ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB> (B) 		8-98203-057-0 01 1 1112-1207 ●
67 03.887 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98217-377-0 01 1 1208-1211 ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTILOCK BRAKE<JE5> (B) 		8-98217-377-0 01 1 1208-1211 ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB> (B) 		8-98217-377-0 01 1 1208-1211 ●
67 03.887 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MULTI INFORMATION DISPLAY<7NY> (B) 		8-98217-377-0 01 1 1212-1212 ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTILOCK BRAKE<JE5>,MULTI INFORMATION DISPLA Y<7NY> (B) 		8-98217-377-0 01 1 1212-1212 ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB> (B) 		8-98217-377-0 01 1 1212-1212 ●
67 03.887 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MULTI INFORMATION DISPLAY<7NY> (B) 		8-98237-555-0 01 1 1301-1404 ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTILOCK BRAKE<JE5>,MULTI INFORMATION DISPLA Y<7NY> (B) 		8-98237-555-0 01 1 1301-1404 ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB> (B) 		8-98237-555-0 01 1 1301-1404 ●
67 03.887 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MULTI INFORMATION DISPLAY<7NY> (B) 		8-98217-377-0 01 1 1405- ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTILOCK BRAKE<JE5>,MULTI INFORMATION DISPLA Y<7NY> (B) 		8-98217-377-0 01 1 1405- ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB> (B) 		8-98217-377-0 01 1 1405- ●
67 03.887 BRACKET; CONT UNIT
(A) 		8-98015-039-1 01 1 0911-1108 ●
67 03.887 BRACKET; CONT UNIT
(A) 		8-98015-039-1 01 1 1109- ● ●
67 03.887 BRACKET; CONT UNIT
(B) 		8-98022-206-2 01 1 0911-1108 ●
67 03.887 BRACKET; CONT UNIT
(B) 		8-98022-206-2 01 1 1109-1111 ● ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98022-206-2 01 1 1112-1207 ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> (B) 		8-98022-206-2 01 1 1112-1207 ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98217-376-0 01 1 1208-1211 ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> (B) 		8-98217-376-0 01 1 1208-1211 ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MULTI INFORMATION DISPLAY<7NY> (B) 		8-98217-376-0 01 1 1212-1212 ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> (B) 		8-98217-376-0 01 1 1212-1212 ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MULTI INFORMATION DISPLAY<7NY> (B) 		8-98237-554-0 01 1 1301-1404 ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> (B) 		8-98237-554-0 01 1 1301-1404 ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MULTI INFORMATION DISPLAY<7NY> (B) 		8-98217-376-0 01 1 1405- ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> (B) 		8-98217-376-0 01 1 1405- ●
68 02.500 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> 00.206 M6X12 FLANGE 		0-28450-612-0 02 1 1212- ●
68 02.500 BOLT; BRKT
00.206 M6X12 FLANGE 		0-28450-612-0 01 1 0911-1108 ●
68 02.500 BOLT; BRKT
00.206 M6X12 FLANGE 		0-28450-612-0 01 1 1109- ● ●
69 02.458 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0911-1108 ●
69 02.458 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 02 1 1109- ● ●
305 08.915 NUT; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (A) M8 W/LK WASHER 		8-94279-050-0 02 1 1212- ●
305 08.915 NUT; CONT UNIT
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0911-1104 ●
305 08.915 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<6NF> 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 1105-1108 ●
305 08.915 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<6NF> 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 1109- ●
305 08.915 NUT; CONT UNIT
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 1109- ●
437 10.485 CONVERTER; DC
KOITO 		8-97359-129-0 01 1 0911-1108 ●
437 10.485 CONVERTER; DC
KOITO 		8-97359-129-0 01 1 1109-1211 ● ●
437 10.485 CONVERTER; DC
HEADLAMP LEVELING MANUAL CONTROL<TR6> KOITO 		8-97359-129-0 01 1 1212- ●
437 10.485 CONVERTER; DC
KOITO 		8-97359-129-0 01 1 1212- ●
743 02.510 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98182-026-3 01 1 1212- ●

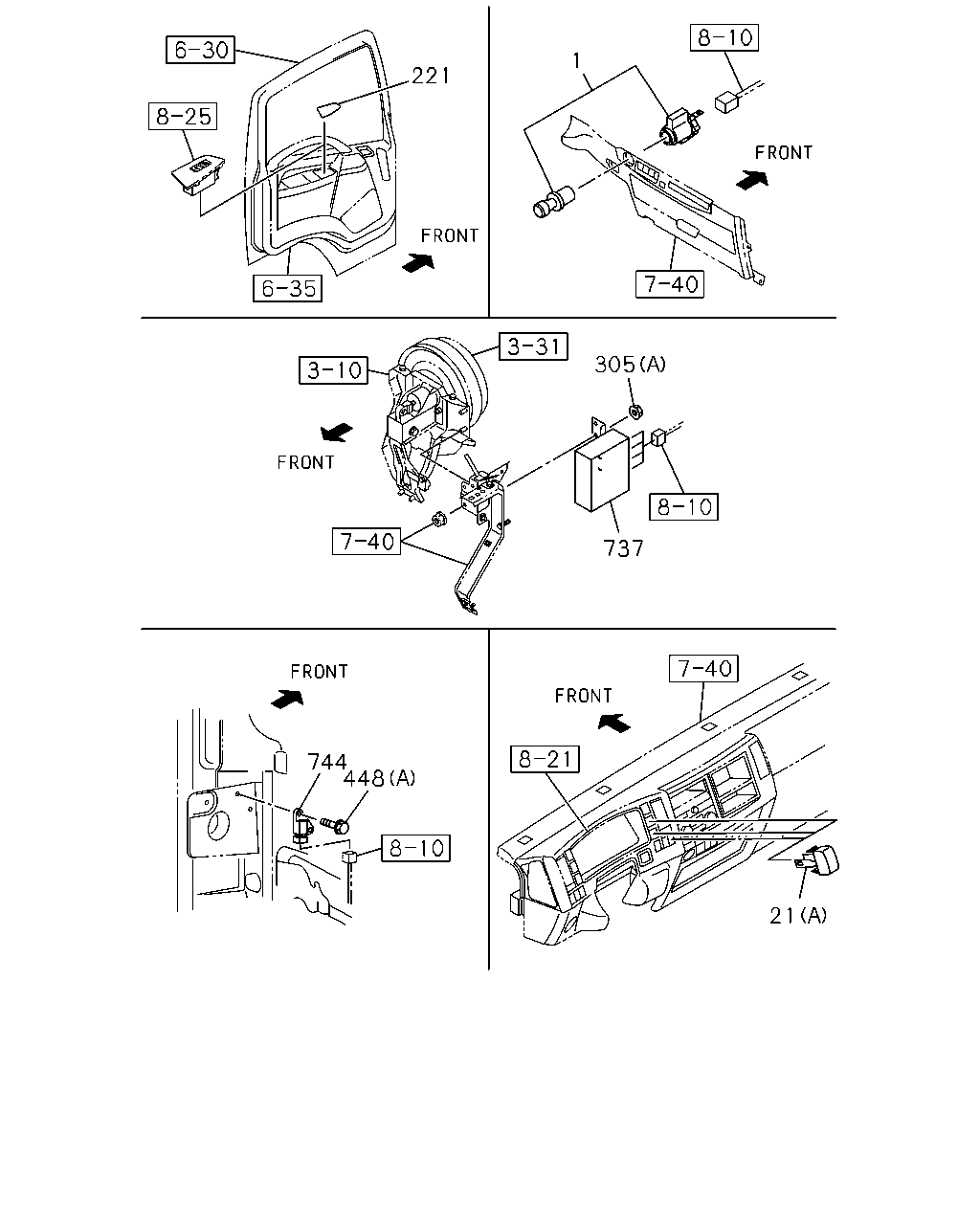

çizim 159473
221 1 305 737 744 448 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.709 LIGHTER; CIGAR 8-98142-962-0 01 1 0911-1108 ●
1 09.709 LIGHTER; CIGAR 8-98142-962-0 01 1 1109- ● ●
21 09.744 COVER; HOLE
4HK1-TCN ENG(RDQ) 09.748 (B) 		8-97101-974-0 01 1 0911-1108 ●
21 09.744 COVER; HOLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.748 (B) 		8-97101-974-0 01 1 1109- ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 0911-1108 ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 0911-1108 ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 0911-1108 ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1109-1211 ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1109-1211 ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1109-1211 ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1212- ● ●
21 09.744 COVER; HOLE
EXC. MULTI INFORMATION DISPLAY<7NY> 16.081 (A) 		8-98025-954-1 01 1 1212- ●
21 09.744 COVER; HOLE
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) 16.081 (A) 		8-98025-954-1 01 1 1212- ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1212- ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1212- ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 1105- ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 1105- ●
305 08.915 NUT; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (A) M8 W/LK WASHER 		8-94279-050-0 02 1 1212- ●
305 08.915 NUT; CONT UNIT
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0911-1104 ●
305 08.915 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<6NF> 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 1105-1108 ●
305 08.915 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<6NF> 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 1109- ●
305 08.915 NUT; CONT UNIT
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 1109- ●
448 02.500 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> 06.870 (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 0911-1108 ●
448 02.500 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> 06.870 (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1109- ● ●
448 02.500 BOLT; SENSOR
4HK1-TCN ENG(RDQ) 09.242 (B) M6X16 FLANGE 		0-28050-616-0 01 1 0911-1108 ●
448 02.500 BOLT; SENSOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.242 (B) M6X16 FLANGE 		0-28050-616-0 01 1 1109- ●
737 04.115 CONTROL UNIT; TRANSMISSION
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98106-136-9 01 1 1212-1212 ●
737 04.115 CONTROL UNIT; TRANSMISSION
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-002-2 01 1 1212- ●
737 04.115 CONTROL UNIT; TRANSMISSION
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98106-135-9 01 1 1212-1212 ●
737 04.115 CONTROL UNIT; TRANSMISSION
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-001-2 01 1 1212- ●
744 03.682 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER<AK5> 		8-97386-841-2 01 1 0911-1108 ●
744 03.682 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER<AK5> 		8-97386-841-2 01 1 1109- ● ●

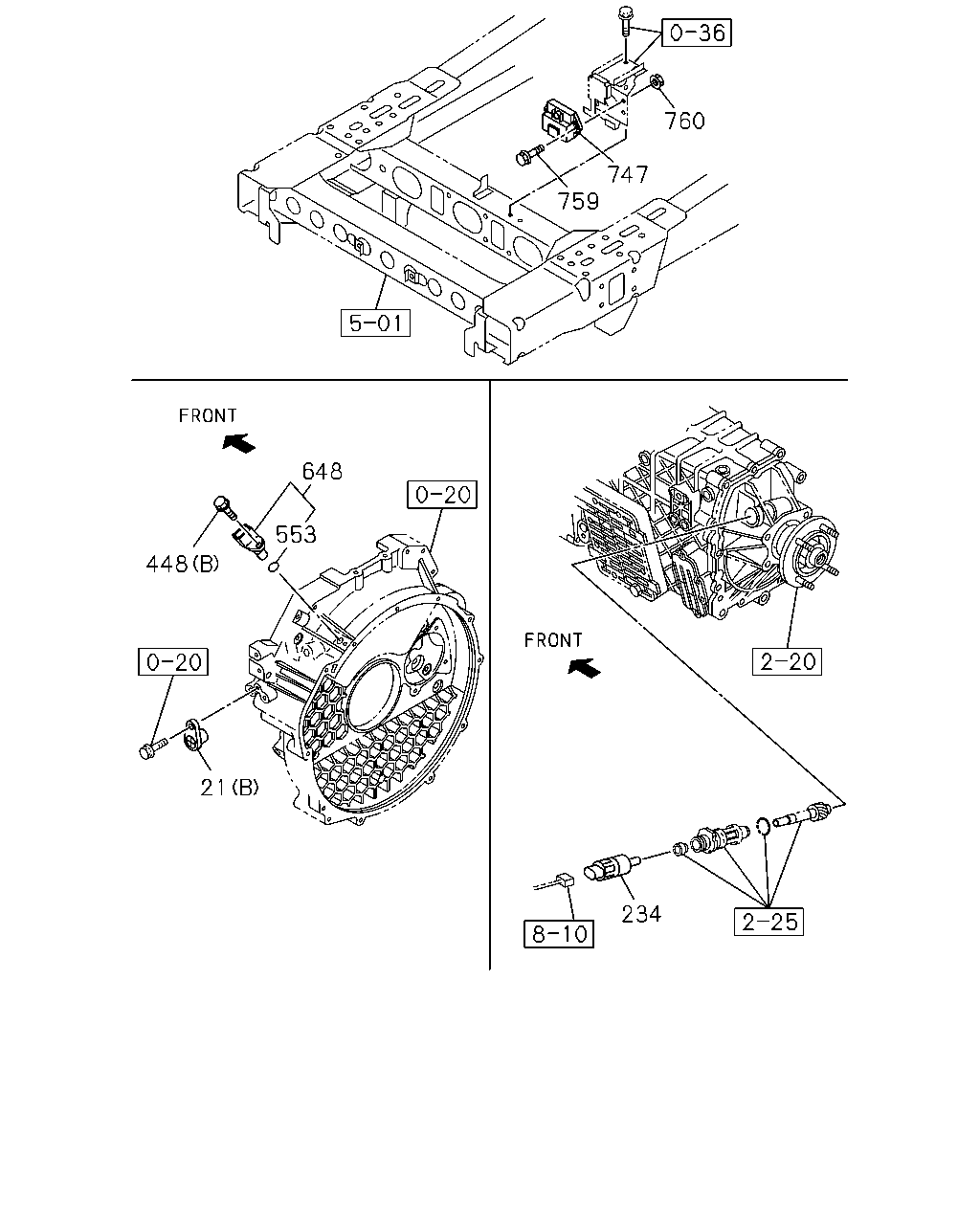

çizim 329991
760 747 759 648 553 448 21 234
BalonParca AdiParca NoAdetTipApplied Date A B
21 09.744 COVER; HOLE
4HK1-TCN ENG(RDQ) 09.748 (B) 		8-97101-974-0 01 1 0911-1108 ●
21 09.744 COVER; HOLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.748 (B) 		8-97101-974-0 01 1 1109- ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 0911-1108 ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 0911-1108 ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 0911-1108 ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1109-1211 ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1109-1211 ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1109-1211 ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1212- ● ●
21 09.744 COVER; HOLE
EXC. MULTI INFORMATION DISPLAY<7NY> 16.081 (A) 		8-98025-954-1 01 1 1212- ●
21 09.744 COVER; HOLE
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) 16.081 (A) 		8-98025-954-1 01 1 1212- ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1212- ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1212- ●
234 03.682 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 1109-1111 ●
234 03.682 SENSOR; VEHICLE SPD
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1112- ●
234 03.682 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 1112- ●
448 02.500 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> 06.870 (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 0911-1108 ●
448 02.500 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> 06.870 (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1109- ● ●
448 02.500 BOLT; SENSOR
4HK1-TCN ENG(RDQ) 09.242 (B) M6X16 FLANGE 		0-28050-616-0 01 1 0911-1108 ●
448 02.500 BOLT; SENSOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.242 (B) M6X16 FLANGE 		0-28050-616-0 01 1 1109- ●
553 02.500 GASKET
4HK1-TCN ENG(RDQ) 00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 0911-1108 ●
553 02.500 GASKET
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1109- ●
648 03.682 SENSOR; CRANK ANGLE
4HK1-TCN ENG(RDQ) 		8-97606-943-0 01 1 0911-1108 ●
648 03.682 SENSOR; CRANK ANGLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97606-943-0 01 1 1109- ●
747 02.510 CONTROL UNIT; TURBOCHARGER 8-98077-118-2 01 1 0911-1012 ●
747 02.510 CONTROL UNIT; TURBOCHARGER 8-98162-807-0 01 1 1101-1108 ●
747 02.510 CONTROL UNIT; TURBOCHARGER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98162-807-0 01 1 1109- ●
759 04.115 BOLT; CONT MODULE,TURBOCHARGER
03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0911-1108 ●
759 04.115 BOLT; CONT MODULE,TURBOCHARGER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 M6X20 FLANGE 		0-28650-620-0 02 1 1109- ●
760 04.115 NUT; CONT MODULE,TURBOCHARGER
01.062 M6 FLANGE 		0-91180-106-0 02 1 0911-1108 ●
760 04.115 NUT; CONT MODULE,TURBOCHARGER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1109- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
