Sayfa 8-25 - Isuzu EPC

8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#50553) — 360 parça

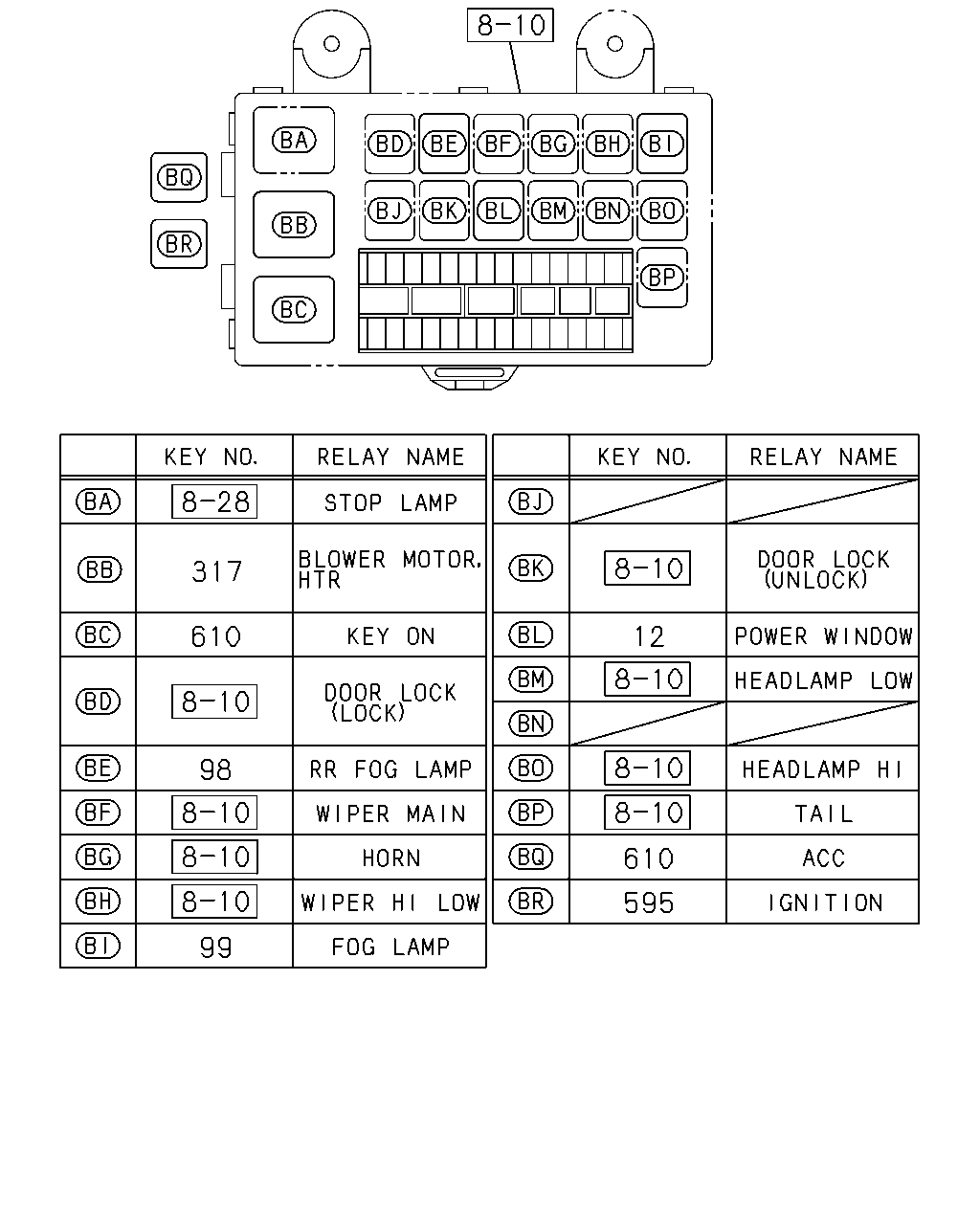

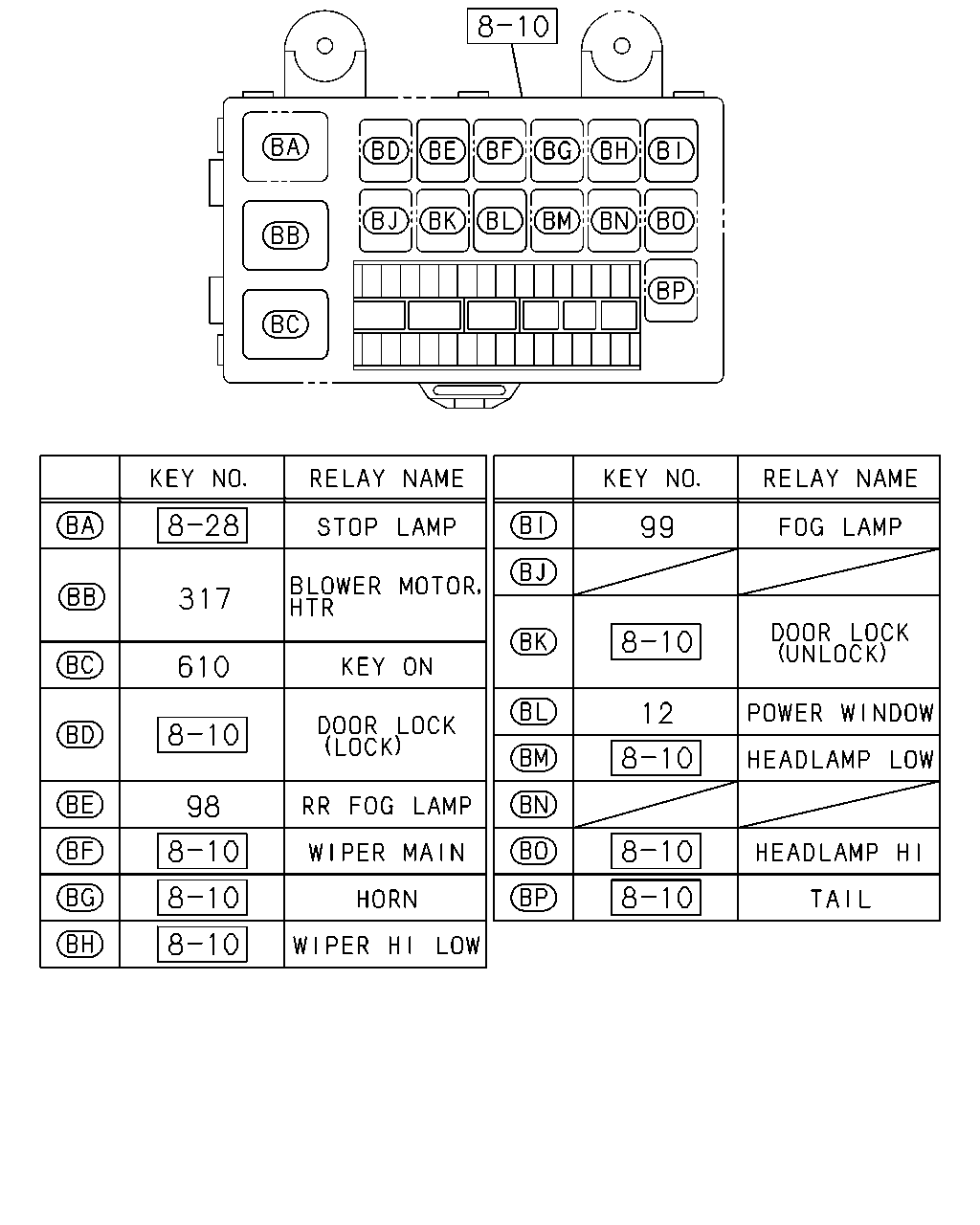

317 610 98 99 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	08.852 RELAY; POWER WINDOW 24V 10A PANASONIC	8-97173-035-1	01	1	0911-1104	●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	1105-1108	●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	1109-	●
12	08.852 RELAY; POWER WINDOW 24V 10A PANASONIC	8-97173-035-1	01	1	1109-		●
98	02.485 RELAY; RR FOG LAMP 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0911-1108	●
98	02.485 RELAY; RR FOG LAMP 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1109-1211	●	●
98	02.485 RELAY; RR FOG LAMP RR FOG LAMP<T79> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1212-	●
98	02.485 RELAY; RR FOG LAMP 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1212-		●
99	02.485 RELAY; FOG LAMP 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0911-1108	●
99	02.485 RELAY; FOG LAMP 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1109-1211	●	●
99	02.485 RELAY; FOG LAMP FOG LAMP<T96> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1212-	●
99	02.485 RELAY; FOG LAMP 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1212-		●
317	02.510 RELAY; BLOWER MOTOR,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0911-1108	●
317	02.510 RELAY; BLOWER MOTOR,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1109-1211	●	●
317	02.510 RELAY; BLOWER MOTOR,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1212-	●
317	02.510 RELAY; BLOWER MOTOR,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1212-		●
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	0911-1108	●
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	1109-1204	●	●
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-	●	●
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-	●	●

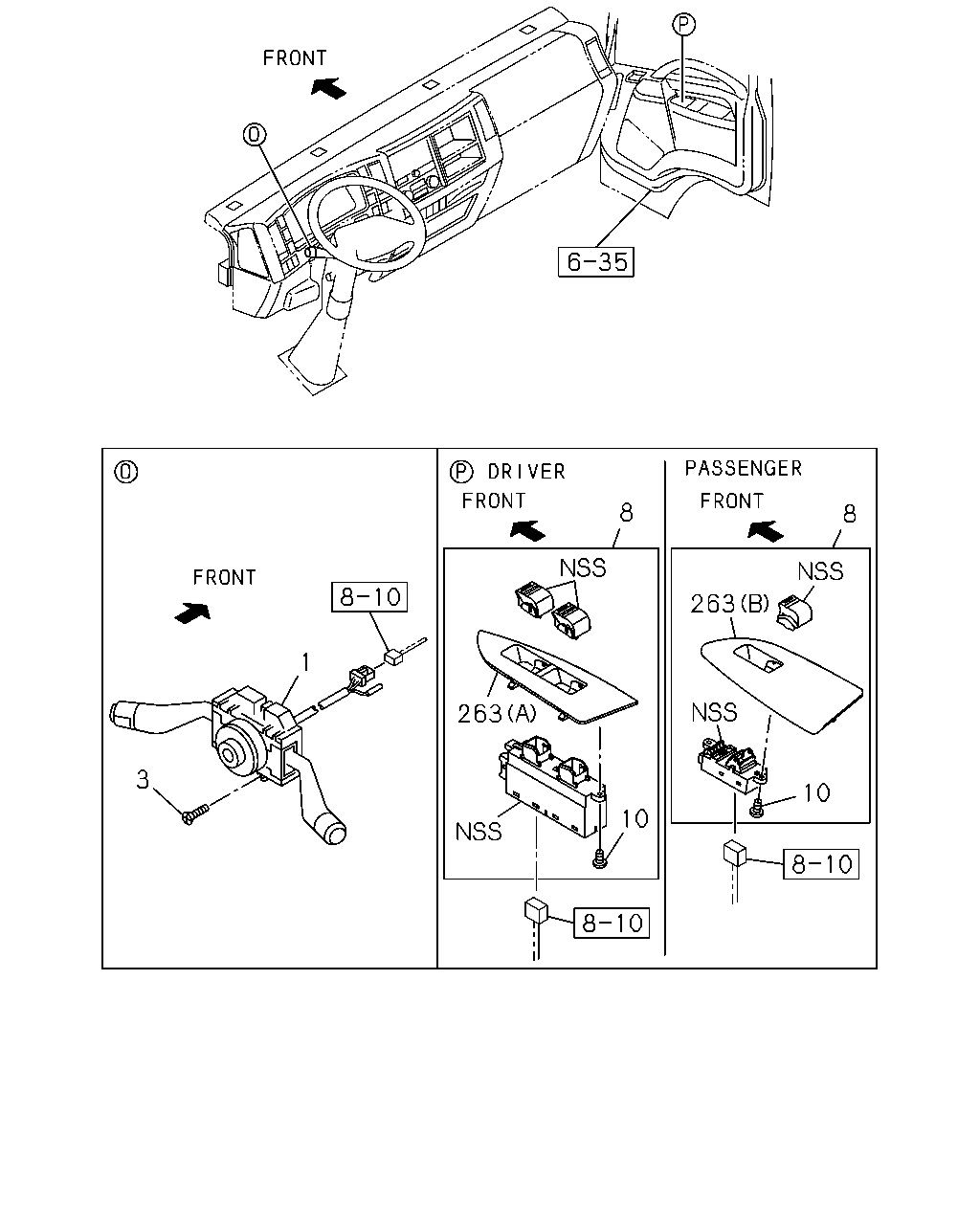

8 8 263 10 10 263 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> RR FOG LAMP<T79> MULTI INFORMATION DISPLAY<7NY>	8-98217-814-0	01	1	1212-1310	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> RR FOG LAMP<T79> MULTI INFORMATION DISPLAY<7NY>	8-98243-741-0	01	1	1311-1510	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXC. RR FOG LAMP<T79>,MULTI INFORMATION DISPLAY<7NY>	8-98217-813-0	01	1	1212-1310	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXC. RR FOG LAMP<T79>,MULTI INFORMATION DISPLAY<7NY>	8-98243-739-0	01	1	1311-1510	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) INTERMITTENT WIPER<C13> CORNERING LAMP<T87> EXC. RR FOG LAMP<T79>,MULTI INFORMATION DISPLAY<7NY>	8-98243-739-0	01	1	1511-	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79>,MULTI INFORMATION DISPLAY<7NY>	8-98217-811-0	01	1	1212-1310	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79>,MULTI INFORMATION DISPLAY<7NY>	8-98243-738-0	01	1	1311-1510	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) CORNERING LAMP<T87> EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79>,MULTI INFORMATION DISPLAY<7NY>	8-98243-738-0	01	1	1511-	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> RR FOG LAMP<T79> MULTI INFORMATION DISPLAY<7NY> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98097-621-1	01	1	1212-1310	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> RR FOG LAMP<T79> MULTI INFORMATION DISPLAY<7NY> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98243-758-0	01	1	1311-1510	●
1	02.895 SWITCH; COMB TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) INTERMITTENT WIPER<C13> RR FOG LAMP<T79> MULTI INFORMATION DISPLAY<7NY> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,CORNERING LAMP<T87>	8-98243-758-0	01	1	1511-	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,RR FOG LAMP<T79>,MULTI INFORMATION DISPLAY<7NY>	8-98070-010-1	01	1	1212-1310	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,RR FOG LAMP<T79>,MULTI INFORMATION DISPLAY<7NY>	8-98243-749-0	01	1	1311-1510	●
1	02.895 SWITCH; COMB TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,RR FOG LAMP<T79>,MULTI INFORMATION DISPLAY<7NY>	8-98243-749-0	01	1	1511-	●
1	02.895 SWITCH; COMB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,INTERMITTENT WIPER<C13>,R R FOG LAMP<T79>,MULTI INFORMATION DISPLAY<7NY>	8-98070-008-2	01	1	1212-1310	●
1	02.895 SWITCH; COMB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,INTERMITTENT WIPER<C13>,R R FOG LAMP<T79>,MULTI INFORMATION DISPLAY<7NY>	8-98243-748-0	01	1	1311-1510	●
1	02.895 SWITCH; COMB TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,INTERMITTENT WIPER<C13>, RR FOG LAMP<T79>,MULTI INFORMATION DISPLAY <7NY>	8-98243-748-0	01	1	1511-	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13>	8-98146-639-0	01	1	0911-1108	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13>	8-98146-639-0	01	1	1109-1210	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13>	8-98217-812-0	01	1	1211-1211	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> RR FOG LAMP<T79> EXC. MULTI INFORMATION DISPLAY<7NY>	8-98217-812-0	01	1	1212-1310	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13>	8-98217-812-0	01	1	1212-1310		●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> RR FOG LAMP<T79> EXC. MULTI INFORMATION DISPLAY<7NY>	8-98243-740-0	01	1	1311-1510	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13>	8-98243-740-0	01	1	1311-1510		●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) INTERMITTENT WIPER<C13> RR FOG LAMP<T79> EXC. CORNERING LAMP<T87>,MULTI INFORMATION DISPLAY<7NY>	8-98243-740-0	01	1	1511-	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13>	8-98243-740-0	01	1	1511-		●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98073-850-1	01	1	0911-1108	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98073-850-1	01	1	1109-1211	●	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,MULTI INFORMATION DISPLAY<7NY>	8-98073-850-1	01	1	1212-1310	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98073-850-1	01	1	1212-1310		●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,MULTI INFORMATION DISPLAY<7NY>	8-98243-757-0	01	1	1311-1510	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98243-757-0	01	1	1311-1510		●
1	02.895 SWITCH; COMB TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) INTERMITTENT WIPER<C13> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,CORNERING LAMP<T87>, MULTIINFORMATION DISPLAY<7NY>	8-98243-757-0	01	1	1511-	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98243-757-0	01	1	1511-		●
1	02.895 SWITCH; COMB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,INTERMITTENT WIPER<C13>	8-98070-007-2	01	1	0911-1108	●
1	02.895 SWITCH; COMB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,INTERMITTENT WIPER<C13>	8-98070-007-2	01	1	1109-1211	●	●
1	02.895 SWITCH; COMB RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,INTERMITTENT WIPER<C13>, MULTI INFORMATION DISPLAY<7NY>	8-98070-007-2	01	1	1212-1310	●
1	02.895 SWITCH; COMB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,INTERMITTENT WIPER<C13>	8-98070-007-2	01	1	1212-1310		●
1	02.895 SWITCH; COMB RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,INTERMITTENT WIPER<C13>, MULTI INFORMATION DISPLAY<7NY>	8-98243-750-0	01	1	1311-1510	●
1	02.895 SWITCH; COMB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,INTERMITTENT WIPER<C13>	8-98243-750-0	01	1	1311-1510		●
1	02.895 SWITCH; COMB TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,INTERMITTENT WIPER<C13>, CORNERING LAMP<T87>,MULTI INFORMATION DISP LAY<7NY>	8-98243-750-0	01	1	1511-	●
1	02.895 SWITCH; COMB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,INTERMITTENT WIPER<C13>	8-98243-750-0	01	1	1511-		●
3	02.897 SCREW; COMB SW M5X20 W/PL WASHER&TORQUES	8-98061-743-0	02	1	0911-1108	●
3	02.897 SCREW; COMB SW M5X20 W/PL WASHER&TORQUES	8-98061-743-0	02	1	1109-1211	●	●
3	02.897 SCREW; COMB SW M5X20 W/PL WASHER&TORQUES	8-98061-743-0	02	1	1212-	●	●
8	16.263 SWITCH; POWER WINDOW PASSENGER SIDE	8-98001-737-2	01	1	0911-1104	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> PASSENGER SIDE	8-98001-737-2	01	1	1105-1108	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> PASSENGER SIDE	8-98001-737-2	01	1	1109-1509	●
8	16.263 SWITCH; POWER WINDOW PASSENGER SIDE	8-98001-737-2	01	1	1109-1509		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> PASSENGER SIDE	8-98316-418-0	01	1	1510-	●
8	16.263 SWITCH; POWER WINDOW PASSENGER SIDE	8-98316-418-0	01	1	1510-		●
8	16.263 SWITCH; POWER WINDOW DRIVER SIDE	8-98129-845-0	01	1	0911-1001	●
8	16.263 SWITCH; POWER WINDOW 06.609 DRIVER SIDE	8-98159-544-0	01	1	1002-1104	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> 06.609 DRIVER SIDE	8-98159-544-0	01	1	1105-1108	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> 06.609 DRIVER SIDE	8-98159-544-0	01	1	1109-1509	●
8	16.263 SWITCH; POWER WINDOW 06.609 DRIVER SIDE	8-98159-544-0	01	1	1109-1509		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> DRIVER SIDE	8-98298-751-0	01	1	1510-	●
8	16.263 SWITCH; POWER WINDOW DRIVER SIDE	8-98298-751-0	01	1	1510-		●
10	03.885 SCREW; POWER WINDOW SW	8-98153-865-0	03	1	0911-1104	●
10	03.885 SCREW; POWER WINDOW SW POWER WINDOW FRT DOOR<A32>	8-98153-865-0	03	1	1105-1108	●
10	03.885 SCREW; POWER WINDOW SW POWER WINDOW FRT DOOR<A32>	8-98153-865-0	03	1	1109-	●
10	03.885 SCREW; POWER WINDOW SW	8-98153-865-0	03	1	1109-		●
263	16.081 COVER; SW (A)	8-98153-838-0	01	1	0911-1104	●
263	16.081 COVER; SW POWER WINDOW FRT DOOR<A32> (A)	8-98153-838-0	01	1	1105-1108	●
263	16.081 COVER; SW POWER WINDOW FRT DOOR<A32> (A)	8-98153-838-0	01	1	1109-	●
263	16.081 COVER; SW (A)	8-98153-838-0	01	1	1109-		●
263	16.081 COVER; SW (B)	8-98153-843-0	01	1	0911-1104	●
263	16.081 COVER; SW POWER WINDOW FRT DOOR<A32> (B)	8-98153-843-0	01	1	1105-1108	●
263	16.081 COVER; SW POWER WINDOW FRT DOOR<A32> (B)	8-98153-843-0	01	1	1109-	●
263	16.081 COVER; SW (B)	8-98153-843-0	01	1	1109-		●

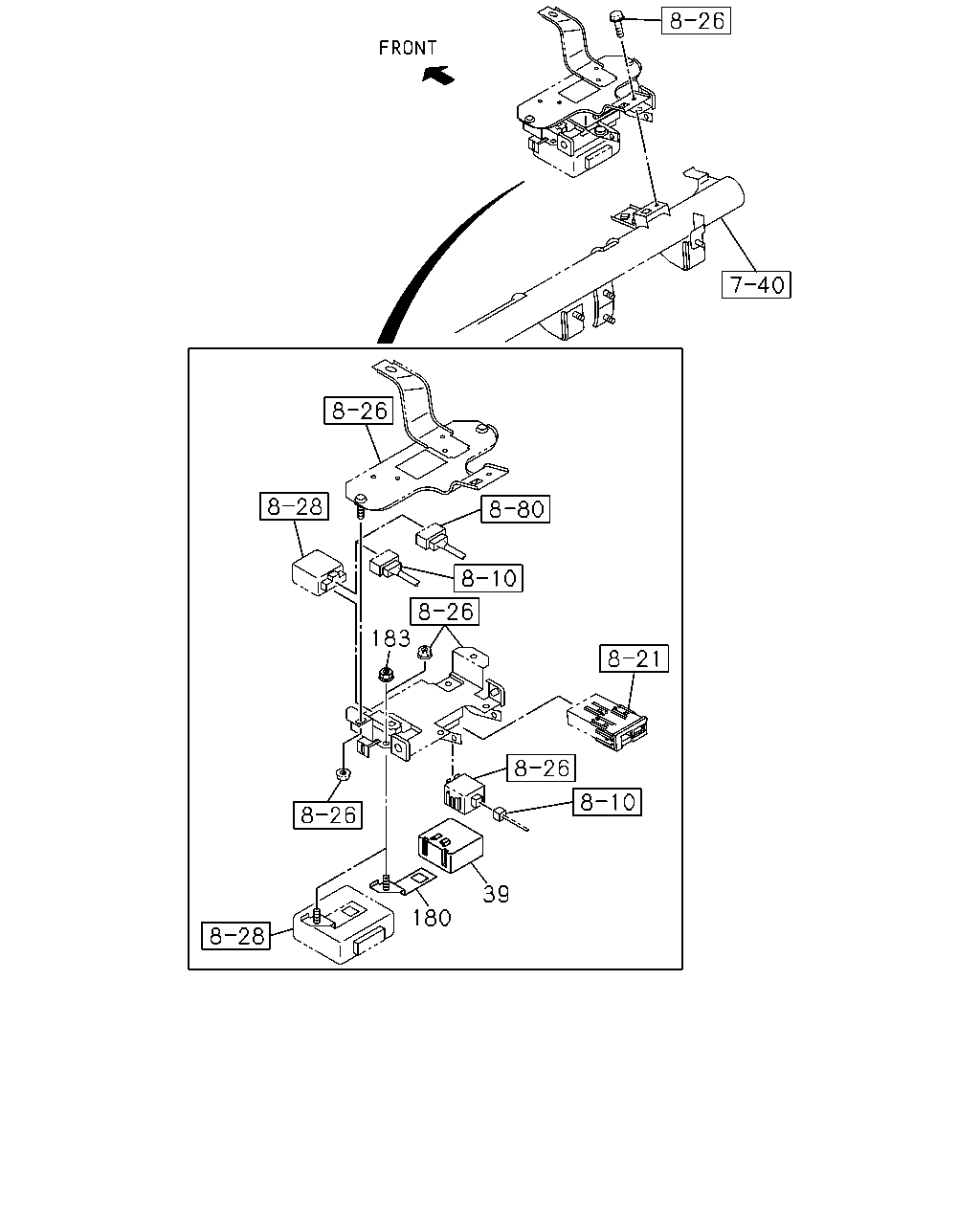

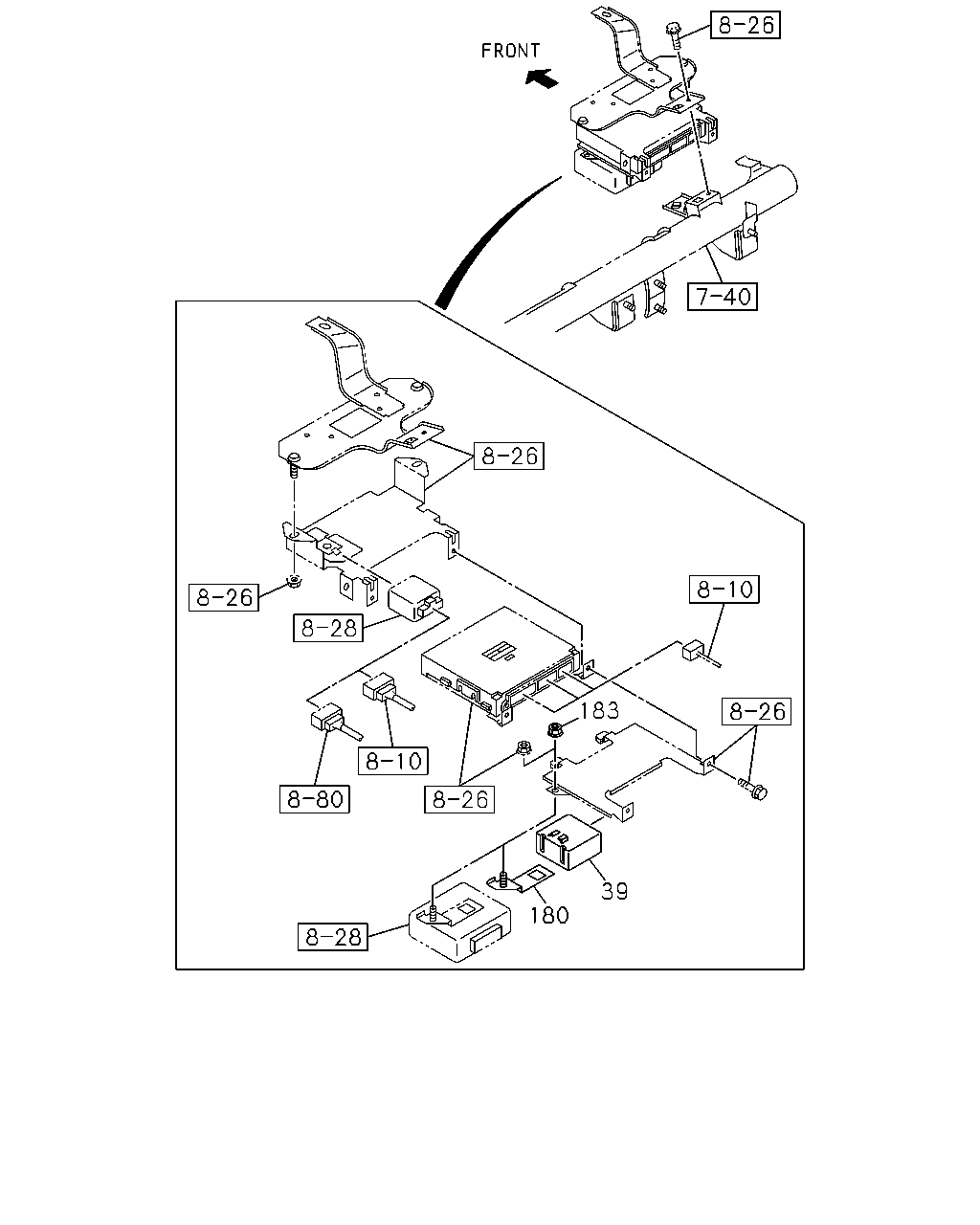

608 151 154

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
151	09.277 RELAY; HTR & A/C AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0911-1108	●
151	09.277 RELAY; HTR & A/C AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1109-	●	●
154	09.277 RELAY; CONDENSER FAN AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0911-1108	●
154	09.277 RELAY; CONDENSER FAN AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1109-	●	●
608	02.485 RELAY; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) 02.510 24V 30A MITSUBA	8-97238-540-0	01	1	1212-1402	●
608	02.485 RELAY; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 30A MITSUBA	8-98259-779-0	01	1	1403-	●

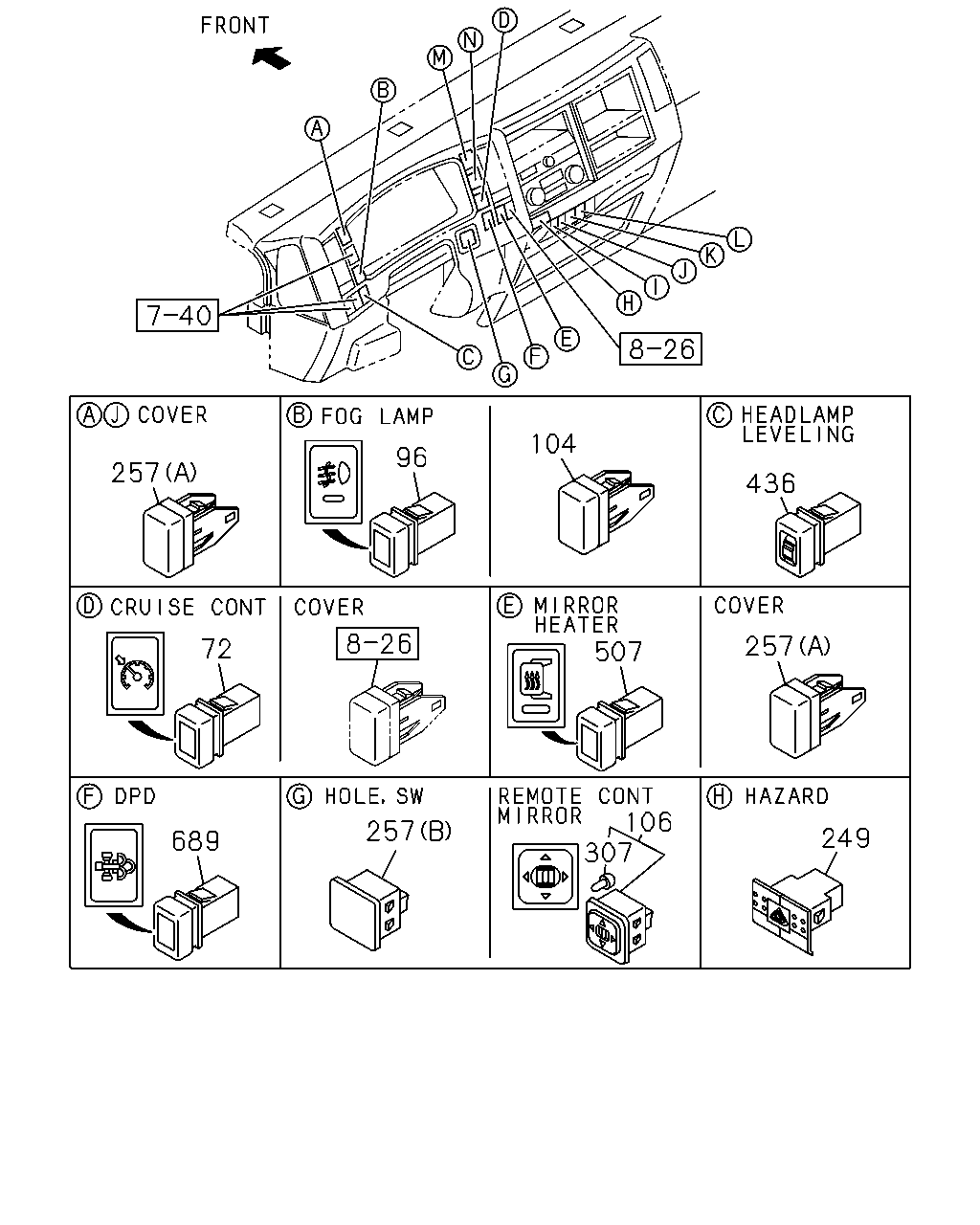

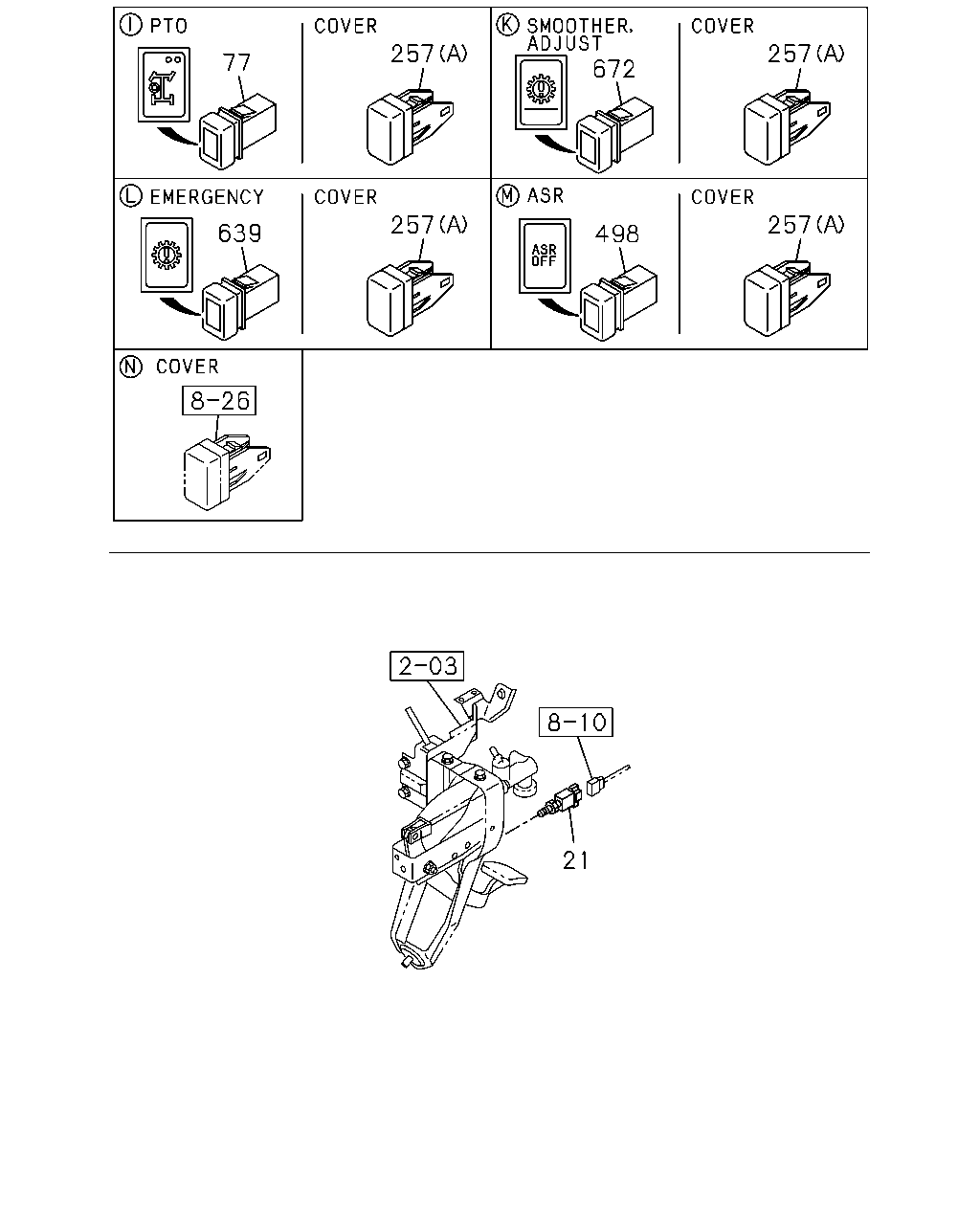

436 104 96 257 72 257 689 307 249 257 106 507

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
72	02.485 SWITCH; CRUISE CONT MULTI INFORMATION DISPLAY<7NY>	8-98011-344-1	01	1	1212-	●
96	02.485 SWITCH; FOG LAMP	8-97387-031-3	01	1	0911-1108	●
96	02.485 SWITCH; FOG LAMP	8-97387-031-3	01	1	1109-1111	●	●
96	02.485 SWITCH; FOG LAMP FOG LAMP<T96>	8-97387-031-3	01	1	1112-1112	●	●
96	02.485 SWITCH; FOG LAMP FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99>	8-97387-031-3	01	1	1112-1112	●	●
96	02.485 SWITCH; FOG LAMP	8-97387-031-3	01	1	1201-1211	●	●
96	02.485 SWITCH; FOG LAMP TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) FOG LAMP<T96>	8-97387-031-4	01	1	1212-	●
96	02.485 SWITCH; FOG LAMP	8-97387-031-4	01	1	1212-		●
104	09.778 COVER; SW HOLE,FOG LAMP TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) EXC. FOG LAMP<T96> 16.081	8-98025-954-1	01	1	1212-	●
104	09.778 COVER; SW HOLE,FOG LAMP EXC. FOG LAMP<T96> 16.081	8-98025-954-1	01	1	1112-1112	●	●
104	09.778 COVER; SW HOLE,FOG LAMP EXC. FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 16.081	8-98025-954-1	01	1	1112-1112	●	●
106	10.186 SWITCH; REMOTE CONT MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-97173-294-1	01	1	0911-1108	●
106	10.186 SWITCH; REMOTE CONT MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-97173-294-1	01	1	1109-	●	●
249	02.485 SWITCH; HAZARD	8-97386-922-1	01	1	0911-1108	●
249	02.485 SWITCH; HAZARD	8-97386-922-1	01	1	1109-1211	●	●
249	02.485 SWITCH; HAZARD	8-97386-922-1	01	1	1212-	●	●
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTECONT DOOR LOCK<6NF> (C)	8-98029-917-0	01	1	1105-1211	●
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTECONT DOOR LOCK<6NF>,TRANSMISSION CONTROL -SMOOTHER(8GF) (C)	8-98029-917-0	01	1	1212-	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	02	1	0911-0912	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1001-1108	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	1001-1108	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1001-1108	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1001-1108	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1001-1108	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1001-1108	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1109-1111	●	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	1109-1111	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1109-1111	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1109-1111	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1109-1111	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1109-1111	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1109-1111		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1112-1211	●	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	1112-1211	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1112-1211	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1112-1211	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1112-1211	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1112-1211	●	●
257	16.081 COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	1112-1211	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1112-1211		●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	1212-1510	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1212-1510	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1212-1510	●	●
257	16.081 COVER; HOLE,SW EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A)	8-98025-954-1	01	1	1212-1510	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	1212-1510	●
257	16.081 COVER; HOLE,SW EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98025-954-1	01	1	1212-1510	●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	1212-1510	●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1212-1510	●
257	16.081 COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	1212-1510	●
257	16.081 COVER; HOLE,SW PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1212-1510		●
257	16.081 COVER; HOLE,SW EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1212-1510		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1212-1510		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1212-1510		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1212-1510		●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	1511-	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1511-	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1511-	●	●
257	16.081 COVER; HOLE,SW EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A)	8-98025-954-1	01	1	1511-	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	1511-	●
257	16.081 COVER; HOLE,SW EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98025-954-1	01	1	1511-	●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	1511-	●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1511-	●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	1511-	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1511-		●
257	16.081 COVER; HOLE,SW PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1511-		●
257	16.081 COVER; HOLE,SW EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1511-		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1511-		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1511-		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0911-0912	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	0911-0912	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0911-0912	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0911-0912	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B)	8-98029-914-1	01	1	0911-1108	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B)	8-98029-914-1	01	1	1109-	●	●
307	08.991 BULB ASM; SW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 24V	8-98226-896-0	01	1	0911-1108	●
307	08.991 BULB ASM; SW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 24V	8-98226-896-0	01	1	1109-	●	●
436	02.485 SWITCH; HEADLAMP LEVELING	8-97386-981-2	01	1	0911-1108	●
436	02.485 SWITCH; HEADLAMP LEVELING	8-97386-981-2	01	1	1109-1211	●	●
436	02.485 SWITCH; HEADLAMP LEVELING HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-97386-981-2	01	1	1212-	●
436	02.485 SWITCH; HEADLAMP LEVELING	8-97386-981-2	01	1	1212-		●
507	10.186 SWITCH; MIRROR HEATER O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-97386-924-3	01	1	0911-1108	●
507	10.186 SWITCH; MIRROR HEATER O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-97386-924-3	01	1	1109-	●	●
689	02.780 SWITCH; DPD	8-97386-921-2	01	1	0911-1108	●
689	02.780 SWITCH; DPD	8-97386-921-2	01	1	1109-1211	●	●
689	02.780 SWITCH; DPD	8-97386-921-2	01	1	1212-	●	●

77 257 639 257 672 498 257 257 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
21	02.575 SWITCH; CLU	8-97358-248-0	01	1	0911-1108	●
21	02.575 SWITCH; CLU	8-97358-248-0	01	1	1109-1211	●	●
21	02.575 SWITCH; CLU EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97358-248-0	01	1	1212-	●
21	02.575 SWITCH; CLU	8-97358-248-0	01	1	1212-		●
77	04.439 SWITCH; PTO TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97386-964-2	01	1	1212-	●
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTECONT DOOR LOCK<6NF> (C)	8-98029-917-0	01	1	1105-1211	●
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTECONT DOOR LOCK<6NF>,TRANSMISSION CONTROL -SMOOTHER(8GF) (C)	8-98029-917-0	01	1	1212-	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	02	1	0911-0912	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1001-1108	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	1001-1108	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1001-1108	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1001-1108	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1001-1108	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1001-1108	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1109-1111	●	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	1109-1111	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1109-1111	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1109-1111	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1109-1111	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1109-1111	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1109-1111		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1112-1211	●	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	1112-1211	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1112-1211	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1112-1211	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1112-1211	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1112-1211	●	●
257	16.081 COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	1112-1211	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1112-1211		●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	1212-1510	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1212-1510	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1212-1510	●	●
257	16.081 COVER; HOLE,SW EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A)	8-98025-954-1	01	1	1212-1510	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	1212-1510	●
257	16.081 COVER; HOLE,SW EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98025-954-1	01	1	1212-1510	●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	1212-1510	●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1212-1510	●
257	16.081 COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	1212-1510	●
257	16.081 COVER; HOLE,SW PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1212-1510		●
257	16.081 COVER; HOLE,SW EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1212-1510		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1212-1510		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1212-1510		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1212-1510		●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	1511-	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1511-	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1511-	●	●
257	16.081 COVER; HOLE,SW EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A)	8-98025-954-1	01	1	1511-	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	1511-	●
257	16.081 COVER; HOLE,SW EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98025-954-1	01	1	1511-	●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	1511-	●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1511-	●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	1511-	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1511-		●
257	16.081 COVER; HOLE,SW PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1511-		●
257	16.081 COVER; HOLE,SW EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1511-		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1511-		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1511-		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0911-0912	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	0911-0912	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0911-0912	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0911-0912	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B)	8-98029-914-1	01	1	0911-1108	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B)	8-98029-914-1	01	1	1109-	●	●
498	03.883 SWITCH; ASR	8-97386-920-2	01	1	0911-1111	●
498	03.883 SWITCH; ASR THROTTLE CONTROL SYSTEM<6XH>	8-97386-920-2	01	1	1112-1510	●
498	03.883 SWITCH; ASR TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) THROTTLE CONTROL SYSTEM<6XH>	8-97386-920-2	01	1	1511-	●
639	16.263 SWITCH; EMERGENCY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98119-948-0	01	1	1212-	●
672	16.263 SWITCH; SMOOTHER,ADJUST TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98119-949-1	01	1	1212-	●

317 610 98 99 12 610 595

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	08.852 RELAY; POWER WINDOW 24V 10A PANASONIC	8-97173-035-1	01	1	0911-1104	●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	1105-1108	●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	1109-	●
12	08.852 RELAY; POWER WINDOW 24V 10A PANASONIC	8-97173-035-1	01	1	1109-		●
98	02.485 RELAY; RR FOG LAMP 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0911-1108	●
98	02.485 RELAY; RR FOG LAMP 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1109-1211	●	●
98	02.485 RELAY; RR FOG LAMP RR FOG LAMP<T79> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1212-	●
98	02.485 RELAY; RR FOG LAMP 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1212-		●
99	02.485 RELAY; FOG LAMP 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0911-1108	●
99	02.485 RELAY; FOG LAMP 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1109-1211	●	●
99	02.485 RELAY; FOG LAMP FOG LAMP<T96> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1212-	●
99	02.485 RELAY; FOG LAMP 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1212-		●
317	02.510 RELAY; BLOWER MOTOR,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0911-1108	●
317	02.510 RELAY; BLOWER MOTOR,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1109-1211	●	●
317	02.510 RELAY; BLOWER MOTOR,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1212-	●
317	02.510 RELAY; BLOWER MOTOR,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1212-		●
595	02.510 RELAY; IGNITION 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-	●	●
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	0911-1108	●
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	1109-1204	●	●
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-	●	●
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-	●	●

257 29 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	16.263 SWITCH; DOOR BLACK	8-98022-211-0	01	1	0911-1104	●
29	16.263 SWITCH; DOOR BLACK	8-98022-211-0	01	1	0911-1104	●
29	16.263 SWITCH; DOOR ROOM LAMP W/ALL DOORS SW(SDF) EXC. REMOTE CONT DOOR LOCK<6NF> BLACK	8-98022-211-0	01	1	1105-1108	●
29	16.263 SWITCH; DOOR REMOTE CONT DOOR LOCK<6NF> BLACK	8-98022-211-0	01	1	1105-1108	●
29	16.263 SWITCH; DOOR BLACK	8-98022-211-0	01	1	1105-1108	●
29	16.263 SWITCH; DOOR BLACK	8-98022-211-0	01	1	1109-1211	●	●
29	16.263 SWITCH; DOOR ROOM LAMP W/ALL DOORS SW(SDF) EXC. REMOTE CONT DOOR LOCK<6NF> BLACK	8-98022-211-0	01	1	1109-1211	●
29	16.263 SWITCH; DOOR REMOTE CONT DOOR LOCK<6NF> BLACK	8-98022-211-0	01	1	1109-1211	●
29	16.263 SWITCH; DOOR BLACK	8-98022-211-0	01	1	1109-1211		●
29	16.263 SWITCH; DOOR BLACK	8-98022-211-0	01	1	1212-	●	●
29	16.263 SWITCH; DOOR ROOM LAMP W/ALL DOORS SW(SDF) EXC. REMOTE CONT DOOR LOCK<6NF>, TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK	8-98022-211-0	01	1	1212-	●
29	16.263 SWITCH; DOOR REMOTE CONT DOOR LOCK<6NF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK	8-98022-211-0	01	1	1212-	●
29	16.263 SWITCH; DOOR TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK	8-98022-211-0	01	1	1212-	●
29	16.263 SWITCH; DOOR BLACK	8-98022-211-0	01	1	1212-		●
30	16.263 SCREW; DOOR SW EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTECONT DOOR LOCK<6NF> M5X18	8-98047-201-0	01	1	1105-1211	●
30	16.263 SCREW; DOOR SW EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTECONT DOOR LOCK<6NF>,TRANSMISSION CONTROL -SMOOTHER(8GF) M5X18	8-98047-201-0	01	1	1212-	●
30	16.263 SCREW; DOOR SW M5X18	8-98047-201-0	02	1	0911-1104	●
30	16.263 SCREW; DOOR SW ROOM LAMP W/ALL DOORS SW(SDF) EXC. REMOTE CONT DOOR LOCK<6NF> M5X18	8-98047-201-0	02	1	1105-1108	●
30	16.263 SCREW; DOOR SW REMOTE CONT DOOR LOCK<6NF> M5X18	8-98047-201-0	02	1	1105-1108	●
30	16.263 SCREW; DOOR SW ROOM LAMP W/ALL DOORS SW(SDF) EXC. REMOTE CONT DOOR LOCK<6NF> M5X18	8-98047-201-0	02	1	1109-1211	●
30	16.263 SCREW; DOOR SW REMOTE CONT DOOR LOCK<6NF> M5X18	8-98047-201-0	02	1	1109-1211	●
30	16.263 SCREW; DOOR SW M5X18	8-98047-201-0	02	1	1109-1211		●
30	16.263 SCREW; DOOR SW ROOM LAMP W/ALL DOORS SW(SDF) EXC. REMOTE CONT DOOR LOCK<6NF>, TRANSMISSION CONTROL-SMOOTHER(8GF) M5X18	8-98047-201-0	02	1	1212-	●
30	16.263 SCREW; DOOR SW REMOTE CONT DOOR LOCK<6NF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M5X18	8-98047-201-0	02	1	1212-	●
30	16.263 SCREW; DOOR SW TRANSMISSION CONTROL-SMOOTHER(8GF) M5X18	8-98047-201-0	02	1	1212-	●
30	16.263 SCREW; DOOR SW M5X18	8-98047-201-0	02	1	1212-		●
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTECONT DOOR LOCK<6NF> (C)	8-98029-917-0	01	1	1105-1211	●
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTECONT DOOR LOCK<6NF>,TRANSMISSION CONTROL -SMOOTHER(8GF) (C)	8-98029-917-0	01	1	1212-	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	02	1	0911-0912	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1001-1108	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	1001-1108	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1001-1108	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1001-1108	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1001-1108	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1001-1108	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1109-1111	●	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	1109-1111	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1109-1111	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1109-1111	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1109-1111	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1109-1111	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1109-1111		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1112-1211	●	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	1112-1211	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1112-1211	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1112-1211	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1112-1211	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1112-1211	●	●
257	16.081 COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	1112-1211	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1112-1211		●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	1212-1510	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1212-1510	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1212-1510	●	●
257	16.081 COVER; HOLE,SW EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A)	8-98025-954-1	01	1	1212-1510	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	1212-1510	●
257	16.081 COVER; HOLE,SW EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98025-954-1	01	1	1212-1510	●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	1212-1510	●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1212-1510	●
257	16.081 COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	1212-1510	●
257	16.081 COVER; HOLE,SW PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1212-1510		●
257	16.081 COVER; HOLE,SW EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1212-1510		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1212-1510		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1212-1510		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1212-1510		●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	1511-	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1511-	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1511-	●	●
257	16.081 COVER; HOLE,SW EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A)	8-98025-954-1	01	1	1511-	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	1511-	●
257	16.081 COVER; HOLE,SW EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98025-954-1	01	1	1511-	●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	1511-	●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1511-	●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	1511-	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1511-		●
257	16.081 COVER; HOLE,SW PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1511-		●
257	16.081 COVER; HOLE,SW EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1511-		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1511-		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1511-		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0911-0912	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	0911-0912	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0911-0912	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0911-0912	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B)	8-98029-914-1	01	1	0911-1108	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B)	8-98029-914-1	01	1	1109-	●	●

39 180 183

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
39	16.341 RELAY; DOOR LK AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF>	8-98060-789-0	01	1	1105-	●
180	02.510 BRACKET; RELAY AUTO DOOR LOCK<AU4> MULTI INFORMATION DISPLAY<7NY> EXC. REMOTE CONT DOOR LOCK<6NF>	8-98091-660-0	01	1	1212-	●
183	02.510 NUT; RELAY BRKT AUTO DOOR LOCK<AU4> MULTI INFORMATION DISPLAY<7NY> EXC. REMOTE CONT DOOR LOCK<6NF> 01.062 M6 FLANGE	0-91180-106-0	01	1	1212-	●

180 39 183

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
39	16.341 RELAY; DOOR LK AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF>	8-98060-789-0	01	1	1105-	●
180	02.510 BRACKET; RELAY AUTO DOOR LOCK<AU4> MULTI INFORMATION DISPLAY<7NY> EXC. REMOTE CONT DOOR LOCK<6NF>	8-98091-660-0	01	1	1212-	●
183	02.510 NUT; RELAY BRKT AUTO DOOR LOCK<AU4> MULTI INFORMATION DISPLAY<7NY> EXC. REMOTE CONT DOOR LOCK<6NF> 01.062 M6 FLANGE	0-91180-106-0	01	1	1212-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
