Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#50551) — 502 parça

16 483 48 48 22 22 16 22 483 48 483 22 48 483 483

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

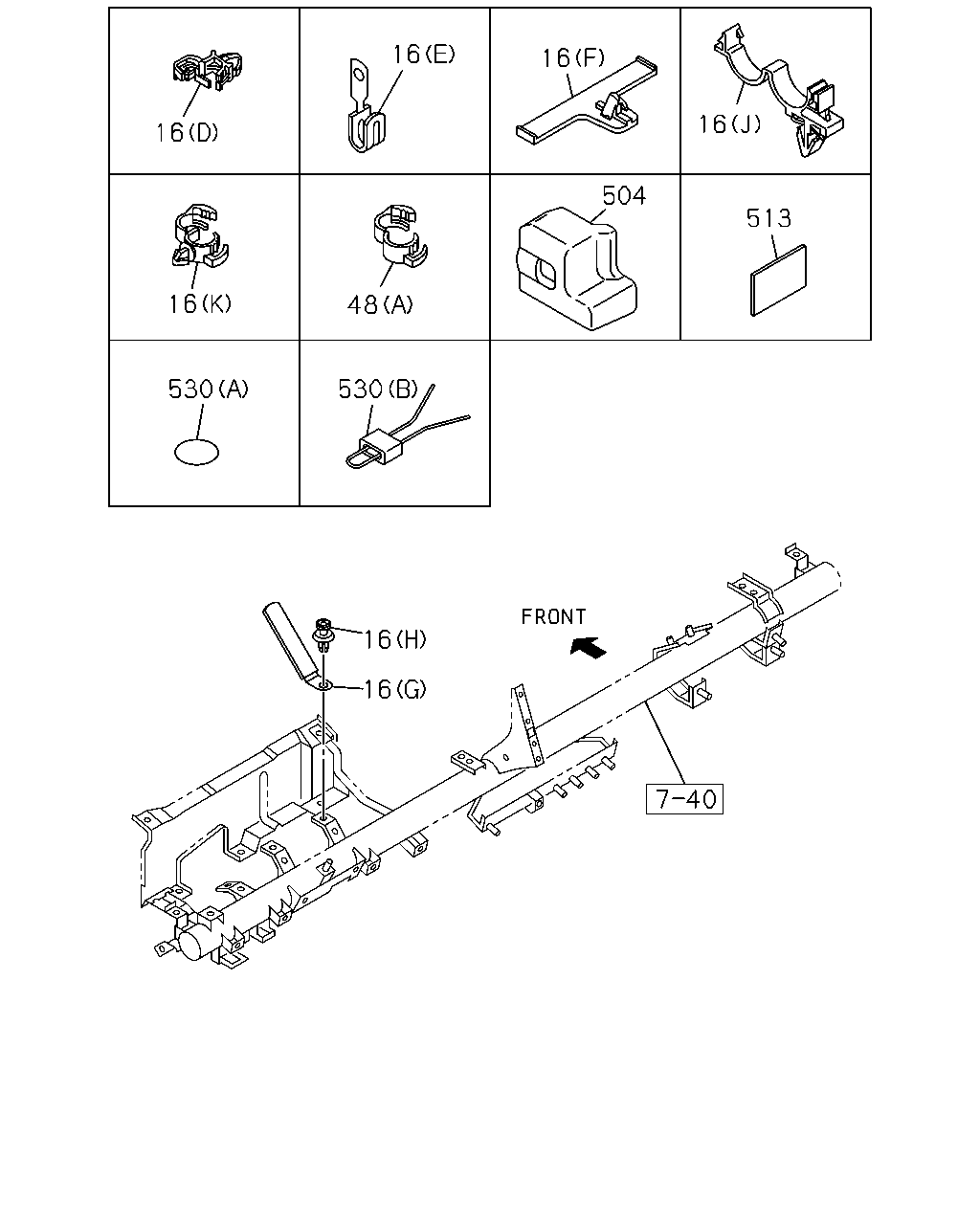

16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (I) ID=6 & 10	8-94154-844-0	01	1	1109-	●
16	02.559 CLIP; HARNESS (B) L=250	5-09707-030-1	14	1	0911-1104		●
16	02.559 CLIP; HARNESS IDENTIFICATION LABEL FOR KD<6UT> (B) L=250	5-09707-030-1	14	1	1105-1108		●
16	02.559 CLIP; HARNESS (B) L=250	5-09707-030-1	14	1	1109-1111		●
16	02.559 CLIP; HARNESS TACHOGRAPH DIGITAL<EBB> (B) L=250	5-09707-030-1	14	1	1109-1111	●
16	02.559 CLIP; HARNESS TACHOGRAPH DIGITAL<EBB> (B) L=250	5-09707-030-1	14	1	1112-1112	●	●
16	02.559 CLIP; HARNESS TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (B) L=250	5-09707-030-1	14	1	1112-1211		●
16	02.559 CLIP; HARNESS TACHOGRAPH DIGITAL<EBB> (B) L=250	5-09707-030-1	14	1	1112-1211	●
16	02.559 CLIP; HARNESS TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> IDENTIFICATION LABEL FOR KD<6UT> (B) L=250	5-09707-030-1	14	1	1212-		●
16	02.559 CLIP; HARNESS TACHOGRAPH DIGITAL<EBB> (B) L=250	5-09707-030-1	14	1	1212-	●
16	02.559 CLIP; HARNESS 04.930 (G) L=91 ID=8.5	8-94329-956-0	01	1	0911-1108		●
16	02.559 CLIP; HARNESS 04.930 (G) L=91 ID=8.5	8-94329-956-0	01	1	1109-	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0911-1108		●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1109-	●	●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) 03.483 (E)	8-97101-436-0	01	1	0911-1108		●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.483 (E)	8-97101-436-0	01	1	1109-1211		●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.483 (E)	8-97101-436-0	01	1	1212-		●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0911-1108		●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1109-1211	●	●
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.483 (J) ID=28	8-94362-106-0	01	1	1212-		●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) L=155	8-97173-307-0	14	1	1212-		●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (A) L=155	8-97173-307-0	14	1	1212-		●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1212-	●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	0911-1108		●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1109-1211	●	●
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 02.694 (K) ID=6 & 10-13	8-97069-515-0	01	1	1212-		●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) L=40.6	8-97229-357-0	02	1	1212-		●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (C) L=40.6	8-97229-357-0	02	1	1212-		●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1212-	●
16	02.559 CLIP; HARNESS 16.578 (H) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	0911-1108		●
16	02.559 CLIP; HARNESS 16.578 (H) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1109-	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	0911-1108		●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1109-1211	●	●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (F)	8-98052-679-0	02	1	1212-		●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (F)	8-98052-679-0	02	1	1212-		●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1212-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 02.343 (G) L=119.5	1-09707-197-0	01	1	1109-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 04.594 (E) L=100	5-09707-036-1	01	1	1109-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.425 (H) ID=6 & 8.3	8-94167-742-0	01	1	1109-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (I) ID=13.2 & 14.5	8-94475-649-0	01	1	1109-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 04.104 (F) ID=12 & 6.8	8-97125-842-0	01	1	1109-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (D) L=140	5-09707-031-1	01	1	1109-1211	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (D) L=140	5-09707-031-1	01	1	1109-1211	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (D) L=140	5-09707-031-1	01	1	1212-1311		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (D) L=140	5-09707-031-1	01	1	1212-1311	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (D) L=140	5-09707-031-1	01	1	1212-1311	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (D) L=140	5-09707-031-1	01	1	1312-		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (D) L=140	5-09707-031-1	01	1	1312-	●
22	02.559 CLIP; ENG HARNESS (C) L=250	5-09707-030-1	01	1	0911-1108		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) L=250	5-09707-030-1	01	1	1109-		●
22	02.559 CLIP; ENG HARNESS 08.852 (A) L=350	8-94152-256-1	02	1	0911-1108		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 08.852 (A) L=350	8-94152-256-1	02	1	1109-		●
22	02.559 CLIP; ENG HARNESS (B) ID=14-20	8-97061-603-0	02	1	0911-1108		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=14-20	8-97061-603-0	02	1	1109-1505		●
48	02.559 CLIP; FRAME HARNESS MULTI INFORMATION DISPLAY<7NY> 03.483 (F) L=450	1-09707-142-1	01	1	1212-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (E) T=5.5	8-97371-951-0	01	1	1109-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (A) ID=20	8-94241-972-0	02	1	1109-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1105-1108		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1109-1510	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	1511-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1105-1108		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	11	1	1109-1510	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1511-	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0911-1104		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1105-1108		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1109-1211		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1212-		●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	0911-1104		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) ID=20	8-94241-972-0	01	1	1105-1108		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) ID=20	8-94241-972-0	01	1	1109-		●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	1109-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (A) ID=20	8-94241-972-0	01	1	1109-	●
48	02.559 CLIP; FRAME HARNESS 03.430 (C) ID=10 & 16.5	8-94424-440-0	01	1	0911-		●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0911-1104		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) T=4.5 & 9	8-97371-947-0	01	1	1105-1108		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) T=4.5 & 9	8-97371-947-0	01	1	1109-		●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	1109-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (B) T=4.5 & 9	8-97371-947-0	01	1	1109-	●
48	02.559 CLIP; FRAME HARNESS (E) T=5.5	8-97371-951-0	02	1	0911-		●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 06.602 (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0911-1108		●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.602 (C) ID=15 H=24 L=20	1-09700-606-0	01	1	1109-		●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 04.785 (A) ID=14.5 L=40	1-09701-014-0	01	1	0911-1108		●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.785 (A) ID=14.5 L=40	1-09701-014-0	01	1	1109-		●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (D) ID=19 H=33 L=45	1-09701-045-0	01	1	0911-1108		●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) ID=19 H=33 L=45	1-09701-045-0	01	1	1109-		●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 01.152 (E) L=36	8-94224-891-1	01	1	0911-1108		●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.152 (E) L=36	8-94224-891-1	01	1	1109-		●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (B) ID=12	8-97329-630-0	01	1	0911-1108		●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=12	8-97329-630-0	01	1	1109-		●

516 139 139 313 38 139 150 516 480 304 242 529 480 139 480 386 386 377 377 377 386 386 24 515 577 219 294 515 552 24 515 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	02.559 NUT; HARNESS 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0911-1108		●
24	02.559 NUT; HARNESS 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1109-1409	●	●
24	02.559 NUT; HARNESS (A) M6 FLANGE STAINLESS	8-98297-112-0	01	1	1410-	●	●
24	02.559 NUT; HARNESS 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0911-1108		●
24	02.559 NUT; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1109-1211		●
24	02.559 NUT; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1212-		●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1109-	●
139	02.559 BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0911-1108		●
139	02.559 BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1109-	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0911-1108		●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1109-	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0911-1108		●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1109-	●	●
139	02.559 BOLT; BRKT 03.604 (C) M6X12 FLANGE	8-97108-669-0	01	1	0911-1108		●
139	02.559 BOLT; BRKT 03.604 (C) M6X12 FLANGE	8-97108-669-0	01	1	1109-	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (D) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0911-1101		●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (D) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1108		●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (D) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1109-1211	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (D) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1212-1212		●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (D) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1212-1212	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (D) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-		●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (D) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ) M8X12 FLANGE	0-28050-812-0	01	1	0911-1108		●
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M8X12 FLANGE	0-28050-812-0	01	1	1109-		●
219	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0911-1402		●

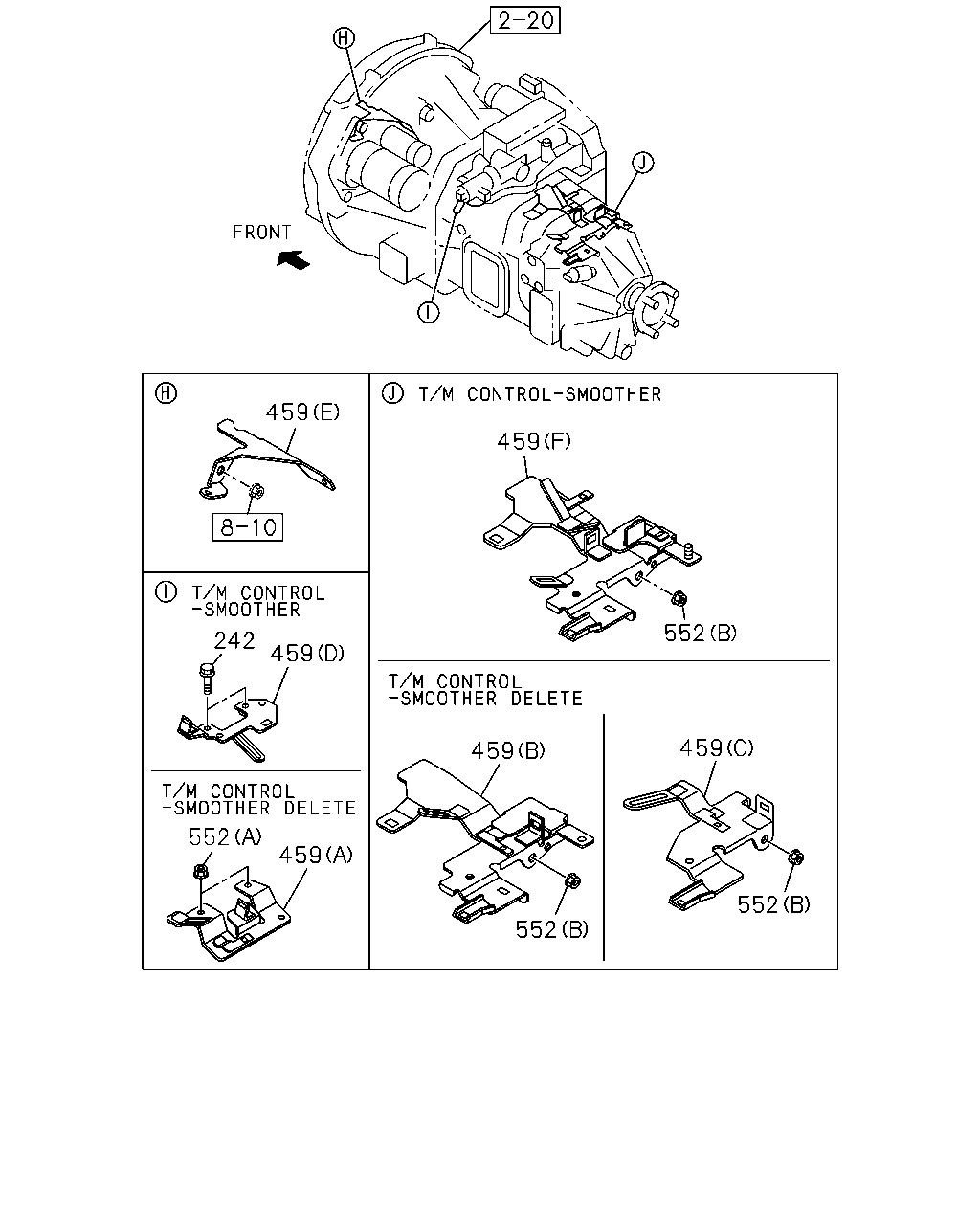

242	02.483 BOLT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1212-		●
294	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	01	1	0911-1108		●
294	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	01	1	1109-	●	●
304	02.483 BOLT; ENG HARNESS CLIP 4HK1-TCN ENG(RDQ) 00.029 M10X16 FLANGE	0-28151-016-0	01	1	0911-1108		●
304	02.483 BOLT; ENG HARNESS CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.029 M10X16 FLANGE	0-28151-016-0	01	1	1109-		●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0911-1108		●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1109-	●	●
377	02.559 BOLT; CAB EARTH (A) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	0911-1004		●
377	02.559 BOLT; CAB EARTH 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1005-1108		●
377	02.559 BOLT; CAB EARTH 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1109-	●	●
377	02.559 BOLT; CAB EARTH (B) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0911-1004		●
377	02.559 BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1005-1108		●
377	02.559 BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1109-	●	●
386	02.559 BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0911-1004		●
386	02.559 BOLT; GRAND HARNESS 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-1108		●
386	02.559 BOLT; GRAND HARNESS 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1109-	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0911-1004		●
386	02.559 BOLT; GRAND HARNESS 02.343 (D) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-1108		●
386	02.559 BOLT; GRAND HARNESS 02.343 (D) M8X24 W/PL WASHER	8-98141-256-1	01	1	1109-	●	●
480	02.483 BOLT; BRKT FRONT WIDE TREAD<7GV> 02.343 (C) M8X16 FLANGE	0-28050-816-0	02	1	1008-1111		●
480	02.483 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> 02.343 (C) M8X16 FLANGE	0-28050-816-0	02	1	1112-		●
480	02.483 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0911-		●
480	02.483 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0911-1108		●
480	02.483 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1109-	●	●

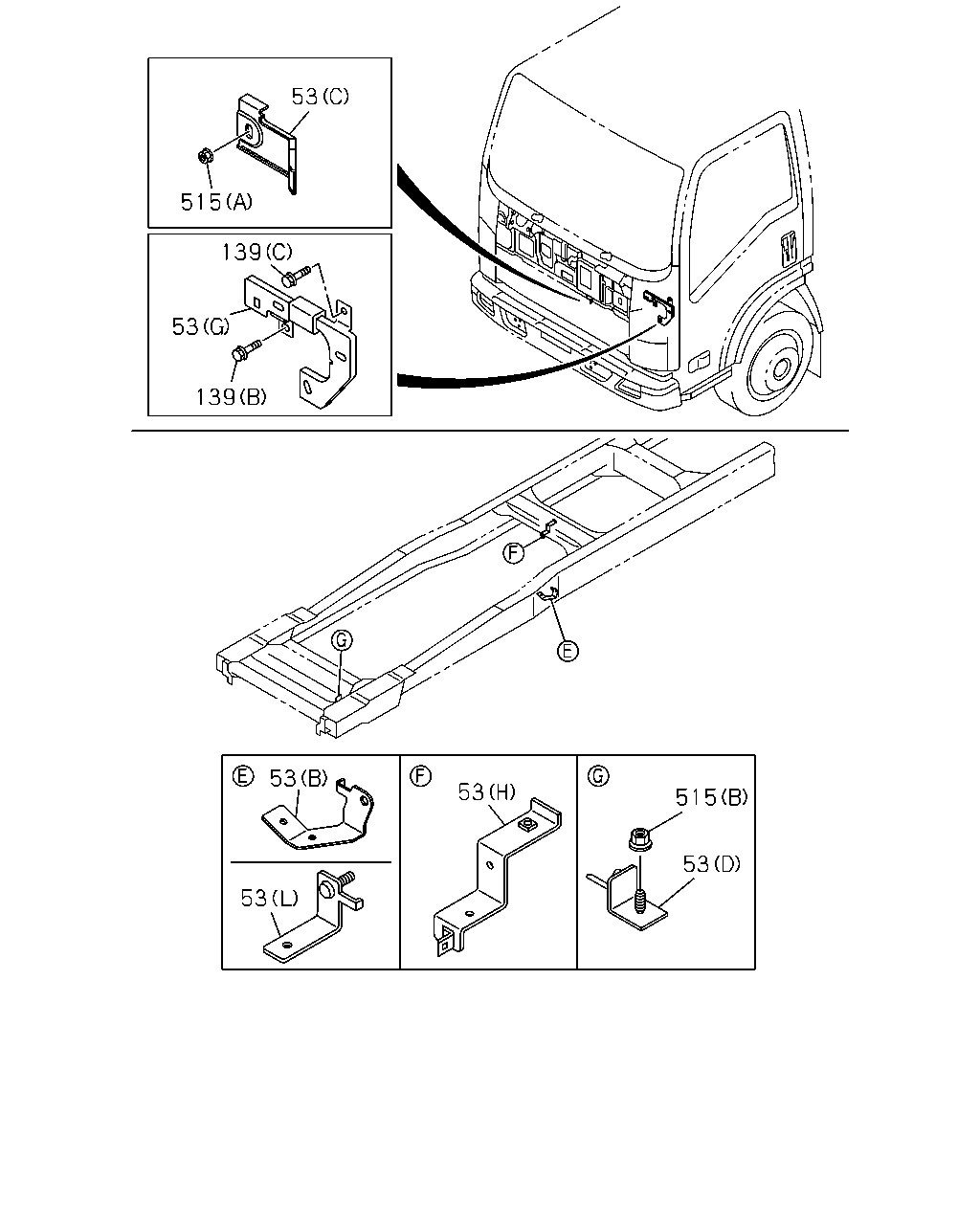

515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0911-1108		●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1109-	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0911-1108		●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1109-	●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0911-1104		●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0911-1104		●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1105-1108		●
515	02.559 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1105-1108		●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1109-1211	●	●
515	02.559 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1109-1211		●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1212-	●	●
515	02.559 NUT; BRKT WHEEL BASE 2700MM(27W) TAIWAN EQUIPMENT(B04) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1212-		●
515	02.559 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1212-		●
516	02.559 BOLT; HARNESS EXC. IMMOBILIZER SYSTEM(7KC) 09.650 (A) M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1212-		●
516	02.559 BOLT; HARNESS EXC. IMMOBILIZER SYSTEM(7KC) 09.650 (A) M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1105-1108		●
516	02.559 BOLT; HARNESS 4JJ1-TCS ENG(LFB) 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	1109-	●
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	0911-1108		●
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1109-	●	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0911-1108		●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1109-1211	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1212-		●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1212-	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0911-1108		●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1109-1211	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1212-		●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1212-		●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1212-	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	04	1	0911-1108		●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	04	1	1109-1204	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	1205-	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	1205-	●	●

53 53 53

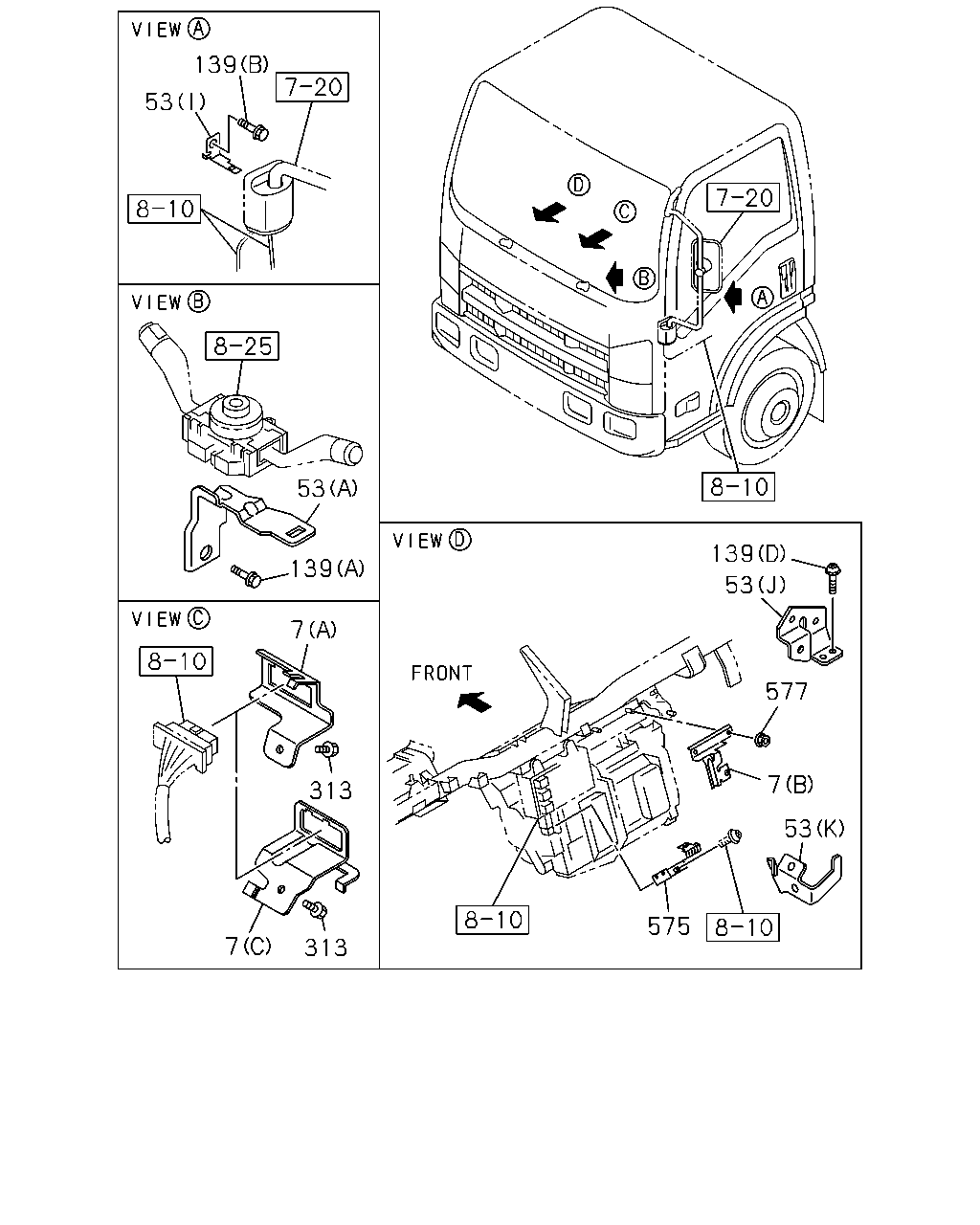

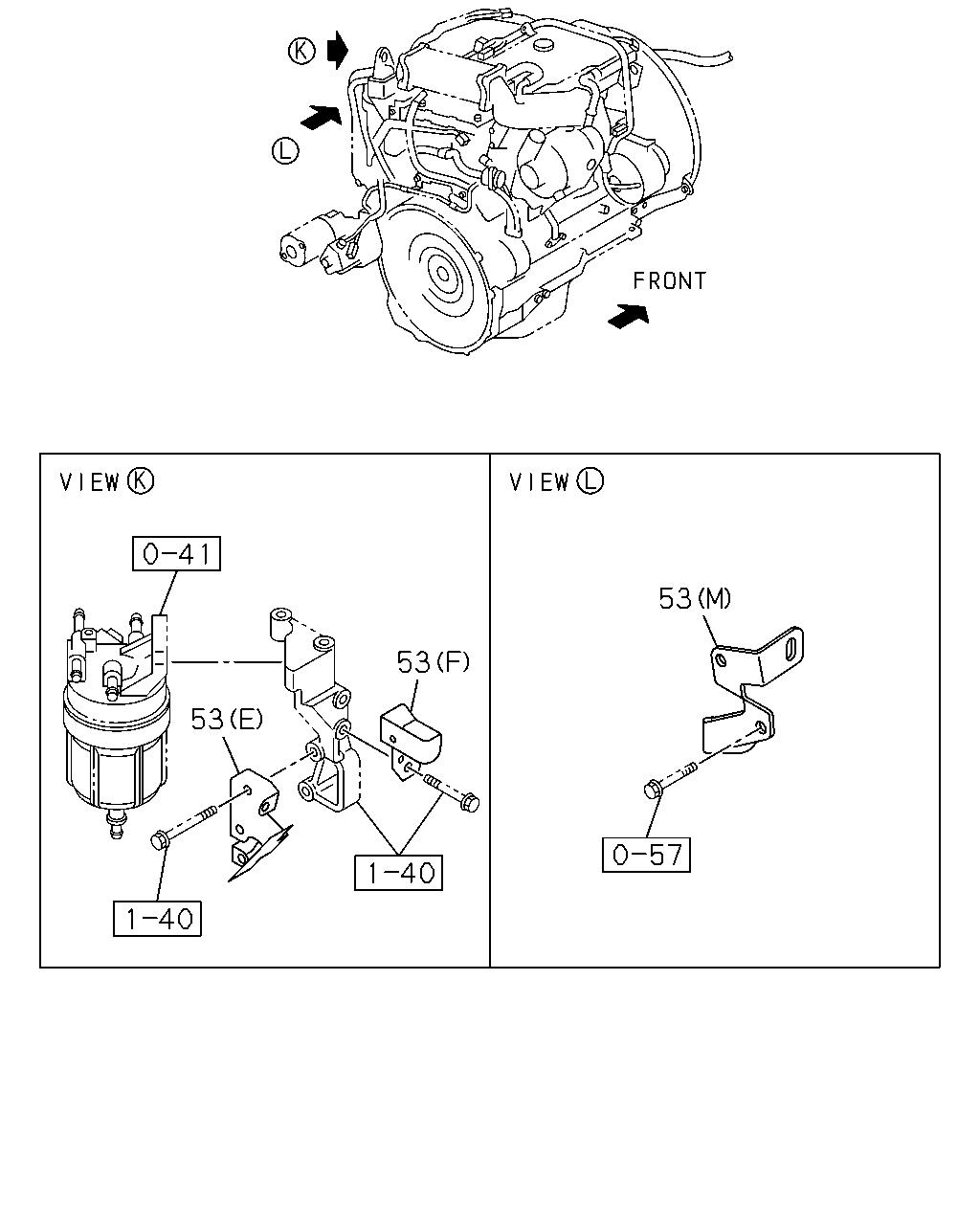

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	02.483 BRACKET; HARNESS EXC. IMMOBILIZER SYSTEM(7KC) (K)	8-98074-502-0	01	1	1212-		●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (M)	8-98186-566-0	01	1	1112-		●
53	02.483 BRACKET; HARNESS EXC. IMMOBILIZER SYSTEM(7KC) (K)	8-98074-502-0	01	1	1105-1108		●
53	02.483 BRACKET; HARNESS (L)	8-98083-225-1	01	1	1109-	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (I)	8-98039-277-2	02	1	0911-1108		●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (I)	8-98039-277-2	02	1	1109-	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) 02.559 (F)	8-98052-804-0	01	1	0911-1108		●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (F)	8-98052-804-0	01	1	1109-1111		●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.559 (F)	8-98052-804-0	01	1	1112-		●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) 02.559 (E)	8-98055-636-0	01	1	0911-1108		●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (E)	8-98055-636-0	01	1	1109-1111		●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.559 (E)	8-98055-636-0	01	1	1112-		●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	0911-1108		●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1109-	●	●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	0911-1108		●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1109-	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0911-1108		●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1109-	●	●
53	02.483 BRACKET; HARNESS (H)	8-98077-504-0	01	1	0911-		●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	0911-1108		●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1109-	●	●
53	02.483 BRACKET; HARNESS (B)	8-98130-669-1	01	1	0911-		●
53	02.483 BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J)	8-98084-699-0	01	1	0911-1108		●
53	02.483 BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J)	8-98084-699-0	01	1	1109-1211	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (J)	8-98084-699-0	01	1	1212-		●
53	02.483 BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J)	8-98084-699-0	01	1	1212-	●

53 515 139 53 139 53 53 515 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	02.483 BRACKET; HARNESS EXC. IMMOBILIZER SYSTEM(7KC) (K)	8-98074-502-0	01	1	1212-		●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (M)	8-98186-566-0	01	1	1112-		●
53	02.483 BRACKET; HARNESS EXC. IMMOBILIZER SYSTEM(7KC) (K)	8-98074-502-0	01	1	1105-1108		●
53	02.483 BRACKET; HARNESS (L)	8-98083-225-1	01	1	1109-	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (I)	8-98039-277-2	02	1	0911-1108		●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (I)	8-98039-277-2	02	1	1109-	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) 02.559 (F)	8-98052-804-0	01	1	0911-1108		●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (F)	8-98052-804-0	01	1	1109-1111		●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.559 (F)	8-98052-804-0	01	1	1112-		●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) 02.559 (E)	8-98055-636-0	01	1	0911-1108		●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (E)	8-98055-636-0	01	1	1109-1111		●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.559 (E)	8-98055-636-0	01	1	1112-		●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	0911-1108		●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1109-	●	●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	0911-1108		●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1109-	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0911-1108		●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1109-	●	●
53	02.483 BRACKET; HARNESS (H)	8-98077-504-0	01	1	0911-		●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	0911-1108		●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1109-	●	●
53	02.483 BRACKET; HARNESS (B)	8-98130-669-1	01	1	0911-		●
53	02.483 BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J)	8-98084-699-0	01	1	0911-1108		●
53	02.483 BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J)	8-98084-699-0	01	1	1109-1211	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (J)	8-98084-699-0	01	1	1212-		●
53	02.483 BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J)	8-98084-699-0	01	1	1212-	●
139	02.559 BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0911-1108		●
139	02.559 BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1109-	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0911-1108		●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1109-	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0911-1108		●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1109-	●	●
139	02.559 BOLT; BRKT 03.604 (C) M6X12 FLANGE	8-97108-669-0	01	1	0911-1108		●
139	02.559 BOLT; BRKT 03.604 (C) M6X12 FLANGE	8-97108-669-0	01	1	1109-	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (D) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0911-1101		●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (D) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1108		●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (D) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1109-1211	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (D) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1212-1212		●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (D) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1212-1212	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (D) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-		●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (D) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0911-1108		●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1109-	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0911-1108		●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1109-	●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0911-1104		●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0911-1104		●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1105-1108		●
515	02.559 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1105-1108		●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1109-1211	●	●
515	02.559 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1109-1211		●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1212-	●	●
515	02.559 NUT; BRKT WHEEL BASE 2700MM(27W) TAIWAN EQUIPMENT(B04) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1212-		●
515	02.559 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1212-		●

552 459 459 552 459 552 242 459 552 459 459

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
242	02.483 BOLT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1212-		●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98018-899-1	01	1	1212-		●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98030-988-2	01	1	1212-		●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98030-991-2	01	1	1212-		●
459	02.483 BRACKET; SUPPORT,HARNESS (A)	8-98020-227-3	01	1	0911-1108		●
459	02.483 BRACKET; SUPPORT,HARNESS (A)	8-98020-227-3	01	1	1109-1211	●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98020-227-3	01	1	1212-		●
459	02.483 BRACKET; SUPPORT,HARNESS (A)	8-98020-227-3	01	1	1212-	●
459	02.483 BRACKET; SUPPORT,HARNESS (B)	8-98030-990-2	01	1	0911-1108		●
459	02.483 BRACKET; SUPPORT,HARNESS (B)	8-98030-990-2	01	1	1109-1109	●	●
459	02.483 BRACKET; SUPPORT,HARNESS (C)	8-98196-974-0	01	1	1110-1211	●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98196-974-0	01	1	1212-		●
459	02.483 BRACKET; SUPPORT,HARNESS (C)	8-98196-974-0	01	1	1212-	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0911-1108		●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1109-1211	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1212-		●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1212-	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0911-1108		●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1109-1211	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1212-		●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1212-		●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1212-	●

14 48 16 16 16 22 22 22 22 22 102 617 488

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	02.559 CLIP; BAND,HARNESS 4HK1-TCN ENG(RDQ) 09.242 L=150	8-97355-273-0	03	1	0911-1108		●
14	02.559 CLIP; BAND,HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.242 L=150	8-97355-273-0	03	1	1109-		●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (I) ID=6 & 10	8-94154-844-0	01	1	1109-	●
16	02.559 CLIP; HARNESS (B) L=250	5-09707-030-1	14	1	0911-1104		●
16	02.559 CLIP; HARNESS IDENTIFICATION LABEL FOR KD<6UT> (B) L=250	5-09707-030-1	14	1	1105-1108		●
16	02.559 CLIP; HARNESS (B) L=250	5-09707-030-1	14	1	1109-1111		●
16	02.559 CLIP; HARNESS TACHOGRAPH DIGITAL<EBB> (B) L=250	5-09707-030-1	14	1	1109-1111	●
16	02.559 CLIP; HARNESS TACHOGRAPH DIGITAL<EBB> (B) L=250	5-09707-030-1	14	1	1112-1112	●	●
16	02.559 CLIP; HARNESS TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (B) L=250	5-09707-030-1	14	1	1112-1211		●
16	02.559 CLIP; HARNESS TACHOGRAPH DIGITAL<EBB> (B) L=250	5-09707-030-1	14	1	1112-1211	●
16	02.559 CLIP; HARNESS TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> IDENTIFICATION LABEL FOR KD<6UT> (B) L=250	5-09707-030-1	14	1	1212-		●
16	02.559 CLIP; HARNESS TACHOGRAPH DIGITAL<EBB> (B) L=250	5-09707-030-1	14	1	1212-	●
16	02.559 CLIP; HARNESS 04.930 (G) L=91 ID=8.5	8-94329-956-0	01	1	0911-1108		●
16	02.559 CLIP; HARNESS 04.930 (G) L=91 ID=8.5	8-94329-956-0	01	1	1109-	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0911-1108		●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1109-	●	●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) 03.483 (E)	8-97101-436-0	01	1	0911-1108		●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.483 (E)	8-97101-436-0	01	1	1109-1211		●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.483 (E)	8-97101-436-0	01	1	1212-		●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0911-1108		●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1109-1211	●	●
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.483 (J) ID=28	8-94362-106-0	01	1	1212-		●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) L=155	8-97173-307-0	14	1	1212-		●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (A) L=155	8-97173-307-0	14	1	1212-		●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1212-	●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	0911-1108		●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1109-1211	●	●
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 02.694 (K) ID=6 & 10-13	8-97069-515-0	01	1	1212-		●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) L=40.6	8-97229-357-0	02	1	1212-		●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (C) L=40.6	8-97229-357-0	02	1	1212-		●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1212-	●
16	02.559 CLIP; HARNESS 16.578 (H) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	0911-1108		●
16	02.559 CLIP; HARNESS 16.578 (H) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1109-	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	0911-1108		●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1109-1211	●	●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (F)	8-98052-679-0	02	1	1212-		●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (F)	8-98052-679-0	02	1	1212-		●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1212-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 02.343 (G) L=119.5	1-09707-197-0	01	1	1109-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 04.594 (E) L=100	5-09707-036-1	01	1	1109-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.425 (H) ID=6 & 8.3	8-94167-742-0	01	1	1109-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (I) ID=13.2 & 14.5	8-94475-649-0	01	1	1109-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 04.104 (F) ID=12 & 6.8	8-97125-842-0	01	1	1109-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (D) L=140	5-09707-031-1	01	1	1109-1211	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (D) L=140	5-09707-031-1	01	1	1109-1211	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (D) L=140	5-09707-031-1	01	1	1212-1311		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (D) L=140	5-09707-031-1	01	1	1212-1311	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (D) L=140	5-09707-031-1	01	1	1212-1311	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (D) L=140	5-09707-031-1	01	1	1312-		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (D) L=140	5-09707-031-1	01	1	1312-	●
22	02.559 CLIP; ENG HARNESS (C) L=250	5-09707-030-1	01	1	0911-1108		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) L=250	5-09707-030-1	01	1	1109-		●
22	02.559 CLIP; ENG HARNESS 08.852 (A) L=350	8-94152-256-1	02	1	0911-1108		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 08.852 (A) L=350	8-94152-256-1	02	1	1109-		●
22	02.559 CLIP; ENG HARNESS (B) ID=14-20	8-97061-603-0	02	1	0911-1108		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=14-20	8-97061-603-0	02	1	1109-1505		●
48	02.559 CLIP; FRAME HARNESS MULTI INFORMATION DISPLAY<7NY> 03.483 (F) L=450	1-09707-142-1	01	1	1212-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (E) T=5.5	8-97371-951-0	01	1	1109-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (A) ID=20	8-94241-972-0	02	1	1109-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1105-1108		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1109-1510	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	1511-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1105-1108		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	11	1	1109-1510	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1511-	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0911-1104		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1105-1108		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1109-1211		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1212-		●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	0911-1104		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) ID=20	8-94241-972-0	01	1	1105-1108		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) ID=20	8-94241-972-0	01	1	1109-		●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	1109-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (A) ID=20	8-94241-972-0	01	1	1109-	●
48	02.559 CLIP; FRAME HARNESS 03.430 (C) ID=10 & 16.5	8-94424-440-0	01	1	0911-		●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0911-1104		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) T=4.5 & 9	8-97371-947-0	01	1	1105-1108		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) T=4.5 & 9	8-97371-947-0	01	1	1109-		●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	1109-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (B) T=4.5 & 9	8-97371-947-0	01	1	1109-	●
48	02.559 CLIP; FRAME HARNESS (E) T=5.5	8-97371-951-0	02	1	0911-		●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ) 03.162 L=140	5-09707-031-1	07	1	0911-1009		●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 L=140	5-09707-031-1	08	1	1010-		●
488	02.559 CLIP; CABLE,TRAILER EXC. TURKEY EQUIPMENT(B11) L=250	5-09707-030-1	01	1	1212-		●
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	01	1	0911-1104		●
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	04	1	1105-1108		●
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	04	1	1109-1211	●	●
488	02.559 CLIP; CABLE,TRAILER TURKEY EQUIPMENT(B11) L=250	5-09707-030-1	04	1	1212-		●
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	04	1	1212-	●
617	02.559 STRAP; BAND M/T MZZ6F(RSR) 03.162 L=140	5-09707-031-1	01	1	1109-1109		●
617	02.559 STRAP; BAND 03.162 L=140	5-09707-031-1	01	1	1012-1106		●

16 16 16 16 513 504 48 16 530 530 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (I) ID=6 & 10	8-94154-844-0	01	1	1109-	●
16	02.559 CLIP; HARNESS (B) L=250	5-09707-030-1	14	1	0911-1104		●
16	02.559 CLIP; HARNESS IDENTIFICATION LABEL FOR KD<6UT> (B) L=250	5-09707-030-1	14	1	1105-1108		●
16	02.559 CLIP; HARNESS (B) L=250	5-09707-030-1	14	1	1109-1111		●
16	02.559 CLIP; HARNESS TACHOGRAPH DIGITAL<EBB> (B) L=250	5-09707-030-1	14	1	1109-1111	●
16	02.559 CLIP; HARNESS TACHOGRAPH DIGITAL<EBB> (B) L=250	5-09707-030-1	14	1	1112-1112	●	●
16	02.559 CLIP; HARNESS TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (B) L=250	5-09707-030-1	14	1	1112-1211		●
16	02.559 CLIP; HARNESS TACHOGRAPH DIGITAL<EBB> (B) L=250	5-09707-030-1	14	1	1112-1211	●
16	02.559 CLIP; HARNESS TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> IDENTIFICATION LABEL FOR KD<6UT> (B) L=250	5-09707-030-1	14	1	1212-		●
16	02.559 CLIP; HARNESS TACHOGRAPH DIGITAL<EBB> (B) L=250	5-09707-030-1	14	1	1212-	●
16	02.559 CLIP; HARNESS 04.930 (G) L=91 ID=8.5	8-94329-956-0	01	1	0911-1108		●
16	02.559 CLIP; HARNESS 04.930 (G) L=91 ID=8.5	8-94329-956-0	01	1	1109-	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0911-1108		●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1109-	●	●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) 03.483 (E)	8-97101-436-0	01	1	0911-1108		●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.483 (E)	8-97101-436-0	01	1	1109-1211		●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.483 (E)	8-97101-436-0	01	1	1212-		●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0911-1108		●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1109-1211	●	●
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.483 (J) ID=28	8-94362-106-0	01	1	1212-		●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) L=155	8-97173-307-0	14	1	1212-		●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (A) L=155	8-97173-307-0	14	1	1212-		●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1212-	●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	0911-1108		●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1109-1211	●	●
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 02.694 (K) ID=6 & 10-13	8-97069-515-0	01	1	1212-		●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) L=40.6	8-97229-357-0	02	1	1212-		●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (C) L=40.6	8-97229-357-0	02	1	1212-		●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1212-	●
16	02.559 CLIP; HARNESS 16.578 (H) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	0911-1108		●
16	02.559 CLIP; HARNESS 16.578 (H) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1109-	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	0911-1108		●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1109-1211	●	●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (F)	8-98052-679-0	02	1	1212-		●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (F)	8-98052-679-0	02	1	1212-		●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1212-	●
48	02.559 CLIP; FRAME HARNESS MULTI INFORMATION DISPLAY<7NY> 03.483 (F) L=450	1-09707-142-1	01	1	1212-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (E) T=5.5	8-97371-951-0	01	1	1109-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (A) ID=20	8-94241-972-0	02	1	1109-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1105-1108		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1109-1510	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	1511-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1105-1108		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	11	1	1109-1510	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1511-	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0911-1104		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1105-1108		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1109-1211		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1212-		●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	0911-1104		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) ID=20	8-94241-972-0	01	1	1105-1108		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) ID=20	8-94241-972-0	01	1	1109-		●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	1109-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (A) ID=20	8-94241-972-0	01	1	1109-	●
48	02.559 CLIP; FRAME HARNESS 03.430 (C) ID=10 & 16.5	8-94424-440-0	01	1	0911-		●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0911-1104		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) T=4.5 & 9	8-97371-947-0	01	1	1105-1108		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) T=4.5 & 9	8-97371-947-0	01	1	1109-		●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	1109-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (B) T=4.5 & 9	8-97371-947-0	01	1	1109-	●
48	02.559 CLIP; FRAME HARNESS (E) T=5.5	8-97371-951-0	02	1	0911-		●
504	02.559 PROTECTOR; HARNESS 4JJ1-TCS ENG(LFB)	8-98208-886-0	01	1	1201-	●
513	02.559 TAPE; SOFT,HARNESS 70X45	8-97304-372-0	01	1	0911-1108		●
513	02.559 TAPE; SOFT,HARNESS 70X45	8-97304-372-0	01	1	1109-1309	●	●
513	02.559 TAPE; SOFT,HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 130X80	8-97304-373-0	01	1	0911-1108		●
513	02.559 TAPE; SOFT,HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 130X80	8-97304-373-0	01	1	1109-1204	●	●
513	02.559 TAPE; SOFT,HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 130X80	8-97304-373-0	01	1	1205-1211	●	●
513	02.559 TAPE; SOFT,HARNESS 130X80	8-97304-373-0	01	1	1205-1211	●	●
513	02.559 TAPE; SOFT,HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 130X80	8-97304-373-0	01	1	1212-	●	●
513	02.559 TAPE; SOFT,HARNESS 130X80	8-97304-373-0	01	1	1212-	●	●
513	02.559 TAPE; SOFT,HARNESS MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 130X80	8-97304-373-0	01	1	1212-	●	●
530	02.559 SEAL; HARNESS SPEED LIMITER 90KM(NMJ) 03.483 (B)	8-97382-876-0	02	1	0911-1505		●
530	02.559 SEAL; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) SPEED LIMITER 90KM(NMJ) 03.483 (B)	8-97382-876-0	01	1	1506-1507		●
530	02.559 SEAL; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> SPEED LIMITER 90KM(NMJ) 03.483 (B)	8-97382-876-0	01	1	1506-1507		●
530	02.559 SEAL; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> SPEED LIMITER 90KM(NMJ) 03.483 (B)	8-97382-876-0	01	1	1508-		●
530	02.559 SEAL; HARNESS 16.545 (A) OD=32 BLACK	8-98031-126-0	01	1	0911-1108		●
530	02.559 SEAL; HARNESS 16.545 (A) OD=32 BLACK	8-98031-126-0	01	1	1109-	●	●

139 53 53 139 7 313 313 7 53 575 577 7 53 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98114-514-0	01	1	1212-		●
7	02.559 BRACKET; CONNECTOR (A)	8-98043-070-1	01	1	0911-1108		●
7	02.559 BRACKET; CONNECTOR (A)	8-98043-070-1	01	1	1109-1211	●	●
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98043-070-1	01	1	1212-		●
7	02.559 BRACKET; CONNECTOR (A)	8-98043-070-1	01	1	1212-	●
7	02.559 BRACKET; CONNECTOR (B)	8-98056-073-2	01	1	0911-1108		●
7	02.559 BRACKET; CONNECTOR (B)	8-98056-073-2	01	1	1109-1204	●	●
7	02.559 BRACKET; CONNECTOR (B)	8-98056-073-3	01	1	1205-	●	●
53	02.483 BRACKET; HARNESS EXC. IMMOBILIZER SYSTEM(7KC) (K)	8-98074-502-0	01	1	1212-		●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (M)	8-98186-566-0	01	1	1112-		●
53	02.483 BRACKET; HARNESS EXC. IMMOBILIZER SYSTEM(7KC) (K)	8-98074-502-0	01	1	1105-1108		●
53	02.483 BRACKET; HARNESS (L)	8-98083-225-1	01	1	1109-	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (I)	8-98039-277-2	02	1	0911-1108		●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (I)	8-98039-277-2	02	1	1109-	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) 02.559 (F)	8-98052-804-0	01	1	0911-1108		●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (F)	8-98052-804-0	01	1	1109-1111		●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.559 (F)	8-98052-804-0	01	1	1112-		●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) 02.559 (E)	8-98055-636-0	01	1	0911-1108		●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (E)	8-98055-636-0	01	1	1109-1111		●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.559 (E)	8-98055-636-0	01	1	1112-		●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	0911-1108		●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1109-	●	●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	0911-1108		●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1109-	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0911-1108		●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1109-	●	●
53	02.483 BRACKET; HARNESS (H)	8-98077-504-0	01	1	0911-		●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	0911-1108		●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1109-	●	●
53	02.483 BRACKET; HARNESS (B)	8-98130-669-1	01	1	0911-		●
53	02.483 BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J)	8-98084-699-0	01	1	0911-1108		●
53	02.483 BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J)	8-98084-699-0	01	1	1109-1211	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (J)	8-98084-699-0	01	1	1212-		●
53	02.483 BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J)	8-98084-699-0	01	1	1212-	●
139	02.559 BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0911-1108		●
139	02.559 BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1109-	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0911-1108		●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1109-	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0911-1108		●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1109-	●	●
139	02.559 BOLT; BRKT 03.604 (C) M6X12 FLANGE	8-97108-669-0	01	1	0911-1108		●
139	02.559 BOLT; BRKT 03.604 (C) M6X12 FLANGE	8-97108-669-0	01	1	1109-	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (D) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0911-1101		●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (D) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1108		●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (D) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1109-1211	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (D) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1212-1212		●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (D) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1212-1212	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (D) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-		●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (D) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0911-1108		●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1109-	●	●
575	02.559 BRACKET; FUSE BOX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98054-320-2	01	1	0911-1108		●
575	02.559 BRACKET; FUSE BOX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98054-320-2	01	1	1109-1211	●	●
575	02.559 BRACKET; FUSE BOX FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98054-320-2	01	1	1212-		●
575	02.559 BRACKET; FUSE BOX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98054-320-2	01	1	1212-	●
575	02.559 BRACKET; FUSE BOX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98132-932-1	01	1	0911-1108		●
575	02.559 BRACKET; FUSE BOX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98132-932-1	01	1	1109-1211	●	●
575	02.559 BRACKET; FUSE BOX EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60)	8-98132-932-1	01	1	1212-		●
575	02.559 BRACKET; FUSE BOX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98132-932-1	01	1	1212-	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	04	1	0911-1108		●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	04	1	1109-1204	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	1205-	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	1205-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
