Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#50550) — 471 parça

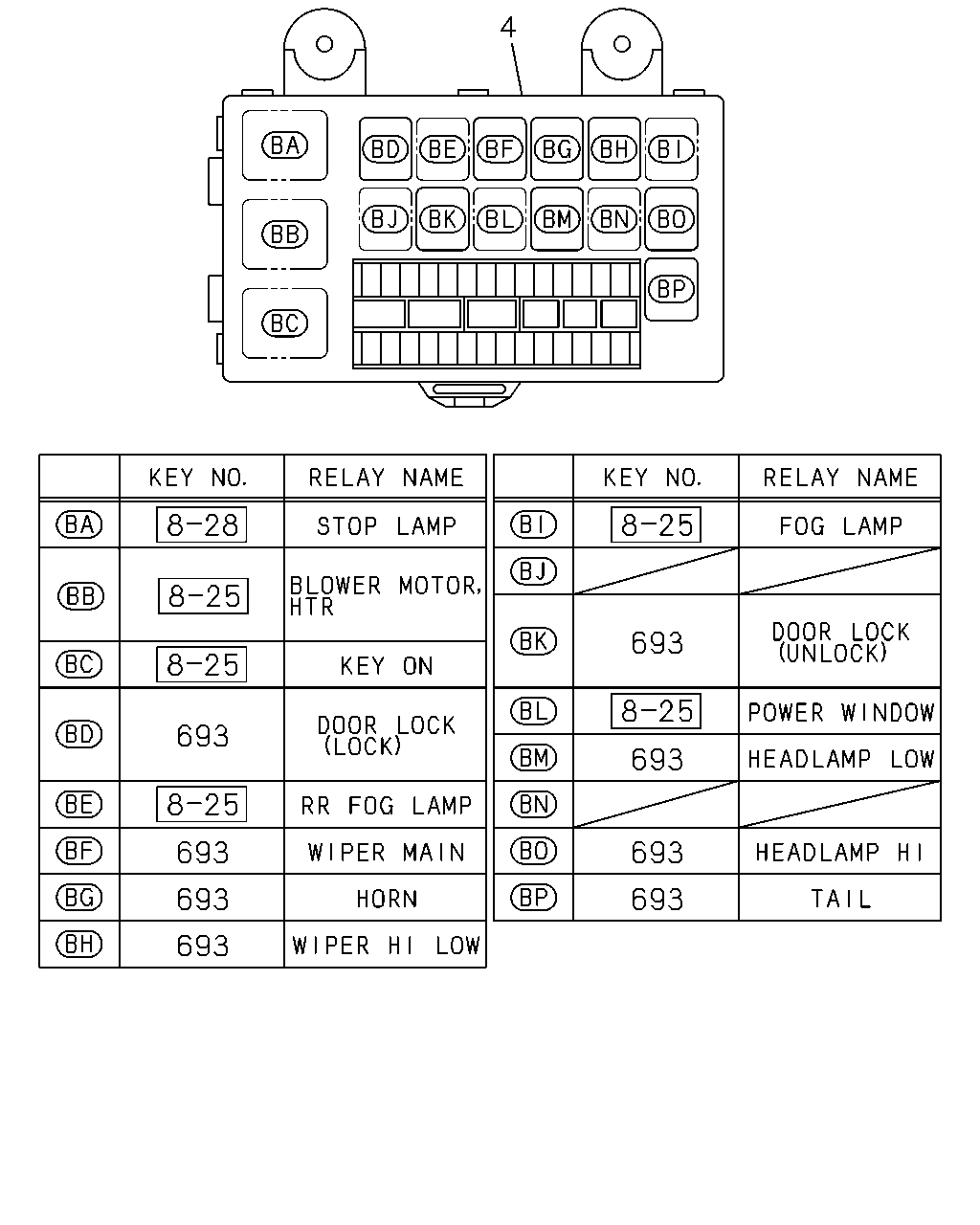

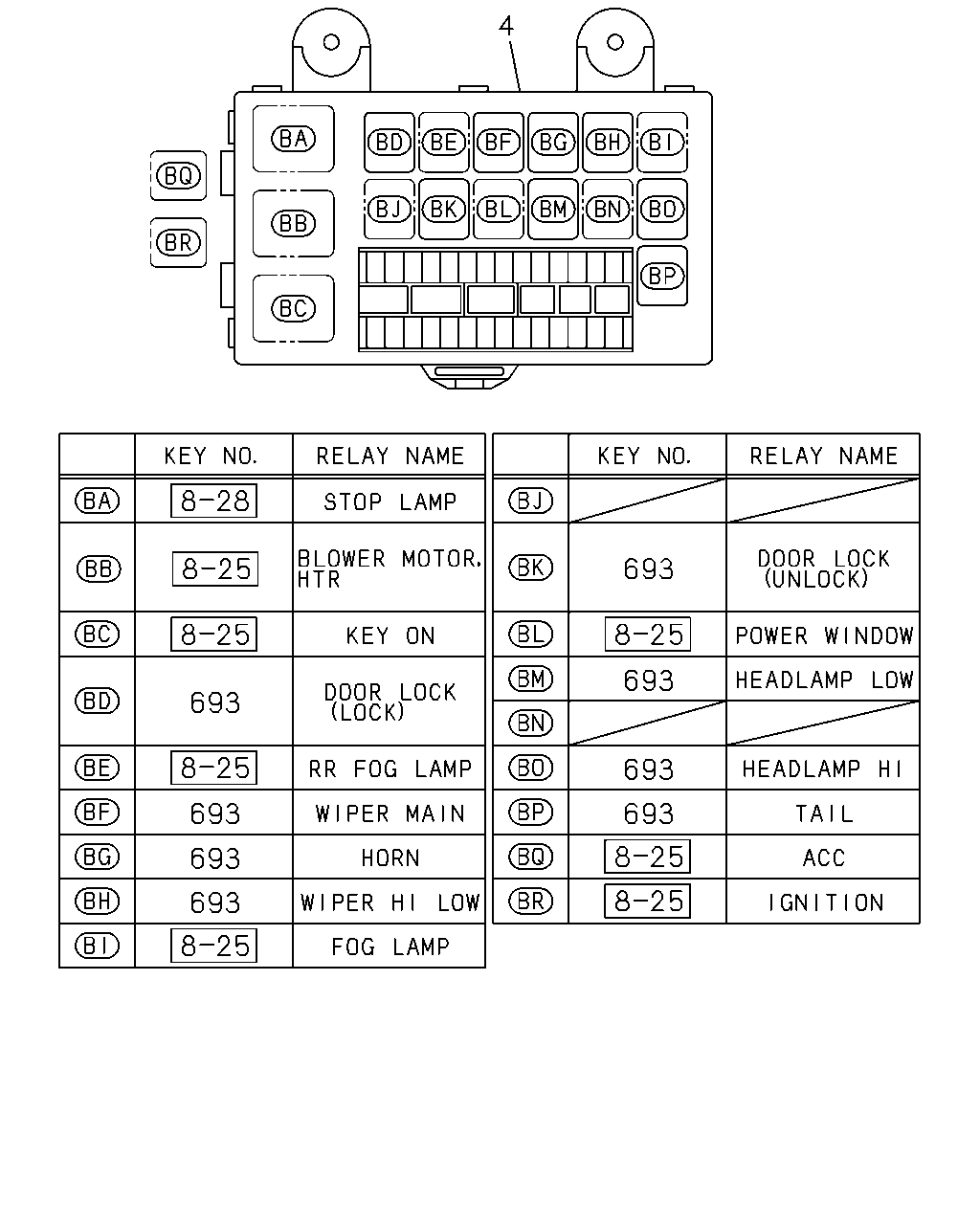

4 693 693 693 693 693 693 693 693

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	0911-1108	●
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1109-	●	●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	0911-1108	●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1109-	●	●

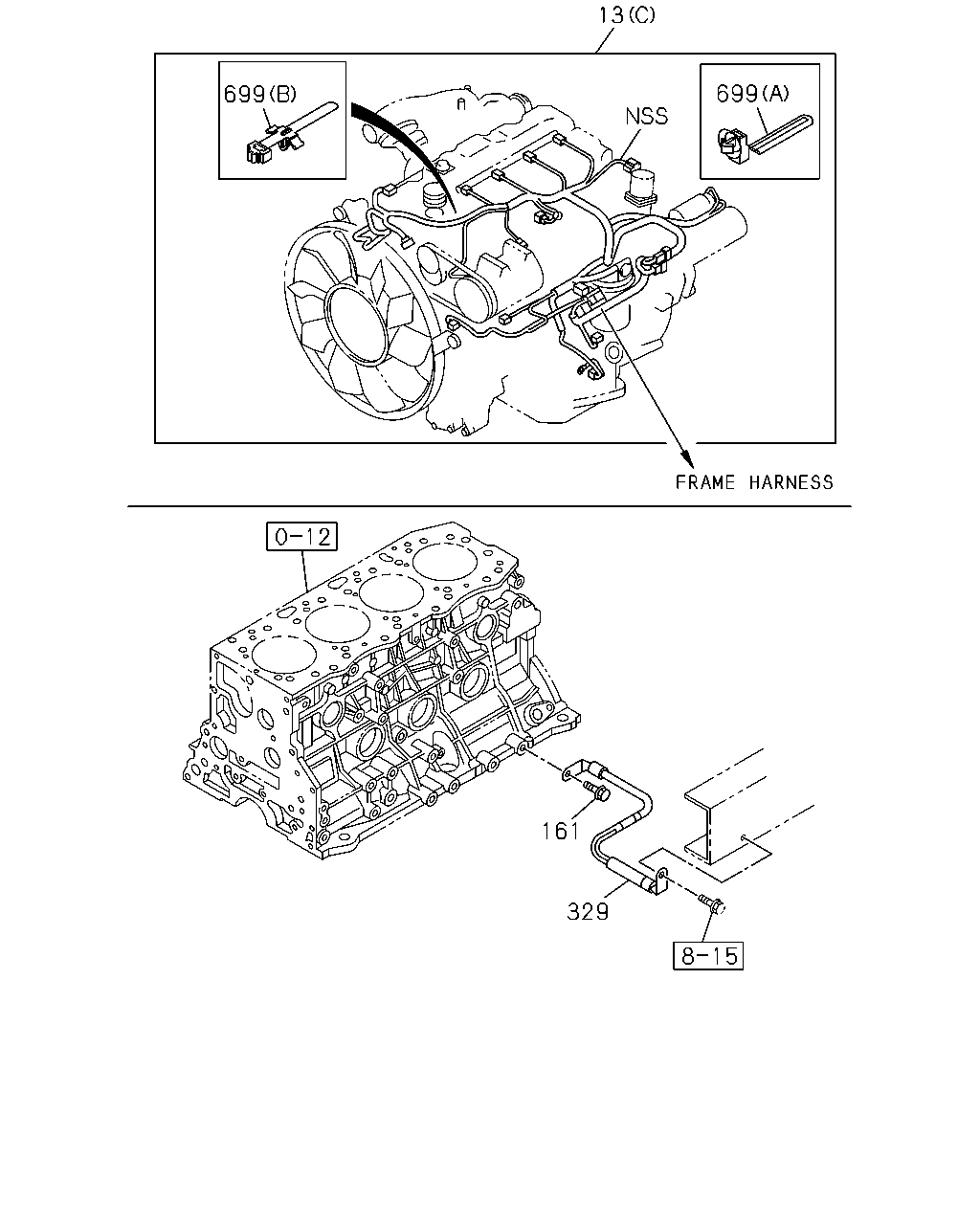

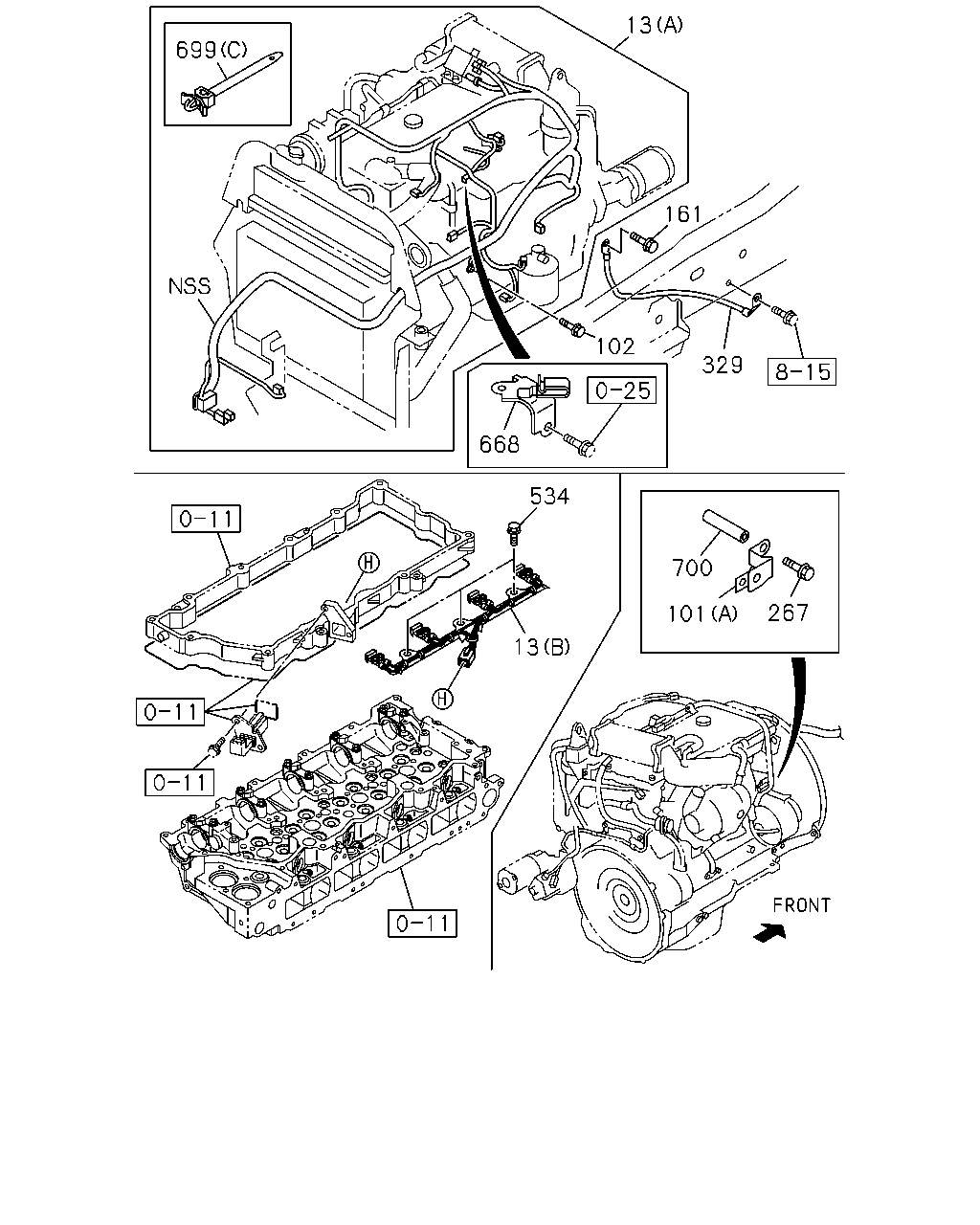

13 699 161 329 699

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	02.525 HARNESS; ENG 4JJ1-TCS ENG(LFB) (C)	8-98147-725-0	01	1	1109-1310		●
13	02.525 HARNESS; ENG 4JJ1-TCS ENG(LFB) (C)	8-98244-734-0	01	1	1311-		●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> GENERATOR 24V50A(6QN) (A)	8-98186-567-2	01	1	1112-	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> GENERATOR 24V80A(7YN) (A)	8-98186-702-1	01	1	1112-1312	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> GENERATOR 24V80A(7YN) (A)	8-98135-317-2	01	1	1401-1401	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> GENERATOR 24V80A(7YN) (A)	8-98186-702-2	01	1	1402-	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) GENERATOR 24V50A(6QN) (A)	8-98135-316-1	01	1	0911-1108	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN) (A)	8-98135-316-1	01	1	1109-1111	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN) EXC. EGR COOLER LH POSITION<KCC> (A)	8-98135-316-2	01	1	1112-	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) (B)	8-97332-133-3	01	1	0911-1007	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (B)	8-98171-638-0	01	1	1008-1108	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-98171-638-0	01	1	1109-	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) GENERATOR 24V80A(7YN) (A)	8-98135-317-1	01	1	0911-1108	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) (A)	8-98135-317-1	01	1	1109-1111	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) EXC. EGR COOLER LH POSITION<KCC> (A)	8-98135-317-1	01	1	1112-1312	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) EXC. EGR COOLER LH POSITION<KCC> (A)	8-98186-702-2	01	1	1401-1401	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) EXC. EGR COOLER LH POSITION<KCC> (A)	8-98135-317-2	01	1	1402-	●
161	02.559 BOLT; GROUND,HARNESS 4JJ1-TCS ENG(LFB) 02.483 M10X16 FLANGE	0-28051-016-0	01	1	1109-		●
161	02.559 BOLT; GROUND,HARNESS 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0911-1108	●
161	02.559 BOLT; GROUND,HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1109-	●
329	02.480 CABLE; ENG TO FRAME 4JJ1-TCS ENG(LFB)	8-98030-126-1	01	1	1109-		●
329	02.480 CABLE; ENG TO FRAME	8-98102-465-0	01	1	0911-1108	●
329	02.480 CABLE; ENG TO FRAME 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98102-465-0	01	1	1109-	●
699	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (C) L=146.2	8-98052-677-0	01	1	0911-1108	●
699	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) L=146.2	8-98052-677-0	01	1	1109-	●
699	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 04.105 (A) L=140	8-97122-360-0	03	1	1109-1310		●
699	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) (B)	8-98088-438-0	01	1	1109-1310		●

4 693 693 693 693 693 693 693 693

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	0911-1108	●
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1109-	●	●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	0911-1108	●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1109-	●	●

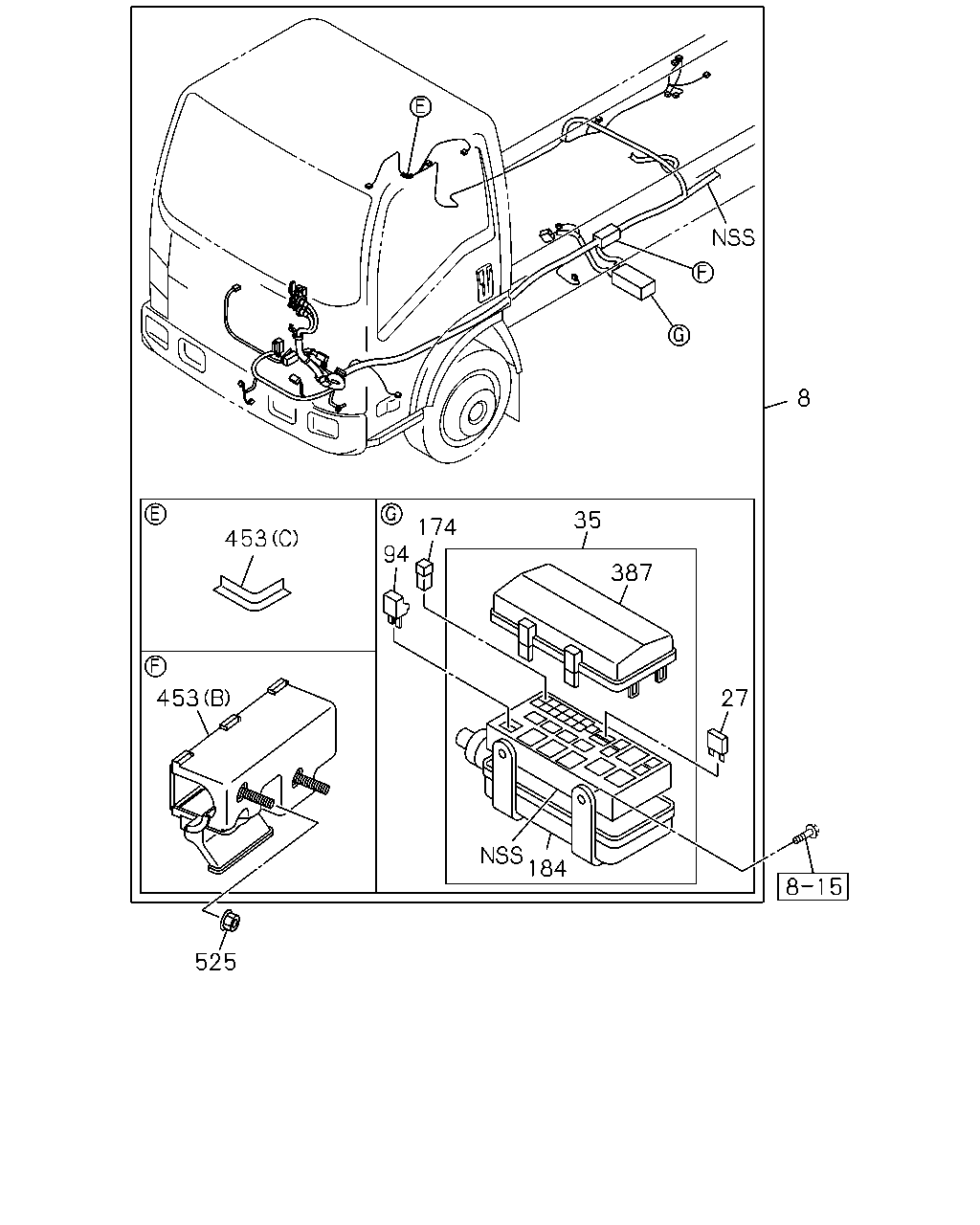

184 27 387 35 174 94 453 453 8 525

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IMMOBILIZER SYSTEM(7KC)	8-98191-851-2	01	1	1212-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IMMOBILIZER SYSTEM(7KC)	8-98294-348-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC)	8-98191-850-3	01	1	1212-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC)	8-98294-347-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TAIWAN EQUIPMENT(B04) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC)	8-98120-517-4	01	1	1212-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TAIWAN EQUIPMENT(B04) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC)	8-98294-335-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TAIWAN EQUIPMENT(B04) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC)	8-98120-521-5	01	1	1212-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TAIWAN EQUIPMENT(B04) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC)	8-98294-339-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IMMOBILIZER SYSTEM(7KC)	8-98191-849-2	01	1	1212-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IMMOBILIZER SYSTEM(7KC)	8-98294-346-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC)	8-98191-847-3	01	1	1212-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC)	8-98294-344-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TAIWAN EQUIPMENT(B04) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC)	8-98125-276-5	01	1	1212-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TAIWAN EQUIPMENT(B04) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC)	8-98294-341-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TAIWAN EQUIPMENT(B04) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC)	8-98125-275-6	01	1	1212-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TAIWAN EQUIPMENT(B04) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC)	8-98294-340-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IMMOBILIZER SYSTEM(7KC)	8-98191-848-2	01	1	1212-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IMMOBILIZER SYSTEM(7KC)	8-98294-345-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC)	8-98191-846-3	01	1	1212-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC)	8-98294-343-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TAIWAN EQUIPMENT(B04) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC)	8-98120-514-5	01	1	1212-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TAIWAN EQUIPMENT(B04) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC)	8-98294-332-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TAIWAN EQUIPMENT(B04) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC)	8-98120-518-6	01	1	1212-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TAIWAN EQUIPMENT(B04) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC)	8-98294-336-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98139-583-3	01	1	1109-1409		●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98294-382-0	01	1	1410-		●
8	02.480 HARNESS; FRAME,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98139-579-3	01	1	1109-1409		●
8	02.480 HARNESS; FRAME,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98294-378-0	01	1	1410-		●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR)	8-98192-992-2	01	1	1109-1111	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98192-992-2	01	1	1112-1211	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TURKEY EQUIPMENT(B11) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98192-992-2	01	1	1212-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TURKEY EQUIPMENT(B11) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98294-349-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST)	8-98155-123-2	01	1	0911-1104	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) IMMOBILIZER SYSTEM(7KC)	8-98155-123-2	01	1	1105-1108	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST)	8-98155-123-2	01	1	1109-1111	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98155-123-2	01	1	1112-1211	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) TURKEY EQUIPMENT(B11) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98155-123-2	01	1	1212-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) TURKEY EQUIPMENT(B11) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98294-342-0	01	1	1410-	●
27	08.965 FUSE UNIT 02.485 10A RED	8-98054-257-0	AR	1	0911-1108	●
27	08.965 FUSE UNIT 02.485 10A RED	8-98054-257-0	AR	1	1109-	●	●
35	02.530 BOX; RELAY & FUSE 4HK1-TCN ENG(RDQ) M/T MYY6S(RST)	8-98030-763-0	01	1	0911-1104	●
35	02.530 BOX; RELAY & FUSE 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) IMMOBILIZER SYSTEM(7KC)	8-98030-763-0	01	1	1105-1108	●
35	02.530 BOX; RELAY & FUSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR),M/T MYY6S(RST)	8-98030-763-0	01	1	1109-1111	●
35	02.530 BOX; RELAY & FUSE	8-98030-763-0	01	1	1109-1111		●
35	02.530 BOX; RELAY & FUSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR),M/T MYY6S(RST) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98030-763-0	01	1	1112-1211	●
35	02.530 BOX; RELAY & FUSE	8-98030-763-0	01	1	1112-1211		●
35	02.530 BOX; RELAY & FUSE	8-98030-763-0	01	1	1212-	●	●
94	02.483 DIODE; FRAME HARNESS BLACK 2P-1.5A	8-94422-639-1	AR	1	0911-1108	●
94	02.483 DIODE; FRAME HARNESS BLACK 2P-1.5A	8-94422-639-1	AR	1	1109-	●	●
174	08.965 FUSE; SLOW BLOW 30A PINK	8-98079-191-0	AR	1	0911-1108	●
174	08.965 FUSE; SLOW BLOW 30A PINK	8-98079-191-0	AR	1	1109-	●	●
174	08.965 FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	AR	1	0911-1108	●
174	08.965 FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	AR	1	1109-	●	●
174	08.965 FUSE; SLOW BLOW 50A RED	8-98079-193-0	AR	1	0911-1108	●
174	08.965 FUSE; SLOW BLOW 50A RED	8-98079-193-0	AR	1	1109-	●	●
174	08.965 FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	AR	1	0911-1108	●
174	08.965 FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	AR	1	1109-	●	●
184	02.559 COVER; RELAY & FUSE BOX 4HK1-TCN ENG(RDQ) M/T MYY6S(RST)	8-98030-766-0	01	1	0911-1104	●
184	02.559 COVER; RELAY & FUSE BOX 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) IMMOBILIZER SYSTEM(7KC)	8-98030-766-0	01	1	1105-1108	●
184	02.559 COVER; RELAY & FUSE BOX 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR),M/T MYY6S(RST)	8-98030-766-0	01	1	1109-1111	●
184	02.559 COVER; RELAY & FUSE BOX	8-98030-766-0	01	1	1109-1111		●
184	02.559 COVER; RELAY & FUSE BOX 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR),M/T MYY6S(RST) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98030-766-0	01	1	1112-1211	●
184	02.559 COVER; RELAY & FUSE BOX	8-98030-766-0	01	1	1112-1211		●
184	02.559 COVER; RELAY & FUSE BOX	8-98030-766-0	01	1	1212-	●	●
387	02.483 COVER; RELAY BOX	8-98081-367-0	01	1	0911-1108	●
387	02.483 COVER; RELAY BOX	8-98081-367-0	01	1	1109-1211	●	●
387	02.483 COVER; RELAY BOX	8-98081-367-0	01	1	1212-	●	●
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (C)	8-94417-716-0	01	1	0911-1104	●
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) IMMOBILIZER SYSTEM(7KC) (C)	8-94417-716-0	01	1	1105-1108	●
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR),M/T MYY6S(RST) (C)	8-94417-716-0	01	1	1109-1111	●
453	02.483 PROTECTOR; HARNESS (C)	8-94417-716-0	01	1	1109-1111		●
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR),M/T MYY6S(RST) 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-94417-716-0	01	1	1112-1211	●
453	02.483 PROTECTOR; HARNESS (C)	8-94417-716-0	01	1	1112-1211		●
453	02.483 PROTECTOR; HARNESS (C)	8-94417-716-0	01	1	1212-	●	●
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (B)	8-98031-620-1	01	1	0911-1104	●
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) IMMOBILIZER SYSTEM(7KC) (B)	8-98031-620-1	01	1	1105-1108	●
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR),M/T MYY6S(RST) (B)	8-98031-620-1	01	1	1109-1111	●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-620-1	01	1	1109-1111		●
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR),M/T MYY6S(RST) 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98031-620-1	01	1	1112-1211	●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-620-1	01	1	1112-1211		●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-620-1	01	1	1212-	●	●
453	02.483 PROTECTOR; HARNESS (A)	8-98057-647-0	01	1	0911-1108	●
453	02.483 PROTECTOR; HARNESS (A)	8-98057-647-0	01	1	1109-1211	●	●
453	02.483 PROTECTOR; HARNESS (A)	8-98057-647-0	01	1	1212-	●	●
525	08.919 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	0911-1108	●
525	08.919 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-1211	●	●
525	08.919 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1212-	●	●

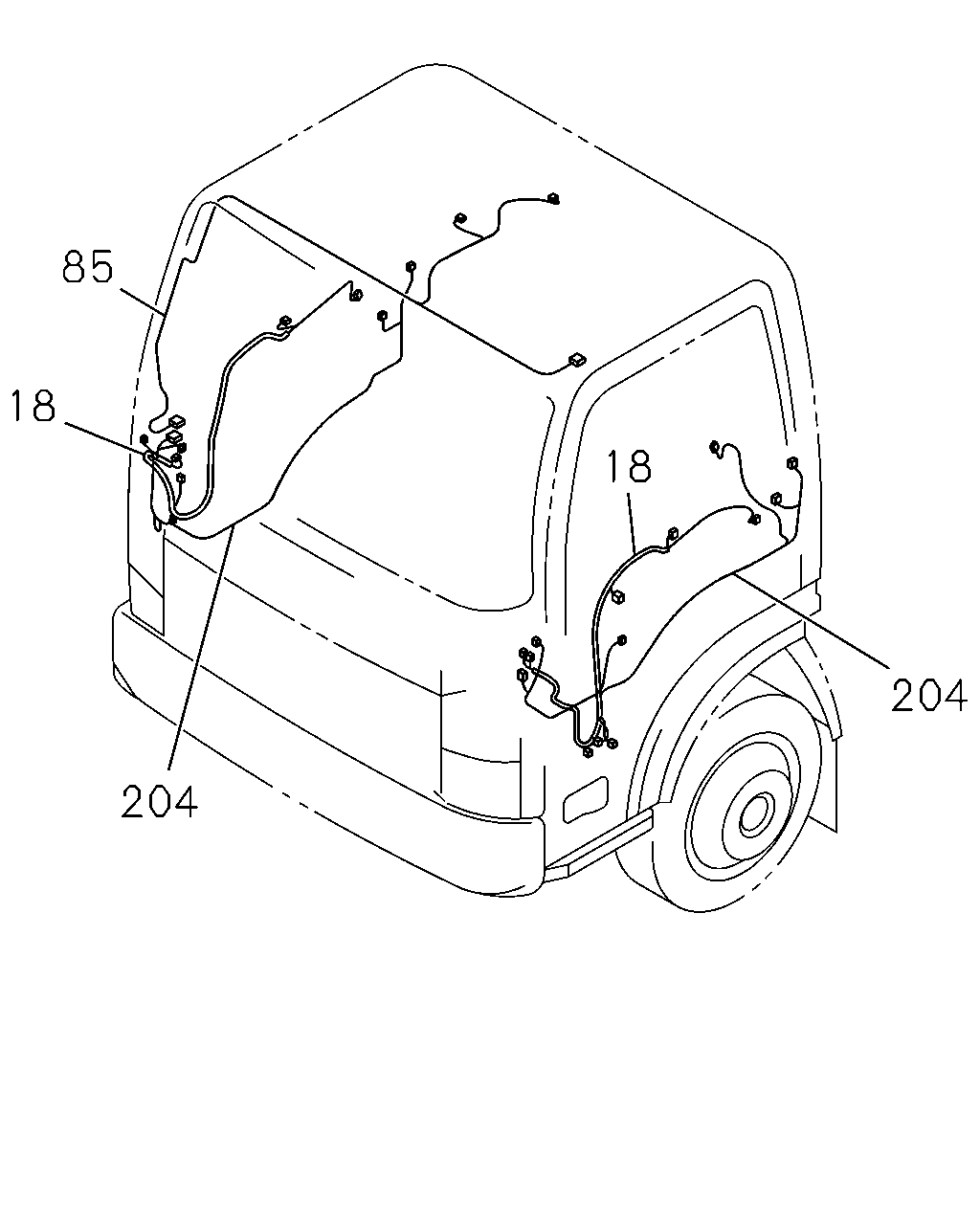

204 18 204 18 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98077-592-3	01	1	1212-	●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98077-600-3	01	1	1212-	●
18	02.480 HARNESS; DOOR CORNERING LAMP<T87> EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O /SIDE RR VIEW,HEATED<7SV>	8-98077-591-2	01	1	1212-	●
18	02.480 HARNESS; DOOR CORNERING LAMP<T87> EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O /SIDE RR VIEW,HEATED<7SV>	8-98077-599-2	01	1	1212-	●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. POWER WINDOW FRT DOOR<A32>	8-98071-081-3	01	1	1105-1211	●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. POWER WINDOW FRT DOOR<A32>, CORNERINGLAMP<T87>	8-98071-081-3	01	1	1212-	●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. POWER WINDOW FRT DOOR<A32>	8-98071-089-3	01	1	1105-1211	●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. POWER WINDOW FRT DOOR<A32>, CORNERINGLAMP<T87>	8-98071-089-3	01	1	1212-	●
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-079-2	01	1	1105-1211	●
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW, HEATED<7SV>	8-98071-079-2	01	1	1212-	●
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-087-2	01	1	1105-1211	●
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW, HEATED<7SV>	8-98071-087-2	01	1	1212-	●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-082-3	01	1	0911-1104	●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-082-3	01	1	1105-1108	●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-082-3	01	1	1109-1211	●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-082-3	01	1	1109-1211		●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87>	8-98071-082-3	01	1	1212-	●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-082-3	01	1	1212-		●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-090-3	01	1	0911-1104	●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-090-3	01	1	1105-1108	●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-090-3	01	1	1109-1211	●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-090-3	01	1	1109-1211		●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87>	8-98071-090-3	01	1	1212-	●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-090-3	01	1	1212-		●
18	02.480 HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-080-3	01	1	0911-1104	●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-080-3	01	1	1105-1108	●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-080-3	01	1	1109-1211	●
18	02.480 HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-080-3	01	1	1109-1211		●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE R R VIEW,HEATED<7SV>	8-98071-080-3	01	1	1212-	●
18	02.480 HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-080-3	01	1	1212-		●
18	02.480 HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-088-3	01	1	0911-1104	●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-088-3	01	1	1105-1108	●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-088-3	01	1	1109-1211	●
18	02.480 HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-088-3	01	1	1109-1211		●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE R R VIEW,HEATED<7SV>	8-98071-088-3	01	1	1212-	●
18	02.480 HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-088-3	01	1	1212-		●
85	06.495 HARNESS; ROOM LAMP EXC. LAMPS TWO ROOF MARKER<TEC>	8-98050-518-3	01	1	1105-1108	●
85	06.495 HARNESS; ROOM LAMP	8-98071-096-2	01	1	0911-1104	●
85	06.495 HARNESS; ROOM LAMP LAMPS TWO ROOF MARKER<TEC>	8-98071-096-2	01	1	1105-1108	●
85	06.495 HARNESS; ROOM LAMP	8-98071-096-2	01	1	1109-1211	●	●
85	06.495 HARNESS; ROOM LAMP	8-98071-096-2	01	1	1212-	●	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-802-5	01	1	1212-	●
204	02.559 HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98070-801-5	01	1	1212-	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTECONT DOOR LOCK<6NF>	8-98071-071-3	01	1	1105-1211	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTECONT DOOR LOCK<6NF>,TRANSMISSION CONTROL -SMOOTHER(8GF)	8-98071-071-3	01	1	1212-	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-800-5	01	1	0911-1108	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-800-5	01	1	1109-1211	●	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-800-5	01	1	1212-	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-800-5	01	1	1212-		●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5>	8-98074-595-3	01	1	0911-1104	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> ROOM LAMP W/ALL DOORS SW(SDF) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98074-595-3	01	1	1105-1108	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF>	8-98074-595-3	01	1	1105-1108	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> ROOM LAMP W/ALL DOORS SW(SDF) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98074-595-3	01	1	1109-1211	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF>	8-98074-595-3	01	1	1109-1211	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5>	8-98074-595-3	01	1	1109-1211		●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> ROOM LAMP W/ALL DOORS SW(SDF) EXC. REMOTE CONT DOOR LOCK<6NF>, TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98074-595-3	01	1	1212-	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98074-595-3	01	1	1212-	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98074-595-3	01	1	1212-	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5>	8-98074-595-3	01	1	1212-		●
204	02.559 HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98070-799-5	01	1	0911-1108	●
204	02.559 HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98070-799-5	01	1	1109-1211	●	●
204	02.559 HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98070-799-5	01	1	1212-	●
204	02.559 HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98070-799-5	01	1	1212-		●
204	02.559 HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98071-070-2	01	1	0911-1104	●
204	02.559 HARNESS; CABLE,FLOOR ROOM LAMP W/ALL DOORS SW(SDF) EXC. AIR BAG DRIVER & PASSENGER<AK5>, REMOTE CONT DOOR LOCK<6NF>	8-98071-070-2	01	1	1105-1108	●
204	02.559 HARNESS; CABLE,FLOOR REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98071-070-2	01	1	1105-1108	●
204	02.559 HARNESS; CABLE,FLOOR ROOM LAMP W/ALL DOORS SW(SDF) EXC. AIR BAG DRIVER & PASSENGER<AK5>, REMOTE CONT DOOR LOCK<6NF>	8-98071-070-2	01	1	1109-1211	●
204	02.559 HARNESS; CABLE,FLOOR REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98071-070-2	01	1	1109-1211	●
204	02.559 HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98071-070-2	01	1	1109-1211		●
204	02.559 HARNESS; CABLE,FLOOR ROOM LAMP W/ALL DOORS SW(SDF) EXC. AIR BAG DRIVER & PASSENGER<AK5>, REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTR OL-SMOOTHER(8GF)	8-98071-070-2	01	1	1212-	●
204	02.559 HARNESS; CABLE,FLOOR REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER & PASSENGER<AK5>, TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98071-070-2	01	1	1212-	●
204	02.559 HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98071-070-2	01	1	1212-	●
204	02.559 HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98071-070-2	01	1	1212-		●

267 101 700 13 534 668 102 329 161 13 699

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	02.525 HARNESS; ENG 4JJ1-TCS ENG(LFB) (C)	8-98147-725-0	01	1	1109-1310		●
13	02.525 HARNESS; ENG 4JJ1-TCS ENG(LFB) (C)	8-98244-734-0	01	1	1311-		●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> GENERATOR 24V50A(6QN) (A)	8-98186-567-2	01	1	1112-	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> GENERATOR 24V80A(7YN) (A)	8-98186-702-1	01	1	1112-1312	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> GENERATOR 24V80A(7YN) (A)	8-98135-317-2	01	1	1401-1401	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> GENERATOR 24V80A(7YN) (A)	8-98186-702-2	01	1	1402-	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) GENERATOR 24V50A(6QN) (A)	8-98135-316-1	01	1	0911-1108	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN) (A)	8-98135-316-1	01	1	1109-1111	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN) EXC. EGR COOLER LH POSITION<KCC> (A)	8-98135-316-2	01	1	1112-	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) (B)	8-97332-133-3	01	1	0911-1007	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (B)	8-98171-638-0	01	1	1008-1108	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-98171-638-0	01	1	1109-	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) GENERATOR 24V80A(7YN) (A)	8-98135-317-1	01	1	0911-1108	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) (A)	8-98135-317-1	01	1	1109-1111	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) EXC. EGR COOLER LH POSITION<KCC> (A)	8-98135-317-1	01	1	1112-1312	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) EXC. EGR COOLER LH POSITION<KCC> (A)	8-98186-702-2	01	1	1401-1401	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) EXC. EGR COOLER LH POSITION<KCC> (A)	8-98135-317-2	01	1	1402-	●

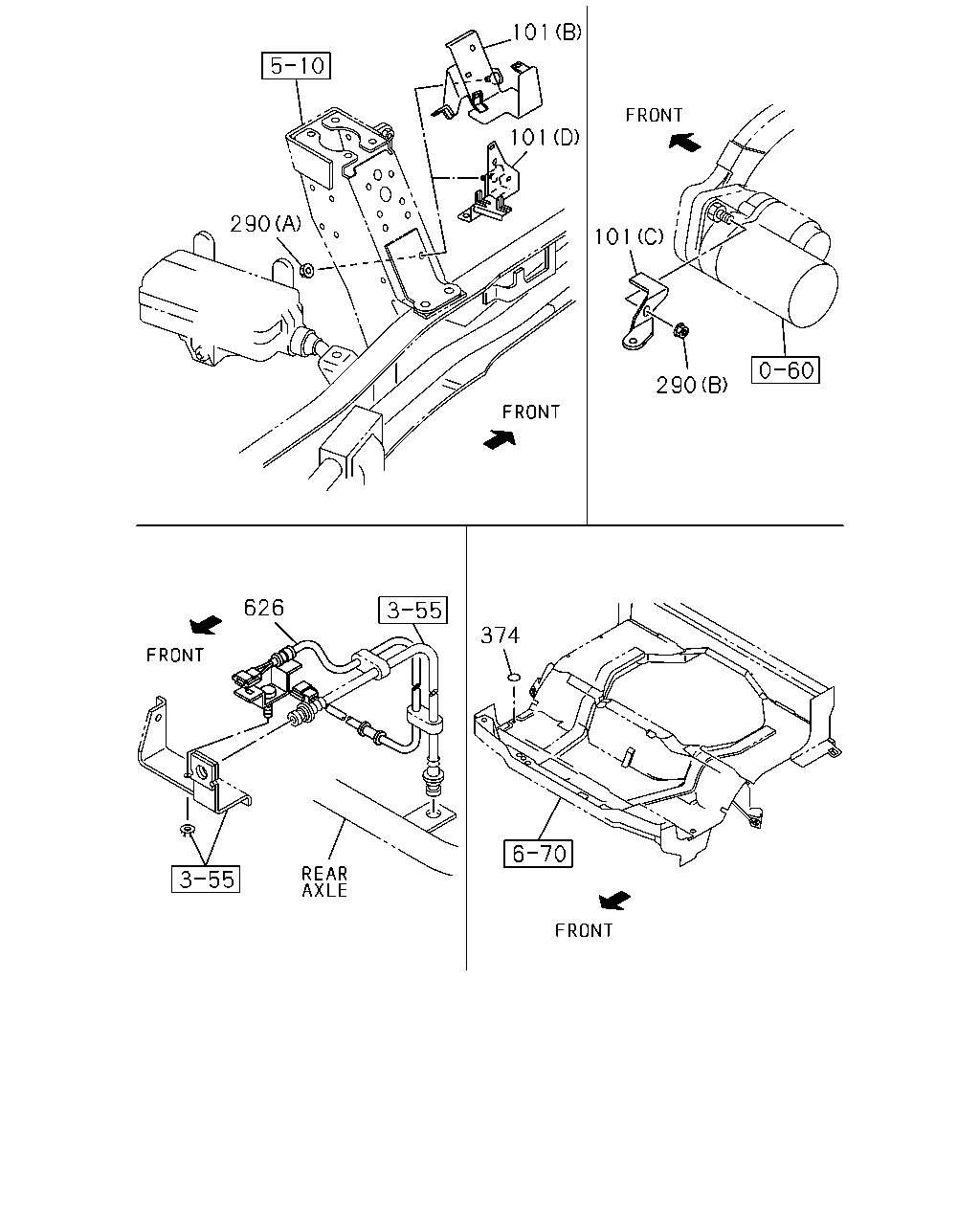

101	02.483 BRACKET; HARNESS CONNECTOR 4JJ1-TCS ENG(LFB) 02.183 (C)	8-98030-725-1	01	1	1109-		●
101	02.483 BRACKET; HARNESS CONNECTOR (D)	8-98032-447-1	01	1	1109-		●
101	02.483 BRACKET; HARNESS CONNECTOR (A)	8-98052-805-0	01	1	0911-1108	●
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-98052-805-0	01	1	1109-	●
101	02.483 BRACKET; HARNESS CONNECTOR (B)	8-98133-387-1	01	1	0911-	●
102	08.900 BOLT; BRKT,HARNESS CONNECTOR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1112-	●
161	02.559 BOLT; GROUND,HARNESS 4JJ1-TCS ENG(LFB) 02.483 M10X16 FLANGE	0-28051-016-0	01	1	1109-		●
161	02.559 BOLT; GROUND,HARNESS 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0911-1108	●
161	02.559 BOLT; GROUND,HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1109-	●
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) EXC. AIR CONDITIONER MANUAL CONT(C60) 09.171 M10X120 FLANGE	0-28156-012-0	01	1	0911-1108	●
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONT(C60) 09.171 M10X120 FLANGE	0-28156-012-0	01	1	1109-	●
329	02.480 CABLE; ENG TO FRAME 4JJ1-TCS ENG(LFB)	8-98030-126-1	01	1	1109-		●
329	02.480 CABLE; ENG TO FRAME	8-98102-465-0	01	1	0911-1108	●
329	02.480 CABLE; ENG TO FRAME 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98102-465-0	01	1	1109-	●
534	02.483 BOLT 4HK1-TCN ENG(RDQ) 00.683 M10X55 FLANGE	8-97365-449-0	03	1	0911-1108	●
534	02.483 BOLT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.683 M10X55 FLANGE	8-97365-449-0	03	1	1109-	●
668	02.559 BRACKET; HARNESS 4HK1-TCN ENG(RDQ)	8-98061-780-0	01	1	0911-1108	●
668	02.559 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98061-780-0	01	1	1109-	●
699	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (C) L=146.2	8-98052-677-0	01	1	0911-1108	●
699	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) L=146.2	8-98052-677-0	01	1	1109-	●
699	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 04.105 (A) L=140	8-97122-360-0	03	1	1109-1310		●
699	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) (B)	8-98088-438-0	01	1	1109-1310		●
700	02.483 TUBE; DISTANCE 4HK1-TCN ENG(RDQ) EXC. AIR CONDITIONER MANUAL CONT(C60) L=105	8-98084-726-0	01	1	0911-1108	●
700	02.483 TUBE; DISTANCE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONT(C60) L=105	8-98084-726-0	01	1	1109-	●

1 29 431 431 2 2 41 5 693 28 431 431 4 453 431 293 479 479 694

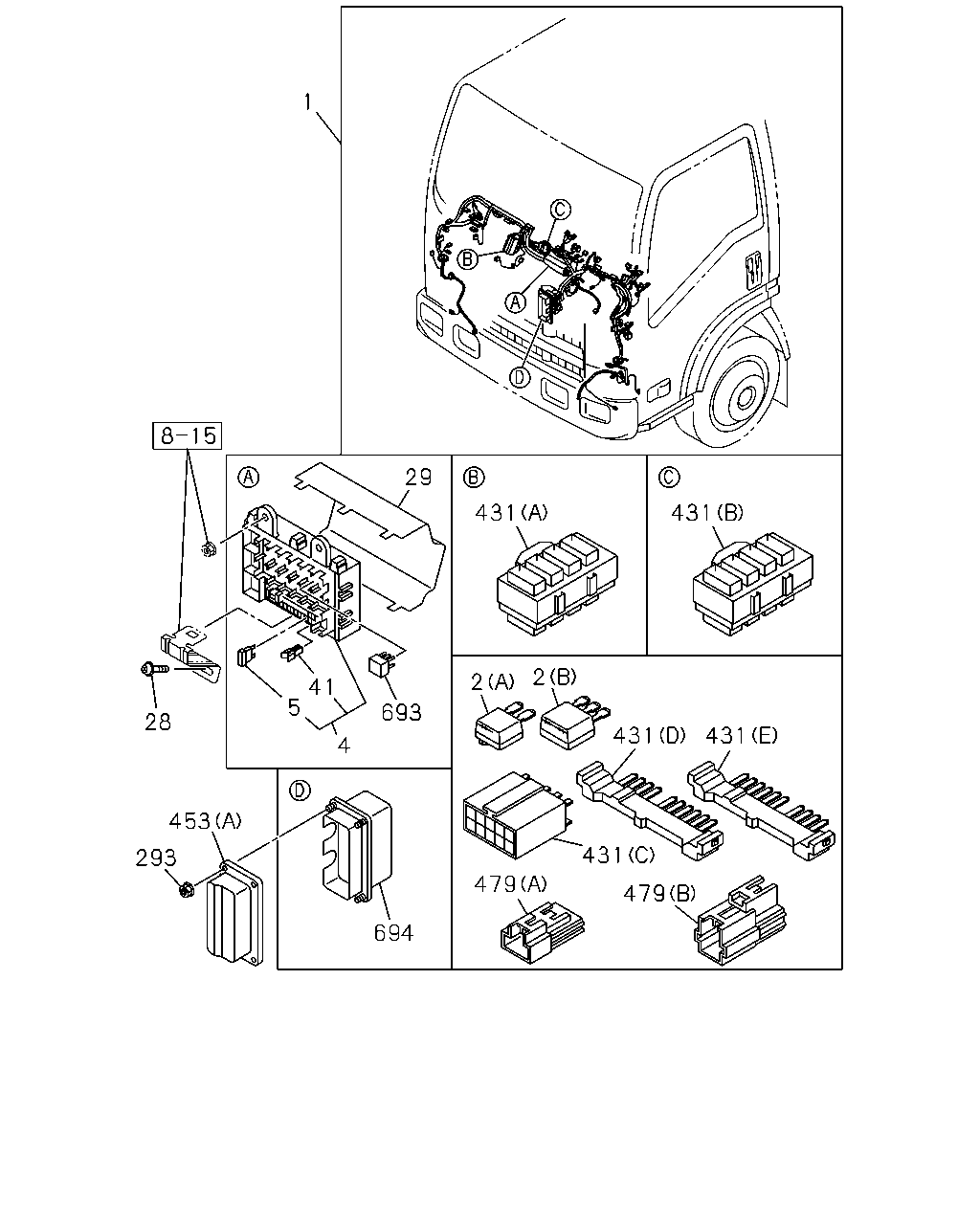

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98204-658-0	01	1	1212-	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TURKEY EQUIPMENT(B11),REMOTE CONT DOOR LOCK<6NF>	8-98200-874-0	01	1	1212-	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98204-657-0	01	1	1212-	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF>	8-98204-656-0	01	1	1212-	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,TURKEY EQUIPMENT(B11), REMOTE CONT DOOR LOCK<6NF>	8-98204-639-0	01	1	1212-	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98089-717-6	01	1	1109-1204		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98204-641-0	01	1	1205-1205		●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98204-641-0	01	1	1206-1211		●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TURKEY EQUIPMENT(B11)	8-98204-641-0	01	1	1212-	●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98204-641-0	01	1	1212-		●
1	02.480 HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98089-715-6	01	1	1109-1204		●
1	02.480 HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98204-640-0	01	1	1205-1205		●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98204-640-0	01	1	1206-1211		●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,TURKEY EQUIPMENT(B11)	8-98204-640-0	01	1	1212-	●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98204-640-0	01	1	1212-		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT DOOR<A32> 4 WHEEL ANTI LOCK BRAKE<JE5> REMOTE CONT DOOR LOCK<6NF> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM>	8-98204-671-0	01	1	1112-1204	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF>	8-98204-671-0	01	1	1205-1205	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF>	8-98204-671-0	01	1	1206-1211	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TURKEY EQUIPMENT(B11) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98204-671-0	01	1	1212-	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> EXC. REMOTE CONT DOOR LOCK<6NF>	8-98204-669-0	01	1	1112-1204	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. REMOTE CONT DOOR LOCK<6NF>	8-98204-669-0	01	1	1205-1205	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. REMOTE CONT DOOR LOCK<6NF>	8-98204-669-0	01	1	1206-1211	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TURKEY EQUIPMENT(B11) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98204-669-0	01	1	1212-	●
1	02.480 HARNESS; CAB POWER WINDOW FRT DOOR<A32> 4 WHEEL ANTI LOCK BRAKE<JE5> REMOTE CONT DOOR LOCK<6NF> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98204-670-0	01	1	1112-1204	●
1	02.480 HARNESS; CAB REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98204-670-0	01	1	1205-1205	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98204-670-0	01	1	1206-1211	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TURKEY EQUIPMENT(B11) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98204-670-0	01	1	1212-	●
1	02.480 HARNESS; CAB 4 WHEEL ANTI LOCK BRAKE<JE5> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF>	8-98204-668-0	01	1	1112-1204	●
1	02.480 HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF>	8-98204-668-0	01	1	1205-1205	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF>	8-98204-668-0	01	1	1206-1211	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TURKEY EQUIPMENT(B11) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF>	8-98204-668-0	01	1	1212-	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. REMOTE CONT DOOR LOCK<6NF>	8-98154-674-2	01	1	1105-1107	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. REMOTE CONT DOOR LOCK<6NF>	8-98196-692-0	01	1	1108-1111	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. REMOTE CONT DOOR LOCK<6NF>, TACHOGRAPH DIGITAL EEC REGULATIONS<8PM>	8-98196-692-0	01	1	1112-1204	●
1	02.480 HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF>	8-98154-672-2	01	1	1105-1107	●
1	02.480 HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF>	8-98196-691-0	01	1	1108-1111	●
1	02.480 HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM>	8-98196-691-0	01	1	1112-1204	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98154-675-2	01	1	0911-1104	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF>	8-98154-675-2	01	1	1105-1111	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> EXC. TACHOGRAPH DIGITAL EEC REGULATIONS<8PM>	8-98154-675-2	01	1	1112-1204	●
1	02.480 HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98154-673-2	01	1	0911-1104	●
1	02.480 HARNESS; CAB REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98154-673-2	01	1	1105-1111	●
1	02.480 HARNESS; CAB REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM>	8-98154-673-2	01	1	1112-1204	●
2	02.483 DIODE; CABLE HARNESS (A) BLACK 2P-1.5A	8-94422-639-1	AR	1	0911-1108	●
2	02.483 DIODE; CABLE HARNESS (A) BLACK 2P-1.5A	8-94422-639-1	AR	1	1109-	●	●
2	02.483 DIODE; CABLE HARNESS (B) BLACK 3P-1.5A	8-94422-640-1	AR	1	0911-1108	●
2	02.483 DIODE; CABLE HARNESS (B) BLACK 3P-1.5A	8-94422-640-1	AR	1	1109-	●	●
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	0911-1108	●
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1109-	●	●
5	02.485 FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	0911-1108	●
5	02.485 FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	1109-	●	●
5	02.485 FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	0911-1108	●
5	02.485 FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	1109-	●	●
5	02.485 FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	0911-1108	●
5	02.485 FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	1109-	●	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0911-1101	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1108	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1109-1211	●	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1212-1212	●	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●
29	02.483 COVER; FUSE BOX	8-98056-968-0	01	1	0911-1108	●
29	02.483 COVER; FUSE BOX	8-98056-968-0	01	1	1109-	●	●
41	08.821 PULLER; FUSE	8-98054-260-0	01	1	0911-1108	●
41	08.821 PULLER; FUSE	8-98054-260-0	01	1	1109-	●	●
293	02.559 NUT 01.062 M6 FLANGE	0-91180-106-0	04	1	0911-1108	●
293	02.559 NUT 01.062 M6 FLANGE	0-91180-106-0	04	1	1109-1211	●	●
293	02.559 NUT 01.062 M6 FLANGE	0-91180-106-0	04	1	1212-	●	●
431	02.530 CONNECTOR; JOINT EXC. REMOTE CONT DOOR LOCK<6NF> (C) 10P	8-97077-943-0	02	1	1105-1108	●
431	02.530 CONNECTOR; JOINT EXC. REMOTE CONT DOOR LOCK<6NF> (C) 10P	8-97077-943-0	02	1	1109-1111	●
431	02.530 CONNECTOR; JOINT (C) 10P	8-97077-943-0	02	1	1109-1111		●
431	02.530 CONNECTOR; JOINT EXC. REMOTE CONT DOOR LOCK<6NF>, TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (C) 10P	8-97077-943-0	02	1	1112-1204	●
431	02.530 CONNECTOR; JOINT (C) 10P	8-97077-943-0	02	1	1112-1204		●
431	02.530 CONNECTOR; JOINT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E) 10P GREEN	1-82699-599-0	01	1	0911-1006	●
431	02.530 CONNECTOR; JOINT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D) 10P BLUE	1-82699-598-0	01	1	0911-1006	●
431	02.530 CONNECTOR; JOINT (A)	8-98046-205-0	01	1	0911-1108	●
431	02.530 CONNECTOR; JOINT (A)	8-98046-205-0	01	1	1109-	●	●
431	02.530 CONNECTOR; JOINT (B)	8-98046-206-0	01	1	0911-1108	●
431	02.530 CONNECTOR; JOINT (B)	8-98046-206-0	01	1	1109-	●	●
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (C)	8-94417-716-0	01	1	0911-1104	●
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) IMMOBILIZER SYSTEM(7KC) (C)	8-94417-716-0	01	1	1105-1108	●
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR),M/T MYY6S(RST) (C)	8-94417-716-0	01	1	1109-1111	●
453	02.483 PROTECTOR; HARNESS (C)	8-94417-716-0	01	1	1109-1111		●
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR),M/T MYY6S(RST) 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-94417-716-0	01	1	1112-1211	●
453	02.483 PROTECTOR; HARNESS (C)	8-94417-716-0	01	1	1112-1211		●
453	02.483 PROTECTOR; HARNESS (C)	8-94417-716-0	01	1	1212-	●	●
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (B)	8-98031-620-1	01	1	0911-1104	●
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) IMMOBILIZER SYSTEM(7KC) (B)	8-98031-620-1	01	1	1105-1108	●
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR),M/T MYY6S(RST) (B)	8-98031-620-1	01	1	1109-1111	●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-620-1	01	1	1109-1111		●
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR),M/T MYY6S(RST) 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98031-620-1	01	1	1112-1211	●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-620-1	01	1	1112-1211		●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-620-1	01	1	1212-	●	●
453	02.483 PROTECTOR; HARNESS (A)	8-98057-647-0	01	1	0911-1108	●
453	02.483 PROTECTOR; HARNESS (A)	8-98057-647-0	01	1	1109-1211	●	●
453	02.483 PROTECTOR; HARNESS (A)	8-98057-647-0	01	1	1212-	●	●
479	02.530 CAP; CONNECTOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98108-678-0	01	1	0911-1108	●
479	02.530 CAP; CONNECTOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98108-678-0	01	1	1109-1211	●	●
479	02.530 CAP; CONNECTOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (A)	8-98108-678-0	01	1	1212-	●
479	02.530 CAP; CONNECTOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98108-678-0	01	1	1212-		●
479	02.530 CAP; CONNECTOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98108-679-0	01	1	0911-1108	●
479	02.530 CAP; CONNECTOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98108-679-0	01	1	1109-1211	●	●
479	02.530 CAP; CONNECTOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (B)	8-98108-679-0	01	1	1212-	●
479	02.530 CAP; CONNECTOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98108-679-0	01	1	1212-		●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	0911-1108	●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1109-	●	●
694	02.483 BOX ASM; CONNECTOR EXC. REMOTE CONT DOOR LOCK<6NF>	8-98190-772-0	01	1	1108-1108	●
694	02.483 BOX ASM; CONNECTOR EXC. REMOTE CONT DOOR LOCK<6NF>	8-98190-772-0	01	1	1109-1111	●
694	02.483 BOX ASM; CONNECTOR	8-98190-772-0	01	1	1109-1111		●
694	02.483 BOX ASM; CONNECTOR EXC. REMOTE CONT DOOR LOCK<6NF>, TACHOGRAPH DIGITAL EEC REGULATIONS<8PM>	8-98190-772-0	01	1	1112-1204	●
694	02.483 BOX ASM; CONNECTOR 4 WHEEL ANTI LOCK BRAKE<JE5> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> EXC. REMOTE CONT DOOR LOCK<6NF>	8-98190-772-0	01	1	1112-1204	●
694	02.483 BOX ASM; CONNECTOR POWER WINDOW FRT DOOR<A32> 4 WHEEL ANTI LOCK BRAKE<JE5> REMOTE CONT DOOR LOCK<6NF> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM>	8-98190-772-0	01	1	1112-1204	●
694	02.483 BOX ASM; CONNECTOR	8-98190-772-0	01	1	1112-1204		●
694	02.483 BOX ASM; CONNECTOR	8-98190-772-0	01	1	1205-	●	●
694	02.483 BOX ASM; CONNECTOR	8-98057-640-0	01	1	0911-1107	●
694	02.483 BOX ASM; CONNECTOR REMOTE CONT DOOR LOCK<6NF>	8-98057-640-0	01	1	1108-1111	●
694	02.483 BOX ASM; CONNECTOR REMOTE CONT DOOR LOCK<6NF> EXC. TACHOGRAPH DIGITAL EEC REGULATIONS<8PM>	8-98057-640-0	01	1	1112-1204	●

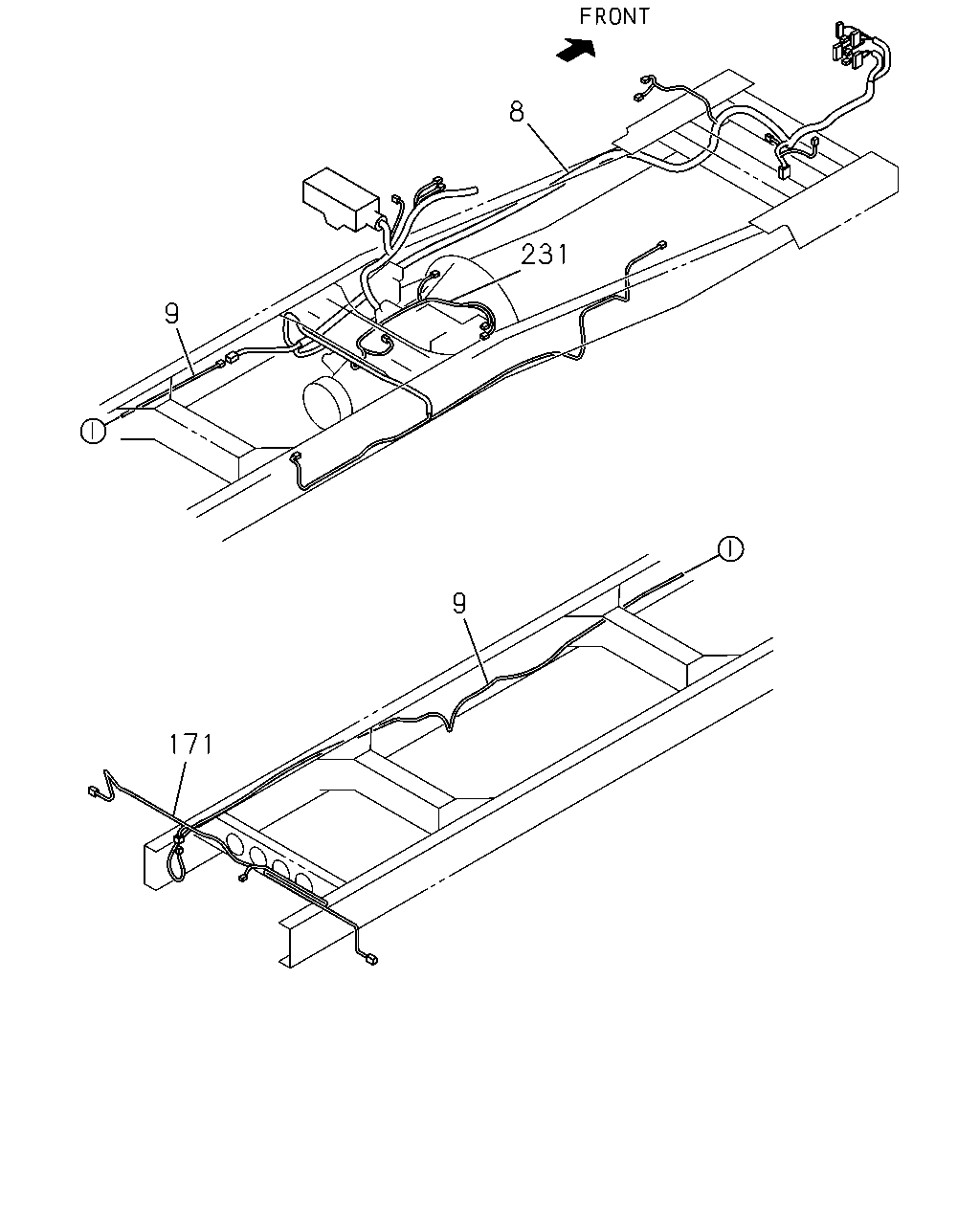

8 231 9 9 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IMMOBILIZER SYSTEM(7KC)	8-98191-851-2	01	1	1212-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IMMOBILIZER SYSTEM(7KC)	8-98294-348-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC)	8-98191-850-3	01	1	1212-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC)	8-98294-347-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TAIWAN EQUIPMENT(B04) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC)	8-98120-517-4	01	1	1212-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TAIWAN EQUIPMENT(B04) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC)	8-98294-335-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TAIWAN EQUIPMENT(B04) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC)	8-98120-521-5	01	1	1212-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TAIWAN EQUIPMENT(B04) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC)	8-98294-339-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IMMOBILIZER SYSTEM(7KC)	8-98191-849-2	01	1	1212-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IMMOBILIZER SYSTEM(7KC)	8-98294-346-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC)	8-98191-847-3	01	1	1212-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC)	8-98294-344-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TAIWAN EQUIPMENT(B04) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC)	8-98125-276-5	01	1	1212-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TAIWAN EQUIPMENT(B04) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC)	8-98294-341-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TAIWAN EQUIPMENT(B04) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC)	8-98125-275-6	01	1	1212-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TAIWAN EQUIPMENT(B04) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC)	8-98294-340-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IMMOBILIZER SYSTEM(7KC)	8-98191-848-2	01	1	1212-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IMMOBILIZER SYSTEM(7KC)	8-98294-345-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC)	8-98191-846-3	01	1	1212-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC)	8-98294-343-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TAIWAN EQUIPMENT(B04) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC)	8-98120-514-5	01	1	1212-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TAIWAN EQUIPMENT(B04) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC)	8-98294-332-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TAIWAN EQUIPMENT(B04) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC)	8-98120-518-6	01	1	1212-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TAIWAN EQUIPMENT(B04) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC)	8-98294-336-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98139-583-3	01	1	1109-1409		●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98294-382-0	01	1	1410-		●
8	02.480 HARNESS; FRAME,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98139-579-3	01	1	1109-1409		●
8	02.480 HARNESS; FRAME,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98294-378-0	01	1	1410-		●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR)	8-98192-992-2	01	1	1109-1111	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98192-992-2	01	1	1112-1211	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TURKEY EQUIPMENT(B11) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98192-992-2	01	1	1212-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TURKEY EQUIPMENT(B11) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98294-349-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST)	8-98155-123-2	01	1	0911-1104	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) IMMOBILIZER SYSTEM(7KC)	8-98155-123-2	01	1	1105-1108	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST)	8-98155-123-2	01	1	1109-1111	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98155-123-2	01	1	1112-1211	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) TURKEY EQUIPMENT(B11) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98155-123-2	01	1	1212-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) TURKEY EQUIPMENT(B11) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98294-342-0	01	1	1410-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98117-252-0	01	1	1212-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2700MM(27W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98117-247-0	01	1	1212-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98117-248-0	01	1	1112-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98117-249-0	01	1	1112-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2700MM(27W)	8-98117-252-0	01	1	1105-1108	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2700MM(27W)	8-98046-994-2	01	1	1109-		●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W)	8-98117-253-0	01	1	1105-1111	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98117-253-0	01	1	1112-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 4100MM(41W)	8-98117-255-0	01	1	1105-1108	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W)	8-98047-001-2	01	1	1109-		●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 4400MM(44W)	8-98117-256-0	01	1	1105-1108	●
9	02.480 HARNESS; FRAME,RR	8-98117-254-0	01	1	0911-1104	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3800MM(38W)	8-98117-254-0	01	1	1105-1111	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98117-254-0	01	1	1112-	●
171	02.596 HARNESS; CABLE,TAIL LAMP TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) EXC. RR FOG LAMP<T79>	8-98156-027-0	01	1	1212-	●
171	02.596 HARNESS; CABLE,TAIL LAMP EXC. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11)	8-98156-028-0	01	1	1212-	●
171	02.596 HARNESS; CABLE,TAIL LAMP	8-98070-319-1	01	1	0911-1009	●
171	02.596 HARNESS; CABLE,TAIL LAMP	8-98156-025-0	01	1	1010-1108	●
171	02.596 HARNESS; CABLE,TAIL LAMP	8-98156-025-0	01	1	1109-1211	●	●
171	02.596 HARNESS; CABLE,TAIL LAMP TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) RR FOG LAMP<T79>	8-98156-025-0	01	1	1212-	●
171	02.596 HARNESS; CABLE,TAIL LAMP	8-98156-025-0	01	1	1212-		●
231	02.480 HARNESS; TRANS TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98080-121-2	01	1	1212-	●

290 101 101 101 290 626 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
101	02.483 BRACKET; HARNESS CONNECTOR 4JJ1-TCS ENG(LFB) 02.183 (C)	8-98030-725-1	01	1	1109-		●
101	02.483 BRACKET; HARNESS CONNECTOR (D)	8-98032-447-1	01	1	1109-		●
101	02.483 BRACKET; HARNESS CONNECTOR (A)	8-98052-805-0	01	1	0911-1108	●
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-98052-805-0	01	1	1109-	●
101	02.483 BRACKET; HARNESS CONNECTOR (B)	8-98133-387-1	01	1	0911-	●
290	02.483 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1109-		●
290	02.483 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0911-1108	●
290	02.483 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1109-1211	●	●
290	02.483 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1212-	●	●
374	02.530 PLUG; HARNESS CONNECTOR EXC. AIR BAG DRIVER & PASSENGER<AK5>, ROOMLAMP W/ALL DOORS SW(SDF),REMOTE CONT DOO R LOCK<6NF> 16.545 OD=32 BLACK	8-98031-126-0	01	1	1105-1211	●
374	02.530 PLUG; HARNESS CONNECTOR EXC. AIR BAG DRIVER & PASSENGER<AK5>, ROOMLAMP W/ALL DOORS SW(SDF),REMOTE CONT DOO R LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) 16.545 OD=32 BLACK	8-98031-126-0	01	1	1212-	●
626	02.480 HARNESS; FLEX HOSE	8-97253-968-1	01	1	0911-1111	●
626	02.480 HARNESS; FLEX HOSE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97253-968-1	01	1	1112-	●
626	02.480 HARNESS; FLEX HOSE	8-97253-969-1	01	1	0911-1111	●
626	02.480 HARNESS; FLEX HOSE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97253-969-1	01	1	1112-	●

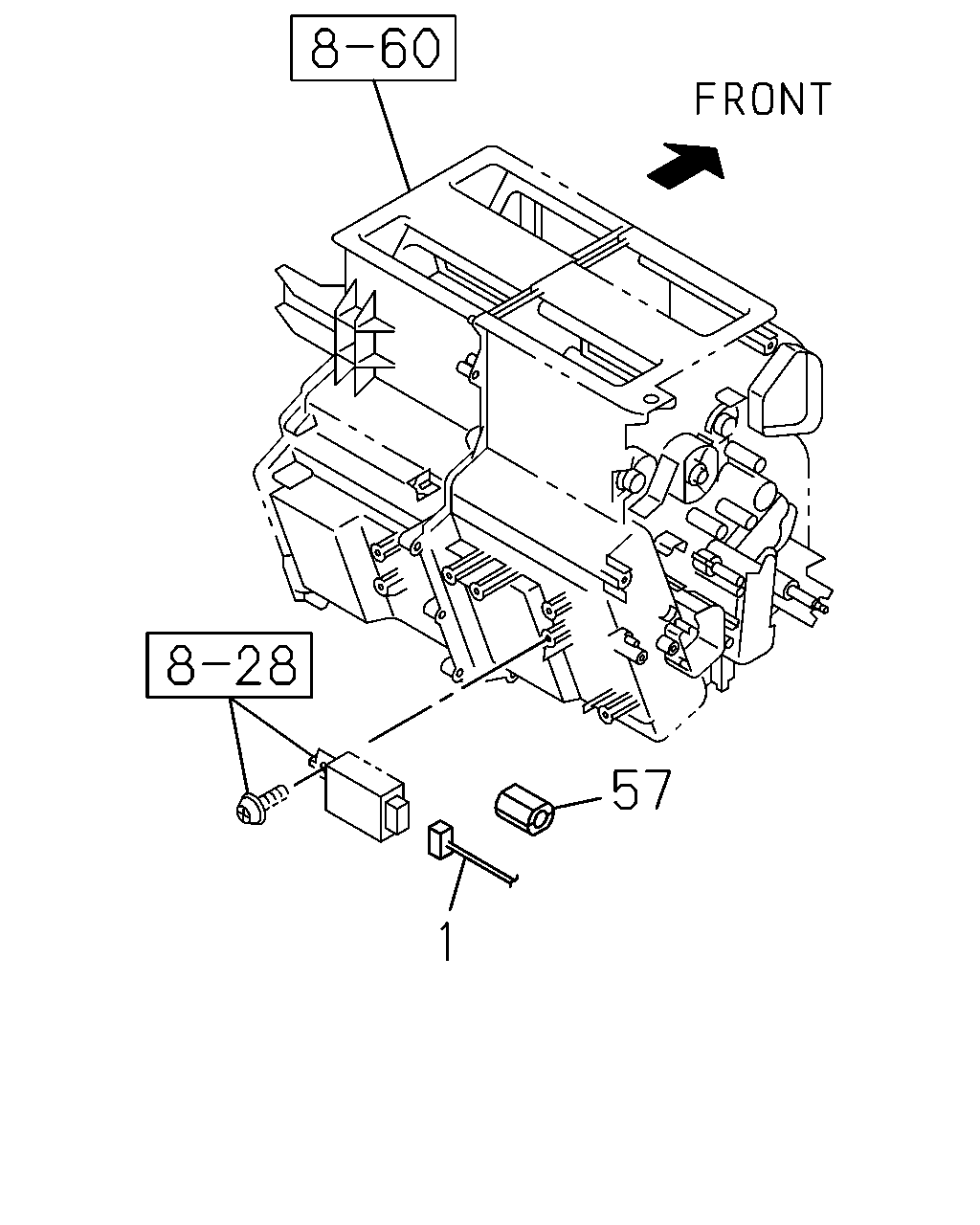

57 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98204-658-0	01	1	1212-	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TURKEY EQUIPMENT(B11),REMOTE CONT DOOR LOCK<6NF>	8-98200-874-0	01	1	1212-	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98204-657-0	01	1	1212-	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF>	8-98204-656-0	01	1	1212-	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,TURKEY EQUIPMENT(B11), REMOTE CONT DOOR LOCK<6NF>	8-98204-639-0	01	1	1212-	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98089-717-6	01	1	1109-1204		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98204-641-0	01	1	1205-1205		●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98204-641-0	01	1	1206-1211		●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TURKEY EQUIPMENT(B11)	8-98204-641-0	01	1	1212-	●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98204-641-0	01	1	1212-		●
1	02.480 HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98089-715-6	01	1	1109-1204		●
1	02.480 HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98204-640-0	01	1	1205-1205		●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98204-640-0	01	1	1206-1211		●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,TURKEY EQUIPMENT(B11)	8-98204-640-0	01	1	1212-	●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98204-640-0	01	1	1212-		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT DOOR<A32> 4 WHEEL ANTI LOCK BRAKE<JE5> REMOTE CONT DOOR LOCK<6NF> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM>	8-98204-671-0	01	1	1112-1204	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF>	8-98204-671-0	01	1	1205-1205	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF>	8-98204-671-0	01	1	1206-1211	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TURKEY EQUIPMENT(B11) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98204-671-0	01	1	1212-	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> EXC. REMOTE CONT DOOR LOCK<6NF>	8-98204-669-0	01	1	1112-1204	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. REMOTE CONT DOOR LOCK<6NF>	8-98204-669-0	01	1	1205-1205	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. REMOTE CONT DOOR LOCK<6NF>	8-98204-669-0	01	1	1206-1211	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TURKEY EQUIPMENT(B11) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98204-669-0	01	1	1212-	●
1	02.480 HARNESS; CAB POWER WINDOW FRT DOOR<A32> 4 WHEEL ANTI LOCK BRAKE<JE5> REMOTE CONT DOOR LOCK<6NF> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98204-670-0	01	1	1112-1204	●
1	02.480 HARNESS; CAB REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98204-670-0	01	1	1205-1205	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98204-670-0	01	1	1206-1211	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TURKEY EQUIPMENT(B11) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98204-670-0	01	1	1212-	●
1	02.480 HARNESS; CAB 4 WHEEL ANTI LOCK BRAKE<JE5> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF>	8-98204-668-0	01	1	1112-1204	●
1	02.480 HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF>	8-98204-668-0	01	1	1205-1205	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF>	8-98204-668-0	01	1	1206-1211	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TURKEY EQUIPMENT(B11) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF>	8-98204-668-0	01	1	1212-	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. REMOTE CONT DOOR LOCK<6NF>	8-98154-674-2	01	1	1105-1107	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. REMOTE CONT DOOR LOCK<6NF>	8-98196-692-0	01	1	1108-1111	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. REMOTE CONT DOOR LOCK<6NF>, TACHOGRAPH DIGITAL EEC REGULATIONS<8PM>	8-98196-692-0	01	1	1112-1204	●
1	02.480 HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF>	8-98154-672-2	01	1	1105-1107	●
1	02.480 HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF>	8-98196-691-0	01	1	1108-1111	●
1	02.480 HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM>	8-98196-691-0	01	1	1112-1204	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98154-675-2	01	1	0911-1104	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF>	8-98154-675-2	01	1	1105-1111	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> EXC. TACHOGRAPH DIGITAL EEC REGULATIONS<8PM>	8-98154-675-2	01	1	1112-1204	●
1	02.480 HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98154-673-2	01	1	0911-1104	●
1	02.480 HARNESS; CAB REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98154-673-2	01	1	1105-1111	●
1	02.480 HARNESS; CAB REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM>	8-98154-673-2	01	1	1112-1204	●
57	02.483 FILTER; FUSE BOX	8-98211-338-0	01	1	1205-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
