7-60 — SEAT BELT (#50546) — 57 parça

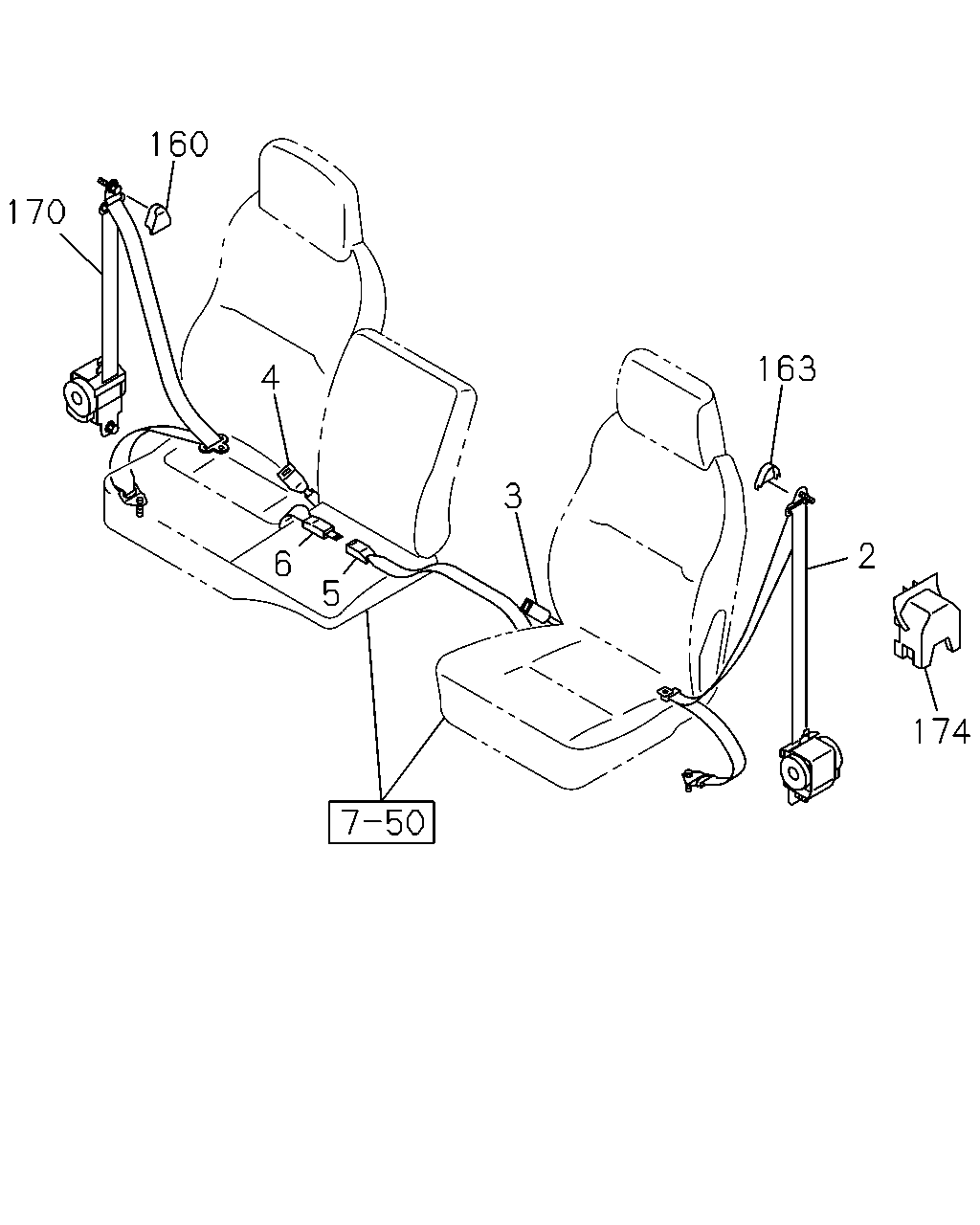

160 170 163 4 3 2 6 5 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	16.714 BELT; SEAT,TONGUE SIDE TAIWAN EQUIPMENT(B04) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> GRAY	8-97428-087-0	01	1	1311-	●
2	16.714 BELT; SEAT,TONGUE SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> GRAY	8-97405-179-9	01	1	0911-1108	●
2	16.714 BELT; SEAT,TONGUE SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> GRAY	8-97405-179-9	01	1	1109-1310	●	●
2	16.714 BELT; SEAT,TONGUE SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TURKEY EQUIPMENT(B11) GRAY	8-97405-179-9	01	1	1311-1406	●
2	16.714 BELT; SEAT,TONGUE SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> GRAY	8-97405-179-9	01	1	1311-1406		●
2	16.714 BELT; SEAT,TONGUE SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TURKEY EQUIPMENT(B11) GRAY	8-97428-456-0	01	1	1407-	●
2	16.714 BELT; SEAT,TONGUE SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> GRAY	8-97428-456-0	01	1	1407-		●
2	16.714 BELT; SEAT,TONGUE SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> GRAY	8-97405-180-7	01	1	0911-1108	●
2	16.714 BELT; SEAT,TONGUE SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> GRAY	8-97405-180-7	01	1	1109-1310	●	●
2	16.714 BELT; SEAT,TONGUE SIDE TURKEY EQUIPMENT(B11) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> GRAY	8-97405-180-7	01	1	1311-1406	●
2	16.714 BELT; SEAT,TONGUE SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> GRAY	8-97405-180-7	01	1	1311-1406		●
2	16.714 BELT; SEAT,TONGUE SIDE TURKEY EQUIPMENT(B11) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> GRAY	8-97428-457-1	01	1	1407-	●
2	16.714 BELT; SEAT,TONGUE SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> GRAY	8-97428-457-1	01	1	1407-		●
3	16.714 BELT; SEAT,BUCKLE SIDE GRAY	8-97405-175-2	01	1	0911-1108	●
3	16.714 BELT; SEAT,BUCKLE SIDE GRAY	8-97405-175-2	01	1	1109-	●	●
4	16.714 BELT; PASSENGER SEAT,BUCKLE SIDE GRAY	8-97405-178-0	01	1	0911-1108	●
4	16.714 BELT; PASSENGER SEAT,BUCKLE SIDE GRAY	8-97405-178-0	01	1	1109-	●	●
5	16.714 BELT; CENTER SEAT,BUCKLE SIDE GRAY	8-97405-182-1	01	1	0911-1108	●
5	16.714 BELT; CENTER SEAT,BUCKLE SIDE GRAY	8-97405-182-1	01	1	1109-	●	●
6	16.714 BELT; CENTER SEAT,TONGUE SIDE TAIWAN EQUIPMENT(B04) GRAY	8-97428-088-0	01	1	1311-	●
6	16.714 BELT; CENTER SEAT,TONGUE SIDE GRAY	8-97411-507-2	01	1	0911-1108	●
6	16.714 BELT; CENTER SEAT,TONGUE SIDE GRAY	8-97411-507-2	01	1	1109-1310	●	●
6	16.714 BELT; CENTER SEAT,TONGUE SIDE TURKEY EQUIPMENT(B11) GRAY	8-97411-507-2	01	1	1311-	●
6	16.714 BELT; CENTER SEAT,TONGUE SIDE GRAY	8-97411-507-2	01	1	1311-		●
160	16.714 COVER; THROUGH ANCHOR GRAY	8-97405-991-0	01	1	0911-1108	●
160	16.714 COVER; THROUGH ANCHOR GRAY	8-97405-991-0	01	1	1109-	●	●
163	16.714 COVER; ADJUSTER GRAY	8-97405-991-0	01	1	0911-1108	●
163	16.714 COVER; ADJUSTER GRAY	8-97405-991-0	01	1	1109-	●	●
170	16.714 BELT; PASSENGER SEAT,TONGUE SIDE TAIWAN EQUIPMENT(B04) EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY	8-97428-087-0	01	1	1311-	●
170	16.714 BELT; PASSENGER SEAT,TONGUE SIDE AIR BAG DRIVER & PASSENGER<AK5> GRAY	8-97405-179-9	01	1	0911-1108	●
170	16.714 BELT; PASSENGER SEAT,TONGUE SIDE AIR BAG DRIVER & PASSENGER<AK5> GRAY	8-97405-179-9	01	1	1109-1310	●	●
170	16.714 BELT; PASSENGER SEAT,TONGUE SIDE AIR BAG DRIVER & PASSENGER<AK5> TURKEY EQUIPMENT(B11) GRAY	8-97405-179-9	01	1	1311-1406	●
170	16.714 BELT; PASSENGER SEAT,TONGUE SIDE AIR BAG DRIVER & PASSENGER<AK5> GRAY	8-97405-179-9	01	1	1311-1406		●
170	16.714 BELT; PASSENGER SEAT,TONGUE SIDE AIR BAG DRIVER & PASSENGER<AK5> TURKEY EQUIPMENT(B11) GRAY	8-97428-456-0	01	1	1407-	●
170	16.714 BELT; PASSENGER SEAT,TONGUE SIDE AIR BAG DRIVER & PASSENGER<AK5> GRAY	8-97428-456-0	01	1	1407-		●
170	16.714 BELT; PASSENGER SEAT,TONGUE SIDE EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY	8-97405-180-7	01	1	0911-1108	●
170	16.714 BELT; PASSENGER SEAT,TONGUE SIDE EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY	8-97405-180-7	01	1	1109-1310	●	●
170	16.714 BELT; PASSENGER SEAT,TONGUE SIDE TURKEY EQUIPMENT(B11) EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY	8-97405-180-7	01	1	1311-1406	●
170	16.714 BELT; PASSENGER SEAT,TONGUE SIDE EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY	8-97405-180-7	01	1	1311-1406		●
170	16.714 BELT; PASSENGER SEAT,TONGUE SIDE TURKEY EQUIPMENT(B11) EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY	8-97428-457-1	01	1	1407-	●
170	16.714 BELT; PASSENGER SEAT,TONGUE SIDE EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY	8-97428-457-1	01	1	1407-		●
174	16.714 COVER; RETRACTOR,SEAT BELT	8-98039-376-1	01	1	0911-1108	●
174	16.714 COVER; RETRACTOR,SEAT BELT	8-98039-376-1	01	1	1109-	●	●

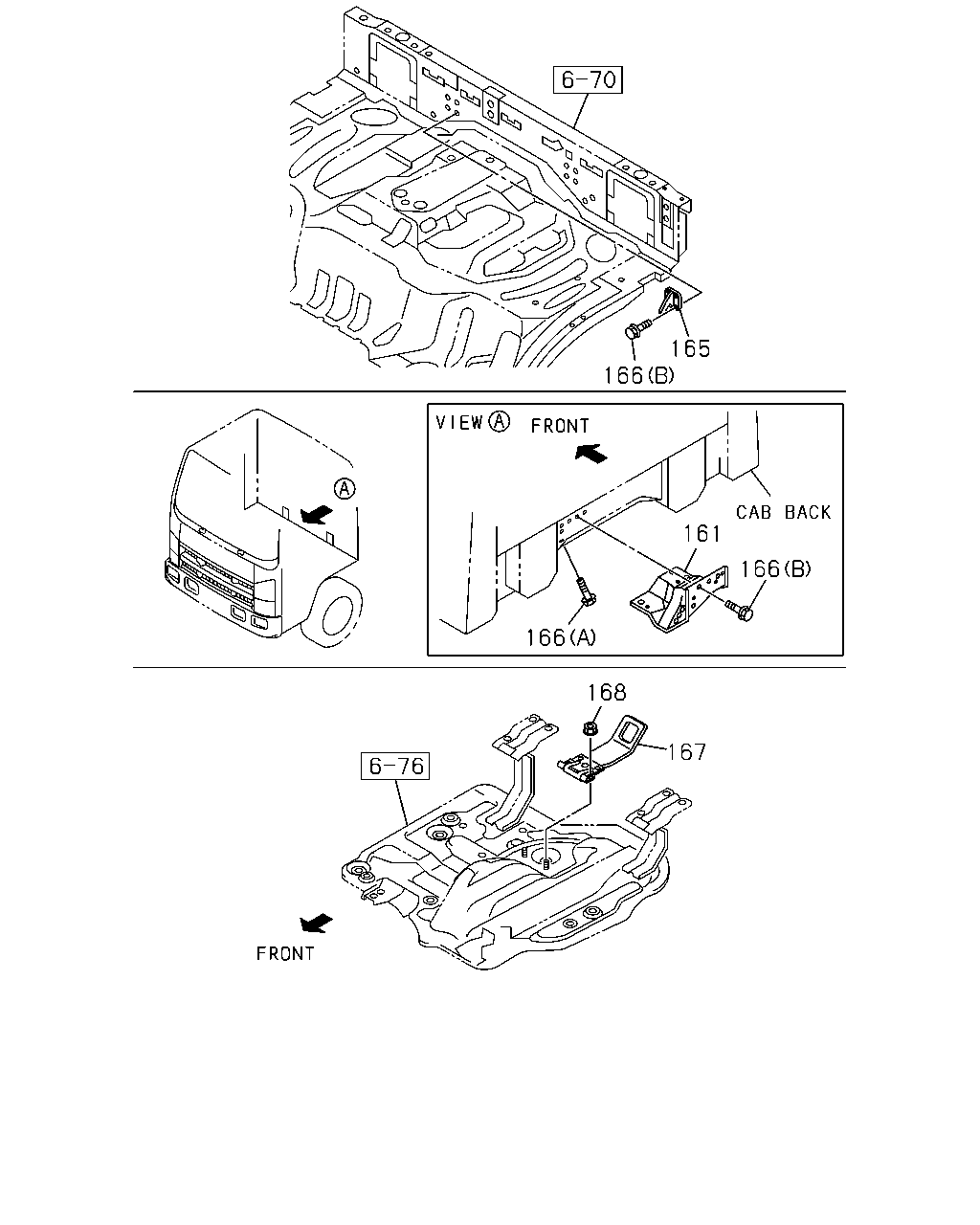

165 166 161 166 166 168 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
161	16.714 REINFORCEMENT; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA> 16.545	8-98017-005-2	01	1	0911-1108	●
161	16.714 REINFORCEMENT; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA> 16.545	8-98017-005-2	01	1	1109-	●	●
165	16.714 HOOK; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA>	8-98040-143-0	01	1	0911-1108	●
165	16.714 HOOK; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA>	8-98040-143-0	01	1	1109-	●	●
166	16.714 BOLT; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	0911-1108	●
166	16.714 BOLT; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	1109-	●	●
166	16.714 BOLT; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE	0-28650-825-0	05	1	0911-1108	●
166	16.714 BOLT; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE	0-28650-825-0	05	1	1109-	●	●
166	16.714 BOLT; SEAT BELT ANCHOR EXC. INSPECTION ENGINE COVER<8GA> 04.338 (A) M8X20 FLANGE	0-28050-820-0	02	1	0911-1108	●
166	16.714 BOLT; SEAT BELT ANCHOR EXC. INSPECTION ENGINE COVER<8GA> 04.338 (A) M8X20 FLANGE	0-28050-820-0	02	1	1109-	●	●
167	16.714 PLATE; ANCHOR INSPECTION ENGINE COVER<8GA>	8-97589-140-0	01	1	0911-1108	●
167	16.714 PLATE; ANCHOR INSPECTION ENGINE COVER<8GA>	8-97589-140-0	01	1	1109-	●	●
168	16.714 NUT; ANCHOR PLATE INSPECTION ENGINE COVER<8GA> 01.062 M8 FLANGE	0-91180-108-0	02	1	0911-1108	●
168	16.714 NUT; ANCHOR PLATE INSPECTION ENGINE COVER<8GA> 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
