◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51244 - NPR(LHD) EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#50541) — 399 parça

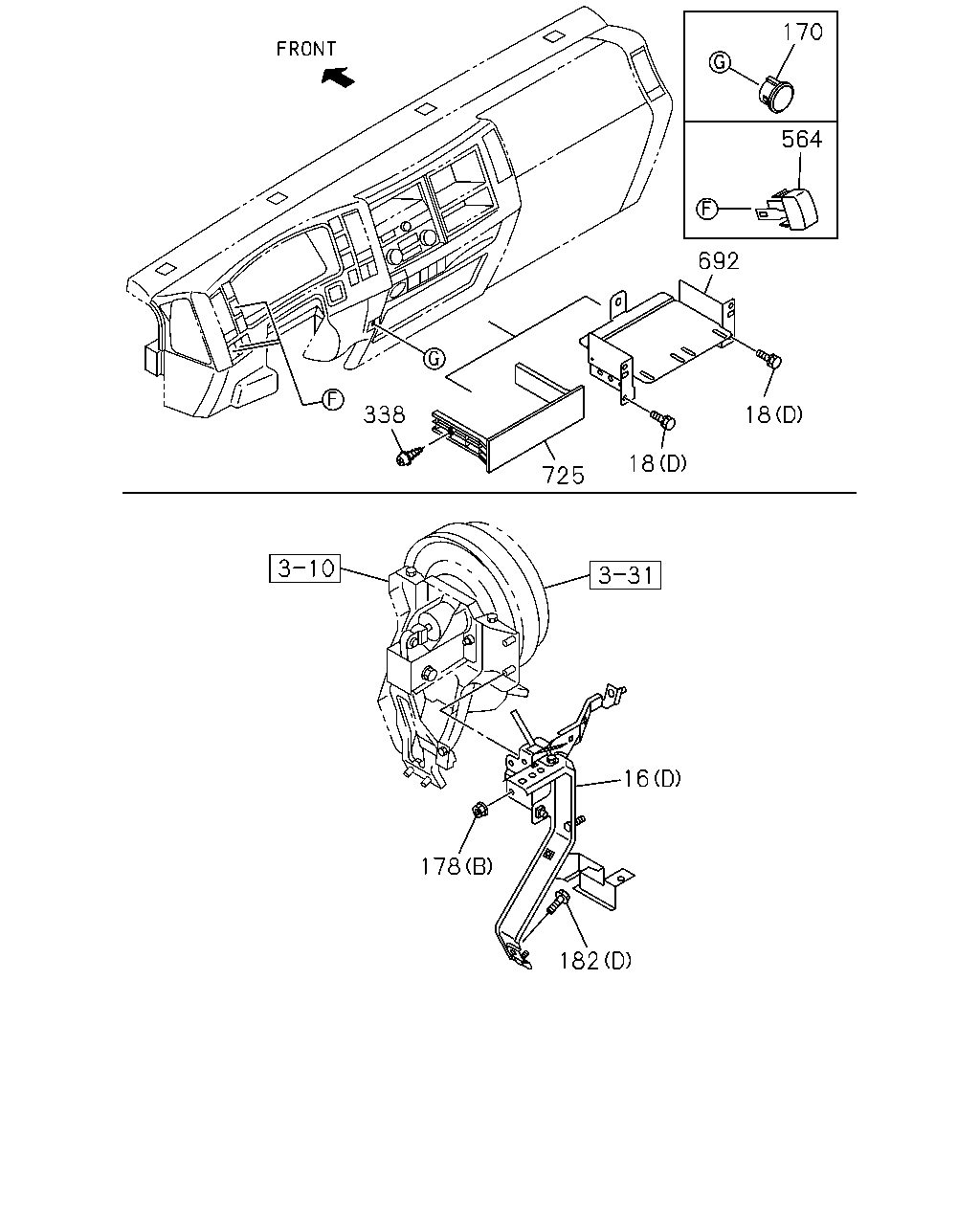

çizim 159407
170 564 692 18 18 725 338 16 182 178
BalonParca AdiParca NoAdetTipApplied Date A B
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 0911-1108 ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 1109- ● ●
16 16.085 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 0911-1108 ●
16 16.085 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 1109- ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 0911-1108 ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 1109-1211 ● ●
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 1212- ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 1212- ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97585-612-2 01 1 0911-1108 ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97585-612-2 01 1 1109-1211 ● ●
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97585-612-2 01 1 1212- ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97585-612-2 01 1 1212- ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98093-380-3 01 1 1212-1503 ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98278-076-0 01 1 1504- ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0911-1101 ●
18 16.085 BOLT; BRKT
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1102-1108 ●
18 16.085 BOLT; BRKT
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1109-1212 ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301- ● ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 0911-1108 ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 1109- ● ●
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 0911-1108 ●
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1109- ● ●
18 16.085 BOLT; BRKT
09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0911-1104 ●
18 16.085 BOLT; BRKT
IDENTIFICATION LABEL FOR KD<6UT> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1105-1108 ●
18 16.085 BOLT; BRKT
09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1109-1111 ●
18 16.085 BOLT; BRKT
TACHOGRAPH DIGITAL<EBB> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1109-1111 ●
18 16.085 BOLT; BRKT
TACHOGRAPH DIGITAL<EBB> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1112-1112 ● ●
18 16.085 BOLT; BRKT
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1112-1211 ●
18 16.085 BOLT; BRKT
TACHOGRAPH DIGITAL<EBB> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1112-1211 ●
18 16.085 BOLT; BRKT
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> IDENTIFICATION LABEL FOR KD<6UT> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1212- ●
18 16.085 BOLT; BRKT
TACHOGRAPH DIGITAL<EBB> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1212- ●
170 16.165 COVER; HOLE 8-98070-401-2 01 1 0911-1108 ●
170 16.165 COVER; HOLE 8-98070-401-2 01 1 1109- ● ●
178 16.085 NUT; INST PANEL
01.062 (A) M6 FLANGE 		0-91180-106-0 03 1 0911-1108 ●
178 16.085 NUT; INST PANEL
01.062 (A) M6 FLANGE 		0-91180-106-0 03 1 1109- ● ●
178 16.085 NUT; INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 1212- ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 0911-1101 ●
182 16.085 BOLT; BRKT,INST PANEL
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1102-1108 ●
182 16.085 BOLT; BRKT,INST PANEL
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1109-1212 ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1301- ● ●
182 16.085 BOLT; BRKT,INST PANEL
(B) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 0911-1108 ●
182 16.085 BOLT; BRKT,INST PANEL
(B) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 1109- ● ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0911-1101 ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1108 ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1109-1211 ● ●
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1212-1212 ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1212-1212 ●
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (D) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1212- ●
338 16.081 SCREW; COVER
16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0911-1104 ●
338 16.081 SCREW; COVER
IDENTIFICATION LABEL FOR KD<6UT> 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1105-1108 ●
338 16.081 SCREW; COVER
16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1109-1111 ●
338 16.081 SCREW; COVER
TACHOGRAPH DIGITAL<EBB> 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1109-1111 ●
338 16.081 SCREW; COVER
TACHOGRAPH DIGITAL<EBB> 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1112-1112 ● ●
338 16.081 SCREW; COVER
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1112-1211 ●
338 16.081 SCREW; COVER
TACHOGRAPH DIGITAL<EBB> 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1112-1211 ●
338 16.081 SCREW; COVER
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> IDENTIFICATION LABEL FOR KD<6UT> 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1212- ●
338 16.081 SCREW; COVER
TACHOGRAPH DIGITAL<EBB> 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1212- ●
564 16.081 COVER; SW 8-98025-954-1 03 1 0911-1108 ●
564 16.081 COVER; SW 8-98025-954-1 03 1 1109- ● ●
692 16.085 BRACKET; TACHOGRAPH 8-98094-272-0 01 1 0911-1104 ●
692 16.085 BRACKET; TACHOGRAPH
IDENTIFICATION LABEL FOR KD<6UT> 		8-98094-272-0 01 1 1105-1108 ●
692 16.085 BRACKET; TACHOGRAPH 8-98094-272-0 01 1 1109-1111 ●
692 16.085 BRACKET; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB> 		8-98094-272-0 01 1 1109-1111 ●
692 16.085 BRACKET; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 		8-98094-272-0 01 1 1112-1211 ●
692 16.085 BRACKET; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB> 		8-98094-272-0 01 1 1112-1211 ●
692 16.085 BRACKET; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> IDENTIFICATION LABEL FOR KD<6UT> 		8-98094-272-0 01 1 1212- ●
692 16.085 BRACKET; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB> 		8-98094-272-0 01 1 1212- ●
725 16.081 COVER; TACHOGRAPH
09.650 BLACK 		8-97407-896-1 01 1 0911-1104 ●
725 16.081 COVER; TACHOGRAPH
IDENTIFICATION LABEL FOR KD<6UT> 09.650 BLACK 		8-97407-896-1 01 1 1105-1108 ●
725 16.081 COVER; TACHOGRAPH
09.650 BLACK 		8-97407-896-1 01 1 1109-1111 ●
725 16.081 COVER; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB> 09.650 BLACK 		8-97407-896-1 01 1 1109-1111 ●
725 16.081 COVER; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB> 09.650 BLACK 		8-97407-896-1 01 1 1112-1112 ● ●
725 16.081 COVER; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 09.650 BLACK 		8-97407-896-2 01 1 1112-1211 ●
725 16.081 COVER; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB> 09.650 BLACK 		8-97407-896-2 01 1 1112-1211 ●
725 16.081 COVER; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> IDENTIFICATION LABEL FOR KD<6UT> 09.650 BLACK 		8-97407-896-2 01 1 1212- ●
725 16.081 COVER; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB> 09.650 BLACK 		8-97407-896-2 01 1 1212- ●

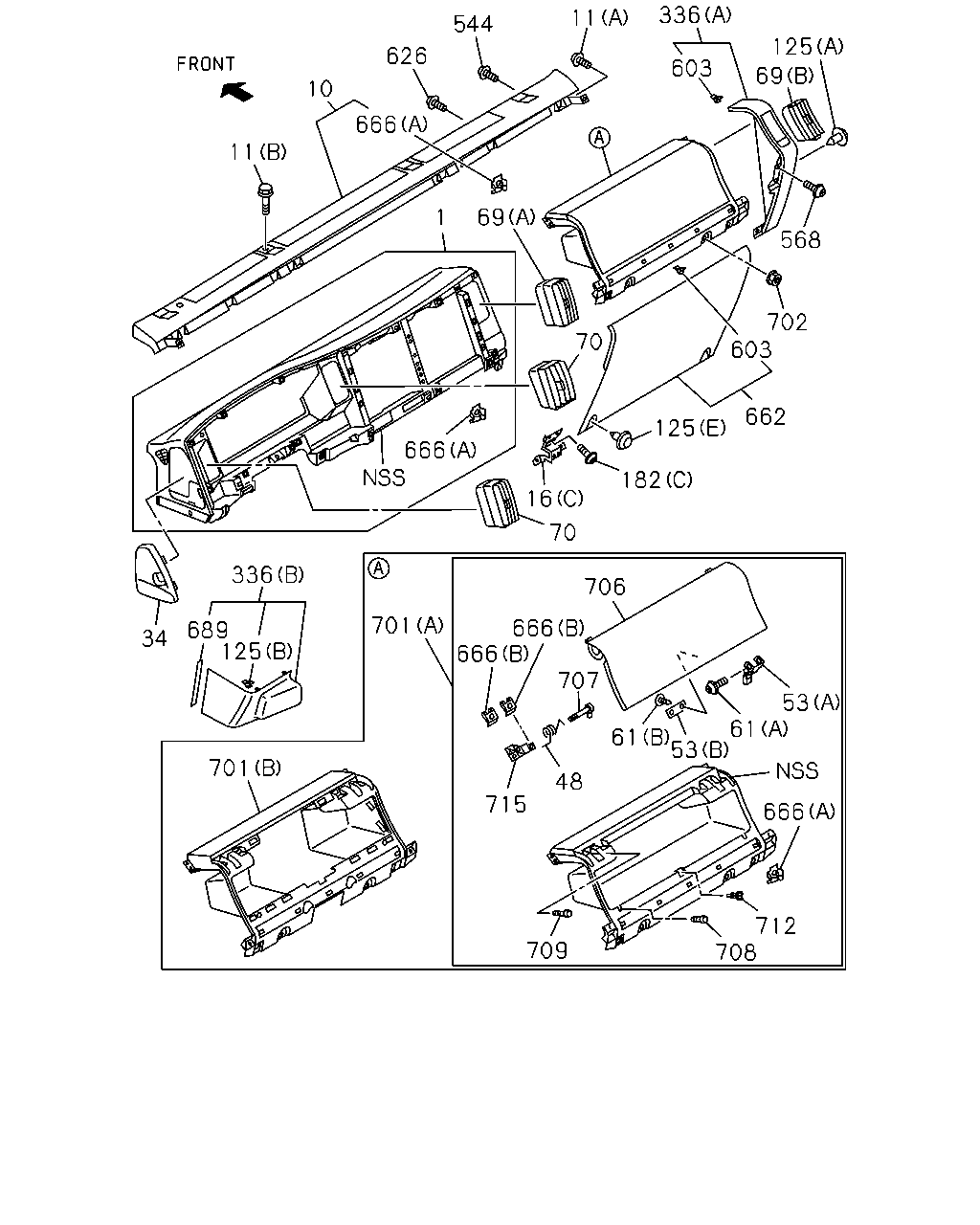

çizim 159417
10 11 626 544 666 11 336 125 603 69 568 702 603 662 125 182 16 70 70 69 1 666 336 689 34 125 701 701 666 666 706 707 48 715 709 708 666 61 53 61 53 712
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.080 PANEL; INST
GRAY 		8-97406-004-4 01 1 0911-1108 ●
1 16.080 PANEL; INST
GRAY 		8-97406-004-4 01 1 1109- ● ●
10 16.069 PANEL ASM; GARNISH
GRAY 		8-97405-265-4 01 1 0911-1003 ●
10 16.069 PANEL ASM; GARNISH
GRAY 		8-97419-683-5 01 1 1004-1108 ●
10 16.069 PANEL ASM; GARNISH
GRAY 		8-97419-683-5 01 1 1109- ● ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0911-1101 ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 08 1 1102-1108 ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 08 1 1109-1212 ● ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1301- ● ●
11 16.090 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0911-1108 ●
11 16.090 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1109- ● ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 0911-1108 ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 1109- ● ●
16 16.085 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 0911-1108 ●
16 16.085 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 1109- ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 0911-1108 ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 1109-1211 ● ●
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 1212- ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 1212- ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97585-612-2 01 1 0911-1108 ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97585-612-2 01 1 1109-1211 ● ●
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97585-612-2 01 1 1212- ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97585-612-2 01 1 1212- ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98093-380-3 01 1 1212-1503 ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98278-076-0 01 1 1504- ●
34 16.085 LID; OIL TANK
GRAY 		8-97406-003-1 01 1 0911-1108 ●
34 16.085 LID; OIL TANK
GRAY 		8-97406-003-1 01 1 1109- ● ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-986-0 01 1 0911-1108 ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-986-0 01 1 1109-1311 ● ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-410-0 01 1 1312-1405 ● ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98270-763-0 01 1 1406- ● ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-987-0 01 1 0911-1108 ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-987-0 01 1 1109-1311 ● ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-411-0 01 1 1312-1405 ● ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98270-764-0 01 1 1406- ● ●
53 16.115 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-913-0 01 1 0911-1108 ●
53 16.115 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-913-0 01 1 1109-1405 ● ●
53 16.115 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98270-765-0 01 1 1406- ● ●
61 16.100 SCREW; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-915-0 01 1 0911-1108 ●
61 16.100 SCREW; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-915-0 01 1 1109-1405 ● ●
61 16.100 SCREW; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) M4X85 		8-97926-404-0 02 1 1406- ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 01 1 0911-1108 ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 01 1 1109- ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0911-1108 ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1109- ● ●
70 09.264 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 02 1 0911-1108 ●
70 09.264 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 02 1 1109- ● ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 0911-1108 ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 1109- ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 01 1 0911-1108 ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 01 1 1109- ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 02 1 0911-1108 ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 02 1 1109- ● ●
125 16.085 CLIP; INST PANEL
16.165 (C) 		8-98004-025-0 01 1 0911-1108 ●
125 16.085 CLIP; INST PANEL
16.165 (C) 		8-98004-025-0 01 1 1109- ● ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 0911-0911 ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 0912-1108 ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 1109- ● ●
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97418-529-0 02 1 0911-0911 ●
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97408-063-0 02 1 0912-1001 ●
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97419-968-1 02 1 1002-1108 ●
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97419-968-1 02 1 1109- ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 0911-1101 ●
182 16.085 BOLT; BRKT,INST PANEL
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1102-1108 ●
182 16.085 BOLT; BRKT,INST PANEL
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1109-1212 ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1301- ● ●
182 16.085 BOLT; BRKT,INST PANEL
(B) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 0911-1108 ●
182 16.085 BOLT; BRKT,INST PANEL
(B) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 1109- ● ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0911-1101 ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1108 ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1109-1211 ● ●
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1212-1212 ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1212-1212 ●
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (D) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1212- ●
336 16.081 COVER; INST PANEL SIDE
PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97415-670-1 01 1 0911-1108 ●
336 16.081 COVER; INST PANEL SIDE
PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97415-670-1 01 1 1109- ● ●
336 16.081 COVER; INST PANEL SIDE
(A) GRAY 		8-97406-002-3 01 1 0911-1108 ●
336 16.081 COVER; INST PANEL SIDE
(A) GRAY 		8-97406-002-3 01 1 1109- ● ●
336 16.081 COVER; INST PANEL SIDE
EXC. PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97406-000-4 01 1 0911-1108 ●
336 16.081 COVER; INST PANEL SIDE
EXC. PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97406-000-4 01 1 1109- ● ●
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0911-1101 ●
544 16.085 SCREW; TRAY
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1102-1108 ●
544 16.085 SCREW; TRAY
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1109-1212 ● ●
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1301- ● ●
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0911-1101 ●
568 09.744 BOLT; COVER
16.090 SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1108 ●
568 09.744 BOLT; COVER
16.090 SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1109-1212 ● ●
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ●
603 16.090 CLIP; COVER
16.085 		8-98021-271-0 01 1 0911-1108 ●
603 16.090 CLIP; COVER
16.085 		8-98021-271-0 01 1 1109- ● ●
603 16.090 CLIP; COVER
16.085 		8-98021-271-0 05 1 0911-1108 ●
603 16.090 CLIP; COVER
16.085 		8-98021-271-0 05 1 1109-1211 ● ●
603 16.090 CLIP; COVER
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) 16.085 		8-98021-271-0 05 1 1212-1504 ●
603 16.090 CLIP; COVER
16.085 		8-98021-271-0 05 1 1212-1504 ●
603 16.090 CLIP; COVER
16.085 		8-98021-271-0 05 1 1505- ● ●
626 16.080 RETAINER
16.069 OD=15 BLACK 		8-94279-804-0 02 1 0911-1108 ●
626 16.080 RETAINER
16.069 OD=15 BLACK 		8-94279-804-0 02 1 1109- ● ●
662 16.081 COVER; LWR,INST PANEL
GRAY 		8-97405-258-2 01 1 0911-1108 ●
662 16.081 COVER; LWR,INST PANEL
GRAY 		8-97405-258-2 01 1 1109-1211 ● ●
662 16.081 COVER; LWR,INST PANEL
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) GRAY 		8-97405-258-2 01 1 1212-1504 ●
662 16.081 COVER; LWR,INST PANEL
GRAY 		8-97405-258-2 01 1 1212-1504 ●
662 16.081 COVER; LWR,INST PANEL
GRAY 		8-97405-258-2 01 1 1505- ● ●
666 16.085 INSERT; INST PANEL
(A) 		8-98037-629-0 15 1 0911-1108 ●
666 16.085 INSERT; INST PANEL
(A) 		8-98037-629-0 15 1 1109- ● ●
666 16.085 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98037-629-0 02 1 0911-1003 ●
666 16.085 INSERT; INST PANEL
(A) 		8-98037-629-0 02 1 0911-1003 ●
666 16.085 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98037-629-0 02 1 1004-1108 ●
666 16.085 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98037-629-0 02 1 1109- ● ●
666 16.085 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98038-450-0 04 1 0911-1108 ●
666 16.085 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98038-450-0 04 1 1109-1311 ● ●
666 16.085 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) M5 		8-97926-400-0 04 1 1312- ● ●
689 09.743 SEAL; INST
EXC. PTO MANUAL CONTROL(6WC) 		8-98068-244-0 01 1 0911-1108 ●
689 09.743 SEAL; INST
EXC. PTO MANUAL CONTROL(6WC) 		8-98068-244-0 01 1 1109- ● ●
701 16.100 TRAY; INST
AIR BAG DRIVER & PASSENGER<AK5> (B) GRAY 		8-97416-908-2 01 1 0911-1108 ●
701 16.100 TRAY; INST
AIR BAG DRIVER & PASSENGER<AK5> (B) GRAY 		8-97416-908-2 01 1 1109- ● ●
701 16.100 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97415-542-6 01 1 0911-1108 ●
701 16.100 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97415-542-6 01 1 1109-1405 ● ●
701 16.100 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97429-702-1 01 1 1406- ● ●
702 16.069 NUT; TRAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 0911-1108 ●
702 16.069 NUT; TRAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 1109- ● ●
706 16.081 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97415-541-0 01 1 0911-1108 ●
706 16.081 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97415-541-0 01 1 1109-1405 ● ●
706 16.081 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97429-992-0 01 1 1406- ● ●
707 09.744 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98035-730-1 02 1 0911-1108 ●
707 09.744 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98035-730-1 02 1 1109-1311 ● ●
707 09.744 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-393-0 02 1 1312- ● ●
708 16.100 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98010-867-1 02 1 0911-1108 ●
708 16.100 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98010-867-1 02 1 1109- ● ●
709 16.085 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> M5X16 TAPPING 		0-71040-516-0 04 1 0911-1108 ●
709 16.085 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> M5X16 TAPPING 		0-71040-516-0 04 1 1109- ● ●
712 16.110 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98031-846-0 01 1 0911-1108 ●
712 16.110 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98031-846-0 01 1 1109- ● ●
715 16.081 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-928-0 01 1 0911-1108 ●
715 16.081 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-928-0 01 1 1109-1311 ● ●
715 16.081 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-396-0 01 1 1312- ● ●
715 16.081 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-929-0 01 1 0911-1108 ●
715 16.081 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-929-0 01 1 1109-1311 ● ●
715 16.081 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-397-0 01 1 1312- ● ●

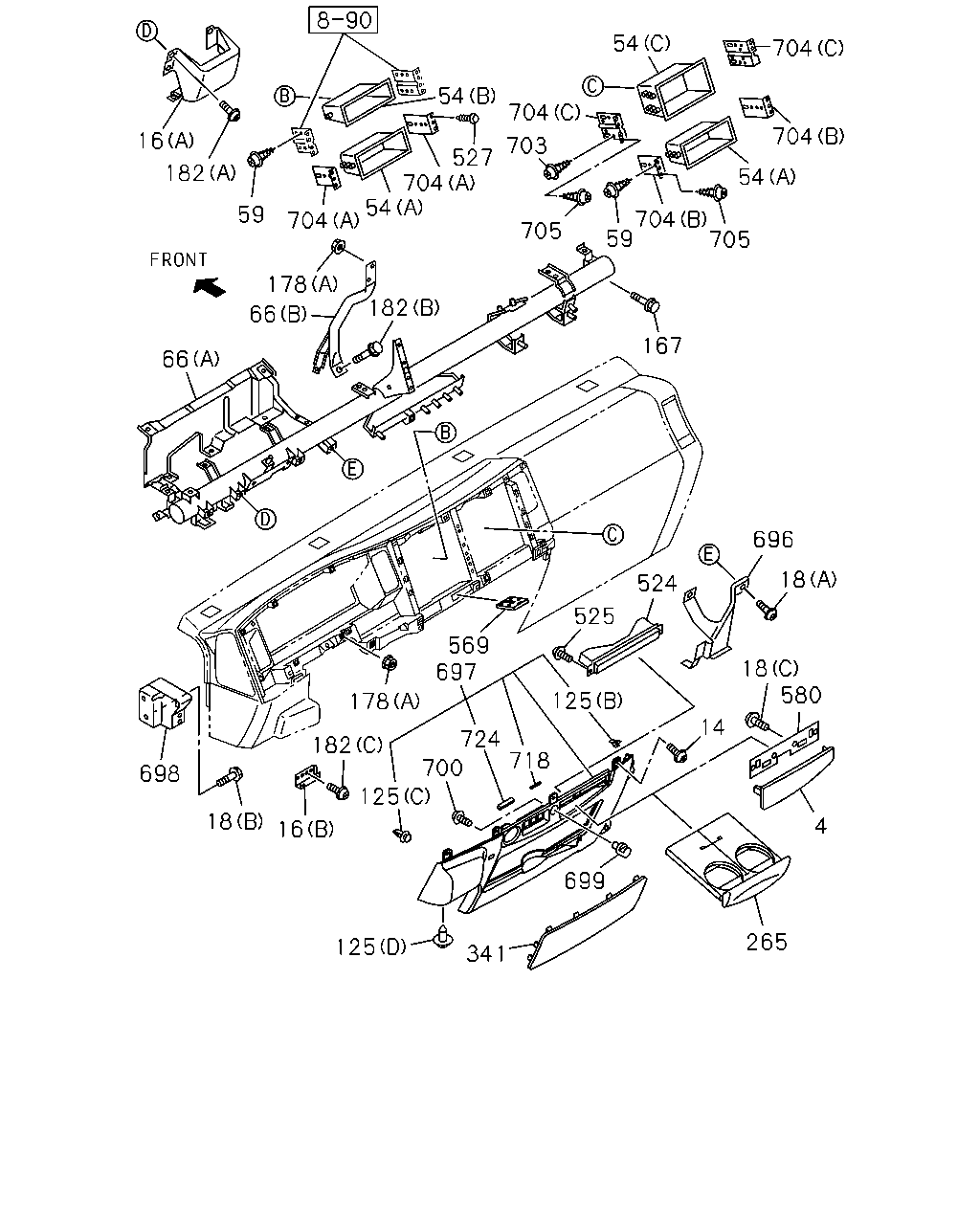

çizim 159436
54 704 704 54 705 704 59 705 704 703 527 54 704 54 704 182 178 66 59 182 16 167 696 18 524 18 580 14 4 525 125 265 699 718 724 700 569 697 178 125 341 125 16 182 18 698 66
BalonParca AdiParca NoAdetTipApplied Date A B
4 16.080 COVER; INST PNL
EXC. CUP HOLDER<7KZ> GRAY 		8-97407-898-1 01 1 0911-1108 ●
4 16.080 COVER; INST PNL
EXC. CUP HOLDER<7KZ> GRAY 		8-97407-898-1 01 1 1109- ● ●
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0911-1101 ●
14 16.085 SCREW; INST PNL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-1108 ●
14 16.085 SCREW; INST PNL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1109-1212 ● ●
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301- ● ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 0911-1108 ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 1109- ● ●
16 16.085 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 0911-1108 ●
16 16.085 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 1109- ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 0911-1108 ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 1109-1211 ● ●
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 1212- ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 1212- ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97585-612-2 01 1 0911-1108 ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97585-612-2 01 1 1109-1211 ● ●
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97585-612-2 01 1 1212- ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97585-612-2 01 1 1212- ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98093-380-3 01 1 1212-1503 ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98278-076-0 01 1 1504- ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0911-1101 ●
18 16.085 BOLT; BRKT
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1102-1108 ●
18 16.085 BOLT; BRKT
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1109-1212 ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301- ● ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 0911-1108 ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 1109- ● ●
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 0911-1108 ●
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1109- ● ●
18 16.085 BOLT; BRKT
09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0911-1104 ●
18 16.085 BOLT; BRKT
IDENTIFICATION LABEL FOR KD<6UT> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1105-1108 ●
18 16.085 BOLT; BRKT
09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1109-1111 ●
18 16.085 BOLT; BRKT
TACHOGRAPH DIGITAL<EBB> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1109-1111 ●
18 16.085 BOLT; BRKT
TACHOGRAPH DIGITAL<EBB> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1112-1112 ● ●
18 16.085 BOLT; BRKT
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1112-1211 ●
18 16.085 BOLT; BRKT
TACHOGRAPH DIGITAL<EBB> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1112-1211 ●
18 16.085 BOLT; BRKT
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> IDENTIFICATION LABEL FOR KD<6UT> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1212- ●
18 16.085 BOLT; BRKT
TACHOGRAPH DIGITAL<EBB> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1212- ●
54 16.100 POCKET; CENTER CLUSTER
(A) H=69.8 BLACK 		8-97408-865-2 01 1 0911-1108 ●
54 16.100 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) H=69.8 BLACK 		8-97408-865-2 01 1 0911-1108 ●
54 16.100 POCKET; CENTER CLUSTER
(A) H=69.8 BLACK 		8-97408-865-3 01 1 1109-1211 ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) H=69.8 BLACK 		8-97408-865-3 01 1 1109-1211 ● ●
54 16.100 POCKET; CENTER CLUSTER
(A) H=69.8 BLACK 		8-97408-865-3 01 1 1212- ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (A) H=69.8 BLACK 		8-97408-865-3 01 1 1212- ●
54 16.100 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) H=69.8 BLACK 		8-97408-865-3 01 1 1212- ●
54 16.100 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-2 01 1 0911-1108 ●
54 16.100 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-2 01 1 1109-1211 ● ●
54 16.100 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1212- ● ●
54 16.100 POCKET; CENTER CLUSTER
TACHOGRAPH 140KM/H<SM8> (B) H=58.4 BLACK 		8-97408-864-3 01 1 1212- ●
54 16.100 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH DIGITAL<EBB> (C) H=108.4 BLACK 		8-97407-129-3 01 1 1109-1111 ●
54 16.100 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (C) H=108.4 BLACK 		8-97407-129-3 01 1 1112-1211 ●
54 16.100 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH DIGITAL<EBB> (C) H=108.4 BLACK 		8-97407-129-3 01 1 1112-1211 ●
54 16.100 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH 140KM/H<SM8>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (C) H=108.4 BLACK 		8-97407-129-3 01 1 1212- ●
54 16.100 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH DIGITAL<EBB> (C) H=108.4 BLACK 		8-97407-129-3 01 1 1212- ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0911-0911 ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0911-0911 ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0911-1108 ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0911-1108 ●
59 16.100 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0911-1108 ●
59 16.100 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1109-1211 ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1109-1211 ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1109-1211 ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1212- ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1212- ● ●
59 16.100 SCREW; CLUSTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1212- ●
59 16.100 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<SM8> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1212- ●
59 16.100 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1212- ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98192-945-0 01 1 1310- ● ●
66 16.085 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5>,KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98192-944-0 01 1 1310- ● ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98098-028-3 01 1 0911-1108 ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98098-028-3 01 1 1109-1309 ● ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98098-028-3 01 1 1310- ● ●
66 16.085 REINFORCEMENT; INST PANEL
(B) 		8-97585-579-1 01 1 0911-1108 ●
66 16.085 REINFORCEMENT; INST PANEL
(B) 		8-97585-579-1 01 1 1109- ● ●
66 16.085 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98089-365-3 01 1 0911-1108 ●
66 16.085 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98089-365-3 01 1 1109-1309 ● ●
66 16.085 REINFORCEMENT; INST PANEL
KD PREPARATORY PACK VAR.4<7TV> EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98089-365-3 01 1 1310- ● ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 0911-1108 ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 1109- ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 01 1 0911-1108 ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 01 1 1109- ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 02 1 0911-1108 ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 02 1 1109- ● ●
125 16.085 CLIP; INST PANEL
16.165 (C) 		8-98004-025-0 01 1 0911-1108 ●
125 16.085 CLIP; INST PANEL
16.165 (C) 		8-98004-025-0 01 1 1109- ● ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 0911-0911 ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 0912-1108 ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 1109- ● ●
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97418-529-0 02 1 0911-0911 ●
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97408-063-0 02 1 0912-1001 ●
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97419-968-1 02 1 1002-1108 ●
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97419-968-1 02 1 1109- ● ●
167 16.085 BOLT; REINF TO INST
16.090 M8X23 FLANGE 		8-97264-766-0 04 1 0911-1108 ●
167 16.085 BOLT; REINF TO INST
16.090 M8X23 FLANGE 		8-97264-766-0 04 1 1109- ● ●
178 16.085 NUT; INST PANEL
01.062 (A) M6 FLANGE 		0-91180-106-0 03 1 0911-1108 ●
178 16.085 NUT; INST PANEL
01.062 (A) M6 FLANGE 		0-91180-106-0 03 1 1109- ● ●
178 16.085 NUT; INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 1212- ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 0911-1101 ●
182 16.085 BOLT; BRKT,INST PANEL
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1102-1108 ●
182 16.085 BOLT; BRKT,INST PANEL
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1109-1212 ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1301- ● ●
182 16.085 BOLT; BRKT,INST PANEL
(B) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 0911-1108 ●
182 16.085 BOLT; BRKT,INST PANEL
(B) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 1109- ● ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0911-1101 ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1108 ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1109-1211 ● ●
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1212-1212 ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1212-1212 ●
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (D) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1212- ●
265 16.100 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97418-528-0 01 1 0911-1108 ●
265 16.100 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97418-528-0 01 1 1109- ● ●
341 16.110 LID; FUSE BOX
GRAY 		8-97406-043-1 01 1 0911-1108 ●
341 16.110 LID; FUSE BOX
GRAY 		8-97406-043-1 01 1 1109-1205 ● ●
341 16.110 LID; FUSE BOX
GRAY 		8-97423-659-0 01 1 1206- ● ●
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-98054-414-0 01 1 0911-1108 ●
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-98054-414-0 01 1 1109- ● ●
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0911-1101 ●
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1102-1108 ●
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1109-1212 ● ●
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1301- ● ●
527 16.100 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.742 DARK GRAY 		8-97098-326-0 01 1 0911-1108 ●
527 16.100 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.742 DARK GRAY 		8-97098-326-0 01 1 1109-1211 ● ●
527 16.100 CLIP; INST CLUSTER
EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.742 DARK GRAY 		8-97098-326-0 01 1 1212- ●
527 16.100 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.742 DARK GRAY 		8-97098-326-0 01 1 1212- ●
569 16.100 HOLDER; CARD 8-97410-276-1 01 1 0911-1108 ●
569 16.100 HOLDER; CARD 8-97410-276-1 01 1 1109- ● ●
580 16.080 BRACKET; COVER
EXC. CUP HOLDER<7KZ> 		8-98091-546-0 01 1 0911-1108 ●
580 16.080 BRACKET; COVER
EXC. CUP HOLDER<7KZ> 		8-98091-546-0 01 1 1109- ● ●
696 16.085 BRACKET; KNEE 8-98098-126-0 01 1 0911-1108 ●
696 16.085 BRACKET; KNEE 8-98098-126-0 01 1 1109-1109 ● ●
696 16.085 BRACKET; KNEE 8-98071-234-0 01 1 1110-1211 ● ●
696 16.085 BRACKET; KNEE 8-98201-847-0 01 1 1212- ● ●
697 16.080 PANEL; INST CENTER
GRAY 		8-97405-999-8 01 1 0911-1108 ●
697 16.080 PANEL; INST CENTER
GRAY 		8-97405-999-8 01 1 1109-1205 ● ●
697 16.080 PANEL; INST CENTER
GRAY 		8-97423-657-1 01 1 1206- ● ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 0911-1108 ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 1109- ● ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 0911-1108 ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 1109- ● ●
699 16.081 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0911-1108 ●
699 16.081 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1109- ● ●
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0911-1101 ●
700 16.090 BOLT; HOOK
SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1108 ●
700 16.090 BOLT; HOOK
SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1109-1212 ● ●
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ●
703 16.085 SCREW; CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB> 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1109-1111 ●
703 16.085 SCREW; CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1112-1211 ●
703 16.085 SCREW; CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB> 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1112-1211 ●
703 16.085 SCREW; CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH 140KM/H<SM8>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1212- ●
703 16.085 SCREW; CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB> 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1212- ●
704 16.085 BRACKET; CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB> (C) 		8-97585-618-2 02 1 1109-1111 ●
704 16.085 BRACKET; CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (C) 		8-97585-618-2 02 1 1112- ●
704 16.085 BRACKET; CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB> (C) 		8-97585-618-2 02 1 1112- ●
704 16.085 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 0911-1108 ●
704 16.085 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1109- ● ●
704 16.085 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98107-549-0 02 1 0911-1108 ●
704 16.085 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98107-549-0 02 1 1109-1211 ● ●
704 16.085 BRACKET; CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (A) 		8-98107-549-0 02 1 1212- ●
704 16.085 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98107-549-0 02 1 1212- ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0911-1101 ●
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1102-1108 ●
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1109-1111 ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB> M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1109-1111 ●
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1112-1212 ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1112-1212 ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB> M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1112-1212 ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301- ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301- ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB> 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301- ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0911-1101 ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1102-1108 ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1109-1211 ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1212-1212 ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1212-1212 ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1301- ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1301- ●
718 16.100 SEAL; COVER
5X30 		8-98176-199-0 01 1 1206- ● ●
718 16.100 SEAL; COVER
8X80 		8-98200-040-0 01 1 1110- ● ●
718 16.100 SEAL; COVER
4X35 		8-98200-041-0 01 1 1110- ● ●
724 16.085 INSULATOR; INST PANEL 8-98200-042-0 01 1 1110- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
