◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51244 - NPR(LHD) EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#50540) — 82 parça

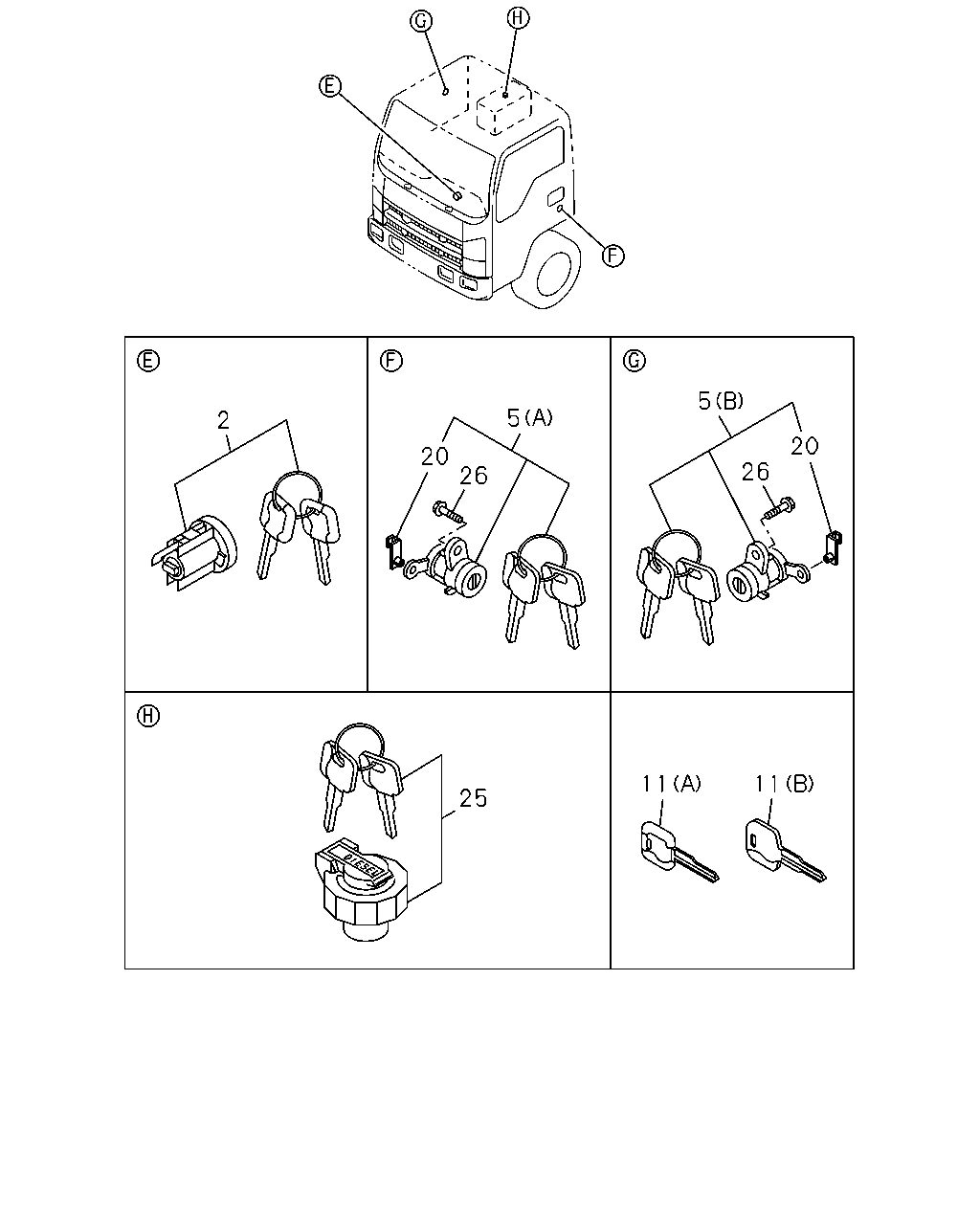

çizim 159396
5 5 2 20 20 26 26 11 11 25
BalonParca AdiParca NoAdetTipApplied Date A B
2 02.188 BARREL ASM; W/KEY,STRG LOCK
ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) 		8-98201-342-0 01 1 1212- ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> 		8-98201-352-0 01 1 1212- ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
EXC. IMMOBILIZER SYSTEM(7KC) 		8-98055-148-0 01 1 1105-1108 ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK 8-98055-147-0 01 1 0911-1104 ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
IMMOBILIZER SYSTEM(7KC) 		8-98055-147-0 01 1 1105-1108 ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK 8-98055-147-0 01 1 1109-1203 ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK 8-98201-341-0 01 1 1204-1211 ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
IMMOBILIZER SYSTEM(7KC) 		8-98201-341-0 01 1 1212- ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK 8-98201-341-0 01 1 1212- ●
5 16.328 CYLINDER ASM; DOOR LOCK
(B) 		8-98055-149-0 01 1 0911-1108 ●
5 16.328 CYLINDER ASM; DOOR LOCK
(B) 		8-98055-149-0 01 1 1109-1211 ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-149-0 01 1 1212-1408 ●
5 16.328 CYLINDER ASM; DOOR LOCK
ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-149-0 01 1 1212-1408 ●
5 16.328 CYLINDER ASM; DOOR LOCK
(B) 		8-98055-149-0 01 1 1212-1408 ●
5 16.328 CYLINDER ASM; DOOR LOCK
ISUZU BRAND<7WL> (B) 		8-98055-149-0 01 1 1409-1510 ●
5 16.328 CYLINDER ASM; DOOR LOCK
(B) 		8-98055-149-0 01 1 1409-1510 ●
5 16.328 CYLINDER ASM; DOOR LOCK
IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-149-0 01 1 1511- ●
5 16.328 CYLINDER ASM; DOOR LOCK
ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-149-0 01 1 1511- ●
5 16.328 CYLINDER ASM; DOOR LOCK
(B) 		8-98055-149-0 01 1 1511- ●
5 16.328 CYLINDER ASM; DOOR LOCK
EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> (B) 		8-98055-161-0 01 1 1212- ●
5 16.328 CYLINDER ASM; DOOR LOCK
(A) 		8-98055-150-0 01 1 0911-1108 ●
5 16.328 CYLINDER ASM; DOOR LOCK
(A) 		8-98055-150-0 01 1 1109-1211 ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
IMMOBILIZER SYSTEM(7KC) (A) 		8-98055-150-0 01 1 1212-1408 ●
5 16.328 CYLINDER ASM; DOOR LOCK
ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (A) 		8-98055-150-0 01 1 1212-1408 ●
5 16.328 CYLINDER ASM; DOOR LOCK
(A) 		8-98055-150-0 01 1 1212-1408 ●
5 16.328 CYLINDER ASM; DOOR LOCK
ISUZU BRAND<7WL> (A) 		8-98055-150-0 01 1 1409-1510 ●
5 16.328 CYLINDER ASM; DOOR LOCK
(A) 		8-98055-150-0 01 1 1409-1510 ●
5 16.328 CYLINDER ASM; DOOR LOCK
IMMOBILIZER SYSTEM(7KC) (A) 		8-98055-150-0 01 1 1511- ●
5 16.328 CYLINDER ASM; DOOR LOCK
ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (A) 		8-98055-150-0 01 1 1511- ●
5 16.328 CYLINDER ASM; DOOR LOCK
(A) 		8-98055-150-0 01 1 1511- ●
5 16.328 CYLINDER ASM; DOOR LOCK
EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> (A) 		8-98055-162-0 01 1 1212- ●
11 02.187 KEY; BLANK
(A) IMMOBILIZER 		8-98055-168-0 AR 1 0911-1104 ●
11 02.187 KEY; BLANK
IMMOBILIZER SYSTEM(7KC) (A) IMMOBILIZER 		8-98055-168-0 AR 1 1105-1108 ●
11 02.187 KEY; BLANK
(A) IMMOBILIZER 		8-98055-168-0 AR 1 1109-1211 ● ●
11 02.187 KEY; BLANK
IMMOBILIZER SYSTEM(7KC) (A) IMMOBILIZER 		8-98055-168-0 AR 1 1212- ●
11 02.187 KEY; BLANK
(A) IMMOBILIZER 		8-98055-168-0 AR 1 1212- ●
11 02.187 KEY; BLANK
(B) 		8-98055-170-0 AR 1 0911-1108 ●
11 02.187 KEY; BLANK
(B) 		8-98055-170-0 AR 1 1109-1211 ● ●
11 02.187 KEY; BLANK
IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-170-0 AR 1 1212-1408 ●
11 02.187 KEY; BLANK
ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-170-0 AR 1 1212-1408 ●
11 02.187 KEY; BLANK
(B) 		8-98055-170-0 AR 1 1212-1408 ●
11 02.187 KEY; BLANK
ISUZU BRAND<7WL> (B) 		8-98055-170-0 AR 1 1409-1510 ●
11 02.187 KEY; BLANK
(B) 		8-98055-170-0 AR 1 1409-1510 ●
11 02.187 KEY; BLANK
IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-170-0 AR 1 1511- ●
11 02.187 KEY; BLANK
ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-170-0 AR 1 1511- ●
11 02.187 KEY; BLANK
(B) 		8-98055-170-0 AR 1 1511- ●
11 02.187 KEY; BLANK
EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> (B) 		8-98055-171-0 AR 1 1212- ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 0911-1108 ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1109- ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 0911-1108 ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1109- ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> 		8-98146-014-0 01 1 1212- ●
25 03.028 CAP; FUEL TANK,W/KEY 8-98146-010-0 01 1 0911-1104 ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> 		8-98146-010-0 01 1 1105-1108 ●
25 03.028 CAP; FUEL TANK,W/KEY 8-98146-010-0 01 1 1109-1211 ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM(7KC) 		8-98146-010-0 01 1 1212-1408 ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) 		8-98146-010-0 01 1 1212-1408 ●
25 03.028 CAP; FUEL TANK,W/KEY 8-98146-010-0 01 1 1212-1408 ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> 		8-98146-010-0 01 1 1409- ●
25 03.028 CAP; FUEL TANK,W/KEY 8-98146-010-0 01 1 1409- ●
26 16.328 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-98031-839-0 02 1 0911-1108 ●
26 16.328 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-98031-839-0 02 1 1109- ● ●
çizim 159408
1 20 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) 		8-98201-216-0 01 1 1212- ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> 		8-98201-230-0 01 1 1212- ●
1 02.188 CYLINDER SET; CAR LOCK
IMMOBILIZER SYSTEM(7KC) EXC. FUEL TANK CAP W/LOCK<N05> 		8-98201-160-0 01 1 1212-1408 ●
1 02.188 CYLINDER SET; CAR LOCK
IMMOBILIZER SYSTEM(7KC) ISUZU BRAND<7WL> EXC. FUEL TANK CAP W/LOCK<N05> 		8-98201-160-0 01 1 1409-1510 ●
1 02.188 CYLINDER SET; CAR LOCK
IMMOBILIZER SYSTEM(7KC) EXC. FUEL TANK CAP W/LOCK<N05> 		8-98201-160-0 01 1 1511- ●
1 02.188 CYLINDER SET; CAR LOCK
ISUZU BRAND<7WL> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) 		8-98201-161-0 01 1 1212- ●
1 02.188 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> 		8-98201-158-0 01 1 1212- ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> EXC. IMMOBILIZER SYSTEM(7KC) 		8-98145-979-0 01 1 1105-1108 ●
1 02.188 CYLINDER SET; CAR LOCK
IMMOBILIZER SYSTEM(7KC) EXC. FUEL TANK CAP W/LOCK<N05> 		8-98041-686-1 01 1 1105-1108 ●
1 02.188 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) 		8-98056-003-0 01 1 1105-1108 ●
1 02.188 CYLINDER SET; CAR LOCK 8-98145-977-0 01 1 0911-1104 ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM(7KC) 		8-98145-977-0 01 1 1105-1108 ●
1 02.188 CYLINDER SET; CAR LOCK 8-98145-977-0 01 1 1109-1203 ● ●
1 02.188 CYLINDER SET; CAR LOCK 8-98201-214-0 01 1 1204-1211 ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM(7KC) 		8-98201-214-0 01 1 1212- ●
1 02.188 CYLINDER SET; CAR LOCK 8-98201-214-0 01 1 1212- ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 0911-1108 ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1109- ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 0911-1108 ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1109- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
