◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51244 - NPR(LHD) EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#50538) — 49 parça

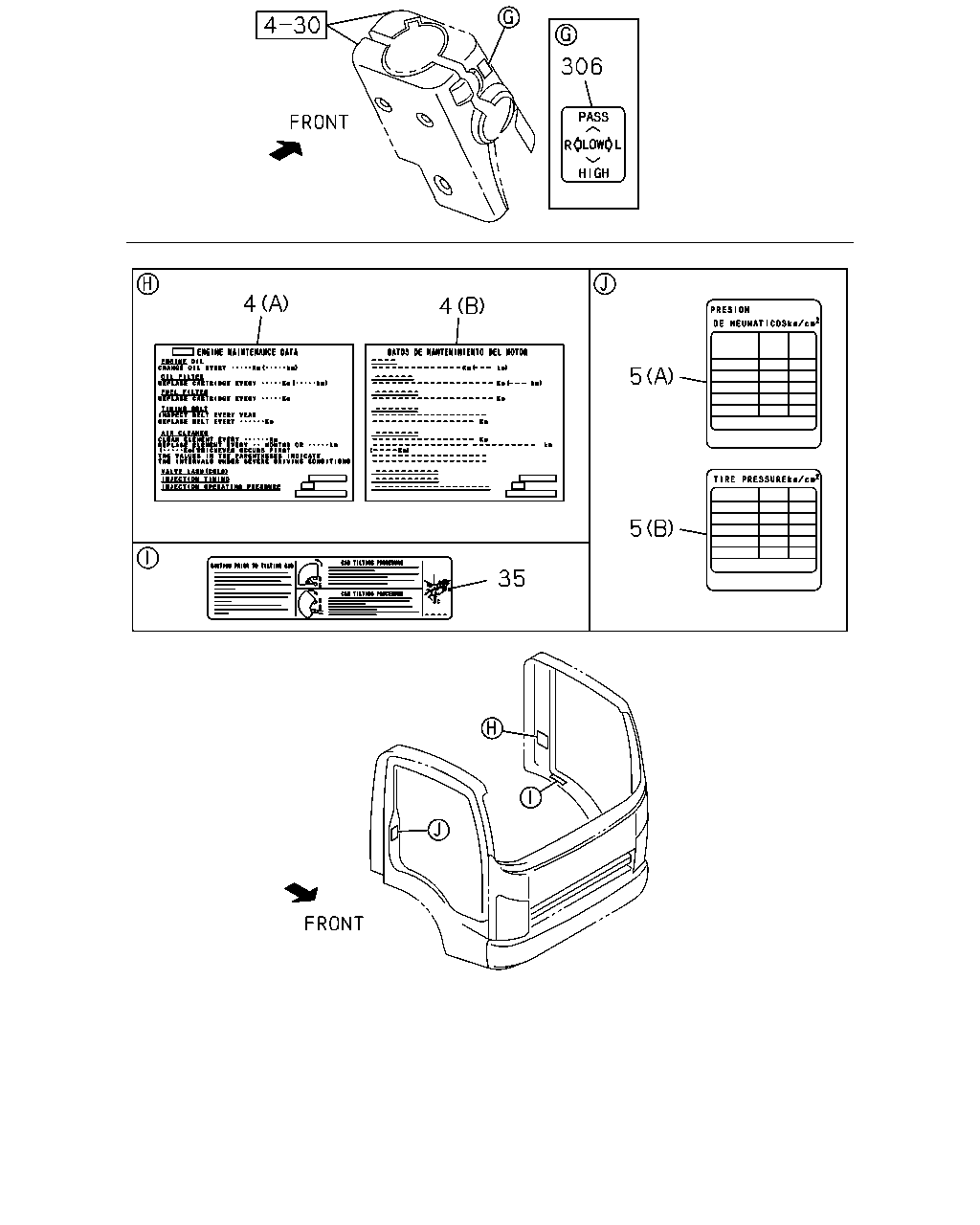

çizim 159405
306 4 4 5 5 35
BalonParca AdiParca NoAdetTipApplied Date A B
4 00.004 LABEL; ENG MAINTENANCE
4JJ1-TCS ENG(LFB) CAUTION SPANISH<YN1> (B) 		8-98030-803-1 01 1 1109- ●
4 00.004 LABEL; ENG MAINTENANCE
4JJ1-TCS ENG(LFB) EXC. CAUTION SPANISH<YN1> (A) 		8-98030-757-0 01 1 1109- ●
4 00.004 LABEL; ENG MAINTENANCE
4HK1-TCN ENG(RDQ) CAUTION SPANISH<YN1> (B) 		8-98013-424-0 01 1 0911-1108 ●
4 00.004 LABEL; ENG MAINTENANCE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) CAUTION SPANISH<YN1> (B) 		8-98013-424-0 01 1 1109- ●
4 00.004 LABEL; ENG MAINTENANCE
4HK1-TCN ENG(RDQ) EXC. CAUTION SPANISH<YN1> (A) 		8-98013-423-0 01 1 0911-1108 ●
4 00.004 LABEL; ENG MAINTENANCE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. CAUTION SPANISH<YN1> (A) 		8-98013-423-0 01 1 1109- ●
5 05.880 LABEL; TIRE AIR PRESSURE
CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 0911-1108 ●
5 05.880 LABEL; TIRE AIR PRESSURE
CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 1109- ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 0911-1108 ●
5 05.880 LABEL; TIRE AIR PRESSURE
EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 1109- ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> 		8-98070-512-0 01 1 0911-1108 ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> 		8-98070-512-0 01 1 1109- ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> 		8-98067-809-0 01 1 0911-1108 ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> 		8-98067-809-0 01 1 1109- ● ●
306 08.808 LABEL; BEAM & PASS 8-98070-239-0 01 1 0911-1108 ●
306 08.808 LABEL; BEAM & PASS 8-98070-239-0 01 1 1109- ● ●

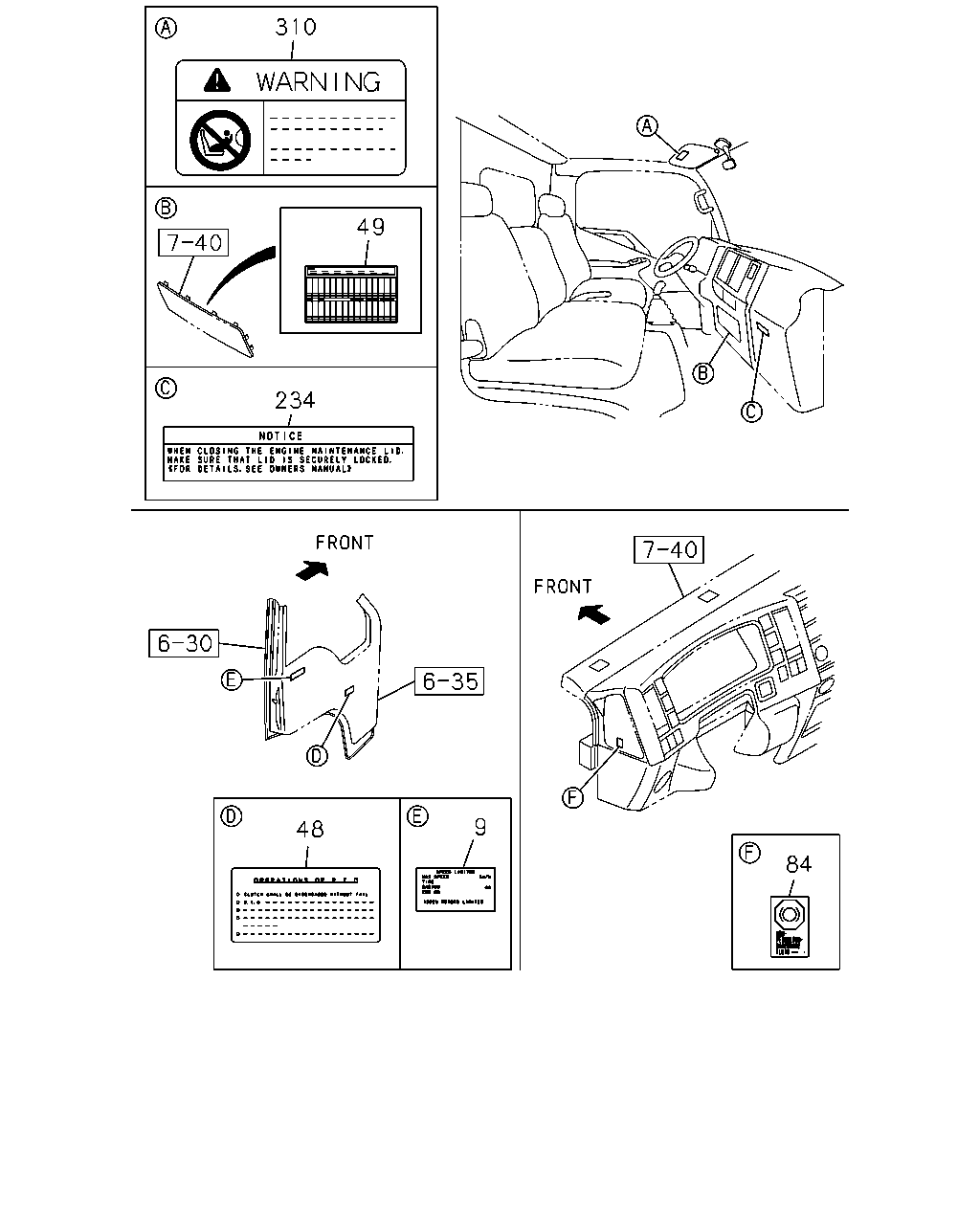

çizim 159415
310 49 234 9 48 84
BalonParca AdiParca NoAdetTipApplied Date A B
9 08.808 PLATE; NAME,SPD RANGE
4HK1-TCN ENG(RDQ) SPEED LIMITER 90KM(NMJ) IMMOBILIZER SYSTEM(7KC) 		8-98194-533-0 01 1 1107-1108 ●
9 08.808 PLATE; NAME,SPD RANGE
4HK1-TCN ENG(RDQ) SPEED LIMITER 90KM(NMJ) 		8-98194-533-0 01 1 1109-1211 ●
9 08.808 PLATE; NAME,SPD RANGE
4HK1-TCN ENG(RDQ) F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SI LVER(CRV) TURKEY EQUIPMENT(B11) SPEED LIMITER 90KM(NMJ) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98194-533-0 01 1 1212- ●
9 08.808 PLATE; NAME,SPD RANGE
4HK1-TCS ENG(RJS) SPEED LIMITER 90KM(NMJ) 		8-98136-159-2 01 1 1109-1211 ●
9 08.808 PLATE; NAME,SPD RANGE
4HK1-TCS ENG(RJS) F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SI LVER(CRV) TURKEY EQUIPMENT(B11) SPEED LIMITER 90KM(NMJ) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98136-159-2 01 1 1212- ●
48 08.808 PLATE; CAUTION,PTO
CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) 		8-94313-054-0 01 1 0911-1108 ●
48 08.808 PLATE; CAUTION,PTO
CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) 		8-94313-054-0 01 1 1109-1211 ● ●
48 08.808 PLATE; CAUTION,PTO
CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-94313-054-0 01 1 1212- ●
48 08.808 PLATE; CAUTION,PTO
CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) 		8-94313-054-0 01 1 1212- ●
48 08.808 PLATE; CAUTION,PTO
PTO MANUAL CONTROL(6WC) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 0911-1108 ●
48 08.808 PLATE; CAUTION,PTO
PTO MANUAL CONTROL(6WC) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 1109-1211 ● ●
48 08.808 PLATE; CAUTION,PTO
PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 1212- ●
48 08.808 PLATE; CAUTION,PTO
PTO MANUAL CONTROL(6WC) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 1212- ●
48 08.808 PLATE; CAUTION,PTO
CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98091-102-0 01 1 1212- ●
48 08.808 PLATE; CAUTION,PTO
PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. CAUTION SPANISH<YN1> 		8-98090-262-0 01 1 1212- ●
49 08.808 PLATE; CAUTION,FUSE BOX 8-98090-175-0 01 1 0911-1108 ●
49 08.808 PLATE; CAUTION,FUSE BOX 8-98090-175-0 01 1 1109- ● ●
84 08.808 PLATE; CAUTION,BRAKE FLUID 8-98022-836-1 01 1 0911-1108 ●
84 08.808 PLATE; CAUTION,BRAKE FLUID 8-98022-836-1 01 1 1109-1211 ● ●
84 08.808 PLATE; CAUTION,BRAKE FLUID
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) 		8-98022-836-1 01 1 1212- ●
84 08.808 PLATE; CAUTION,BRAKE FLUID 8-98022-836-1 01 1 1212- ●
234 08.808 PLATE; CAUTION,ENG COVER
CAUTION SPANISH<YN1> INSPECTION ENGINE COVER<8GA> 		8-98071-067-0 01 1 0911-1108 ●
234 08.808 PLATE; CAUTION,ENG COVER
CAUTION SPANISH<YN1> INSPECTION ENGINE COVER<8GA> 		8-98071-067-0 01 1 1109- ● ●
234 08.808 PLATE; CAUTION,ENG COVER
INSPECTION ENGINE COVER<8GA> EXC. CAUTION SPANISH<YN1> 		8-97994-545-0 01 1 0911-1108 ●
234 08.808 PLATE; CAUTION,ENG COVER
INSPECTION ENGINE COVER<8GA> EXC. CAUTION SPANISH<YN1> 		8-97994-545-0 01 1 1109- ● ●
310 08.808 LABEL; WARNING,SRS
AIR BAG DRIVER & PASSENGER<AK5> 		8-98080-839-0 01 1 0911-1108 ●
310 08.808 LABEL; WARNING,SRS
AIR BAG DRIVER & PASSENGER<AK5> 		8-98080-839-0 01 1 1109- ● ●
çizim 159539
96 2 96
BalonParca AdiParca NoAdetTipApplied Date A B
2 03.680 LABEL; FUEL CAUTION
4JJ1-TCS ENG(LFB) CAUTION SPANISH<YN1> 		8-98083-876-0 01 1 1109- ●
2 03.680 LABEL; FUEL CAUTION
4JJ1-TCS ENG(LFB) EXC. CAUTION SPANISH<YN1> 08.808 		8-98036-252-0 01 1 1109- ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JJ1-TCS ENG(LFB) CAUTION SPANISH<YN1> (A) 		8-98036-112-0 01 1 1109- ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JJ1-TCS ENG(LFB) CAUTION SPANISH<YN1> (B) 		8-98036-733-0 01 1 1109- ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JJ1-TCS ENG(LFB) EXC. CAUTION SPANISH<YN1> (A) 		8-98036-111-1 01 1 1109- ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JJ1-TCS ENG(LFB) EXC. CAUTION SPANISH<YN1> (B) 		8-98036-732-0 01 1 1109- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
