6-90 — REAR BUMPER (#50536) — 90 parça

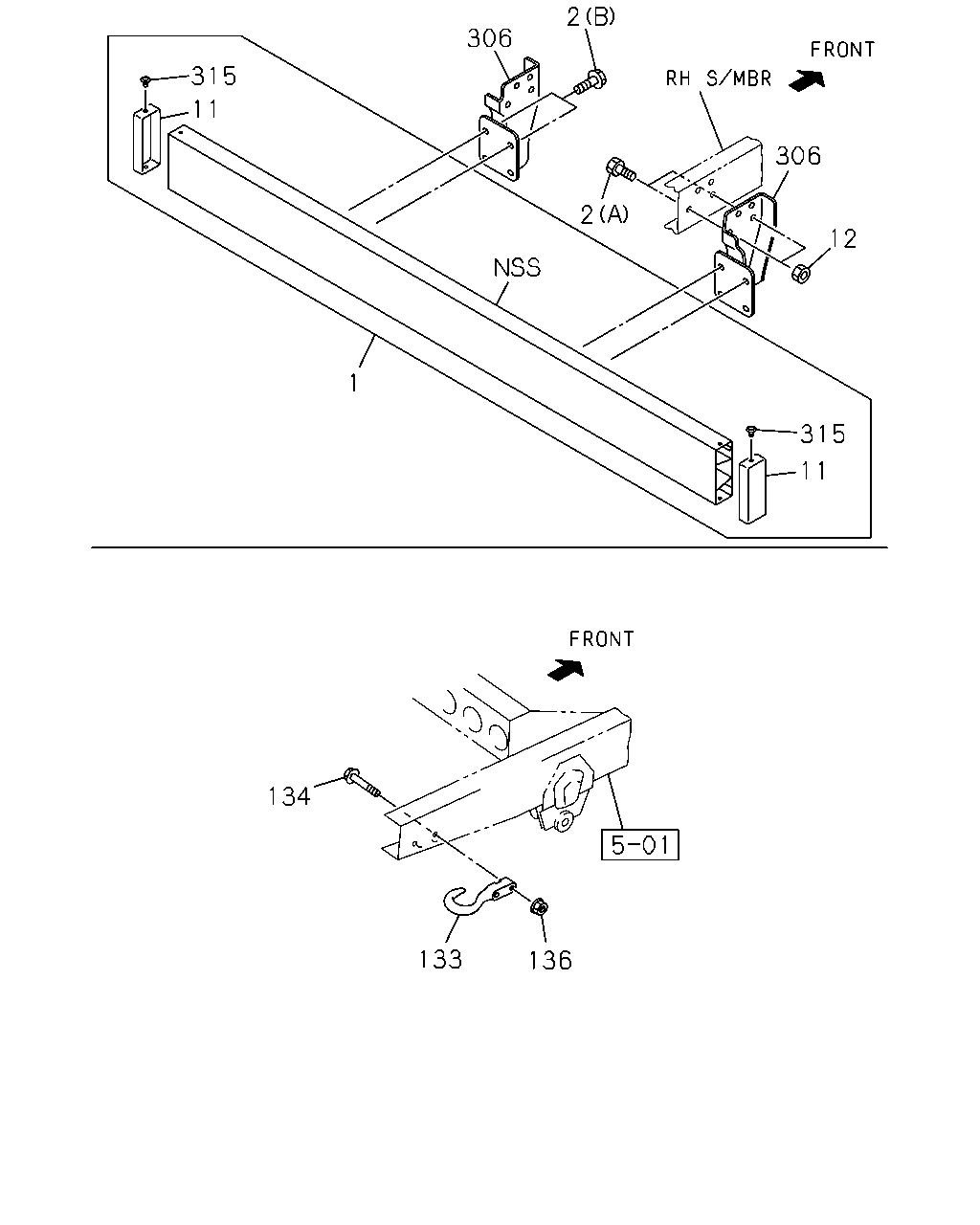

12 315 11 136 133 134 1 11 315 306 2 2 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	07.070 BUMPER; RR STAMP D8P	8-98088-674-0	01	1	1109-1503	●
1	07.070 BUMPER; RR STAMP D8P	8-98088-674-0	01	1	1504-	●
1	07.070 BUMPER; RR STAMP D8Q	8-98088-675-0	01	1	0911-1211		●
1	07.070 BUMPER; RR WIDE ALUMINUM REAR BUMPER<7HZ> STAMP D8Q	8-98088-675-0	01	1	1212-		●
2	07.874 BOLT; BACK BAR WIDE ALUMINUM REAR BUMPER<7HZ> (A) M14X30	0-20851-430-0	04	1	1212-	●	●
2	07.874 BOLT; BACK BAR WIDE ALUMINUM REAR BUMPER<7HZ> (A) M14X30	0-20851-430-0	04	1	1212-	●	●
2	07.874 BOLT; BACK BAR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) WIDE ALUMINUM REAR BUMPER<7HZ> EXC. TURKEY EQUIPMENT(B11) (A) M14X30	0-20851-430-0	02	1	1504-		●
2	07.874 BOLT; BACK BAR (A) M14X30	0-20851-430-0	08	1	0911-1108		●
2	07.874 BOLT; BACK BAR (A) M14X30	0-20851-430-0	08	1	1109-1211	●	●
2	07.874 BOLT; BACK BAR TURKEY EQUIPMENT(B11) WIDE ALUMINUM REAR BUMPER<7HZ> (A) M14X30	0-20851-430-0	08	1	1212-		●
2	07.874 BOLT; BACK BAR (A) M14X30	0-20851-430-0	08	1	1212-	●
2	07.874 BOLT; BACK BAR 07.395 (B) M12X30 FLANGE	0-28651-230-0	08	1	0911-1108		●
2	07.874 BOLT; BACK BAR 07.395 (B) M12X30 FLANGE	0-28651-230-0	08	1	1109-1211	●	●
2	07.874 BOLT; BACK BAR WIDE ALUMINUM REAR BUMPER<7HZ> 07.395 (B) M12X30 FLANGE	0-28651-230-0	08	1	1212-		●
2	07.874 BOLT; BACK BAR 07.395 (B) M12X30 FLANGE	0-28651-230-0	08	1	1212-	●
11	07.829 CAP; RR BUMPER	8-98070-331-0	02	1	0911-1108		●
11	07.829 CAP; RR BUMPER	8-98070-331-0	02	1	1109-1211	●	●
11	07.829 CAP; RR BUMPER WIDE ALUMINUM REAR BUMPER<7HZ>	8-98070-331-0	02	1	1212-		●
11	07.829 CAP; RR BUMPER	8-98070-331-0	02	1	1212-	●
12	07.833 NUT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) WIDE ALUMINUM REAR BUMPER<7HZ> EXC. TURKEY EQUIPMENT(B11) 00.429 M14 FLANGE	0-91180-214-0	02	1	1212-		●
12	07.833 NUT; BRKT 00.429 M14 FLANGE	0-91180-214-0	08	1	0911-1002		●
12	07.833 NUT; BRKT 00.429 M14 FLANGE	0-91180-214-0	04	1	1003-1108		●
12	07.833 NUT; BRKT 00.429 M14 FLANGE	0-91180-214-0	04	1	1003-1108		●
12	07.833 NUT; BRKT 00.429 M14 FLANGE	0-91180-214-0	04	1	1109-1211	●	●
12	07.833 NUT; BRKT 00.429 M14 FLANGE	0-91180-214-0	04	1	1109-1211	●	●
12	07.833 NUT; BRKT WIDE ALUMINUM REAR BUMPER<7HZ> 00.429 M14 FLANGE	0-91180-214-0	04	1	1212-	●	●
12	07.833 NUT; BRKT WIDE ALUMINUM REAR BUMPER<7HZ> 00.429 M14 FLANGE	0-91180-214-0	04	1	1212-	●	●
133	07.112 HOOK EXC. TURKEY EQUIPMENT(B11) 07.068	8-94249-270-2	01	1	1212-		●
134	07.068 BOLT; HOOK IDENTIFICATION LABEL FOR KD<6UT> EXC. TURKEY EQUIPMENT(B11) 07.039 M14X50	0-10856-450-0	02	1	1212-		●
134	07.068 BOLT; HOOK EXC. TURKEY EQUIPMENT(B11), IDENTIFICATIONLABEL FOR KD<6UT> M14X60	0-10861-460-0	02	1	1212-		●
136	07.068 NUT; HOOK EXC. TURKEY EQUIPMENT(B11) 00.429 M14 FLANGE	0-91180-214-0	02	1	1212-		●
306	07.836 BAR; BACK,RR STAMP IA3	8-98039-408-0	01	1	0911-1108		●
306	07.836 BAR; BACK,RR STAMP IA3	8-98039-408-0	01	1	1109-1211	●	●
306	07.836 BAR; BACK,RR WIDE ALUMINUM REAR BUMPER<7HZ> STAMP IA3	8-98039-408-0	01	1	1212-		●
306	07.836 BAR; BACK,RR STAMP IA3	8-98039-408-0	01	1	1212-	●
306	07.836 BAR; BACK,RR STAMP IA3	8-98039-409-0	01	1	0911-1108		●
306	07.836 BAR; BACK,RR STAMP IA3	8-98039-409-0	01	1	1109-1211	●	●
306	07.836 BAR; BACK,RR WIDE ALUMINUM REAR BUMPER<7HZ> STAMP IA3	8-98039-409-0	01	1	1212-		●
306	07.836 BAR; BACK,RR STAMP IA3	8-98039-409-0	01	1	1212-	●
315	07.829 RIVET; CAP	1-71290-062-0	04	1	0911-1108		●
315	07.829 RIVET; CAP	1-71290-062-0	04	1	1109-1211	●	●
315	07.829 RIVET; CAP WIDE ALUMINUM REAR BUMPER<7HZ>	1-71290-062-0	04	1	1212-		●
315	07.829 RIVET; CAP	1-71290-062-0	04	1	1212-	●

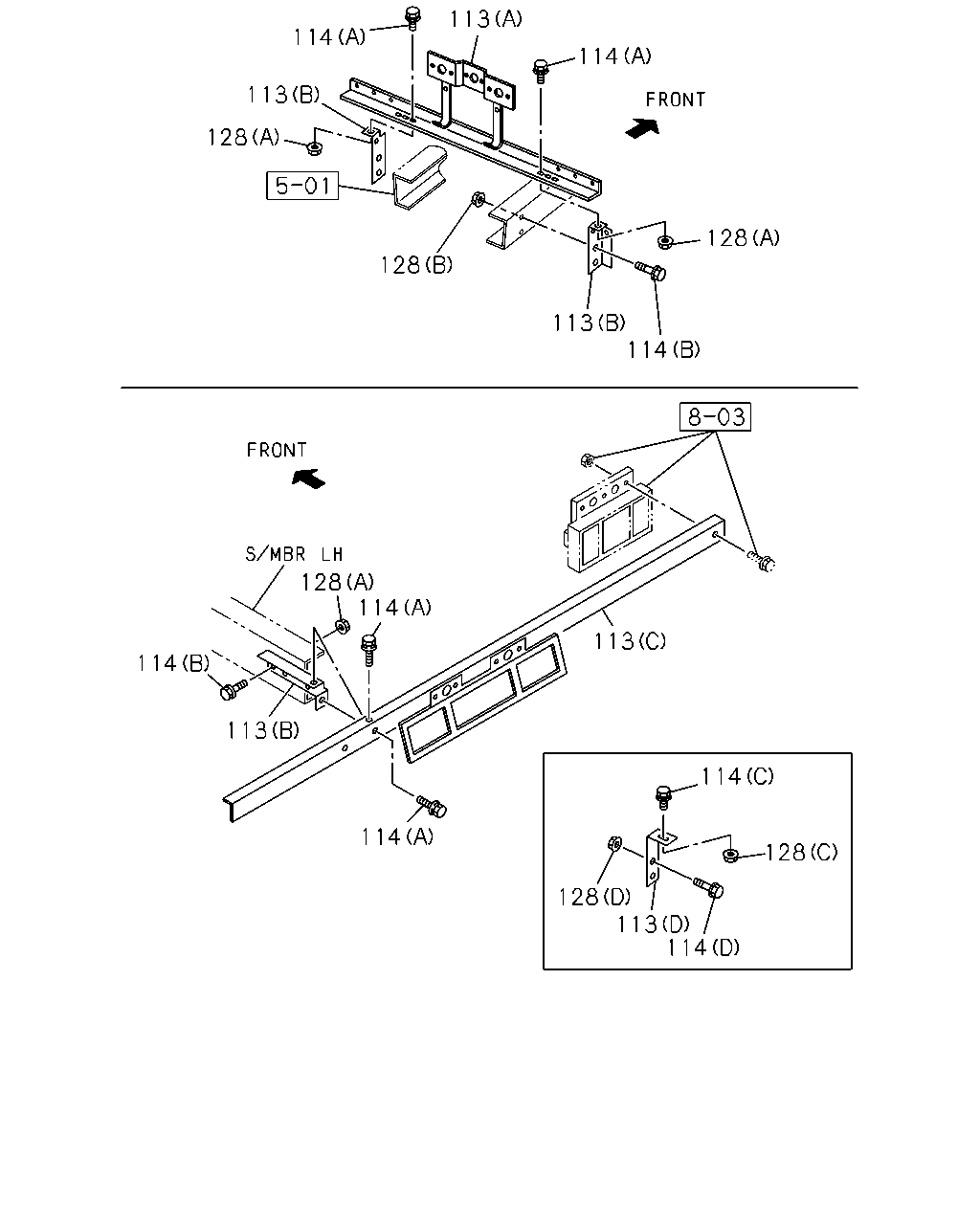

113 114 114 113 128 128 128 113 114 128 114 113 114 113 114 114 128 128 113 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
113	07.800 BRACKET; LICENSE PLATE (A)	8-98029-390-3	01	1	0911-1009		●
113	07.800 BRACKET; LICENSE PLATE DOOR MIRROR<6VE> (C)	8-98079-733-0	01	1	1010-1211		●
113	07.800 BRACKET; LICENSE PLATE TURKEY EQUIPMENT(B11) DOOR MIRROR<6VE> (C)	8-98079-733-0	01	1	1212-		●
113	07.800 BRACKET; LICENSE PLATE EXC. TURKEY EQUIPMENT(B11) (A)	8-98029-390-3	01	1	1212-1402		●
113	07.800 BRACKET; LICENSE PLATE TAIWAN EQUIPMENT(B04) (A)	8-98029-390-3	01	1	1403-		●
113	07.800 BRACKET; LICENSE PLATE (B)	8-98100-014-0	01	1	0911-1108		●
113	07.800 BRACKET; LICENSE PLATE (B)	8-98100-014-0	01	1	1109-1211	●	●
113	07.800 BRACKET; LICENSE PLATE TURKEY EQUIPMENT(B11) (B)	8-98100-014-0	01	1	1212-		●
113	07.800 BRACKET; LICENSE PLATE (B)	8-98100-014-0	01	1	1212-	●
113	07.800 BRACKET; LICENSE PLATE (B)	8-98100-015-0	01	1	0911-1108		●
113	07.800 BRACKET; LICENSE PLATE (B)	8-98100-015-0	01	1	1109-1211	●	●
113	07.800 BRACKET; LICENSE PLATE TURKEY EQUIPMENT(B11) (B)	8-98100-015-0	01	1	1212-		●
113	07.800 BRACKET; LICENSE PLATE (B)	8-98100-015-0	01	1	1212-	●
113	07.800 BRACKET; LICENSE PLATE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (C)	8-98079-734-0	01	1	1010-1211		●
113	07.800 BRACKET; LICENSE PLATE TURKEY EQUIPMENT(B11) O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (C)	8-98079-734-0	01	1	1212-		●
113	07.800 BRACKET; LICENSE PLATE EXC. DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (C)	8-98070-523-0	01	1	1010-1211		●
113	07.800 BRACKET; LICENSE PLATE TURKEY EQUIPMENT(B11) EXC. DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (C)	8-98070-523-0	01	1	1212-1402		●
113	07.800 BRACKET; LICENSE PLATE TURKEY EQUIPMENT(B11) O/SIDE MIRROR RR VIEW LONG ARM<DH2> (C)	8-98070-523-0	01	1	1403-		●
113	07.800 BRACKET; LICENSE PLATE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (C)	8-98079-147-0	01	1	1109-	●
113	07.800 BRACKET; LICENSE PLATE EXC. DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (C)	8-98079-732-0	01	1	1109-1402	●
113	07.800 BRACKET; LICENSE PLATE O/SIDE MIRROR RR VIEW LONG ARM<DH2> (C)	8-98079-732-0	01	1	1403-	●
113	07.800 BRACKET; LICENSE PLATE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (D)	8-98091-681-0	02	1	1105-1108		●
113	07.800 BRACKET; LICENSE PLATE DOOR MIRROR<6VE> (C)	8-98079-146-0	01	1	1109-	●
114	07.800 BOLT; BRKT,LICENSE PLATE 00.685 (A) M8X40 FLANGE	0-28650-840-0	02	1	0911-1009		●
114	07.800 BOLT; BRKT,LICENSE PLATE 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	1010-1108		●
114	07.800 BOLT; BRKT,LICENSE PLATE 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	1109-1211	●	●
114	07.800 BOLT; BRKT,LICENSE PLATE TURKEY EQUIPMENT(B11) 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	1212-1402		●
114	07.800 BOLT; BRKT,LICENSE PLATE 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	1212-1402	●
114	07.800 BOLT; BRKT,LICENSE PLATE TURKEY EQUIPMENT(B11) O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	1403-		●
114	07.800 BOLT; BRKT,LICENSE PLATE O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	1403-	●
114	07.800 BOLT; BRKT,LICENSE PLATE EXC. TURKEY EQUIPMENT(B11) 00.685 (A) M8X40 FLANGE	0-28650-840-0	02	1	1212-1402		●
114	07.800 BOLT; BRKT,LICENSE PLATE TAIWAN EQUIPMENT(B04) 00.685 (A) M8X40 FLANGE	0-28650-840-0	02	1	1403-		●
114	07.800 BOLT; BRKT,LICENSE PLATE 07.874 (B) M14X30	0-20851-430-0	04	1	0911-1108		●
114	07.800 BOLT; BRKT,LICENSE PLATE 07.874 (B) M14X30	0-20851-430-0	04	1	1109-1211	●	●
114	07.800 BOLT; BRKT,LICENSE PLATE TURKEY EQUIPMENT(B11) 07.874 (B) M14X30	0-20851-430-0	04	1	1212-		●
114	07.800 BOLT; BRKT,LICENSE PLATE 07.874 (B) M14X30	0-20851-430-0	04	1	1212-	●
114	07.800 BOLT; BRKT,LICENSE PLATE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 00.685 (C) M8X40 FLANGE	0-28650-840-0	02	1	1105-1108		●
114	07.800 BOLT; BRKT,LICENSE PLATE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 07.833 (D) M10X25 FLANGE	0-28661-025-0	04	1	1105-1108		●
128	02.662 NUT; CROSS PLATE 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0911-1009		●
128	02.662 NUT; CROSS PLATE EXC. TURKEY EQUIPMENT(B11) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1212-1402		●
128	02.662 NUT; CROSS PLATE TAIWAN EQUIPMENT(B04) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1403-		●
128	02.662 NUT; CROSS PLATE 00.429 (B) M14 FLANGE	0-91180-214-0	04	1	0911-1108		●
128	02.662 NUT; CROSS PLATE 00.429 (B) M14 FLANGE	0-91180-214-0	04	1	1109-1211	●	●
128	02.662 NUT; CROSS PLATE TURKEY EQUIPMENT(B11) 00.429 (B) M14 FLANGE	0-91180-214-0	04	1	1212-		●
128	02.662 NUT; CROSS PLATE 00.429 (B) M14 FLANGE	0-91180-214-0	04	1	1212-	●
128	02.662 NUT; CROSS PLATE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 01.062 (C) M8 FLANGE	0-91180-108-0	02	1	1105-1108		●
128	02.662 NUT; CROSS PLATE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (D) M10 FLANGE	0-91180-110-0	04	1	1105-1108		●
