6-84 — BACK TRIM (#50535) — 18 parça

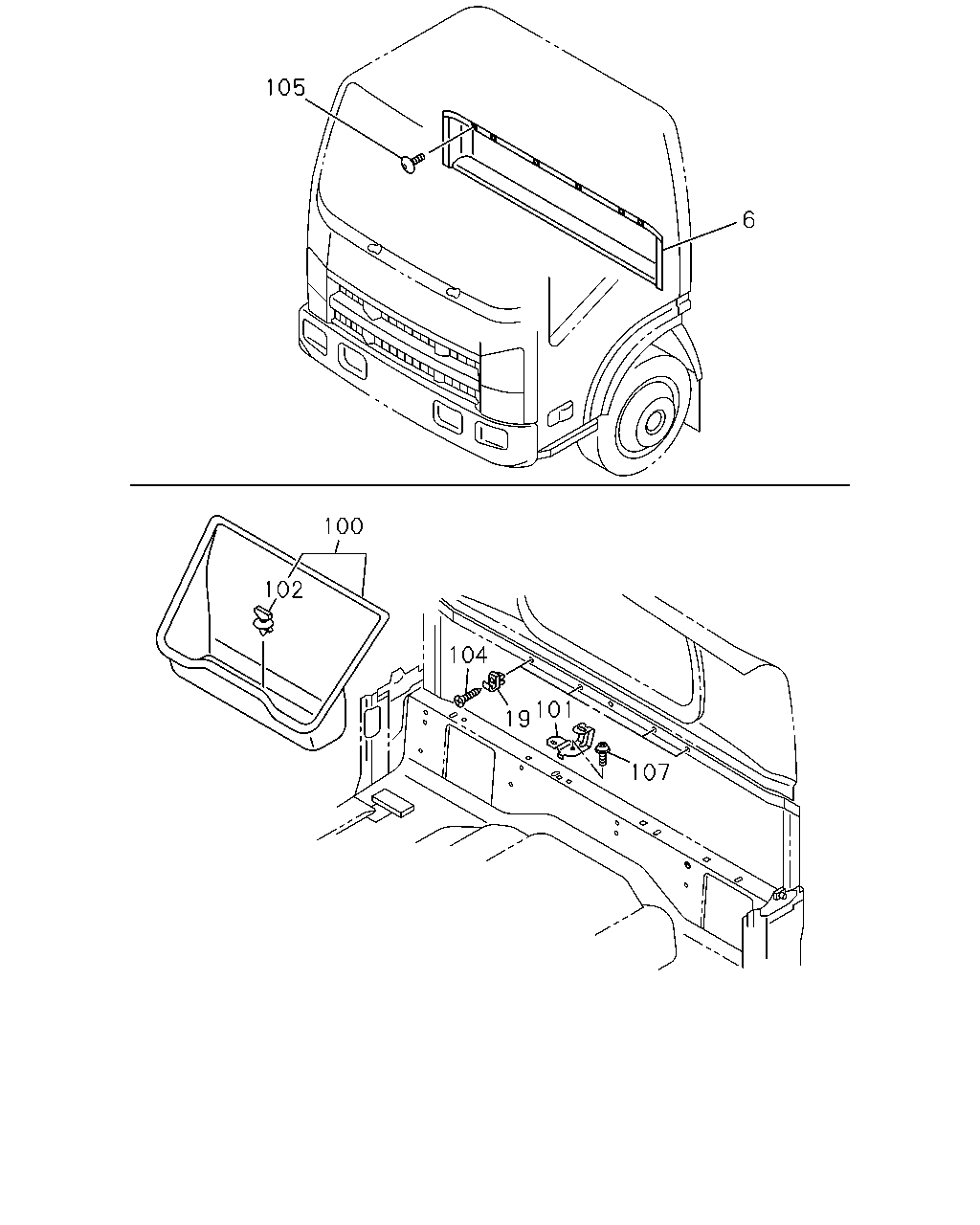

çizim 159392
105 6 100 102 104 101 19 107
BalonParca AdiParca NoAdetTipApplied Date A B
6 16.592 MAT; SILENCER,CAB BACK
INSPECTION ENGINE COVER<8GA> GRAY 		8-97412-462-2 01 1 0911-1108 ●
6 16.592 MAT; SILENCER,CAB BACK
INSPECTION ENGINE COVER<8GA> GRAY 		8-97412-462-2 01 1 1109- ● ●
6 16.592 MAT; SILENCER,CAB BACK
EXC. INSPECTION ENGINE COVER<8GA> GRAY 		8-97405-289-3 01 1 0911-1108 ●
6 16.592 MAT; SILENCER,CAB BACK
EXC. INSPECTION ENGINE COVER<8GA> GRAY 		8-97405-289-3 01 1 1109- ● ●
19 16.165 HOOK; RET
GRAY 		8-97406-042-0 04 1 0911-1108 ●
19 16.165 HOOK; RET
GRAY 		8-97406-042-0 04 1 1109- ● ●
100 16.587 TRAY; BACK PANEL
GRAY 		8-97405-174-1 01 1 0911-1108 ●
100 16.587 TRAY; BACK PANEL
GRAY 		8-97405-174-1 01 1 1109- ● ●
101 17.225 BRACKET; TRAY,BACK PANEL 8-98029-439-1 01 1 0911-1108 ●
101 17.225 BRACKET; TRAY,BACK PANEL 8-98029-439-1 01 1 1109- ● ●
102 16.584 CLIP; TRAY,BACK PANEL
GRAY 		8-97406-996-0 01 1 0911-1108 ●
102 16.584 CLIP; TRAY,BACK PANEL
GRAY 		8-97406-996-0 01 1 1109- ● ●
104 17.225 SCREW; BACK TRIM
M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 04 1 0911-1108 ●
104 17.225 SCREW; BACK TRIM
M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 04 1 1109- ● ●
105 16.166 CLIP; BACK TRIM
GRAY 		8-97405-295-0 02 1 0911-1108 ●
105 16.166 CLIP; BACK TRIM
GRAY 		8-97405-295-0 02 1 1109- ● ●
107 16.588 SCREW; BRKT
16.570 M6X16 		0-38050-616-0 01 1 0911-1108 ●
107 16.588 SCREW; BRKT
16.570 M6X16 		0-38050-616-0 01 1 1109- ● ●
