6-70 — FLOOR PANEL (#50529) — 119 parça

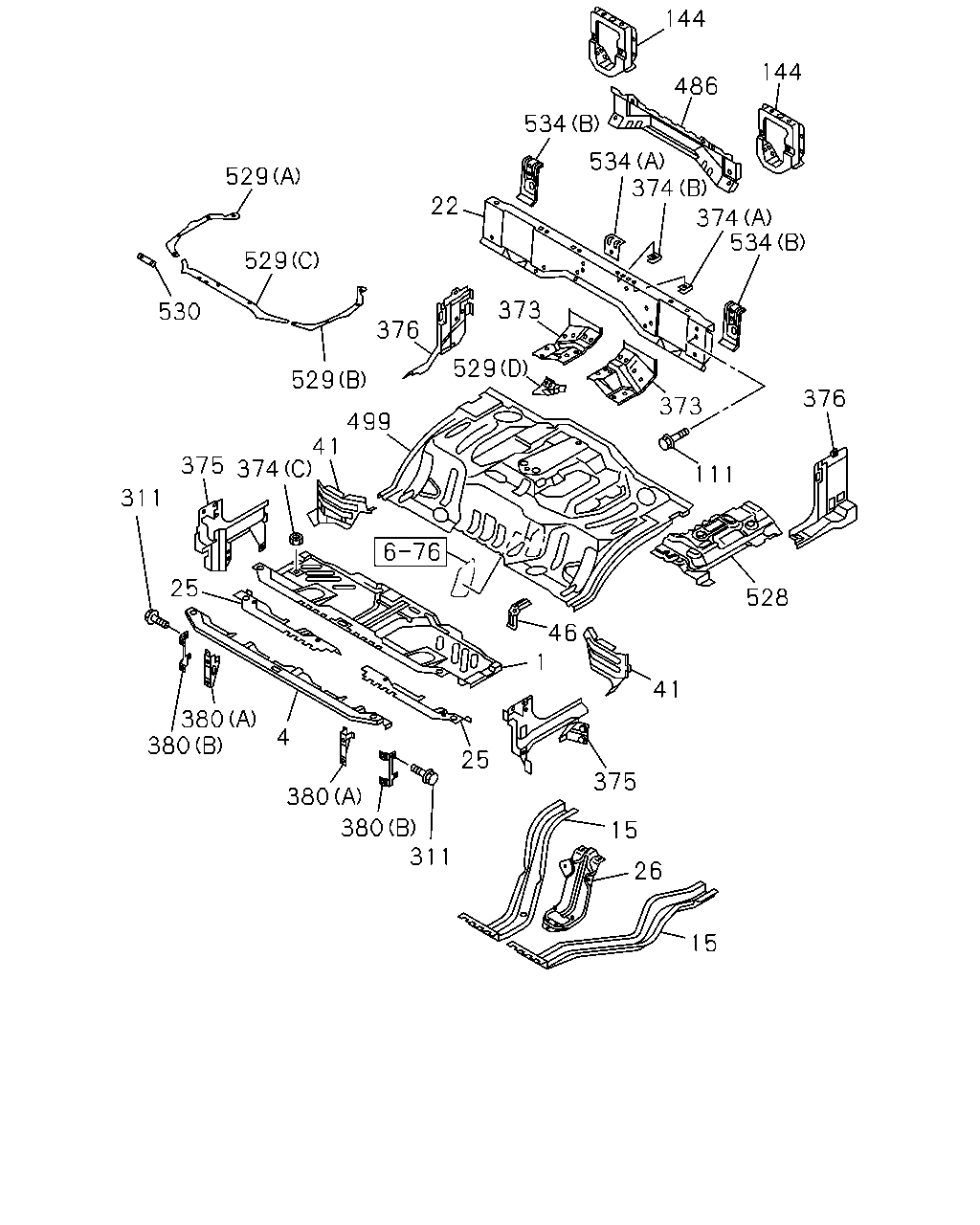

çizim 159387
144 144 486 534 534 374 529 22 374 534 529 373 530 376 529 529 376 373 499 41 374 375 111 311 25 528 46 1 41 380 380 4 25 375 380 380 311 15 26 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.545 PANEL; FLOOR 8-97589-407-4 01 1 0911-1108 ●
1 16.545 PANEL; FLOOR 8-97589-407-4 01 1 1109- ● ●
4 16.545 FRAME; FLOOR,FRT 8-98107-595-0 01 1 0911-1108 ●
4 16.545 FRAME; FLOOR,FRT 8-98107-595-0 01 1 1109- ● ●
15 16.545 FRAME; UNDER 8-98059-497-1 01 1 0911-1108 ●
15 16.545 FRAME; UNDER 8-98059-497-1 01 1 1109- ● ●
15 16.545 FRAME; UNDER 8-98059-498-1 01 1 0911-1108 ●
15 16.545 FRAME; UNDER 8-98059-498-1 01 1 1109- ● ●
22 16.545 FRAME; FLOOR REAR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-418-4 01 1 0911-1008 ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-418-4 01 1 1009-1108 ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-418-4 01 1 1109-1211 ● ●
22 16.545 FRAME; FLOOR REAR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-418-4 01 1 1212- ● ●
22 16.545 FRAME; FLOOR REAR
INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> 		8-97589-430-4 01 1 0911-1108 ●
22 16.545 FRAME; FLOOR REAR
INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> 		8-97589-430-4 01 1 1109-1211 ● ●
22 16.545 FRAME; FLOOR REAR
INSPECTION ENGINE COVER<8GA> 		8-97589-430-4 01 1 1212- ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-97583-823-0 01 1 0911-1108 ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-97583-823-0 01 1 1109- ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-98107-587-0 01 1 0911-1108 ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-98107-587-0 01 1 1109- ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97589-517-1 01 1 0911-1108 ●
26 16.545 PANEL; GEAR CONT REINF 8-97589-517-1 01 1 1109- ● ●
41 16.545 SUPPORT; STEP,RR 8-97583-880-1 01 1 0911-1108 ●
41 16.545 SUPPORT; STEP,RR 8-97583-880-1 01 1 1109- ● ●
41 16.545 SUPPORT; STEP,RR 8-97583-881-1 01 1 0911-1108 ●
41 16.545 SUPPORT; STEP,RR 8-97583-881-1 01 1 1109- ● ●
46 16.545 BRACKET; FRT SEAT,RR OUTER 8-97583-834-0 01 1 0911-1108 ●
46 16.545 BRACKET; FRT SEAT,RR OUTER 8-97583-834-0 01 1 1109- ● ●
111 16.549 BOLT; PANEL
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0911-1108 ●
111 16.549 BOLT; PANEL
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1109- ● ●
144 16.545 BRACKET; MTG,RR
INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> 		8-98112-244-1 02 1 0911-1108 ●
144 16.545 BRACKET; MTG,RR
INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> 		8-98112-244-1 02 1 1109-1211 ● ●
144 16.545 BRACKET; MTG,RR
INSPECTION ENGINE COVER<8GA> 		8-98112-244-2 02 1 1212- ● ●
144 16.545 BRACKET; MTG,RR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-544-1 02 1 0911-1008 ●
144 16.545 BRACKET; MTG,RR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-544-2 02 1 1009-1108 ●
144 16.545 BRACKET; MTG,RR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-544-2 02 1 1109-1211 ● ●
144 16.545 BRACKET; MTG,RR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-544-3 02 1 1212- ● ●
311 16.545 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0911-1108 ●
311 16.545 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1109- ● ●
373 16.545 REINFORCEMENT; SEAT BELT
EXC. INSPECTION ENGINE COVER<8GA> 		8-98014-525-2 01 1 0911-1008 ●
373 16.545 REINFORCEMENT; SEAT BELT
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98014-525-2 01 1 1009-1108 ●
373 16.545 REINFORCEMENT; SEAT BELT
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98014-525-2 01 1 1109-1211 ● ●
373 16.545 REINFORCEMENT; SEAT BELT
EXC. INSPECTION ENGINE COVER<8GA> 		8-98014-525-2 01 1 1212- ● ●
373 16.545 REINFORCEMENT; SEAT BELT
EXC. INSPECTION ENGINE COVER<8GA> 		8-98014-526-2 01 1 0911-1008 ●
373 16.545 REINFORCEMENT; SEAT BELT
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98014-526-2 01 1 1009-1108 ●
373 16.545 REINFORCEMENT; SEAT BELT
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98014-526-2 01 1 1109-1211 ● ●
373 16.545 REINFORCEMENT; SEAT BELT
EXC. INSPECTION ENGINE COVER<8GA> 		8-98014-526-2 01 1 1212- ● ●
374 16.545 NUT; FLOOR
INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (A) M8 		1-09984-111-0 04 1 0911-1108 ●
374 16.545 NUT; FLOOR
INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (A) M8 		1-09984-111-0 04 1 1109-1211 ● ●
374 16.545 NUT; FLOOR
INSPECTION ENGINE COVER<8GA> (A) M8 		1-09984-111-0 04 1 1212- ● ●
374 16.545 NUT; FLOOR
(B) M6 		1-09984-110-0 02 1 0911-1108 ●
374 16.545 NUT; FLOOR
(B) M6 		1-09984-110-0 02 1 1109- ● ●
374 16.545 NUT; FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (A) M8 		1-09984-111-0 01 1 0911-1008 ●
374 16.545 NUT; FLOOR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) M8 		1-09984-111-0 01 1 1009-1108 ●
374 16.545 NUT; FLOOR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) M8 		1-09984-111-0 01 1 1109-1211 ● ●
374 16.545 NUT; FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (C) M8 		1-09984-111-0 01 1 1212- ● ●
374 16.545 NUT; FLOOR
(C) M8 		9-09114-068-0 03 1 0911- ●
375 16.545 CLOSING; PILLAR 8-97583-882-3 01 1 0911-1108 ●
375 16.545 CLOSING; PILLAR 8-97583-882-3 01 1 1109- ● ●
375 16.545 CLOSING; PILLAR 8-97583-883-2 01 1 0911-1108 ●
375 16.545 CLOSING; PILLAR 8-97583-883-2 01 1 1109- ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97583-888-2 01 1 0911-1108 ●
376 16.545 CLOSING; PILLAR,LWR 8-97583-888-2 01 1 1109- ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97584-618-2 01 1 0911-1108 ●
376 16.545 CLOSING; PILLAR,LWR 8-97584-618-2 01 1 1109- ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-384-4 01 1 0911-1108 ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-384-4 01 1 1109- ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-385-3 01 1 0911-1108 ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-385-3 01 1 1109- ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-288-0 01 1 0911-1108 ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-288-0 01 1 1109- ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-289-0 01 1 0911-1108 ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-289-0 01 1 1109- ● ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR
INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> 		8-98030-615-2 01 1 0911-1108 ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR
INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> 		8-98030-615-2 01 1 1109-1211 ● ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR
INSPECTION ENGINE COVER<8GA> 		8-98030-615-2 01 1 1212- ● ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR
EXC. INSPECTION ENGINE COVER<8GA> 		8-98030-613-2 01 1 0911-1008 ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98030-613-2 01 1 1009-1108 ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98030-613-2 01 1 1109-1211 ● ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR
EXC. INSPECTION ENGINE COVER<8GA> 		8-98030-613-2 01 1 1212- ● ●
499 16.545 PANEL; FLOOR,RR
INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> 		8-97589-426-4 01 1 0911-1108 ●
499 16.545 PANEL; FLOOR,RR
INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> 		8-97589-426-4 01 1 1109-1207 ● ●
499 16.545 PANEL; FLOOR,RR
INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> 		8-98207-188-0 01 1 1208-1211 ● ●
499 16.545 PANEL; FLOOR,RR
INSPECTION ENGINE COVER<8GA> 		8-98207-188-0 01 1 1212- ● ●
499 16.545 PANEL; FLOOR,RR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-409-4 01 1 0911-1008 ●
499 16.545 PANEL; FLOOR,RR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-409-5 01 1 1009-1108 ●
499 16.545 PANEL; FLOOR,RR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-409-5 01 1 1109-1207 ● ●
499 16.545 PANEL; FLOOR,RR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98204-799-0 01 1 1208-1211 ● ●
499 16.545 PANEL; FLOOR,RR
EXC. INSPECTION ENGINE COVER<8GA> 		8-98204-799-0 01 1 1212- ● ●
528 16.545 REINFORCEMENT; PARKING BRAKE
EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-410-2 01 1 0911-1008 ●
528 16.545 REINFORCEMENT; PARKING BRAKE
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-410-2 01 1 1009-1108 ●
528 16.545 REINFORCEMENT; PARKING BRAKE
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-410-2 01 1 1109-1211 ● ●
528 16.545 REINFORCEMENT; PARKING BRAKE
EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-410-2 01 1 1212- ● ●
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (A) 		8-97589-467-1 01 1 0911-1108 ●
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (A) 		8-97589-467-1 01 1 1109-1211 ● ●
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (A) 		8-97589-467-1 01 1 1212- ● ●
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (B) 		8-97589-468-1 01 1 0911-1108 ●
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (B) 		8-97589-468-1 01 1 1109-1211 ● ●
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (B) 		8-97589-468-1 01 1 1212- ● ●
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (C) 		8-98006-715-0 01 1 0911-1108 ●
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (C) 		8-98006-715-0 01 1 1109-1211 ● ●
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (C) 		8-98006-715-0 01 1 1212- ● ●
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (D) 		8-98031-663-0 01 1 0911-1108 ●
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (D) 		8-98031-663-0 01 1 1109-1211 ● ●
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (D) 		8-98031-663-0 01 1 1212- ● ●
530 16.565 BRACKET; COVER
INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> 		8-97589-255-0 01 1 0911-1108 ●
530 16.565 BRACKET; COVER
INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> 		8-97589-255-0 01 1 1109-1211 ● ●
530 16.565 BRACKET; COVER
INSPECTION ENGINE COVER<8GA> 		8-97589-255-0 01 1 1212- ● ●
534 16.545 REINFORCEMENT; SEAT BACK
(B) 		8-97583-851-3 02 1 0911-1108 ●
534 16.545 REINFORCEMENT; SEAT BACK
(B) 		8-97583-851-3 02 1 1109- ● ●
534 16.545 REINFORCEMENT; SEAT BACK
(A) 		8-98019-181-2 01 1 0911-1108 ●
534 16.545 REINFORCEMENT; SEAT BACK
(A) 		8-98019-181-2 01 1 1109- ● ●

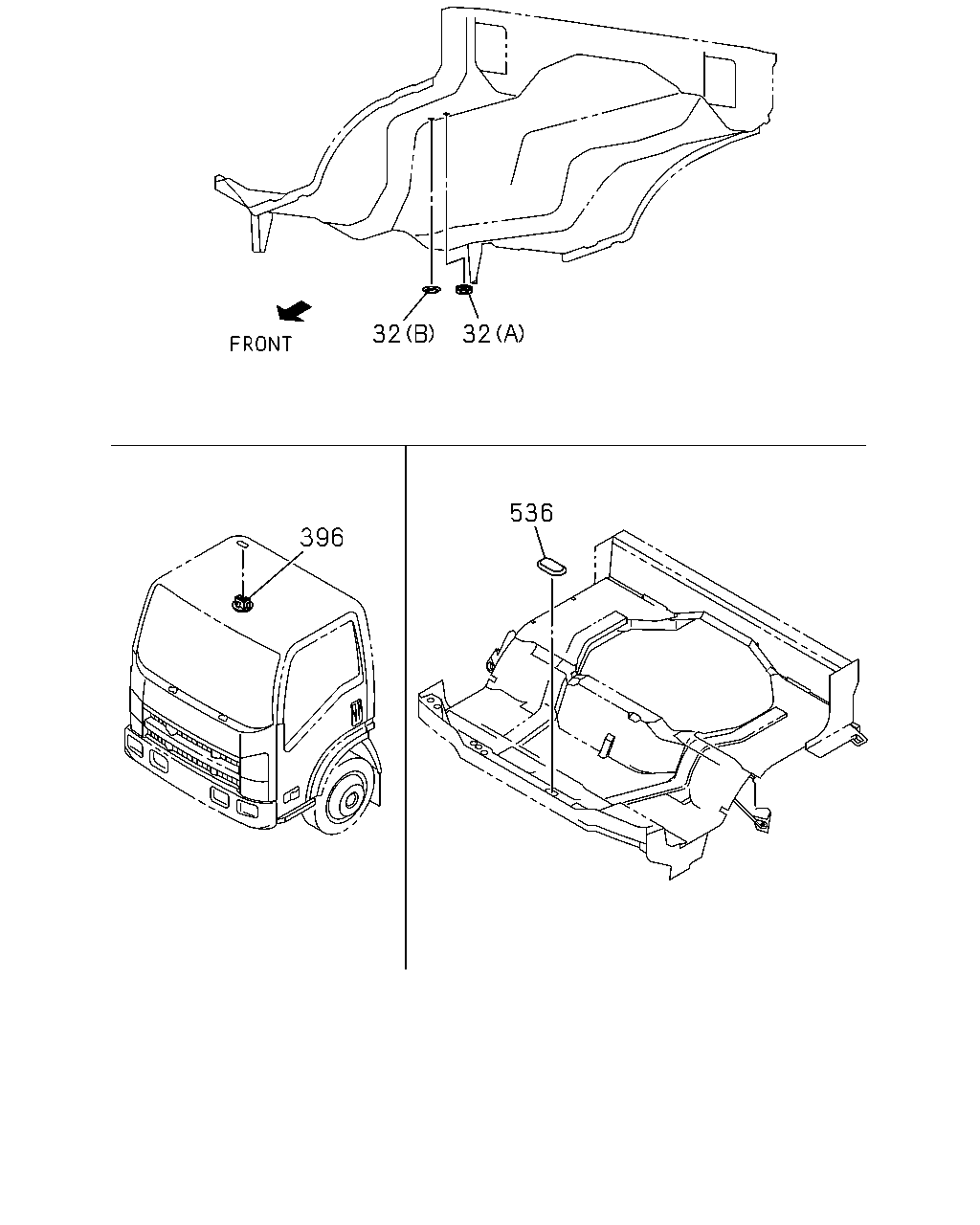

çizim 159390
32 32 536 396
BalonParca AdiParca NoAdetTipApplied Date A B
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(A) OD=15.0 		8-94279-040-0 02 1 0911-1108 ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(A) OD=15.0 		8-94279-040-0 02 1 1109- ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(B) OD=12.1 		8-97898-423-0 02 1 0911-1108 ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(B) OD=12.1 		8-97898-423-0 02 1 1109- ● ●
396 16.547 GROMMET; LOCATION HOLE 8-98054-990-0 02 1 0911-1108 ●
396 16.547 GROMMET; LOCATION HOLE 8-98054-990-0 02 1 1109- ● ●
536 16.549 PLUG; CABLE,PTO
04.008 		8-98029-219-1 01 1 0911-1108 ●
536 16.549 PLUG; CABLE,PTO
04.008 		8-98029-219-1 01 1 1109- ● ●
