◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51244 - NPR(LHD) EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#50528) — 34 parça

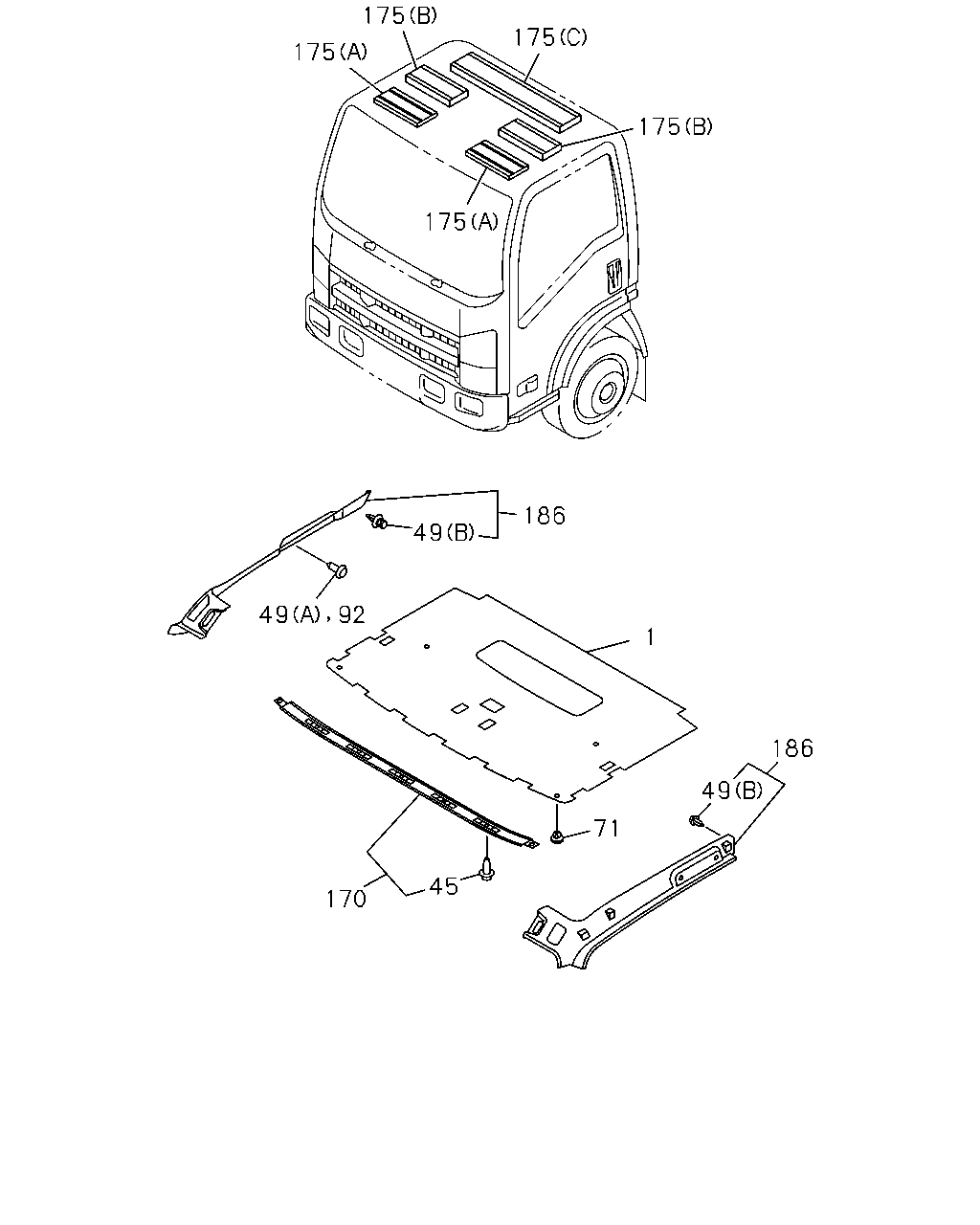

çizim 159400
175 175 175 175 175 186 49 49 92 1 186 49 71 45 170
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.742 LINING; HD
HEADER TRAY DRIVER<W56> DARK GRAY 		8-97411-516-3 01 1 0911-1108 ●
1 16.742 LINING; HD
HEADER TRAY DRIVER<W56> DARK GRAY 		8-97411-516-3 01 1 1109- ● ●
1 16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-270-8 01 1 0911-1108 ●
1 16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-270-8 01 1 1109- ● ●
1 16.742 LINING; HD
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-269-7 01 1 0911-1108 ●
1 16.742 LINING; HD
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-269-7 01 1 1109- ● ●
45 16.742 CLIP; FINISHER 8-98035-592-1 05 1 0911-0911 ●
45 16.742 CLIP; FINISHER 8-98035-592-1 03 1 0912-1108 ●
45 16.742 CLIP; FINISHER 8-98035-592-1 03 1 1109- ● ●
49 16.742 CLIP; TRIM COVER
ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY 		8-97407-768-0 02 1 0911-1108 ●
49 16.742 CLIP; TRIM COVER
ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY 		8-97407-768-0 02 1 1109- ● ●
49 16.742 CLIP; TRIM COVER
16.578 (B) 		8-98059-610-0 03 1 0911-1108 ●
49 16.742 CLIP; TRIM COVER
16.578 (B) 		8-98059-610-0 03 1 1109-1410 ● ●
49 16.742 CLIP; TRIM COVER
16.578 (B) 		8-98059-610-0 02 1 1411- ● ●
71 16.742 FASTENER; HD LINING
DARK GRAY 		8-97405-282-0 06 1 0911-1108 ●
71 16.742 FASTENER; HD LINING
DARK GRAY 		8-97405-282-0 06 1 1109- ● ●
92 16.742 RETAINER; TRIM COVER
EXC. ASSIST GRIP PASSENGER<EG5> DARK GRAY 		8-97407-768-0 04 1 0911-1108 ●
92 16.742 RETAINER; TRIM COVER
EXC. ASSIST GRIP PASSENGER<EG5> DARK GRAY 		8-97407-768-0 04 1 1109- ● ●
170 16.742 FINISHER; HEAD LINING
DARK GRAY 		8-97405-281-5 01 1 0911-1108 ●
170 16.742 FINISHER; HEAD LINING
DARK GRAY 		8-97405-281-5 01 1 1109- ● ●
175 16.742 CUSHION; HEAD LINING
(A) 		8-98082-685-1 02 1 0911-1108 ●
175 16.742 CUSHION; HEAD LINING
(A) 		8-98082-685-1 02 1 1109- ● ●
175 16.742 CUSHION; HEAD LINING
(B) 		8-98037-299-3 02 1 0911-1108 ●
175 16.742 CUSHION; HEAD LINING
(B) 		8-98037-299-3 02 1 1109- ● ●
175 16.742 CUSHION; HEAD LINING
(C) 		8-98037-300-3 01 1 0911-1108 ●
175 16.742 CUSHION; HEAD LINING
(C) 		8-98037-300-3 01 1 1109- ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-252-3 01 1 0911-1108 ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-252-3 01 1 1109- ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-250-3 01 1 0911-1108 ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-250-3 01 1 1109- ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-263-3 01 1 0911-1108 ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-263-3 01 1 1109- ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-251-3 01 1 0911-1108 ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-251-3 01 1 1109- ● ●
